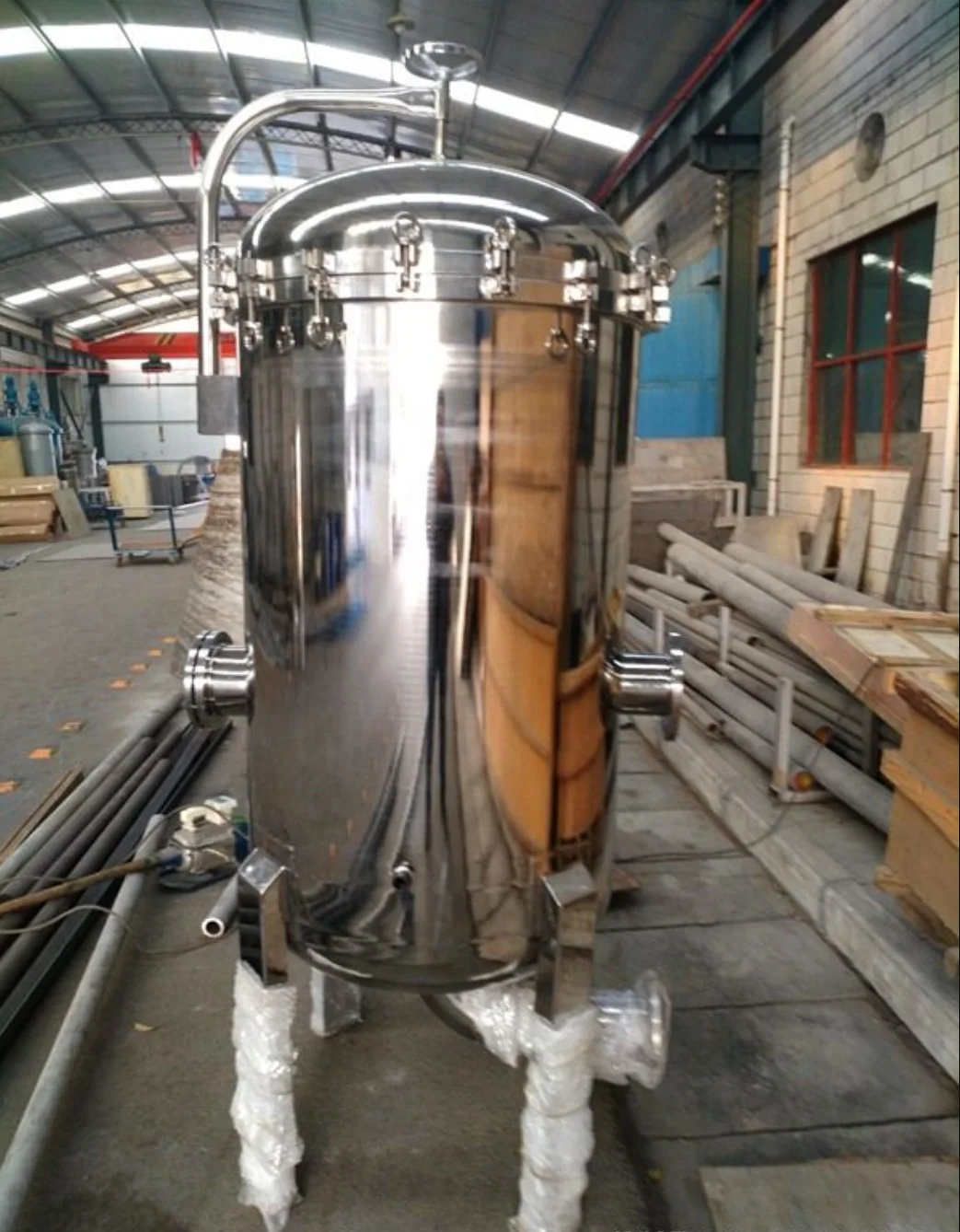

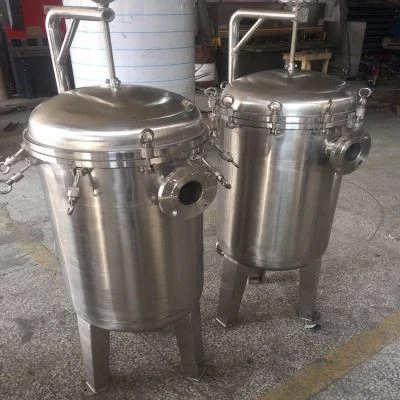

Quick opening Multi Bag Customized SS 304 316 Multi Whole House Water Security Precision Cartridge Bag Filter Housings Vessel
- Category: >>>
- Supplier: Libaijia (Shandong) Water Treatment Equipment Co. Ltd.
Share on (1600445407566):
Product Overview
Description
Product Description
stainless steel bag filter
Stainless Steel Bag Filter Housing;Wine/Oil/Ethanol/Liquid Filter Machine Stainless Steel Duplex Bag/Cartridge Filters with Diaphragm Pump Cart Stainless 304 top entry single bag filter housing chemical filter machine

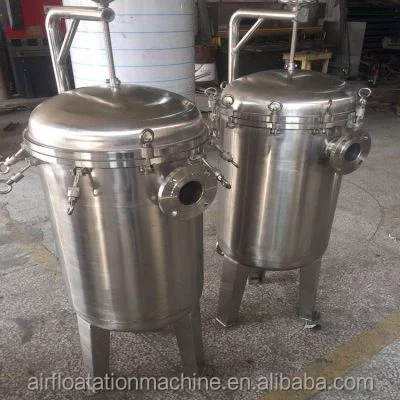

Stainless Steel Bag Filter Housing with all accessories

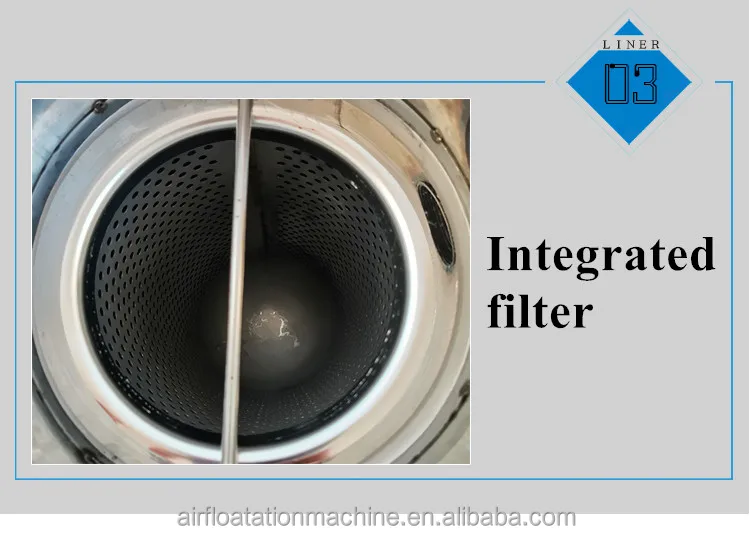

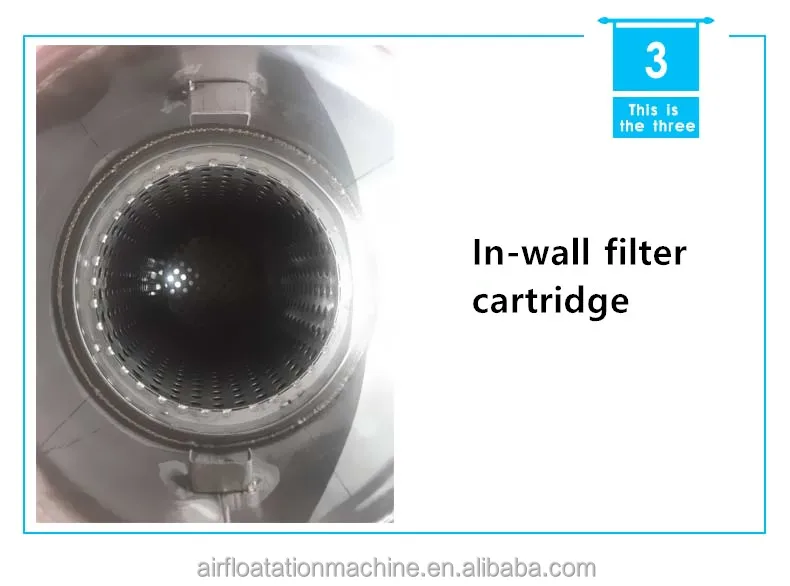

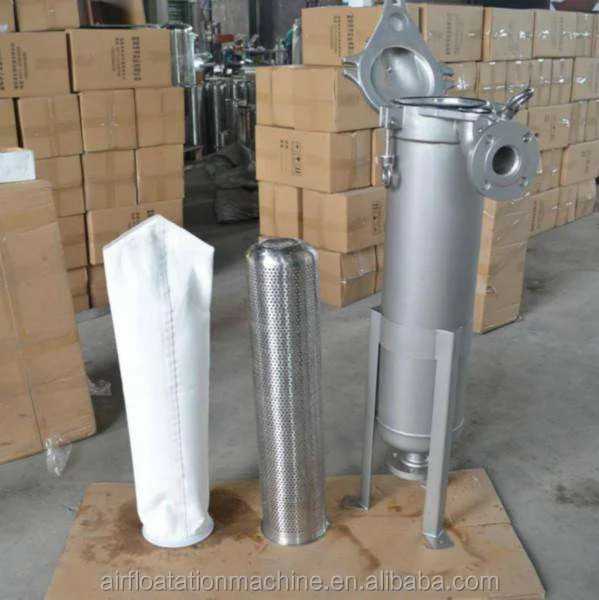

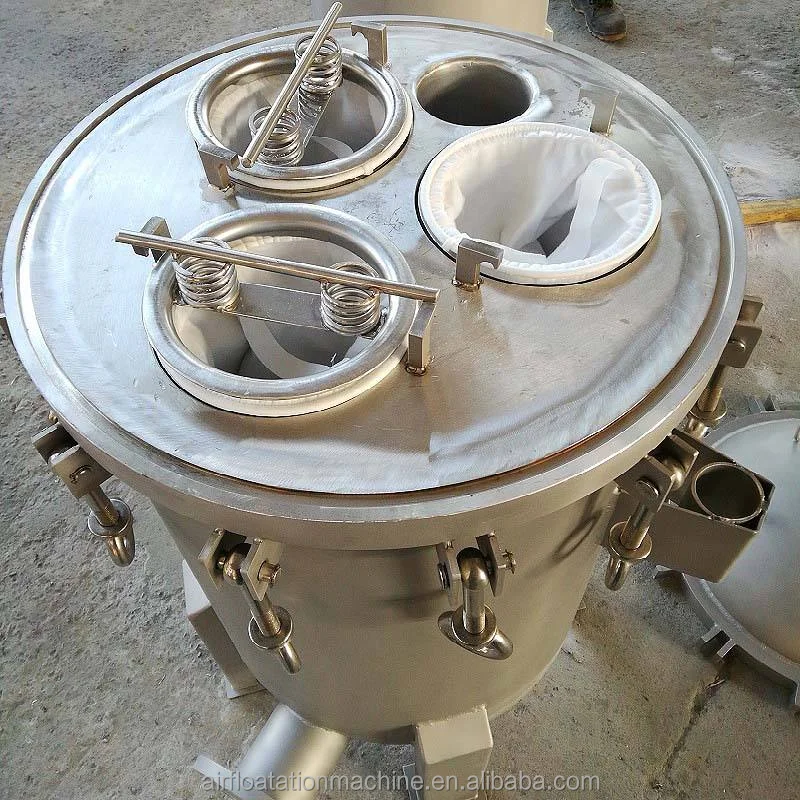

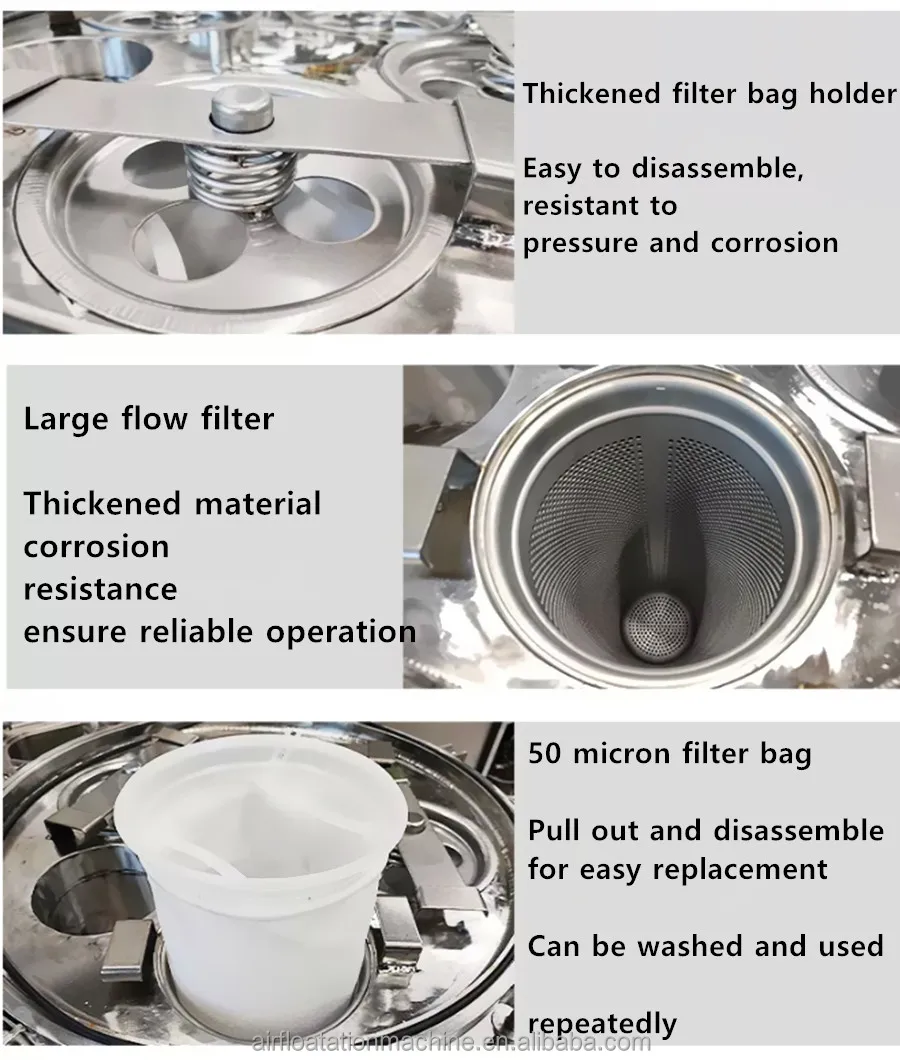

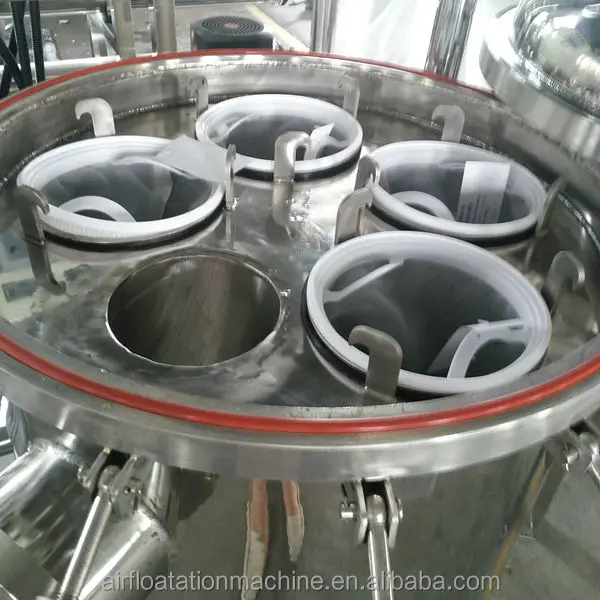

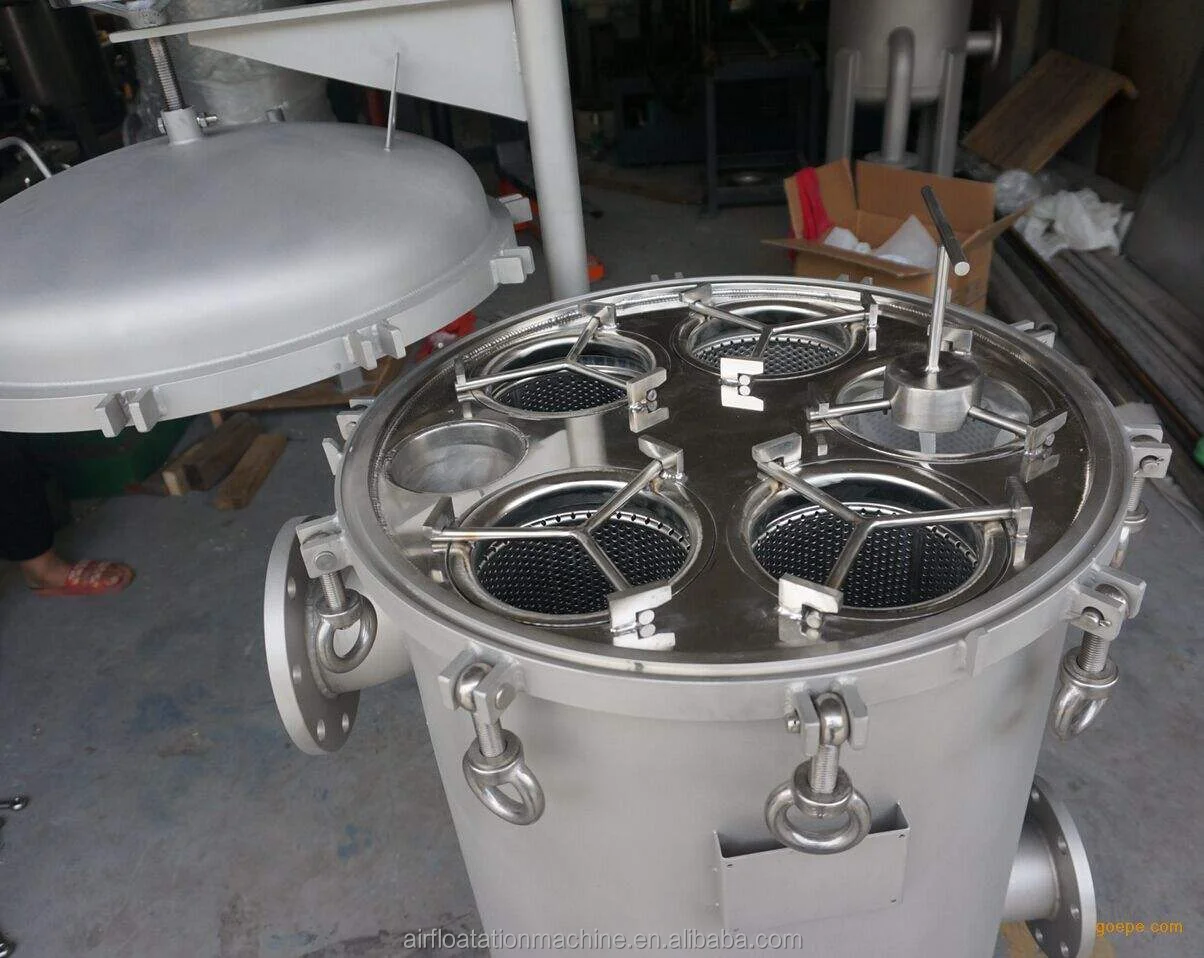

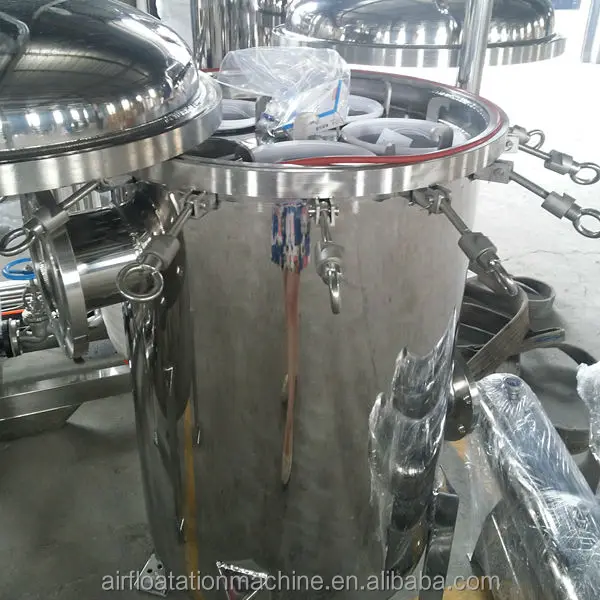

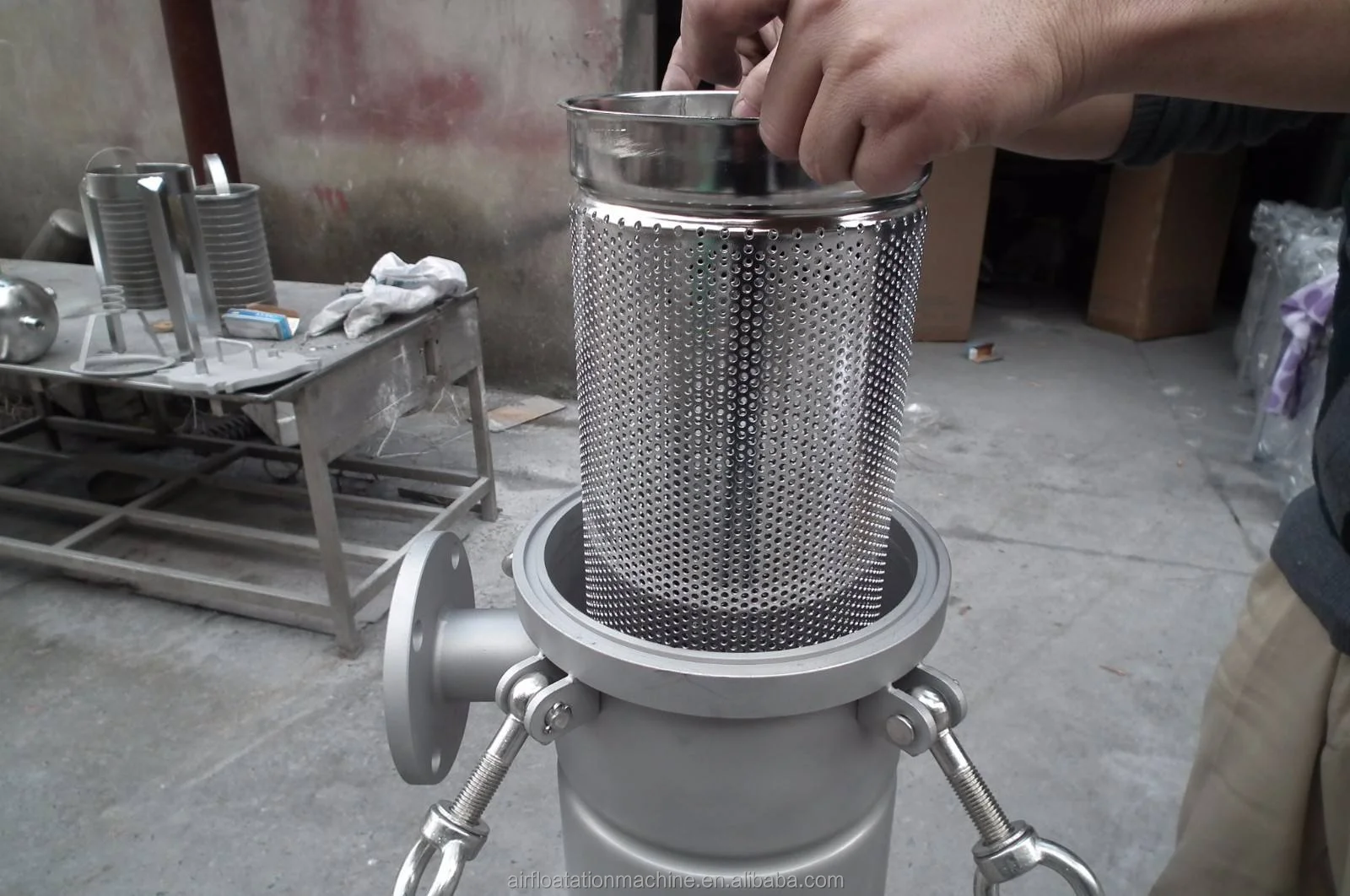

It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing.

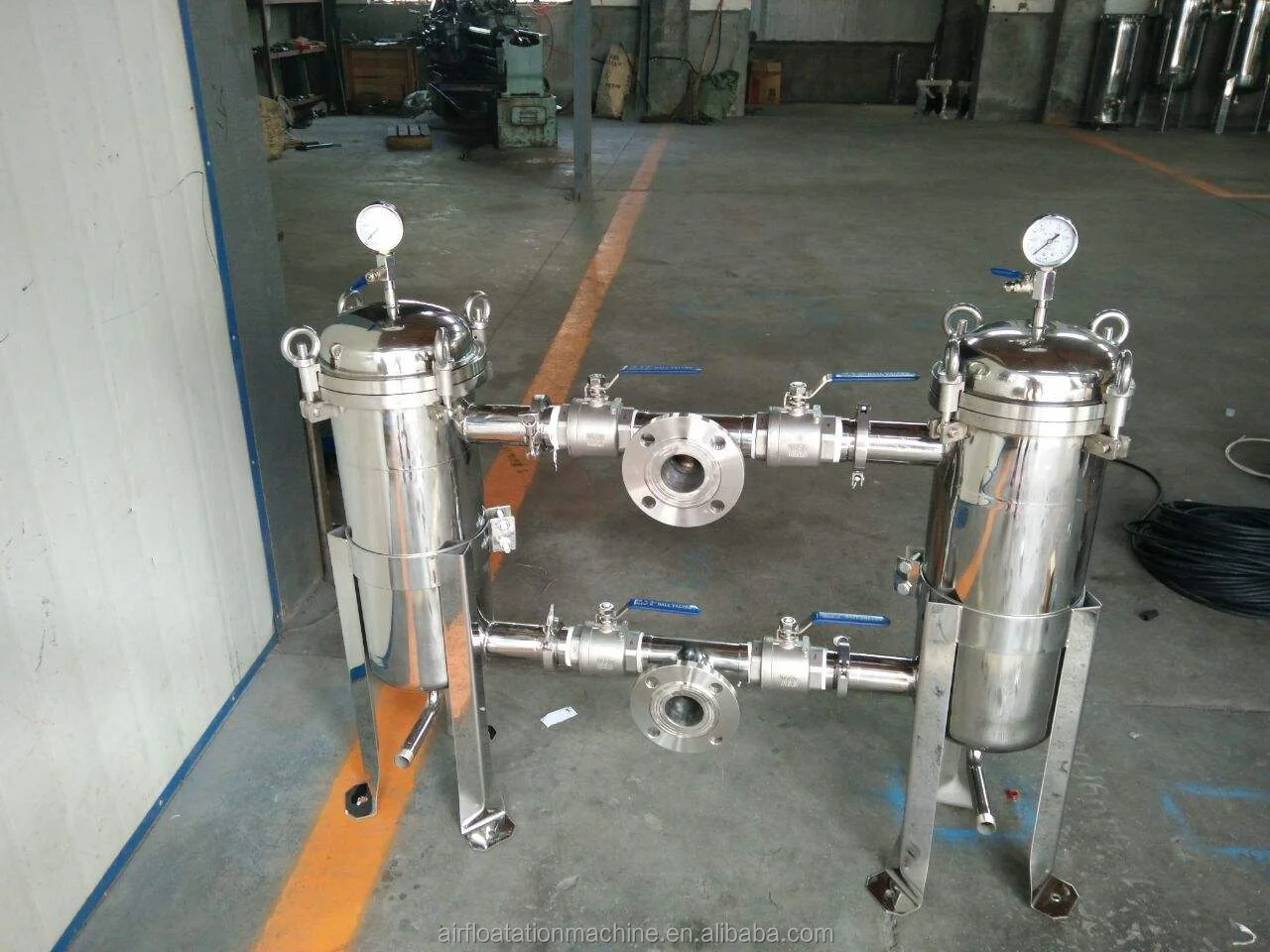

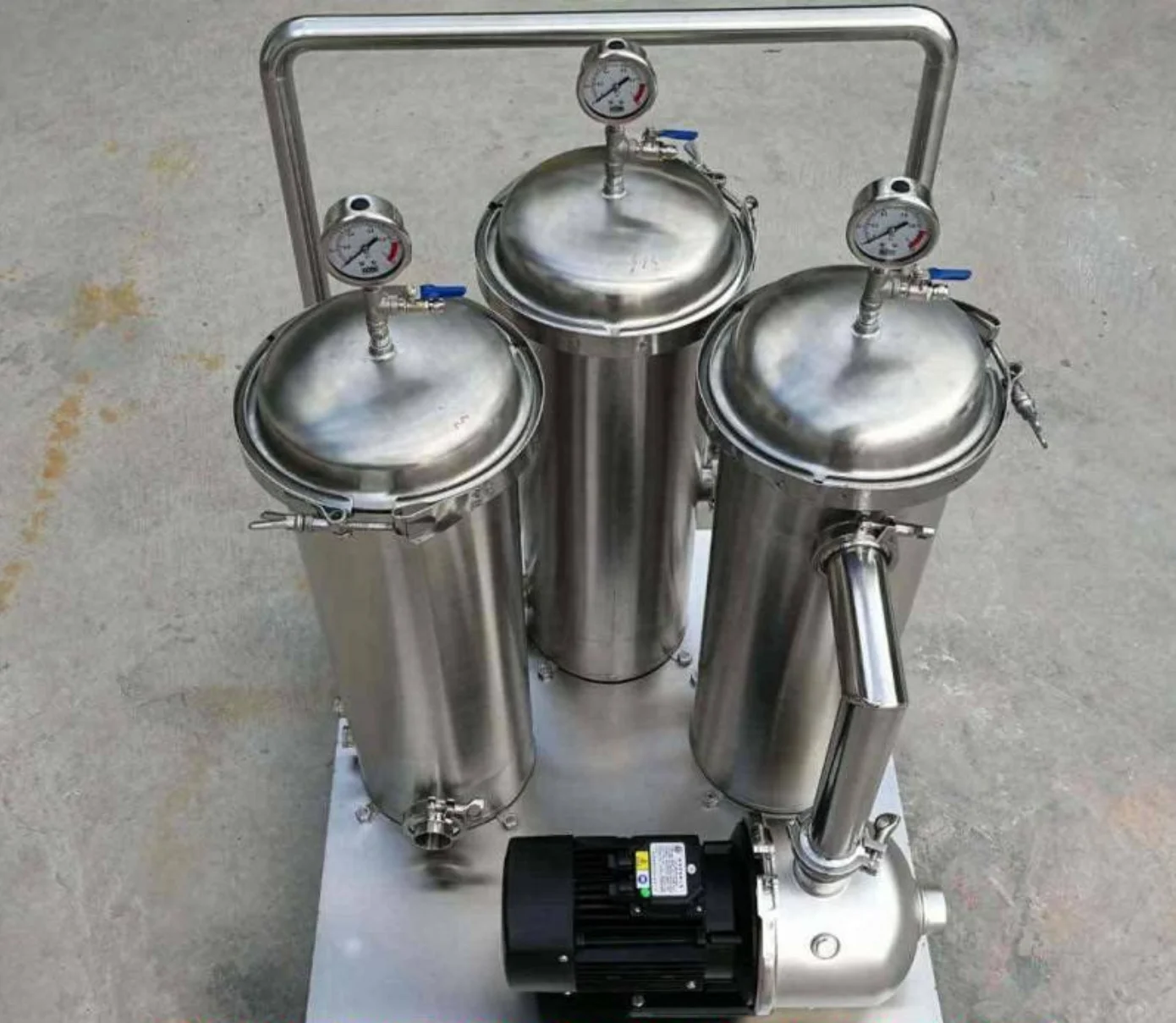

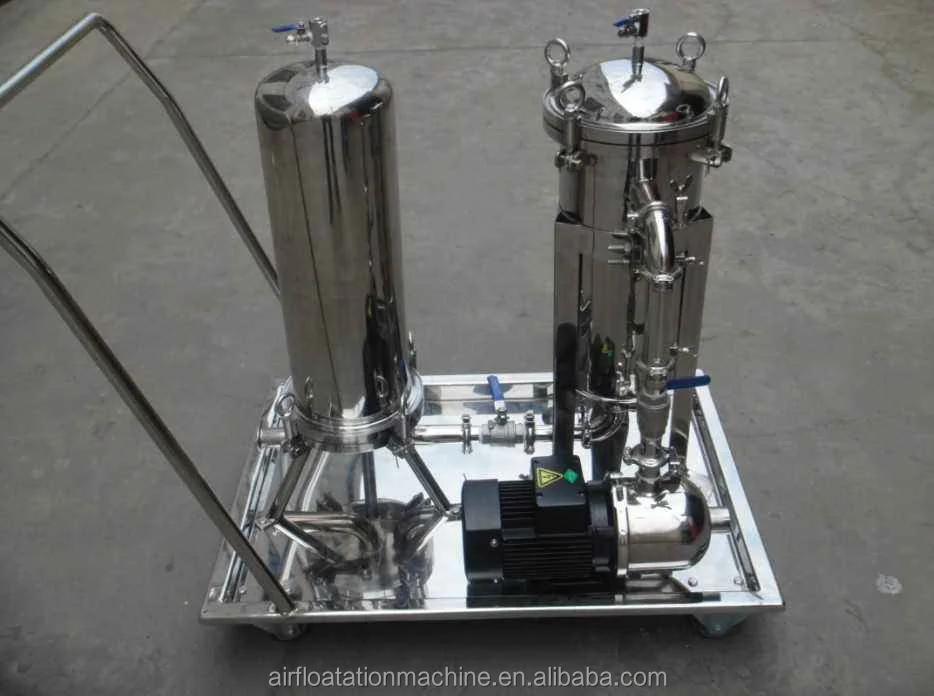

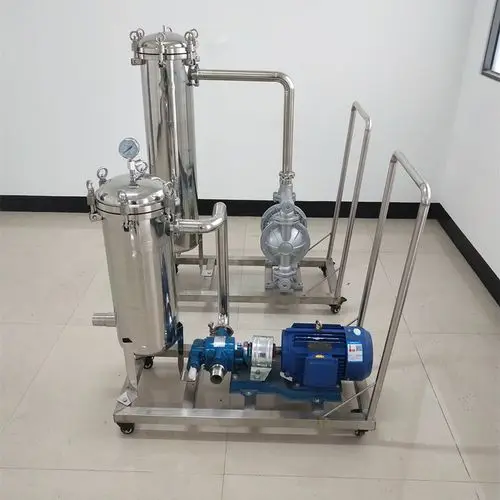

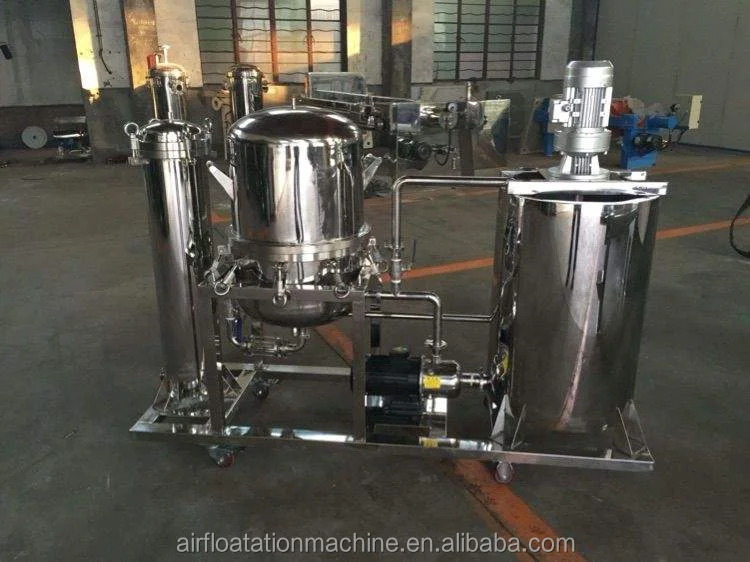

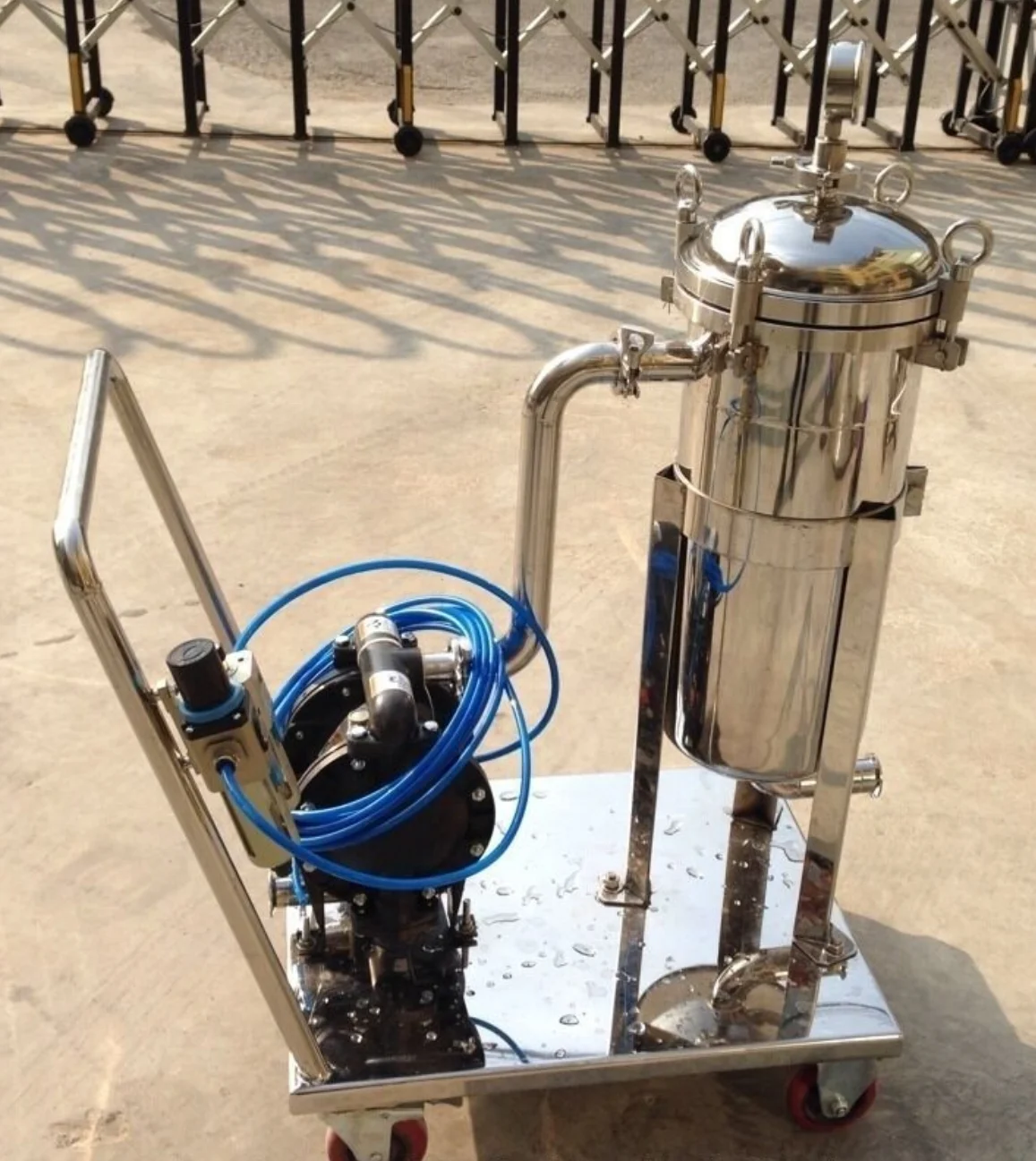

Wine/Oil/Ethanol/Liquid Filter Machine Stainless Steel Duplex Bag/Cartridge Filters with Diaphragm Pump Cart

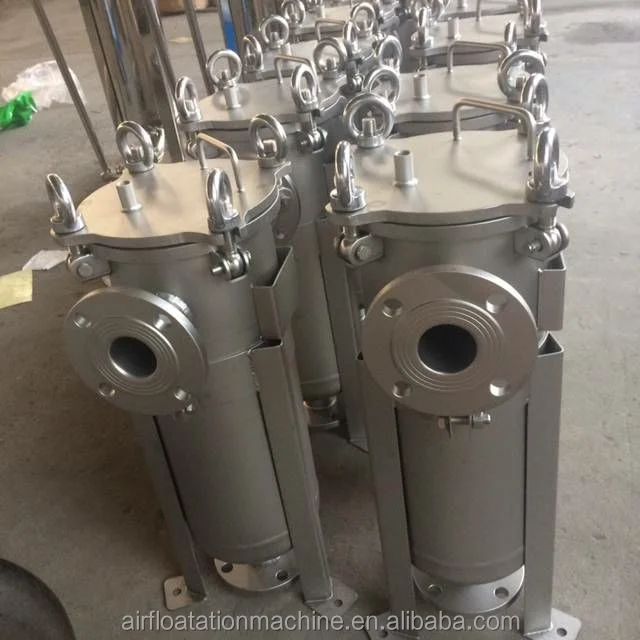

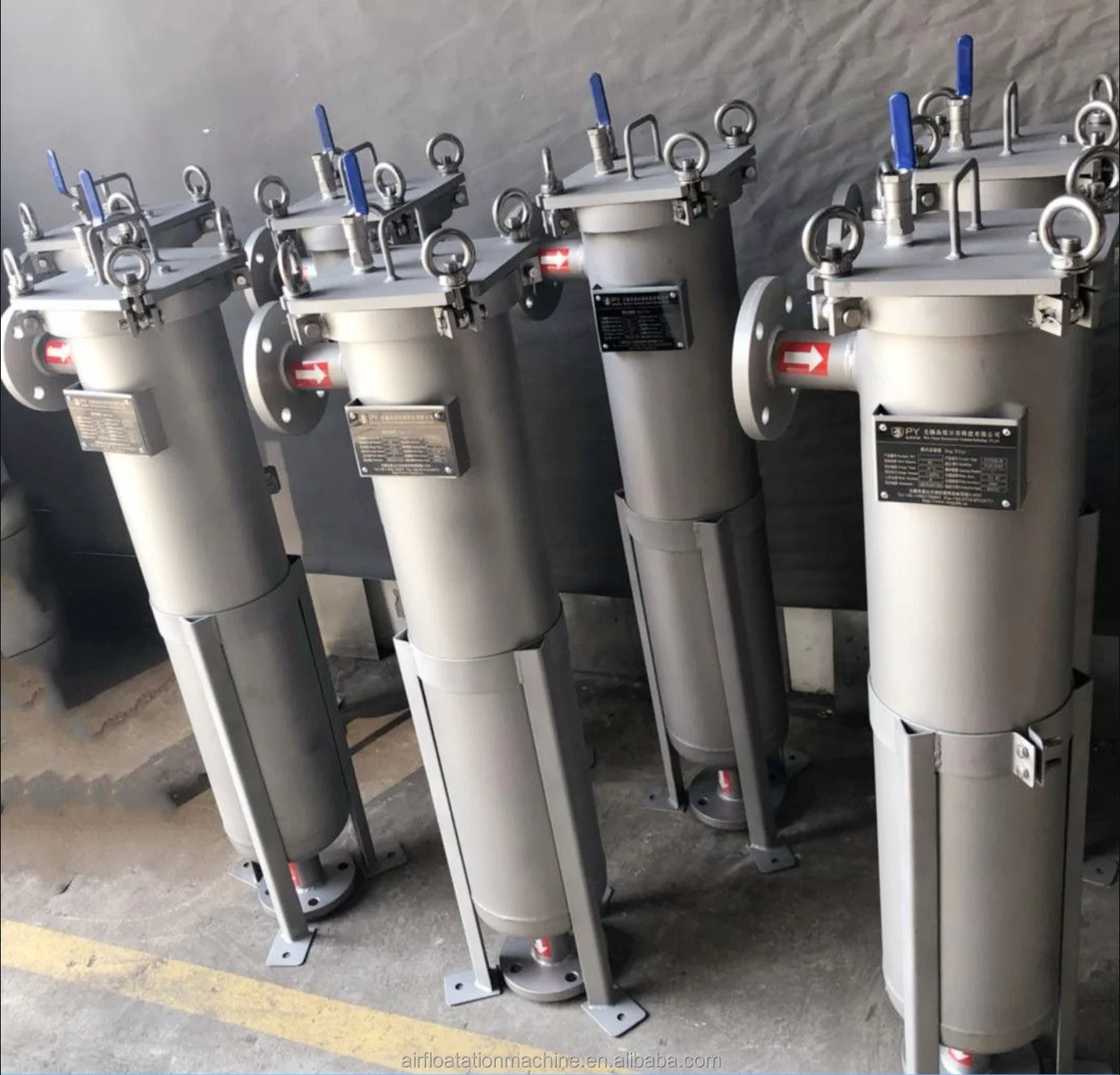

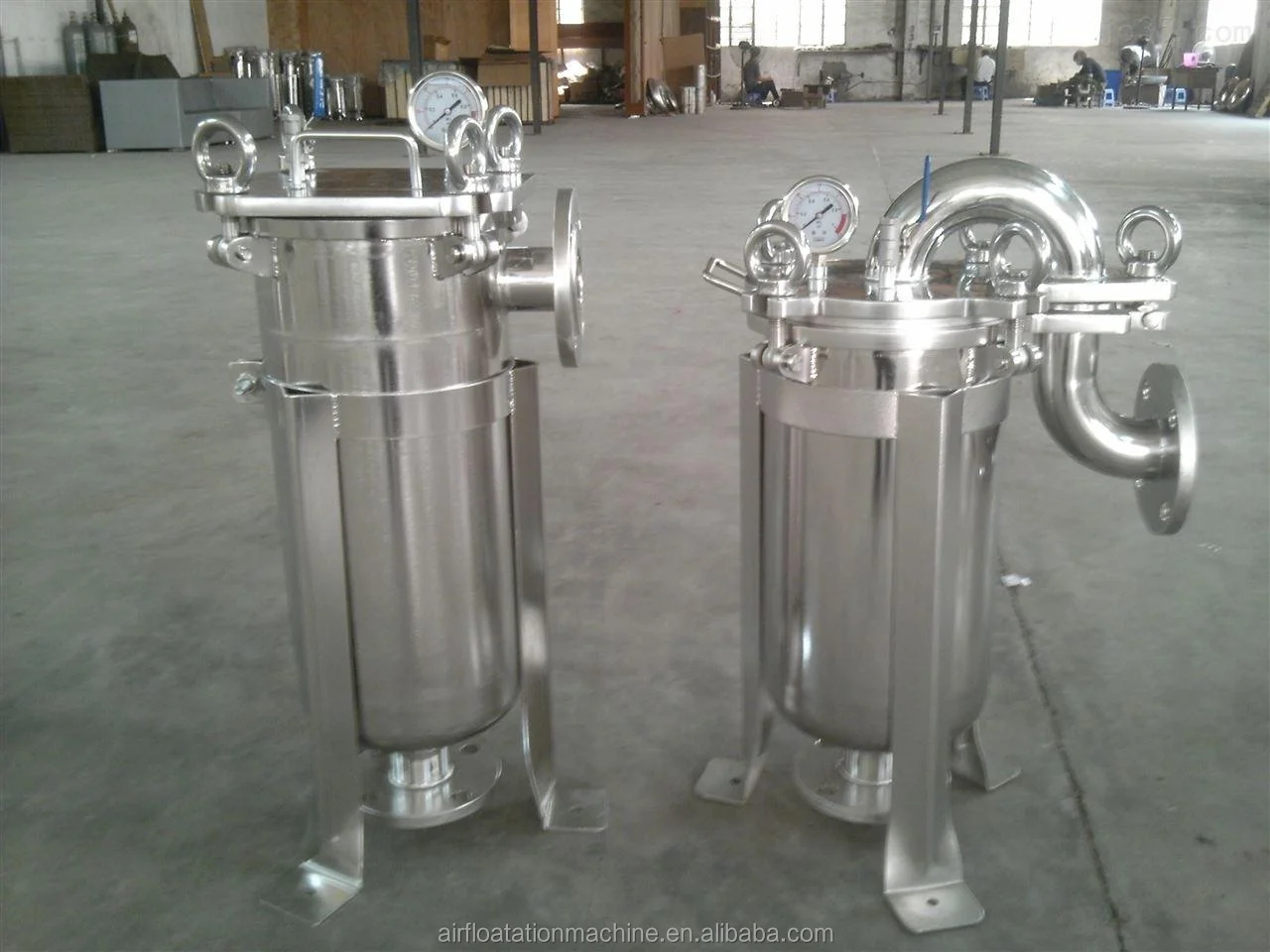

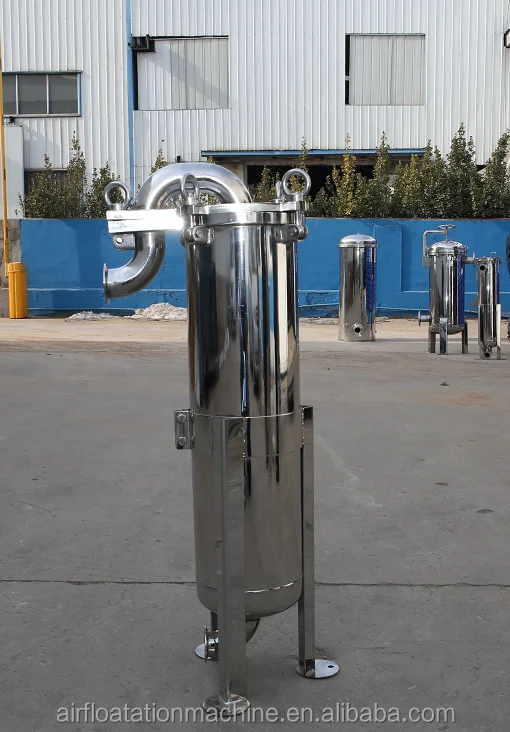

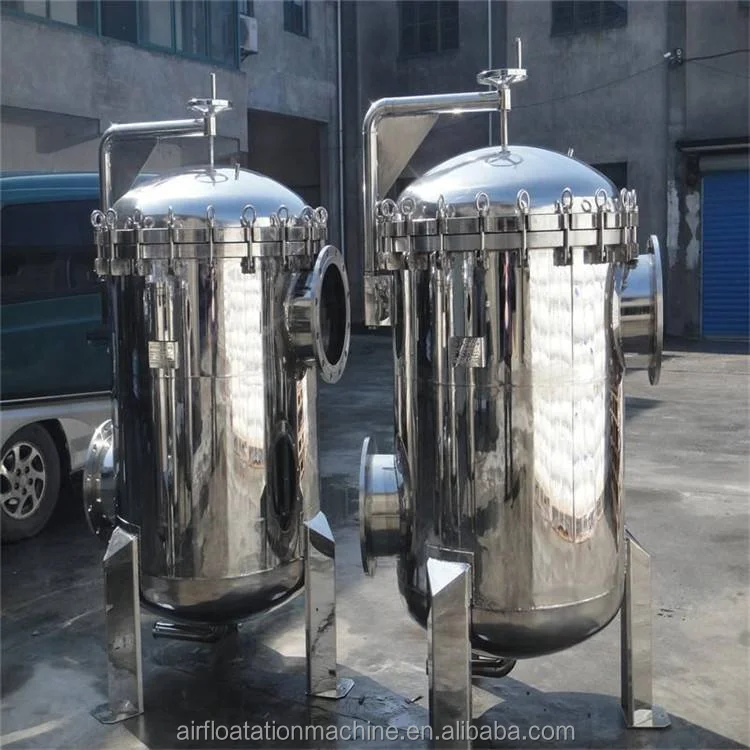

Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.
High filtration efficiency absolute rating 3 micron PP filter bag filter housing for coconut water milk oil filtration
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it
can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery
purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery
purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Specification
Product name | Stainless Steel bag filter housing | Material | SUS304, SUS316, SUS316L |
Bag quantity | single bag or multi-bag | Bag number | # 1, 2, 3, 4, 5 or OEM |
Quantity option | 1 to 18 bags | Surface treatment | Polished or sandblast external |

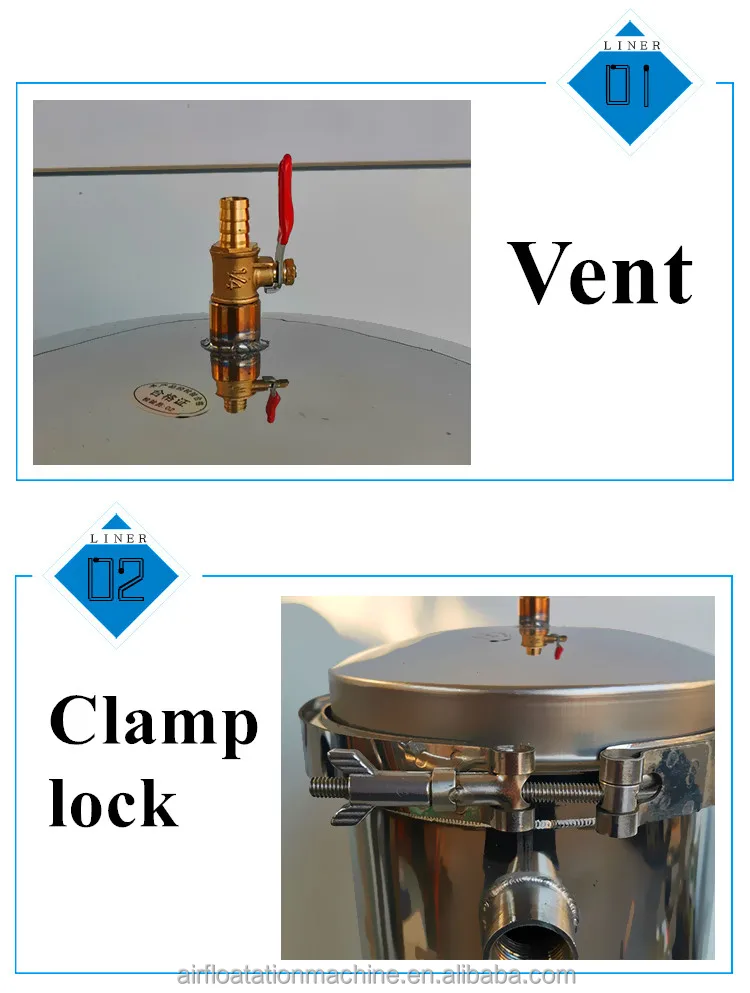

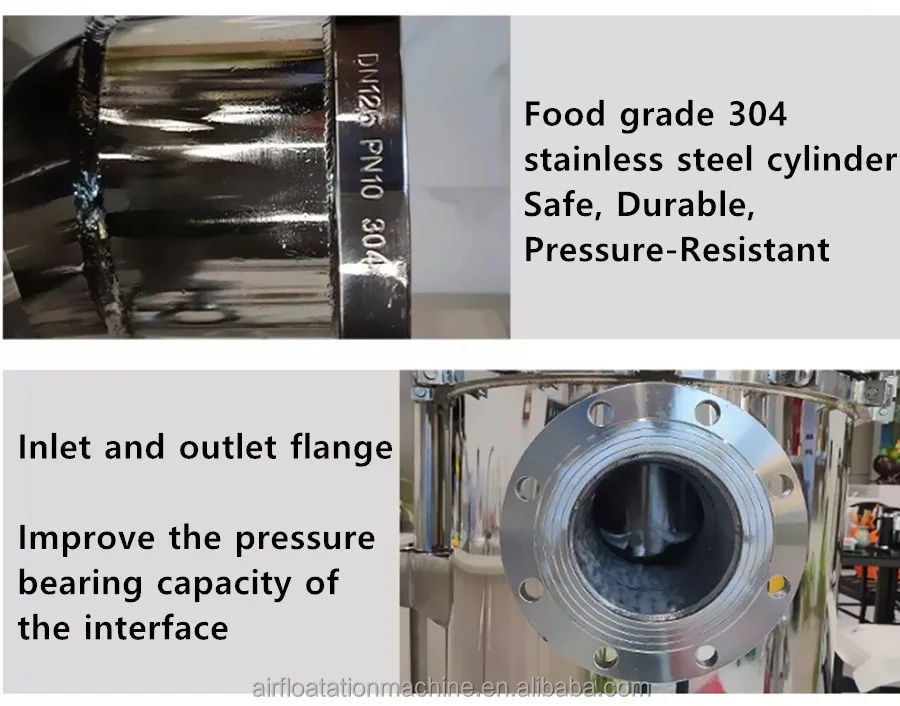

Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | In&outlet connection | V-clamp, thread or flange |
Bag Filtration rate | 0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron | Usage | Liquid filtration |
Max working pressure | 100, 150, 300Psi, OEM | Wall thickness | 1.5~5mm |
Flow (Ton/Hr) | Barrel Size | Inlet/Outlet Flange | Bag size | Number of Bag |
12-30 | φ220×950×2 | DN50 | φ180*810mm | 1PC |
30-60 | φ400×760×2.5 | DN65 | 2PCS | |
50-100 | φ450-500×760×2.5 | DN80 | 3PCS | |
100-120 | φ600×760×3 | DN100 | 4PCS | |
120-150 | φ650×760×3 | DN125 | 5-6PCS | |
150-210 | φ700×760×3 | DN125 | 7PCS | |
200-250 | φ800×760×3 | DN150 | 8PCS |
Application
Stainless steel bag filter housing Application:
It's widely used in painting and dyeing, textile industry, beer, vegetable oil, pharmaceutical, Chinese herbal medicine,
cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration, and more.
cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration, and more.

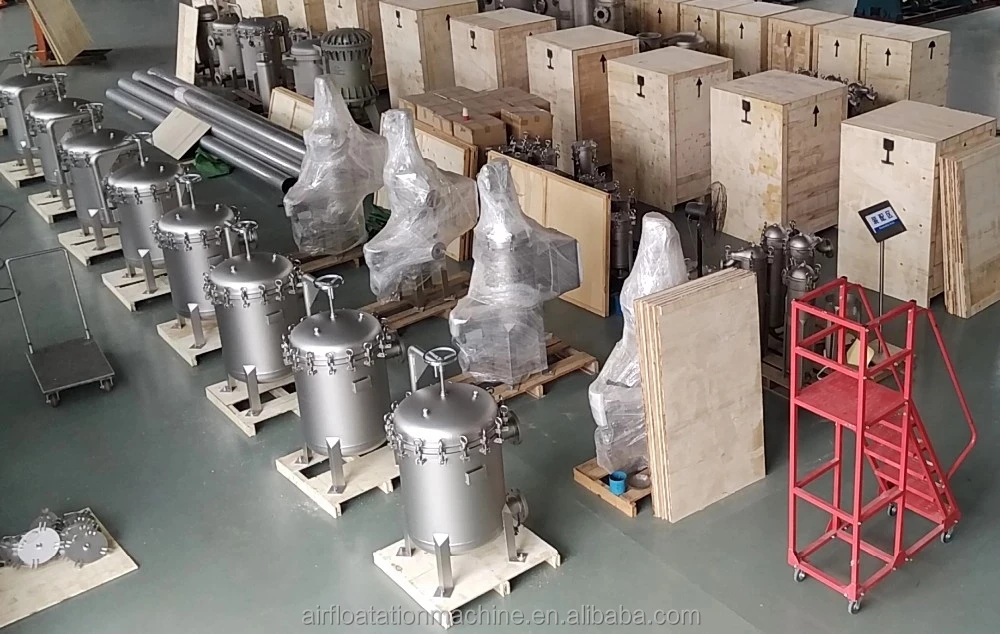

Packing & Delivery
Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley;OEM Wall-mounted pneumatic stainless steel bag filter system;hot sale Stainless Steel Coconut Oil Bag Filter;Sanitary stainless steel bag filter for juice honey milk SS304 SS316L Filtering Machine;Chinese manufacturer supply beer filtration bag filter housing/ home brew equipment with best price;A kind of closed filter equipment, mainly apply to Ink, color paste, Dyes, Coating, Paint,Electrical Material, NANO to filter;1 5 10 20 Micron T Shape Bag Type Stainless Steel Mesh Filter Basket Water Purification Liquid Filtration Candle Filter Element;Wine/Oil/Ethanol/Liquid Filter Machine Stainless Steel Duplex Bag/Cartridge Filters with Diaphragm Pump Cart;Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided;TS Filter Supply Fully Stocked Industrial Stainless Steel Bag Filter Liquid Filtration Equipment Housing for Chemical Factory;Stainless Steel Single Bag Filter For Liquid Filtration;10 micron fruit juice use stainless steel bag filter;Food Grade SS316l Filter 12 bag 20 inch water filter housing;bag housing filter,sugar syrup filter machine;Wine/Oil/Ethanol/Liquid Filter Machine Stainless Steel Duplex Bag/Cartridge Filters with Diaphragm Pump Cart;Multi Bag Cartridge Filtro Wine and Beer Filtering Equipment Filter Machine for Wine Custom Beverage Filtration Stainless Steel;Stainless Steel Multi bag filter used in industrial for Water, Juice, Wine, Milk Filtration
Company Profile

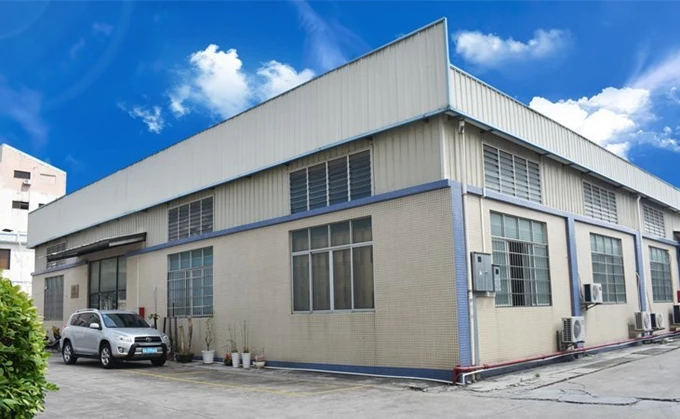

LIBAIJIA (Shandong) Water Treatment Equipment Co.,Ltd is located in Weicheng District,Weifang city, Shandong province. We are specialized in research, design, manufacture and trading filters and filter housings. After many years of reform, accumulation and development, our products are including pp melt blown filter cartridge, carbon filter, string wound filter cartridge, swimming pool filter cartridges, PP/PES/PVDF/PTFE/Nylon micro membrane pleated filters, sintered filters, stainless steel pleated filters, titanium filters, high flow water filter cartridge, bag filters as well as suitable stainless steel cartridge filter housings and bag filter housings. Our products are widely used in environmental protection in the field of water treatment, such as pre filtration and post treatment in all kinds of water treatment process, Microelectronics industry, food and beverage industry, Petrochemical industry and Bio-pharmaceutical industry, Power generation, Swimming pool, etc. We have a professional and lofty ideal team,with our vast resources in this field, we are sure we can provide competitive price, best before and after-sales service. Give us the opportunity to go beyond the expected, and you will see what a difference we can make.
Our products have enjoyed high reputations and satisfaction with our clients so far, our markets cover all over the
world,specially sold to America, Europe, Southeast Asia, Middle east and China...Welcome you to contact us or send us your inquiry.
Our products have enjoyed high reputations and satisfaction with our clients so far, our markets cover all over the
world,specially sold to America, Europe, Southeast Asia, Middle east and China...Welcome you to contact us or send us your inquiry.
FAQ
1. Q: Are you factory?
A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo, but customized products may charge extra cost.
4. Q: What's the MOQ ?
A: We can offer the quantity you required, as we don't dictate MOQ terms.
