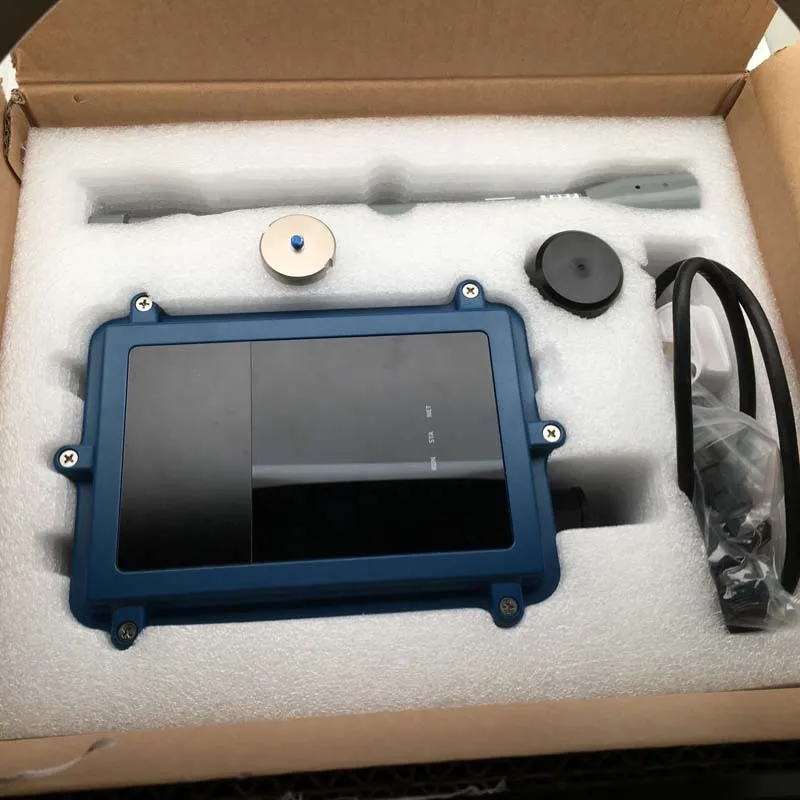

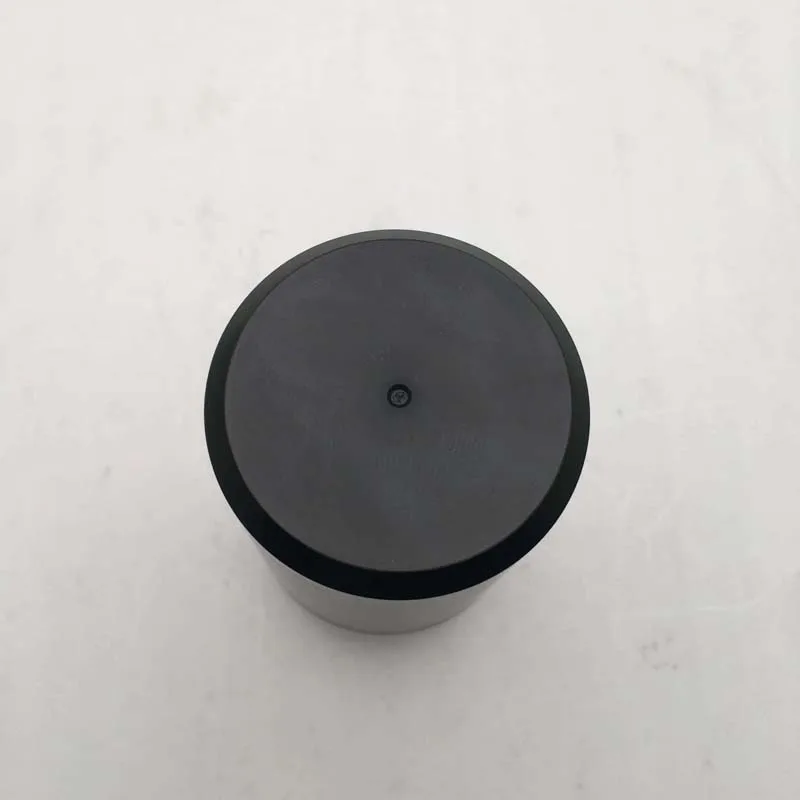

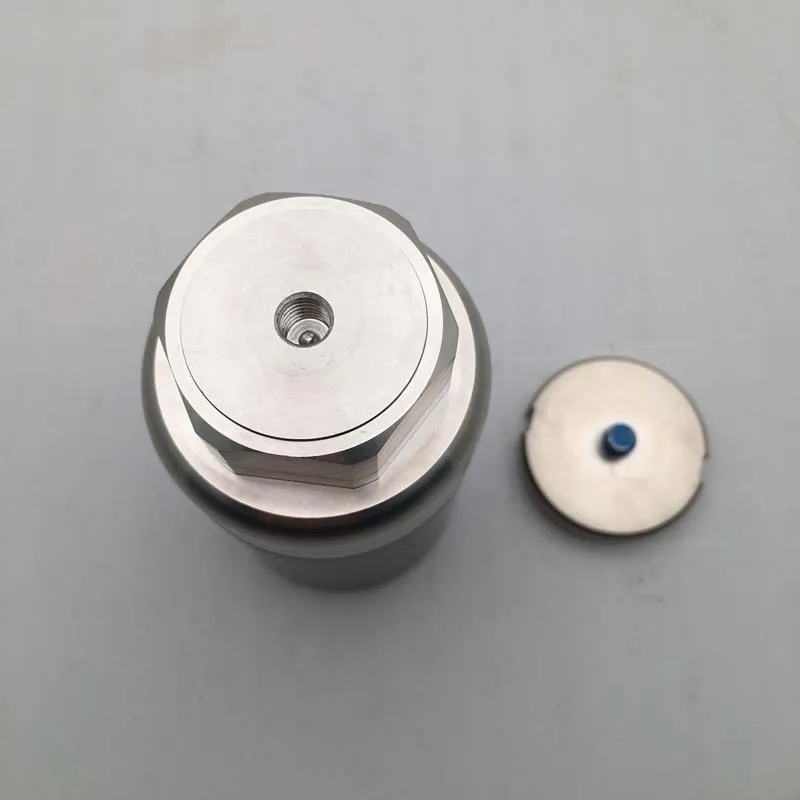

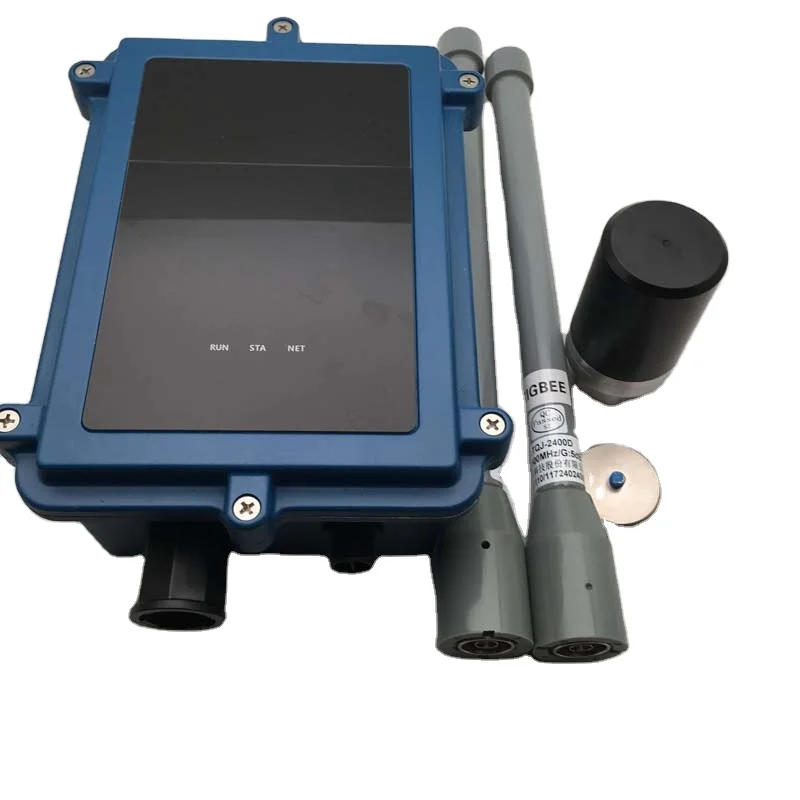

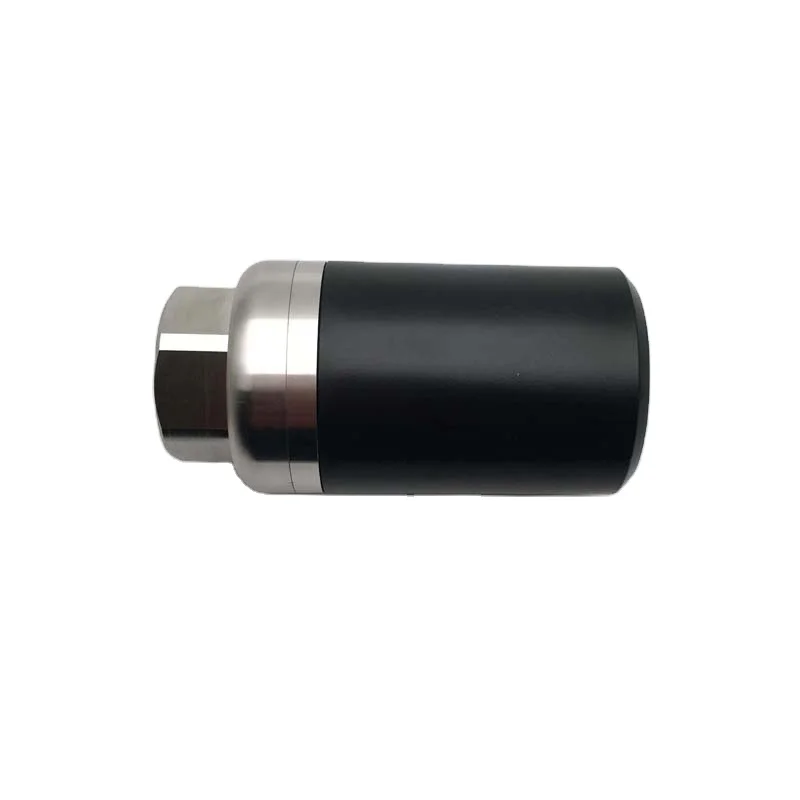

SKA 1003 Zigbee and Bluetooth wireless temperature vibration sensor
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (1600445770496):
Product Overview
Description
SKA-Zigbee and Bluetooth 5.0 wireless temperature vibration sensor
The wireless temperature vibration sensor integrates the collection of acceleration, speed and temperature, and embeds some
intelligent diagnosis algorithms. It can predict and warn equipment faults. It is suitable for the monitoring of industrial
equipment. It is a monitor tool for equipment range for petrochemical, electric power, steel plant and other industrial fields.
Product Introduction
Application:
Monitor valuable mechanical equipment and optimize its reliability；
Prolong the life of the equipment；
Data provision and maintenance decision based on monitoring；
Reduce equipment maintenance costs；
Reduce the risk of unplanned downtime；
complex Vibrate Sensor provides a simple and convenient solution for traditional wired cable laying, especially in dangerous gas places；
Mechanical application field
Vibrate Sensor is applicable to mechanical equipment with rod bearing:
* Blender
* Air compressor
* Ball mill
* Blower
* Centrifuge
* Pump and cooling tower
* Electric generator
* Small reciprocating compressor
* Steam turbine
Hardware features
Vibrate Sensors are suitable for a variety of occasions.
* Uniaxial or triaxial acceleration and speed monitoring, waveform and spectrum data can be uploaded;
* Frequency response range: 0.1Hz to 10K
* Equipment surface temperature monitoring;
* Different installation methods have wide applicability;
* Replaceable high-capacity lithium sub battery, working for three years;
* IP68 waterproof and dustproof protection grade;
* Super power design, anti data loss design;
* Inside antenna, small size;
* Bluetooth 5.0 and ZigBee dual protocol automatic switching
* Real time temperature monitoring and
*
* Automatic wake-up alarm
* Through Bluetooth, tasks such as configuration, query and temporary collection can be realized with mobile app
Software features
* No complex, communication can be carried out when power on.
* The acquisition of speed and displacement;
* Support 2m ultra long waveform acquisition
* Network disconnection cache monitoring and automatic retransmission;
* Intelligent diagnosis algorithm;
Hazardous area permit
The wireless temperature vibration sensor adopts intrinsically safe design and can be used dangerous places
in Zone 0 class IIC gas environment.
* ExiaIICT4
Communication distance
The wireless communication distance not only changes with the complex situation of the field environment, but also is closely
related to the direction and type of antenna. At present, it is tested for 250m in a visual barrier free environment.
intelligent diagnosis algorithms. It can predict and warn equipment faults. It is suitable for the monitoring of industrial
equipment. It is a monitor tool for equipment range for petrochemical, electric power, steel plant and other industrial fields.
Product Introduction
Application:
Monitor valuable mechanical equipment and optimize its reliability；
Prolong the life of the equipment；
Data provision and maintenance decision based on monitoring；
Reduce equipment maintenance costs；
Reduce the risk of unplanned downtime；
complex Vibrate Sensor provides a simple and convenient solution for traditional wired cable laying, especially in dangerous gas places；
Mechanical application field
Vibrate Sensor is applicable to mechanical equipment with rod bearing:
* Blender
* Air compressor
* Ball mill
* Blower
* Centrifuge
* Pump and cooling tower
* Electric generator
* Small reciprocating compressor
* Steam turbine
Hardware features
Vibrate Sensors are suitable for a variety of occasions.
* Uniaxial or triaxial acceleration and speed monitoring, waveform and spectrum data can be uploaded;
* Frequency response range: 0.1Hz to 10K
* Equipment surface temperature monitoring;
* Different installation methods have wide applicability;
* Replaceable high-capacity lithium sub battery, working for three years;
* IP68 waterproof and dustproof protection grade;
* Super power design, anti data loss design;
* Inside antenna, small size;
* Bluetooth 5.0 and ZigBee dual protocol automatic switching
* Real time temperature monitoring and
*
* Automatic wake-up alarm
* Through Bluetooth, tasks such as configuration, query and temporary collection can be realized with mobile app
Software features
* No complex, communication can be carried out when power on.
* The acquisition of speed and displacement;
* Support 2m ultra long waveform acquisition
* Network disconnection cache monitoring and automatic retransmission;
* Intelligent diagnosis algorithm;
Hazardous area permit
The wireless temperature vibration sensor adopts intrinsically safe design and can be used dangerous places
in Zone 0 class IIC gas environment.
* ExiaIICT4
Communication distance
The wireless communication distance not only changes with the complex situation of the field environment, but also is closely
related to the direction and type of antenna. At present, it is tested for 250m in a visual barrier free environment.
Parameter specification
Acceleration | Number of axes | Single axis or 3-axis |
Sensing unit | Piezoelectric ceramics or MEMS | |
Amplitude range | ± 50 g peak z-axis or ± 16 g peak X and y-axis (available in three-axis version) | |
Accuracy | ±5% (160 Hz) Z ±5% (160 Hz) X and Y (available in three-axis version) | |
Lateral sensitivity (typ.) | 7% (100 Hz) | |
Data acquisition | Acceleration frequency range | Z axis: 0.1 Hz (±3dB) to 10 kHz (±3dB) X and Y axis: 0.5 Hz (±3dB) to 1.6 kHz (±3dB) (available in three-axis version) |
\\Acceleration amplitude range | ± 50 g | |
ADC Accuracy | 24 bits ADC | |
Sampling rate | 1KHz - 50KHz | |
Sampling length | 2K bytes - 2m bytes | |
Measurement interval | 10 minutes index and 2-hour time domain waveform | |
Output mode | Total value, RMS and spectrum time domain waveform | |
Temperature acquisition | Measuring range | 40°C to 120°C (-40 °F to 248°F) (The surface temperature of the equipment shall not be confused with the working temperature of the product. The working temperature is limited by the battery. The battery is a distance from the sensing part at the bottom) |
Accuracy | 0.1°C | |
Wireless communications | Network topology | Star type |
RF standard | IEEE 802.15.4 | |
Radio frequency range | 2.4 GHz ISM band | |
Upgrade mode | Automatically updated via wireless | |
Encryption / security | 128-bit AES Encrypted transmission | |
RF output power (peak) | 5dbm(Max) | |
Wireless communication distance | The wireless communication distance not only changes with the complex situation of the field environment, but also is closely related to the direction and type of antenna. At present, it is tested for 250m in a visual barrier free environment. | |
Battery | Battery model | Replaceable C 3.6V disposable lithium sub battery Warning: only the battery models can be used: Eve er26500 or Xeno energy xl-14 5f, and secondary processing is required. |
Life | It can work for 3 years according to the default configuration definition. | |
Working conditions | Working temperature | -40°C to 70°C (-40°F to 175°F) (Working at or beyond the limit temperature for a long time will affect the service life of the battery and even damage the monitor) |
