Product Overview

Description

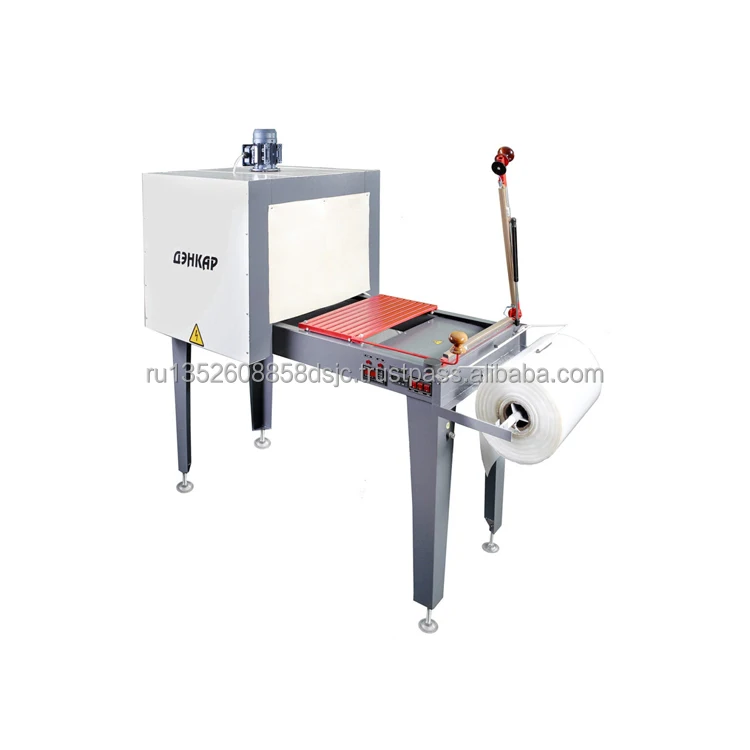

Thermal Packaging Machine

TM-3 thermal packaging machine (manual) is designed for packaging food, cosmetic or other products in glass, metal, paper or plastic containers.

The machine is distinguished by a dead-end type camera, ease of operation and cheapness.

Features:
- The possibility of packaging products on a flat substrate
- High performance
- Quick and easy reconfiguration of equipment for a different type of product
- Linear delivery of products to packaging
- Full automatic control of all processes
- The ability to install directly behind the labeling area and save on the organization of transport flows of goods
- The packaging line runs smoothly 24 hours in automatic mode

Composition of the machine
TM-3 thermal knife manual
TM-3 thermal chamber
Type of machine - Manual
Type of film - Polyethylene (PE)

Specifications:
General characteristics of the machine
Line capacity, unit/hour - 70
Dimensions of the machine assembly (LxWxH), mm - 1700x840x1650
Weight of the device, kg - 115
Climatic version according to GOST 15150-69 UHL4
Type of thermal camera control unit/thermal knife - Single
Maximum dimensions of packaged products (LxWxH), mm - 300x450x370

Characteristics of the thermal chamber
Execution - Module
Overall dimensions in working position (LxWxH), mm - 700x600x400
Net weight of the device, kg - 70
Maximum power consumption, kW - 6.5
Power supply parameters, V/Hz - 380/50
Heating temperature adjustment range, degrees C - 20-220
The length of the chamber, mm - 700
Dimensions of the passage window of the camera (WxH), mm - 600x400

Characteristics of the thermal knife
Execution - Module
Overall dimensions (LxWxH) without film, mm - 1000x680x1000
Net weight of the device, kg - 45
Dimensions of the working part of the thermal knife (LxW), mm - 540
Maximum width of the film, mm - 500
Main air pressure, Mpa (kg/cm2) - 0.4-0.6 (4-6)
Type of welding - Pulse
Number of heating elements (trimming, welding of the film) - 3
Power consumption at the time of switching on, kW - 0.6

Characteristics of the shrink film
Type of shrink film - Polyethylene (PE)
Type of film winding - Cloth
