Best quality industrial machinery line for packaging products in shrink PE film, from manufacturer, hot sale packaging machine

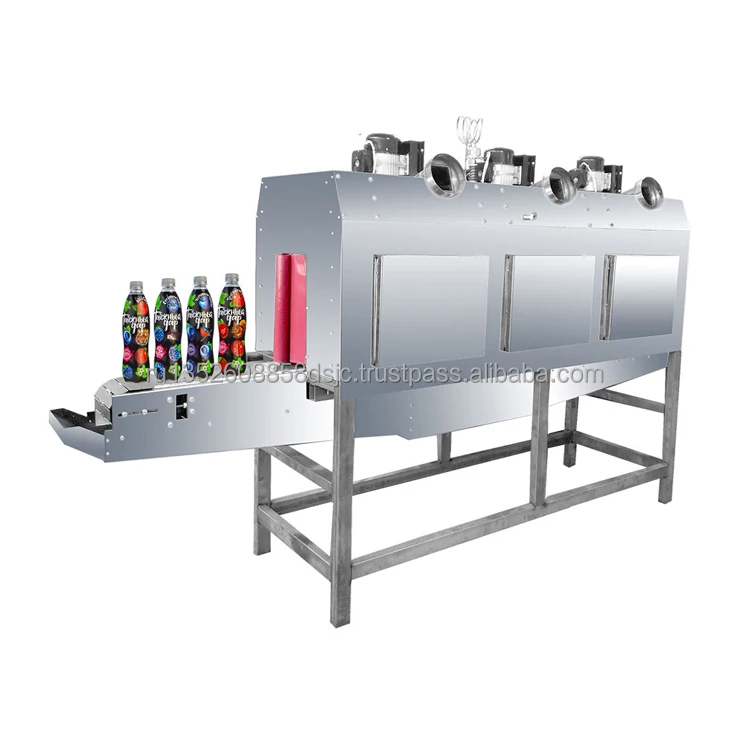

The TM-10 "PT" heat shrink device (steam tunnel) is designed for shrinkage (fixation) of a shrink sleeve label (drain labels, sleeve) on the surface of containers with finished products. Hot water vapor is used as a heat carrier.
The label sits on glass, plastic or tin bottles and cans, including complex geometric shapes.
Composition of the machine
Stainless steel thermotunnel with conveyor belt
Steam removal system from the thermotunnel
Type of machine
Machine
Type of film
Polyvinyl Chloride (PVC)
Polyethylene (PE)
Specifications:
Characteristics of the thermal chamber
Execution Module
Maximum power consumption, kW 0.3
Power supply parameters, V/Hz 380/50
Heating temperature adjustment range, degrees C 100-110
Conveyor dimensions (LxW), mm 3000x190
Conveyor speed, m/min 1-8
Type of conveyor belt link Stainless steel plate
The working load on the conveyor is not more than 50 kg/m2
Camera length, mm 2000
Dimensions of the passage window of the camera (WxH), mm 200x400
| Weight of the device, kg | 450 |
| Climatic version according to | GOST 15150-69 UHL4 |
| Maximum dimensions of packaged products (LxWxH), mm | 185x185x250 (185x185x350) |
| Thermal chamber execution | Module |
| Maximum power consumption, kW | 0.3 |
| Power supply parameters, V/Hz | 380/50 |
| Heating temperature adjustment range | 100-110 |
| Conveyor dimensions (LxW), mm | 3000x190 |
| Line capacity, unit/hour | 6000 |
| Dimensions of the machine assembly (LxWxH), mm | 3260x800x1865 |
| Processing Time | 3 days |
| Port | St. Petersburg |
| Packaging Details | Wooden pallet and foil |
