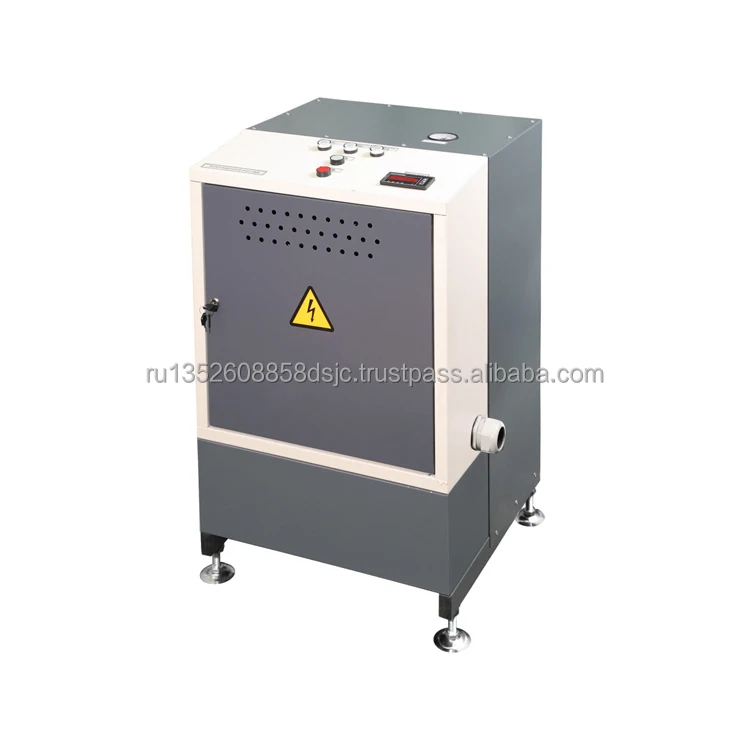

High quality economical electric steam generator for use in various industries steam generators
- Category: >>>
- Supplier: LLC Generation
Share on (1600445975704):
Product Overview
Description
High quality economical electric steam generator for use in various industries, from manufacturer, steam generators
The steam generator with an electric electrode is designed to generate saturated water vapor with a temperature of 130-160 degrees C and a pressure of up to 0.55 MPa due to the heat generated as a result of the use of electricity.
The steam generator is made in a single closed case, delivered assembled and fully ready for operation.
Electrode steam generators have a number of advantages over other types of steam generators:
the resistance of the electrodes to scale formation - the electrode group, unlike tubular electric heaters (TEN), does not burn out, which means it does not require the cost of expensive water purification;
quick access to the operating mode - is especially important for short-term operation, it saves energy costs;
easy to install - reduced installation and operation costs;
it is easy to operate - and does not require a highly qualified operator;
they have higher efficiency - compared to steam generators running on diesel fuel or gas;
safety - compared to diesel and gas steam generators;
cheaper than gas and diesel steam generators - with the same performance;
ease of installation - reduces installation and operation costs.
At your request, steam generators can be equipped with additional options.
| Max steam capacity (380 V), kg steam/hour | 250 |
| Operating steam pressure, MPa (kgf/cm2) | 0,35(3,5) - 0,55(5,5) |
| Power consumption at maximum steam capacity, kW | 185 |
| Supply voltage, V | 380 |
| Weight | 100 |
| Boiler volume, no more than, l | 25 |
| Warm-up time to operating pressure, min | 6 |
| Overall dimensions (LxWxH), mm | 560x565x880 |
| Country | Russia,Oryol |
| Brand | PAR |
| Processing Time | 3 days |
| Port | St. Petersburg |
| Packaging Details | Wooden pallet and foil |
The team of our company is unique specialists with many years of experience in the field of production, commissioning and operation of industrial equipment.
| The presence of most of the range of equipment in the warehouse allows for delivery in the shortest possible time |
| Our specialists are ready to assist in the selection of equipment 24/7 |
| Hundreds of our partners, both from Russia and other countries, highly appreciated the quality of our work |
| The mission of our company is aimed at maximizing the efficiency of your production processes |
 |  |
 |  |
