Good quality reliable machinery line for packaging products in shrink PE film, wholesale from manufacturer

Product Overview

Description

Good quality reliable machinery line for packaging products in shrink PE film, wholesale from manufacturer

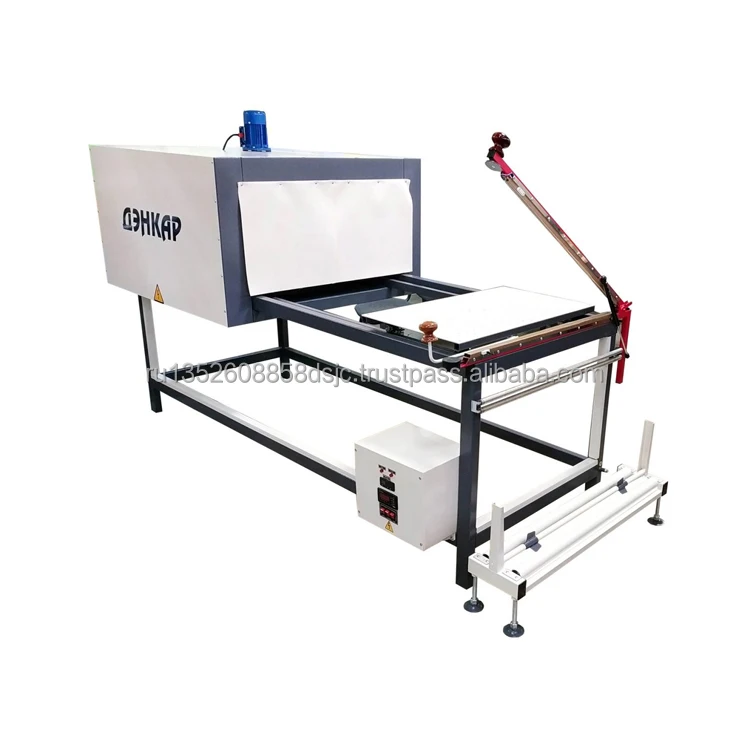

Thermal packaging machine TM-3 M1 (manual) is designed for packaging food, cosmetic or other products in glass, metal, paper or plastic containers.

The difference between TM-3 M1 and TM-3 is a thermal chamber of enlarged dimensions and a floor roll holder.

Composition of the machine
TM-3 M1 thermal knife manual
TM-3 M1 thermal camera
Type of machine
Manual
Type of film
Polyethylene (PE)


Specifications:

Characteristics of the thermal chamber
Execution Module
Overall dimensions in working position (LxWxH), mm 1200x1170x1730
Net weight of the device, kg 105
Maximum power consumption, kW 12.6
Power supply parameters, V/Hz 380/50
Heating temperature adjustment range, degrees C 20-220
Camera length, mm 1200
Dimensions of the passage window of the camera (WxH), mm 900x400

Characteristics of the thermal knife
Execution Module
Overall dimensions (LxWxH) without film, mm 1135x570x1000
Net weight of the device, kg 60
Length of the feeding table, mm 500
Width of the feeding table, mm 700
Dimensions of the working part of the thermal knife (LxW), mm 850
Maximum width of the film, mm 850
Type of welding Pulse
Number of heating elements (trimming, welding of the film) 3
Power consumption at the time of switching on, kW 0.6

Characteristics of the shrink film
Type of shrink film Polyethylene (PE)
Type of film winding Cloth

The team of our company is unique specialists with many years of experience in the field of production, commissioning and operation of industrial equipment.
