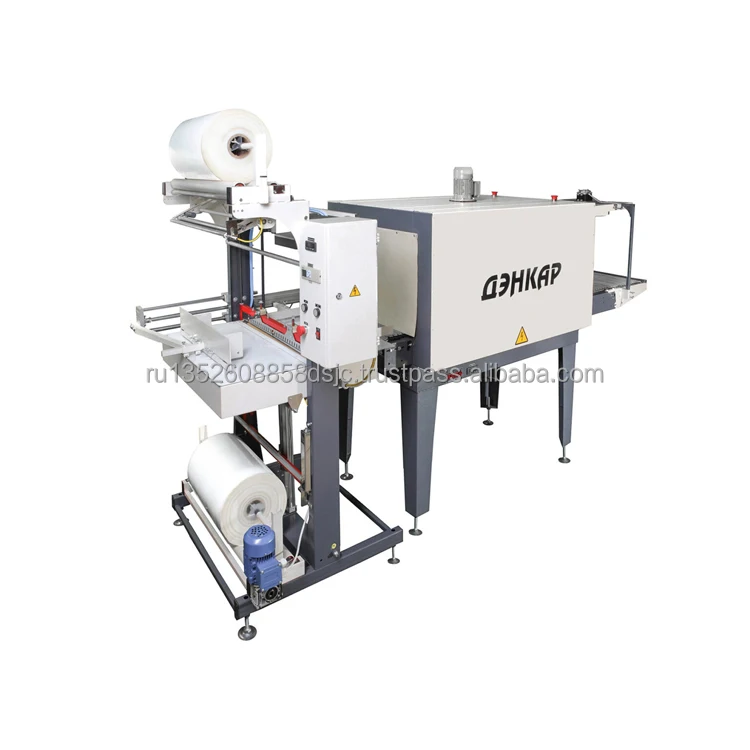

Packaging Machine designed for packaging food cosmetic or other products in glass metal paper or plastic containers
- Category: >>>
- Supplier: LLC Generation
Share on (1600445992358):
Product Overview
Description
Packaging Machine

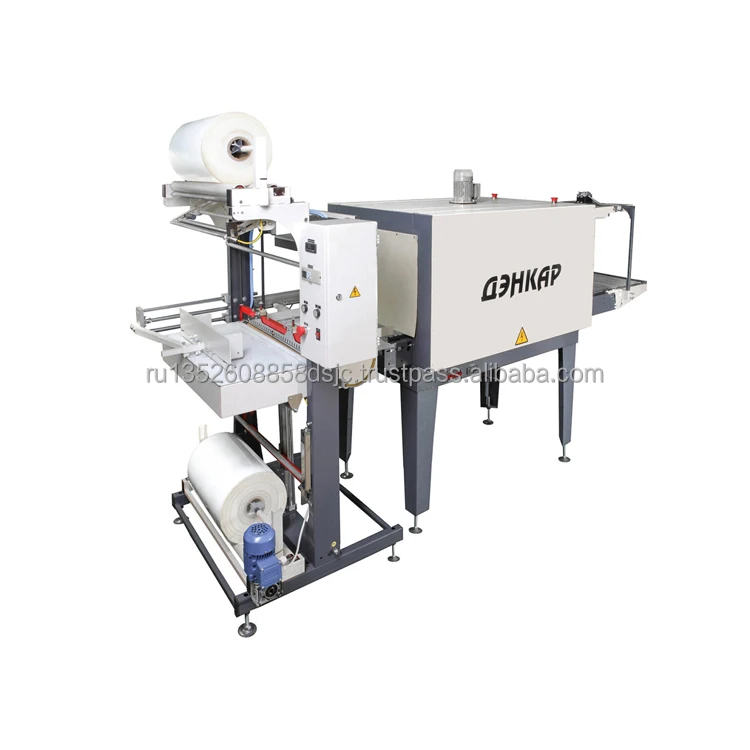

Thermal packaging machine TM-1P (semi-automatic) is designed for packaging food, cosmetic or other products in glass, metal, paper or plastic containers.
The machine is equipped with an automatic knife for sealing the film and a pneumatic pusher, which allows you to independently perform one working cycle, but requires intervention to repeat or perform another cycle.
Composition of the machine
TM-1P semi-automatic thermal knife
TM-1P thermal camera
TM-1P receiving roller
Type of machine
Semi-automatic
Type of film
Polyethylene (PE)
Specifications:
Characteristics of the thermal chamber
Execution Module
Overall dimensions in working position (LxWxH), mm 2210x870x1730
Net weight of the device, kg 160
Maximum power consumption, kW 12
Power supply parameters, V/Hz 380/50
Heating temperature adjustment range, degrees C 20-220
Conveyor dimensions (LxW), mm 1800x540
Conveyor speed, m/min 4
Type of conveyor belt link plate
The working load on the conveyor is not more than 50 kg/m2
Camera length, mm 1200
Dimensions of the passage window of the camera (WxH), mm 600x400
Characteristics of the thermal knife
Execution Module
Overall dimensions (LxWxH) without film, mm 1030x1070x1750
Net weight of the device, kg 140
Dimensions of the working part of the thermal knife (LxW), mm 610
The maximum width of the film, mm 570
Welding Type Permanent
Number of heating elements (trimming, welding of the film) 1
Power consumption at the time of switching on, kW Constant heating
Characteristics of the receiving roller
Dimensions of the receiving roller (LxW), mm 400x540
Characteristics of the shrink film
Type of shrink film Polyethylene (PE)
Type of film winding Cloth
| Weight of the device, kg | 300 |
| Climatic version according to | GOST 15150-69 UHL4 |
| Type of thermal camera control unit/thermal knife | Separate |
| Thermal chamber execution | Module |
| Overall dimensions of the thermal chamber (LxWxH), mm | 2210x870x1730 |
| Net weight of thermal chamber | 160 |
| Maximum power consumption, kW | 12 |
| Power supply parameters, V/Hz | 380/50 |
| Line capacity, unit/hour | 420 |
| Dimensions of the machine assembly (LxWxH), mm | 3300x1070x2000 |
| Processing Time | 3 days |
| Port | St. Petersburg |
| Packaging Details | Wooden pallet and foil |
