High quality cheaper 2D wireless barcode scanner
l Versatile: Interfaces such as PS2, RS232, USB, USB-COM, etc. are available.
l The reading distance can be up to 20cm highand the information in the barcode can be read quickly.
l Compact, lightweight, ergonomically designed and comfortable to feel.
l Excellent durability: Dust-resistant and water-resistant IP54, while withstanding 1.5-meter drops to the cement floor, ensuring reliable operational performance in the event of liquid splashes, drops and collisions in everyday use.
l Safe and reliable design: CE Electrical Safety, EMC Electromagnetic Compatibility, RoHS, CLASS 1 Laser Safety Level, Light Safety, etc.
The input voltage
DC 5 volts ± 0.25 volts
1.60 watts (working);0.40 watts (standby).
320 mAh (working);80 mAh (standby)5 x/-10% VDC s 350 mA
752 × 480 pixels
± 60 degrees, ± 40 degrees, ± 42 degrees (left, right, back, round).
The type of decoding
UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants
PDF417, MicroPDF417, QR code, DataMatrix
How to prompt
The system interface
RS-232 serial port;USB keyboard;USB imaginary serial port
How it was triggered

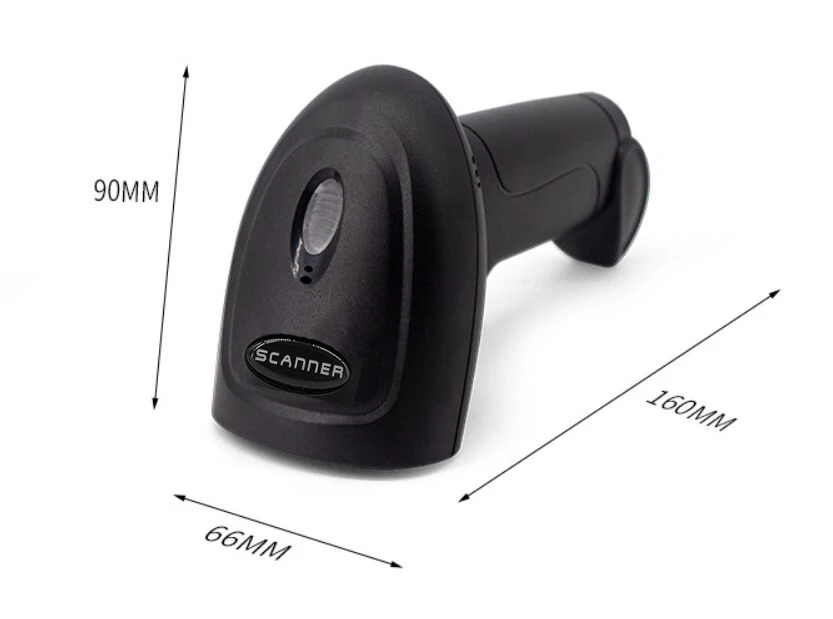

Long × width× height: 160mm × 66mm × 90mm
Straight line,1.65 meters
The type of interface
0°C ~ 50°C (working); -40°C ~ 60°C (storage)
5% to 95%(no condensation).
How to set it up
Manual (scan to set barcodes in turn)
3.5mil(high density series),1mil s 0.0254mm
Read depth of view
13mil:UPC (12 characters).
Level of security
EMC Electromagnetic Compatibility:EN55022,EN55024
Waterproof and dust-proof seal rating:IP54
Seismic capacity:5 or more times 1.5 meters of height fell to the cement floor
