Product Overview

Description



Products Description



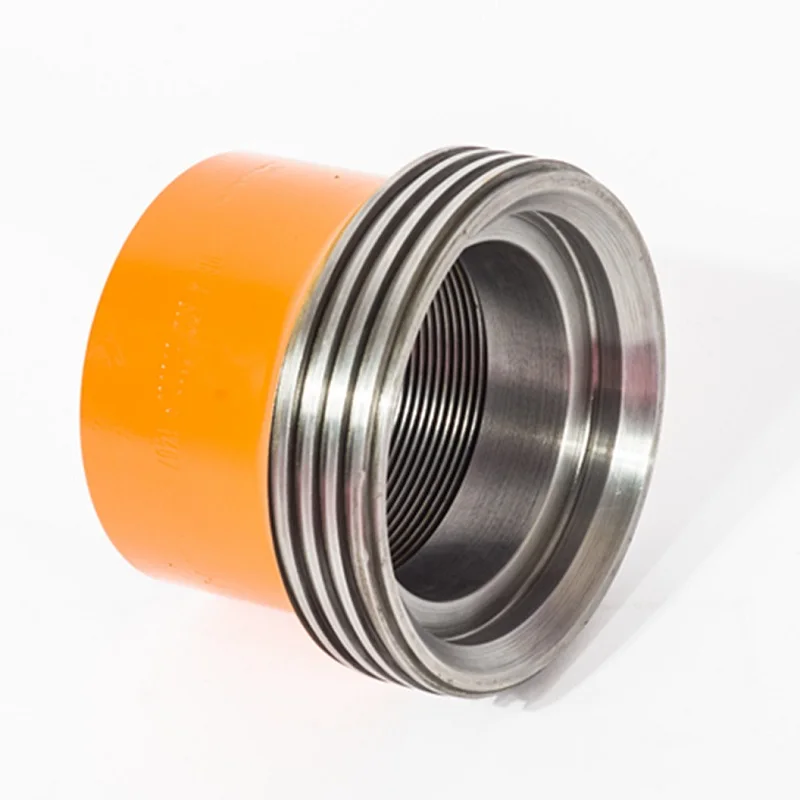

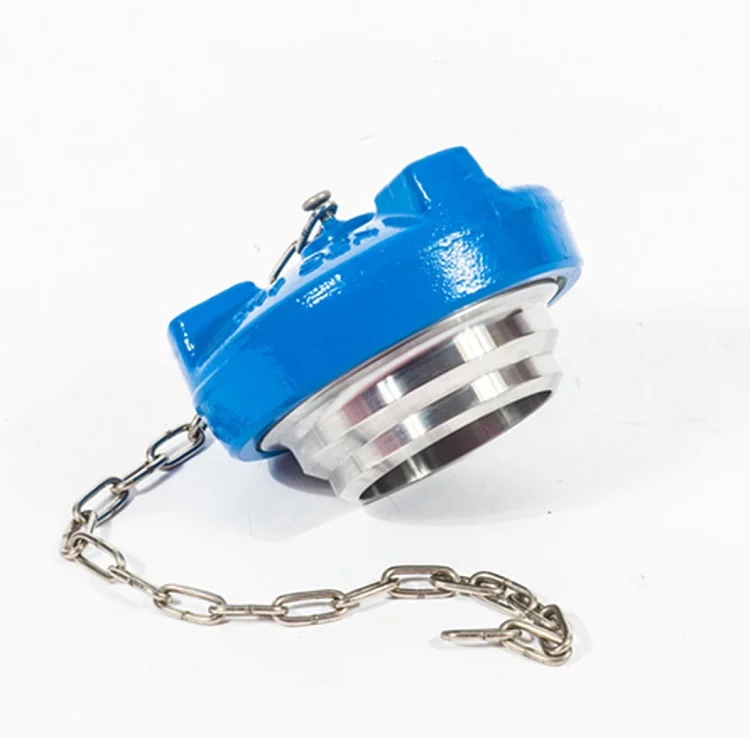

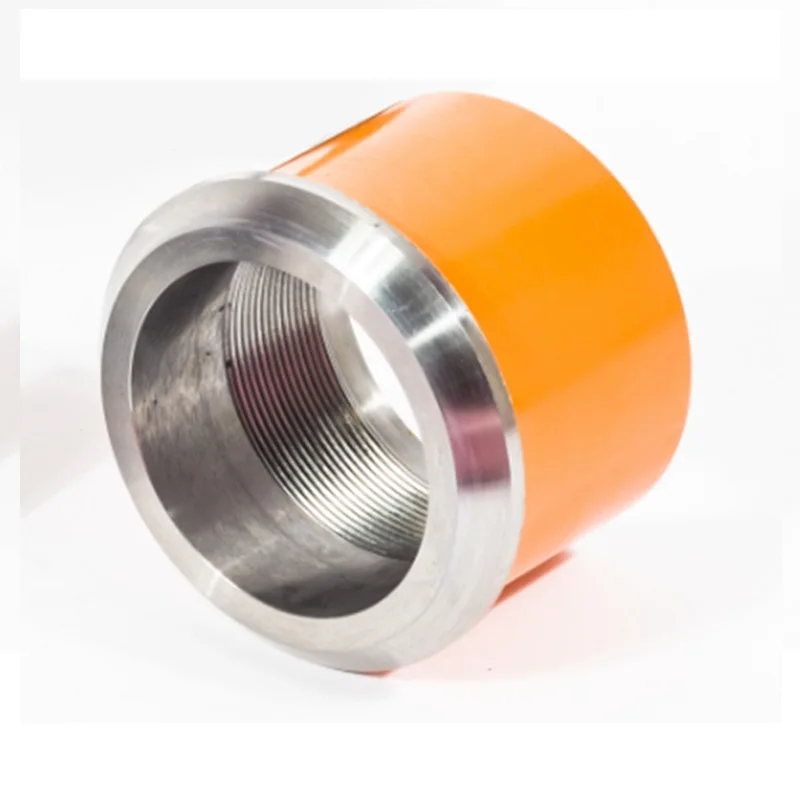

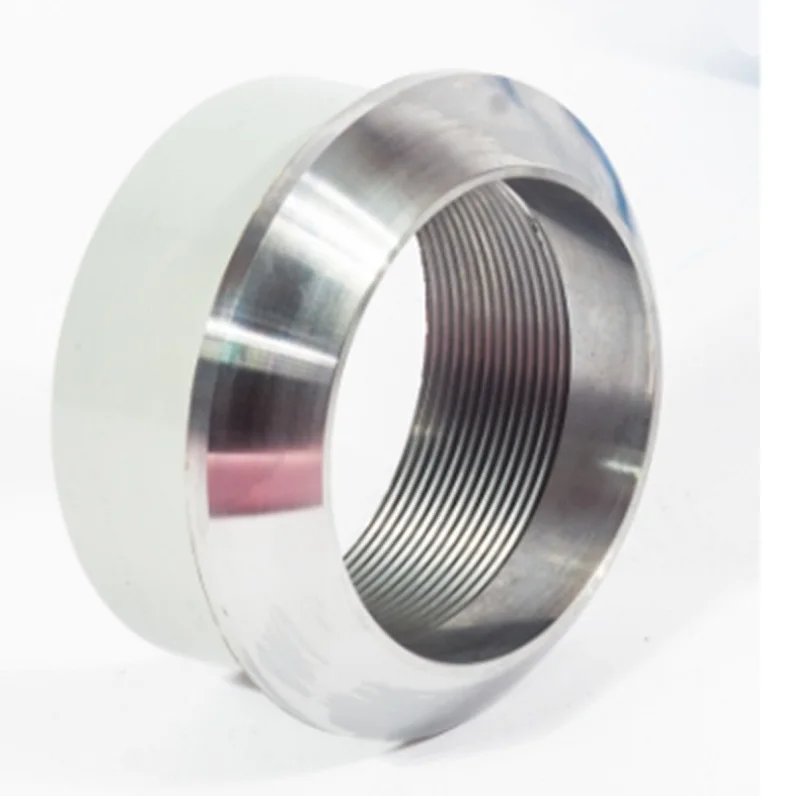

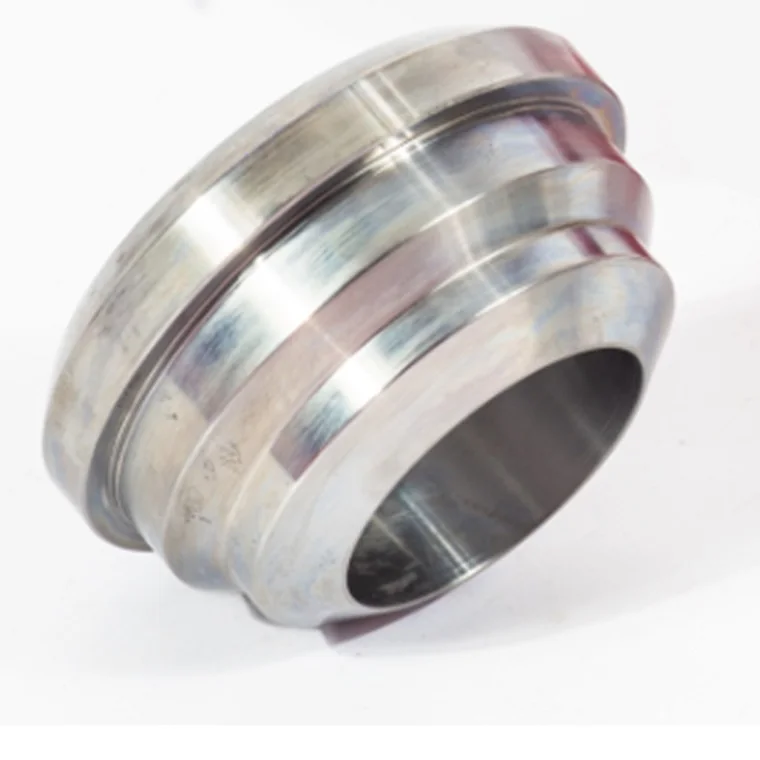

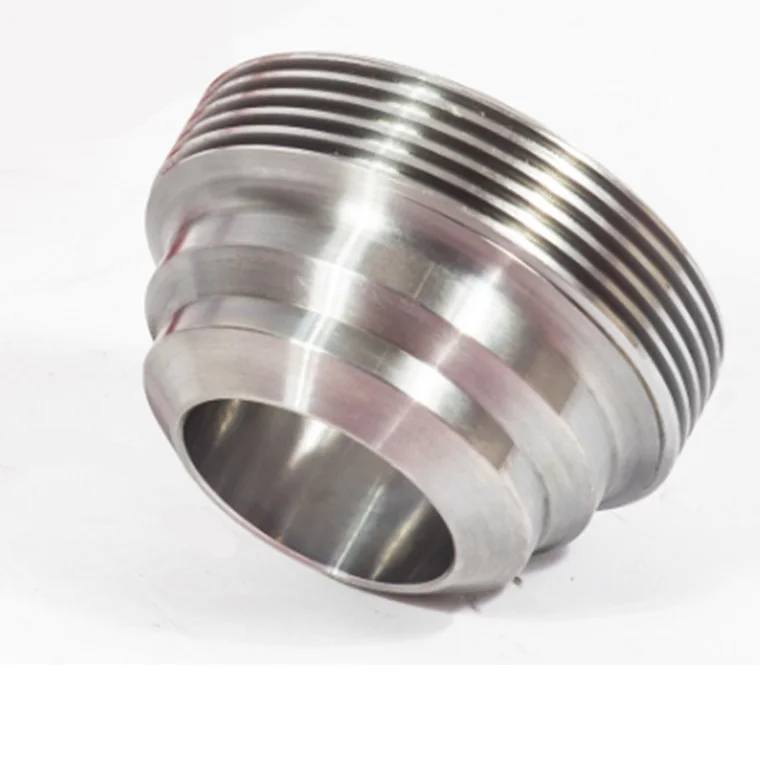

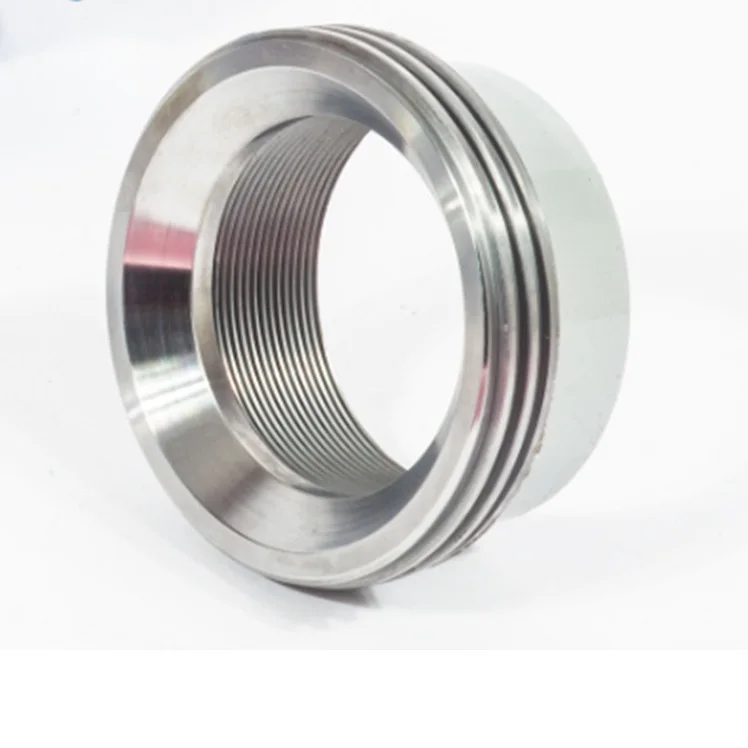

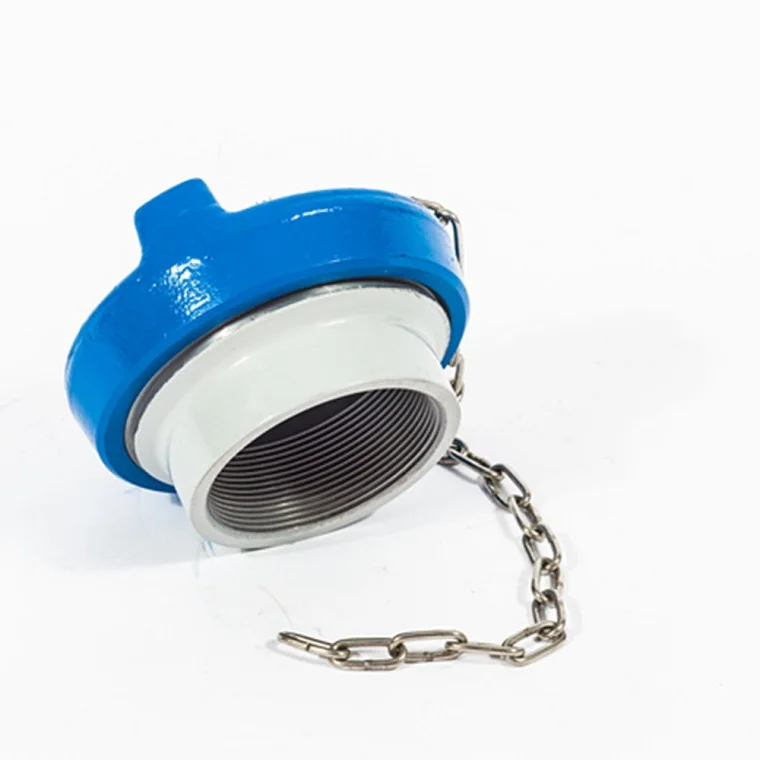

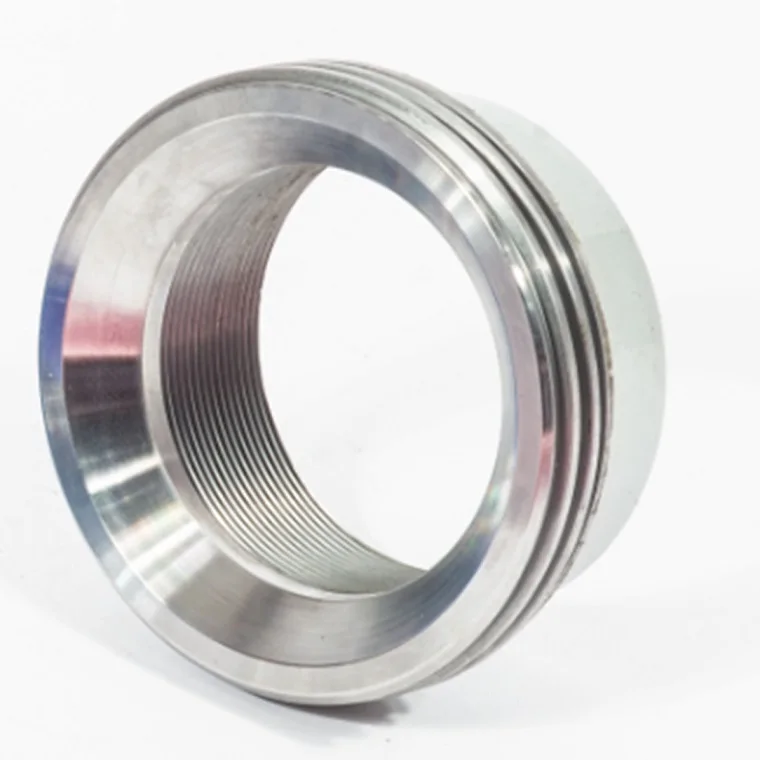

High-Middle-Low Pressure Union

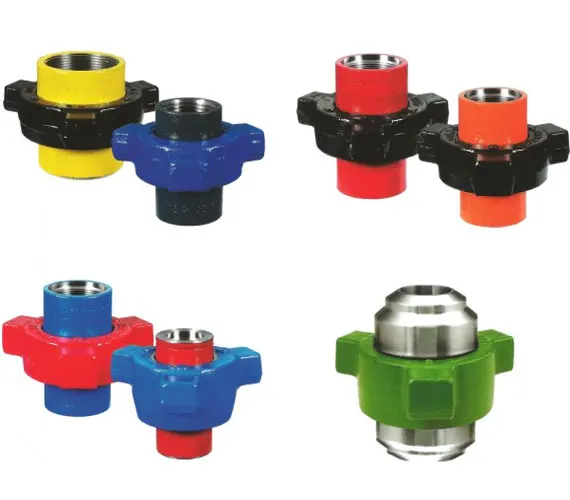

High-pressure pipe connection (union) for the cement truck, fracturing trucks, all kinds of manifolds, pipelines and other high voltage equipment, accessories, transport is an important oil, water, fracturing fluid and mixed fluid. This product is made of high quality forged steel and finished steel with good mechanical properties, sealing performance and different pressure levels, it is the ideal accessory oil drilling operations. Pressure levels have 7MPa ~ 105MPa series, specification models FIG100, FIG200, FIG206, FIG400, FIG602, FIG1002, FIG1502,series, in the form of a threaded connection, welded, three types of anti-hydrogen sulfide gas. For easier identification, different pressure levels of union has a different color, and a clear specification of connection and pressure rating marked on the wing nut.





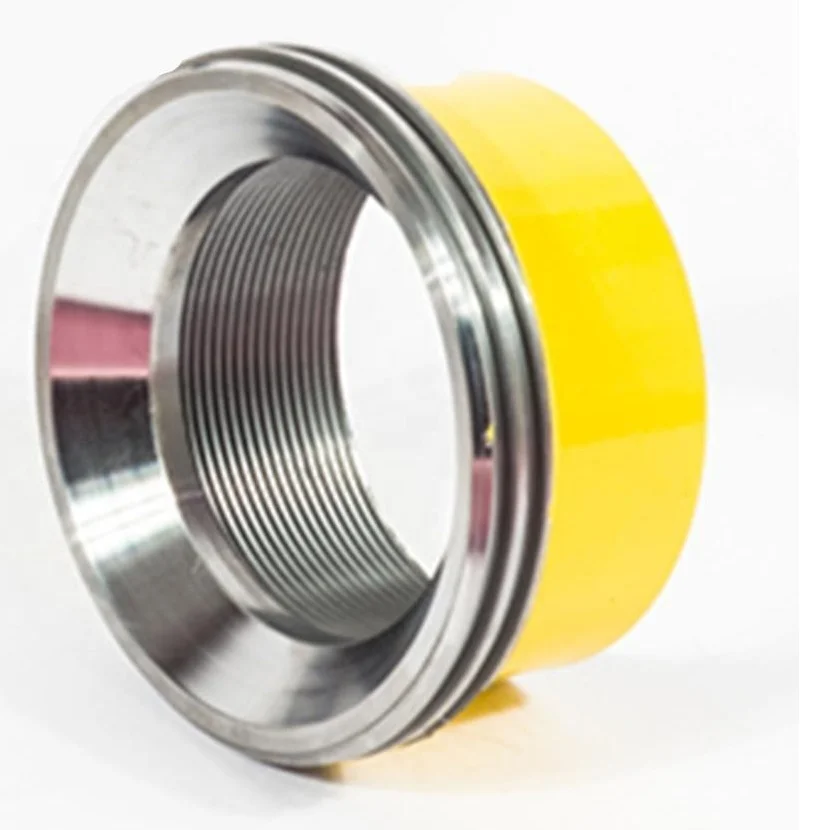

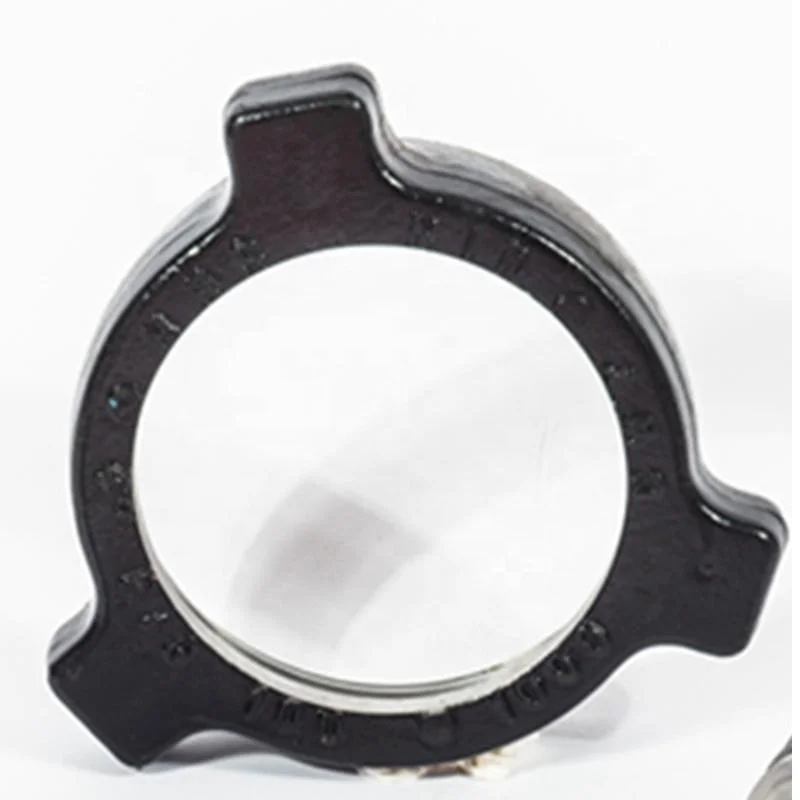

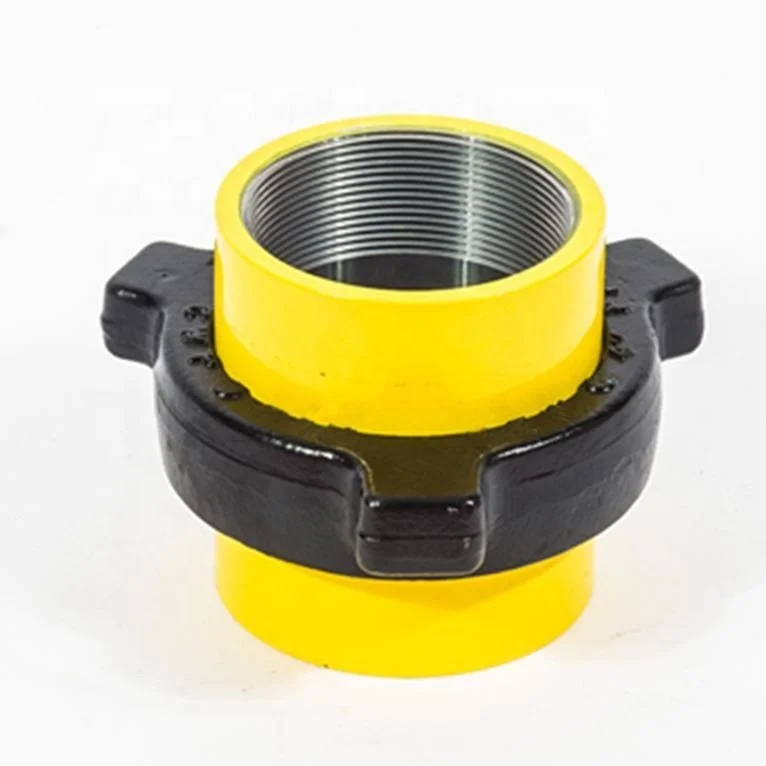

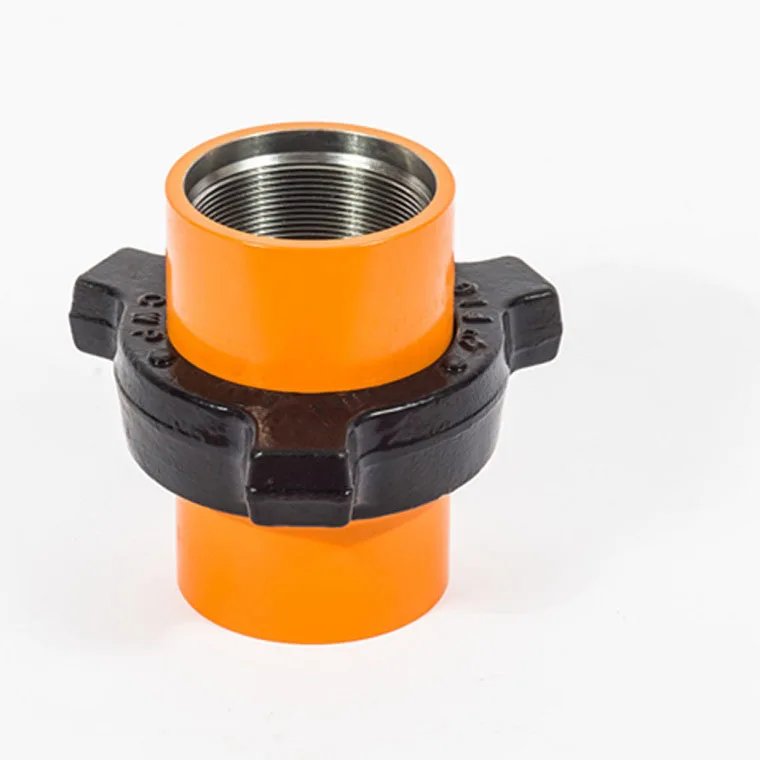

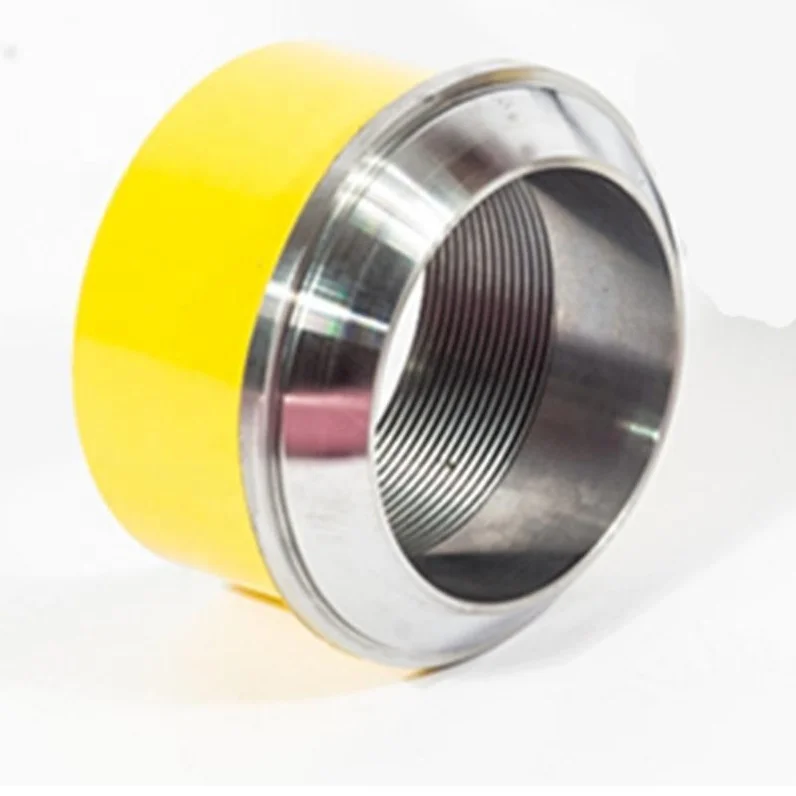

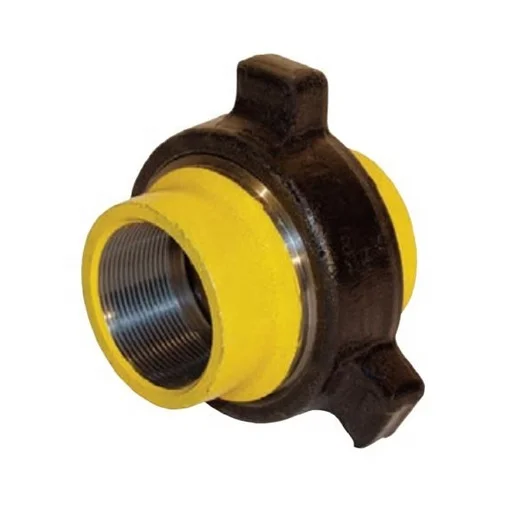

Hammer union fig 100

Fig100；
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air,water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.FIG100 1000PSI NSCWP, test pressure 1500PSI black nut, yellow parts




Nominal pipe size
Total length
Nut radius
Materials
Weight
Nut
Part
in
mm
in
mm
in
mm
lbs
kgs
2
50.8
36/8
92.1
215/18
74.6
SF
SF
5.25
2.4
21/2
6.3.8
41/4
108.0
36/8
92.1
SF
SF
8.0
3.6
3
76.2
415/18
125.4
41/8
103.2
SF
SF
14.0
6.4
4
101.6
515/18
150.8
425/32
121.4
SF
SF
33.0
10.4
6
152.4
66/8
168.3
67/18
163.5
SF
SF
44.5
20.2
8
203.2
71/4
184.2
711/18
195.3
SF
SF
61.0
27.7



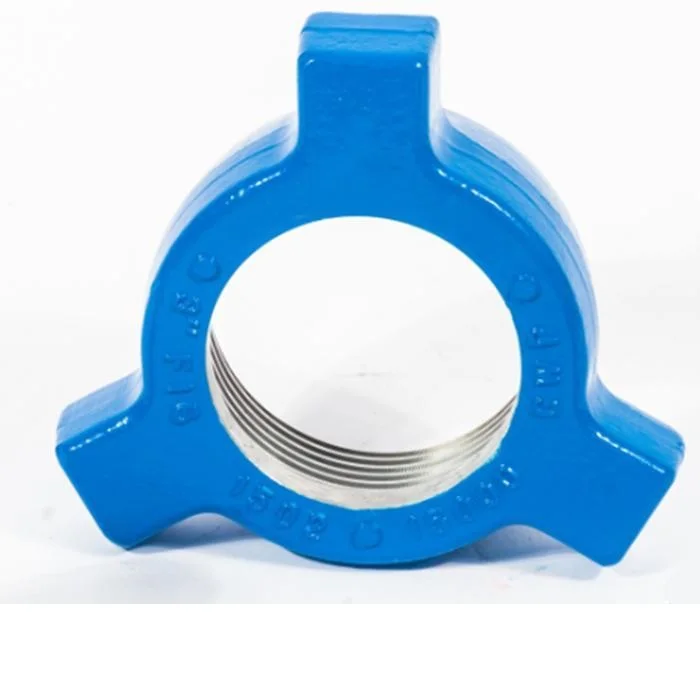

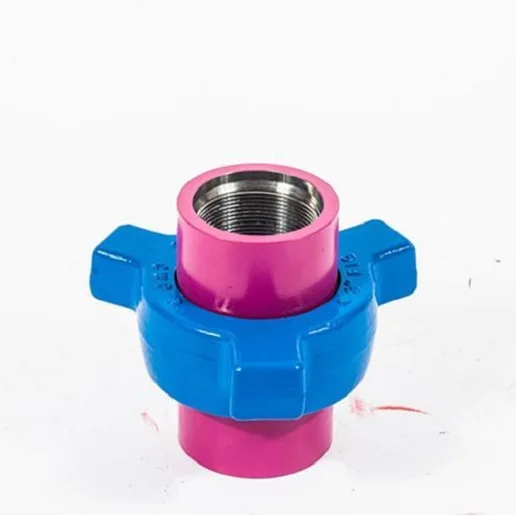

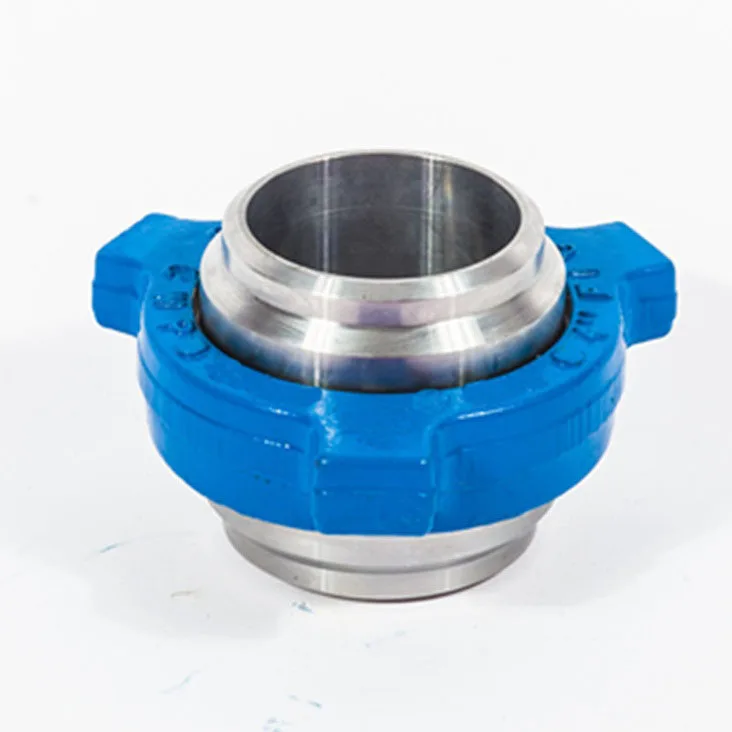

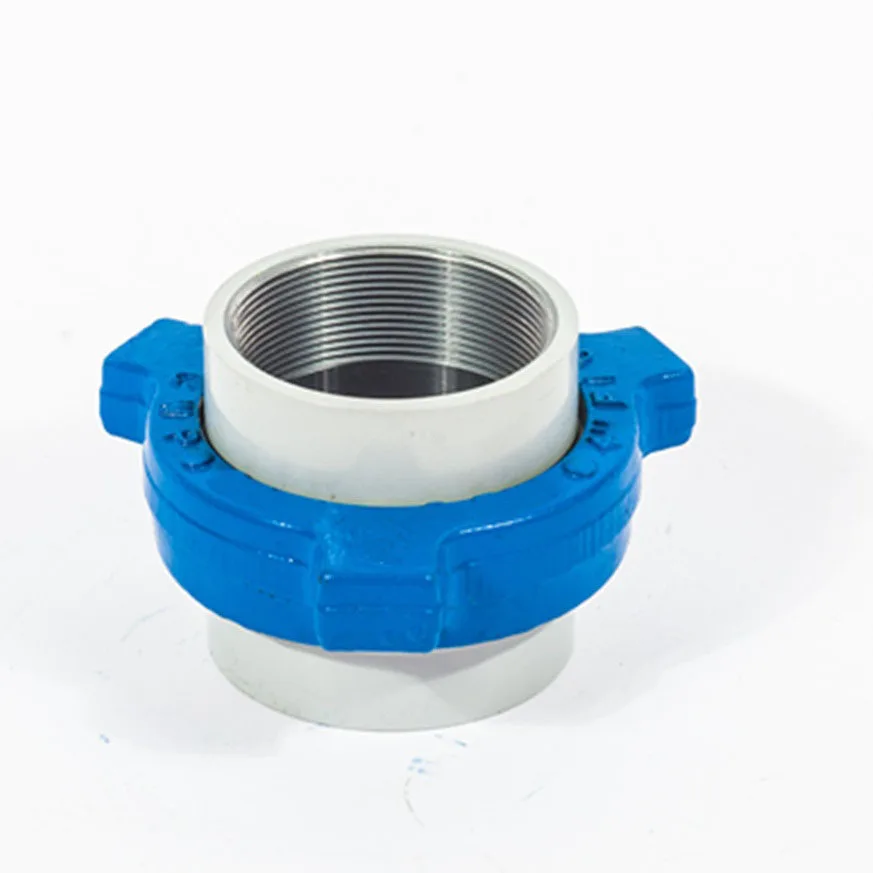

Hammer union fig 200

Fig200:

1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.200 206PSI NSCWP, test pressure 3000PSI blue nut, gray parts




Nominal pipe size
Total length
Nut radius
Materials
Weight
Nut
Part
in
mm
in
mm
in
mm
lbs
kgs
2
25.4
2 11/18
68.3
1 15/18
49.2
SF/SF
CDB/SF
1.75
0.8
1 1/4
31.7
2 7/8
73.0
2 3/8
60.3
SF
SF
2.37
1.1
1 1/2
38.1
2 7/8
73.0
2 3/8
60.3
SF
SF
2.37
1.1
2
50.8
3 5/18
84.1
2 20/32
73.8
SF
SF
2.25
2.4
2 1/2
63.8
4 1/18
103.2
3 11/18
93.7
SF
SF
10.0
4.5
3
76.2
4 3/8
111.1
3 7/8
98.4
SF
SF
15.25
6.9
4
101.6
4 13/18
122.2
5
127.0
SF
SF
20.0
9.1
6
152.4
68/8
168.3
6 7/18
163.5
SF
SF
44.5
20.2
1/4
1 1/18



Hammer union fig 207
Fig207:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air,water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.207 type 2000PSI NSCWP, test pressure 3000PSI blue cap, gray parts.




Nominal pipe
size
Total length
Nut radius
Materials
Weight
Nut
Part
in
mm
in
mm
in
mm
lbs
kgs
3
76.2
33/4
95.25
27/8
73.03
SC
SF
9.8
4.45
4
101.6
45/18
109.54
310/32
91.28
SC
SF
16.25
7.37
6
152.4
513/18
147.64
431/32
126.2
SC
SF
38.0
17.24



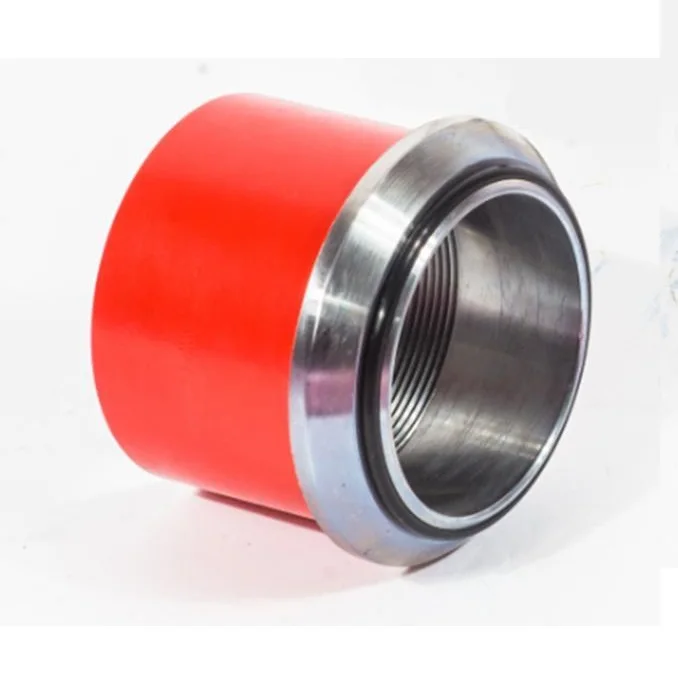

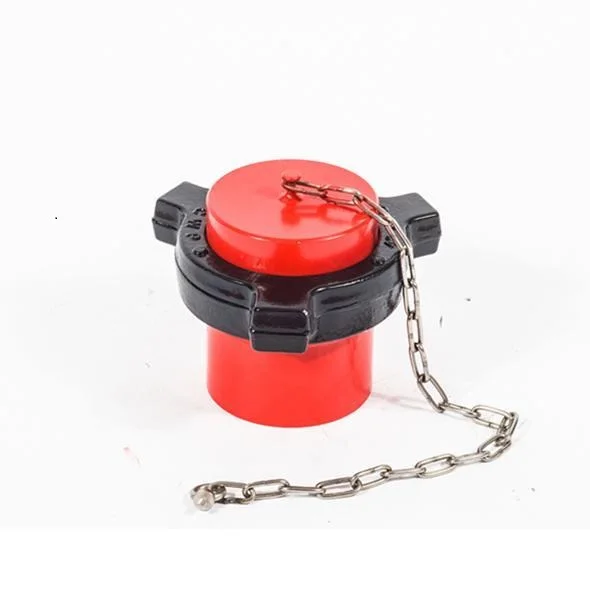

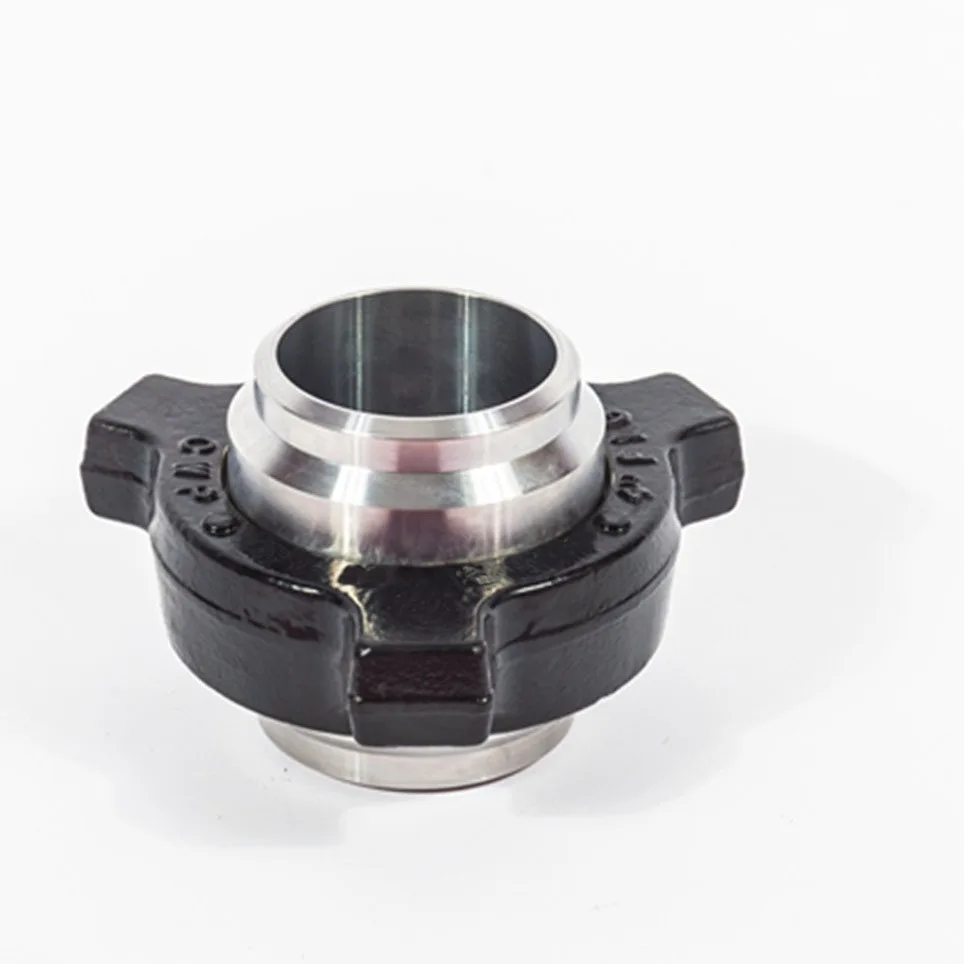

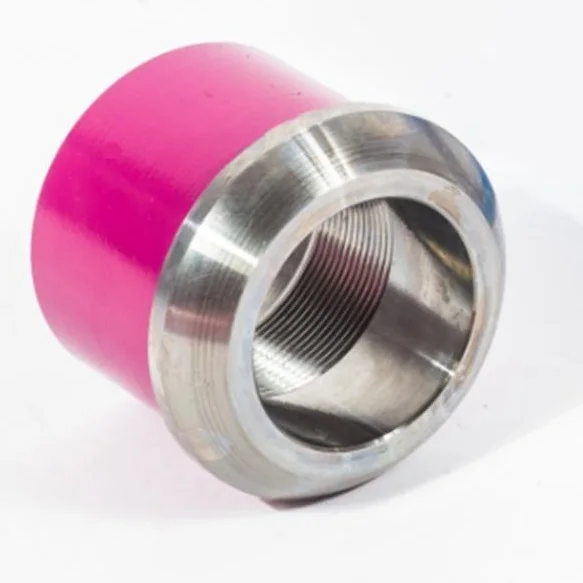

Hammer union fig 400

Fig400:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air,water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.400 4000PSI NSCWP, test pressure 6000PSI black nut, red parts,With sealing ring
3.Can also be customized according to customer needs




Nominal pipe
size
Total length
Nut radius
Materials
Weight
Nut
Part
in
mm
in
mm
in
mm
lbs
kgs
2
50.8
5 3/18
131.8
3 3/18
90.5
SF
SF
11.0
5.0
3
76.2
6 1/4
158.8
4 3/18
106.4
SF
SF
19.25
8.7
4
101.6
8 1/8
206.4
5
127.0
SF
SF
32.0
14.5



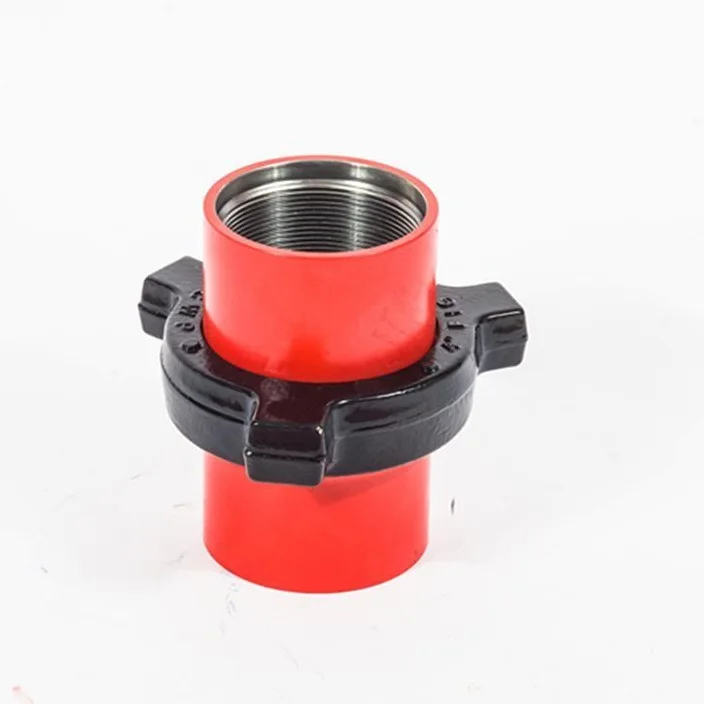

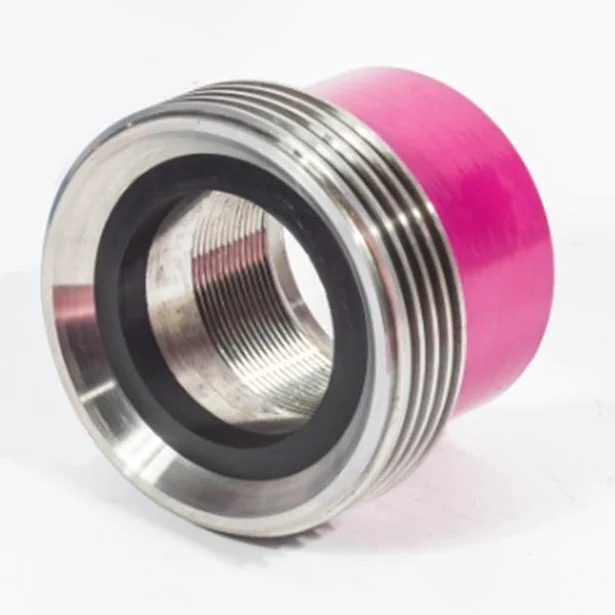

Hammer union fig 602

Fig602:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air,water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.602 6000PSI NSCWP, test pressure 9000PSI black nut, red parts,With sealing ring.
3.Can also be customized according to customer needs




Nominal pipe
size
Total length
Nut radius
Materials
Weight
Nut
Part
in
mm
in
mm
in
mm


lbs
kgs
1
25.4
317/32
89.7
26/18
58.75
SF
SF
3.5
1.6
2
50.8
51/4
133.3
30/18
90.5
SF
SF
13.25
5.9
3
76.2
63/8
161.92
45/8
117.5
SF
SF
21.0
9.5
4
101.6
81/18
208.0
51/4
133.4
SF
SF
33.0
15.0



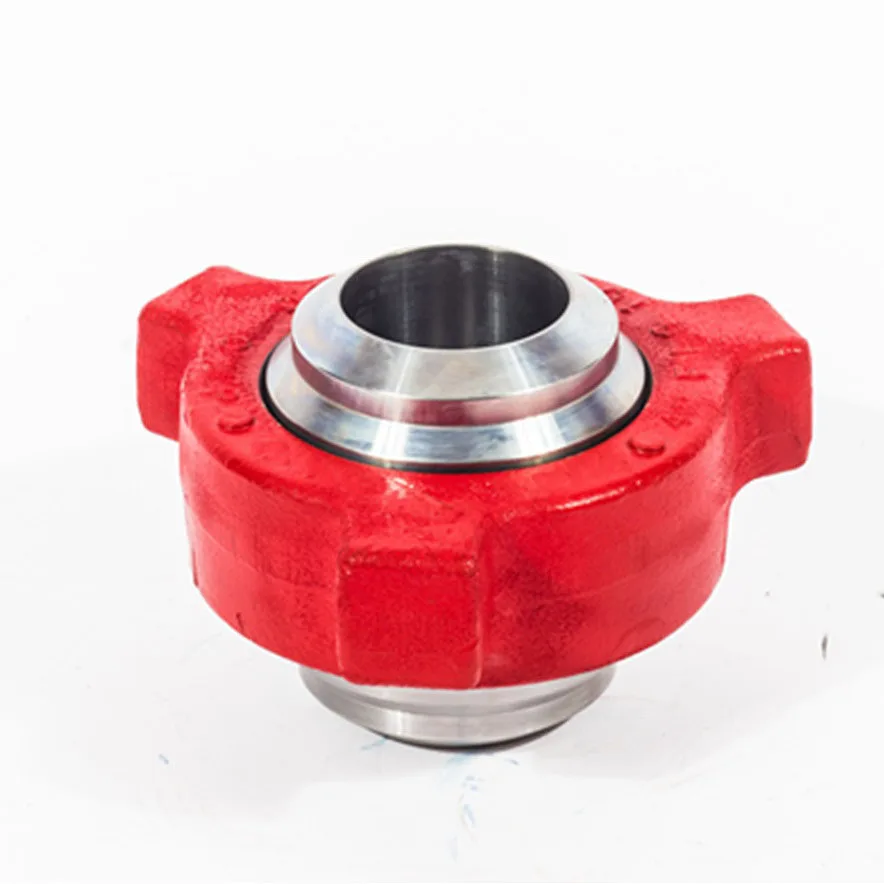

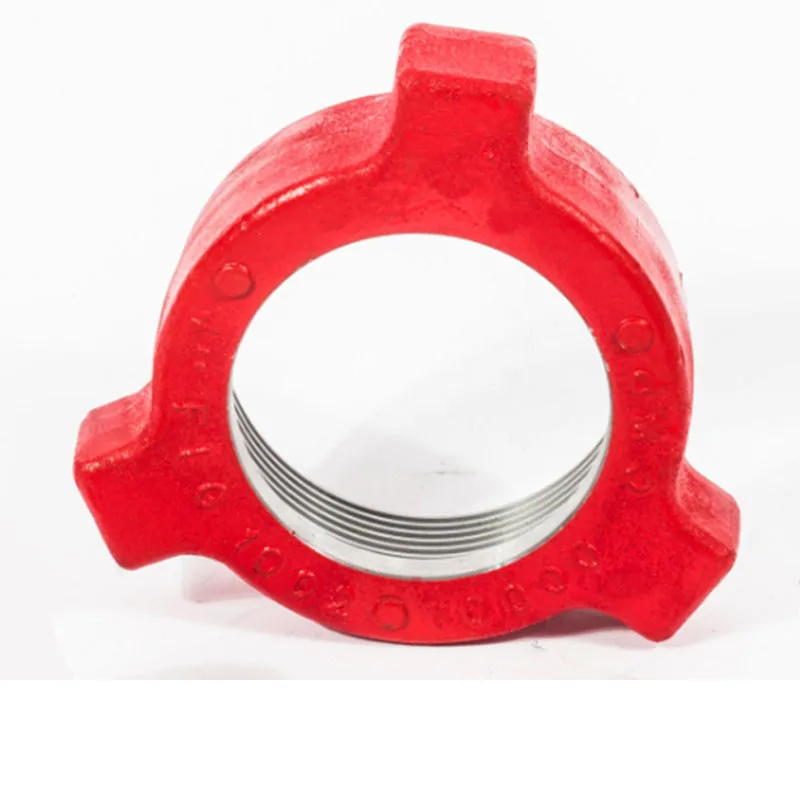

Hammer unionFIG1002

Fig1002:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air,water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.1002 10000PSI NSCWP, test pressure 15000PSI red nut, blue parts,Equipped with nitrile rubber sealing ring
3.Can also be customized according to customer needs.




Nominal pipe
size
Total length
Nut radius
Materials
Weight
Nut
Part
in
mm
in
mm
in
mm
lbs
kgs
1
25.4
3 1/2
88.9
2 1/4
57.2
SF
SF
3.5
1.6
2
50.8
5 3/18
131.8
311/18
93.7
SF
SF
13.25
5.9
3
76.2
6 3/8
161.92
43/8
117.5
SF
SF
21.0
9.5
4
101.6
8 1/18
204.8
51/4
133.4
SF
SF
39.5
17.9
5
127
6 4/6
172.7
6
152.4
SF
SF
61.67
28
6
152.4
7 1/18
179.4
71/4
184.2
SF
SF
70.48
32


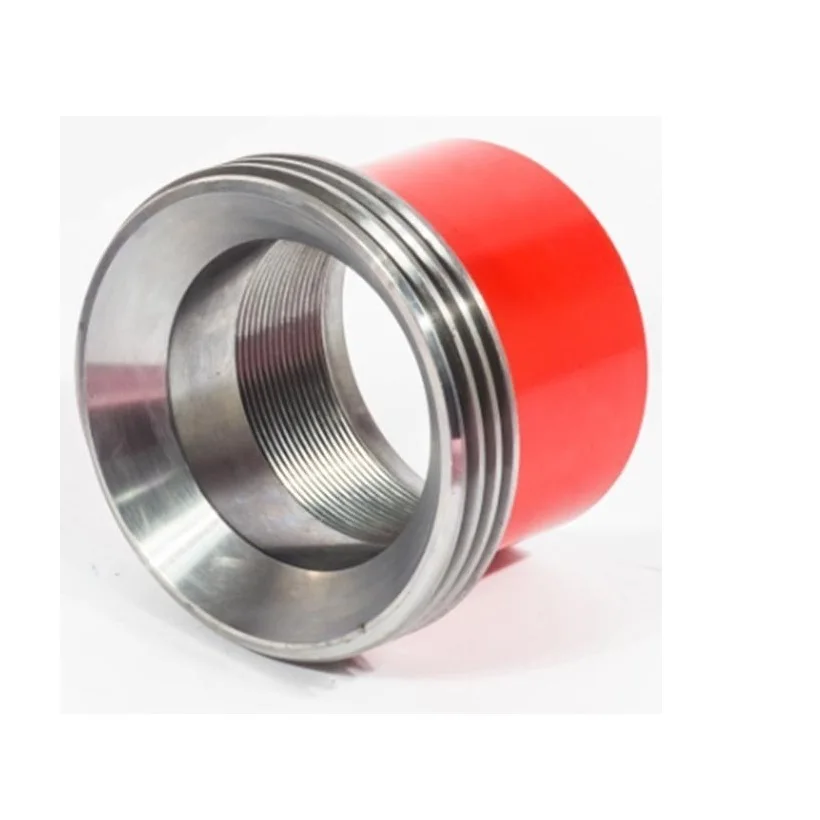

Hammer union fig1502

Fig1502:
1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air,water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.
2.1502 10000PSI NSCWP, test pressure 15000PSI red nut, blue parts,Equipped with nitrile rubber sealing ring
3.Can also be customized according to customer needs.




Nominal pipe size
Total length
Pipck bore
Materials
Weight
Nut
Part
in
mm
in
mm
in
mm


lbs
kgs
1 1/2
38.1
5 13/32
137.0
1/4
6.4
SF
SF
12.0
5.4
2
50.8
7
177.8
16/84
6.0
SF
SF
21.0
9.5
3
76.2
7 6/8
193.7
3/8
9.5
SF
SF
31.0
14.1
