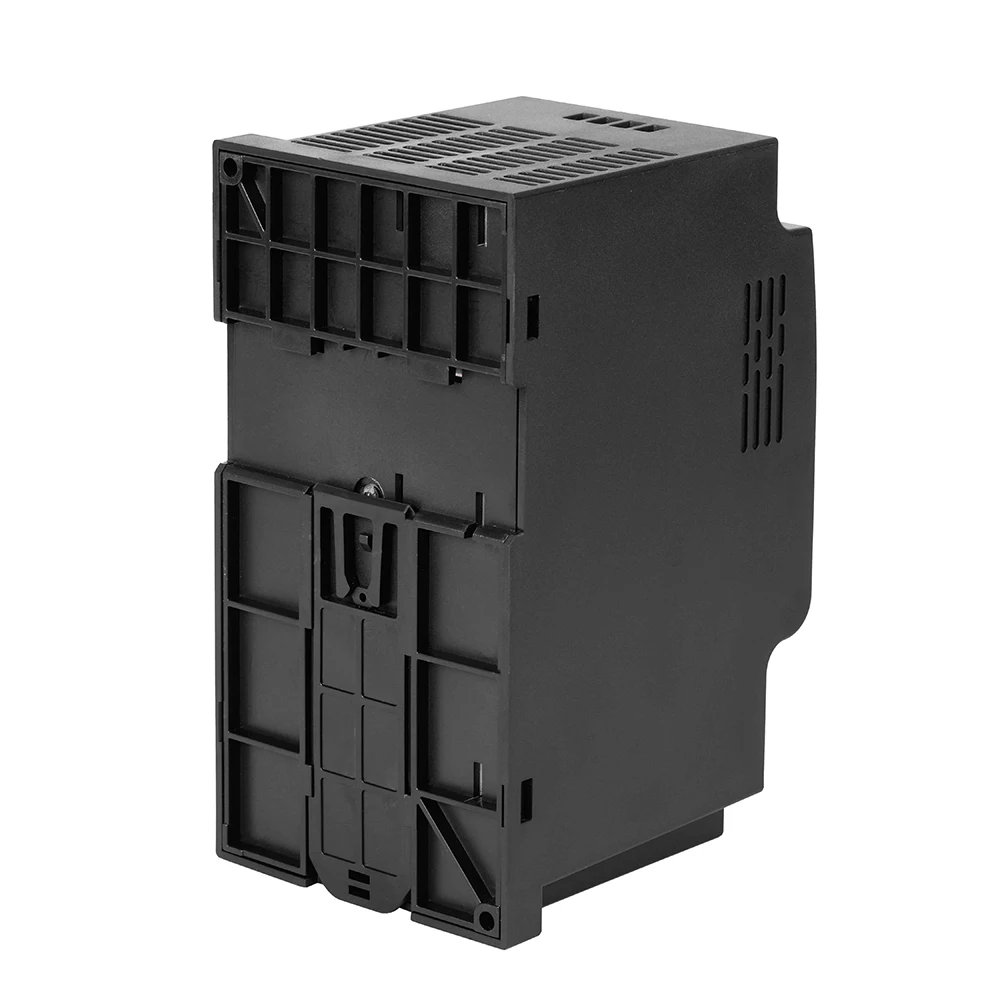

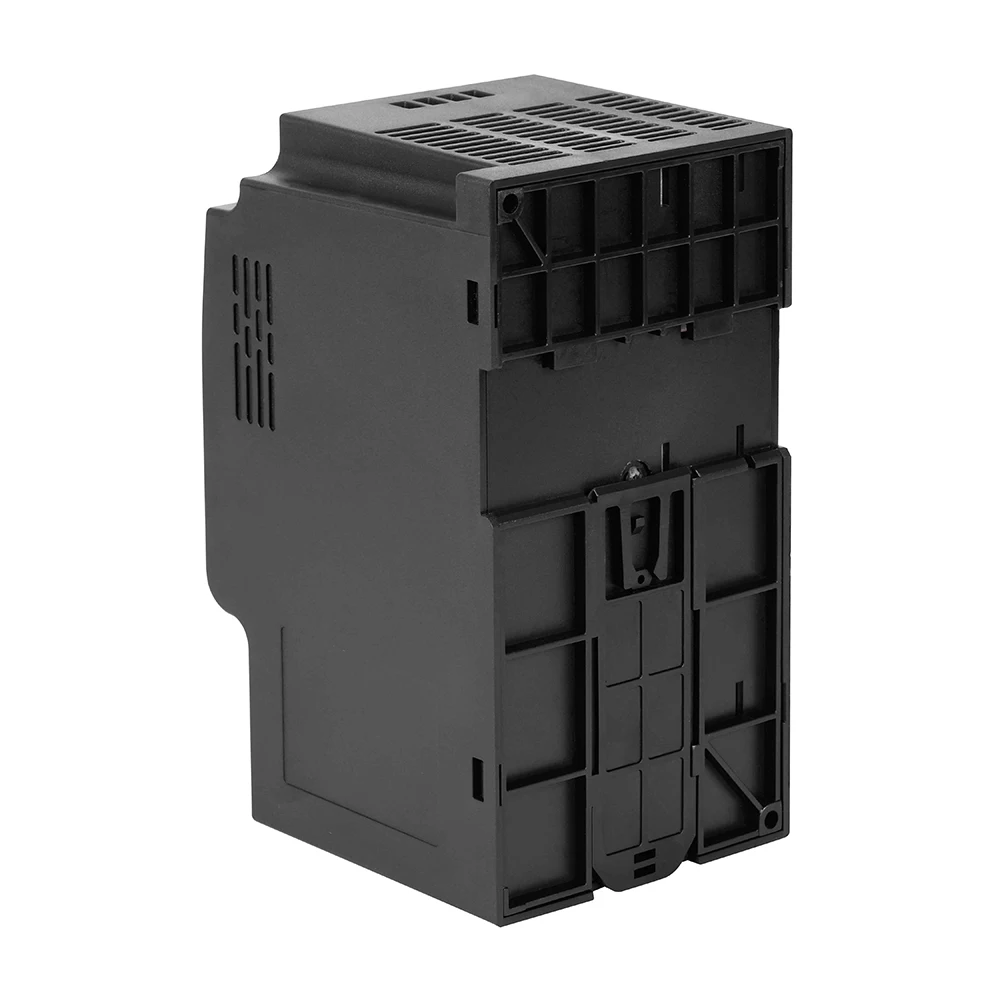

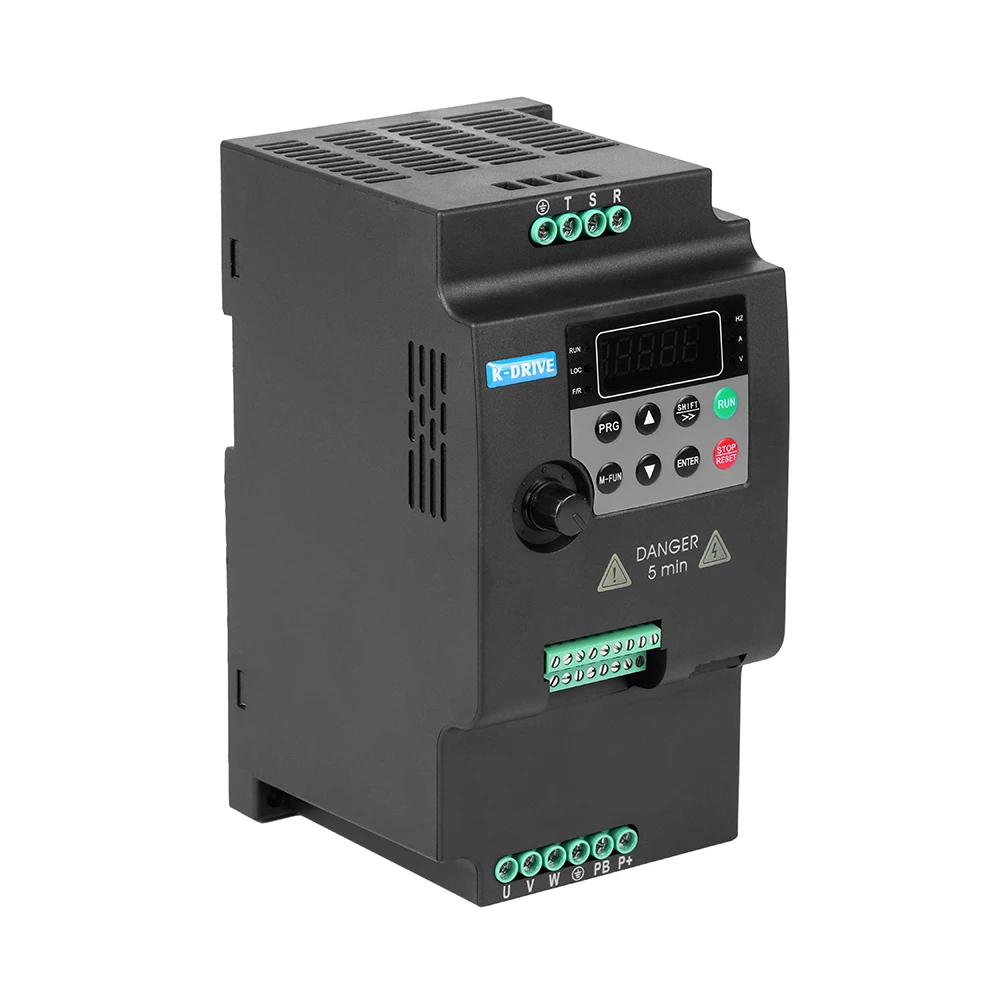

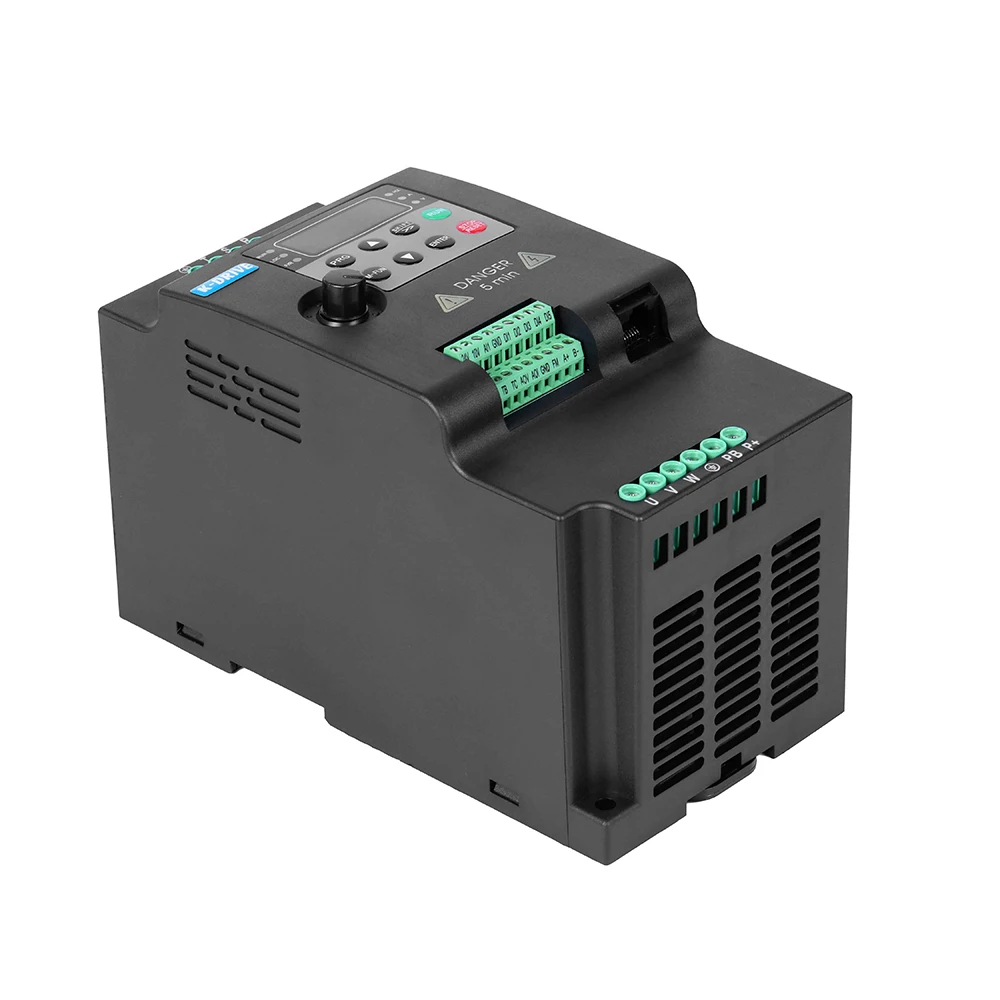

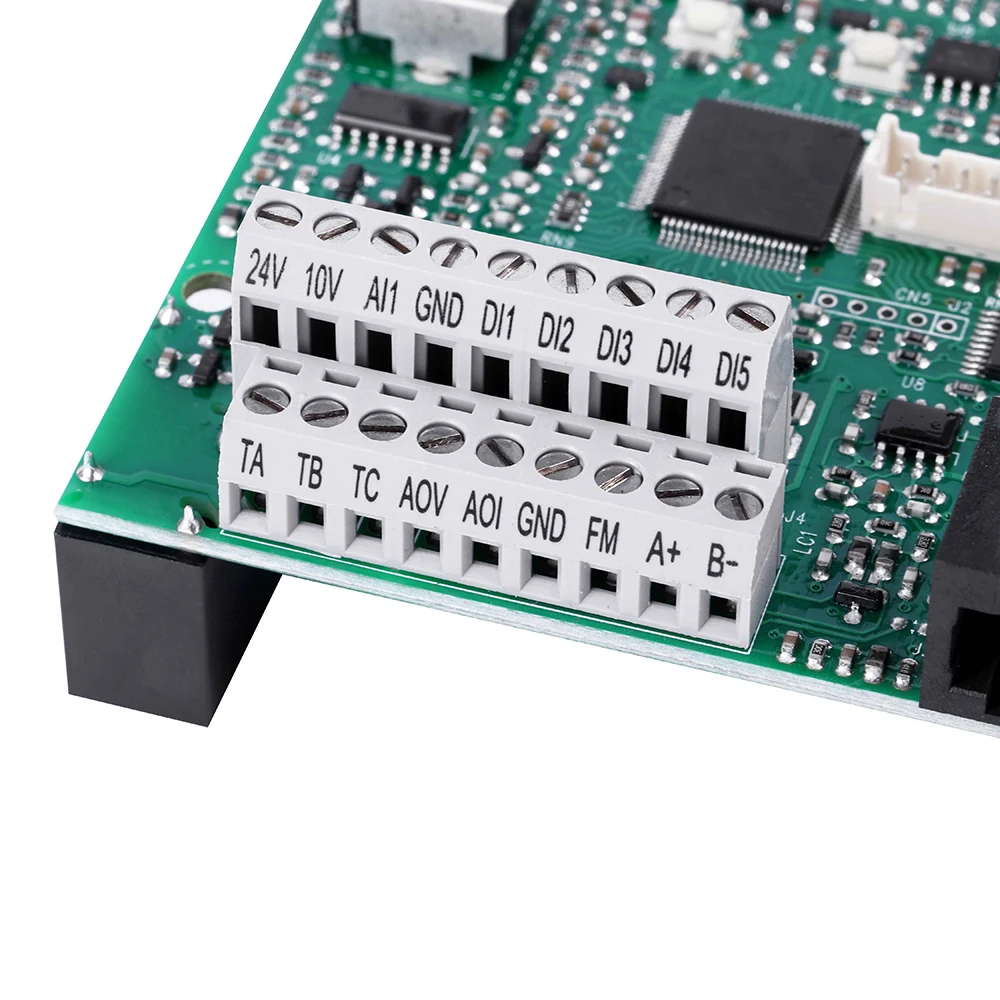

220V 380V 0.4 15KW AC motor high Vector frequency inverter VFD VSD
- Category: >>>
- Supplier: Shenzhen K-Easy Electrical Automation Company Limited
Share on (1600446944385):
Product Overview
Description
Product Description
Low Cost AC Drive Specially Desgined For Low Horsepower Applications
Auto Torque Boost & Slip Compensation All Brake Unit Built In(Can Add Brake Resistor Directly)

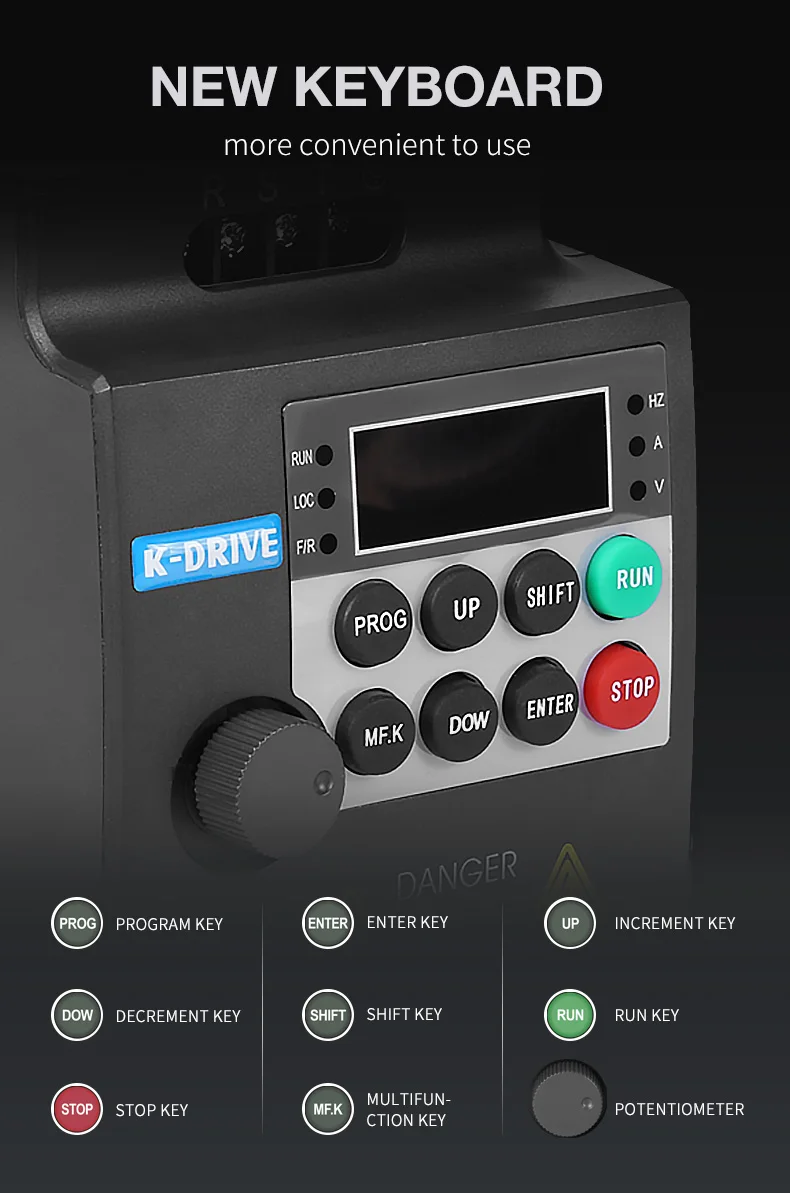

Built In Modbus (RS485) Outer Keypad Available
Vector Control Carrier Frequency Upto 10KHZ
All 24 Months Warranty Time. Exw Price For All, same For FOB Price once total fee arrives US$20,000

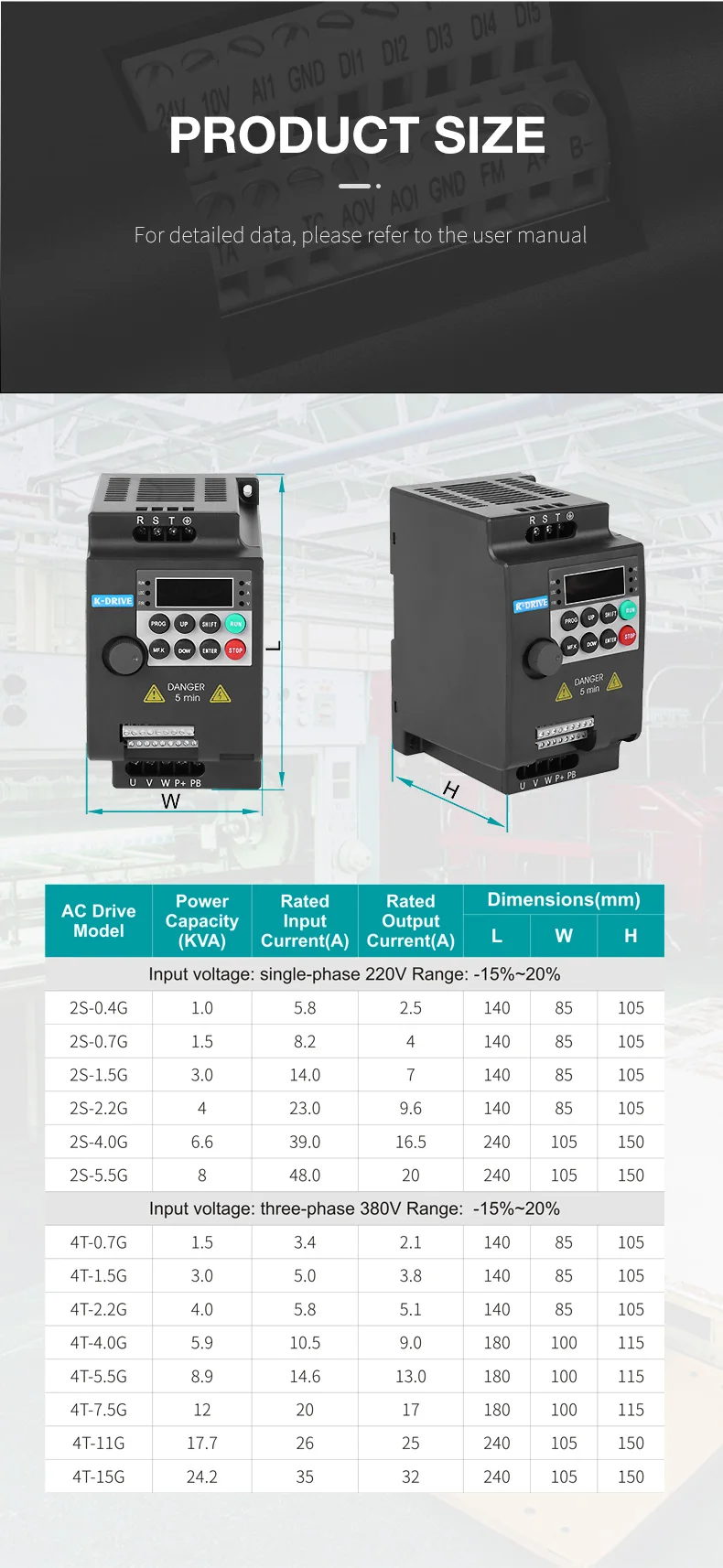

Products Specification:
| Model | Power Supply Capacity(KVA) | Input Current(A) | Output Current(A) | Applicant Motor | Dimensions(cm) | Weight(kg) | |
| Single-phase power: 220v, 50/60Hz | KW | HP | |||||
| KD100-2S-0.4G | 1 | 5.4 | 2.3 | 0.4 | 0.5 | 21*11*16.5 | 1.35 |
| KD100-2S-0.75G | 1.5 | 8.2 | 4 | 0.75 | 1 | 21*11*16.5 | 1.35 |
| KD100-2S-1.5G | 3 | 14 | 7 | 1.5 | 2 | 21*11*16.5 | 1.35 |
| KD100-2S-2.2G | 4 | 23 | 9.6 | 2.2 | 3 | 21*11*16.5 | 1.35 |
| Three-phase power: 380v, 50/60Hz | |||||||
| KD100-4T-0.75G | 1.5 | 3.4 | 2.1 | 0.75 | 1 | 21*11*16.5 | 1.35 |
| KD100-4T-1.5G | 3 | 5 | 3.8 | 1.5 | 2 | 21*11*16.5 | 1.35 |
| KD100-4T-2.2G | 4 | 5.8 | 5.1 | 2.2 | 3 | 21*11*16.5 | 1.35 |
| KD100-4T-3.7G | 5.9 | 10.5 | 9 | 3.7 | 5 | 22*17*20 | 2.1 |
| KD100-4T-5.5G | 8.9 | 14.6 | 13 | 5.5 | 7.5 | 22*17*20 | 2.1 |
| KD100-4T-7.55G | 11 | 20.5 | 17 | 7.5 | 10 | 28.5*22*23.5 | 3.8 |
| KD100-4T-11G | 17 | 26 | 25 | 11 | 15 | 28.5*22*23.5 | 3.8 |
