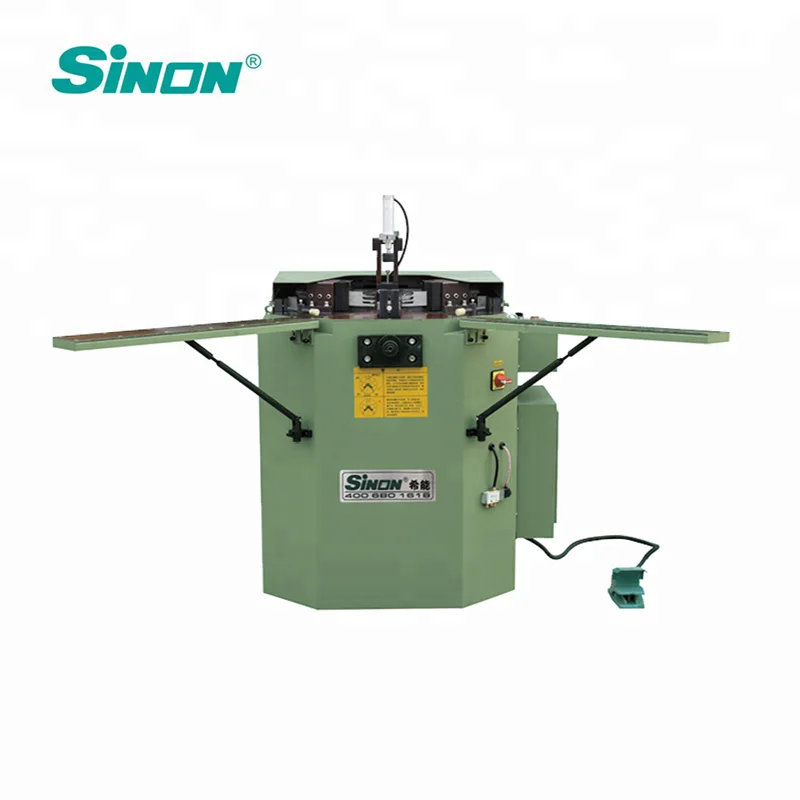

Factory direct Automatic Hydraulic Aluminium Profile Corner Crimping Machines For windows and doors
- Category: >>>
- Supplier: Jinan Sinon Cnc Machine Co. Ltd.
Share on (1600447196347):
Product Overview
Description
Related Products
Product Description

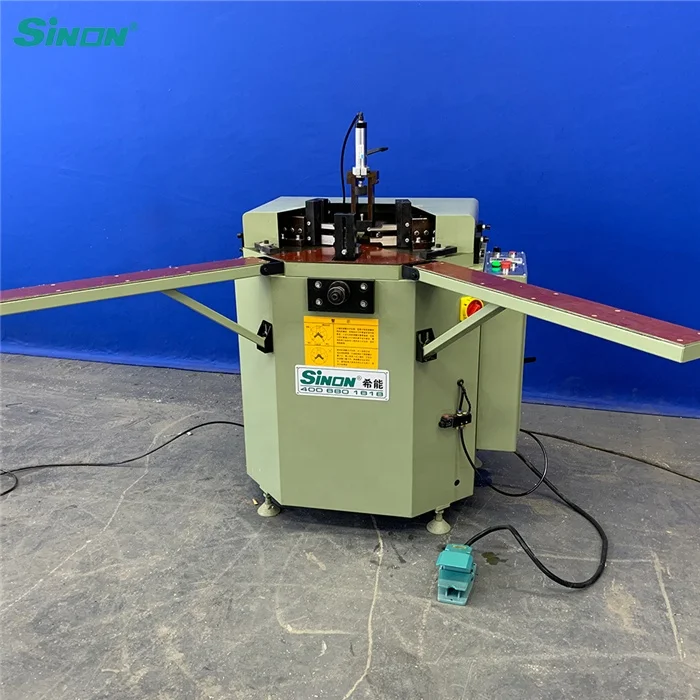

Taiwan hydraulic system lift type corner crimping machine for aluminum windows
Main Features
-1. This machine is one of the necessary equipment for high-grade aluminum doors and windows. It is mainly used for the crimping and connection of the 90°joint of the casement door and the window.

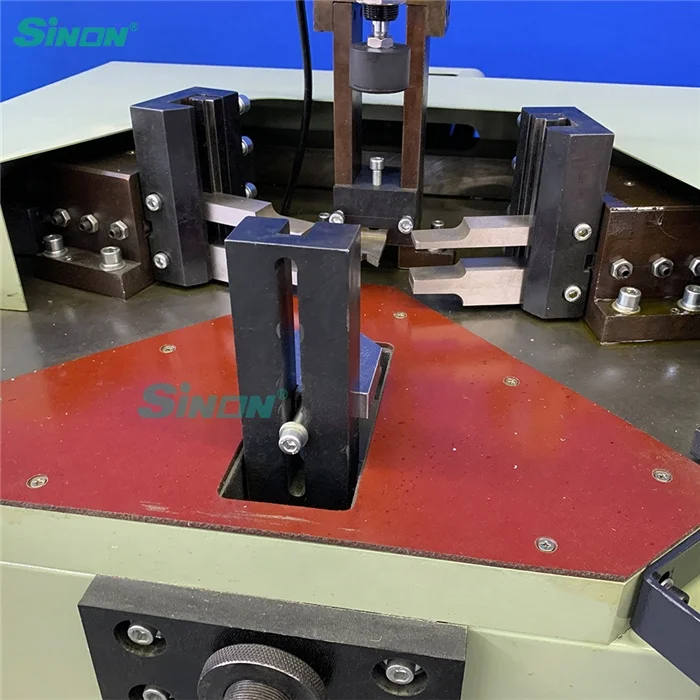

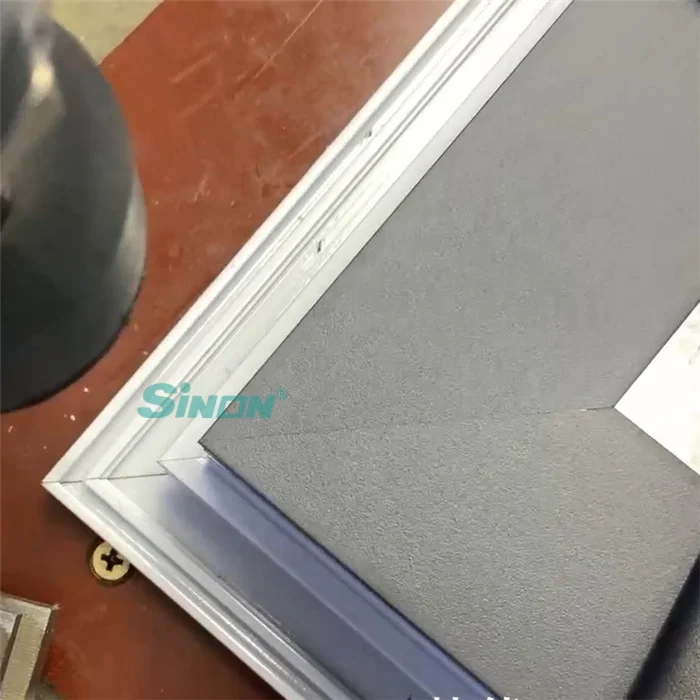

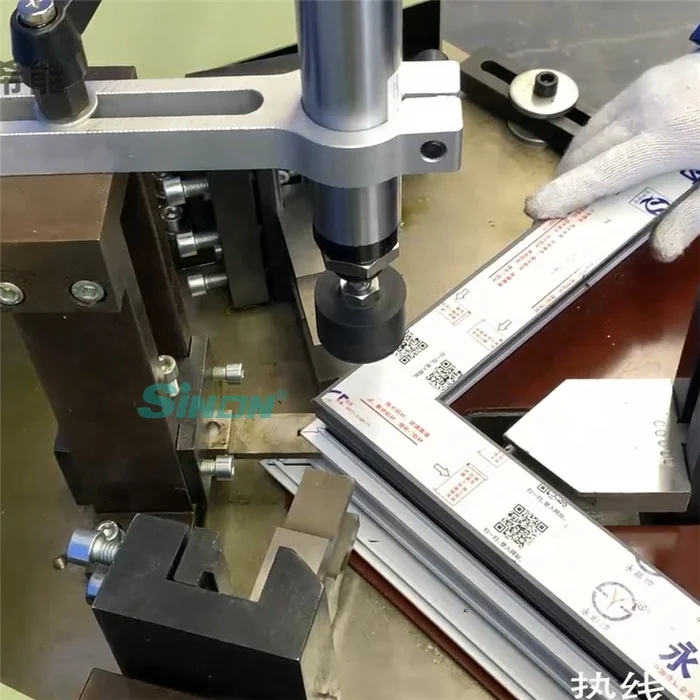

-2. Before crimping corner, put a suitable corner connector in the two connected profile cavities. After the positioning and clamping, the two hydraulically driven punches strongly rush to the groove of the corner connector to make the outer wall of the profile permanent. Cold deformation.

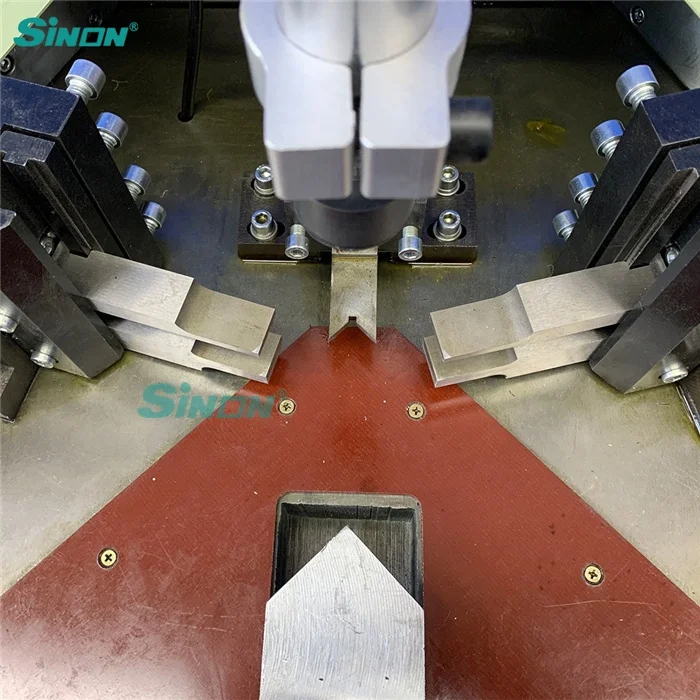

-3. One hydraulic cylinder ensures the complete synchronization of the two sets of crimping knife through the mechanical linkage mechanism, which greatly improves the quality and reliability of the doors and windows and reduces the failure rate.

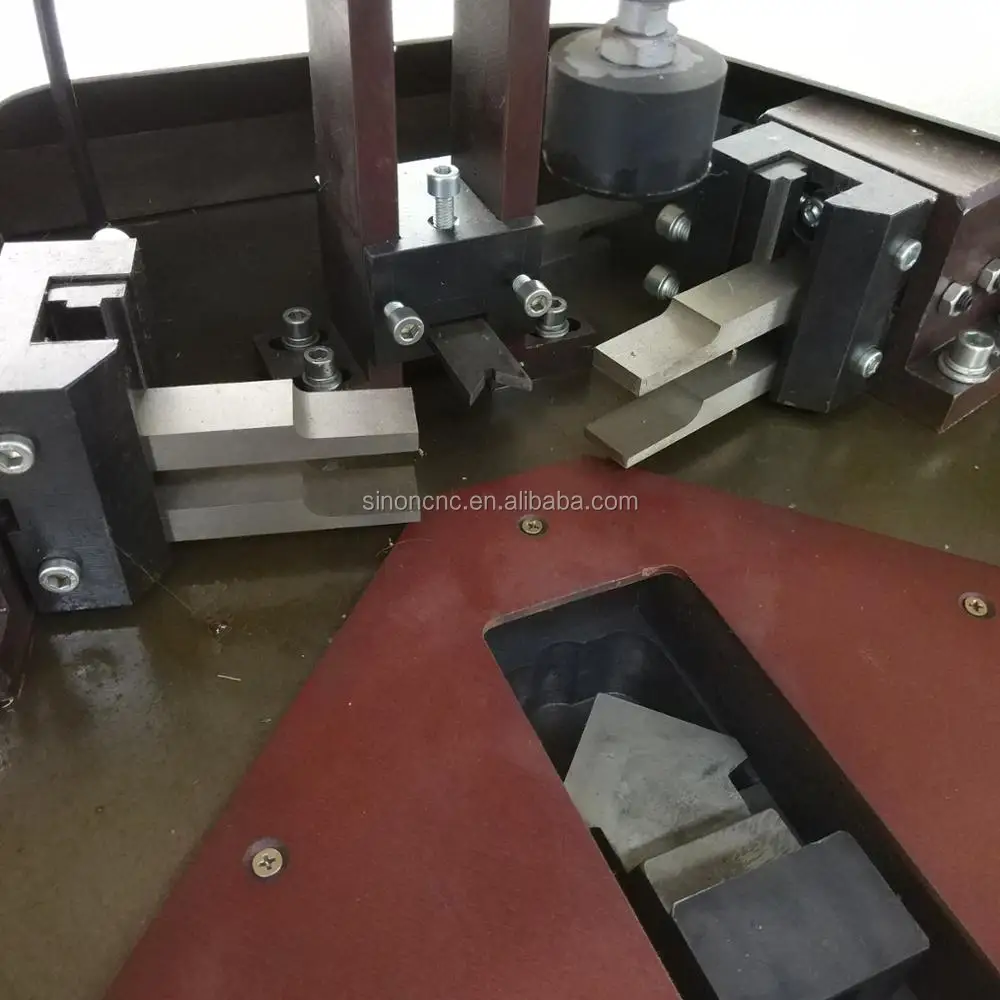

-4. Adjust the distance between the upper and lower sets of corner knives to make the knives adjustment more convenient.
-5. We can customize multi-point crimping knife to make the angle of aluminum door and window more reliable.
-1. This machine is one of the necessary equipment for high-grade aluminum doors and windows. It is mainly used for the crimping and connection of the 90°joint of the casement door and the window.
-2. Before crimping corner, put a suitable corner connector in the two connected profile cavities. After the positioning and clamping, the two hydraulically driven punches strongly rush to the groove of the corner connector to make the outer wall of the profile permanent. Cold deformation.
-3. One hydraulic cylinder ensures the complete synchronization of the two sets of crimping knife through the mechanical linkage mechanism, which greatly improves the quality and reliability of the doors and windows and reduces the failure rate.
-4. Adjust the distance between the upper and lower sets of corner knives to make the knives adjustment more convenient.
-5. We can customize multi-point crimping knife to make the angle of aluminum door and window more reliable.
Name | aluminum window corner crimping machine |
Power Supply | 380V 50Hz 3P |
Total input power | 1.5 KW |
Rated Oil Pressure | 0.5-0.8 MPa |
Oil Box Capacity | 30L |
Max. process height | 100mm |
Thickness of Crimping Tool Tip | 3/5/8mm |
Overall Dimension | 1800*1700*1210mm |
Total Weight | 280KG |

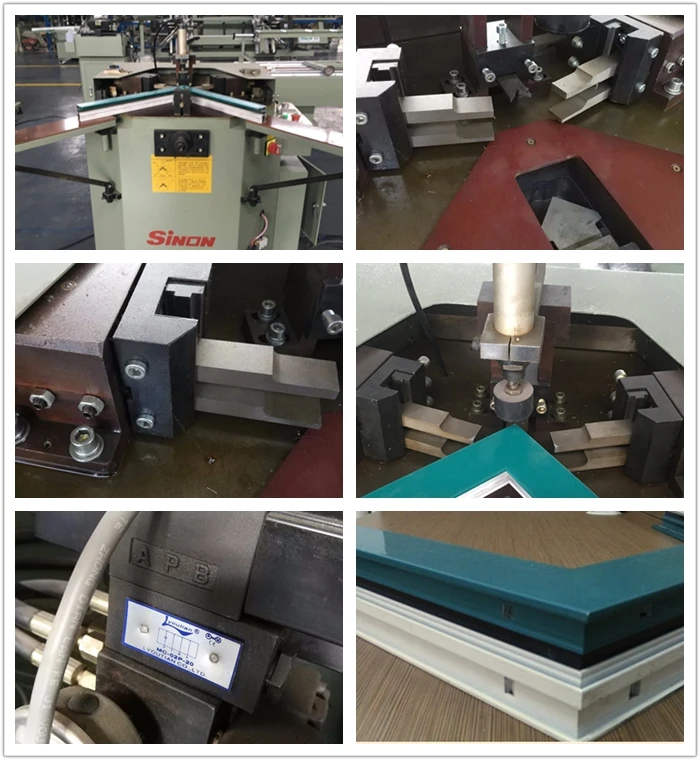

Detailed Images

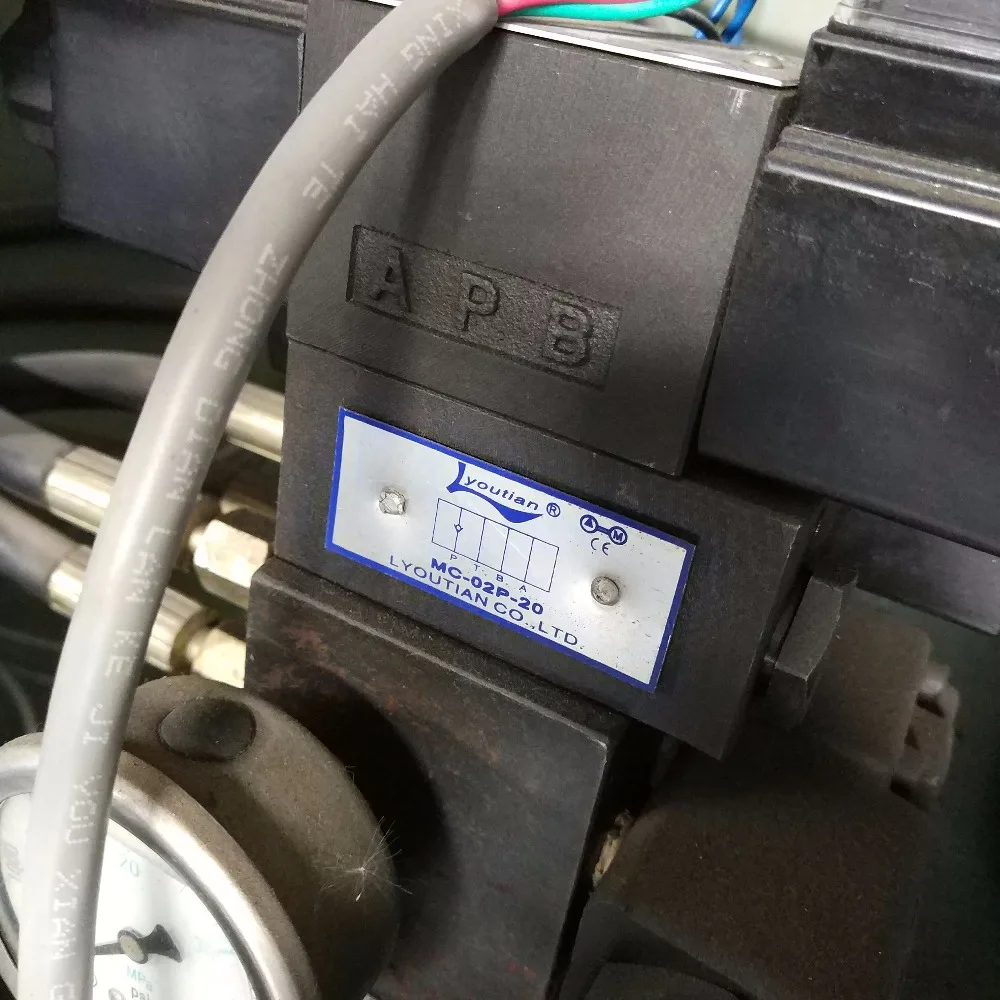

-- Taiwan LYOUTIAN hydraulic system
- Main positioning mechanism elevating design which easy to place profiles (optional)
France Schneider electric
Taiwan Airtec pneumatic system
Quality assurance and service
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
* From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
* From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
Core components
Just 3 steps for install machines after arrive customers factory
1. Unpacking
2. Install the necessary accessories
3. Connect power and air source (No need to adjust the accuracy or other)
Pre-sales service:
-- Free contact for the most suitable machine
-- Free professional design for each customer especially.
-- Free design drawings for factory
-- Free professional design for each customer especially.
-- Free design drawings for factory
-- Free layout Plan for complete sets of equipment
After sale service
-- 24 hours technical support by phone, email or skype .
-- Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
-- By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Our customer feedback
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
Packing&Shipping
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
Certifications
Why Choose Us
Sinon--machines for aluminum, PVC and insulating glass
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Sinon--machines for aluminum, PVC and insulating glass
We have been in machine manufacturing for 15 years , from a small workshop to a big factory which have our own machining center, We have more than 30 offices in China and in Vietnam, Russia and India. So far, we have exported to more than 40 countries and regions.
