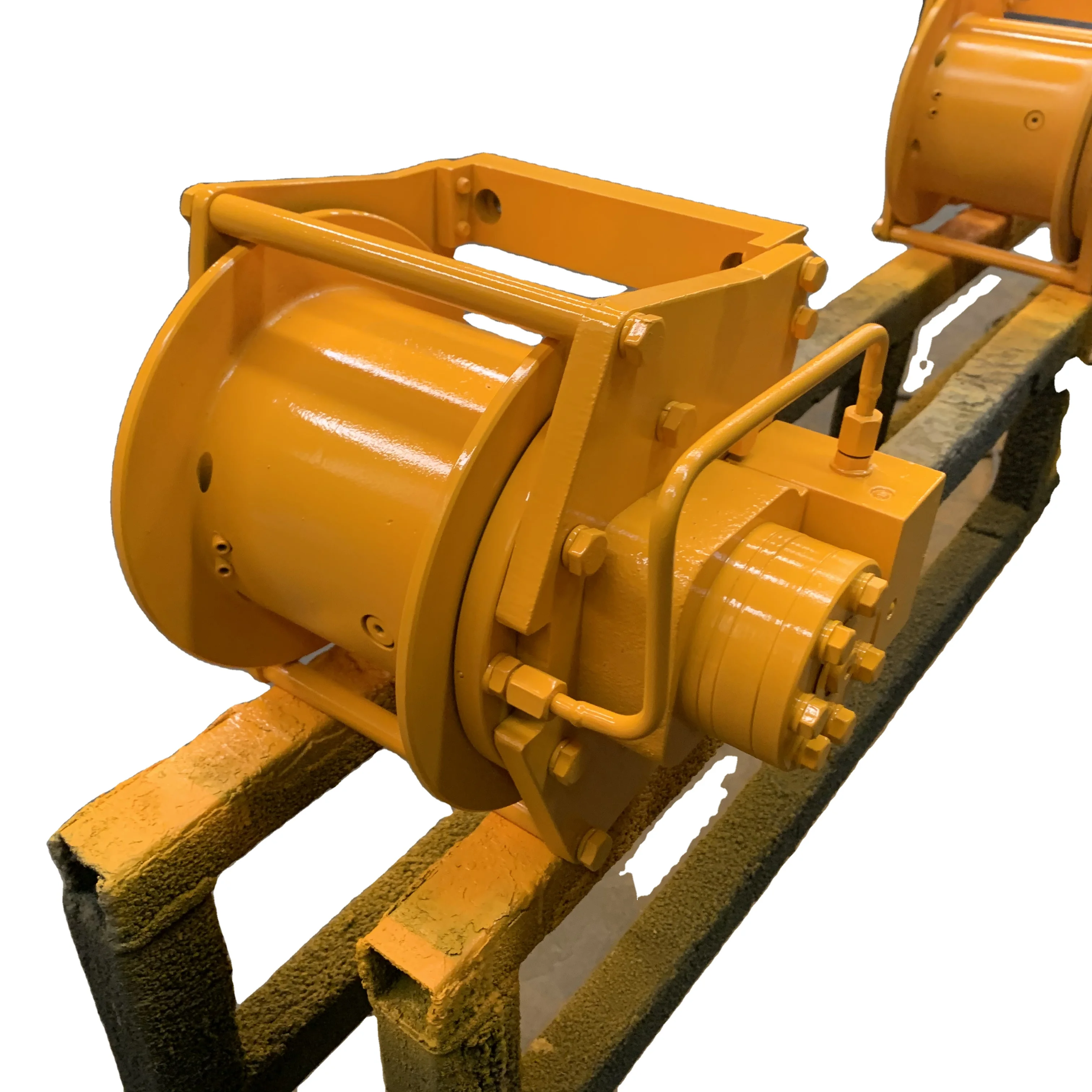

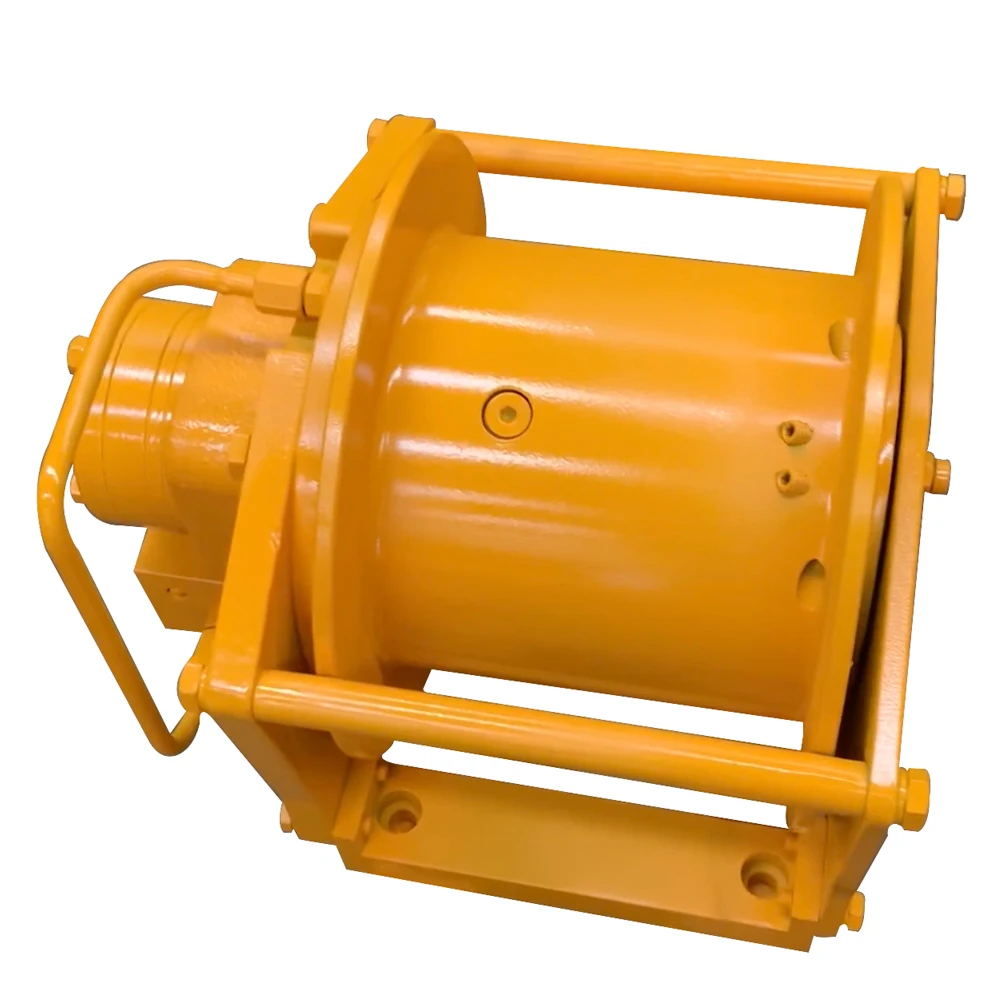

800kg Hydraulic winch lifting forest machine
- Category: >>>
- Supplier: Jiangyin Zhongxin Engineering Equipment Co. Ltd.
Share on (1600447198595):
Product Overview
Description
800kg lifting hydraulic winch for forest logging
Product Overview
Brief Introduction
The hydraulic winch is converted into mechanical energy by the hydraulic energy obtained by the hydraulic motor through the
hydraulic system,and it is decelerated by the planetary reducer to increase the torsion,which produces a great torque on the
drum,and achieves the purpose of dragging heavy objects by winding the steel wire rope on the drum.
hydraulic system,and it is decelerated by the planetary reducer to increase the torsion,which produces a great torque on the
drum,and achieves the purpose of dragging heavy objects by winding the steel wire rope on the drum.
Main Application
Hydraulic winch is a vehicle tool used in automobiles and special vehicles for self-rescue and self-discharge in off-road driving
under difficult road conditions.
It can also be used for lifting and pulling heavy objests in construction site,such as engineering installation,oil field
drilling,road clearing etc.
It is characterized by compact structure,small size,light weight,large pulling force,simple installation,flexible
operation,convenient maintenance,and the hydraulic system of the car itself.
under difficult road conditions.
It can also be used for lifting and pulling heavy objests in construction site,such as engineering installation,oil field
drilling,road clearing etc.
It is characterized by compact structure,small size,light weight,large pulling force,simple installation,flexible
operation,convenient maintenance,and the hydraulic system of the car itself.

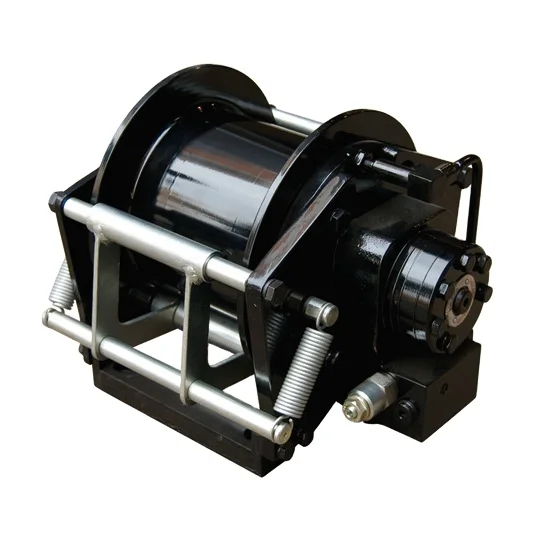

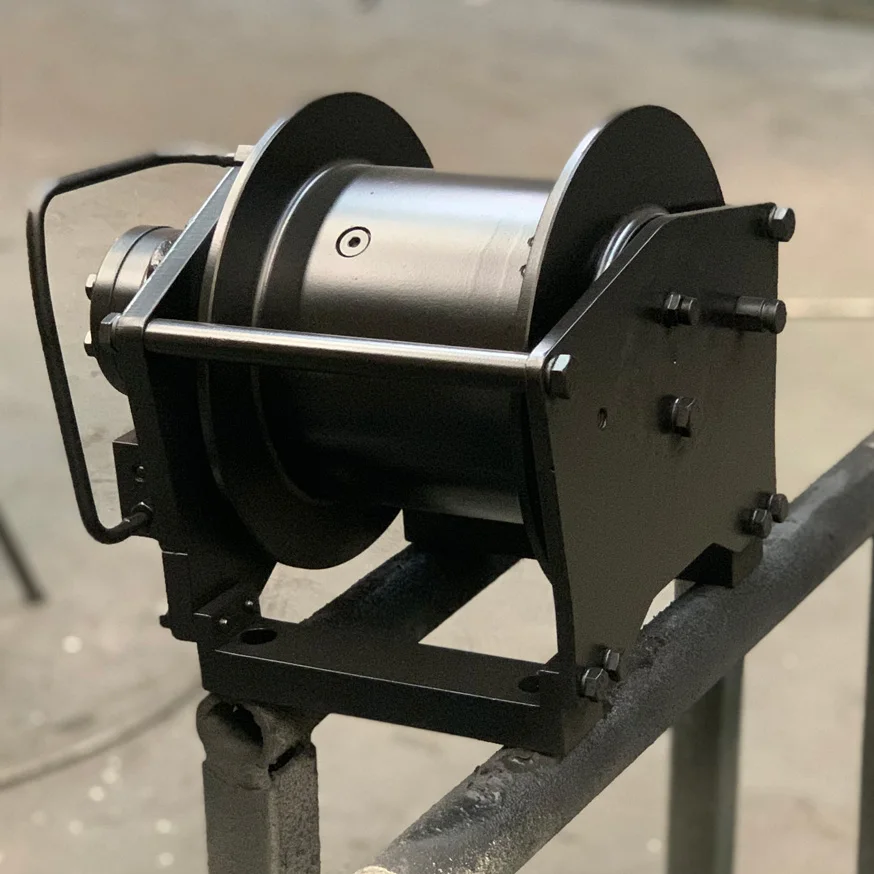

800kg Hydraulic lifting winch
YT08 Hydraulic winch consists of hydraulic motor,2-stage planetary gear reducer,arrester,drum,etcs.
1765lbs Hydraulic lifting winch

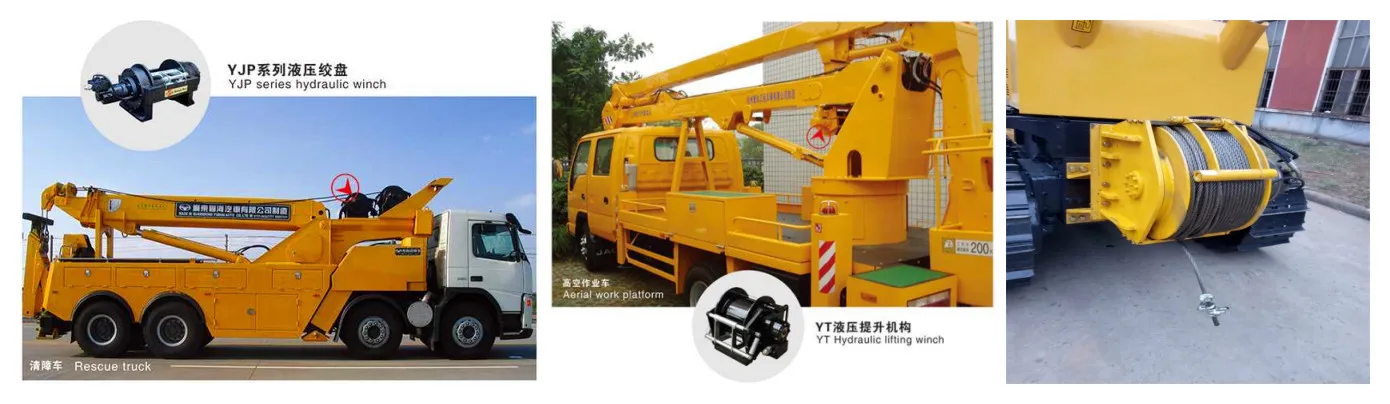

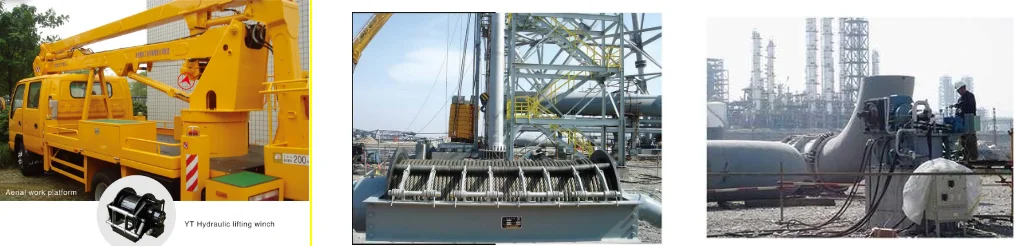

Application:Boat,Port Hoisting,crane trucks,lorry crane,forklift,Aerial work platform,Drilling rig,torch tower,skid steer,ATV,forest logging,oil filed drilling etcs.
Features
1.Full-float typed planetary gear reducer makes the operation more stable,the structure more reasonable.
2.Adopt multidisc-typed friction normally-closed brake makes the break torque larger,safer and more reliable.
3.The product is featured by its small size,compact construction and high transmission efficiency.
4.Adopt the hydraulic motor of foreign famous brand,which has good performance and long life.
2.Adopt multidisc-typed friction normally-closed brake makes the break torque larger,safer and more reliable.
3.The product is featured by its small size,compact construction and high transmission efficiency.
4.Adopt the hydraulic motor of foreign famous brand,which has good performance and long life.
5.The installation bracket can be manufactured according to the customer's requirement.
6.According to the requirement of customers,manufacture the balance valve.
6.According to the requirement of customers,manufacture the balance valve.
Application
PRODUCT SPECIFICATIONS
Item | Unit | Spec. |
Pull capacity(1st layer) | KN/KGS/LBS | 8000/800/1765 |
Oil pressure | MPA/BAR | 15/150 |
Oil flow | L/MIN | 35 |
Line speed | m/min | 40 |
Drum capacity | m | 43 |
Layers number | 4 | |
Drum diameterxBottom diameterxLengh(Internal) | MM | 230x160x149 |
Wire rope diameter | MM | ∅8 |
Net weight | KG | 41 |
Product packaging
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: Yes.We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special
requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase
quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
A: Yes.We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special
requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase
quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
