Product Overview

Description

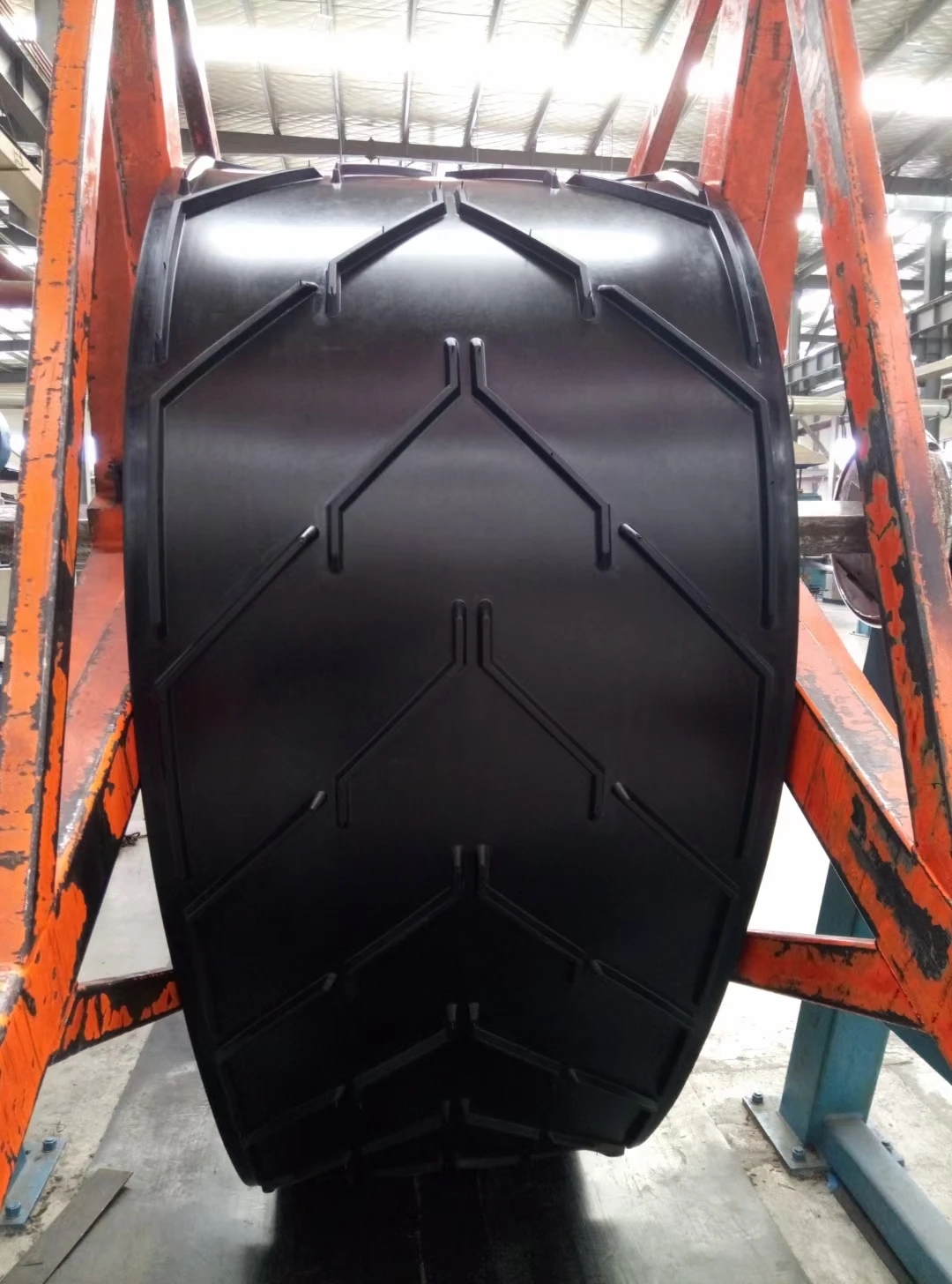

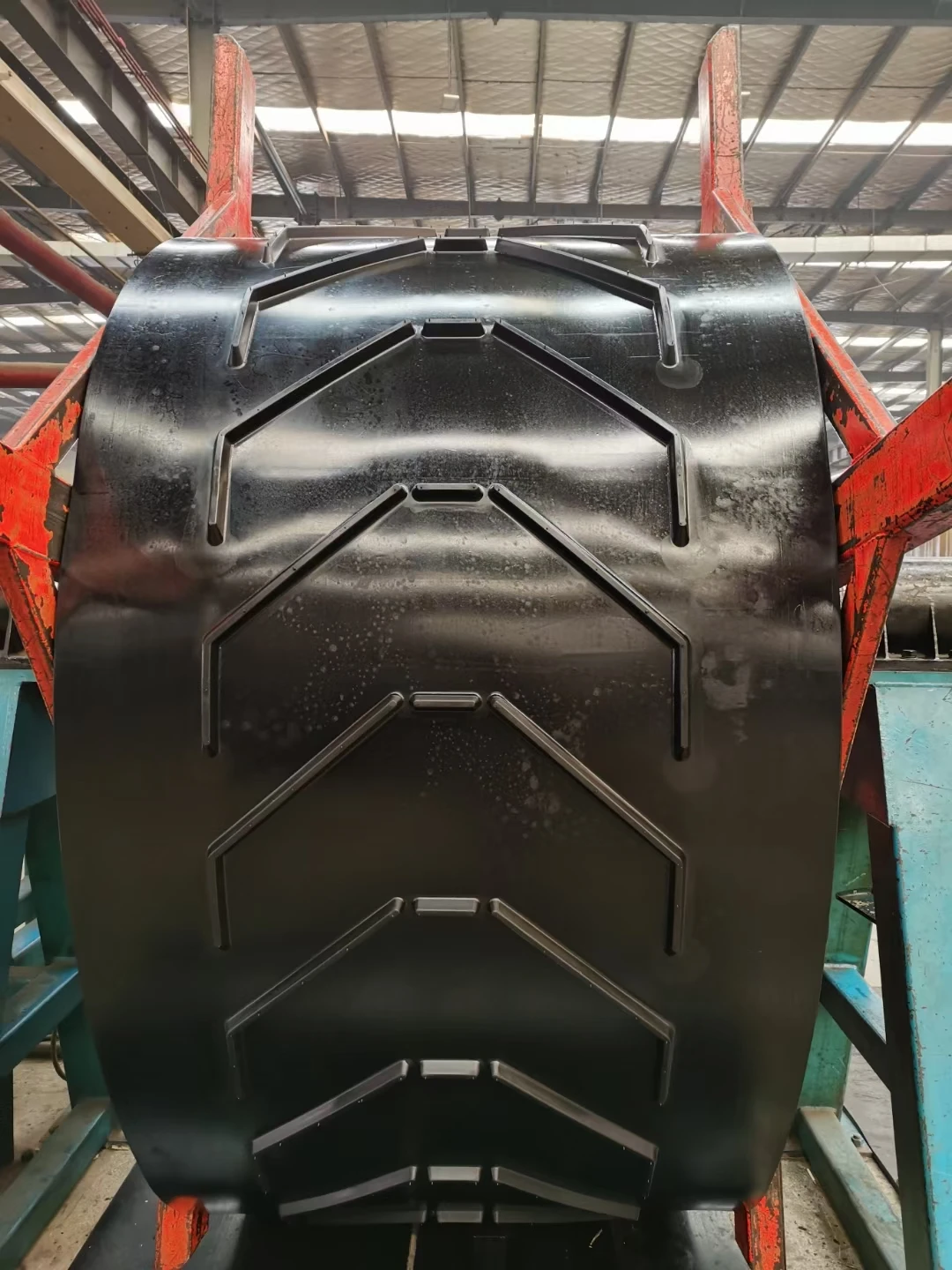

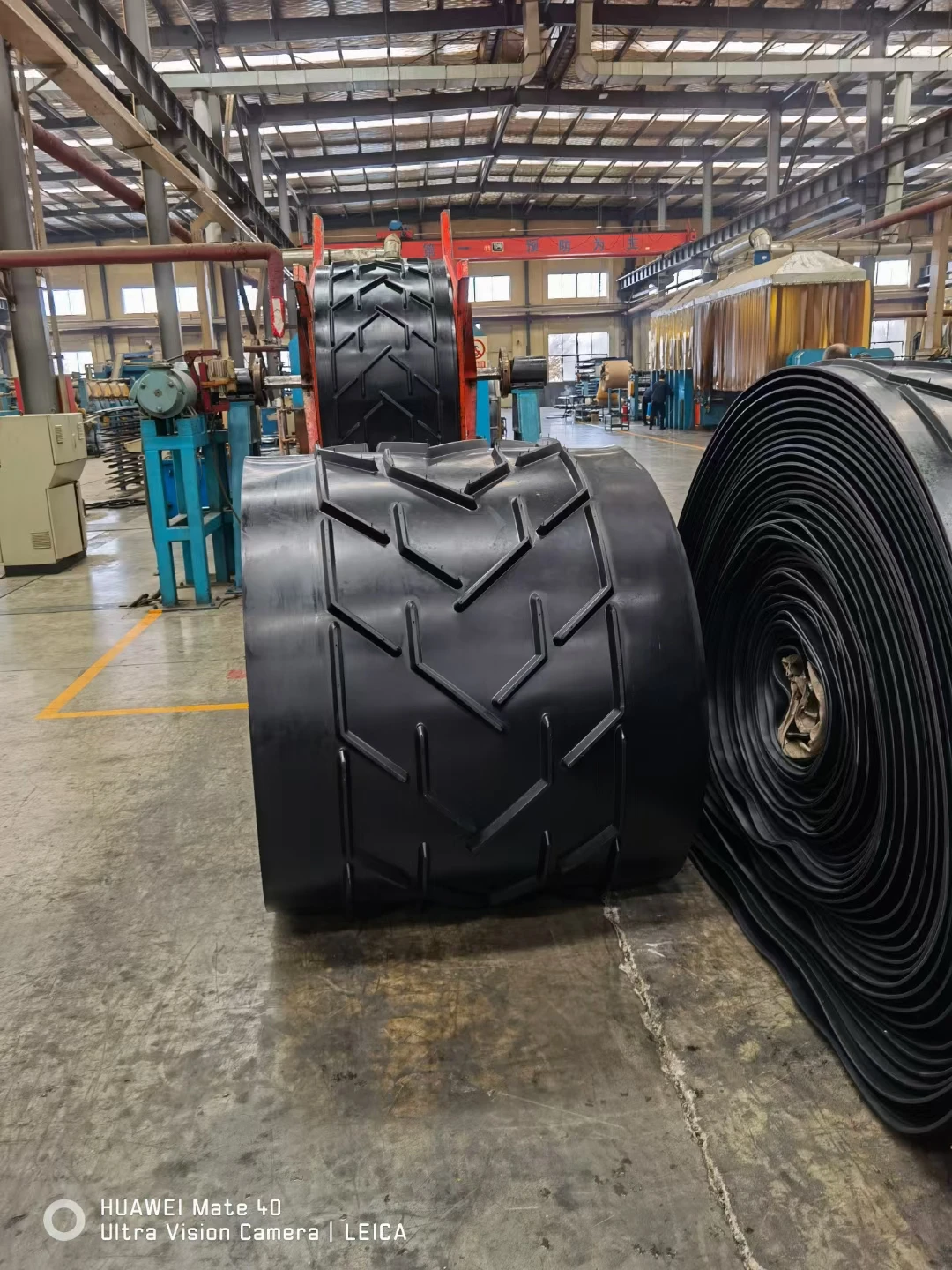

chevron conveyor belt

Chevron Conveyor Belts are precision designed and developed for providing desired space-saving on steep inclines which can go up to 40 Degrees. In such situations, these conveyor belts are designed to deliver enhanced load carrying capacity in bulk with lump size of up to 150mm.

A flat conveyor belt works fine when conveying material up to a certain angle. However, when the angle gets too steep, material may start to slide off. That’s when you need a chevron conveyor belt. Also known as escort belts, they have a cleated surface that keeps loose material in place, even at steep angles.



 Chevron Pattern Conveyor Belt Features

1. Excellent elasticity

2. Anti-impact

3. High-adhesion

4. Good flexibility

5. Trough ability

6. Better stability of size

7. Resistance to water



Advantage :

Some of the standard features of these conveyor belts include:

For meeting the demands of high capacity conveying at steep angles

Designed to prevent load slippage or roll back of products while conveying

Comes with cleats that are integrally molded with top cover rubber that prevents separation from belt

Cleats also helping in achieving high abrasion resistance as well as elastic rubber compounds for desired flexibility

Can be offered in different cleat heights as well as widths depending on application requirements

Can be made available in varied finish design specifications

Following precision design standards that ensure belt has smooth run on conventional return idlers, thus needing no conveyor modification

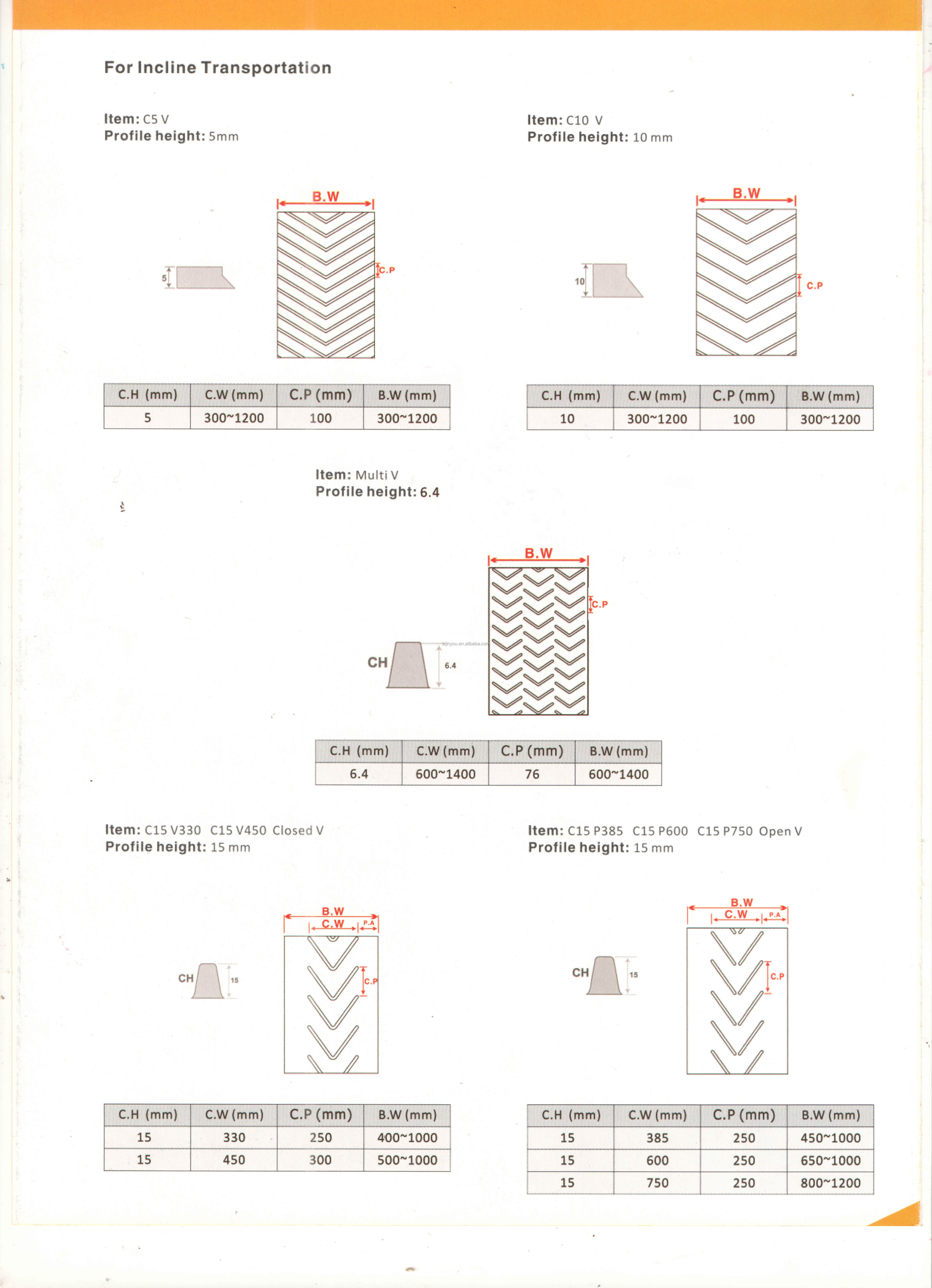

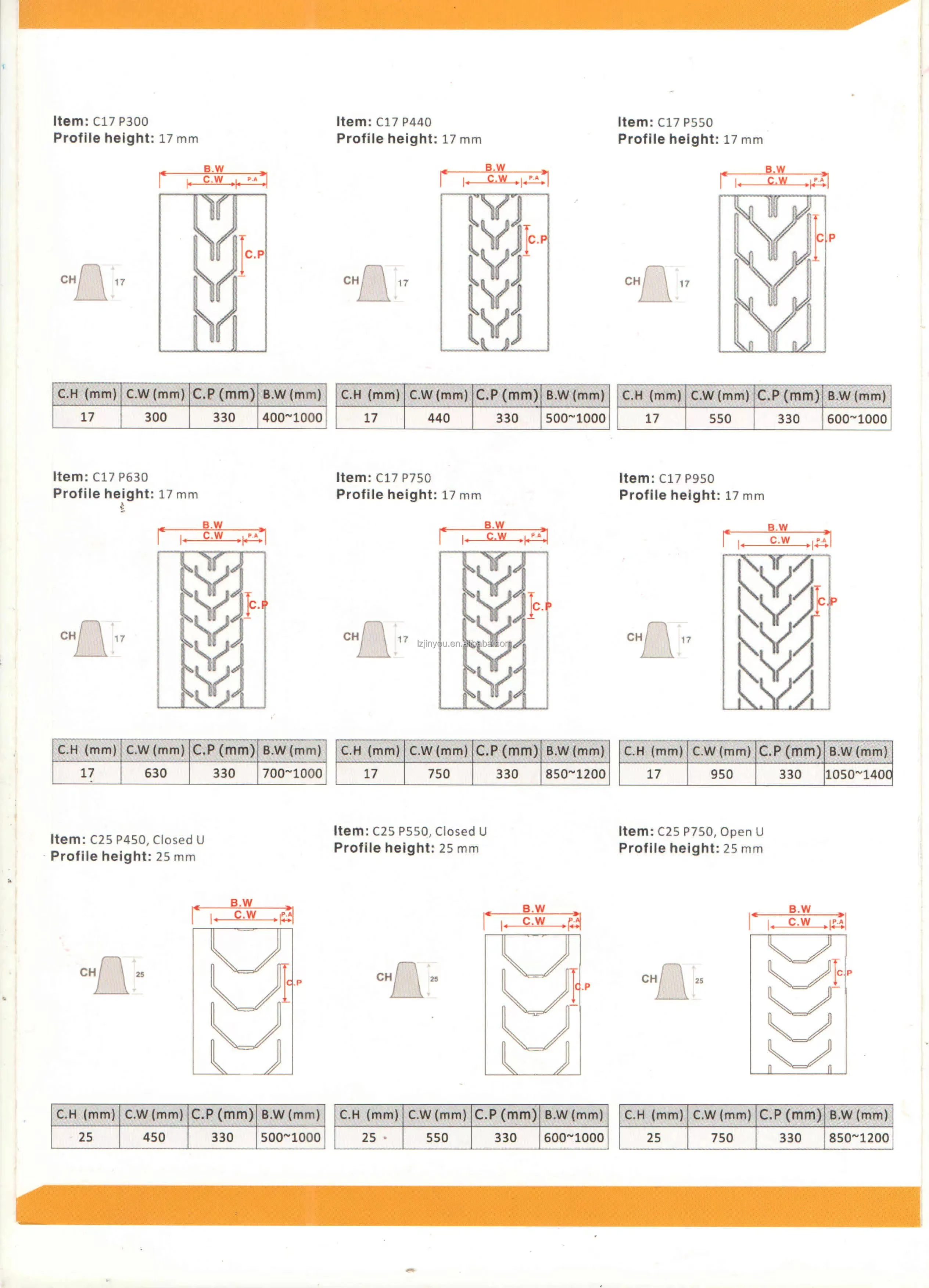

Belt types

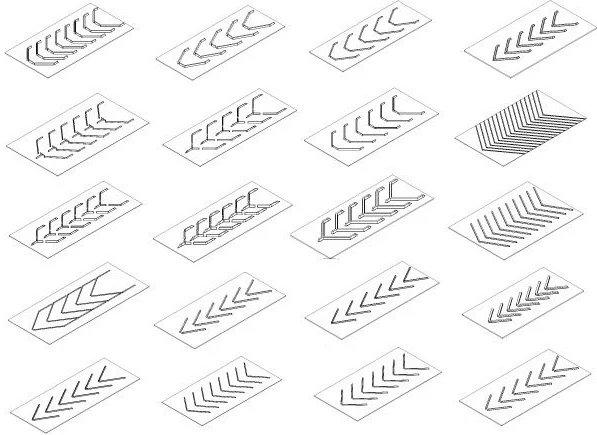

Types: Open V, Closed-V, L type, H type, Y type, A type and F type, etc.

Width: 400MM-1200MM

Thickness: 4-50mm

Types: EP80-EP630

Feature: Good adhesion and long working life

Application Areas:

Wood Chips	Sand & Gravel
Heavy Duty Scrap metal	Minerals - Coal & Ore
Materials - Fine Coal & Grains	Waste & Recycling Plants
Road Construction	Crushing Industries
Bagged Materials	Steel Pellets





Selections:

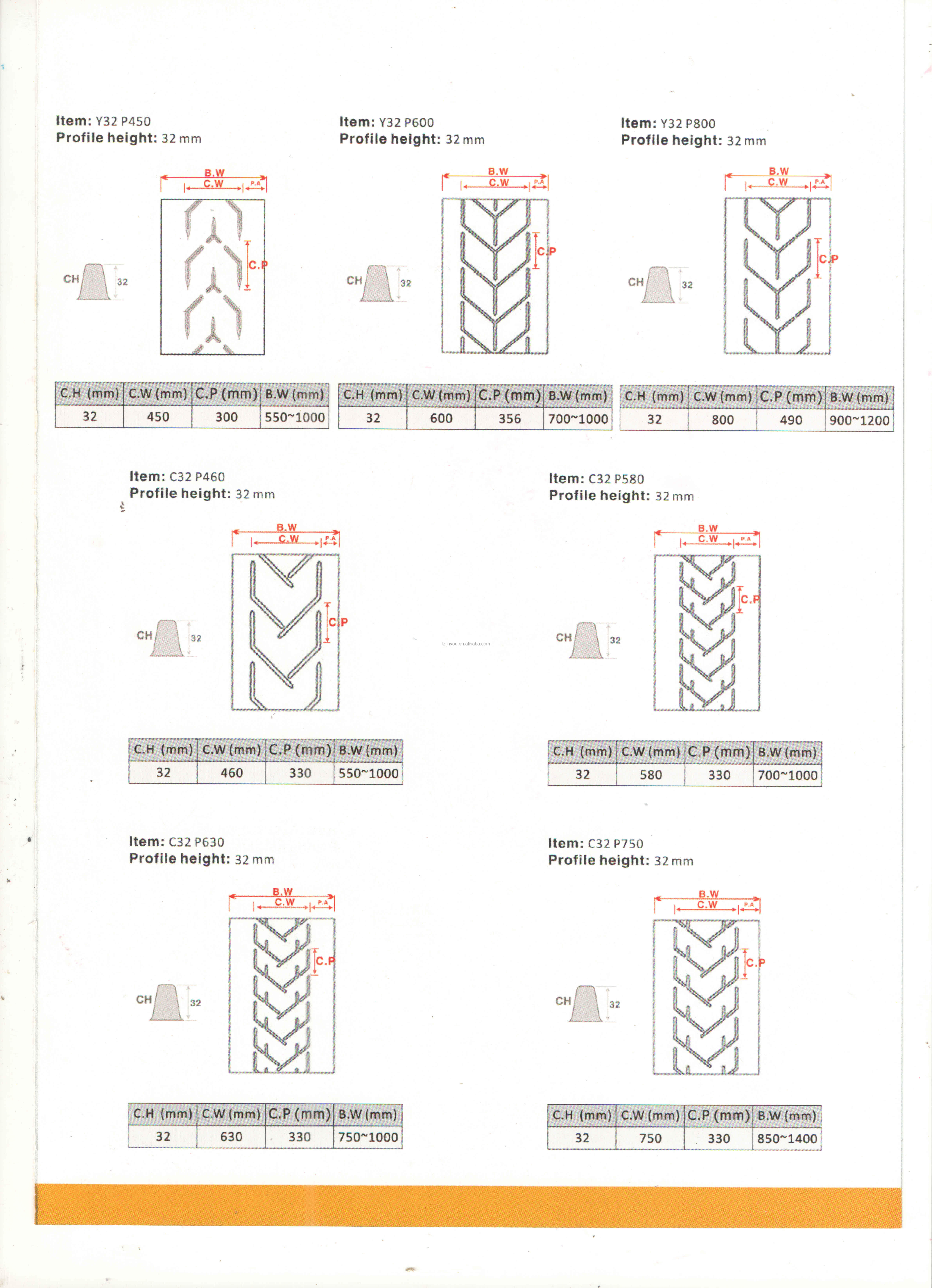

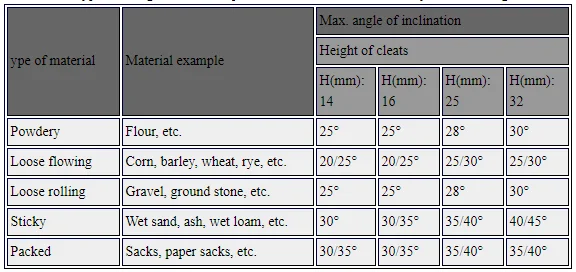

Cleat pattern
