New design customized Most Popular Auto Paint Oven Paint Room

Share on:

Price:$12,518.00 - $12,800.00
Price in USD:Details


Product Overview


Products Description

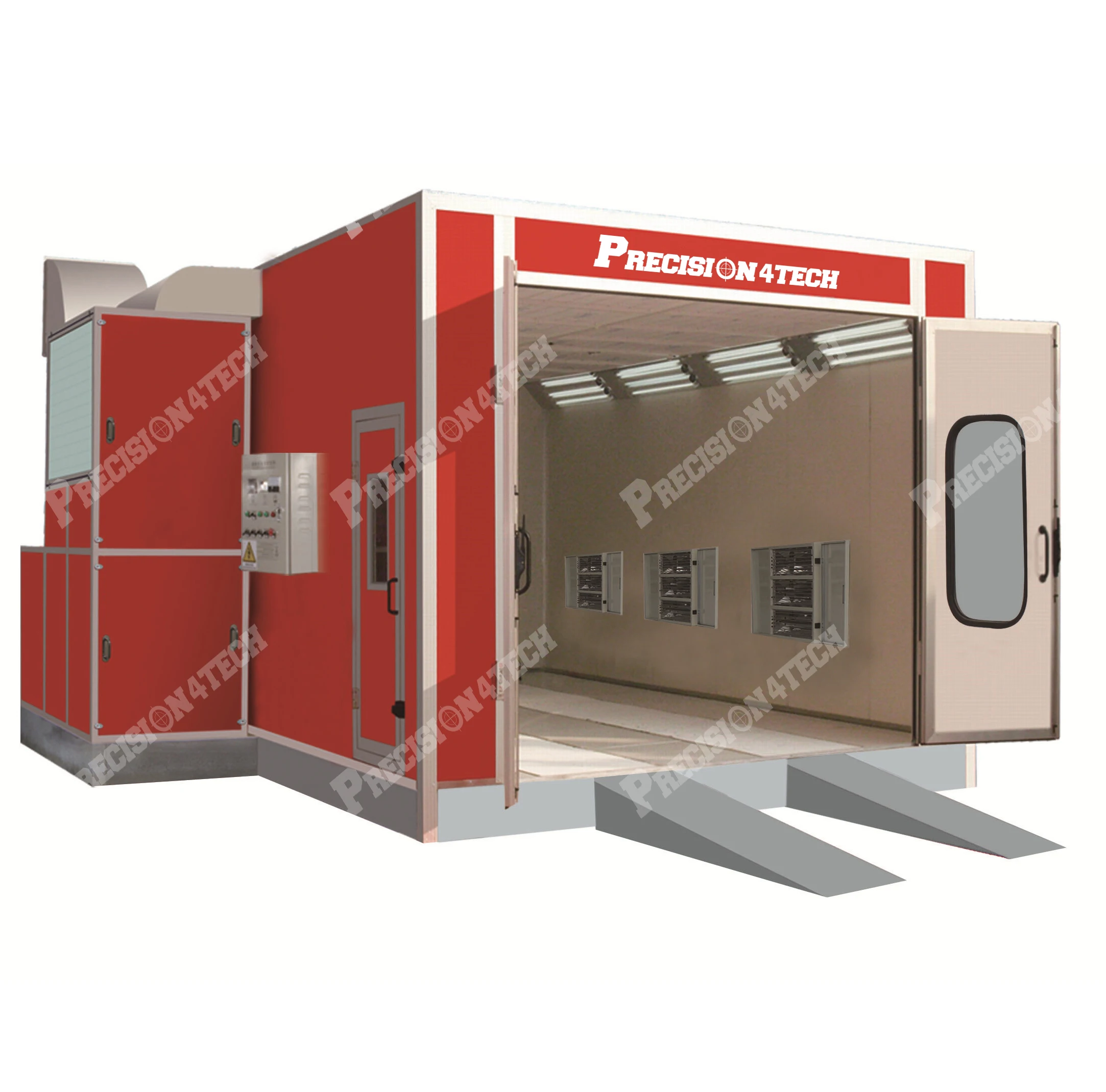

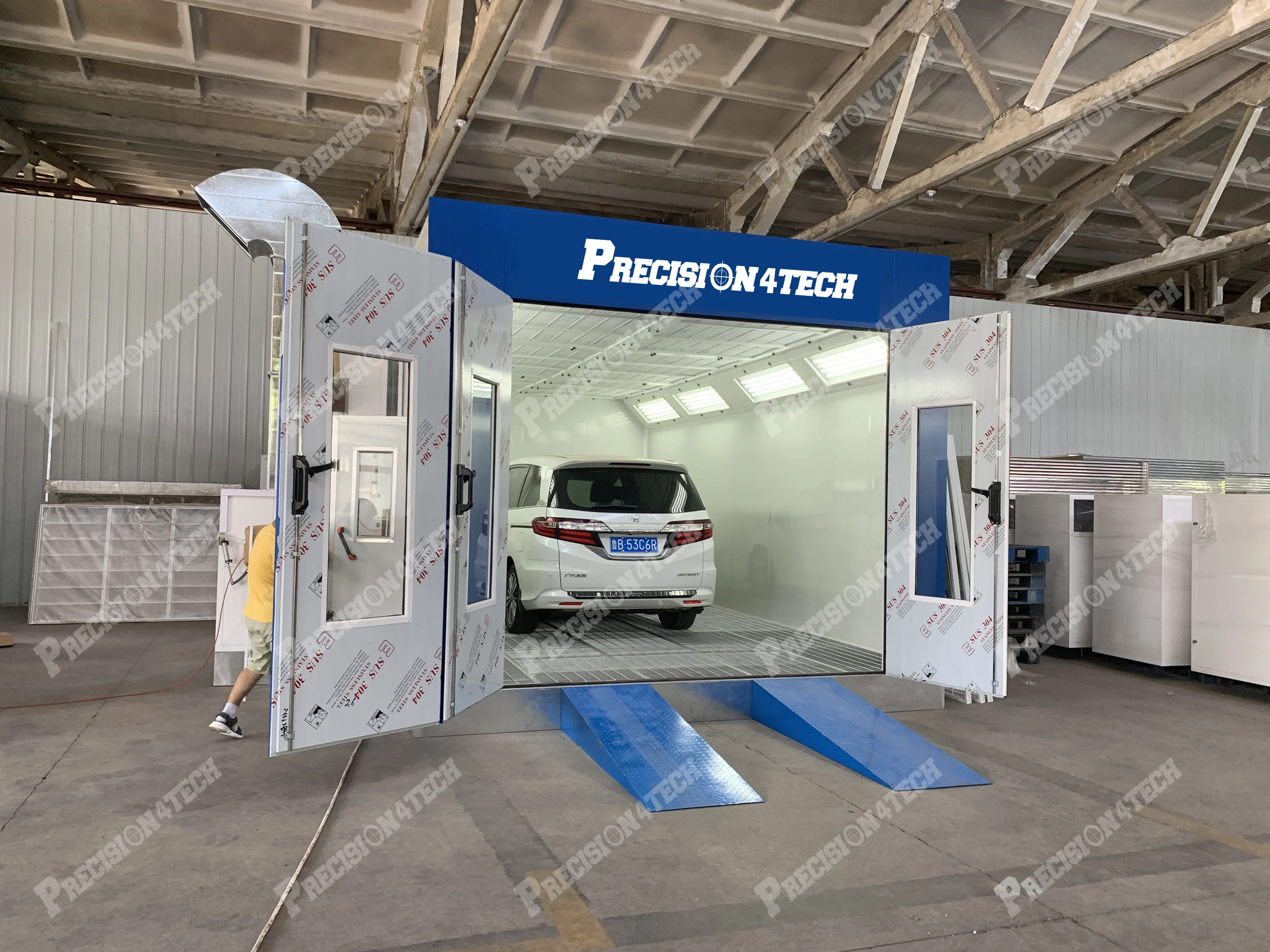

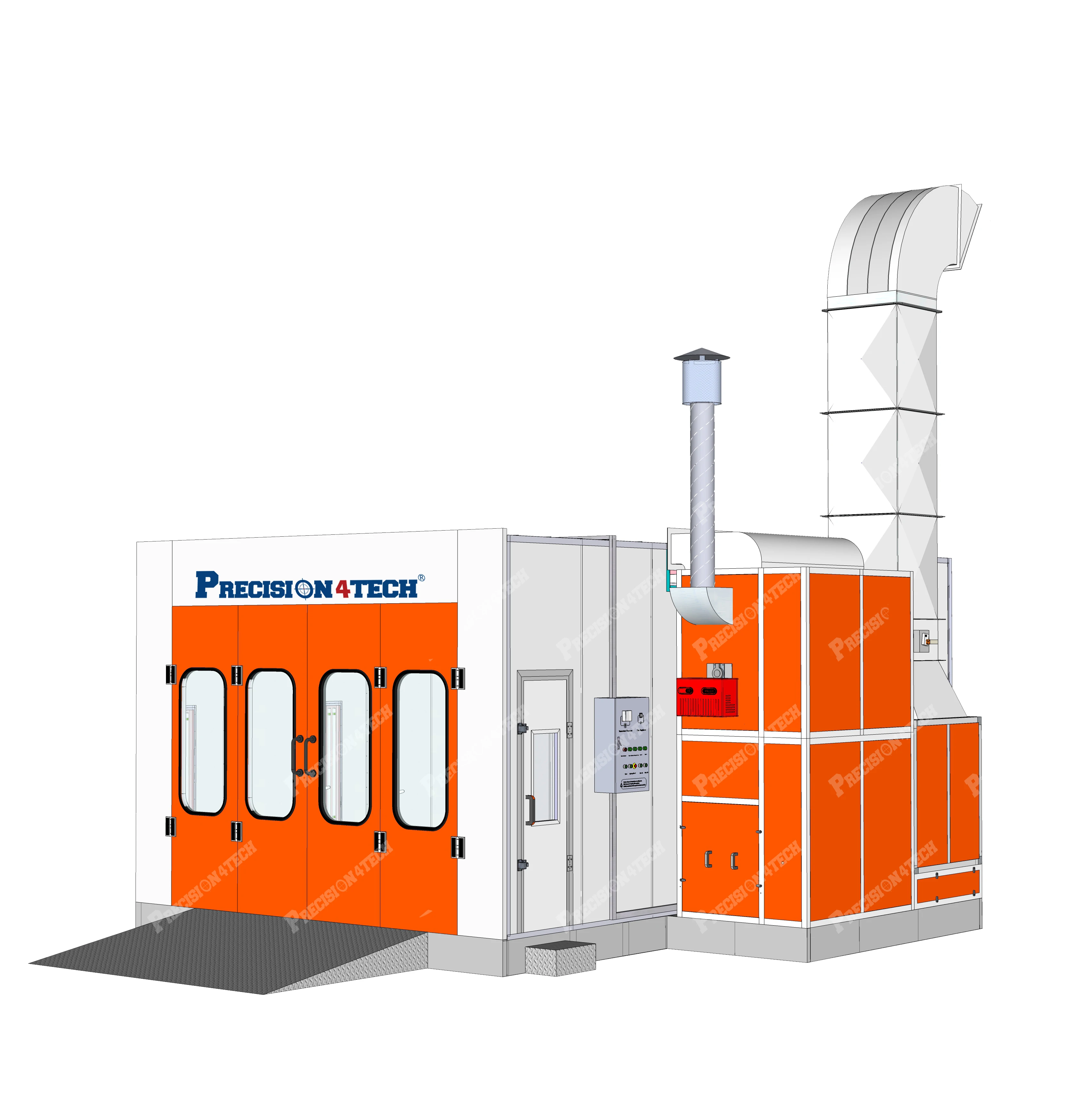

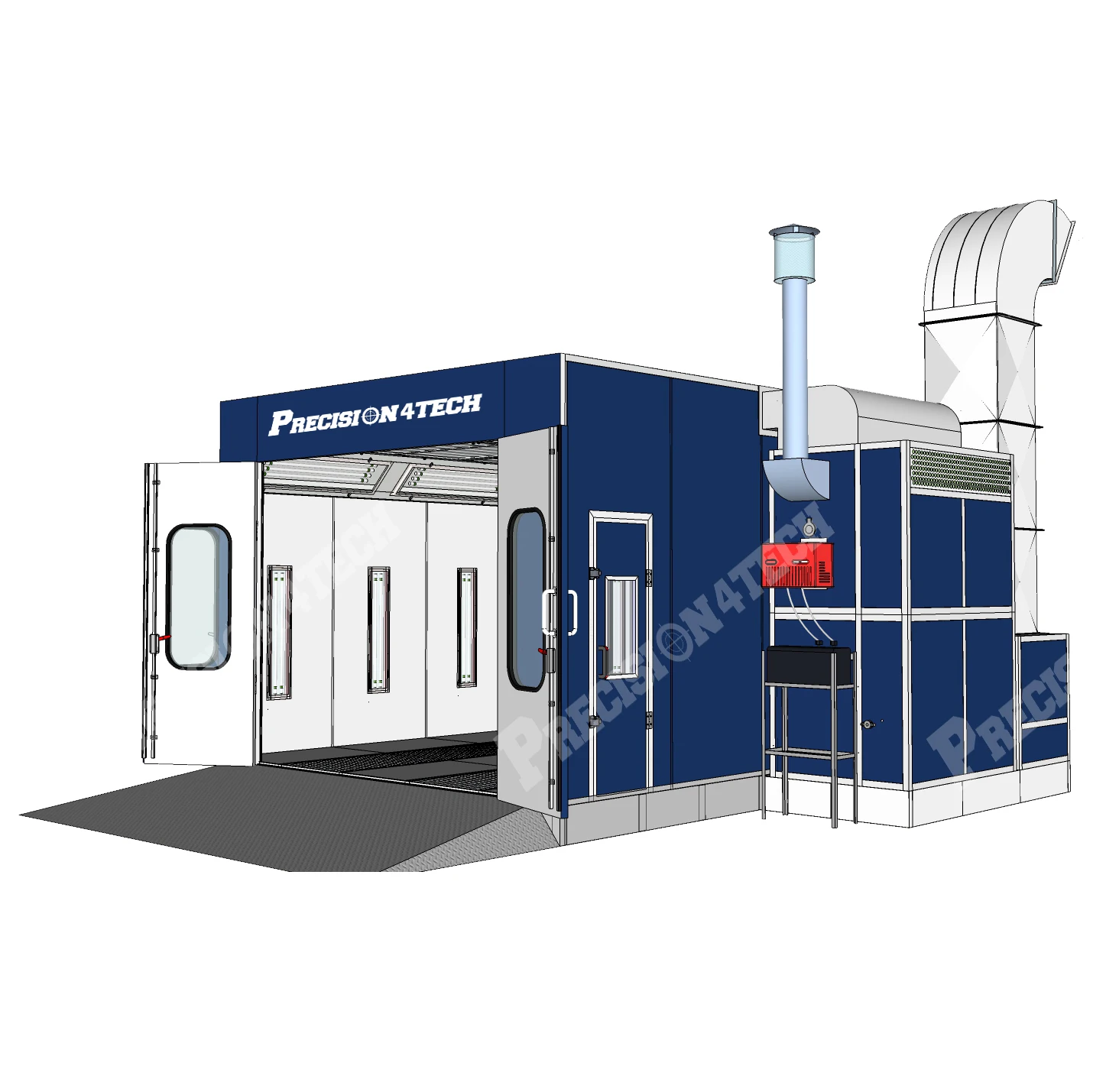

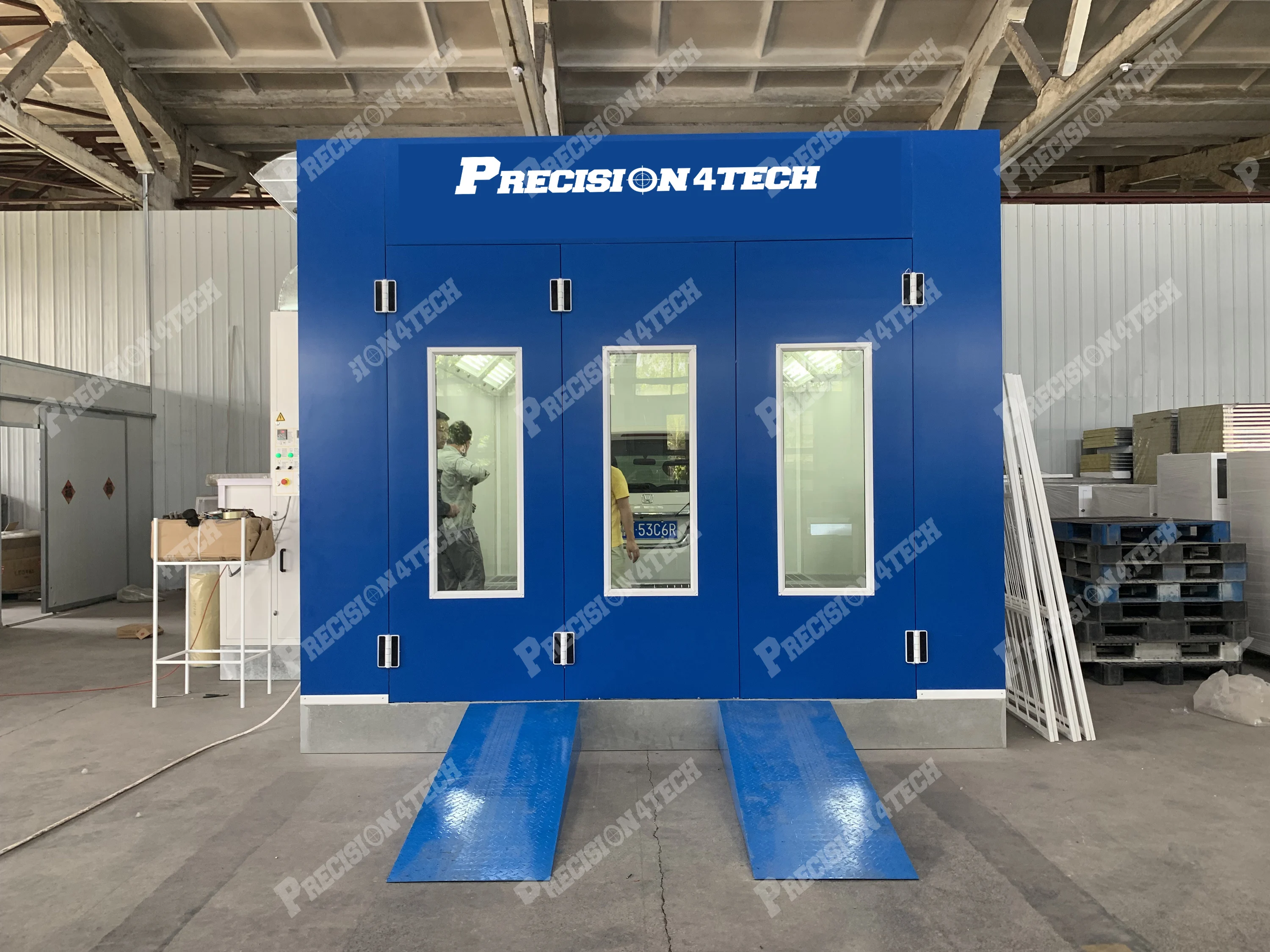

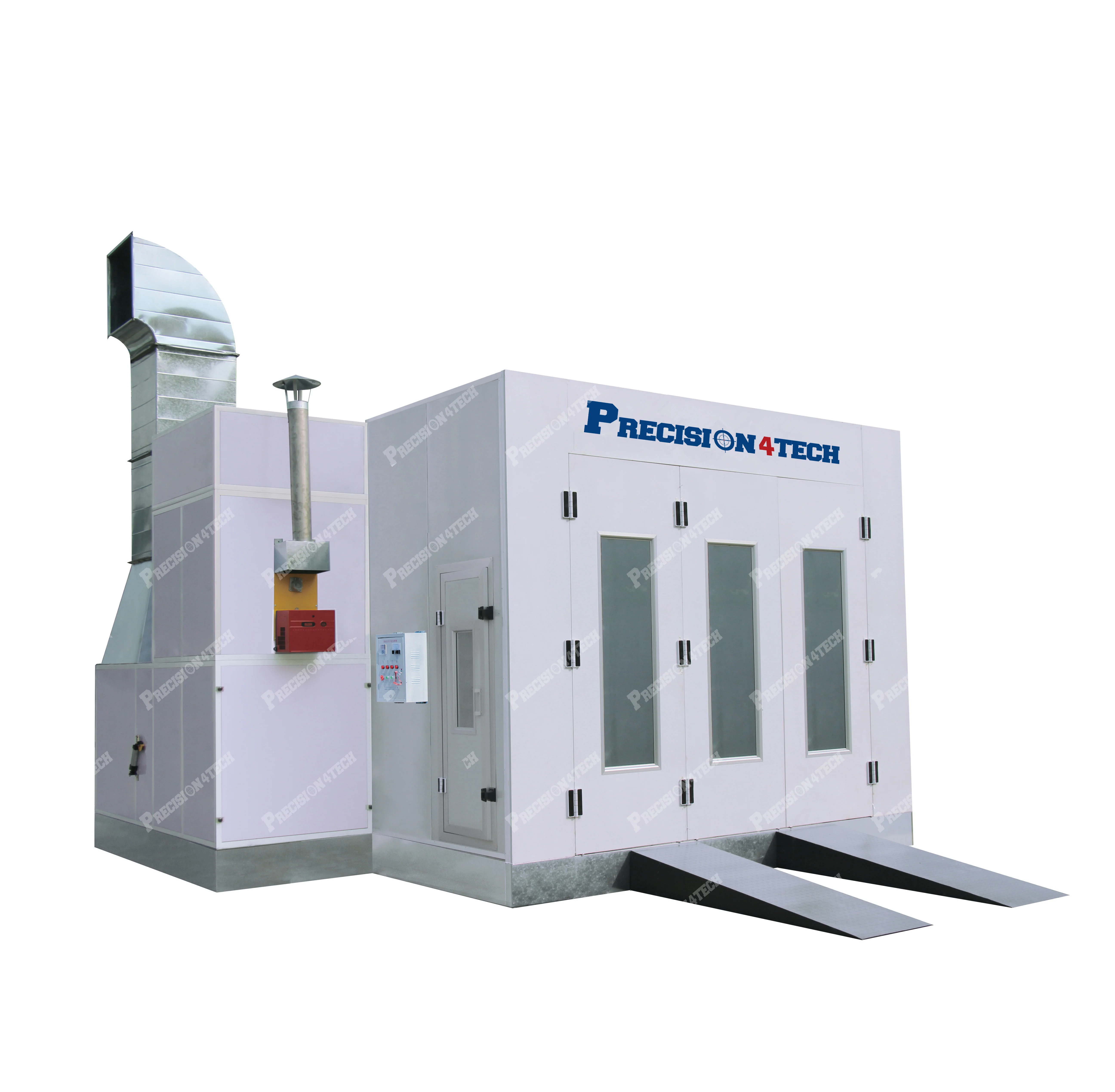

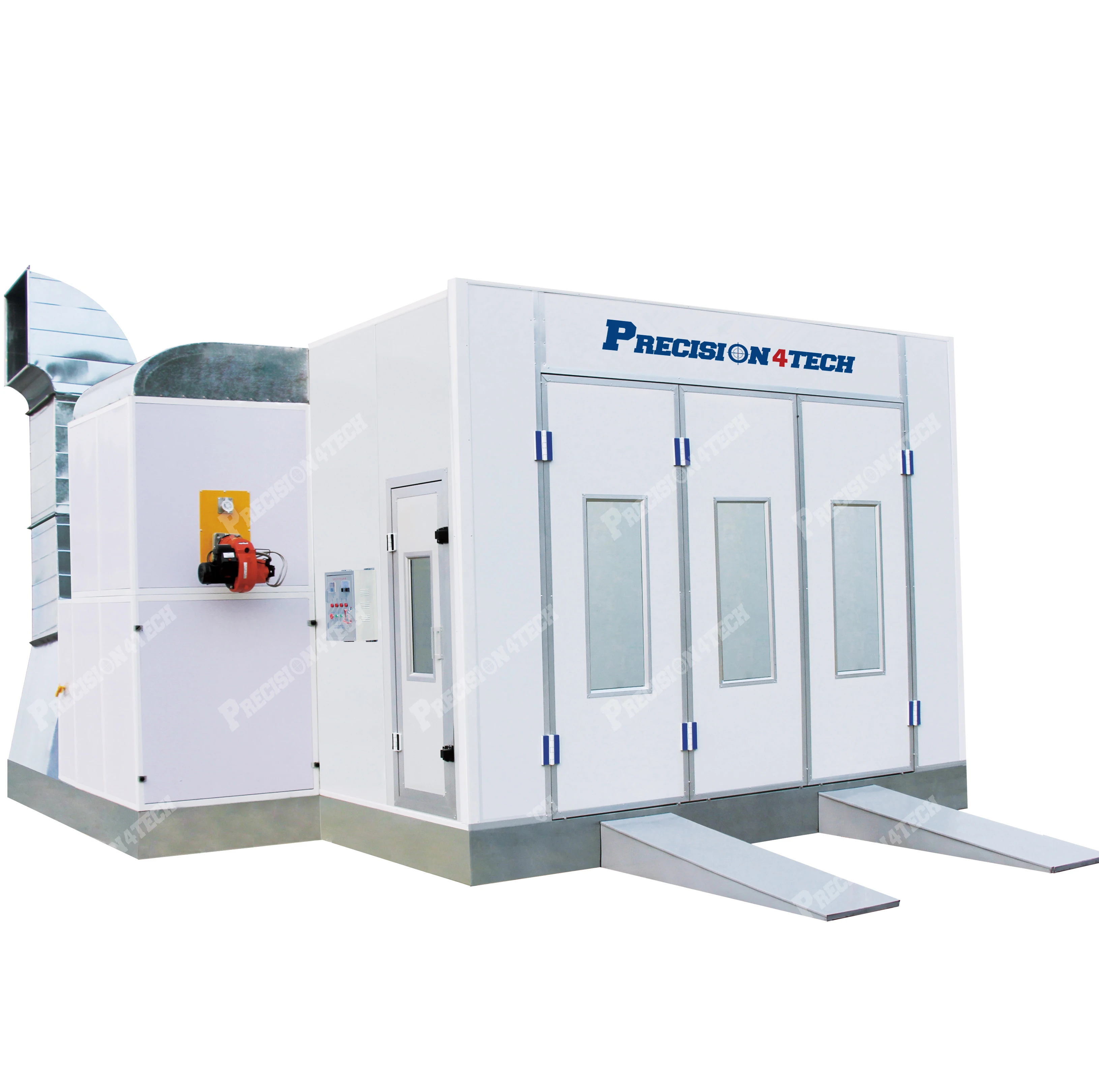

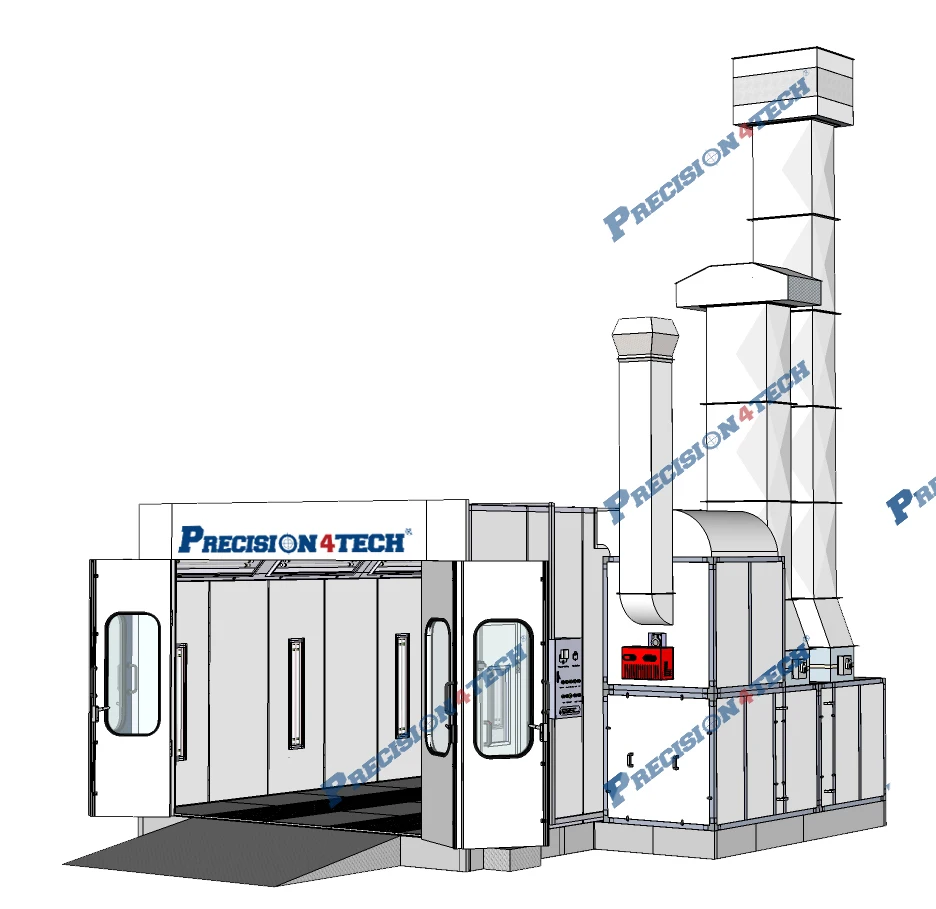

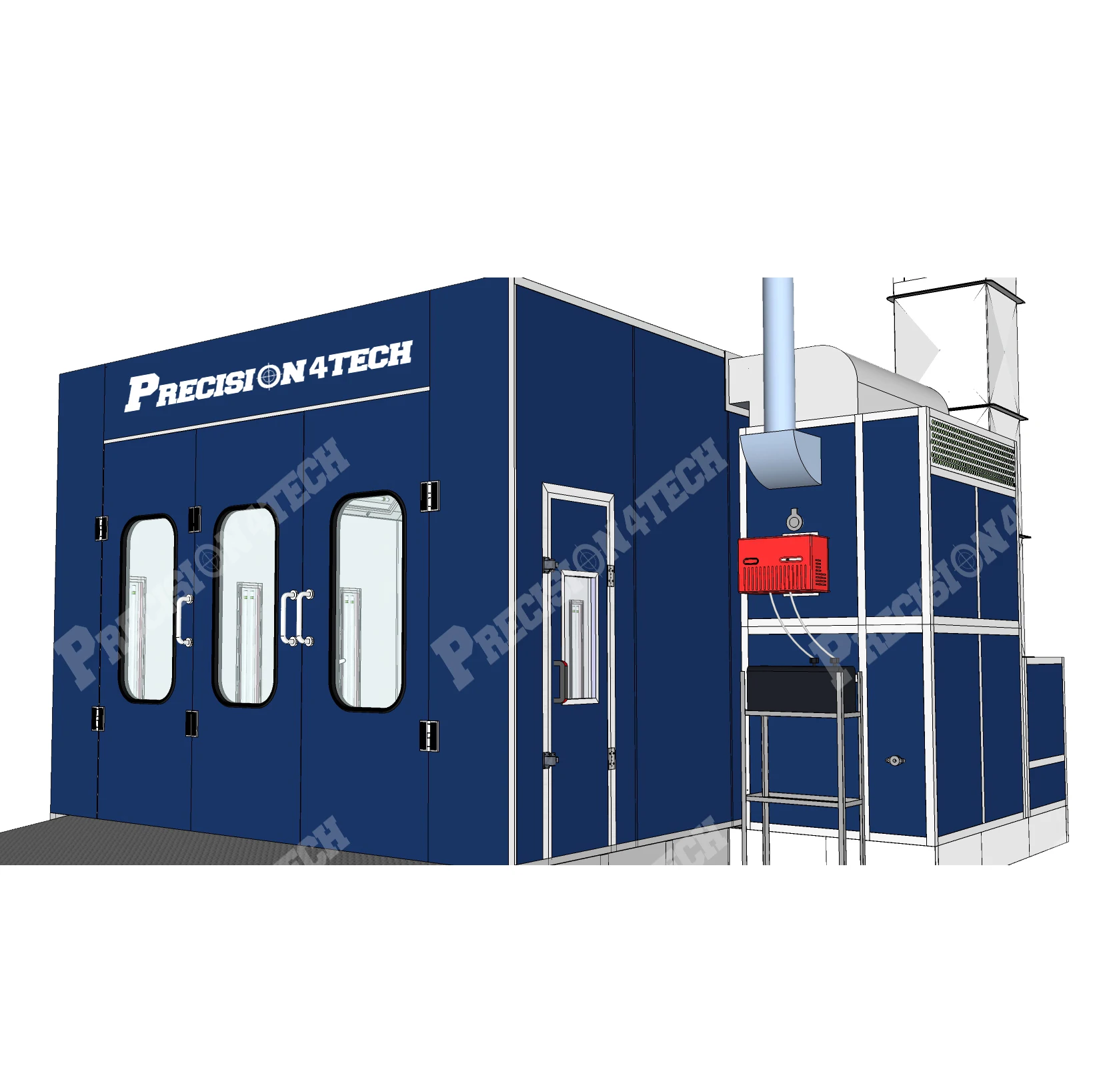

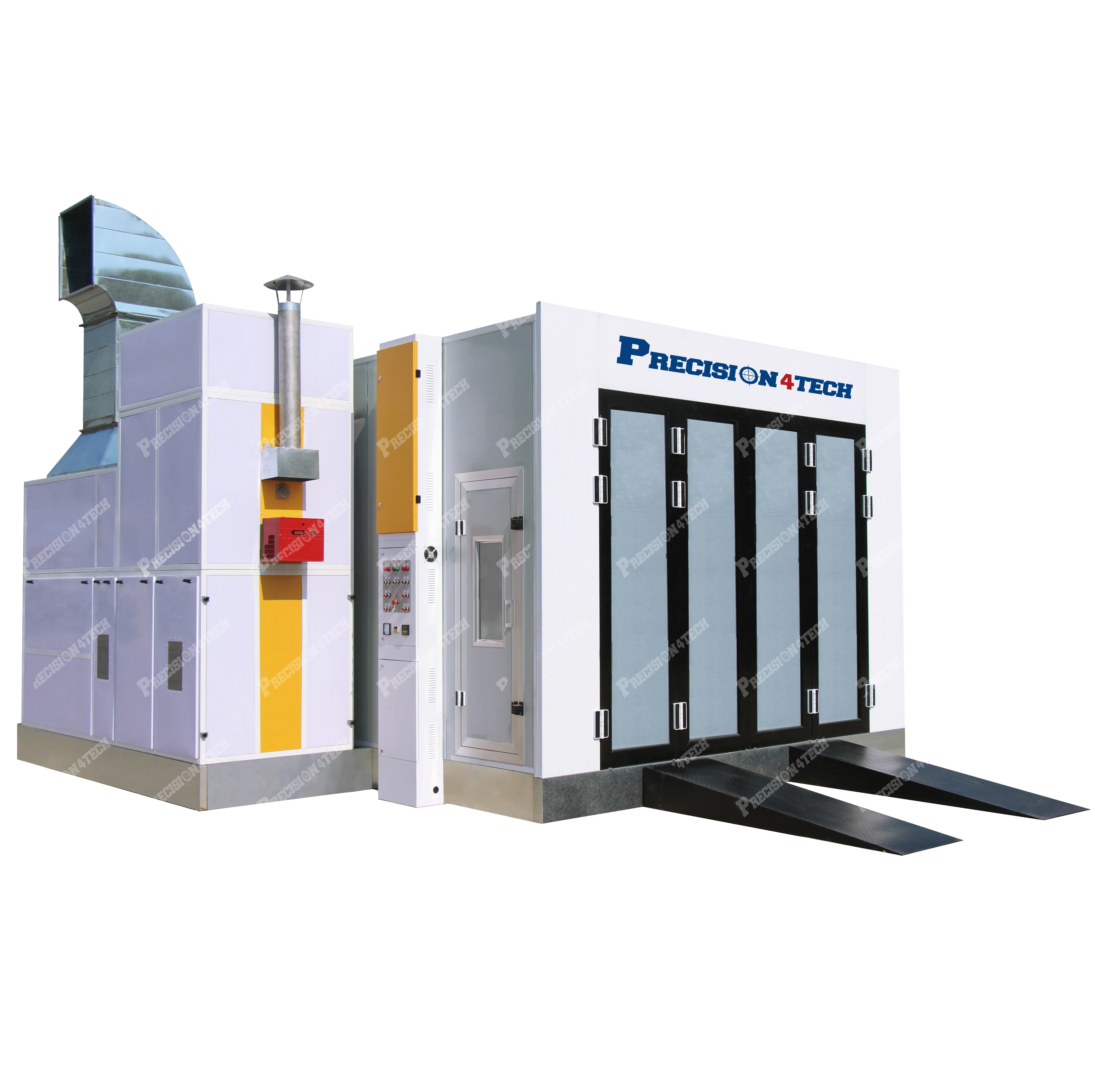

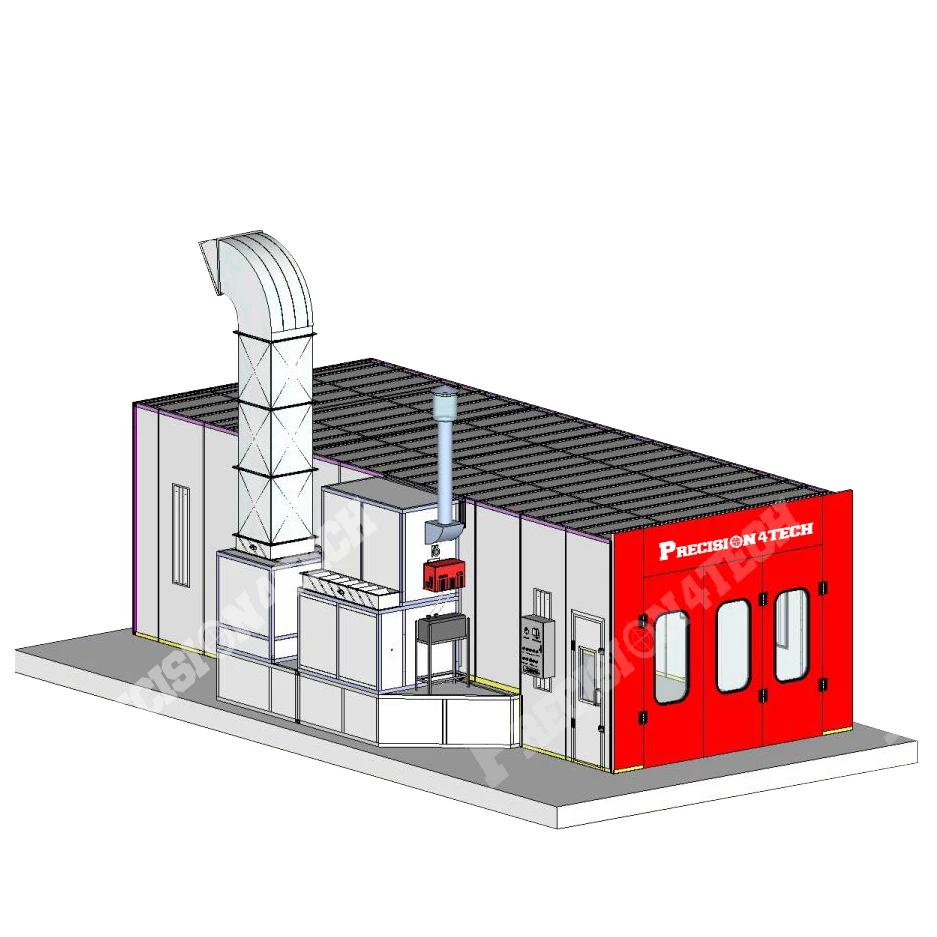

Water based painting booth
Inside Size
Outside Size
Entrance Door
3 leafs sheet metal doors, size is 3,000x2,600mm(WxH)
Personnel Door
1 leafs ,size is 600x1800mm(WxH)

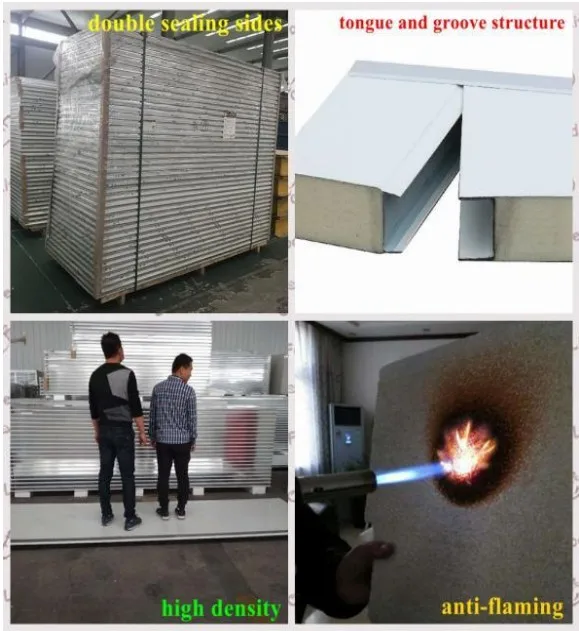

EPS wall panels with concave type construction, the thickness is 50mm
steel structure base height is 300mm;
improved two rows of grilles 30*5 belt steel, three rows of diamond plates,
two ramps 280×1800mm(H×L)
Intake Air Units
2 sets intake fan model: YDW; single power 4kw capacity:20000m³/h
2 sets water base fan model: YDW 0.5kw
Water paint nozzle [stainless steel]: 40pcs
Outlet Air units
1 set outlet fan, model: YDW, single power 7.5KW capacity: 20000m³/h
Fan Cabinet
Square tube welded frame, galvanized sheet sprayed skin, Electric damper
Heating System
stainless steel heat exchanger,1 set RIELLO G10 diesel burner, heating capacity is 180000kcal/h
Filtering System
Pre-Filter Effectively capture dust particles larger than 10um
Ceiling filter. Efficiently capture dust particles larger than 4um with a capture rate of ≥98%

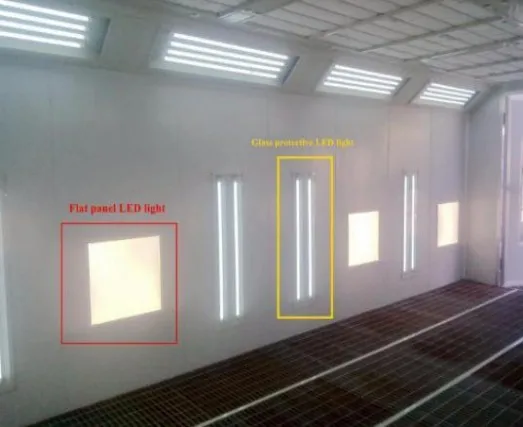

lighting System
Ceiling lights :24pcsx16w LED lamp ≥800Lux
Side vertical panel lights: 2x4pcsx48w, 2 rows, LED lamp ≥800Lux

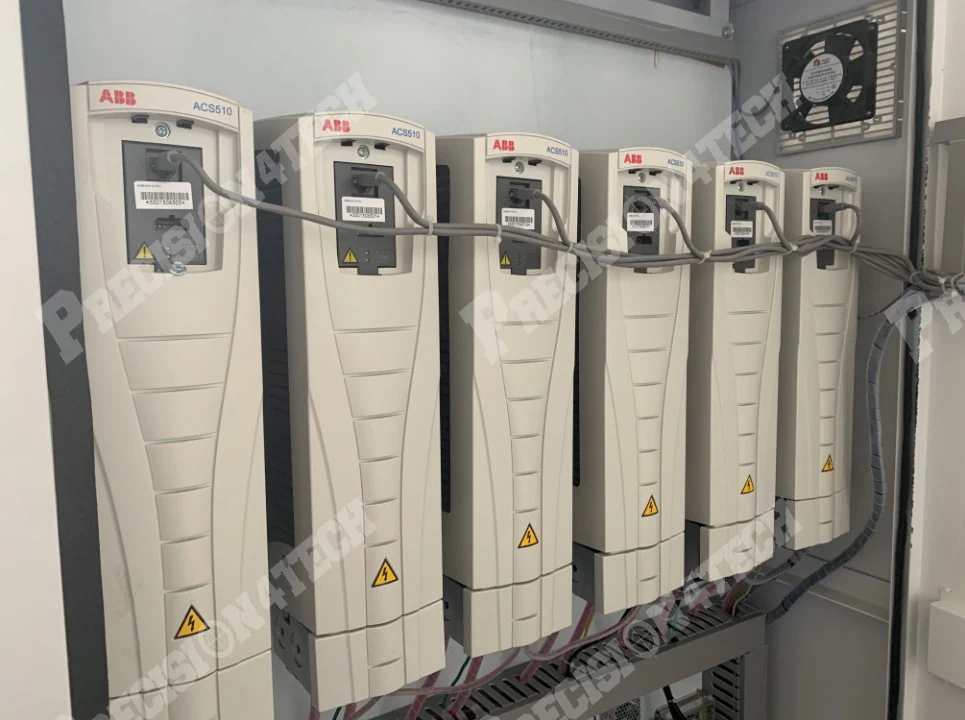

Control System
Electric control box: Leakage protection, painting, baking varnish, lighting, emergency stop switch, timer, temperature control
Power supply
Maximum Baking
Total power

Wheel Balancer Series

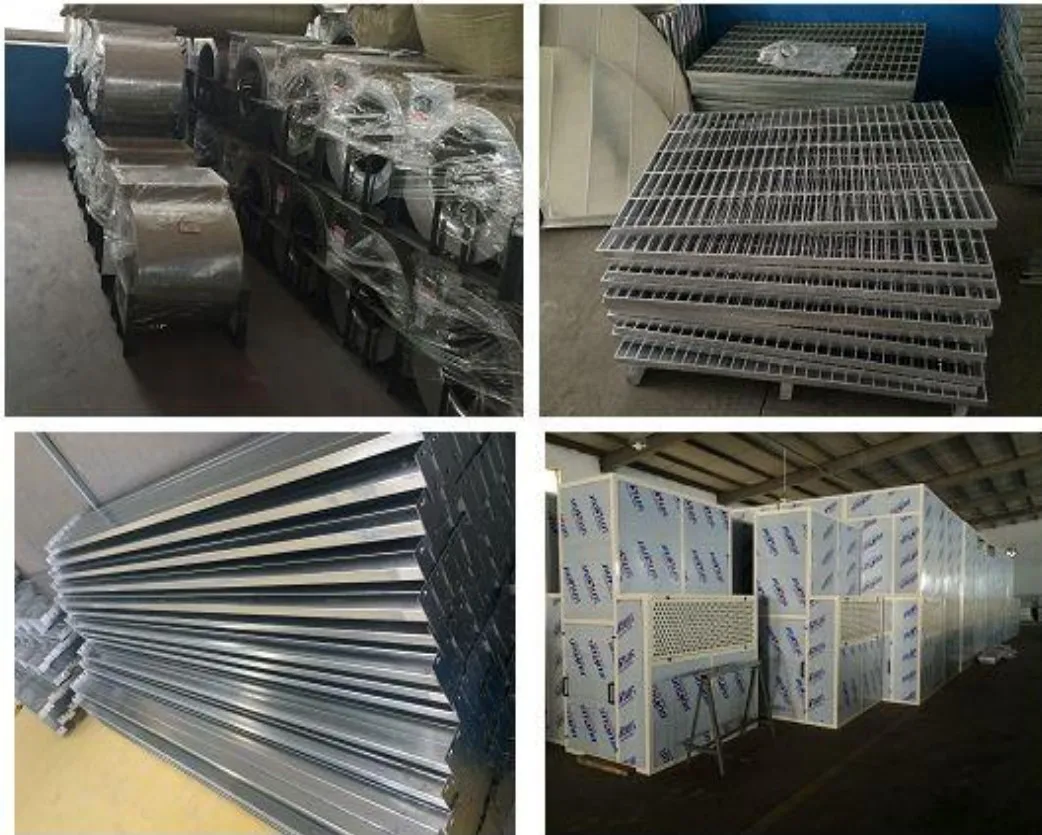

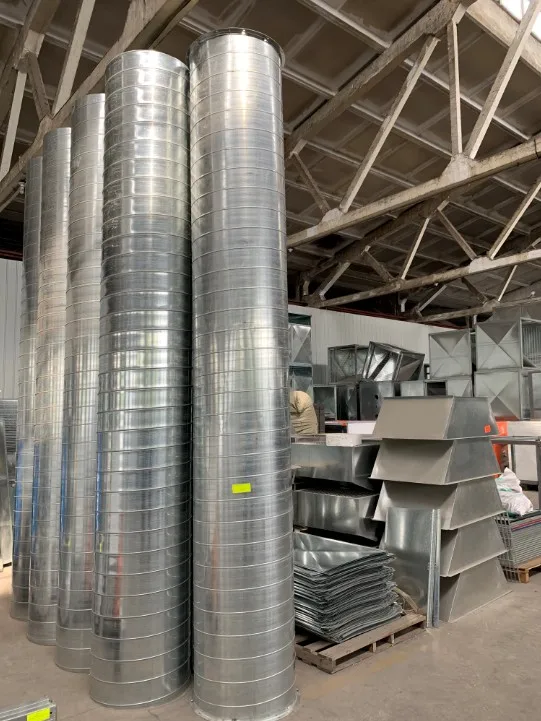

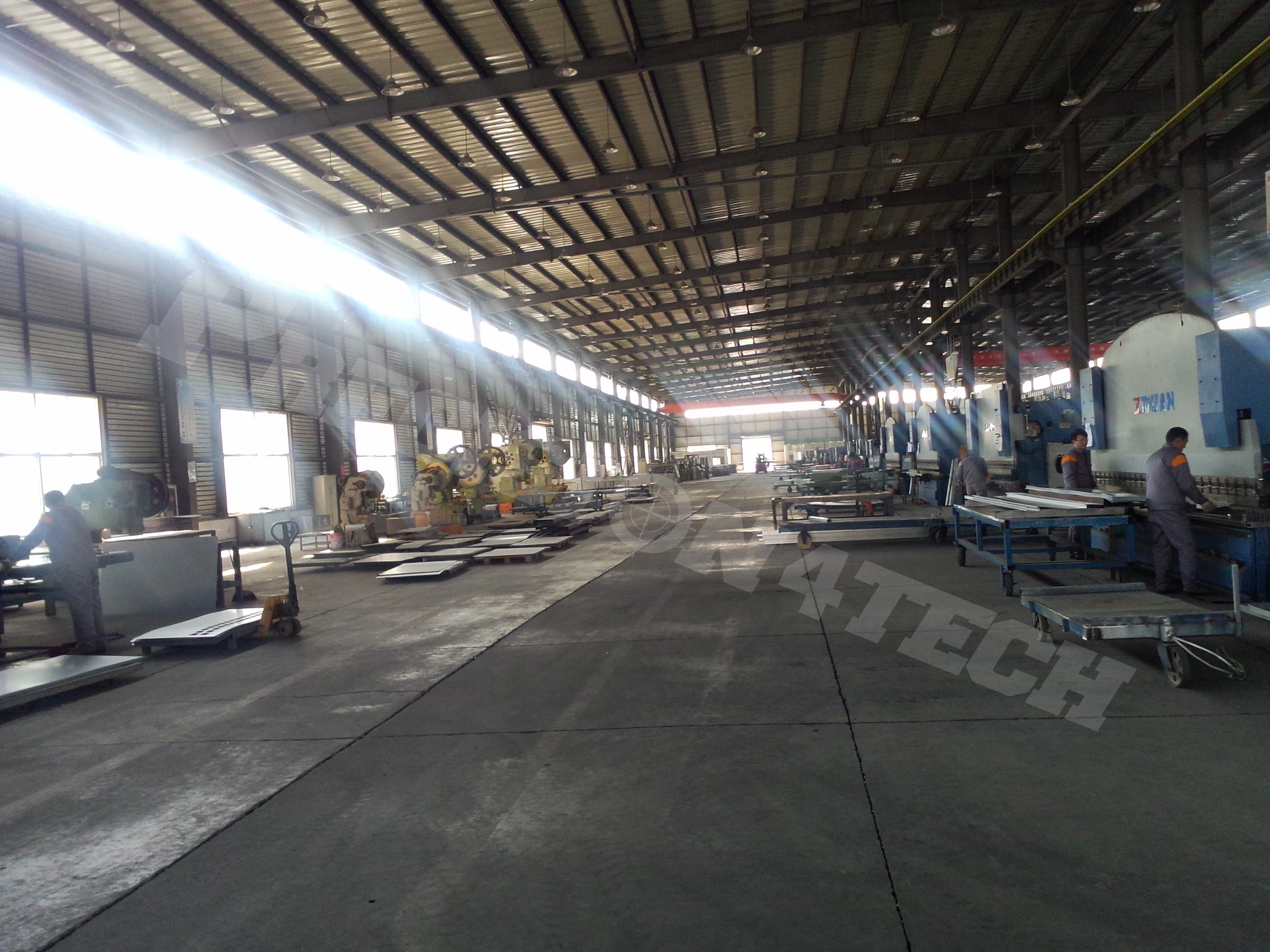

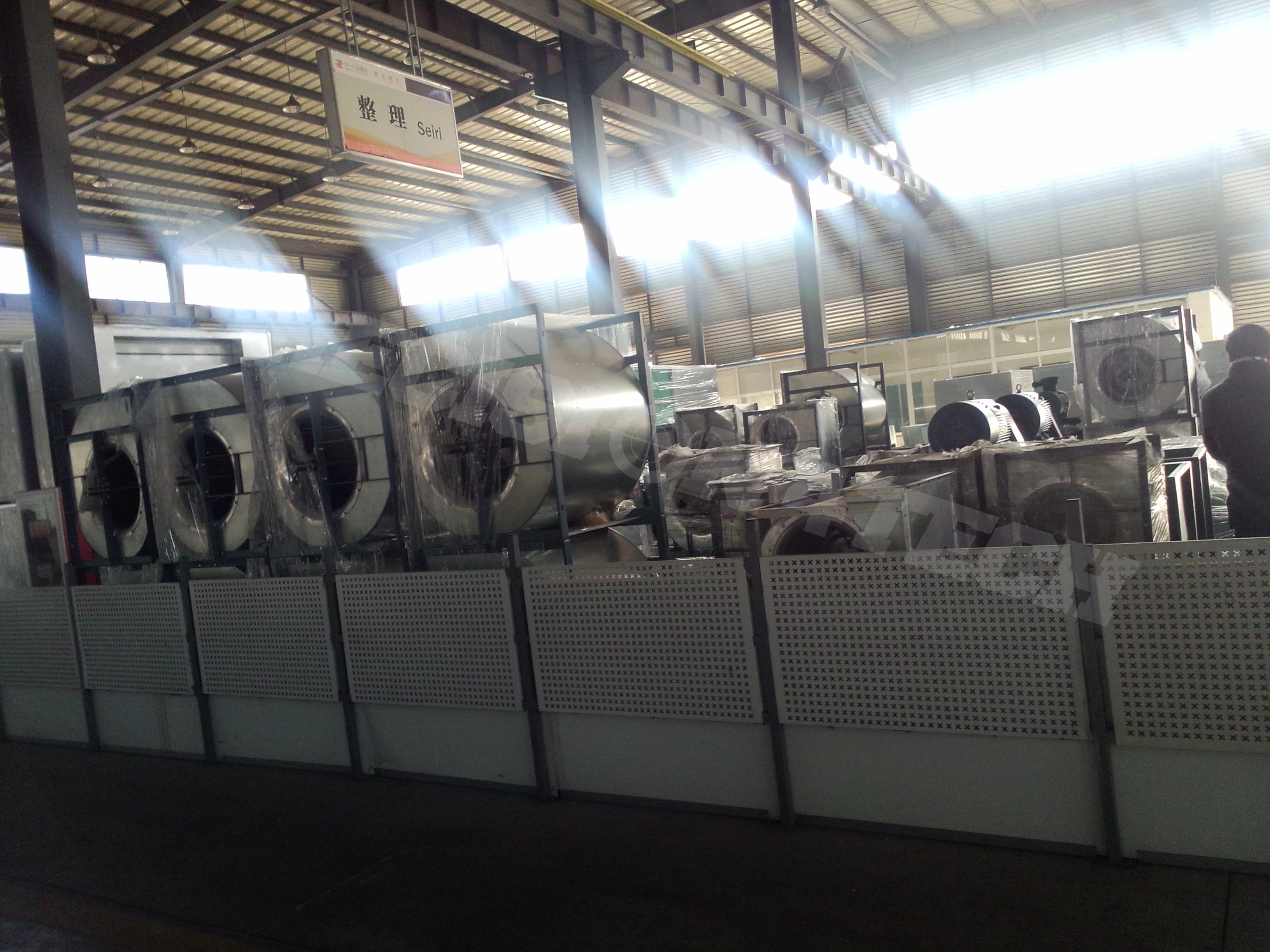

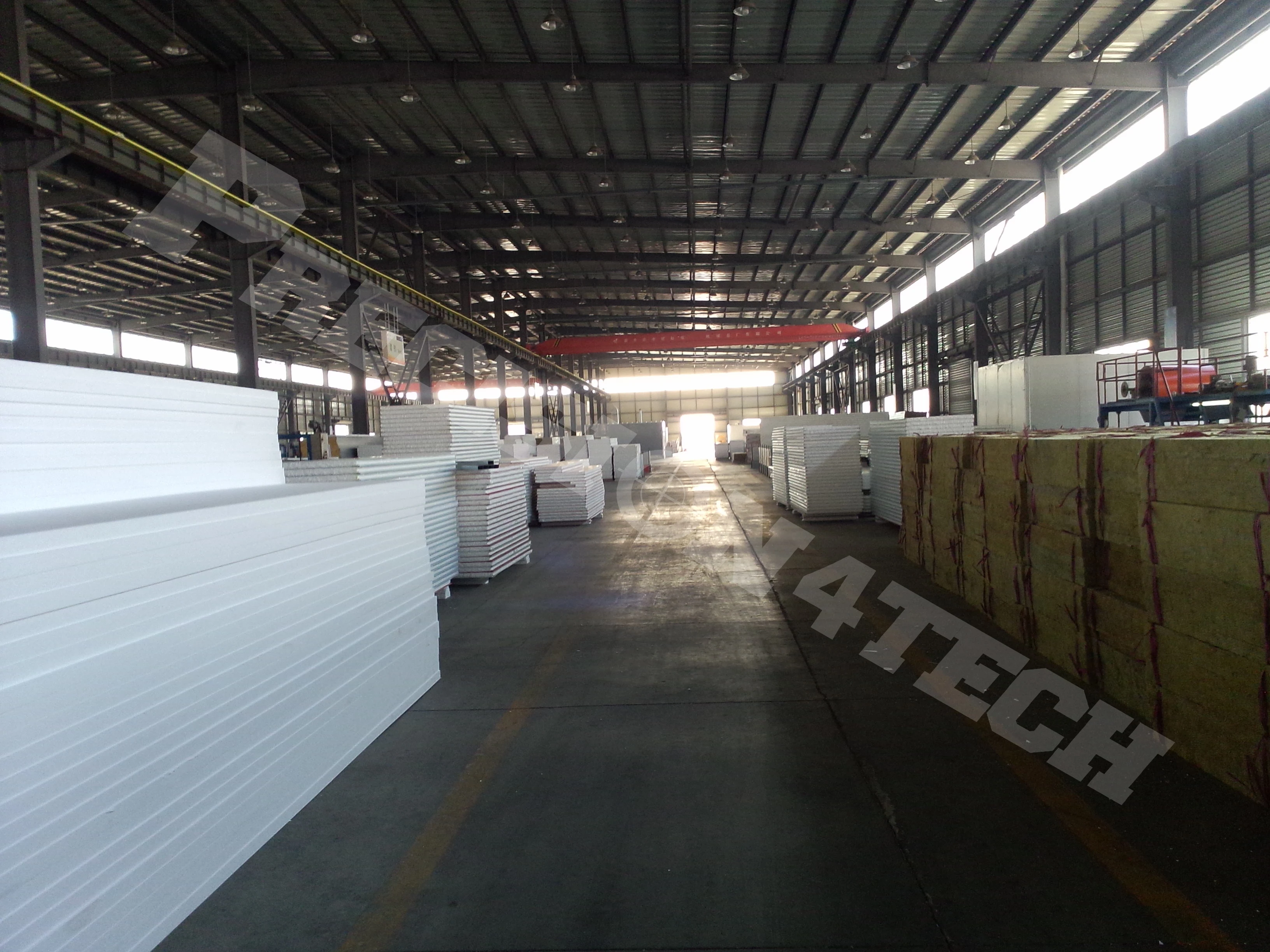

Factory Photos


Company Profile

Started as machinery manufacture in 2003, Precision focused on manufacturing for auto lift and auto body collision repair bench and parts till today. At the meaning time, standard paint booth and customzied paint booth are gradually included in the business line. As requirements of new open workshops and some certain distributors,we set up 2 sales teams for international market.One team is to supply very professional consult and service for manufacturing and customization of car bench, lift and spray booth. The other team is for one-stop equipments supplying.

Now there are 3 prodution bases for car lift, auto body collision repair frame machine (car bench) and spray booth manufacturing. The other related equipments are from partners' factories.

Experience is the most competitive factor to work with us, there are 2 experienced consultants over 50 years in garage workshop new opening design and after sale service. They can supply practical solutions for both end users and producers. Team members are energetic spread in technique, production, sales, export customs declaration departments, which will assure high quality products and right export procedures for customers.

Tested by CE, ISO9001, all products have been shipped to North/South American, South East Asia, Africa, Middle East, Europe, and Asia, as well as domestic market in China. Both OEM and ODM are acceptable. Welcome to contact us and looking forward to working with you.
