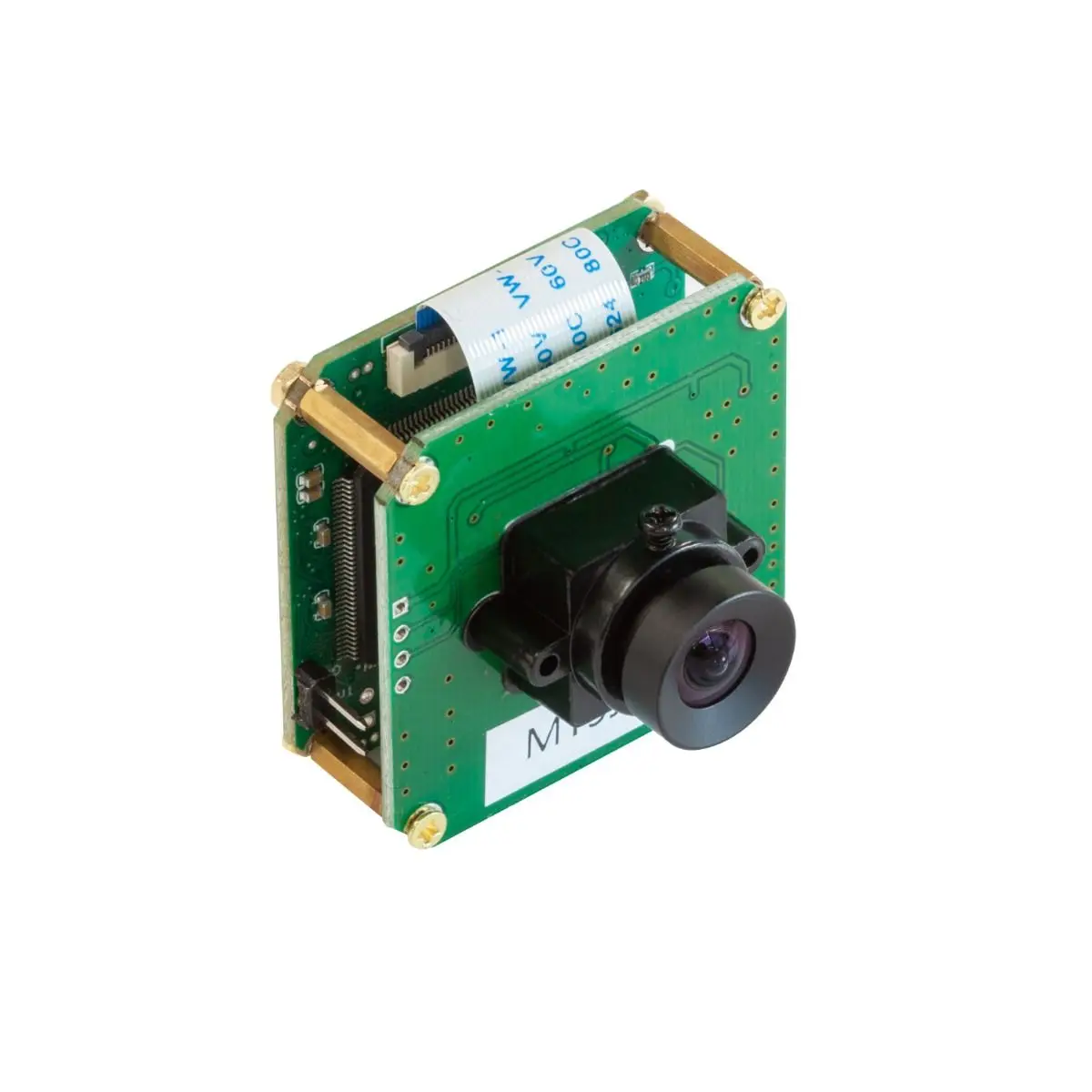

Arducam 10MP USB Camera Evaluation Kit CMOS MT9J001 1/2.3 Inch Monochrome Camera Module with USB2 Camera Shield (Rev.E)
Arducam 10MP USB Camera Evaluation Kit - CMOS MT9J001 1/2.3-Inch Monochrome Camera Module with USB2 Camera Shield (Rev.E)
Arducam 10MP USB Camera Evaluation Kit - CMOS MT9J001 1/2.3-Inch Monochrome Camera Module with USB2 Camera Shield (Rev.E)
Arducam 10MP USB Camera Evaluation Kit - CMOS MT9J001 1/2.3-Inch Monochrome Camera Module with USB2 Camera Shield (Rev.E)
Arducam 10MP USB Camera Evaluation Kit - CMOS MT9J001 1/2.3-Inch Monochrome Camera Module with USB2 Camera Shield (Rev.E)

Arducam 10MP USB Camera Evaluation Kit CMOS MT9J001 1/2.3 Inch Monochrome Camera Module with USB2 Camera Shield (Rev.E)

Share on (1600447285597):


Price:

Quantity:


Product Overview

Description












Item Description:


To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The MT9J001 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. It incorporates the monochrome version of the MT9J001 sensor on board.
1/2.3" 10MP (3856 x 2764) CMOS monochrome rolling shutter with global reset release camera module MT9J001 .
World-Class 1.67μm Pixel Sensitivity, Produced on Aptina’s world-class 1.67μm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.


Feature:



  • 1/2.3" optical format


  • Monochrome Bayer pattern


  • 10MP 3856 x 2764 MT9J001 sensor


  • 1.67 x 1.67 um Pixel size


  • 0.31V/lux-sec responsivity


  • 65.2dB dynamic range


  • single 3.3V power input


  • Parallel camera interface


  • M12 mount lens



Application:



  • Digital video cameras


  • Digital still cameras


  • Industrial camera


  • Medical camera


  • Microscopy camera



Packing List:

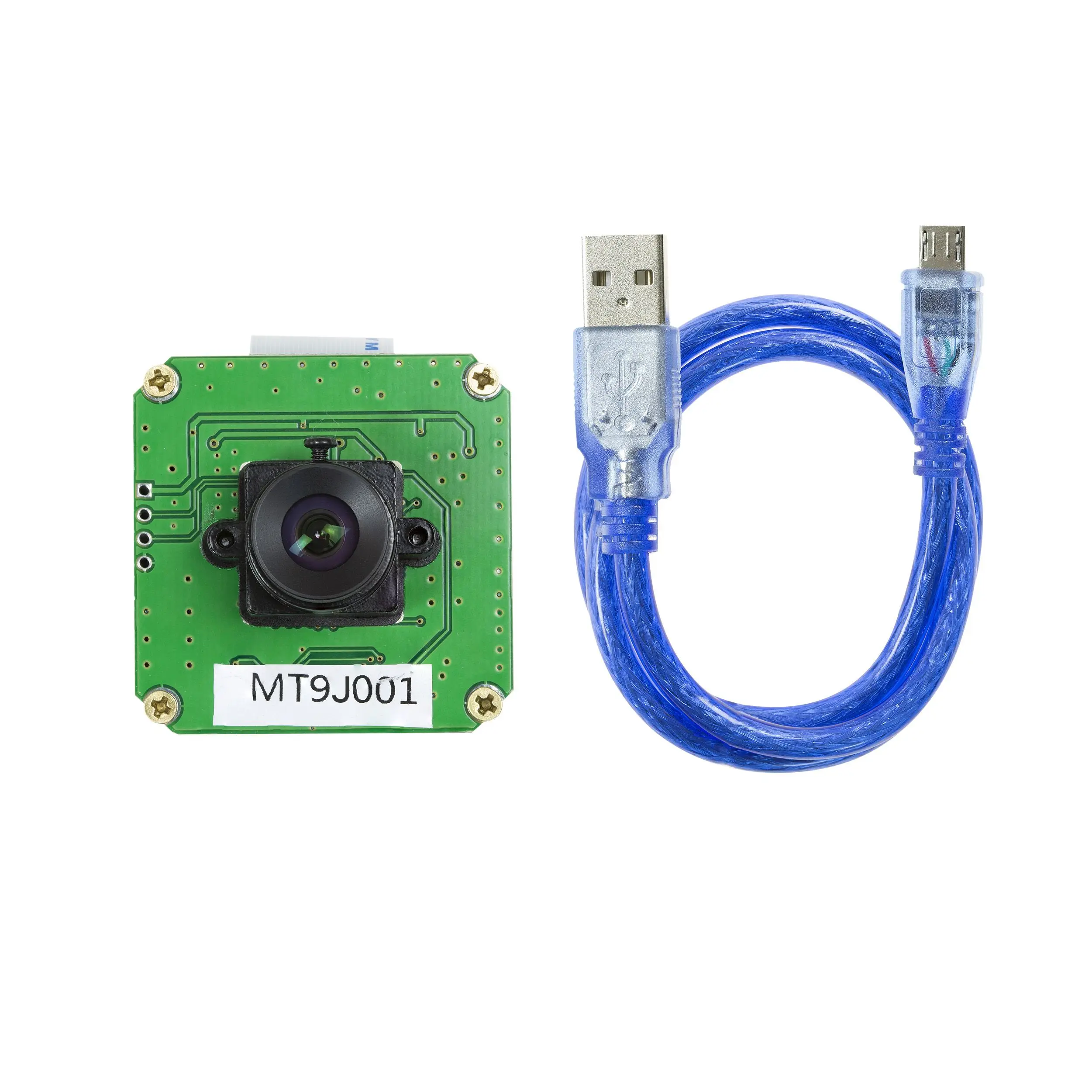

  • 1pcs Arducam CMOS MT9J001 1/2.3-Inch 10MP Monochrome Camera Module

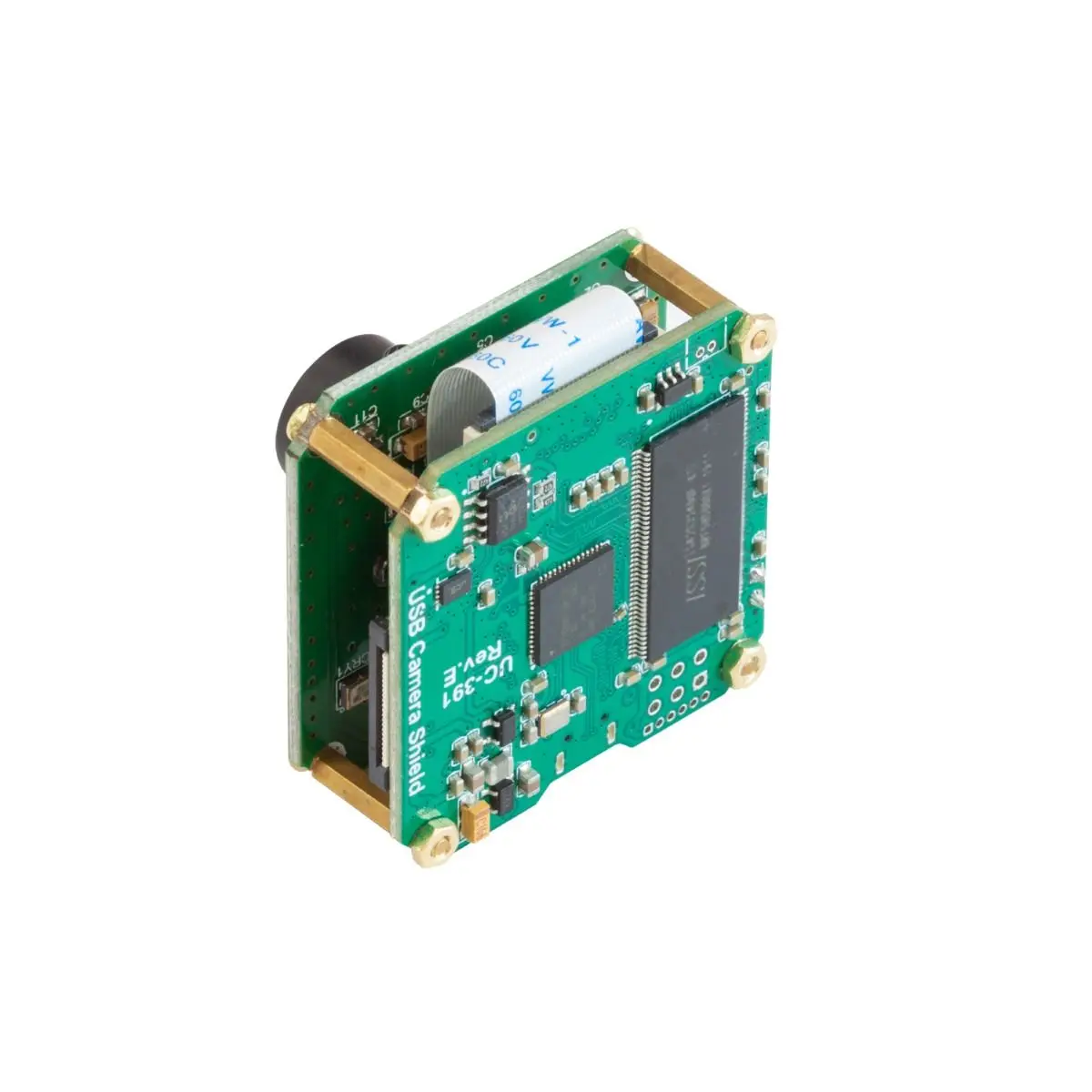

  • 1 pcs Arducam USB2 Camera Shield (Rev.E)


  • 1 pcs USB2 Cable



Additional Resources:
