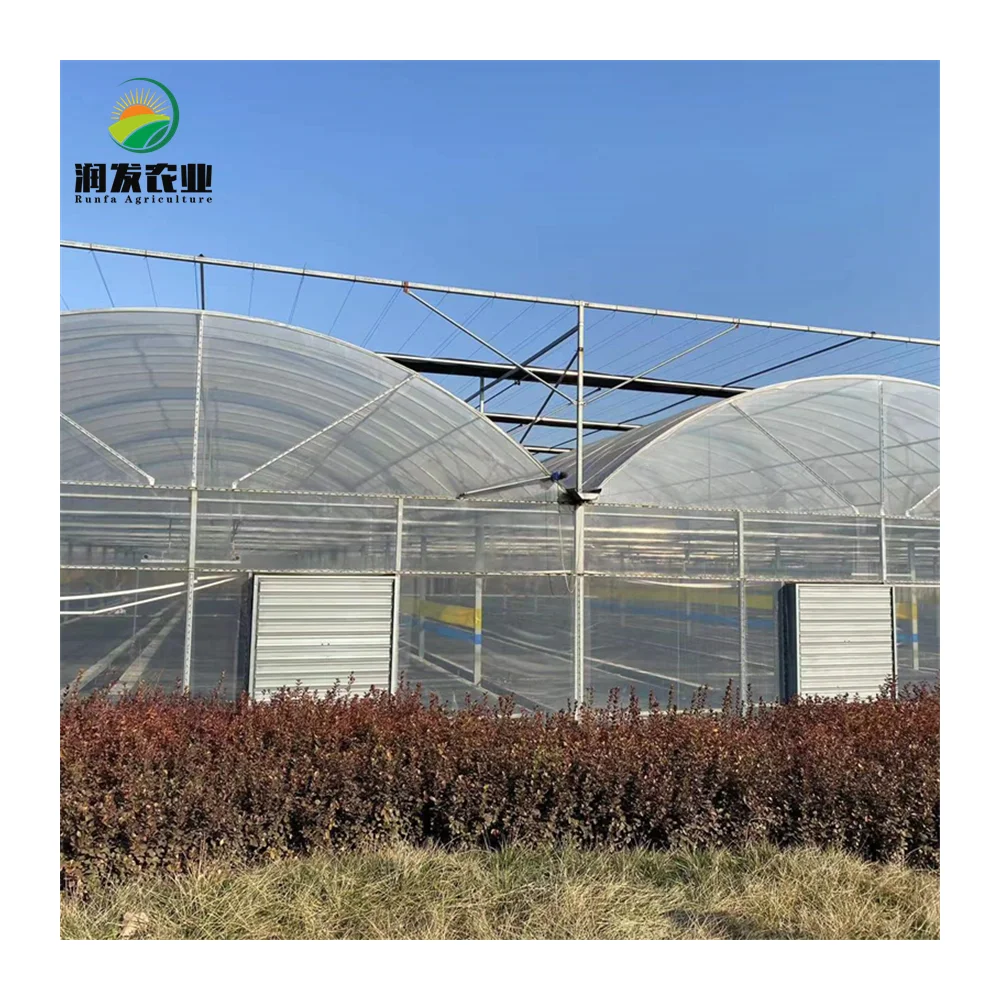

Agricultural Green House Metal Frame Multi Span Film Greenhouse with Hydroponic and Automatic Irrigation System

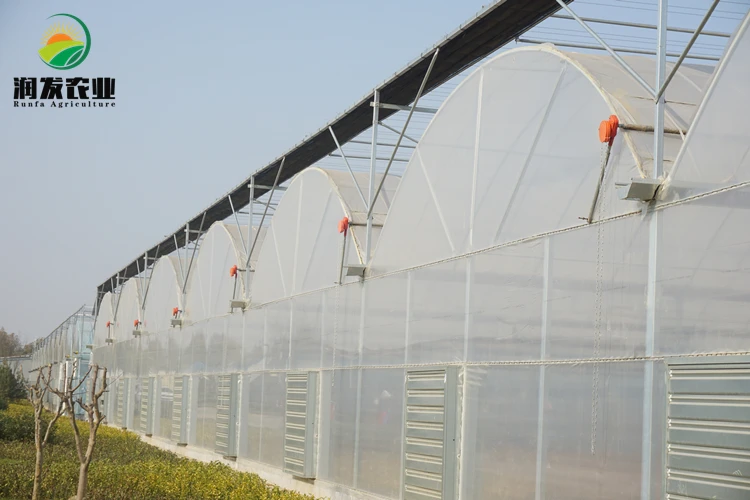

Multi-span Greenhouse has a high utilization of land, for indoor high degree of mechanization, consume less energy per unit area and uniform indoor temperature and light so on. This is more suited to the requirements of the standard development of modern agricultural facilities.The Modern Multi-span commercial greenhouse main structure is steel and aluminum, the covering material can be single or double inflatable, plastic film soft materials, or PC board, wave board, glass and other hard materials.

1) Long service time and low cost:
Manufactured using PO, anti-oxidant, etc. to produce excellent anti-aging features.
The service time is from 2--4 years.
2) High efficiency of heat preservation:
This product has excellent infrared-radiation additives, which can efficiently impede infrared radiation from the ground at night. The temperature in greenhouses using this film is higher than those covered with ordinary agricultural film.
3) High transparency:
Total transparency rate is above 90%, and even if there is small hole, the film will not tear. The ability to endure rain, snow and hail is much superior to conventional film.
4) Excellent performance on anti-fog and non-drop function:
Protects flower pants from diseases and insect pests.

In the season that is not suitable for plant growth, it can provide a growth period and increase yield. It is mostly used for the cultivation or seedlinging of warm vegetables, flowers, trees and other plants in the low temperature season.

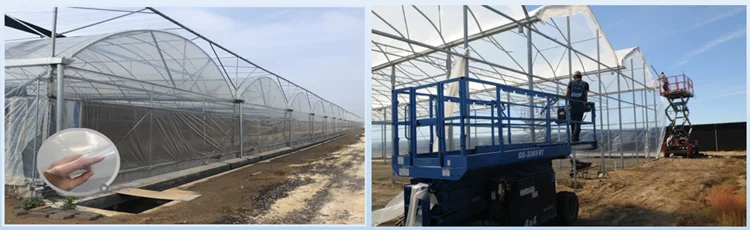

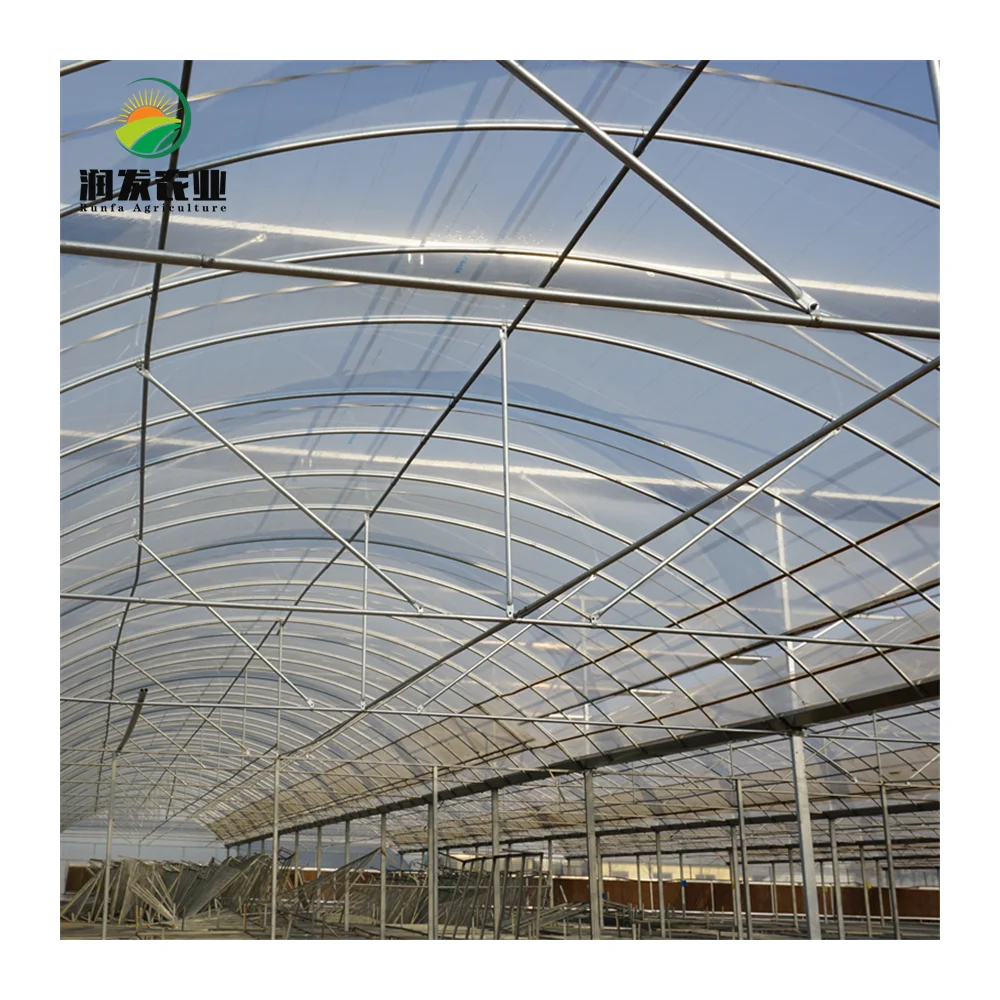

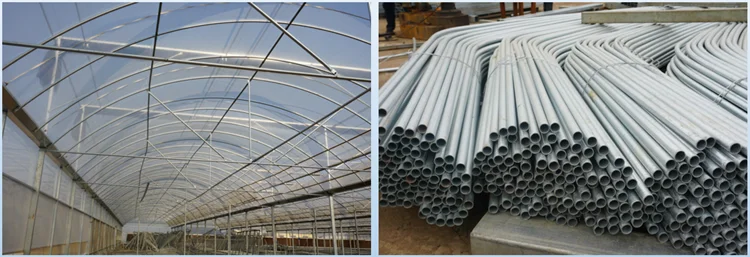

Greenhouse structureThe steel structure is made of high quality carbon steel with inside and outside hot galvanized layer which will be not less than 60um.High quality hot-dip galvanized steel; The Galvanized layer is above 200 g/m2; Compared to electrical galvanized pipe, hot-dip galvanizing pipe is covered of zinc layer in inside and outside of the pipe, so it is not easy to get rusty ;The guarantee period is more than 20 years.

Covering material1.Easy to use, do not need lots of effort to assemble and can be replaced esaily.
2.Low cost, the least expensive material of covering a greenhouse which with excellent transparency.
3.Additional Features Available, Anti-Condensate Coating, Enhanced thermal insulation performance
4.Can be used as single-layer covering or double-layer, with an air space in the middle.
5.Reduced daytime heat gain, block part of the infrared spectrum to cool down in areas with strong light.

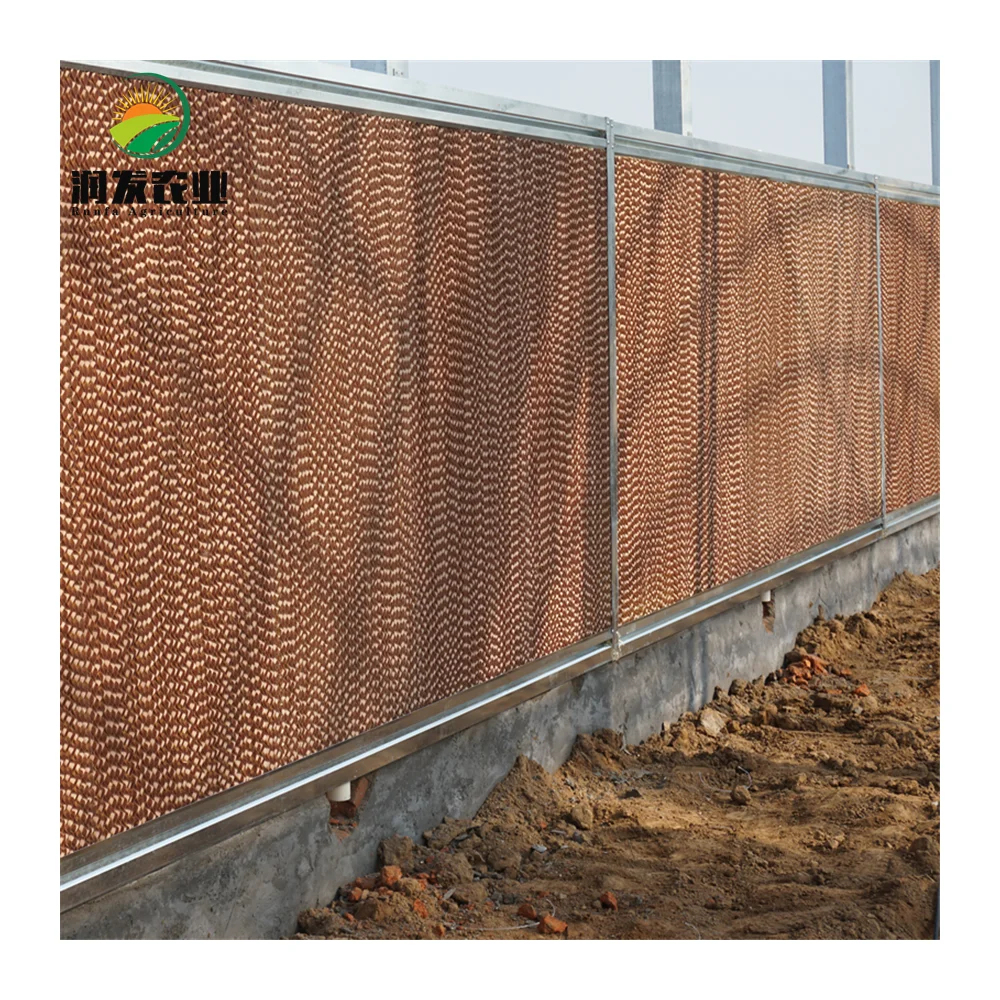

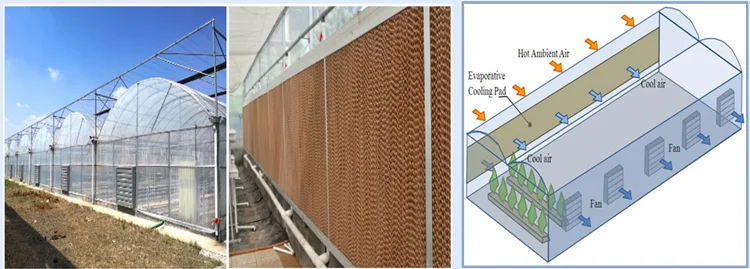

Cooling system

1. 10mm,15mm cooling pad with aluminum alloy frame

2. 1380*1380*400mm exhausted fan with light traps

3. Water circulation system: Water pump+Filter+PVC pipe

4. Insect net and light traps covered on pads

5. With the cooling system,the temperature could be cooled by 10 to 15 degree.

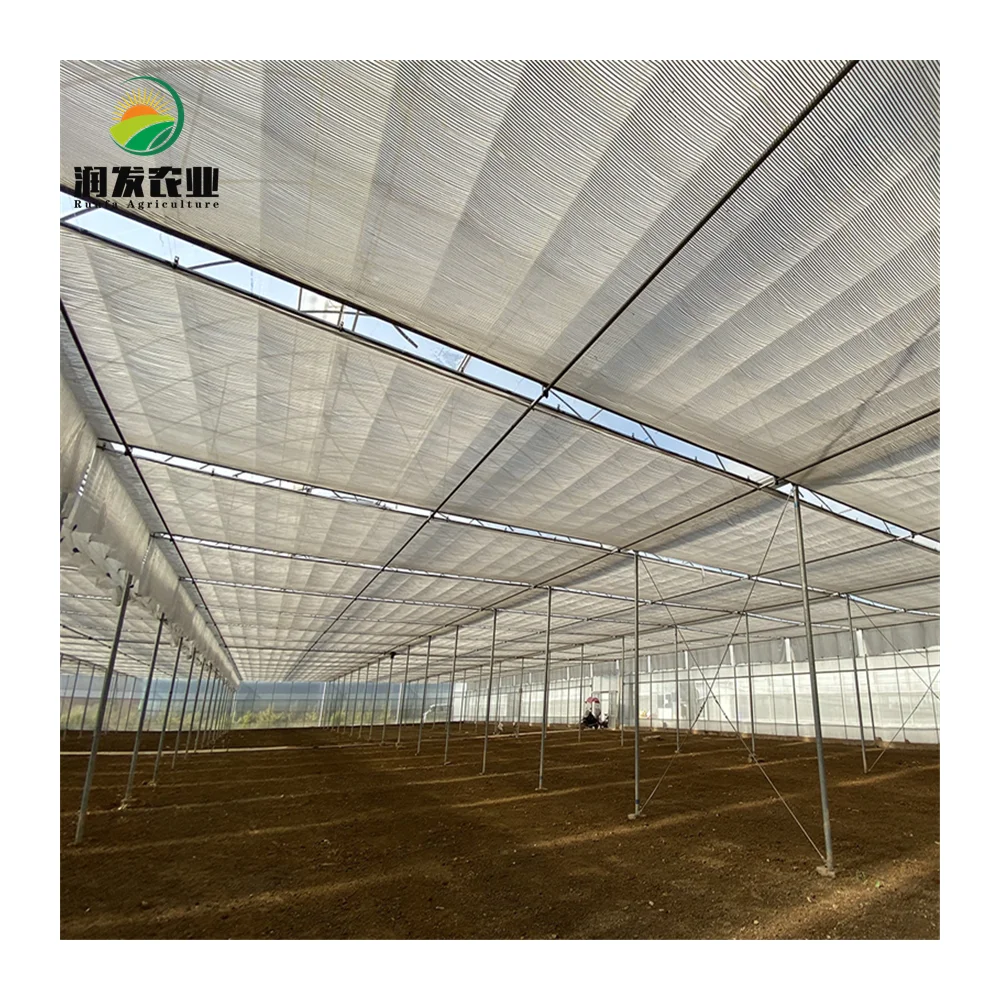

Shading systemThe system is mainly suitable for summer shade, cooling, so that part of the sunlight into the greenhouse, to ensure that crops avoid strong light burn, with low greenhouse temperature. By adjusting the opening and closing of the sunshade net, to meet the greenhouse's demand for light. The sunshade net with binding degree has hail protection function.

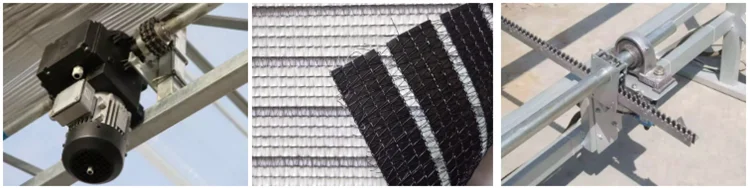

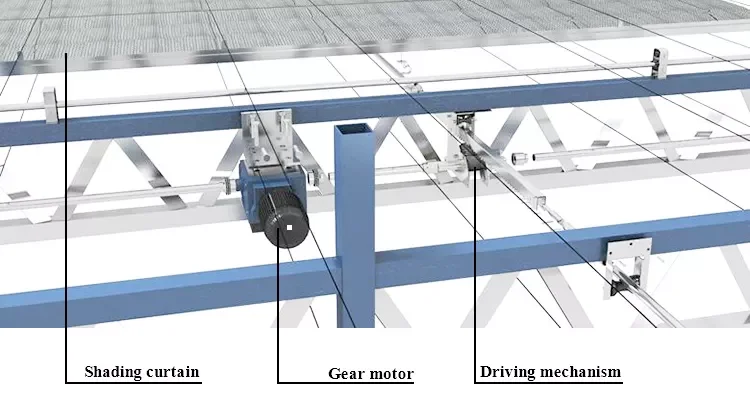

Components of the greenhouse include gear motor, shading curtain and the driving

mechanism. Meanwhile external shading system need columns to support the whole system and the internal shading system is installed on the main structure of the greenhouse.

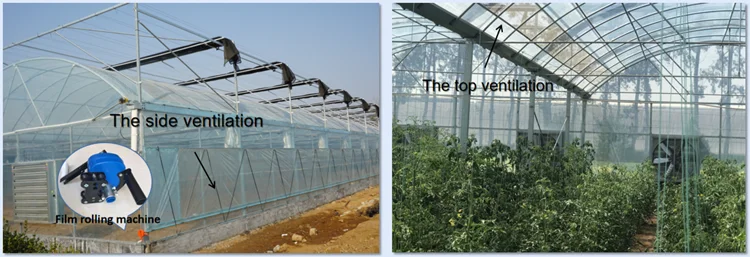

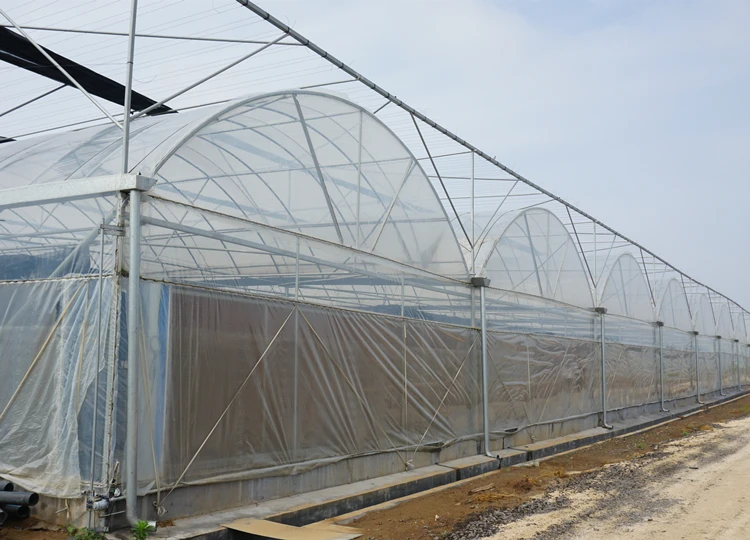

Ventilation system

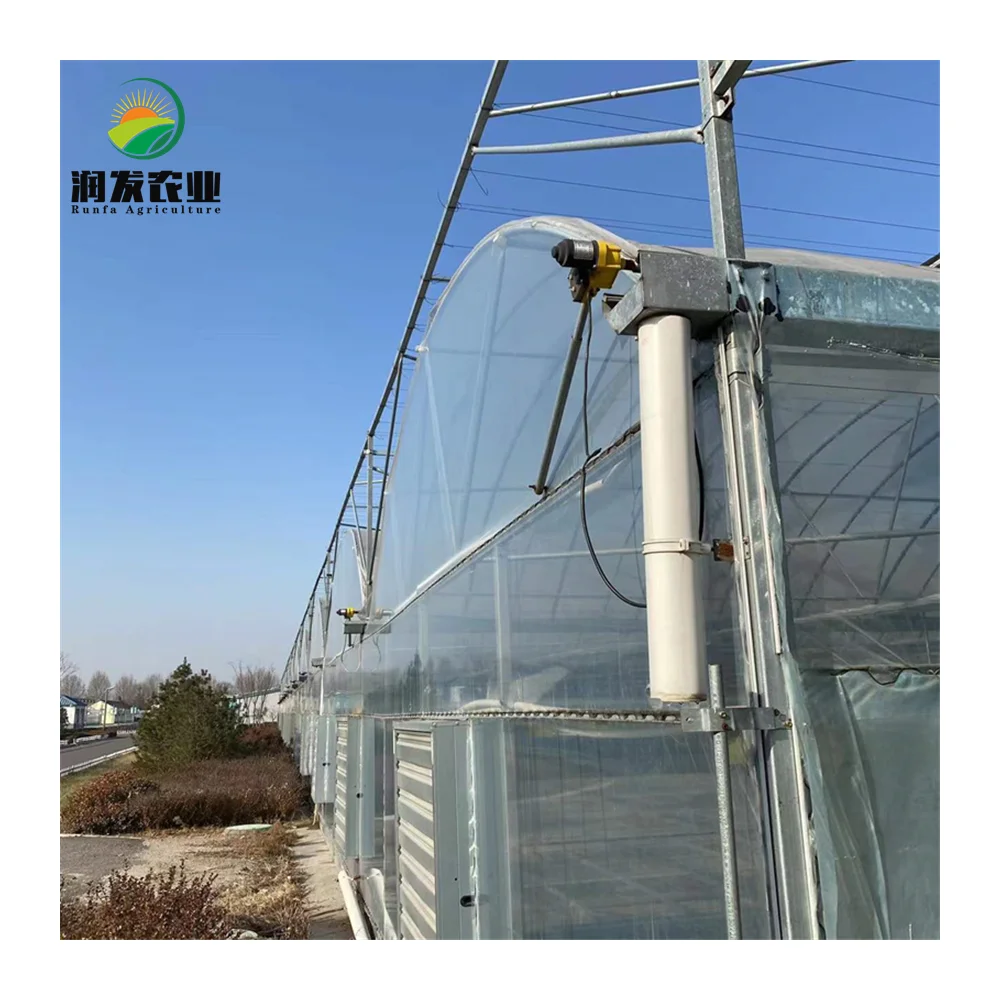

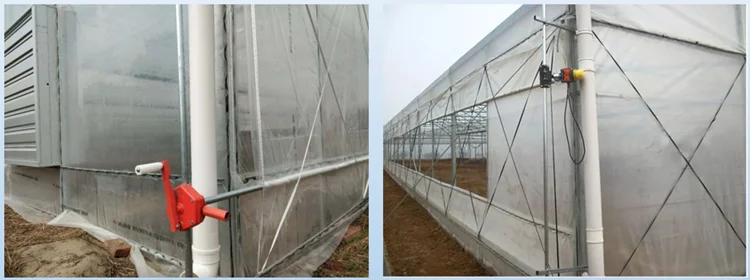

volume can be adjusted by adjusting the amplitude of the window.Greenhouse film rolling machine for Ventilation replacing traditional manual roll-up unit to reach high speed automation in revolving & releasing films and greenhouse environment, it is the new generation of greenhouse ventilation and temperatureregulation facilitiesThe electric roll-up motor for greenhouse is used extensively in Greenhouse such as the solar greenhouse, vegetable greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the rolling of film.

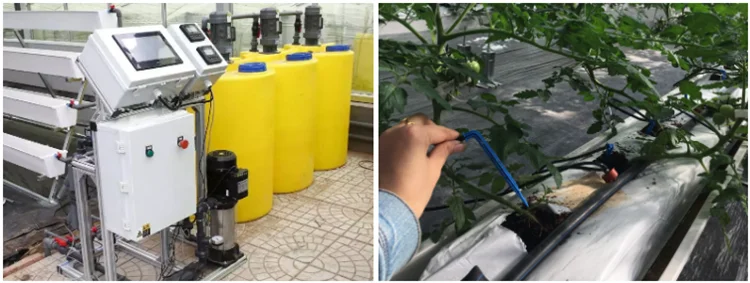

Irrigation systemThe water and fertilizer irrigation system can realize the standard ratio of water and fertilizer, automatic intelligent control, without personnel supervision, and can also realize remote intelligent control.

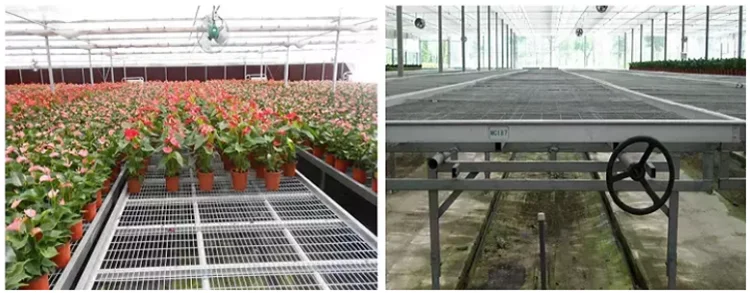

Seedbed systemSeedbed system of greenhouse includes fixed seedbed and mobile seedbed. The fixed seedbed is single-layer, angle steel as the support, steel-wire mesh set on the surface. The support of mobile seedbed is made by galvanized steel tubes, outline of the seedbed aluminum-alloy material. The surface of the mesh applies the anti-corrosive treatment by the cladding layer. Height of it can be slightly adjusted, and it is equipped with the anti-overturn device and location-limiting device. The width of the working passage, 0.8m, can be created. The seedbed system can promote the utilization rate effectively of the greenhouse, usually up to about 85%

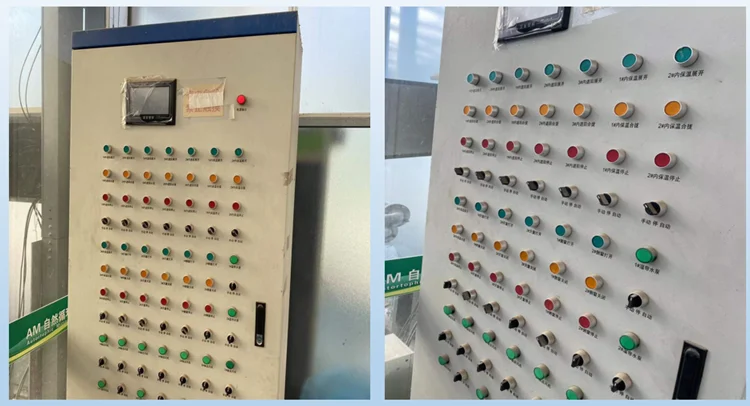

Control systemControl panel and electricity wire, control inside shading system, top ventilation system, side and end ventilation system , heatpreservation system, cooling system and exhaust fan system.

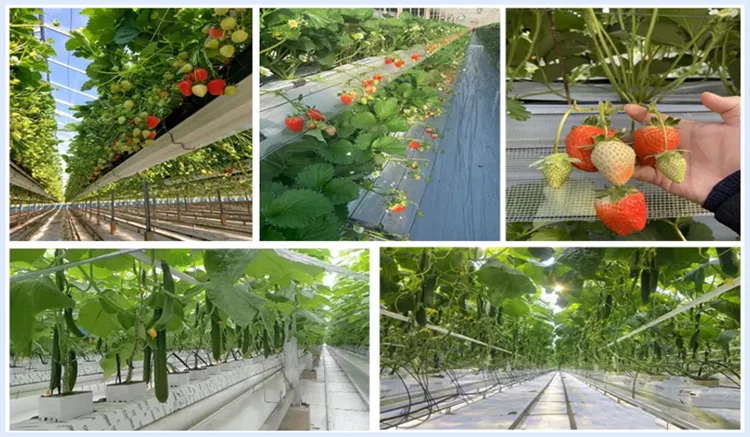

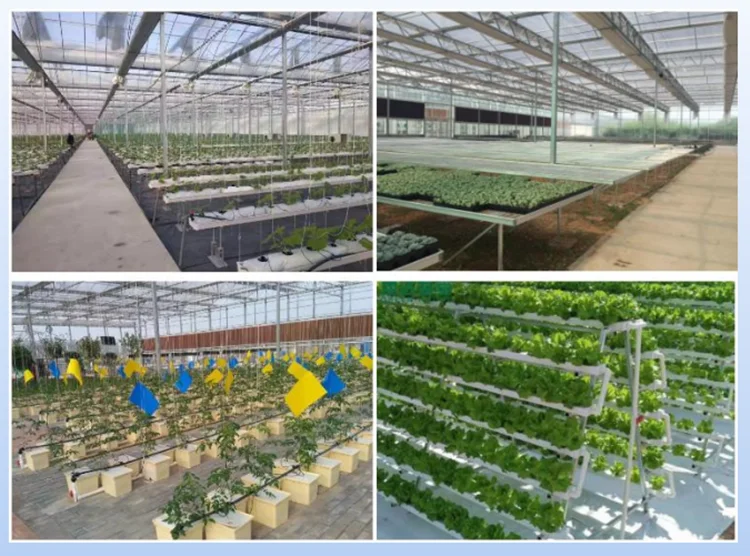

Hydroponic system

 1.Are you trading company or factory?
We are professional greenhouse and related machines manufacturer. We can offer all
types of greenhouse products with optional customized service.

2.What are your main products?
Intelligent control system for greenhouse/warm winter solar greenhouse /film/glass
greenhouse with many options (such as cooling system/shadingsystem/hydroponics
greenhouse...)

3.What’s your advantages?
Professional: Many years experience inproducing materials/machines and offering
technical projects services on agriculture greenhouses.
Quality assurance: Strict quality controlsy stemto offer quality assurance.
On-time delivery:Complete logistic system can offer you on-delivery and safe
service.

4.Can I get samples?
Some parts on hand can be sent to you for free.Transportation cost will be required.

5.Can I get drawing pictures according to my request?
Please let me know your thoughts.Our design team can make out perfect drawing images
for you reference.
