LC 05 LC 06 Series Laboratory Industrial Lab Tabletop Centrifuge Separator PRP Centrifuge Low Speed Centrifuge Machine
- Category: >>>
- Supplier: Dalian All World I/E Co. Ltd.
Share on (1600447307375):
Product Overview
Description
LC-05 &LC-06 Series Centrifuge
Product Description
1. GENERAL
The frame of this instrument is made of high strength plastic.Its model is beautiful, and it has the advantages of small cubage, low weight, large capacity, low noise, high efficiency and so on. It can be used in hospitals and biochemical labs for qualitative analysis of serum, urea and plasma.
2．PECULIARITY
2.1 Rotor imbalance protection device.
2.2 Speed choice in advance & acceleration accurate gradually.
2.3 Door switch.
3．PRINCIPLE OF OPERATION
Put tubes with sample that can be balance into a angle rotor symmetrically, the rotor will spin on axis after you start the machine, and the relative centrifuge force (RCF) comes into being while rotating, It will make the composition at different weight density separate from solution.
The formula of calculating RCF is as follows:
The frame of this instrument is made of high strength plastic.Its model is beautiful, and it has the advantages of small cubage, low weight, large capacity, low noise, high efficiency and so on. It can be used in hospitals and biochemical labs for qualitative analysis of serum, urea and plasma.
2．PECULIARITY
2.1 Rotor imbalance protection device.
2.2 Speed choice in advance & acceleration accurate gradually.
2.3 Door switch.
3．PRINCIPLE OF OPERATION
Put tubes with sample that can be balance into a angle rotor symmetrically, the rotor will spin on axis after you start the machine, and the relative centrifuge force (RCF) comes into being while rotating, It will make the composition at different weight density separate from solution.
The formula of calculating RCF is as follows:
RCF=1.118×10-5n2r
n-------- rotating speed
r-------- radius of rotating
The formula of calculating separation time is as follows:
27.4(logeRmax-logeRmin)μ (min)
n2r2(Q-ρ)
ρ-------- density of mixed liquid (g/cm3)
μ-------- glutinousness of mixed liquid (p)
n-------- rotating speed
r-------- radius of particle (cm)
n-------- rotating speed
r-------- radius of rotating
The formula of calculating separation time is as follows:
27.4(logeRmax-logeRmin)μ (min)
n2r2(Q-ρ)
ρ-------- density of mixed liquid (g/cm3)
μ-------- glutinousness of mixed liquid (p)
n-------- rotating speed
r-------- radius of particle (cm)
Q------- density of particle (g/cm3)

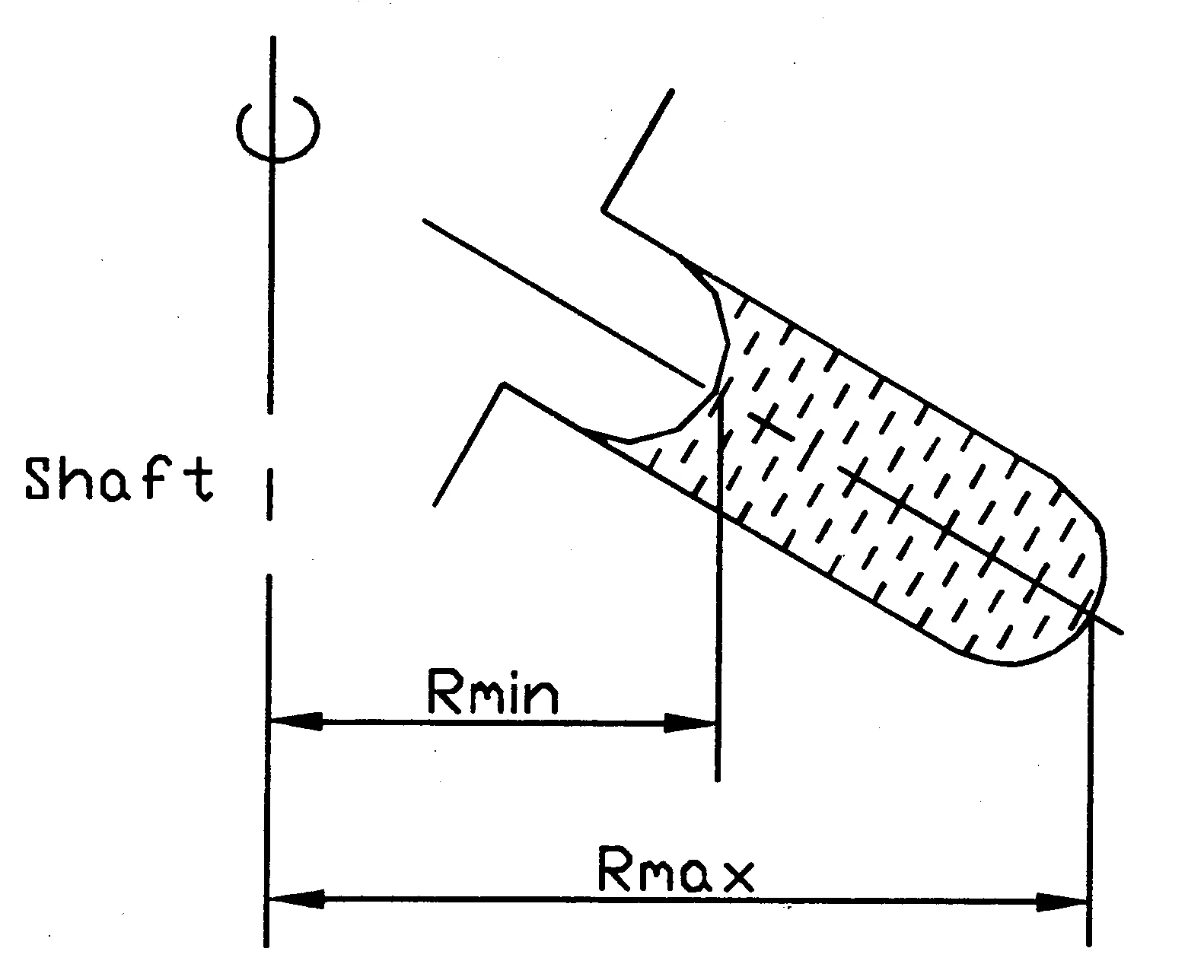

Rmax-------- The horizontal distance from the bottom of solution to the center of the rotating axis (cm)
Rmin-------- The horzontal distance from the surface of solution to the center of the rotating axis (cm
Rmax-------- The horizontal distance from the bottom of solution to the center of the rotating axis (cm)
Rmin-------- The horzontal distance from the surface of solution to the center of the rotating axis (cm
Product Paramenters
Product Name | Model | Product Characteristics | Technical Parameters | Carton size G.W N.W |

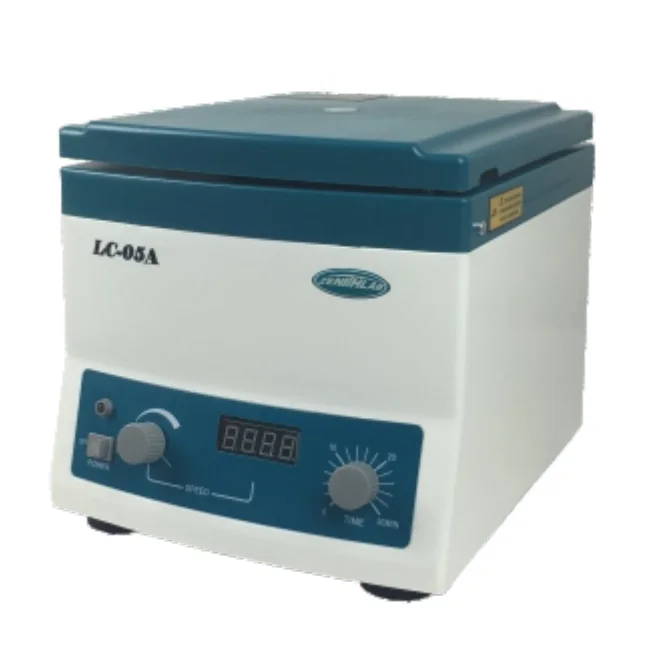

Centrifuge | LC-05A | ◆ Strong Plastic case with metal lid ◆ With mechanical door lock and safety switch ◆ Scope of supply includes the rotor ◆ High speed for short centrifugation timers ◆ Small footprint ◆ Stepless speed adjustment ◆ LED display speed ◆ Suit for qualitative analysis of blood serum and plasma | MAX RPM 5000 RPM Max RCF 3600xg Timer 0-30min Rotor capacity 20mlx12 (standard) Voltage 110V 60Hz /220V50Hz Dimension 280x310x265mm Weight 9kg | 35*36*34cm 10kg 9kg |
Centrifuge | LC-05A A051518 | Max. speed: 5000r/min, digital display speed Max. RCF: 3600（×g） Capacity: 18×15ml | 35*36*34cm 10kg 9kg | |
Centrifuge | LC-05A A051012 | Max. speed: 5000r/min, digital display speed Max. RCF: 3600（×g） Capacity: 12×10ml | 35*36*34cm 10kg 9kg | |

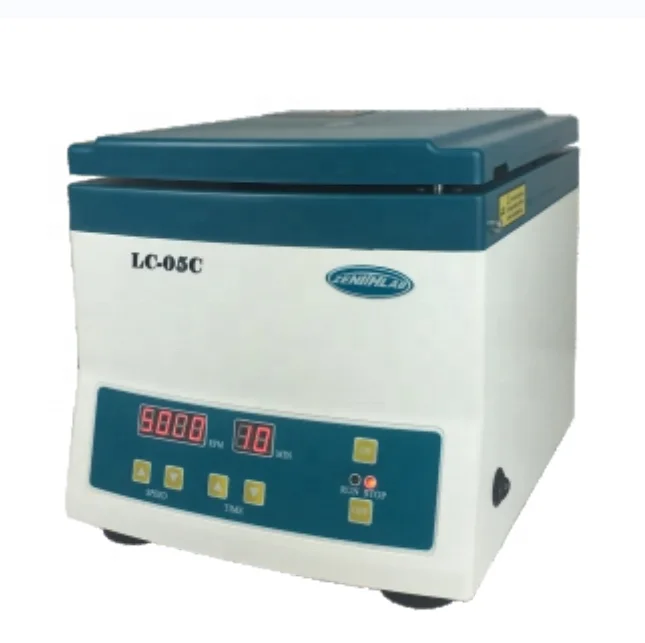

Centrifuge | LC-05C | ◆Strong Plastic case with metal lid ◆High power brushless motor ◆Over speed and imbalance alarm ◆Stepless speed adjustment , LED display speed and timer ◆With mechanical door lock and safety switch ◆Error code display, speed up and down adjustment ◆Suit for qualitative analysis of blood serum and plasma | MAX RPM 5000 RPM Max RCF 3600xg Timer 0-99min Rotor capacity 20mlx8 (standard) Voltage 110V 60Hz /220V50Hz Dimension 280x310x265mm Weight 9kg | 35*36*34cm 10kg 9kg |

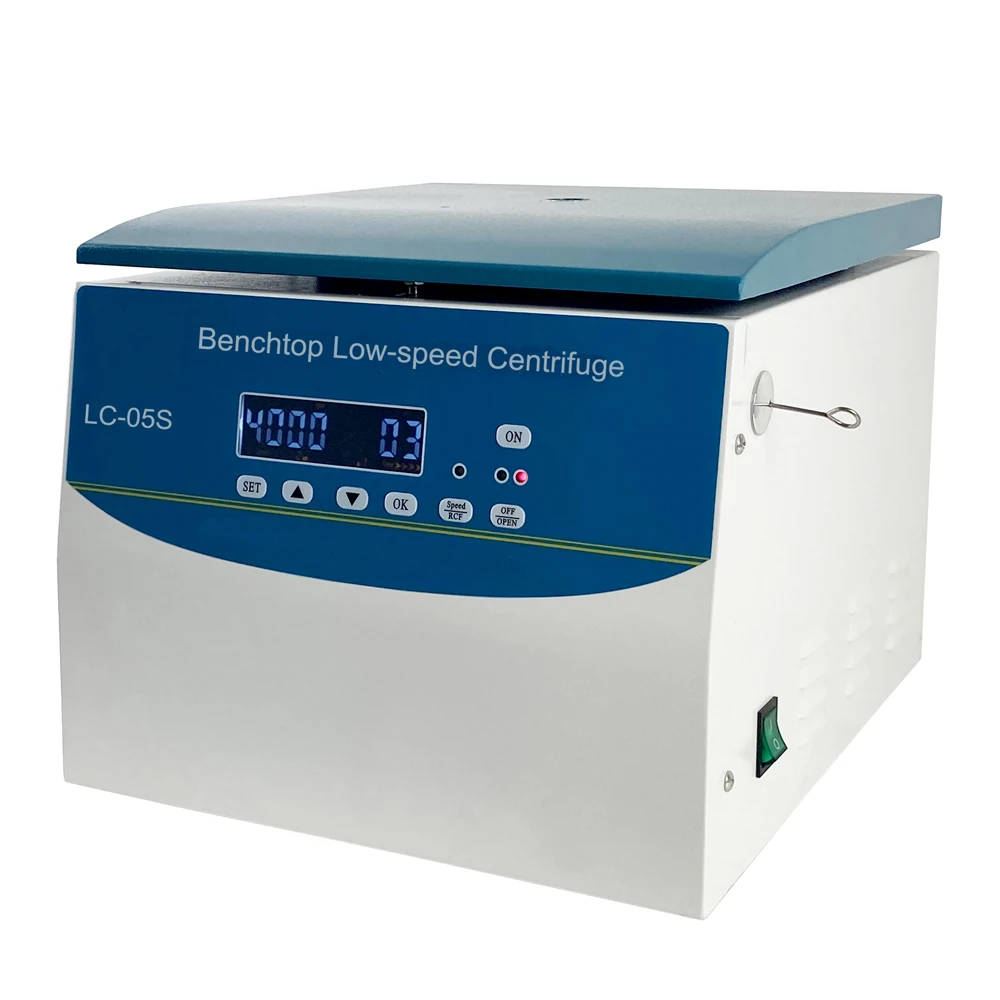

Centrifuge | LC-05S | ◆Mental case ◆Microcomputer control, brushless motor variable frequency ◆Electronic door lock control,with emergency unlock device ◆10 groups of ACC /DEC rate to choose and memory ◆10 groups of programs with function,RPM/RCF,time,Acceleration / Deceleration/rotor NO./Door station ◆Programs can be programmed according to user parameters ◆Imbalanced protection, self locking, overspeed protection, speed no signal protection, motor Holzer fault protection, high or low power supply voltage protection, over-current protection ◆Fault automatic diagnosis and recognition,programmable operation, automatic storage of data. | MAX RPM 5000 RPM Max RCF 3840xg Timer 0-99min59s Rotor capacity 1 Swing 100mlx4 2 Swing 50mlx8 3 Swing 15ml/10mlx16 Voltage 110V 60Hz /220V 50Hz Dimension(mm) 340×410×360 mm Weight 24kg | |

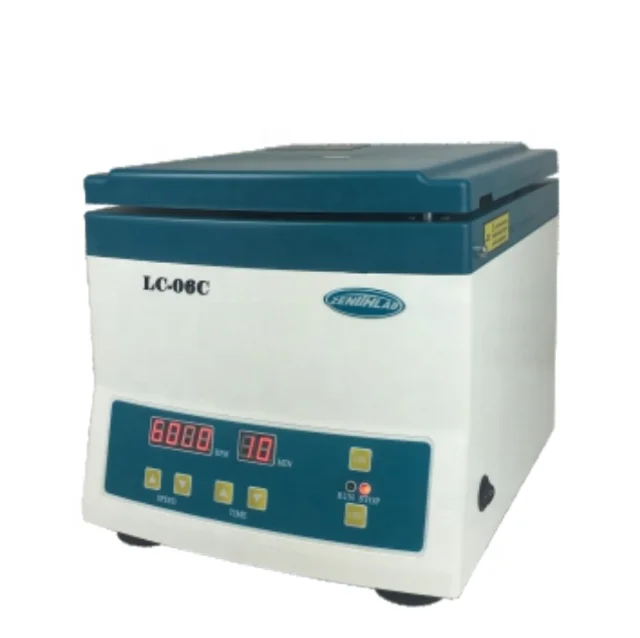

Centrifuge | LC-06C | ◆Strong Plastic case with metal lid ◆High power brushless motor ◆Over speed and imbalance alarm ◆Stepless speed adjustment , LED display speed and timer ◆With mechanical door lock and safety switch ◆Error code display, speed up and down adjustment ◆Suit for qualitative analysis of blood serum and plasma | MAX RPM 5000 RPM Max RCF 3600xg Timer 0-99min Rotor capacity15mlx12 (standard) Voltage 110V 60Hz /220V50Hz Dimension 280x310x265mm Weight 9kg | 35*36*34cm 10kg 9kg |
