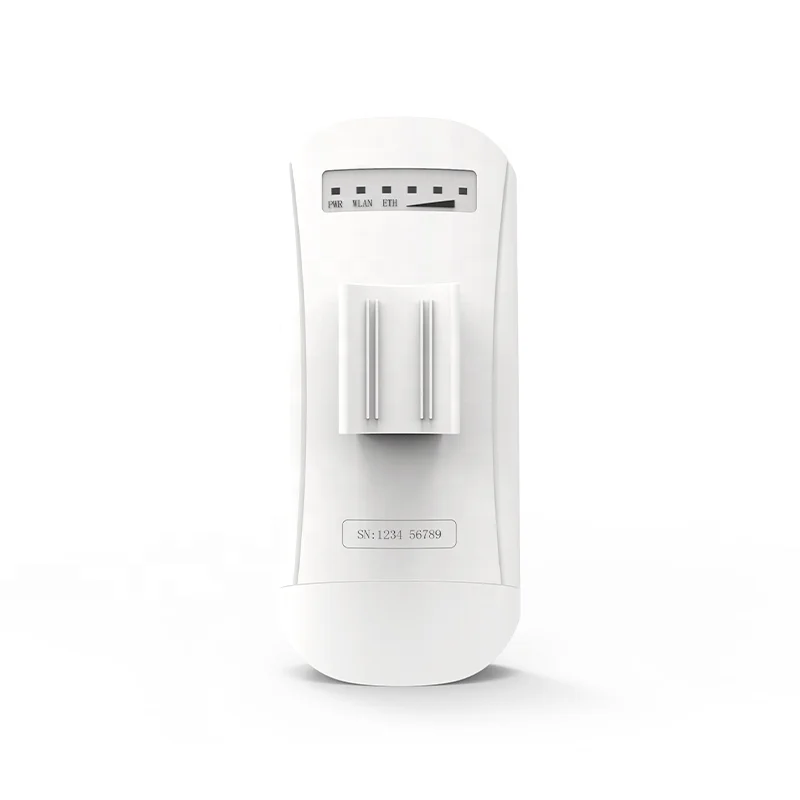

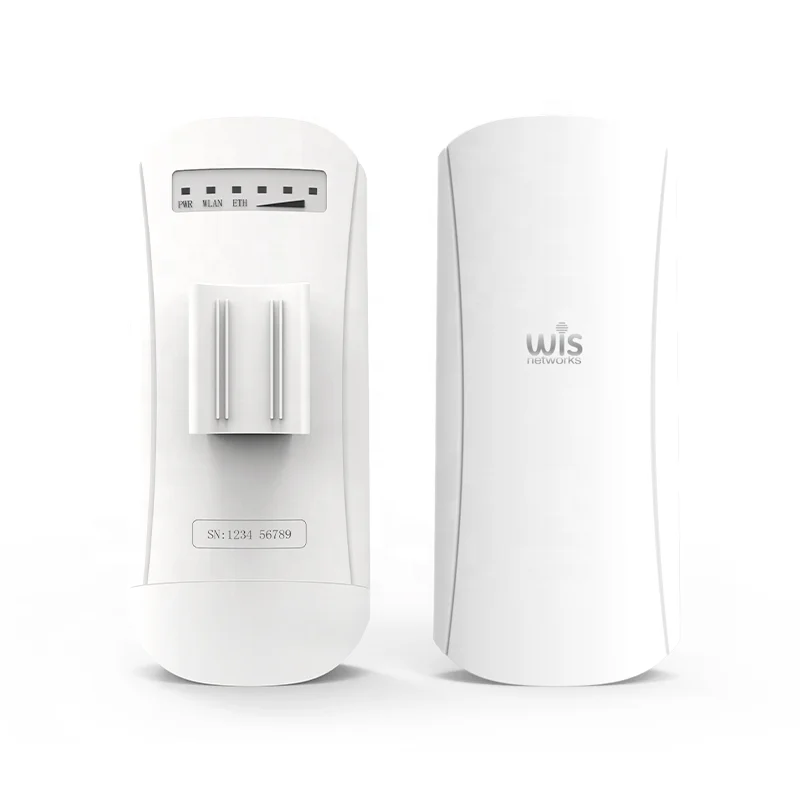

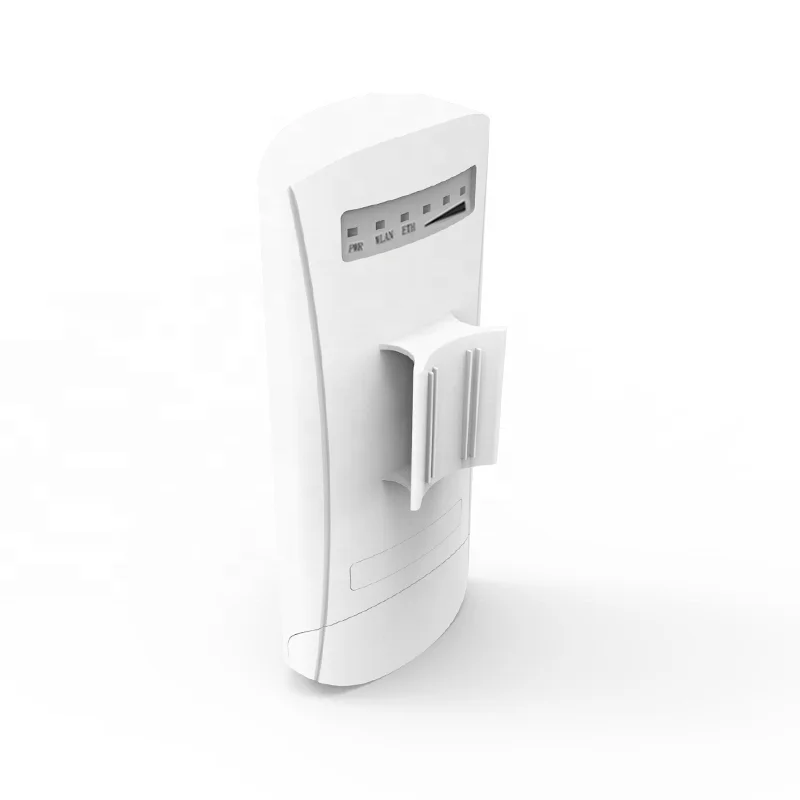

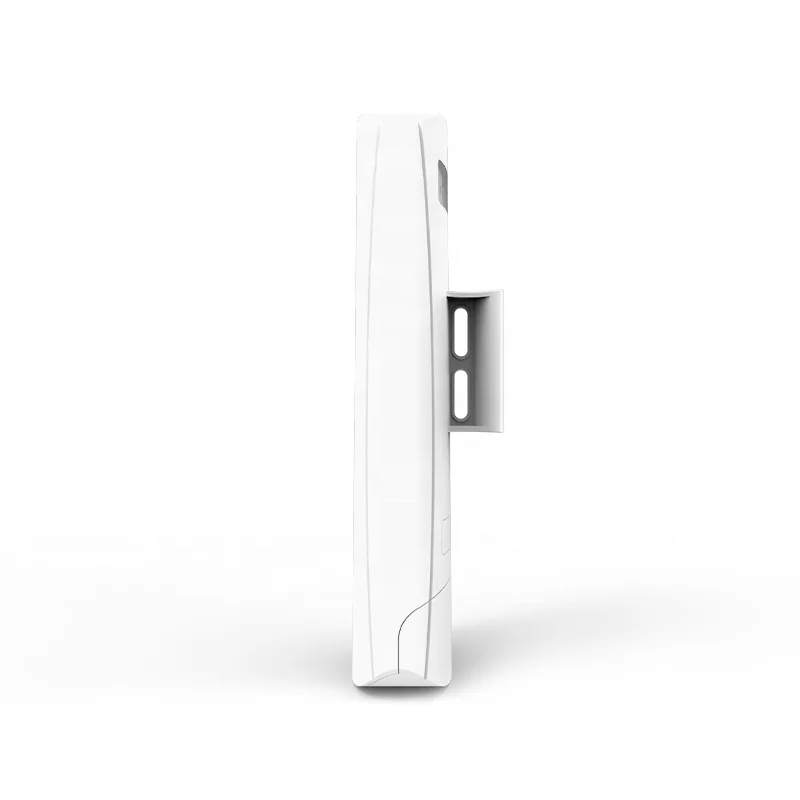

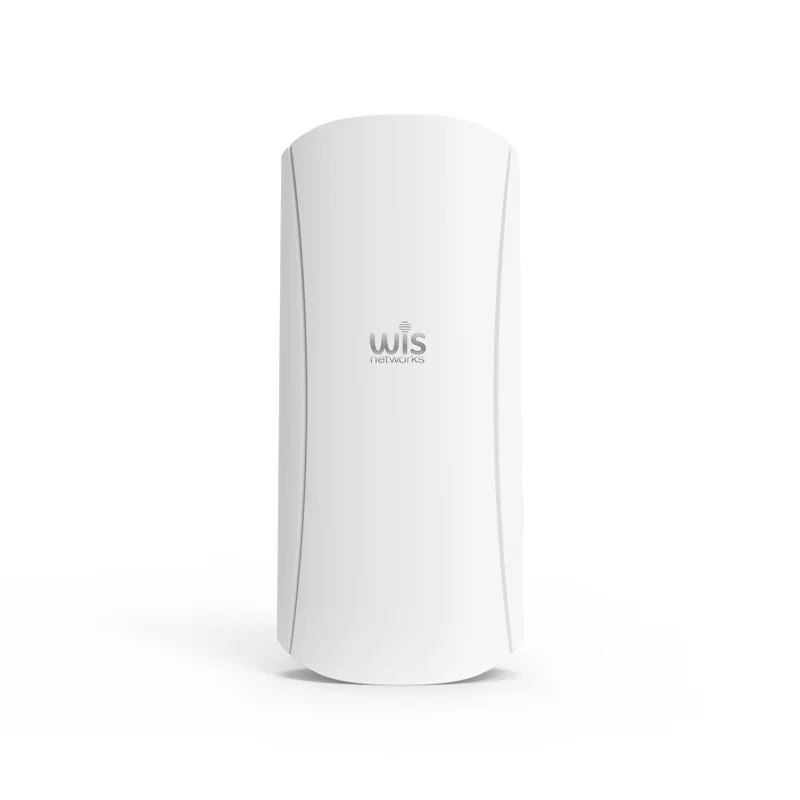

WIS Q2300A long range 2.4GHz Outdoor Wireless networking CPE Bridge Access Point for Ubiquiti NanoStation LOCO M5
- Category: >>>
- Supplier: Lanbowan Communication Ltd.
Share on (1600447385462):
Product Overview
Description
Product Description
WIS-Q2300A is a 300Mbps 2*2 MIMO outdoor wireless CPE for point-to-point and point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISP CPE,which provides incredible long range much better than any other vendors solution.
Features
Incredible Long Range
● Up to 23dbm Tx Power
● 10dBi directional antenna
● Wireless Speed up to 300Mbps
● Narrower Beamwidth for noise immunity
● Up to 23dbm Tx Power
● 10dBi directional antenna
● Wireless Speed up to 300Mbps
● Narrower Beamwidth for noise immunity
Wireless Solutions for Surveillance
● Cost-effective passive PoE
● IP65 Waterproof
● Multiple mounting methods
● Extremely Amazing Performance
● IP65 Waterproof
● Multiple mounting methods
● Extremely Amazing Performance
Full Feature & Performance

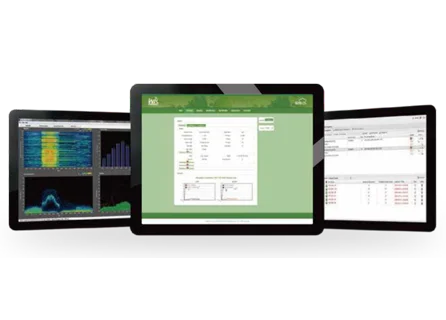

● Full WisOS Support
● Auto-Distance Adjust
● 2km+ Availability
● Fully Managed by WiController
● Auto-Distance Adjust
● 2km+ Availability
● Fully Managed by WiController
Features and Benefifits
- 10dBi panel antenna to build robust wireless PtP link
- Compliant with 802.11b/g/n, Wireless speed up to300Mbps
- Wireless Solutions for Surveillance
- 2 kilometers throughput 90+
- 40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Passive POE(24VDC) for flflexible deployment
- Weather-proof design for outdoor environment
- Up to 8kV ESD protection
- Compliant with 802.11b/g/n, Wireless speed up to300Mbps
- Wireless Solutions for Surveillance
- 2 kilometers throughput 90+
- 40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Passive POE(24VDC) for flflexible deployment
- Weather-proof design for outdoor environment
- Up to 8kV ESD protection

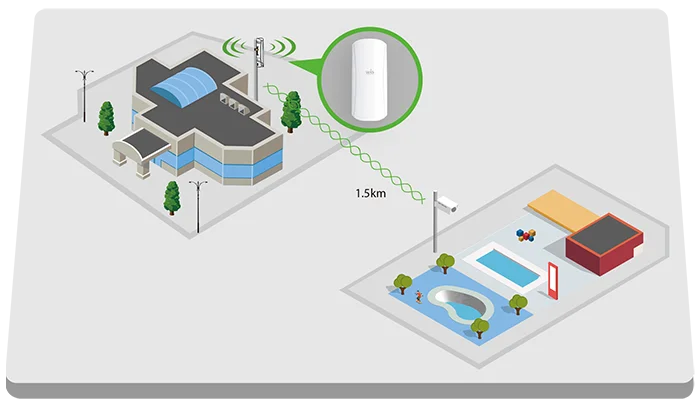

Network Diagram
Product Paramenters
Product code | WIS-Q2300A |
Architecture | MIPSBE |
CPU | QCA9531 |
Size of RAM | 64MB |
Flash | 16MB |
802.11b/g/n radio (Atheros 600MHz) Speed up to 300 Mbps Frequency Range: 2.4-2.4835GHz Tx Power up to 23dBm Rx Sensitivity 300M: -70dBm@10% PER 54M: -76dBm@10% PER | |
10dBi dual-polarized directional antenna Beamwidth(HPBW): Horizontal: 60°, Vertical: 30° Open space up to 1~5km (dependent) | |
Dimension:177mm*80mm*65mm Weight:0.3kg Enclosure: Weatherproof Plastic ESD Protection：8kV Lightning Protection：4kV Working Temp：-40~65℃ Storage Temp：-40~85℃ Working Humidity：10%~95% non-condensing | |
Interfaces | 1x 10/100Base-T Ethernet (RJ45 with Passive PoE) Reset |
24VDC, 0.5A Power Consuption: 6W >Security Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP; | |
Power: On/Off LAN:On/Off/Flashing RSSI Signal: 1,2,3 | |
Warranty | 1 Year |
Certification | CE, RoHS |
Power Consumption | <10W |
WIS-Q2300 Quick Setup Guide Power Adapter with Passive PoE Mounting kits |
