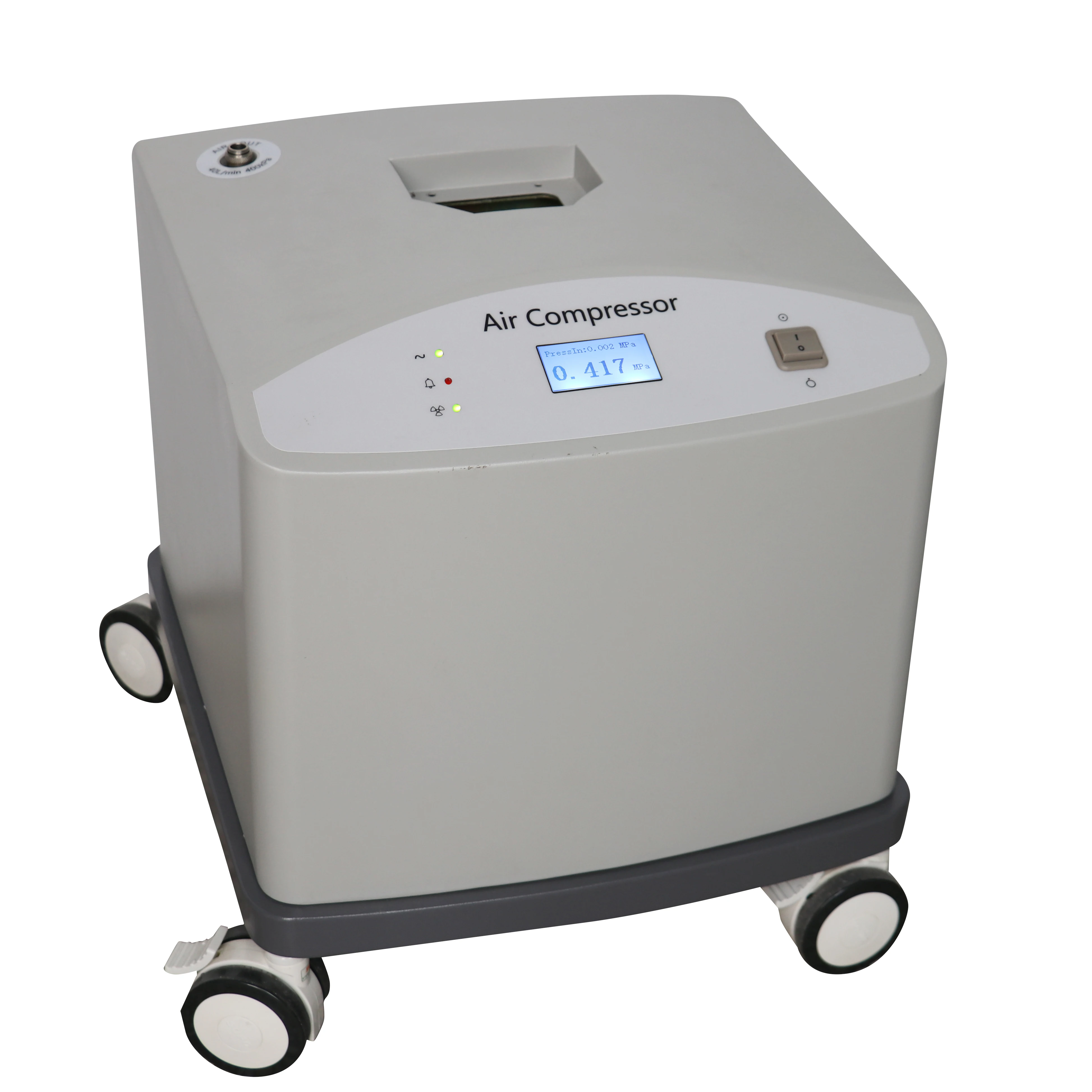

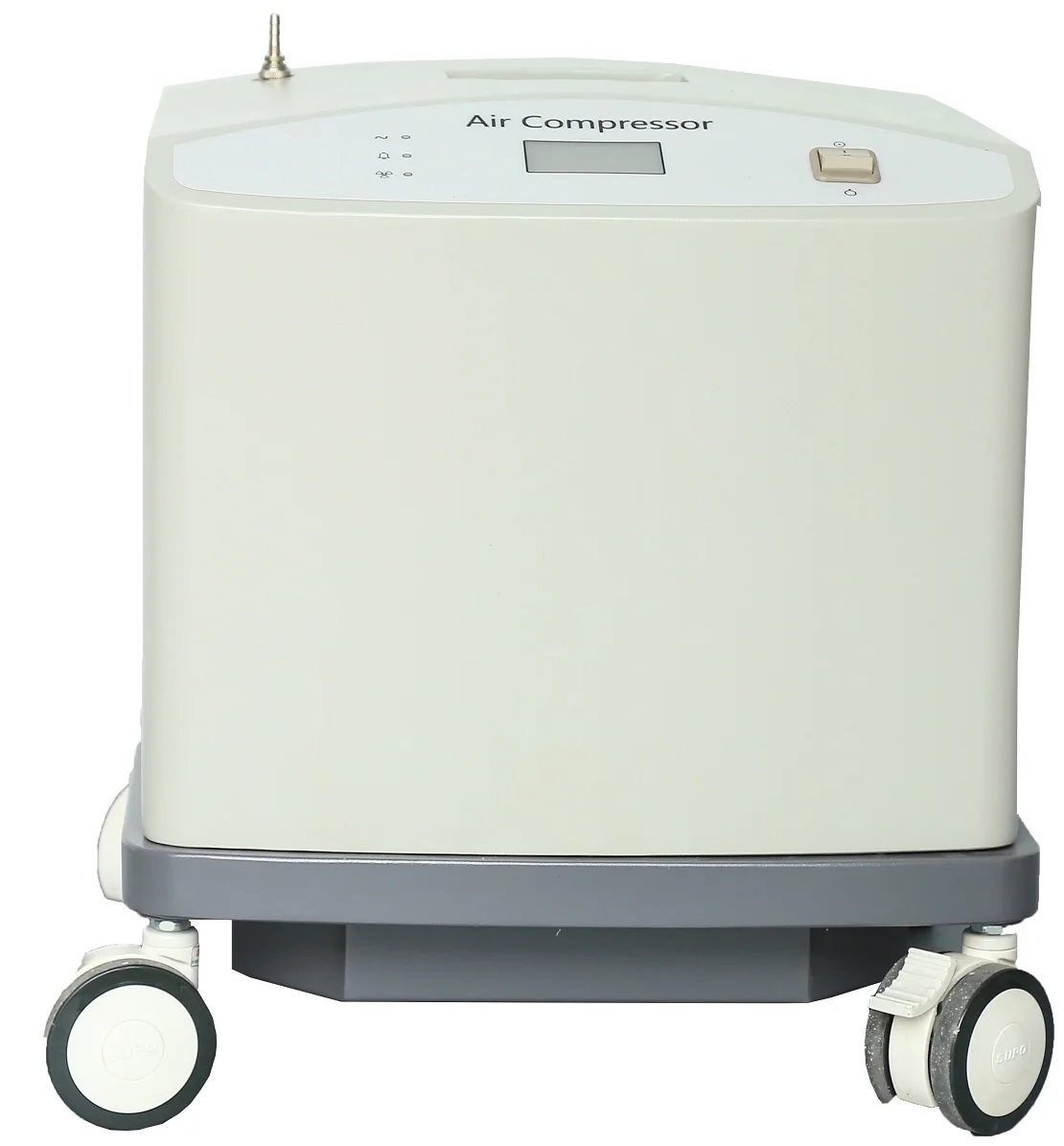

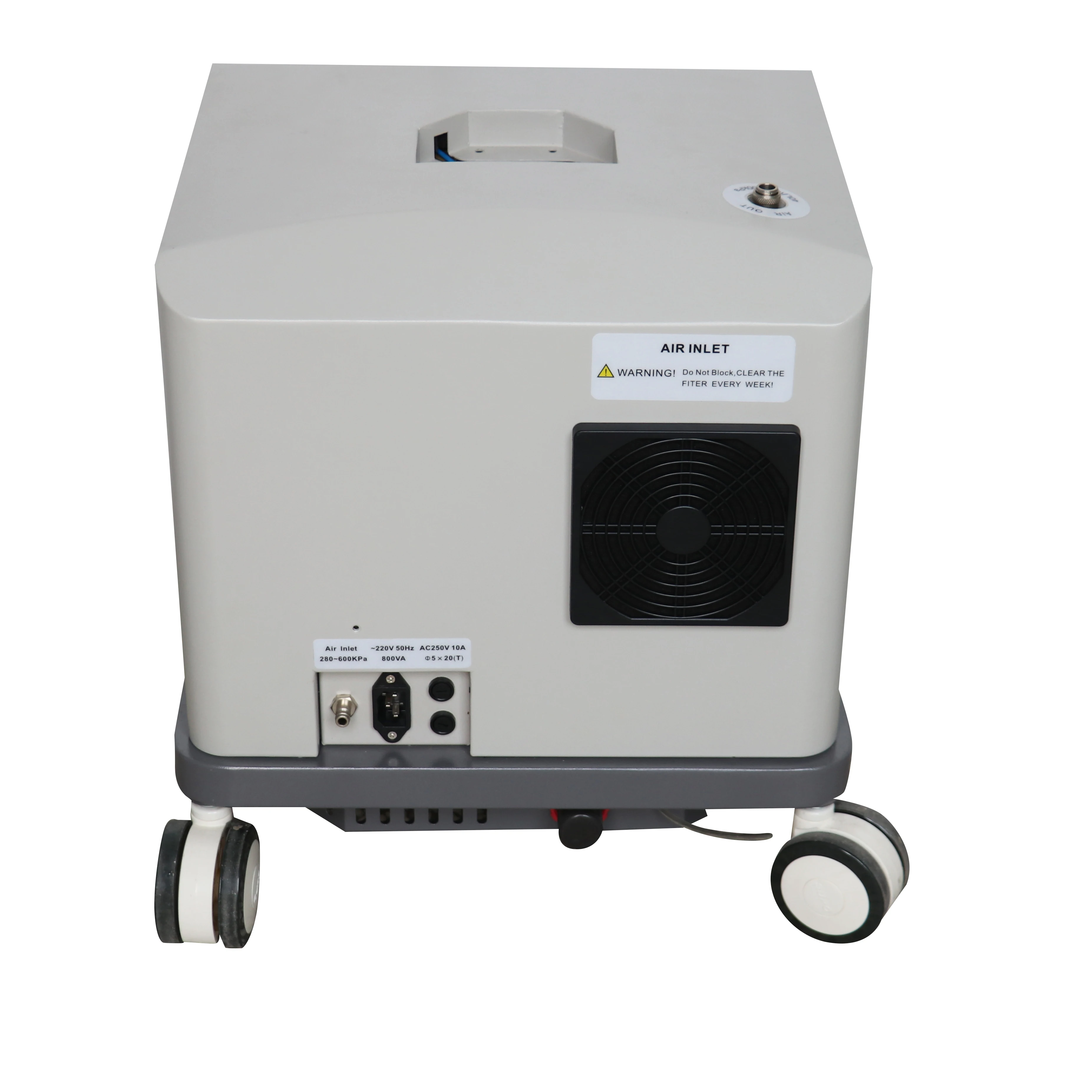

Medical Oil Free Air Compressor for Medical Equipment from China Factory with Good Quality

Product Overview

Description

The compressor can be used for ventilator or anesthesia machine  at at all levels, clinical first aid and respiratory treatment, and intensive care unit (ICU),operation room,scientific experiments, pneumatic instrumentation and other applications.Meet 9706.1-2007 "Medical Electrical Equipment Part General requirements for safety" of the I Class B equipment requirements.



Salient Feature:

v Auto-start function when central gas system failure.

v Build pressure Pressure safety valve  no exceeds the safe pressure 600kPa,

v Oil-Free Compressor with temperature protection

v Both operation mode at continuous  and intermittent mode

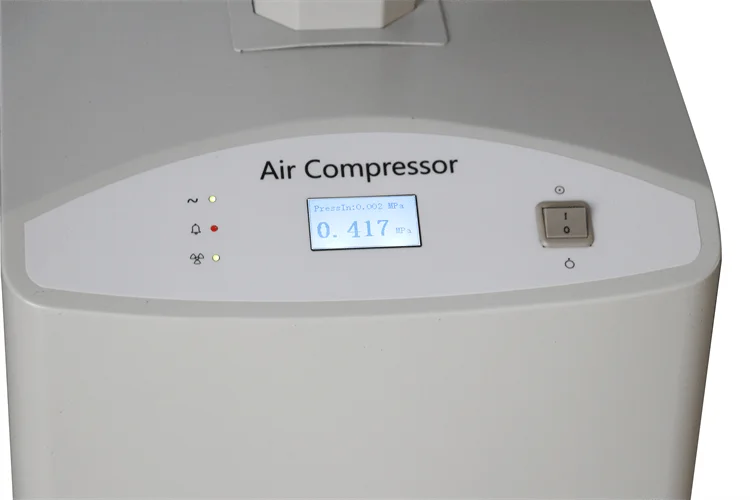

v LCD screen to display output pressure and working time

v With pressure adjustment knob,easy to adjust the needed pressure.

v Compact design and easy to transfer

v Assembled with clean control module, supplying cleaner and safe air to the patients

v Effective sound-absorbing materials, reducing noise lower than 51db

v Build-in temerpature tranmit system,will auto close while tempeprature

       decrease to the certain value

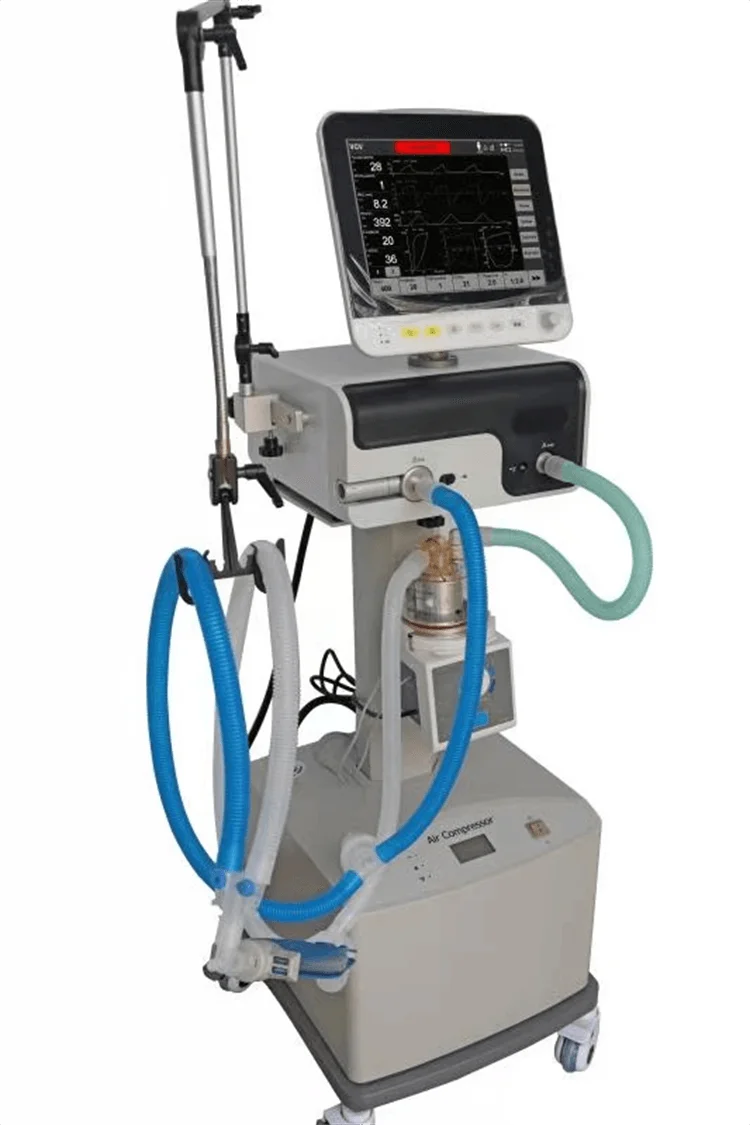

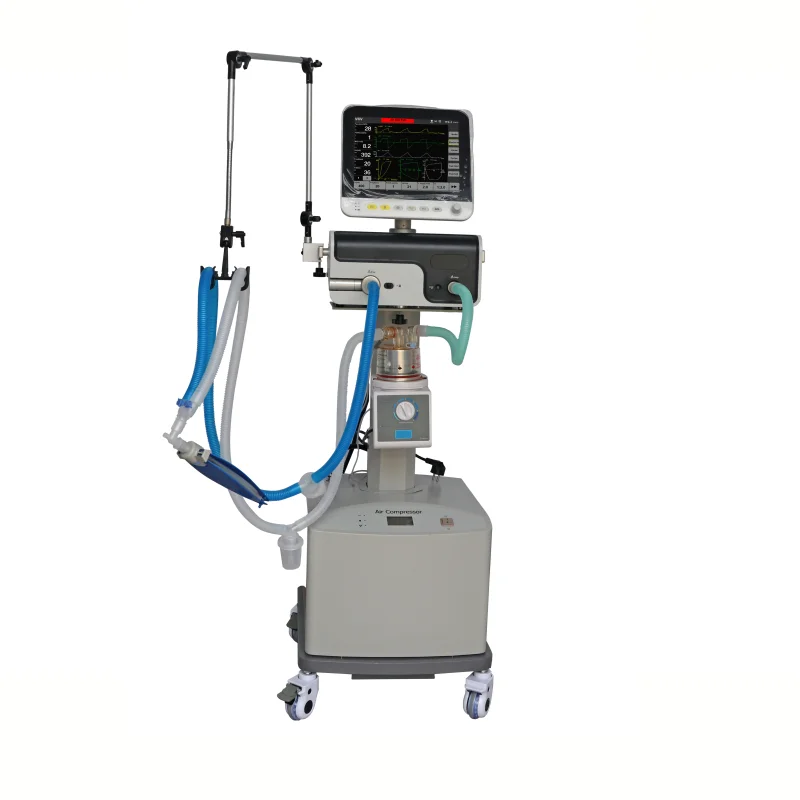

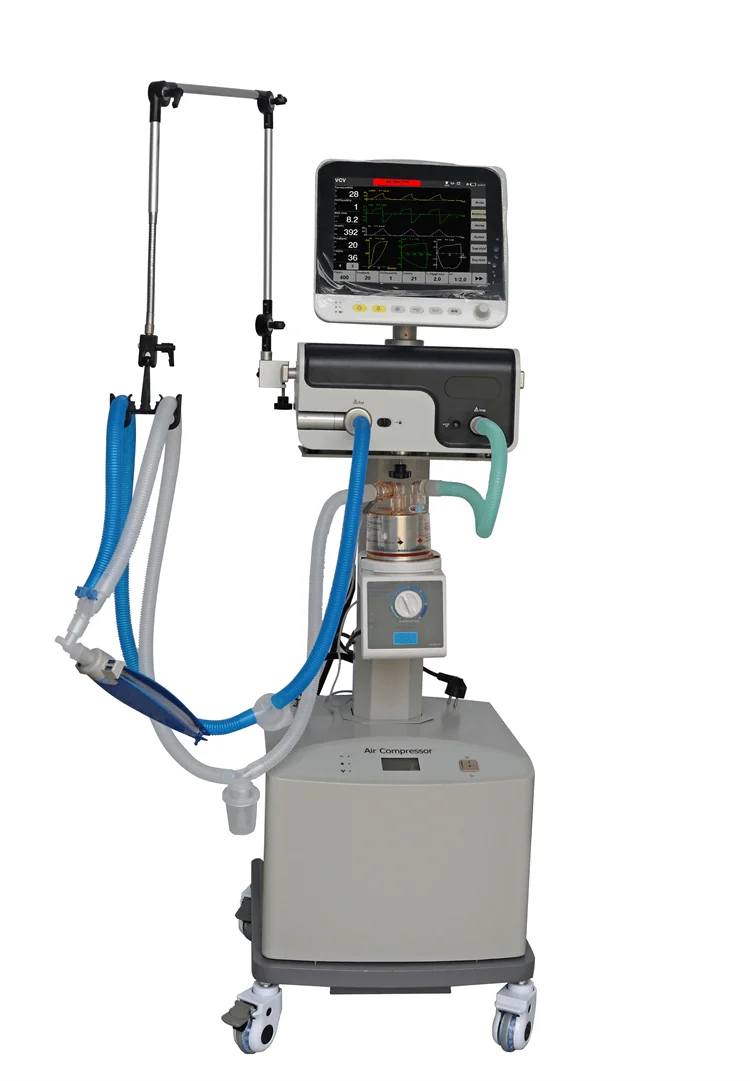

v Match with various brand ventilator or anesthesia machine brand to supply gas

Item	Specification
Output gas flow	≥30L/min@3.0bar
Working mode	Continuous  and intermittent mode
Peak flow at pressure 3 bar	200 l.min–1/ 3 bar(At one atmospheric pressure, the flow time greater than 180 ml / min is not less than 0.8 s
Output gas pressure	0.4Mpa
Pressure adjust knob	0.3~0.5Mpa
Outlet connection	Quick-Plug,NIST,DISS or other as need
Input connection	Quick-Plug.when it have central gas,connection,no central gas source ,no need connection.
Output gas filter accuracy	0.03μm
Air compressor pump	1sets
Efficient rate for particle filtration	99%
Dew point of output gas:	0~10℃(5°C under the ambient temperature, while flow rate is 30ml/min)
Tank capacity	1.5L
Tank Pressure	6bar
Noise	<51 dB(A)
Indicator	working, warning, fan cooling
LCD Screen	output pressure, total accumulated working time,low pressure alarm.
Back up connector	When central gas fail,compressor start auto
Power voltage	220V±22V;  Frequency: 50Hz±1Hz; 110V±11V; Frequency: 60Hz±1Hz
Input power	<800W
Alarm	Low pressure alarm;output pressure low than 0.23Mpa
Working Environment	Temperature 0~40°C Humidity<90RH
Dimension:	501mm (L) ×554mm (W) ×550mm (H)
Weight:	38 kg
