Factory new design digital ds18b20 temperature probe water temperature sensor modbus ds18b20
- Category: Sensors >>>
- Supplier: Zhaoqing,Jinlongbao,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

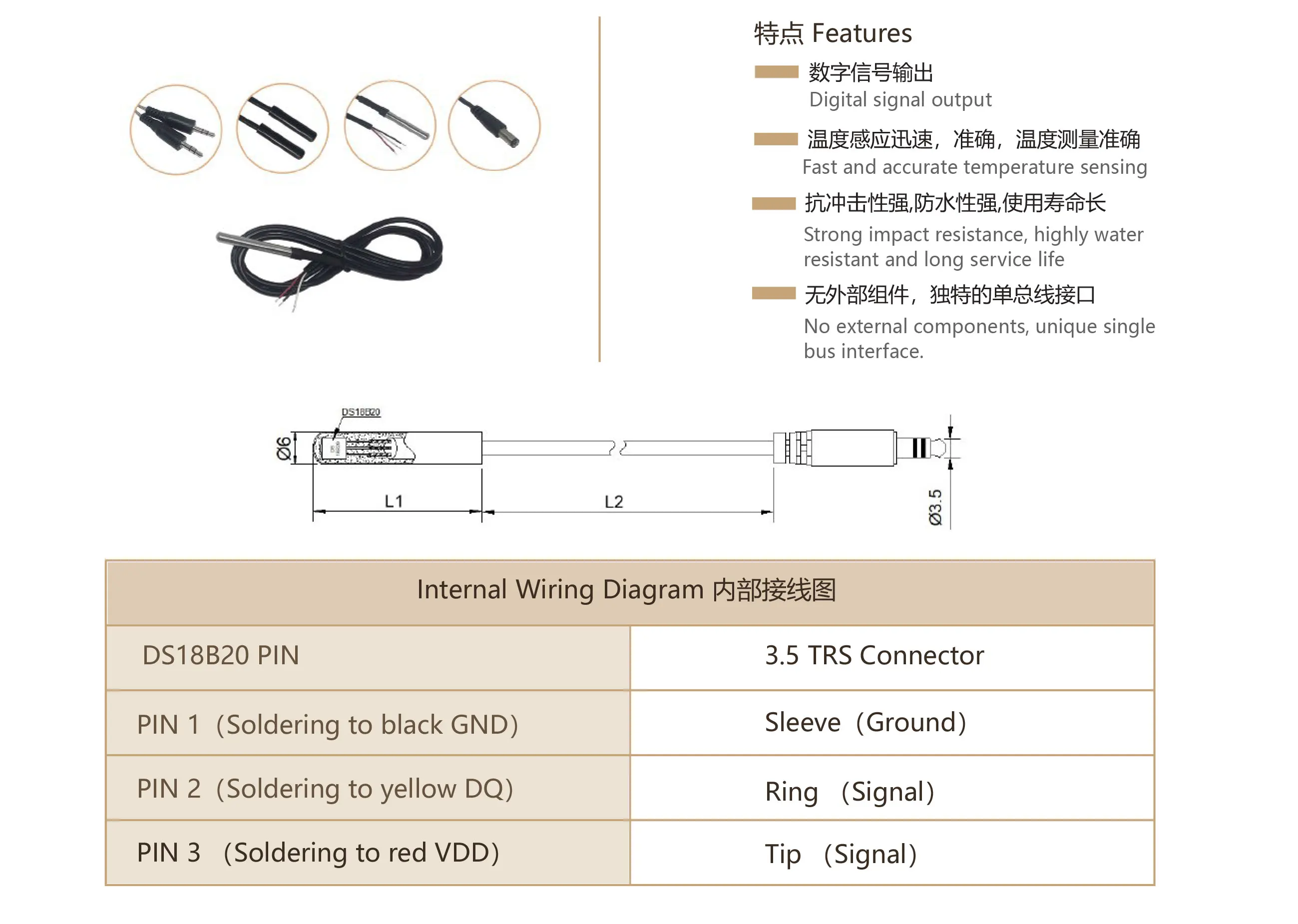

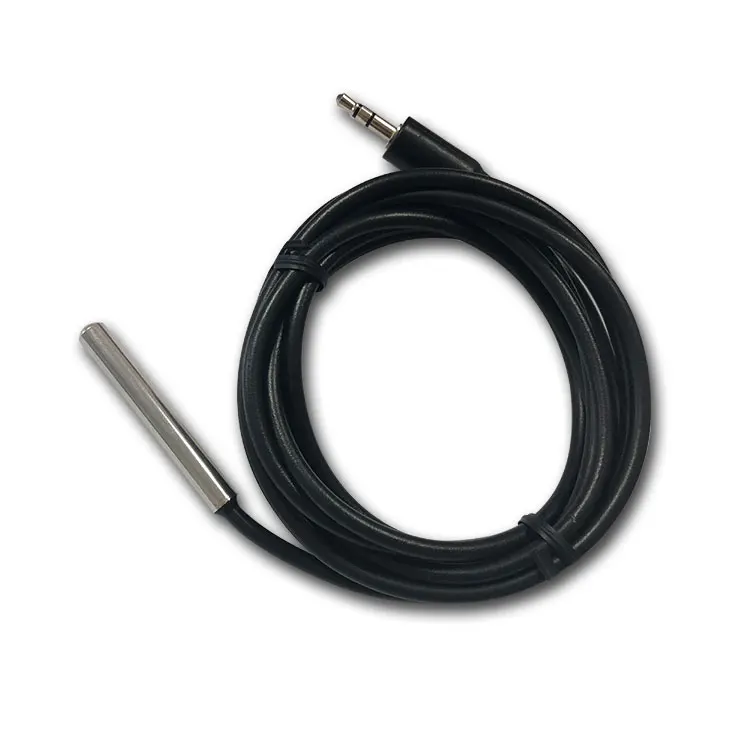

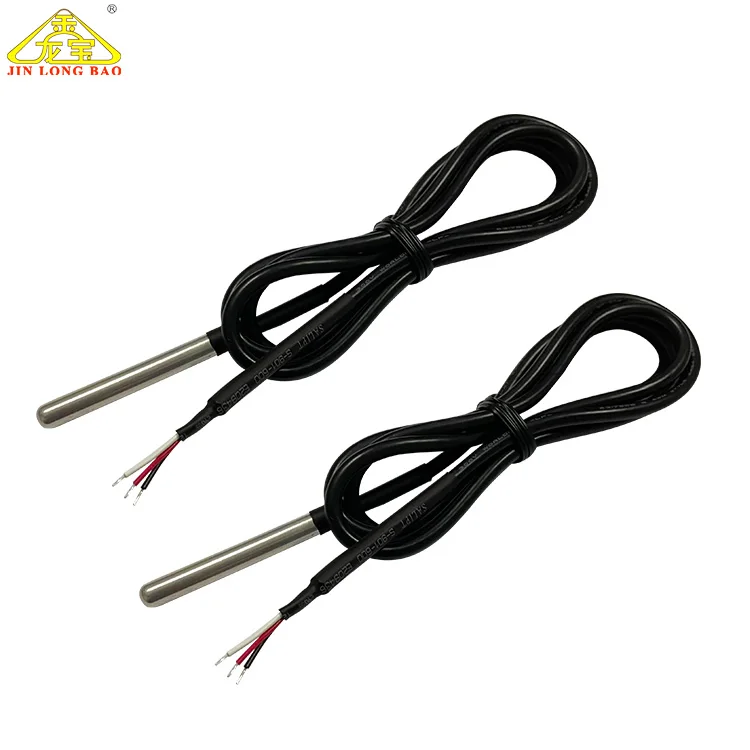

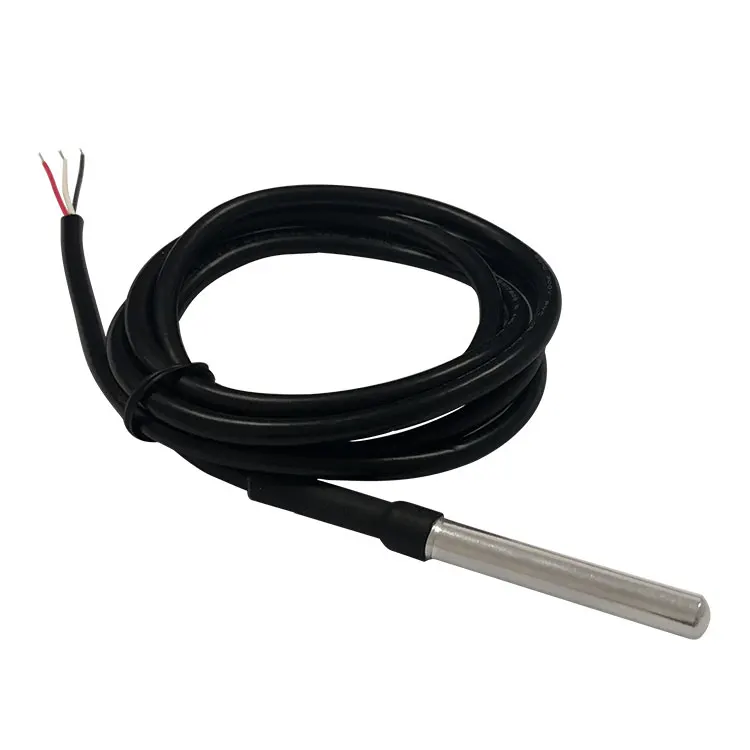

Factory new design digital ds18b20 temperature probe water temperature sensor modbus ds18b20
Digital Chip | Originally imported from DALLAS USA, Maxim DS18B20 | ||||||
Power Supply | 3.0~5.5V DC | ||||||
Operating Temperatrue Range | -55℃ ~ 125℃ (-67F to +257F) | ||||||

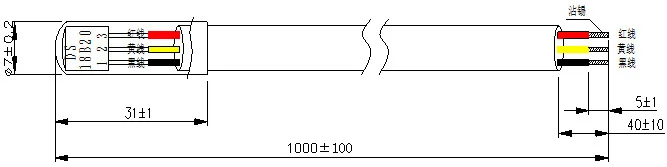

Probe Dimension | Φ6X50mm, Φ7X25mm, Customized | ||||||

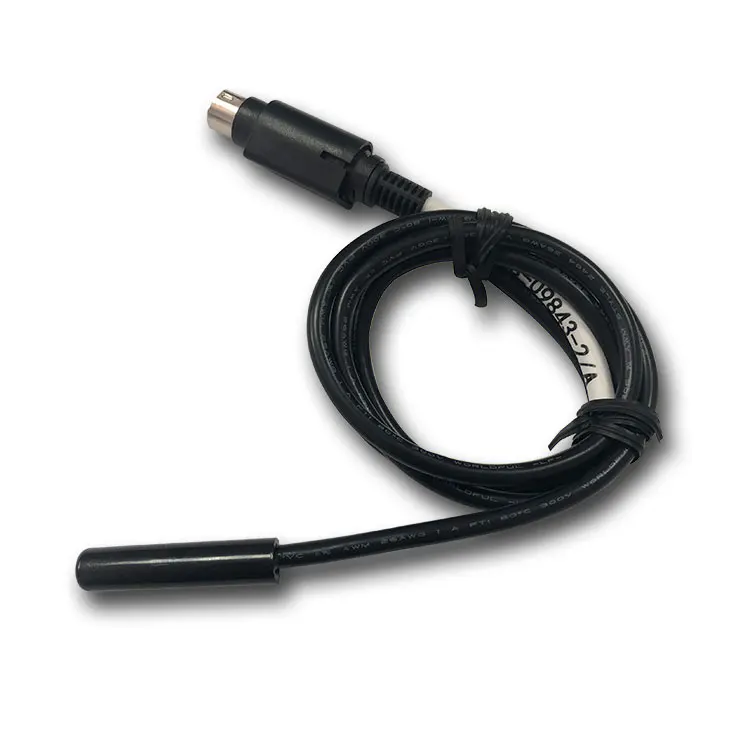

Connector Type | Audio Jack, Molex, JST, DuPont, CJT, etc. | ||||||
Cable Length | 1m, 2m, 3m, Can be Customized | ||||||
Introduction
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply. Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.
DS18B20 Chip Benefits and Features
1.Unique 1-Wire® Interface Requires Only One Port Pin for Communication -Reduce Component Count with Integrated Temperature Sensor and EEPROM
2.Measures Temperatures from -55°C to +125°C (-67°F to +257°F)• ±0.5°C Accuracy from -10°C to +85°C •Programmable Resolution from 9 Bits to 12 Bits • No External Components Required 3.Parasitic Power Mode Requires Only 2 Pins for Operation (DQ and GND) Simplifies Distributed Temperature-Sensing Applications with Multidrop Capability •Each Device Has a Unique 64-Bit Serial Code Stored in On-Board ROM 4.Flexible User-Definable Nonvolatile (NV) Alarm Settings with Alarm Search Command Identifies Devices with Temperatures Outside Programmed Limits 5.Available in 8-Pin SO (150 mils), 8-Pin µSOP, and 3-Pin TO-92 Packages
Applications | ||
● Thermostatic Controls | ||
● Industrial Systems | ||
● Consumer Products | ||
● Thermometers | ||
● Thermally Sensitive Systems | ||
Customized Design
Review Products
Why Choose Us
Advantages
1. Small quantity is accepted.
2. Well and strict quality control.
3. Good quality is assured by advanced manufacturing technique.
4. All products will be checked by our quality-control department.
5. Customized design. OEM & ODM is accepted.

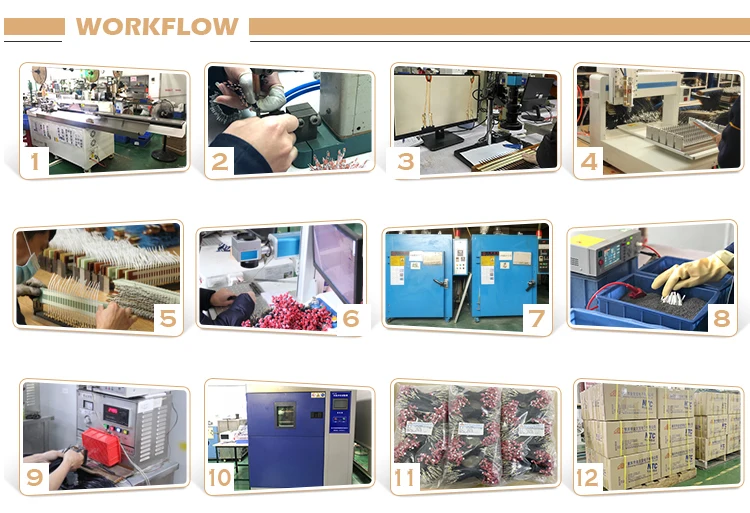

6. We have series ex-factory tests before shipment, such as pulling test, high & low temperature test, drop test, temperature cycling experiment etc.
Our services
1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
3. Customized design. OEM & ODM is accepted.
Company Profile

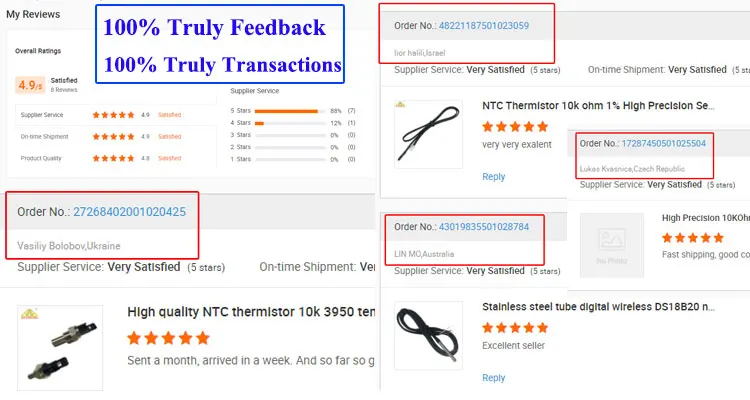

Customers Feedback
FAQ
ds18b20 temperature probe water temperature sensor ds18b20
1. Are you a trading company or manufacturer?
We are a manufacturing factory which have more than 12-years production experience.
2. Can you provide free samples, how about the freight?
Yes, we can offer 1-5pc free samples if we have it in stock. But not including the freight.
3.What is your terms of payment?
Depends on transaction amount, 100% T/T in advance in most cases. Otherwise, negotiable.
4. Can you have customised the products?
Yes, we accept ODM&OEM. Products can be customised upon customer's requirements.
5. How long is your lead time?
Generally, 2-3 weeks for regular products, while customised products take 3-4 weeks depending on quantity and order season.
