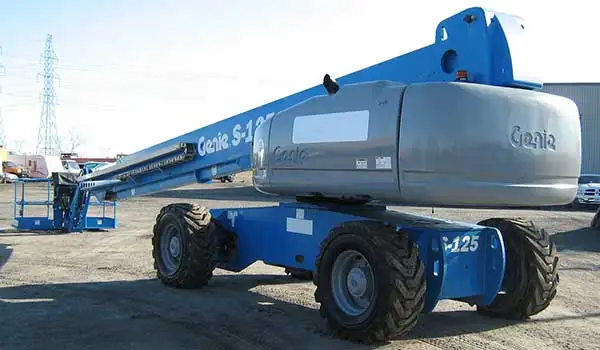

36m telescopic boom lifting working platform GENIE S 125 Telescopic boom lifts
- Category: >>>
- Supplier: ERRY RTO LTD
Share on (1600447511342):
Product Overview
Description
Please contact me for customized parameter
| Models | Z-40E | Z-45E | Z-52E |
| Maximum Platform Occupancy | 2 | 2 | 2 |
| Lift Capacity | 200kg | 230kg | 230kg |
| Working Height | 14m | 15.7m | 17.8m |
| Platform Height | 12m | 13.7m | 15.8m |
| Max Horizontal Outreach | 8m | 7.4m | 10m |
| Max up and over clearance | 5m | 7.4m | 7.6m |
| Platform | 1.53×0.76×1.1m | 1.53×0.76×1.1m | 1.53×0.76×1.1m |
| Overall Height | 2.00m | 2.00m | 2.00m |
| Overall Length | 5.32m | 5.54m | 7.9m |
| Overall Width | 1.75m | 1.75m | 2.28m |
| Wheelbase | 2.0m | 2.0m | 2.20m |
| Ground Clearance | 0.20m | 0.20m | 0.20m |
| Turntable Rotation | 355°Discontinuous | 355°Discontinuous | 360°Continuous |
| Platform Rotation | 120° | 160° | 160° |
| Drive Speed(Platform Lowered) | 3.2km/h | 5.2km/h | 5km/h |
| Drive Speed(Platform Elevated) | 0.8km/h | 0.8km/h | 0.8km/h |
| Turning Radius | 4.5m | 4.5m | 4.8m |
| Gradeability | 0.25 | 0.3 | 0.3 |
| Turntable tail Swing | 0.125m | 0 | 0 |
| Tires | 250×150/Solid | 250×150/Solid | 250×150/Solid |
| Power Source | 48V DC power(8×6V/320Ah) | 48V DC power(8×6V/420Ah) | 48V DC power(8×6V/420Ah) |
| Driving System | 6.5×2kw | 6.5×2kw | 6.5×2kw |
| Auxiliary Power Unit | 12V DC | 24V DC | 24V DC |
| Hydraulic Reservoir Capacity | 40l | 70L | 70L |
| Weight | 5300kg | 6500kg | 6780kg |
