Bioevopeak Autoclave Class B Benchtop Type STB-B-2A Series with CE certificate
- Category: Other Analysis Instruments >>>
- Supplier: BIOEVOPEAK,JINAN,CO.,LTD.
Share on:
Product Overview
Description

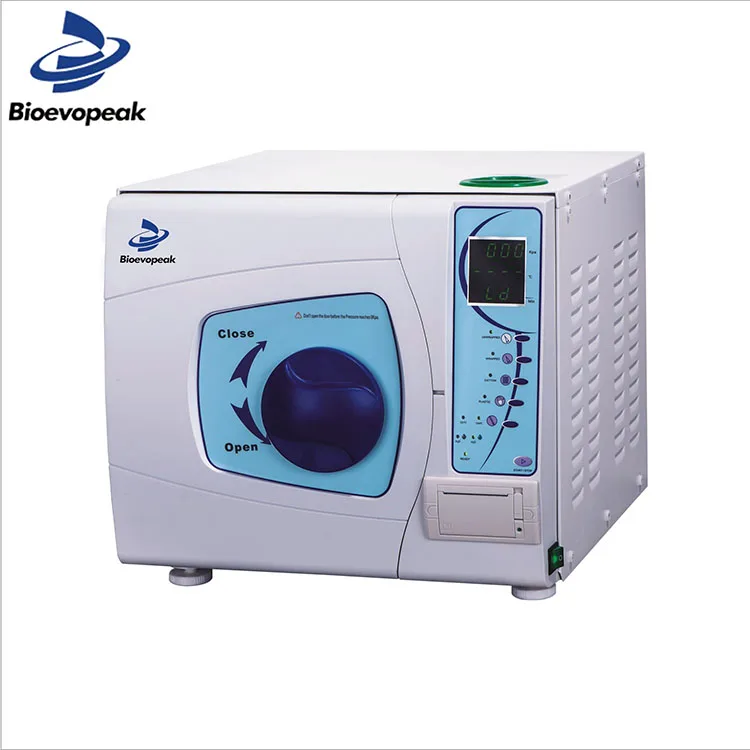

Bioevopeak Autoclave Class B Benchtop Type STB-B-2A Series
Features
- Based on the new class B, have 3 pulsating vacuum, vacuum up to -900 kPa (-0.09 MPa). Residual humidity is <0.2. Suitable to sterilizing wrap, unwrap, solid, porous, hollow device.
- Use imported & advanced 16-bit microprocessor, easy to operate. Suitable for the Dept of Stomatology, Ophthalmology, Surgery and Lab.
- Equipped with B&D test and vacuum test procedures. To test the penetrability.
- Chamber punched by stainless steel (#304, thickness: 2.5mm), together with the jet type of steam generator self-cleaning ensures the efficient sterilizing.
- With alarm system for waste water tank, it avoid the waste water entering into the sterilizing circulation and make the sterilization completely.
- Precise LED display and advanced self-test system ensure you get the working data freely.
- Double lock door system for safety during operation.
- Inbuilt printer and USB are optional. The disinfection process data and date can be automatically printed.
Application:
Suitable to sterilizing wrap, unwrap, solid, porous, hollow device. Suitable for the Dept of Stomatology, Ophthalmology, Surgery and Lab
Specifications
| Model | Power | Voltage | Frequency | Tank Capacity | Appearance Size (mm) | Inside Dimension (mm) | package Dimension (mm) | G·W |
| STB-B23-2A | 2000 W | AC220V/110V±10% | 50/60Hz±1Hz | 23Litres | 445×640×395 | Φ249×450 | 740×550×500 | 53 kg |
| STB-B18-2A | 1800 W | AC220V/110V±10% | 50/60Hz±1Hz | 18Litres | 445×550×395 | Φ249×355 | 670×550×500 | 48 kg |
| STB-B16-2A | 1800 W | AC220V/110V±10% | 50/60Hz±1Hz | 16Litres | 445×550×395 | Φ230×360 | 670×550×500 | 47 kg |
| STB-B12-2A | 1800 W | AC220V/110V±10% | 50/60Hz±1Hz | 12Litres | 445×550×395 | Φ200×360 | 670×550×500 | 46 kg |
Technical parameter
| Sterilization level | CLASS B (European Class B) |
| Sterilization temperature | 134℃/121℃ |
| Special sterilization | Kill active HV,HBV,BSE and spore |
| Drying program | Strong vacuum drying,the residual humidity<0.2% |
| Display | Widescreen LED display |
| Test | Bowie & Dick steam penetration test, Vacuum test, Helix spiral test |
| Safety | Safety valve, pressure lock, fault self-check |
| Sterilization record | OptionalInbuilt printer and USB to record the sterilization process and date |
| Water supply system | 3L distiller water tank,3L waste water tank |
| Cleaning program | Automatic clean inside pipe and steam generator |
| Sterilization configuration | 5 layers, 3 trays (circular shape, more space in actual use) |
Certifications
About us
FAQ
Q: How about quality of the goods?
A:l All the running products comply with CE standards.
l Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
l Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:l Timely reply to pre-sales enquiries
l Real-time update of manufacturing and shipment status
l Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
