Features:
The Spindle is variable speed, and is directly connected with the main motor through time -belt,which reduced the noise greatly.
V-way bedways induction hardened and ground.
The spindle speed can be adjusted variably during its range of 0-1500r.p.m.Easily operating and reading.
Spindle lubricating with grease,no oil leakage.
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.

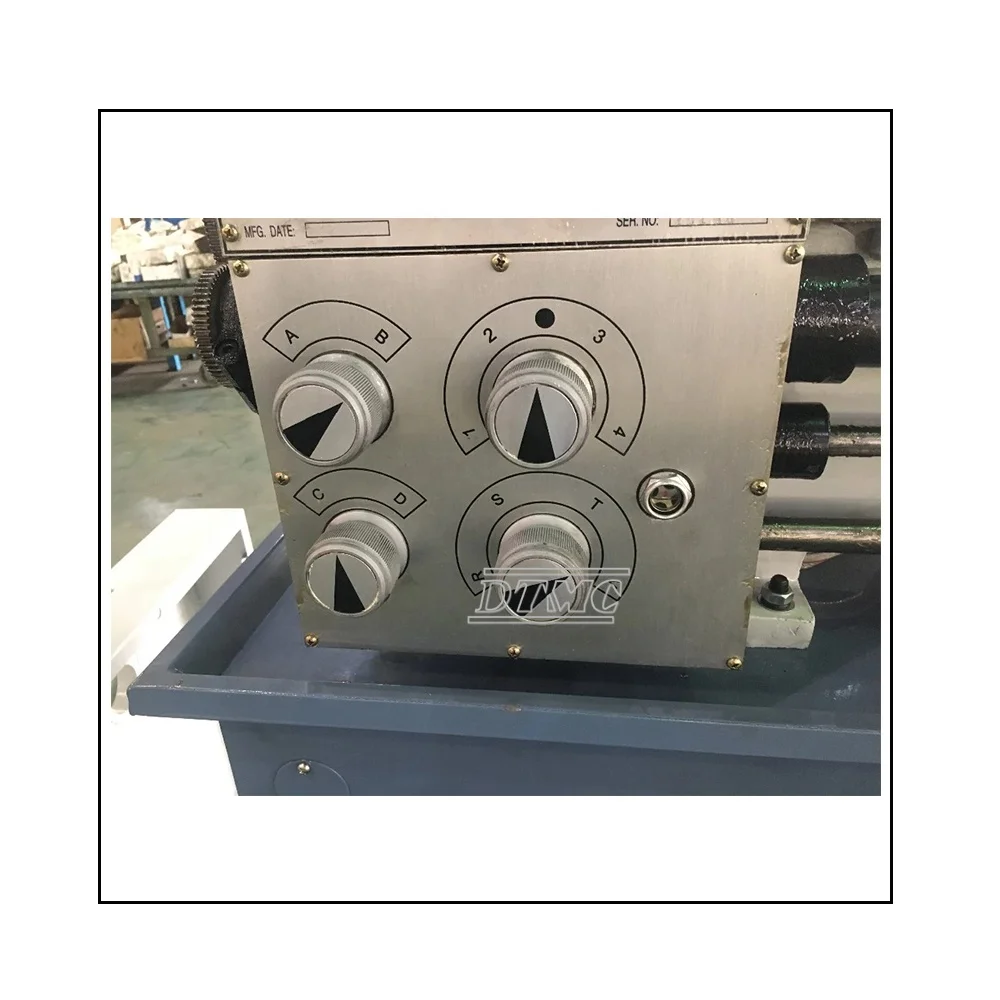

Various threads cutting function available.

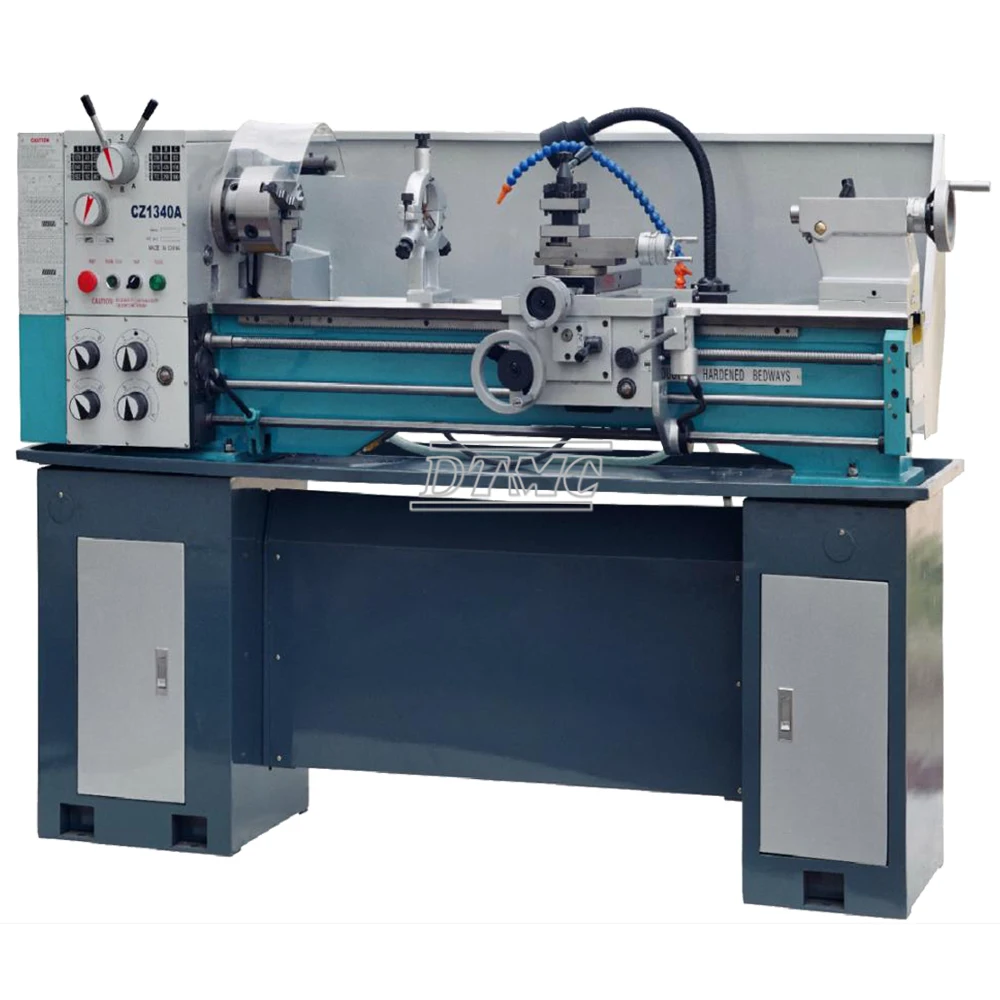

Specifications for CZ1340A | |
Swing over bed | 330mm |
Swing over carriage | 195mm |
Swing over gap | 476mm |
Width of bed-way | 186mm |
Distance between centers | 1000mm |
Taper of spindle | M.T.5 |
Spindle diameter | 38mm |
Step of speed | 18 |
Range of speed | Low step 60~1100rpm |
High step 85~1500rpm | |
Head | D1-4 |
Metric thread | 26kinds (0.4~7mm) |
Inch thread | 34kinds(4~56T.P.I) |
Moulder thread | 16 kinds(0.35~5M.P) |
Diametral thread | 36 kinds(6~104D.P) |
Longitudinal feeds | 0.052~1.392mm (0.002”~0.0548”) |
Cross feed s | 0.014~0.38mm (0.00055”~0.015”) |

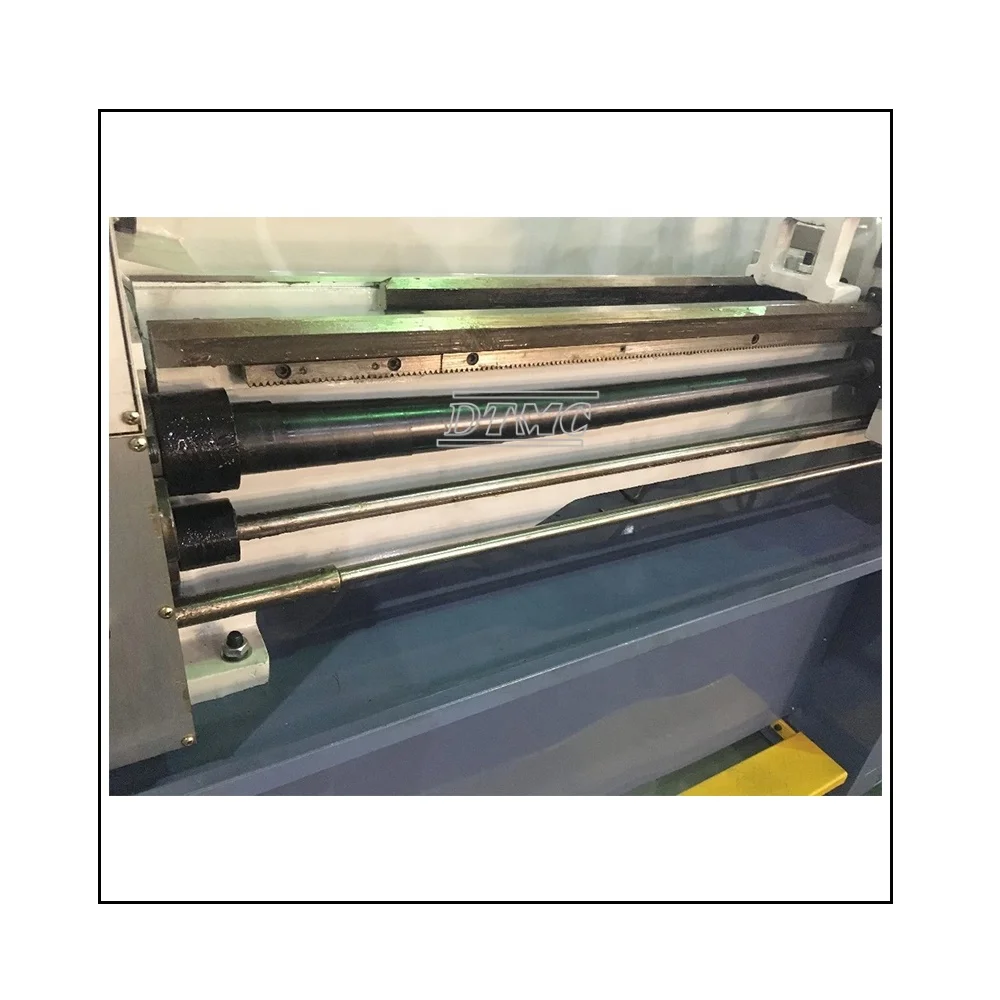

Diameter lead screw | 22mm(7/8”) |
Pitch of lead screw | 3mm or 8T.P.I |
Saddle travel | 1000mm |
Cross travel | 170mm |
Compound travel | 74mm |
Barrel travel | 95mm |
Barrel diameter | 32mm |
Taper of center | M.T.3 |
Motor power | 1.5kw(2HP) |
Motor for coolant system’s power | 0.04kw(0.055HP) |
Machine(L×W×H) | 1920×760×760mm |
Stand(left) (L×W×H) | 440×410×700mm |
Stand (right)(L×W×H) | 370×410×700mm |
Machine | 500/560kg |
Stand | 70/75kg |



Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D, manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3) Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.
Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.
We has approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000 (SA8000). Most products of ours have been approved the Europe and American safety standard, including CE, GS, EMC & UL. In 2009, the company finished turnover of more than 10 billion US dollars. 90% products were exported to more than 60 countries and regions around the world, especially to Europe and Amercia market and win high reputation always.
With the principle of "Quality First, Credits Foremost", DTMC provides the customers of domestic and abroad with superior products and professional services. We sincerely welcome you to visit our company, to establish business relationship on mutual benefit with us for mutual development !
