Farm Used Hot dip Galvanized Steel Silo Rice Grain Steel Silo Storage Corn Silo for Sale
- Category: >>>
- Supplier: Zhengzhou Hongjia Grain Machinery Co. Ltd.
Share on (1600447658469):
Product Overview
Description
Farm Used Hot-dip Galvanized Steel Silo Rice Grain Steel Silo Storage Corn Silo for Sale
Product Description
Farm Used Hot-dip Galvanized Steel Silo Rice Grain Steel Silo Storage Corn Silo for Sale is suitable for farm use, rice mill, flour mill, soybean-oil mill, animal feed mill plant, brewery plant and so on, the high quality steel grain storage bins can be used to store grain (such as corn, maize, bulk wheat, corn, rice, paddy, sorghum, soya etc.), animal feed, cereal seeds, plastic pellet, wooden pellet etc.
The rice grain steel silo storage is equipped with scraper, belt conveyor storage system, cleaning and removing impurities, magnetic separation and iron removal, temperature measurement system, ventilation system, material change warehouse, and many other functions. The steel silo is made of high-quality hot-dip galvanized steel with a content of 275g/m2.
Auxiliary equipment of the corn silos for sale are ventilation system,material level,weighing sensor system,temperature measurement system,electronic control system,conveying system,cleaning system,etc.
Features of hot dip galvanized steel silo
1.All steel plates are made of high-quality hot-dip galvanized sheet, which has a long service life and can be used for 40 years.
2.The diameter of the cabin can be selected from 1.8-32 meters according to the user's output requirements.
3.On-site assembly, simple installation and short construction period.

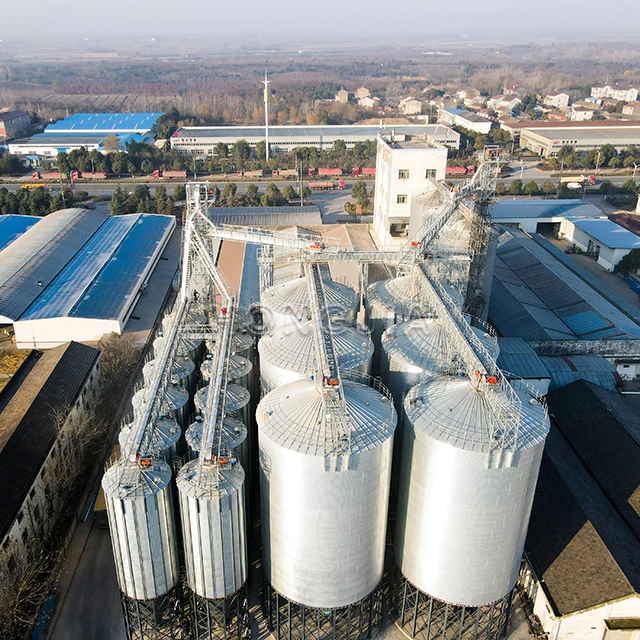

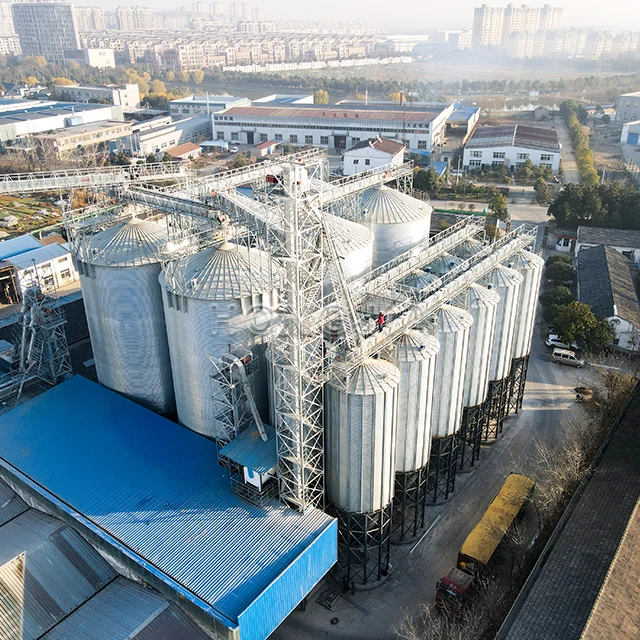

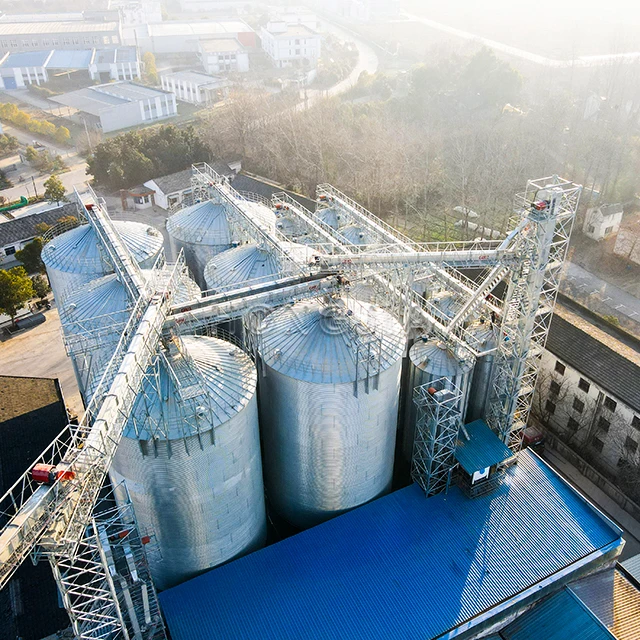

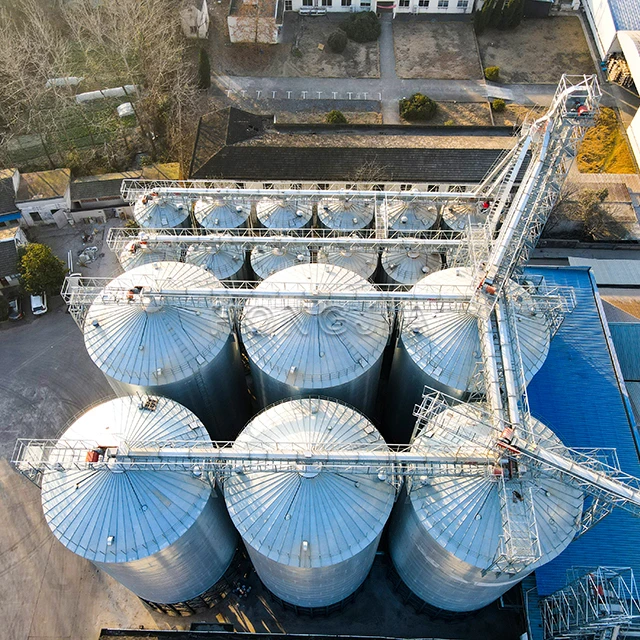

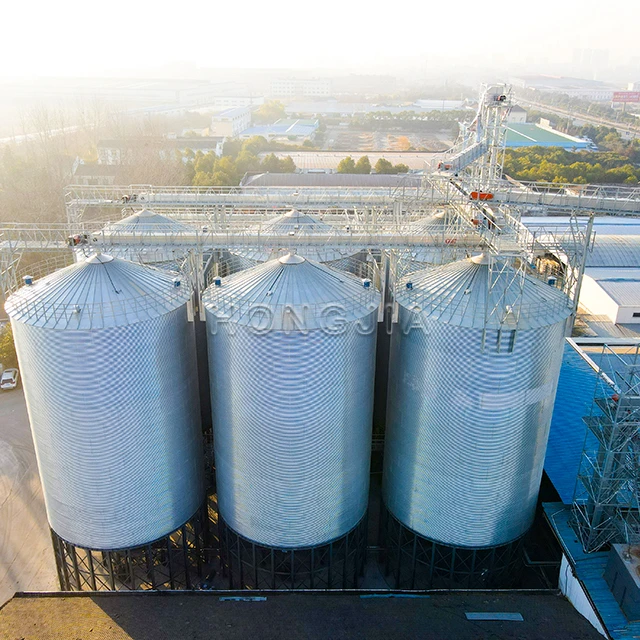

Other more photos of rice grain steel silos
We have different storage corn silo for sale such capacity 200TONS,500TONS,1000TONS,1500TONS,2000TONS,3000TONS,5000TONS,10000TONS,ETC.Also can be customized.
We have two different types of hopper bottom steel silos and flat bottom steel silos, the details as following
Hopper Bottom Steel Silo Technical Specifications | ||||||||
Capacity | 50 ton | 100 ton | 150 ton | 200 ton | 300 ton | 500 ton | 1000 ton | 1500 ton |
Model | TCZK | TCZK | TCZK | TCZK | TCZK | TCZK | TCZK | TCZK |
Diameter(m) | 3.667 | 4.584 | 5.5 | 5.5 | 6.417 | 7.334 | 10.084 | 12.834 |
Total Height(m) | 9.56 | 11.41 | 12.13 | 15.49 | 17.33 | 21.42 | 23.61 | 23.51 |
Volume(m3) | 69 | 131 | 195 | 275 | 418 | 699 | 1379 | 2039 |
Most Popular Flat Bottom Steel Silo Technical Specifications | ||||||||
Capacity | 1000 ton | 1500 ton | 2000 ton | 2500 ton | 3000 ton | 5000 ton | 8000 ton | 10000 ton |
Model | TCK | TCK | TCK | TCK | TCK | TCK | TCK | TCK |
Diameter(m) | 10.084 | 11.918 | 13.75 | 14.668 | 15.584 | 18.334 | 22.918 | 26.585 |
Total Height(m) | 18.69 | 20.34 | 20.87 | 22.25 | 24.78 | 28.6 | 29.85 | 30.85 |
Volume (m3) | 1335 | 2009 | 2701 | 3278 | 4145 | 6693 | 10640 | 14513 |
Our Services
1.Design and manufacturing services.
Design production lines, design process flow and production line configuration for customers according to user needs.
2.Information services
Get customers' opinions and requirements on the machine, guide users to use and maintain the product correctly.
3.Installation and commissioning services
Install and debug the product on site or at the installation site according to user requirements.
4.Maintenance services
Repair service according to customer requirements and needs.
5.Parts Supply Service
Provide customers with relevant spare parts and wearing parts of the machine production line.
6.Training services
Training of operation and maintenance personnel for customers.
