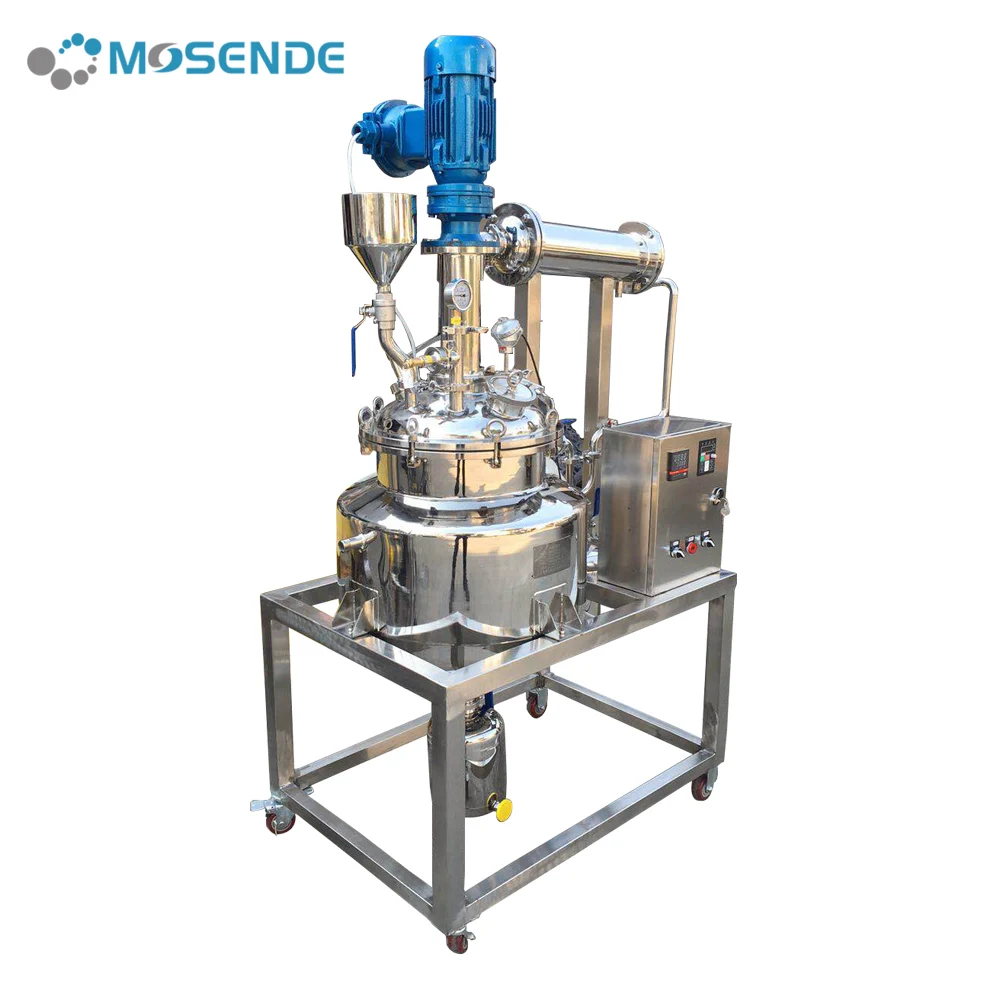

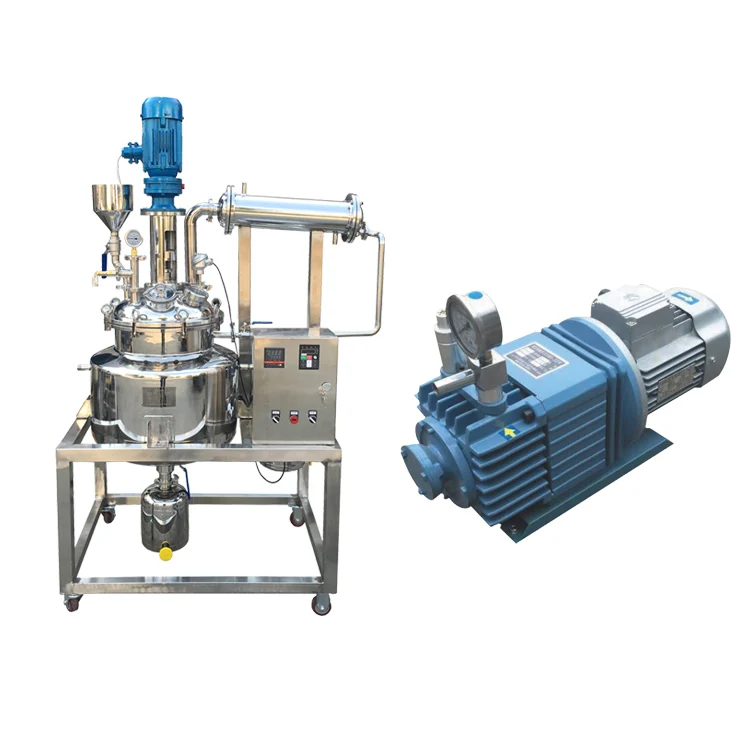

High Efficiency 5L Lab Chemical Jacketed Stainless Steel Nuclear Reactor with Pump
SG series stainless steel reaction kettle (tank) body, lid, stirrer and other parts are made of SUS304 or SUS316 stainless steel plate. The tank body is polished by fine mirror or electrolytic polishing, which conforms to the national hygiene standard. Heating and cooling devices can be configured to meet different process and production needs. Heat transfer forms include jacket electric heating, jacket external heat transfer oil circulation equipment heating, refrigeration, steam heating, coil heating. The equipment has reasonable structure design, advanced technology, durability, reaction application in cosmetics, paint, chemical industry, pigment, resin, food, scientific research and other industries.
Specifications
Serial number | Product name | remarks |

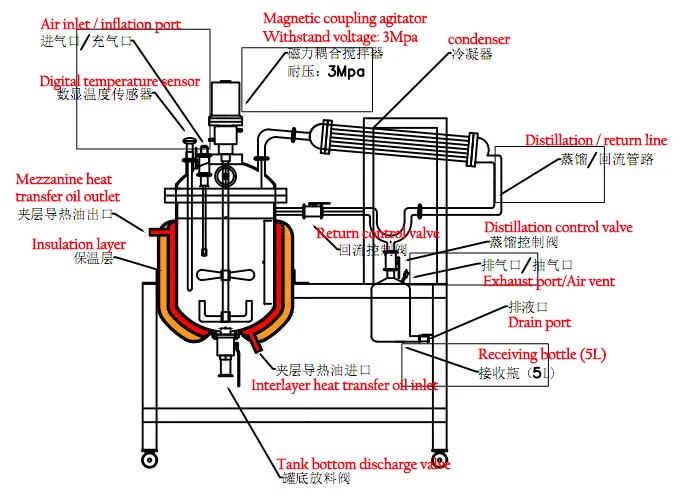

1.1 | Double layer stainless steel reactor XHSG-5L | Working volume: 5L Material of the whole machine: SS304 stainless steel Design temperature resistance: room temperature ~300 ℃ Working pressure: 0.1-0.3mpa Opening of kettle cover:7.port Design speed: 0-200rpm Agitator: propelling blade Condensation reflux device: Configuration: 0.2 square stainless steel condenser Receiving bottle: 1 --- 1000ml Frame: mobile frame with casters. Heating device: jacketed explosion proof heating pipe With Explosion-proof control box(Control system) |

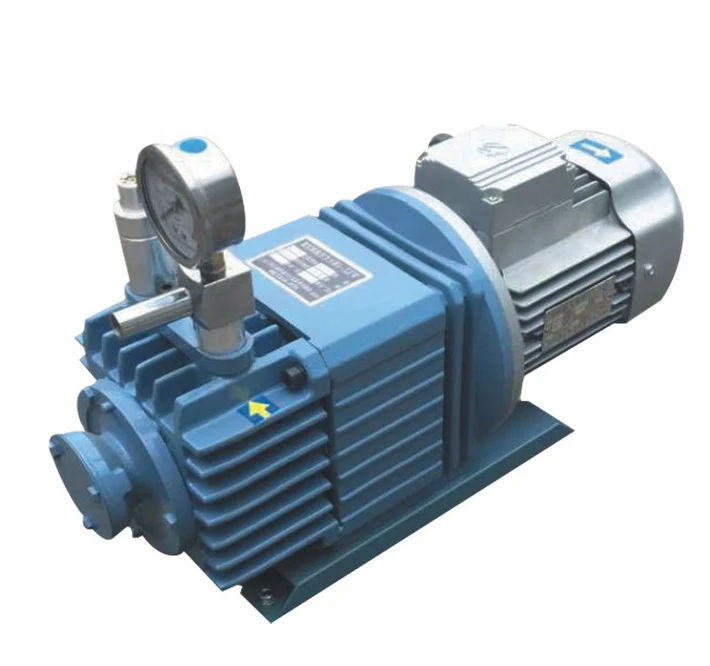

1.2 | vacuum system (Oil free rotary vane vacuum pump) WYX-2 | Pumping speed (L / s):2 Pressure (MPA) : ≤6×10-2 Speed (R / min) :1400 Working voltage (V) :220/380 Motor power (kw) :0.25 Inlet diameter (outer diameter) (mm) : Φ20, KF-16 Noise (DBA) : 65 |
The FOB price is made according to the product parameters.
This is an explosion-proof stainless steel reactor, which can stir flammable and explosive materials.
Stainless steel reactor customization service link:https://mosende.en.alibaba.com/productgrouplist-900192609/Customized_services.html?spm=a2700.shop_index.88.24






Where's your company? How do I get to your company?
Our company is located in Building A3, Dongtai Founder Industrial Park, No. 78 Luntou Road, Haizhu District, Guangzhou City, Guangdong Province, China. You can fly to Guangzhou Baiyun International Airport, and then we will arrange a special person to pick you up.
Are you a what type company?
We are an innovative enterprise integrating processing, manufacturing and trade.
What kind of service does it offer?
We can provide customers with common laboratory equipment and equipment and pharmaceutical, chemical industry applications of reactor tanks and supporting temperature control equipment.
How strong is your company?
Our company was founded in 2006, has its own leading brand in the country, our products sell well in China, covering most of the laboratories, deeply loved and praised by users. We have many cooperative production bases in different cities in China, concentrating the best production resources and providing the best quality products. We design a wide range of products, we have professional technical engineers, can provide customers with solution design, product customization services.
How about the quality of your products?
Product quality is not only a customer concern, but also our most important issue! We even the importance of product quality, the company has set up a strict testing system, only after strict performance testing of products, issued testing certificates can be allowed to leave the factory, you can rest assured to buy.
