Marine electronics maritime navigation communication icom IC M510 CLASS D DSC AIS receiver ship VHF radio telephone transceiver

Product Overview

Description

Please contact me before purchasing for the shipment and price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.

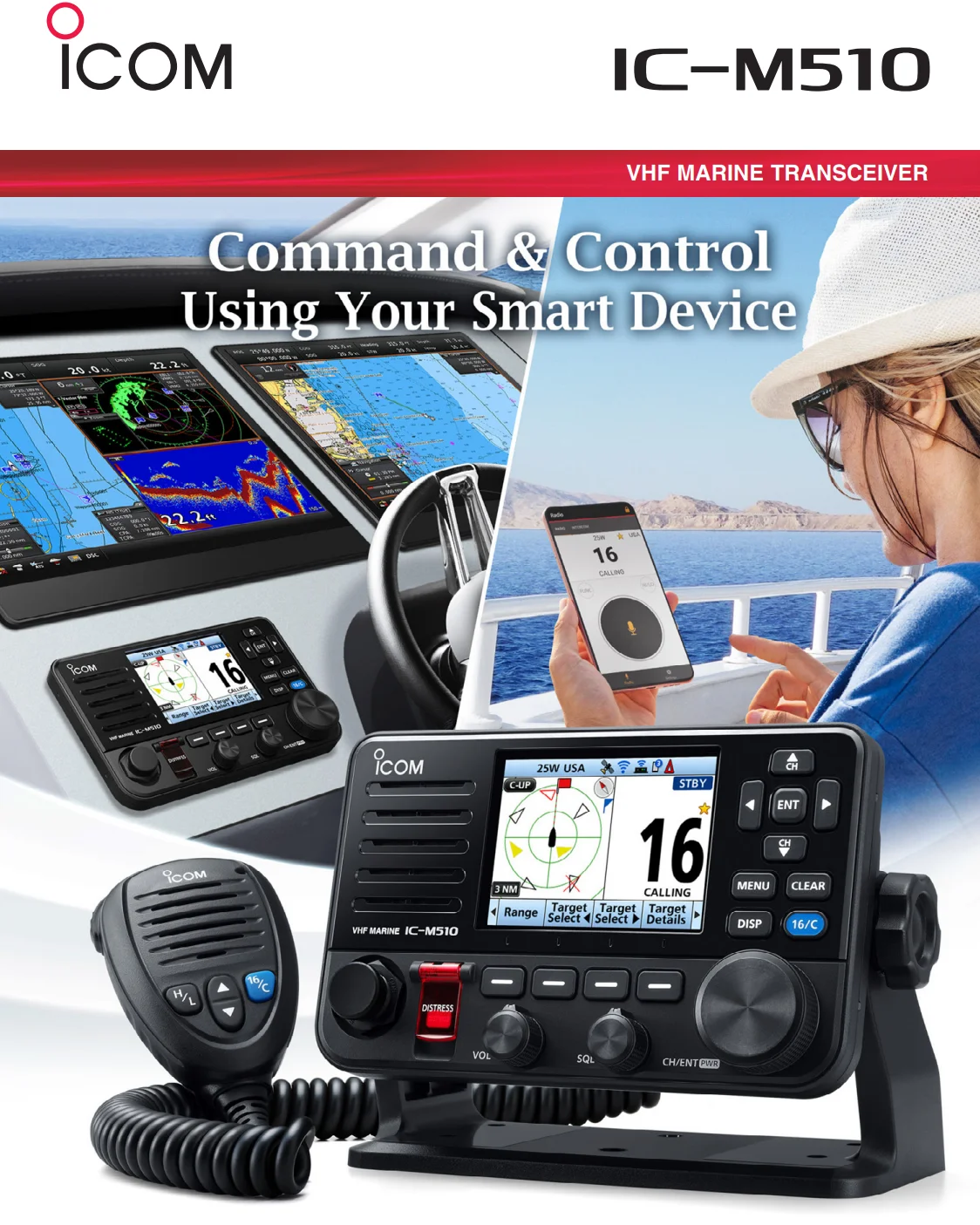

Use the RS-M500 app (for iOS™/Android™) to remotely control the IC-M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™. Intercom function between your smart device and the radio is also available.

With its integrated AIS receiver* or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

The color TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.

The IC-M510 is slim (depth: 53.6 mm; 2.1 in) and easy to install in your boat. It’s all-new sleek design is suitable for either panel or trunnion mounting.

The Navigation function guides you to a specified waypoint or AIS target. You can assign up to 100 destinations as waypoints.

The IC-M510’s internal speaker enhances the received audio. The waterproof speaker provides superior sound quality with a wide frequency range for powerful, clear audio.

The optional CT-M500 wireless interface box provides NMEA 2000™ connectivity and Two-way Hailer/PA function. The CT-M500 and the radio can be connected through WLAN. This separate interface box option allows for flexibility in positioning the unit closer to the NMEA network connection point.

When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.

• Active Noise Canceling


• NMEA 0183/HS connectivity


• Integrated GNSS receiver (Selectable from either internal receiver or use optional UX-241 GNSS antenna)


• IP68 advanced waterproofing (1 m depth of water for 60 minutes)


• Automatic Foghorn function (CT-M500 required)


• Voice Scrambler with optional UT-112A


• AquaQuake™ prevents audio degradation from a water-logged speaker


• Supplied speaker-microphone, HM-205RB can be connected to either front or rear panel to meet to user's requirement.


• External speaker connection


• Controlled with COMMANDMIC™ HM-195GB/GW


• Supports 4-digit channels
