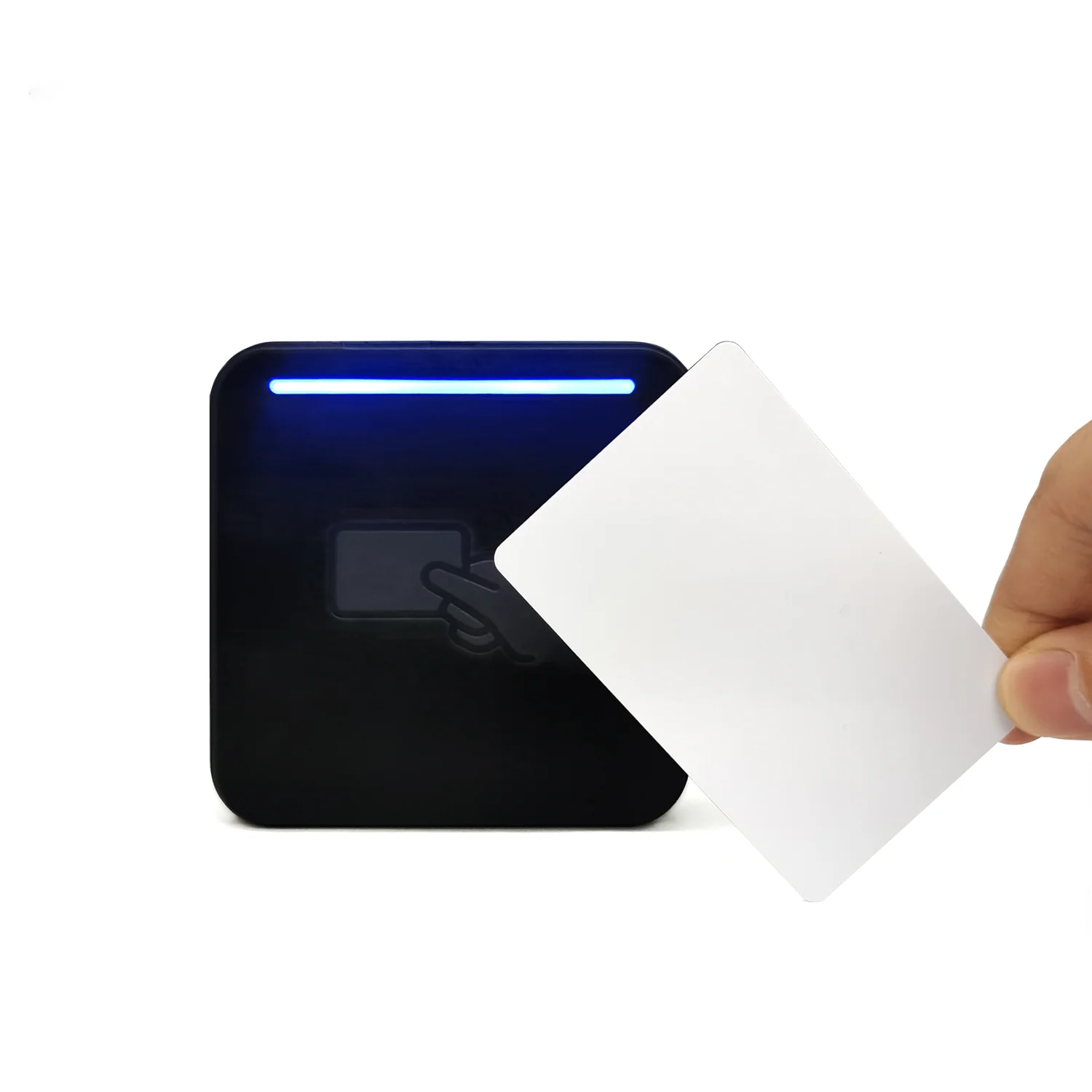

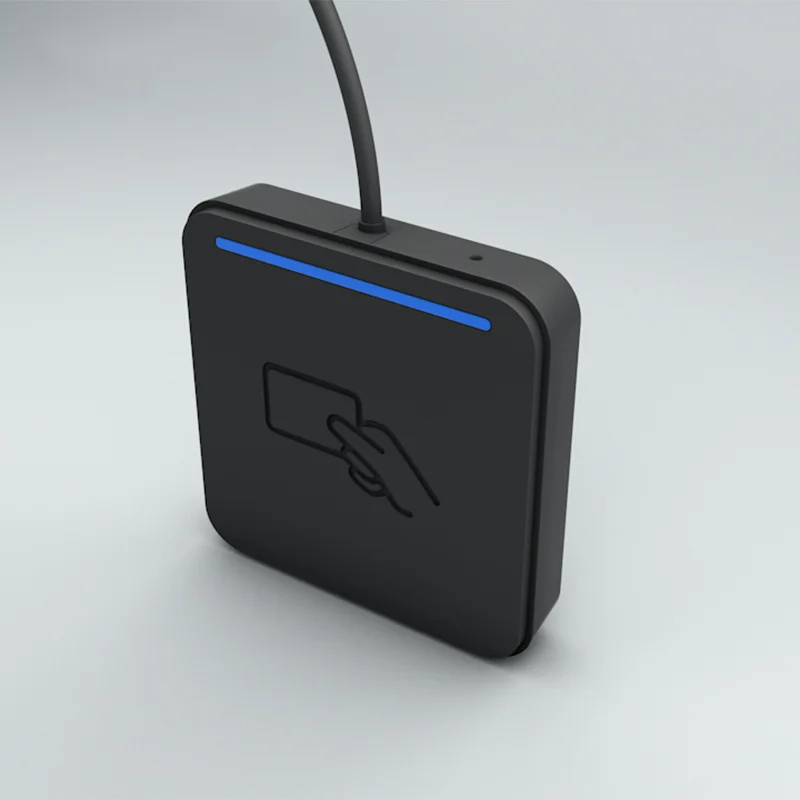

Dual Frequency 125KHz And 13.56MHz Reader RFID Card Reader Access Card Readers
- Category: >>>
- Supplier: Shenzhen XCC RFID Technology Co. Ltd.
Share on (1600447828247):
Product Overview
Description
name | XCC A6 reader/A6 card issuer | ||||||
Working mode | Active/passive mode | ||||||
Size | 99.5*99.5*19.8mm (error ±3mm) line length 1000mm (error ±10mm) | ||||||
international standard | ISO/IEC 14443A 、ISO/EM4001 | ||||||
Support the card | Mf-s50,MF-S70,1208-CPU+MF composite card, MF3-DESFIRE Ev1 card,Ntag213 Card,15693,14443B, id card | ||||||
Electrical parameters | Working voltage: DC 5V (±4%) Current: standby current less than 80mA;card current is less than 200mA | ||||||
Working temperature | -10℃ ~ 50℃ | ||||||
Storage temperature | -20℃ ~ 65℃ | ||||||
Operating frequency | 13.56mhz/125KHZ | ||||||

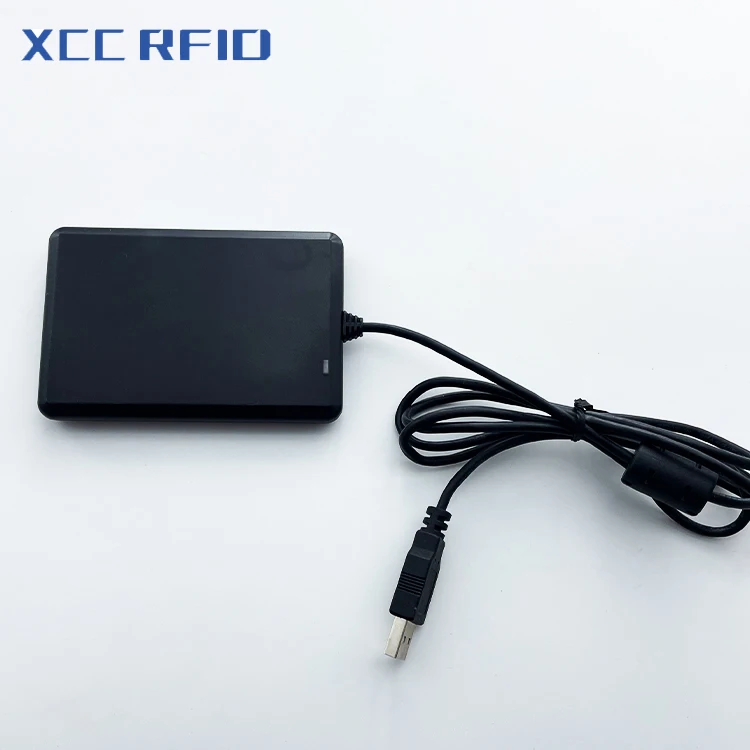

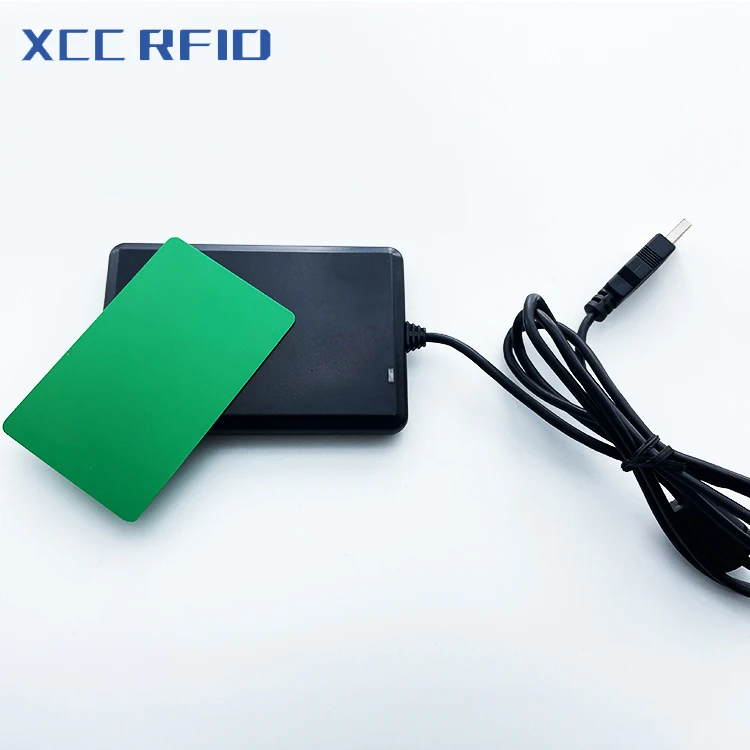

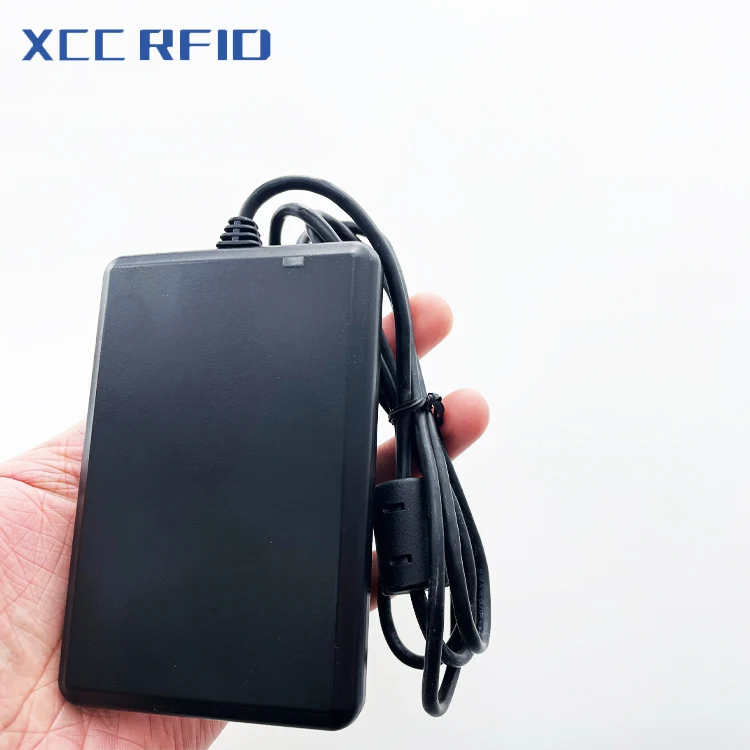

XCC A6 non-drive read-write desktop card writer, is based on ISO/ IEC14443a, ISO/EM4001 international standard protocol development of non-contact intelligence Can card serial number reader. It adopts the high-performance RF card reading circuit designed by our company. With high integration, anti - interference Strong force, small size, stable performance, cost-effective, easy to use characteristics. Can provide USB communication interface.
Widely used in access control, attendance, charging, anti-theft, patrol and other rfid applications.
Noted: Welcome to contact our support team if any questions!Widely used in access control, attendance, charging, anti-theft, patrol and other rfid applications.
