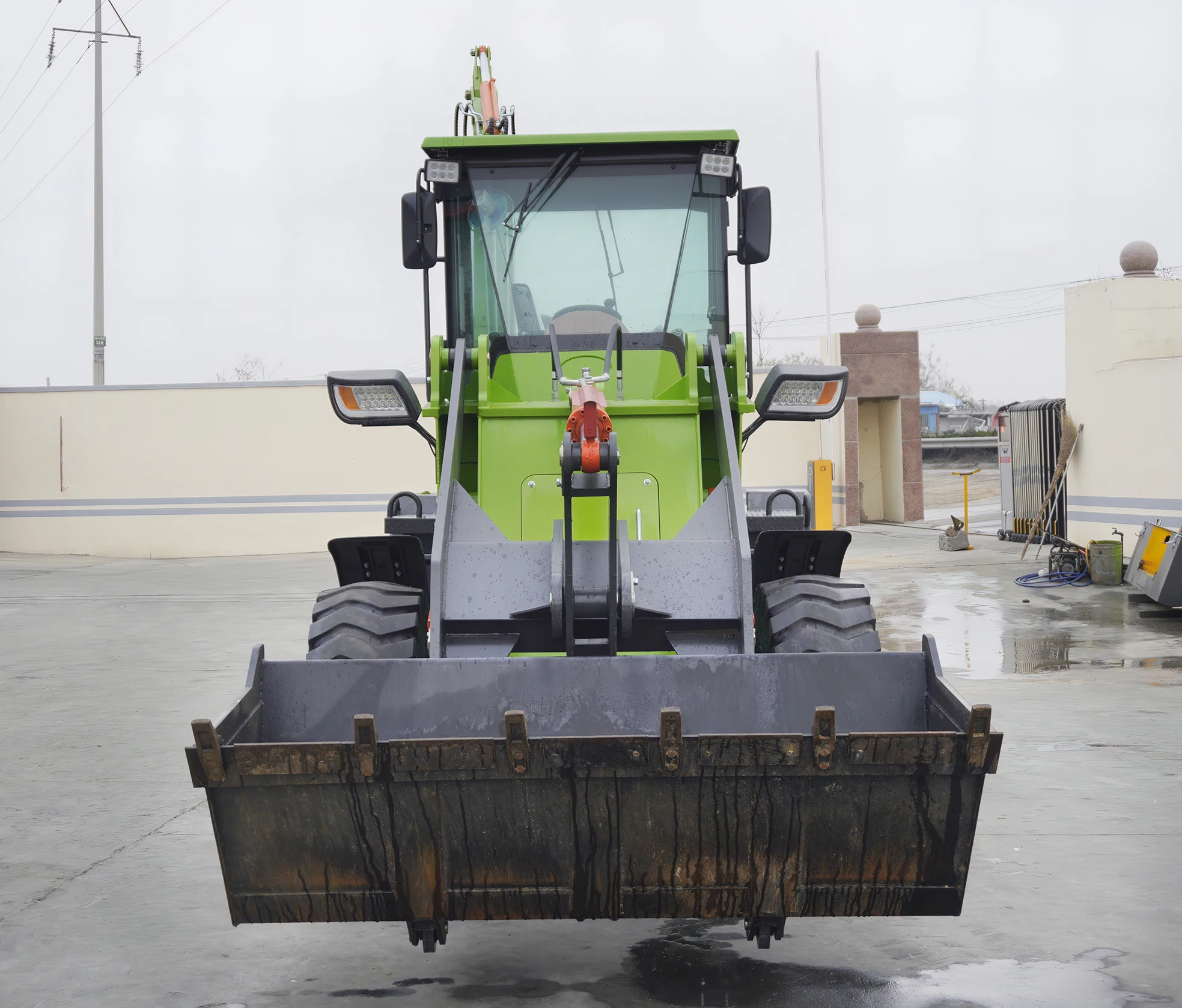

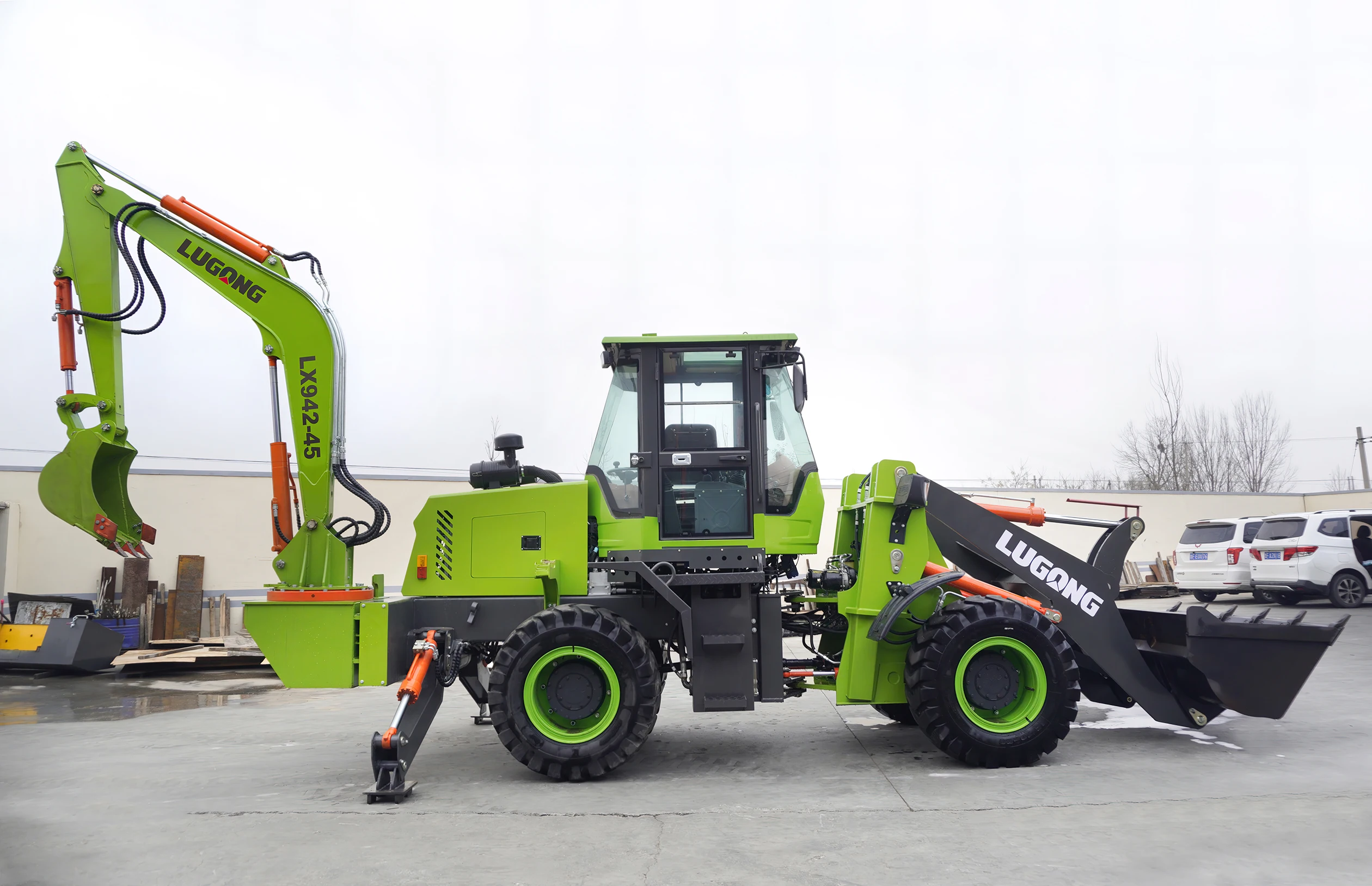

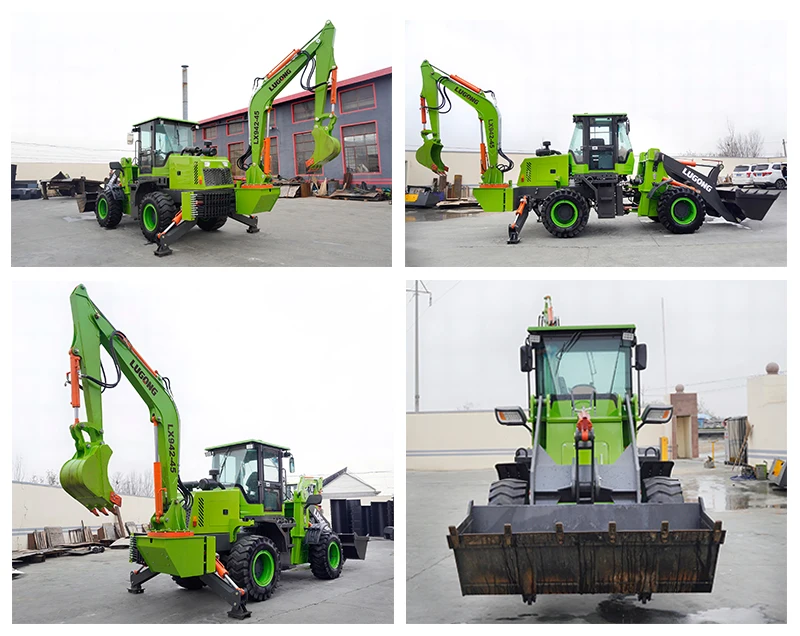

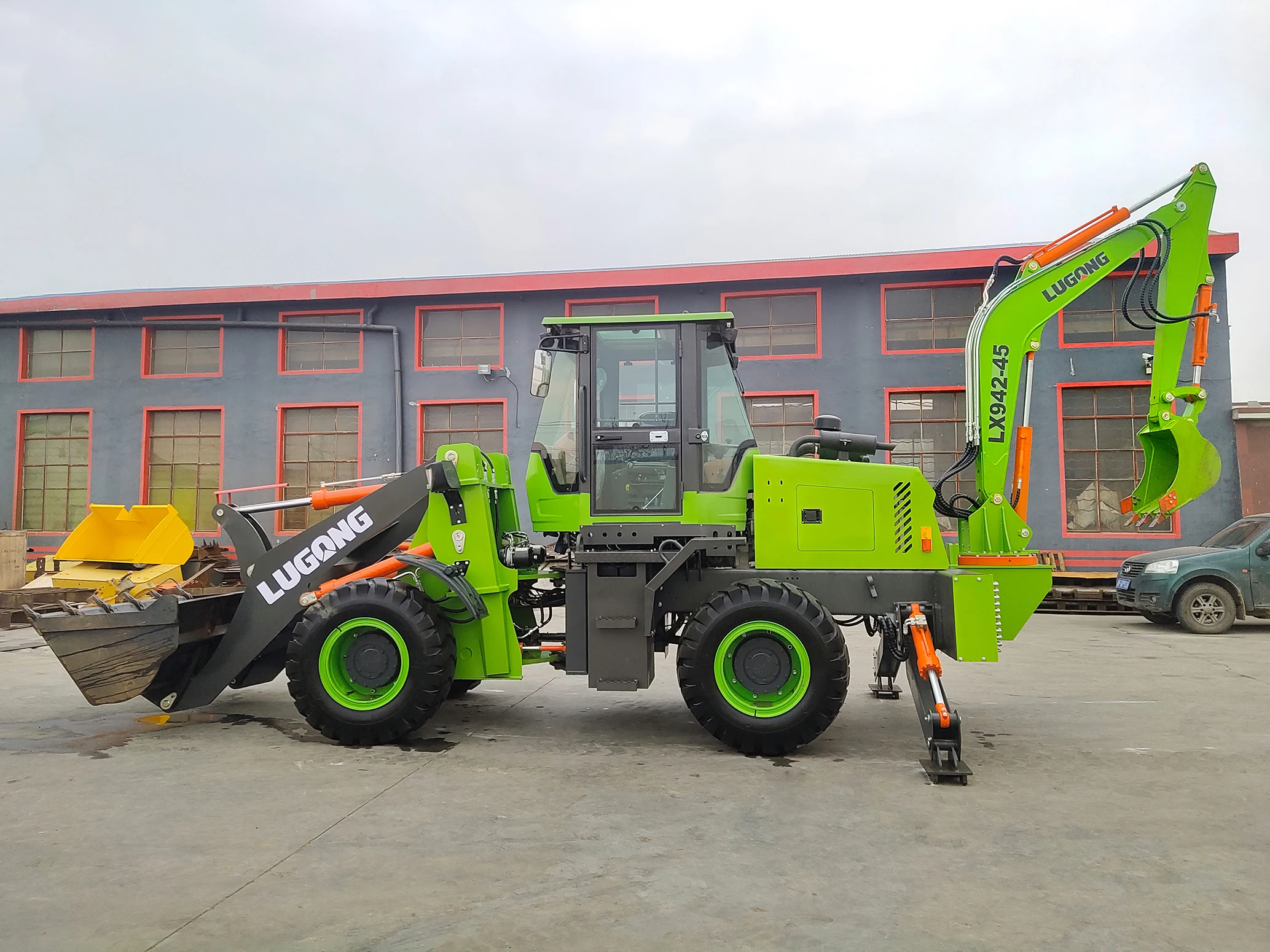

LUGONG LX942 45 2 Ton Hydrodynamic Transmission Backhoe Loader with One Year Warranty
- Category: >>>
- Supplier: Shandong Lugong International Trade Co. Ltd.
Share on (1600447983142):
Product Overview
Description
Product Parameters
Transport dimension | Loading parameters | ||||
L*W*H（mm) | 6900*2000*2800 | MAX.DUMPING HEIGHT | 3500 mm | ||
WHEEL BASE（mm） | 2550 | MAX.DUMPING DISTANCE | 900 mm | ||
WHEEL TARCK（mm) | 1570 | BUCKET WIDTH（mm) | 2000 | ||
Min.Ground Clearance（mm) | 270 | BUCKET Capacity（m³) | 1 | ||
The Main Performance Parameter | LOADING LIFTING Capacity | 4700 mm | |||
Pressure of the system | 28 Mpa | Engine | |||
Over Operating Weight（kg) | 6500 | Model | YUNNEI 4102 | ||
MAX. SPEED（Km/h) | 38 | TYPE | turbo charger, high-pressure common rail system | ||
Maximum degree of climbing | 35 ° | Rated Power（KW) | 76 | ||
Min.turning radius（mm) | 4250 | Rated Speed（r/min) | 2400 | ||
Mining parameters | Cylinder-Insider | 4-102 | |||
MAX.DIGGING DEPTH（mm) | 3000 | Transmission System | |||
BUCKET DUMPING HEIGHT | 4100 mm | Gearbox | Power shift | ||
MAX.DIGGING RADIUS | 4800 mm | Gears | TWO FORWARD ,TWO REVERSE GEARS | ||
BACKHOE WIDTH（mm) | 50 | hydraulic torque converter | Split torque converter 280 | ||
BACKHOE CAPACITY（m³) | 0.2 | Steering System | |||
Max. Digging Height（mm) | 5600 | TYPE | Articulated fully hydraulic steering | ||
Swing Angle of Excavator Grab | 360 ° | Swing Angle（°） | 38 | ||
Product Details and Advantages

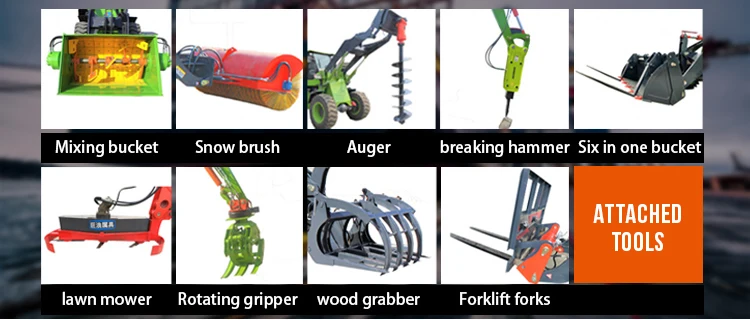

1.Various loaders' attachments can be replaced.
2.High speed and low speed working mode can be selected.
3.Electromagnetic hydraulic pilot operating system.
4.Excavator can be 360°rotation, large working range.
5.Excavator strength, can support the vehicle side movement.
6.The excavator can reach, dig and shovel three kinds of work at the same time.

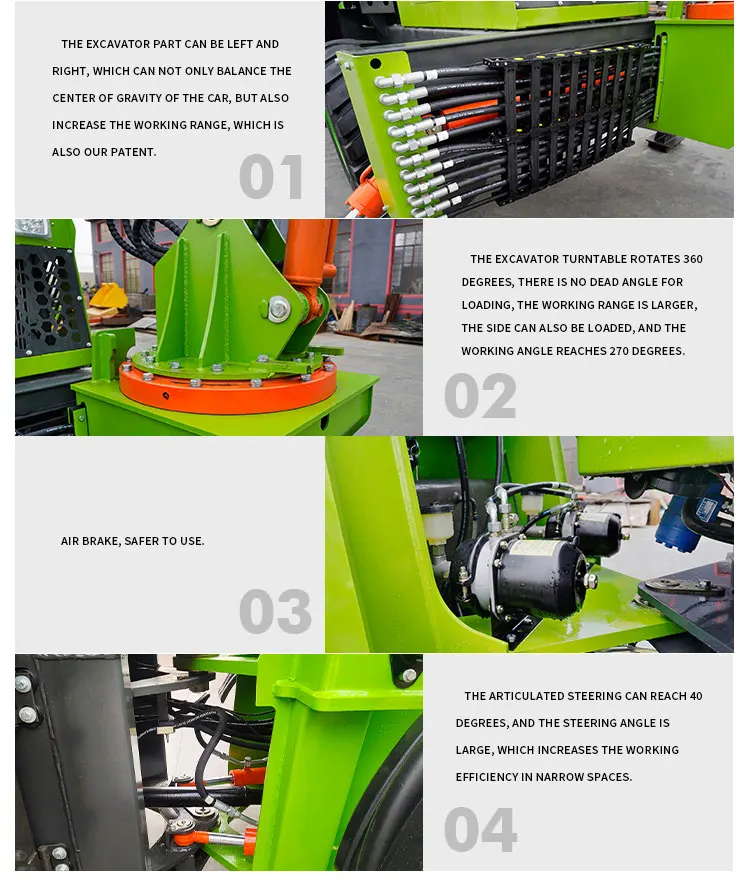

7.The excavator can be moved left and right.
8.Use the automatically air-cut brake.

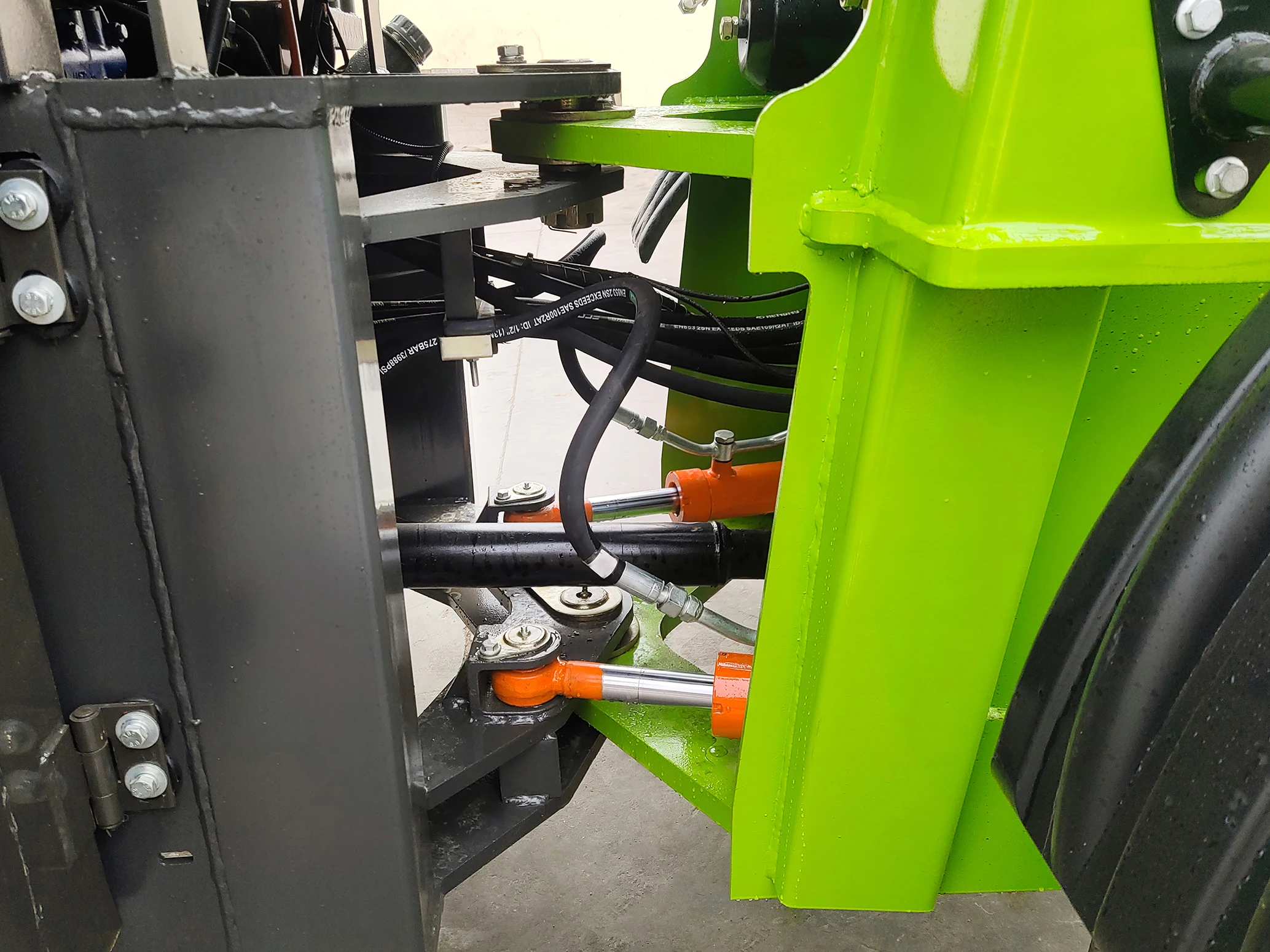

9.Articulated steering Angle is large. Increased work efficiency in a tight space.
10.The support frame adopts electro magnetic hydraulic switch.
2.High speed and low speed working mode can be selected.
3.Electromagnetic hydraulic pilot operating system.
4.Excavator can be 360°rotation, large working range.
5.Excavator strength, can support the vehicle side movement.
6.The excavator can reach, dig and shovel three kinds of work at the same time.
7.The excavator can be moved left and right.
8.Use the automatically air-cut brake.
9.Articulated steering Angle is large. Increased work efficiency in a tight space.
10.The support frame adopts electro magnetic hydraulic switch.
11.Eaton standard pair of wire joint, good sealing, no oil leakage.
12.Use high quality wheel -side deceleration drive axle.
13.Driving material can be operated in both directions with high effciency.
13.Driving material can be operated in both directions with high effciency.
14.Can be equipped with a stirring bucket, mixing smooth, mixing strength.
15.Open cab, easy to repair , convenient maintenance.
16.Add balance cylinder, with our support frame,
can also ensure balance.
17.The frame is made of thick ended steel. Strong and durable.
18.The turbing is in three layers, rugged and pressure - resistant.
19.The cylinder adopts doosan brand.
Packing & Delivery
Hot Products
Product Sales Area
Company Profile
Shandong Lugong Machinery Group was westablished in 2000, located in Shahe Indus-trial and Trade Park, Laizhou City, Shandong Province, and is a National " Small Giant " enterprise specialising in design, research and development, production, sales and serve, specialising in the production of " Lugong " brand construction machinery . The mainly products are Loaders, Excavators, Dumpers And Tricyles, ect.
LuGong Products are mainly sold to over 20 provinces in China and exported to dozens

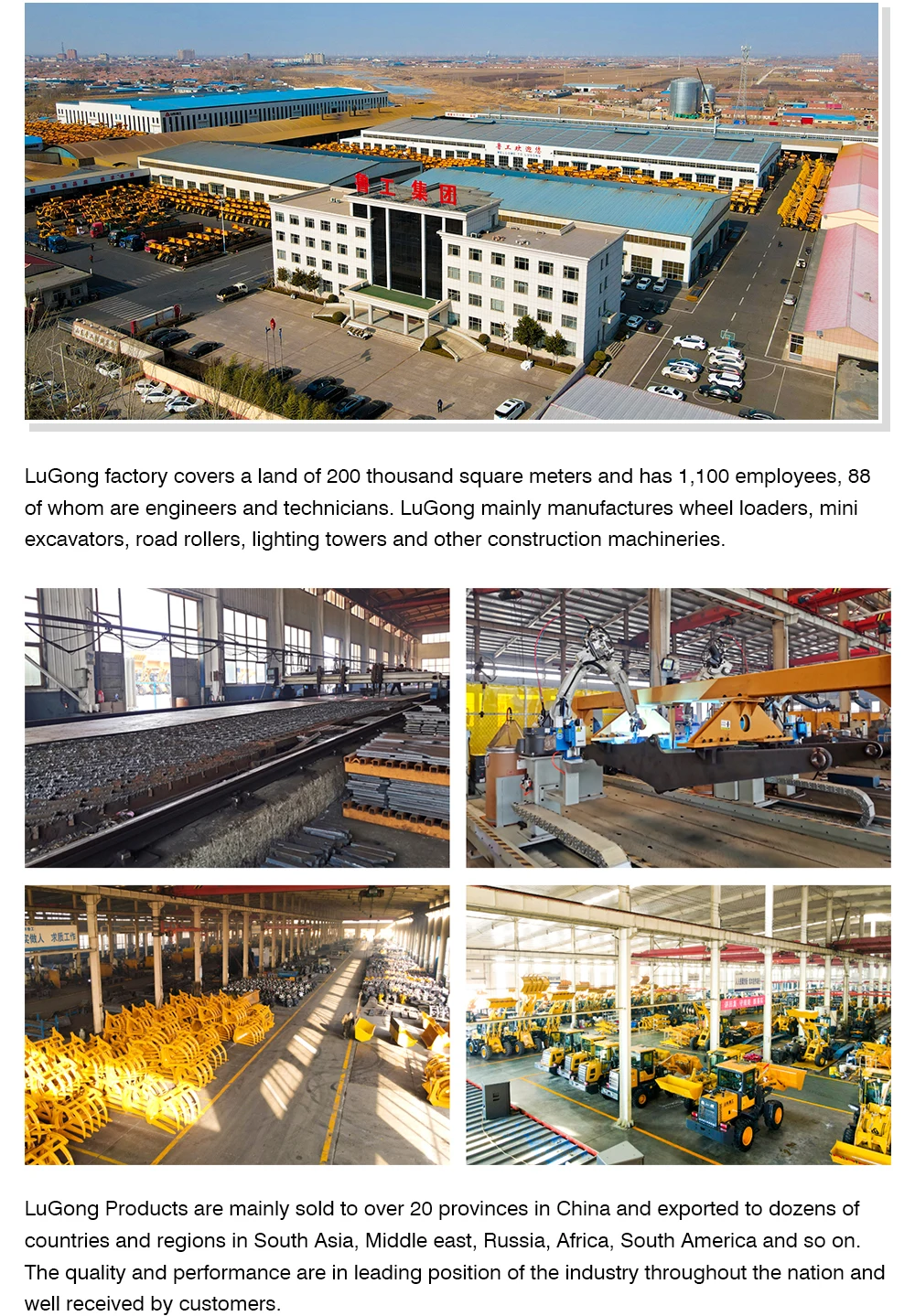

of countries and regions in South Asia, Middle east Russia, Africa, South America and soon. The quality and performance are in leading position of the industry through out the nation and well received by customers. LuGong factory covers a land of 200 thousand square meters and has 1100 employees, 88 of whom are engineers and technicians.LuGong mainly manufactures wheel loaders, mini excavators, road rollers, lighting towers and other cons-truction machineries.
