32313 high temperature resistant taper roller bearing
- Category: Taper Roller Bearings >>>
- Supplier: Shandong,Yoko,Bearing,Co.,Ltd.
Share on:
Product Overview
Description
Product Paramenters
Product name | 32313 high temperature resistant taper roller bearing |
Material | Chrome Steel |
Inner Diameter | 65mm |
Outer Diameter | 140mm |
Dimension | 51.5mm |
Weight | 3.75kg/pc |
Feature | 1 Long life span 2 High rotating speed&Low noise |
Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
Service | OEM service provided |
Delivery time | 3-15days depends on quantity needed |
Product Description
32313 high temperature resistant taper roller bearing
This type of bearing is equipped with a round platform roller, the roller by the inner ring of the large rim.
Single row bearings can bear radial load and unidirectional axial load, and double row bearings can bear radial load and bidirectional axial load.Suitable for bearing heavy load and shock load.
According to the different contact Angle (α), it can be divided into three types: small cone Angle, middle cone Angle and large cone Angle. The larger the contact Angle is, the greater the axial load capacity is.
Outer ring and inner assembly (inner ring and roller and cage assembly) can be separated for easy assembly and disassembly.
Bearings with rear auxiliary code "J" or "JR" have international interchangeability.
Main applicable cage: steel plate stamping cage, synthetic resin forming cage, pin cage
Main applications of taper roller bearing：
front wheel, rear wheel, transmission, differential pinion shaft. Machine tool spindles, construction machinery, large agricultural machinery, railway vehicle gear reducer, rolling mill roller neck and reducer.apes.
According to the different contact Angle (α), it can be divided into three types: small cone Angle, middle cone Angle and large cone Angle. The larger the contact Angle is, the greater the axial load capacity is.
Outer ring and inner assembly (inner ring and roller and cage assembly) can be separated for easy assembly and disassembly.
Bearings with rear auxiliary code "J" or "JR" have international interchangeability.
Main applicable cage: steel plate stamping cage, synthetic resin forming cage, pin cage
Main applications of taper roller bearing：
front wheel, rear wheel, transmission, differential pinion shaft. Machine tool spindles, construction machinery, large agricultural machinery, railway vehicle gear reducer, rolling mill roller neck and reducer.apes.
Model | d/mm | D/mm | H/mm | W/Kg |
32303 | 17 | 47 | 20.5 | 0.171 |
32304 | 20 | 52 | 22.5 | 0.256 |
32305 | 25 | 62 | 25.5 | 0.366 |
32306 | 30 | 72 | 29 | 0.574 |
32307 | 35 | 80 | 33 | 0.804 |
32308 | 40 | 90 | 35.5 | 1.06 |
32309 | 40 | 100 | 38.5 | 1.4 |
32310 | 50 | 110 | 42.5 | 1.83 |
32311 | 55 | 120 | 46 | 2.34 |
32312 | 60 | 130 | 40 | 2.81 |
32313 | 65 | 140 | 51.5 | 3.75 |
32314 | 70 | 150 | 54.5 | 3.96 |
32315 | 75 | 160 | 58.5 | 5.64 |
32316 | 80 | 170 | 62 | 6.78 |
32317 | 85 | 180 | 64 | 7.33 |
32318 | 90 | 190 | 68 | 8.91 |
32319 | 95 | 200 | 72 | 10.5 |
32320 | 100 | 215 | 78 | 12.8 |
32321 | 105 | 225 | 82 | 13.8 |
Packing & Delivery
1.plastic bag+kraft paper+carton+plywood pallets
2.plastic tube+carton+plywood pallets
3.plastic bag+color box+carton+plywood pallets
4.as the client's requirement+Custom Packing

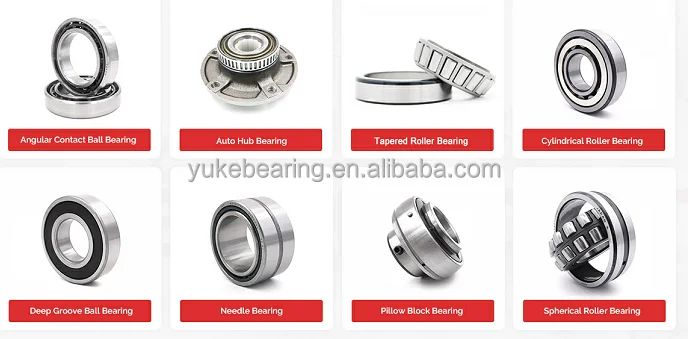

Main products
Our Advantages
1.Widely used
2.Large Inventories
3.High Quality and Competitive Prices
4.Various Brands
5. OEM is supported
6. The company has been adhering to the "quality first, customer first" principle, the best quality, lowest price products to meet customer needs.
3.High Quality and Competitive Prices
4.Various Brands
5. OEM is supported
6. The company has been adhering to the "quality first, customer first" principle, the best quality, lowest price products to meet customer needs.
Company Profile
Shandong Yuke bearing Co., Ltd. is a production and trade company, we can provide a full range of bearings, we have more than 20 years of production experience, we have enough inventory to provide you with a full range of bearings, we have efficient delivery speed, and can provide you with the packaging you need.
