Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
FyeBoon 3015 4020 Aluminium Fiber Laser Cutting Machine laser cutting machine mini
- Category: >>>
- Supplier: Dalian Fyeboon Technology Co. Ltd.
Share on (1600448098078):
Product Overview
Description
Our Company
Product Info

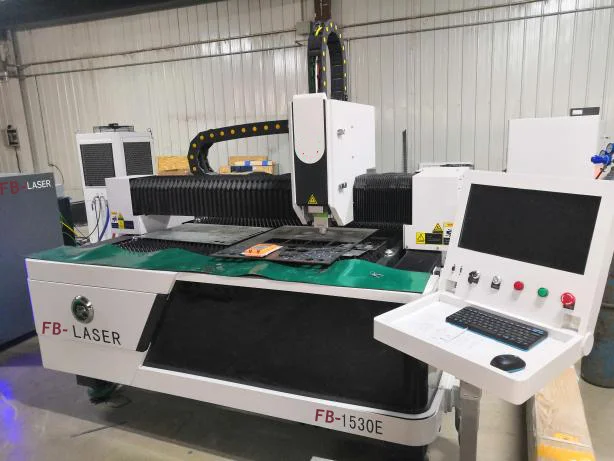

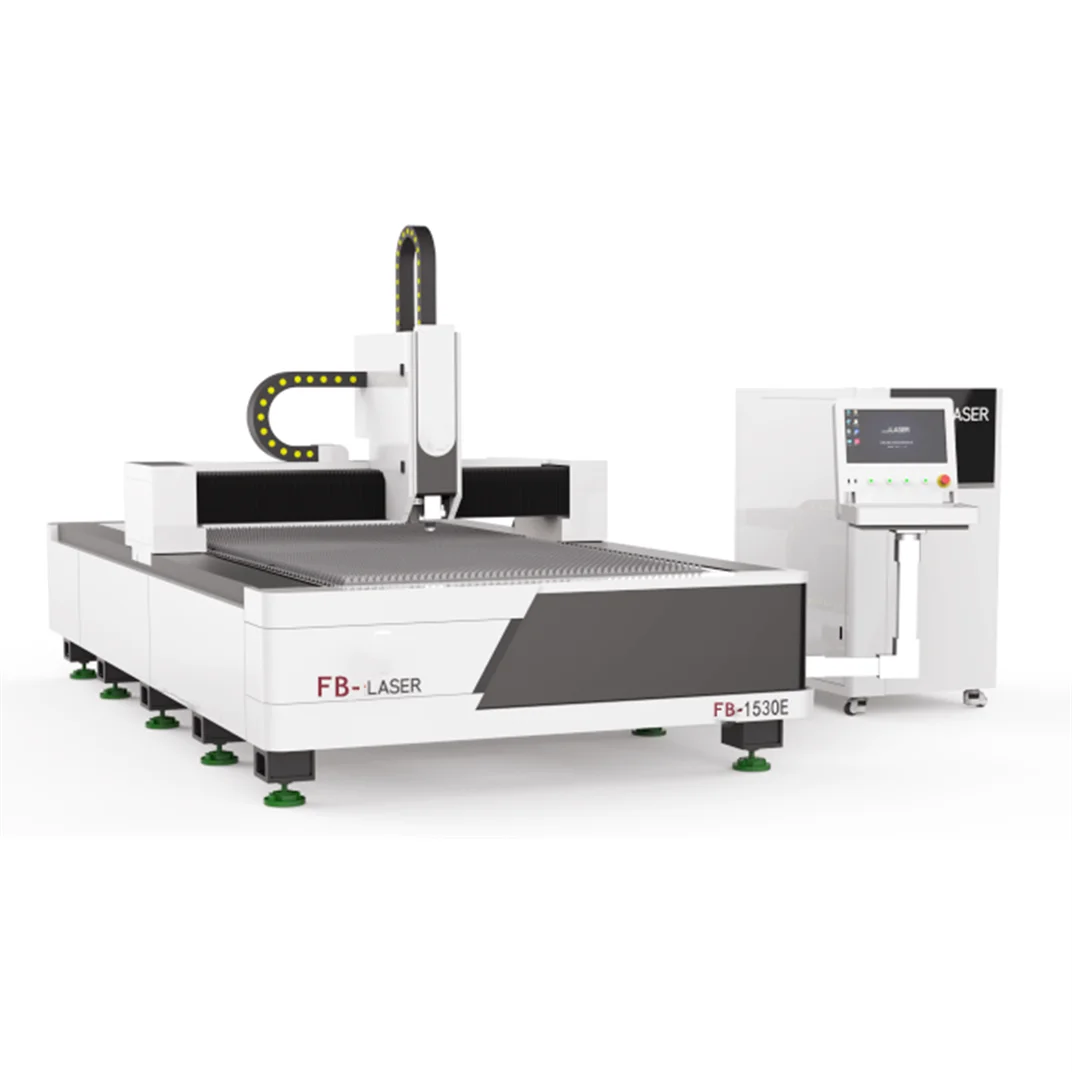

FB1530E-1000W /2000W/ 3000W Laser Cutting Machine
is the perfect combination of numerical control technology and laser system. It supports the cutting of sheet metal with 3000mm×1500mm format. It is fast and fast, with small slits, small thermal effect and smooth slit. It is sheet metal processing. Industry preferences.

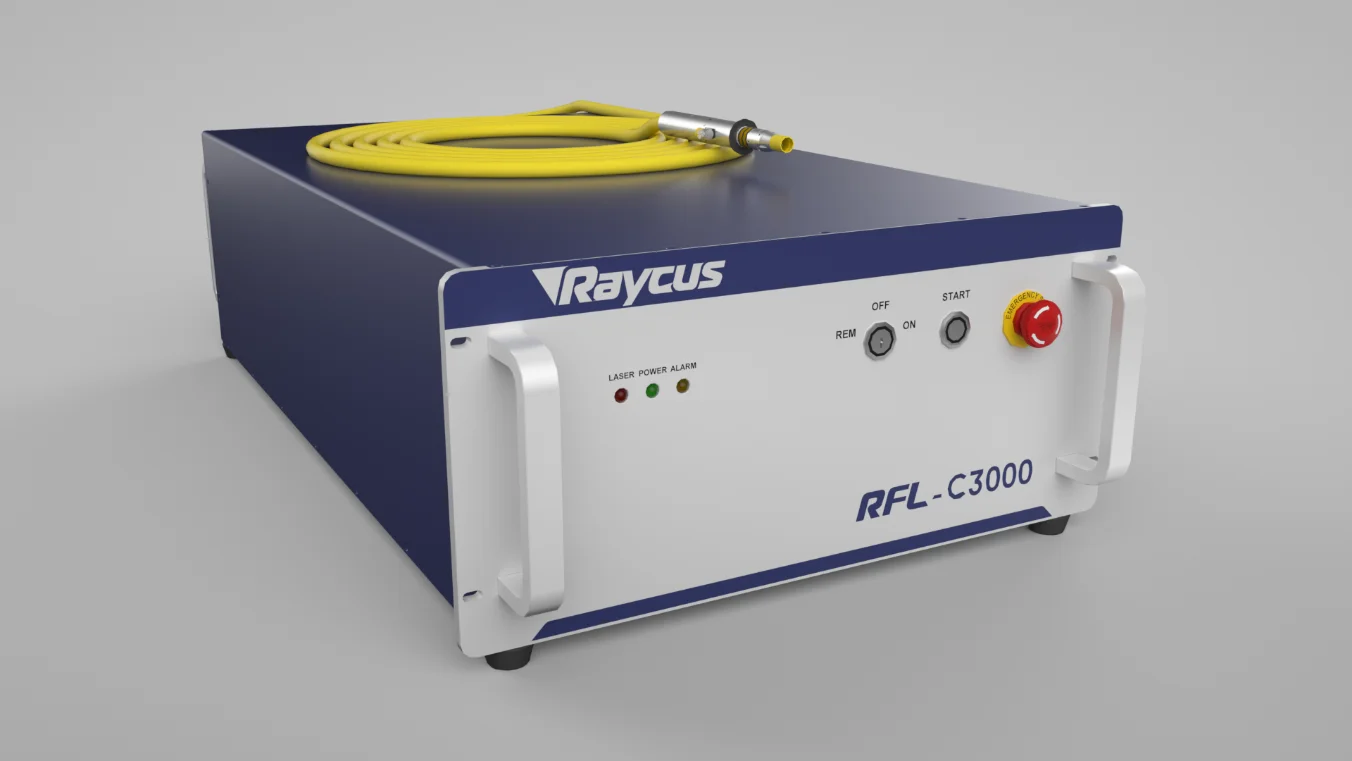

Fiber laser device (RAYCUS)
Laser Power：1000/1500/2000/3000W
Laser wavelength：1070nm
Output power adjust：10%-100%
Input power：within 1000/1500/2000/3000W
Working temperature：15-35°C
Laser wavelength：1070nm
Output power adjust：10%-100%
Input power：within 1000/1500/2000/3000W
Working temperature：15-35°C
Control Cypcut (FSCUT2000)
FSCUT2000 medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal
processing industry, which owns a wide market share with the features of easy to install and adjust, excellent performance and
fully integrated solutions.
processing industry, which owns a wide market share with the features of easy to install and adjust, excellent performance and
fully integrated solutions.
YYC Rack
High-precision YYC brand rack transmission, faster transmission speed, wear resistance and longer service life
Technical parameter | ||||
Item | FB 1530E | Unit | ||
Working area | 3000x1500 | mm | ||
X-axis travel | 3050 | mm | ||
Y-axis travel | 1050 | mm | ||
Z-axis travel | 120 | mm | ||
X,Y positioning accuracy | ±0.05/1000mm | mm | ||
X,Y repeat positioning accuracy | ±0.03/1000mm | mm | ||
Acceleration | 1G | m/s² | ||
Max running speed | 80 | m/min | ||
Table load | 900 | Kg | ||
Machine size | 4700×2200×1600 | mm | ||
Laser power | 1/2/3 | kw | ||
Control system | Fscut | |||
Machine Whole power | 24 | Kw | ||
Voltage | 380v/50Hz/60HZ | |||
Machine configuration | ||||||
Item | Brand | Origin/Country | Quantity | |||
Servo Motor | Fuji | Japan | 4 sets | |||
Linear Guides | Dinghan | Taiwan | Whole sets | |||
Gear rack and pinion | Apex | Taiwan | Whole sets | |||
Machine servo reducers | Motovario | France | 3 sets | |||
Chucks | Liyuanheng | China | 1 set | |||
Pneumatic Components | AirTAG | Taiwan | Whole sets | |||
Laser source | RAYCUS | China | 1 set | |||
Laser head | Raytools | China | 1 set | |||
Chiller | Hanli | China | 1 set | |||
Control system | Fscut | China | 1 set | |||
Main Feature | ||
1 | Mobile gantry structure bed The mobile gantry structure, the beam and the bed are processed as a whole | |
2 | Laser Power：1000/1500/2000/3000W | |
3 | Raytools, Specialized fiber-optic cutting head with Swiss technology | |
4 | FSCUT2000 medium power laser cutting system | |
5 | Big Effective Cutting Area and can be Customized | |
Recommend Products
Contact
Exhibition & Feedback
Packing & Delivery
Payment & Service
File Service
Instruction Manual
Installation Video
Video Teaching
Video Teaching
Visual Service
Remotely diagnose problems
Reducing downtime and cost to send a field technician
Reducing downtime and cost to send a field technician
Traning
Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
FAQ
Q1. How can I choose a suitable CNC cutting machine?
Just tell us the max cutting area, the material and its thickness, we can help you choose the best CNC cutting machine.
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
Q4. What other things also need after we bought the machine?
For Flame Cutting: you just need to access to oxygen and fuel gas;
For Plasma Cutting: you need a plasma power source and air compressor. You can buy the plasma power supply by yourself or buy together with the cutting machine from us, it's optional. If you buy it from us, we will connect the wires of plasma power source and CNC cutting machine together, then it is more convenient to use.
Q5. Can I change input voltage to my local voltage and frequency?
Yes, we can supply frequency and voltage according to your local standard. Such as 110V/220V/380V/415V/440V, and 50HZ/60HZ.
Just tell us the max cutting area, the material and its thickness, we can help you choose the best CNC cutting machine.
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
Q4. What other things also need after we bought the machine?
For Flame Cutting: you just need to access to oxygen and fuel gas;
For Plasma Cutting: you need a plasma power source and air compressor. You can buy the plasma power supply by yourself or buy together with the cutting machine from us, it's optional. If you buy it from us, we will connect the wires of plasma power source and CNC cutting machine together, then it is more convenient to use.
Q5. Can I change input voltage to my local voltage and frequency?
Yes, we can supply frequency and voltage according to your local standard. Such as 110V/220V/380V/415V/440V, and 50HZ/60HZ.
