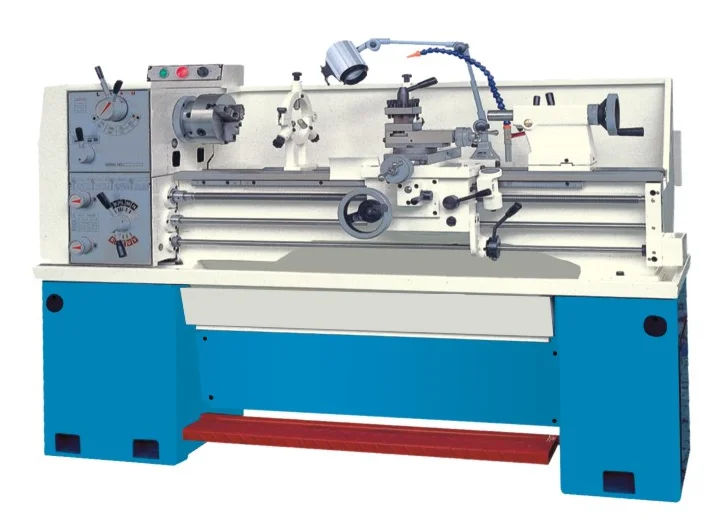

The spindle is supported with precision roller bearings.
Gears made of high quality steel are ground and hardened.
The guideways are hardened.
Feed box has various feeds and threads cutting functions.
Longitudinal/ Cross feed 0.067-1.019mm/r/0.018-0.275mm/r.
Spindle bore:38mm,70-2000rpm.



TECHNICAL SPECIFICATIONS

Model	LB3833A*750	LB3833A*1000
Item no.	111025	111026
CAPACITY
Max.swing over bed	330mm (13")	330mm (13")
Max. swing over gap	476mm	476mm
Max.swing over slide	198mm	198mm
Width of bed	186mm	186mm
Max.length of workpiece(two centers)	30"(750mm)	/40"(1000mm)
SPINDLE
Spindle nose	D4	D4
Spindle bore	38mm	38mm
Taper bore of spindle	M.T.NO.5	M.T.NO.5
Steps of spindle speed	8	8
Range of spindle speed	70~2000rpm	70~2000rpm
FEED
Range of longitudinal feeds	0.0026-0.040in/r (0.0067~1.019mm/r)	0.0026-0.040in/r (0.0067~1.019mm/r)
Range of cross feeds	0.0009-0.0138in/r (0.018~0.275mm/r)	0.0009-0.0138in/r (0.018~0.275mm/r)
THREADING
Inch threads	3-1 /2~80T.P.I/36	3-1 /2~80T.P.I/36
Metric threads	0.45-10mm/ 27kinds	0.45-10mm/ 27kinds
Diametral threads	7-160D.P/32	7-160D.P/32
Moduler threads	0.25 ~ 5M.P/20	0.25 ~ 5M.P/20
LEADSCREW
Diameter of leadscrew	22mm (7/8")	22mm (7/8")
Pitch threads of leadscrew	4mm or 8TPI	4mm or 8TPI
TAILSTOCK
Travel of tailstock quill	95mm	95mm
Taper bore of tailstock quill	M.T.NO.3	M.T.NO.3
OTHER
Power of main motor	2HP(1.5KW)	2HP(1.5KW)
Net weight	495kg	595kg
Dimension (L x W x H)	1570*740*1240mm	1820*740*1240mm
Shipping dimension (L x W x H)	1700*760*1500mm	1930*760*1500mm

This document provides the weight and shipping dimensions. The weight listed for a machine may be off by as much as +/- 5% due to option selection, casting variations, and even the moisture content of the wooden crates surrounding the machine.



STANDARD DEVICES OR ACCESSORIES

ITEMS	REMARK
1. Main motor	China brand
2. Spindle bearing	China brand
3. Main electrical component	German brand
4. Coolant pump	China brand
5. Stead rest	China brand

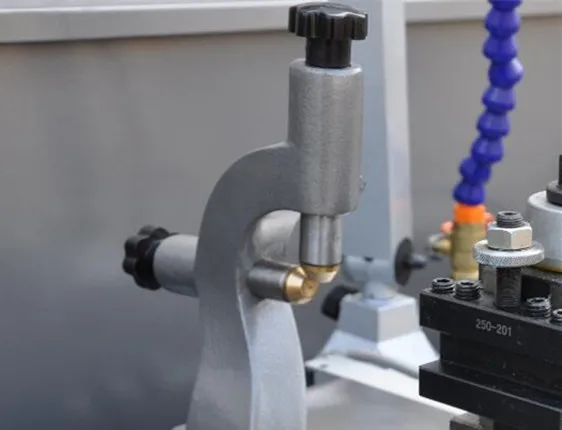

6. Follow rest	China brand
7. 4-way tool post
8. Tailstock
9. 3-jaw chuck	160mm
10. 4-jaw chuck	200mm
11. Face plate
12. Working light
13. Foot brake
14. Splash guard
15. Tool box including:
1) Flat screw driver
2) Cross screw driver
3) Open ended wrench
4) Hex socket wrench
5) Taper dead center
6) Live center
7) Spindle sleeve
8) Chuck wrench
9) Key for cam lock
10) Tool post wrench
11) Round nut spanner
13) Oil gun
14) Paint can
16) Operator's manual
17) Test record
19) Pads

The descriptions, illustrations and specifications given here in are subject to alteration without notice and thus without any obligation.



OPTIONAL DEVICES OR ACCESSORIES

ITEMS	REMARK
Drive plate	250mm

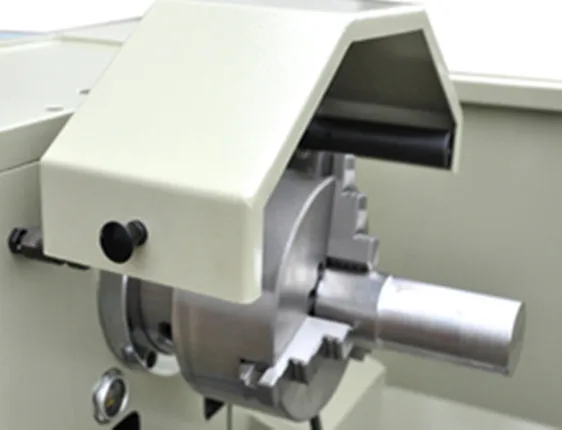

Chuck guard	China brand
Tool post guard	China brand
Curtain guard	China brand

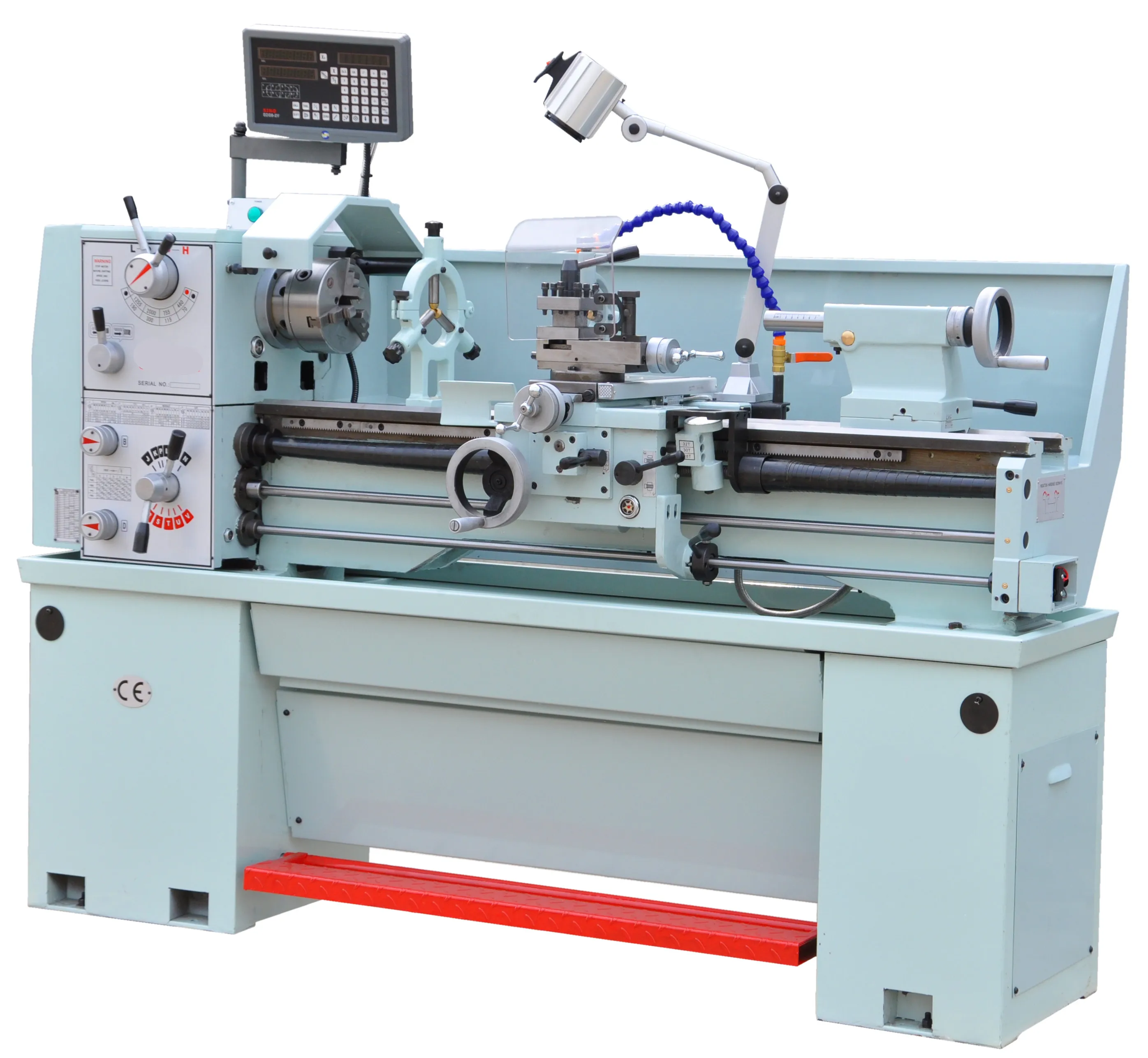

2-axe or 3-axe DRO
Quick change tool post

Different devices and accessories can be combined according to customer's requirement.

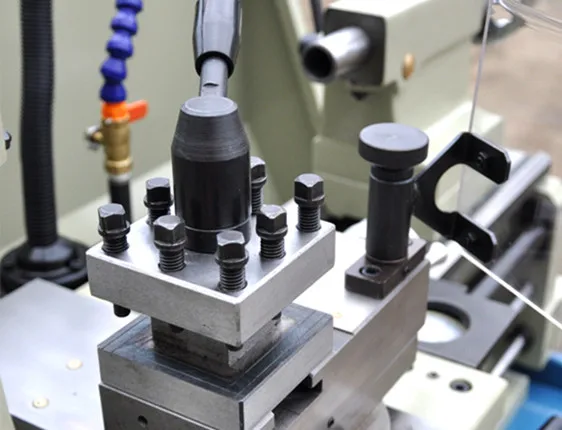

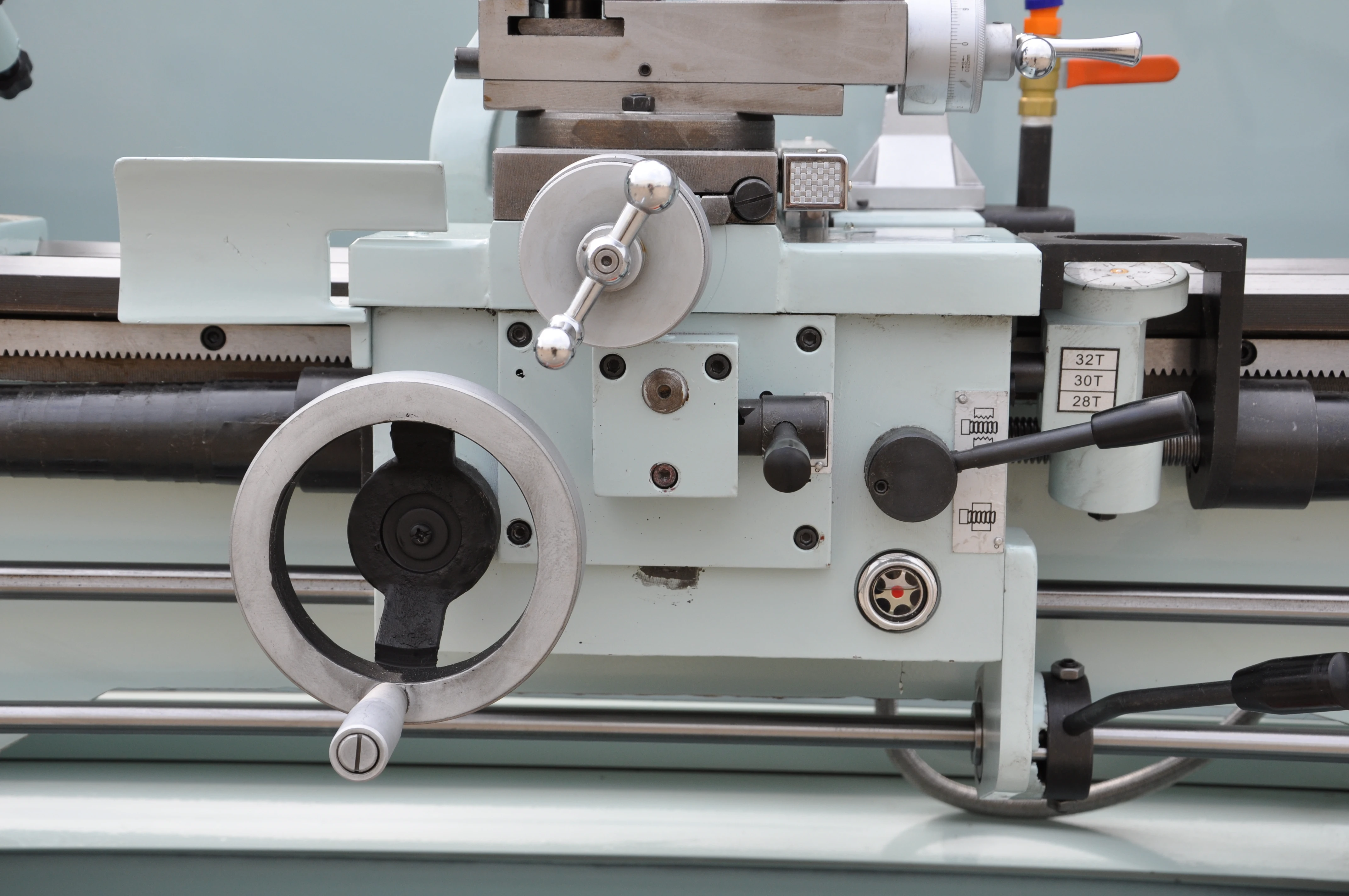

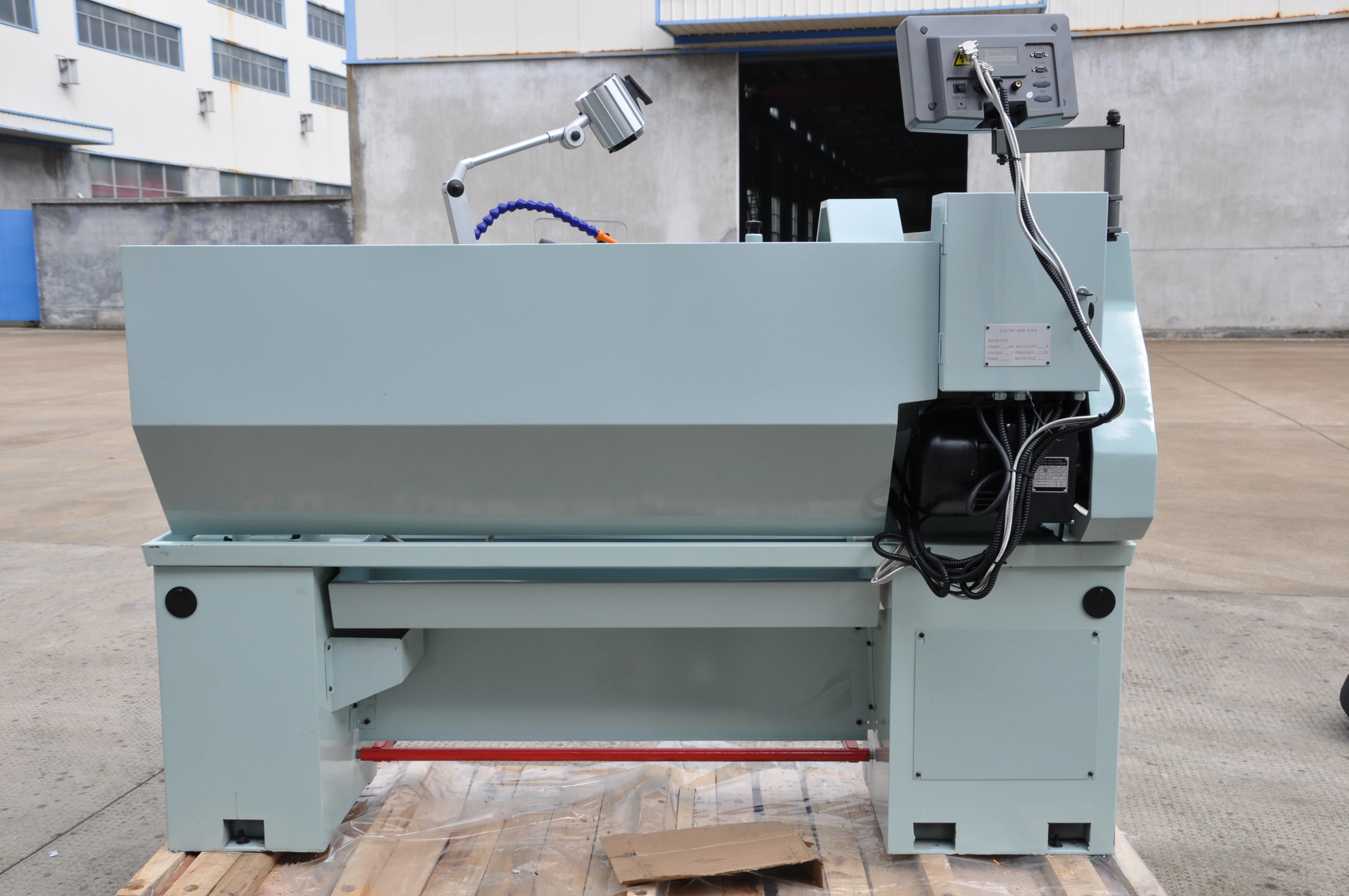

Details picture
