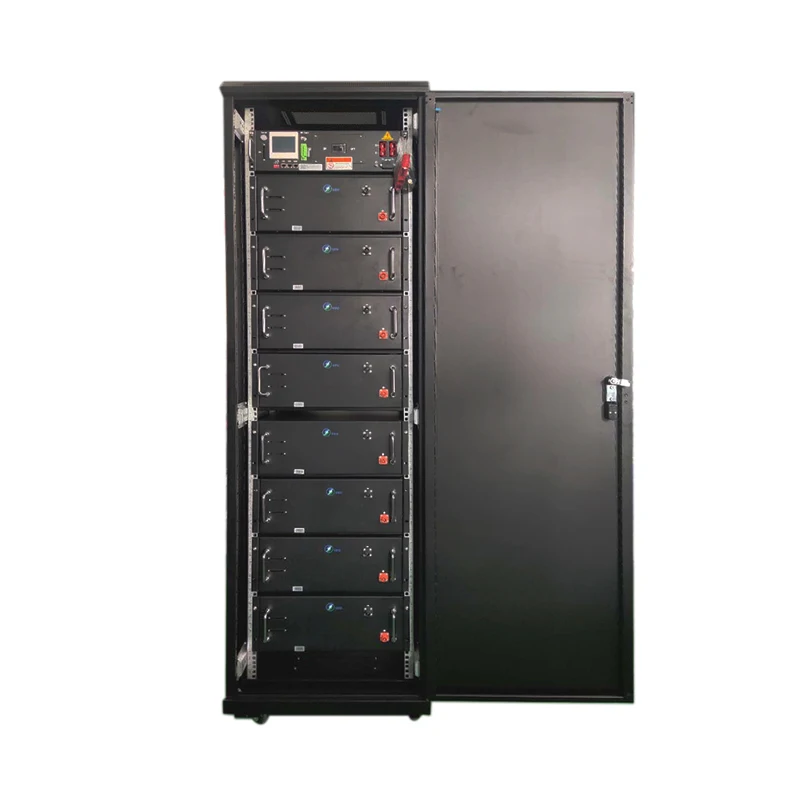

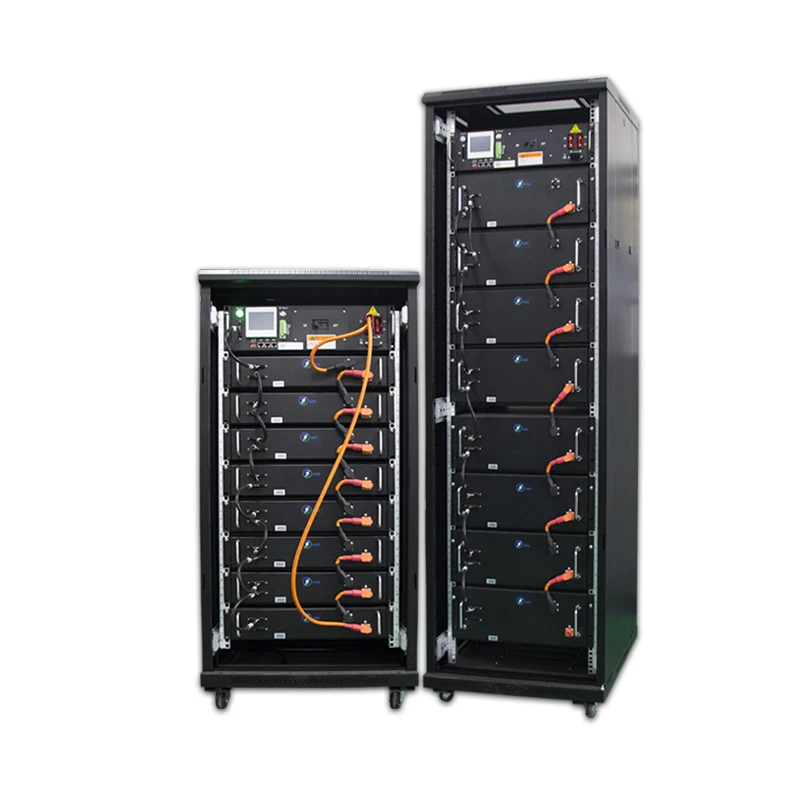

10 Years Warranty 384V battery storage Lifepo4 Litium Powerwall Lithium Ion Batteries For House Solar System
- Category: >>>
- Supplier: Shenzhen UFO Power Technology Co. Ltd
Share on (1600448252580):
Product Overview
Description
10 Years Warranty 384V battery storage Lifepo4 Litium Powerwall Lithium-Ion Batteries For House Solar System
384V high voltage lithium lifepo4 battery Power Rack 50Ah 75Ah 100Ah lithium ion batteries bank with 5 years warranty
Battery type | Lifepo4/lithium Battery |
Capacity | 50Ah,75AH,100Ah,150Ah,200Ah |
Color | Black,White |
Communication Ports | RS485/CAN |
Features | Real Time Monitoring |
OEM/ODM | Accepatable |
Sample | Accepatable |
BMS | with built-in smart BMS |
Display | LCD Display |
application | Solar Energy Storage Systems,Uninterruptible Power Supplies, telecommunication, data center, bank, ups |
Product Description
Specification
Type | Module | ||||||
Model | LFP384V50AH | LFP384V100AH | LFP384V150AH | FP384V200AH | |||
Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah | |||
Nominal Battery Energy [kwh] | 19.2 | 38.4 | 57.6 | 76.8 | |||
Max Discharge Current [A] | 50 | 100 | 100 | 100 | |||
Net Weight(kgs) | 320kgs | 438kgs | 749kgs | 800kgs | |||
Dimension [H*W*D, mm] | 600*600*1600 | 600*600*1600 | 600*600*1400*2pcs | 650*600*1600*2pcs | |||
Voltage Window (V) | 438V | 438V | 438V | 438V | |||
Output Voltage Range (V) | 336V~438V | 336V~438V | 336V~438V | 336V~438V | |||
Max. Charge Current(A) | 50A | 100A | 100A | 100A | |||
Charge Mode | CC-CV | CC-CV | CC-CV | CC-CV | |||
Scalability | 10 PCS UP to 192kwh / 384 kwh / 576kwh / 768kwh | ||||||
Communication | CAN / RS485 / RS232 /DRY CONTACT | ||||||
Charge Temperature | 0~5 5℃ | ||||||
Certification Standard | IEC62619 /TUV / UN38.3 / UL /CE / ISO90001 | ||||||

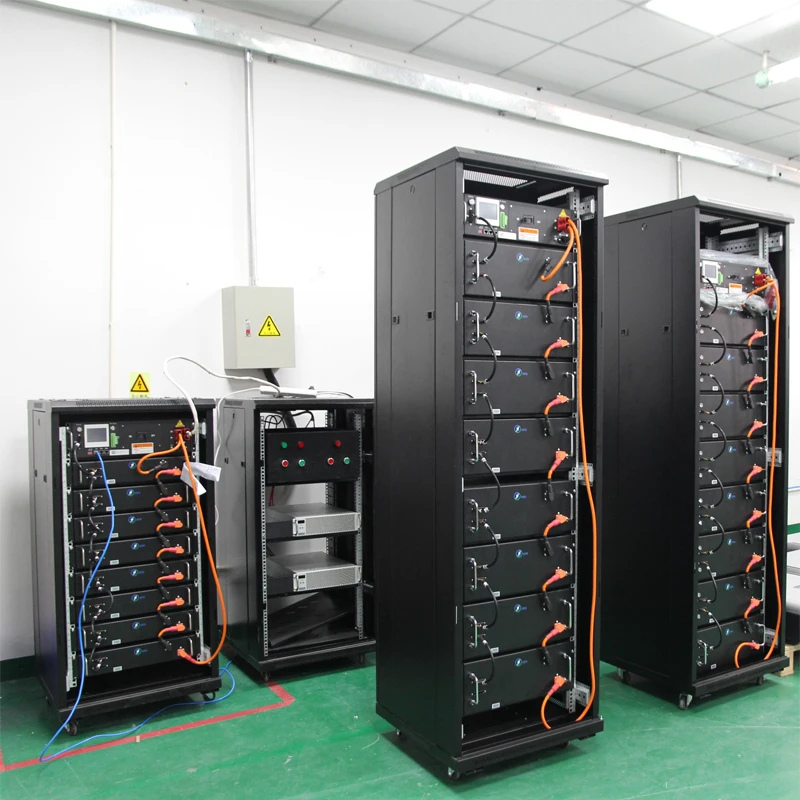

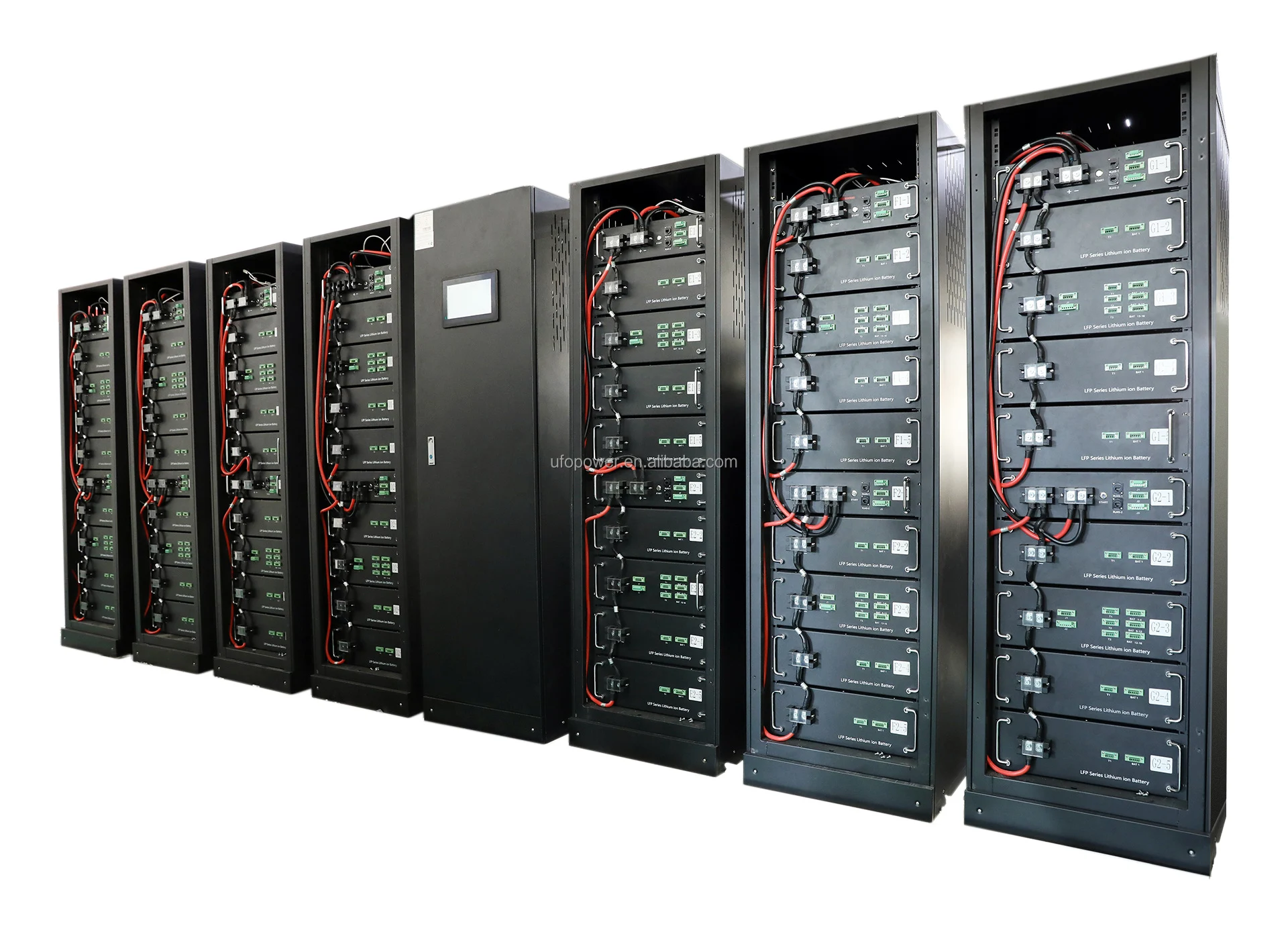

UFO Power UPS Bank
(1) Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
(2)Voltmeter--Standard class specified in the national standard or more sensitive class having inner impedance not less than 10 KΩ/V.
(3)Ammeter--Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
(2)Voltmeter--Standard class specified in the national standard or more sensitive class having inner impedance not less than 10 KΩ/V.
(3)Ammeter--Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.

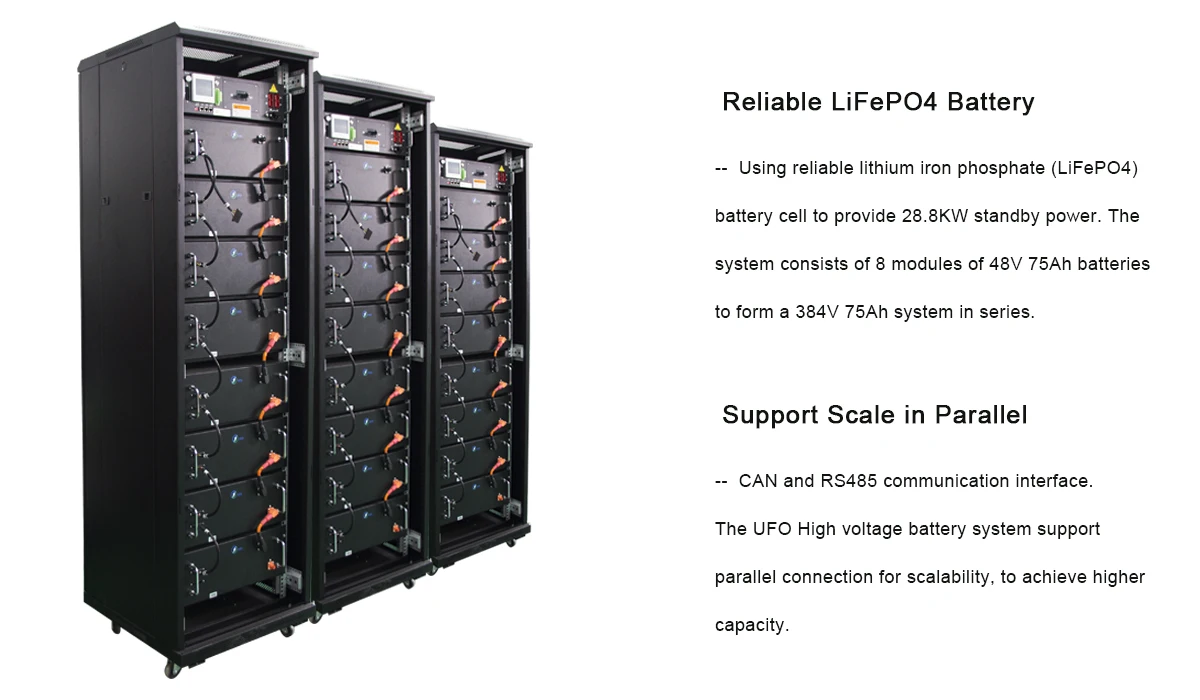

High Density and 6000 cycles

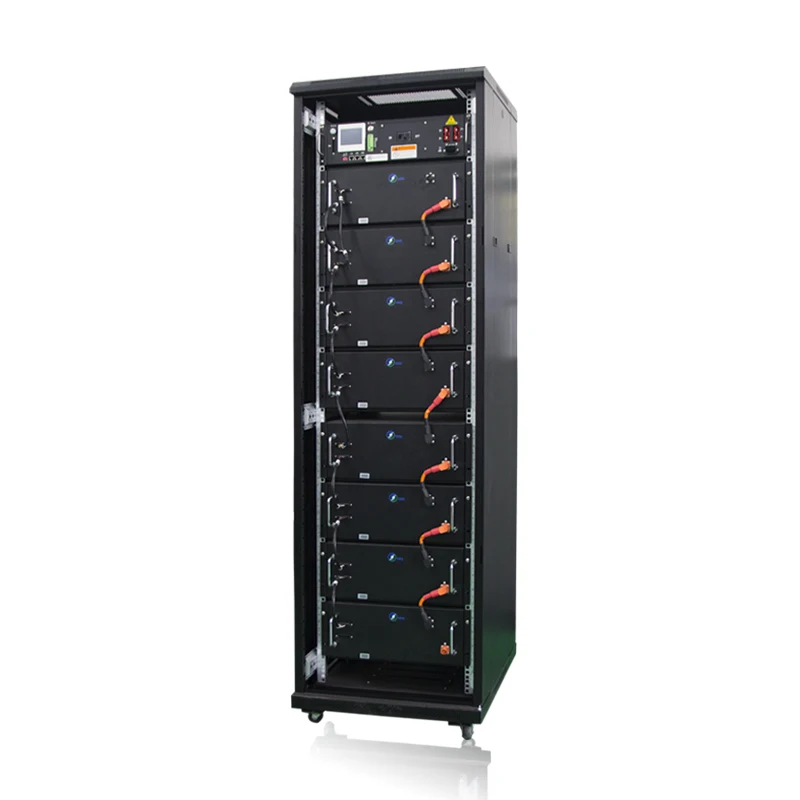

High Voltage Lithium Battery 384v / 38kw For Residential Storage Environment Friendly
1. Quick details of High Voltage LiFePO4 384V 100Ah Battery
* High voltage power up to 384V
* 120S2P combination way to achieve 38kw power
* Extremely safe for residential energy storage
* Use high power density lithium iron phosphate battery cell
* Long cycle life up to 6000 times
* Environment friendly
2. BMS functions of LiFePO4 battery 384v 100Ah
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit, temperature detecting protection and
auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) , Simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ), full set of protection measures let it works well without any influence from external unexpected accidents.
1. Quick details of High Voltage LiFePO4 384V 100Ah Battery
* High voltage power up to 384V
* 120S2P combination way to achieve 38kw power
* Extremely safe for residential energy storage
* Use high power density lithium iron phosphate battery cell
* Long cycle life up to 6000 times
* Environment friendly
2. BMS functions of LiFePO4 battery 384v 100Ah
Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit, temperature detecting protection and
auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) , Simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ), full set of protection measures let it works well without any influence from external unexpected accidents.
Packing & Delivery
Company Profile
Manufacturing Technique
Certifications
CE04001
TUV
IEC 62619
MSDS
ISO 90001:2015
UL
TRANSPORT REPORT
CE
CB
Software Copyright
Patent for Utility Models
Patent for Invention
FAQ
Q1: Are you a manufacturing factory?
A1: Yes, We are a lithium battery manufacturer from China since 2010. You are welcome to visit our factory and production process.If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days according to quantity.
Q4: Can I buy one or two units for the sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Q5: Can you give us a discount?
A5: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q6: How do you guarantee the quality?
A6: Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q7: Why we can choose you?
A7: Reliable-- Our certifications like MSDS, CE is our commitment to quality and safety for our lithium batteries.
Professional--We provide battery solutions and technical support for more than 10 years.
Factory-- We have factory, so have competitive price.
A1: Yes, We are a lithium battery manufacturer from China since 2010. You are welcome to visit our factory and production process.If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days according to quantity.
Q4: Can I buy one or two units for the sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Q5: Can you give us a discount?
A5: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q6: How do you guarantee the quality?
A6: Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q7: Why we can choose you?
A7: Reliable-- Our certifications like MSDS, CE is our commitment to quality and safety for our lithium batteries.
Professional--We provide battery solutions and technical support for more than 10 years.
Factory-- We have factory, so have competitive price.
