4K 8MP 960H CCTV Camera XMeye H.265 16 Channel 16CH 8M 6 in 1 Hybrid TVi CVI NVR AHD DVR System Video Recorder

System

Main processor

Interface

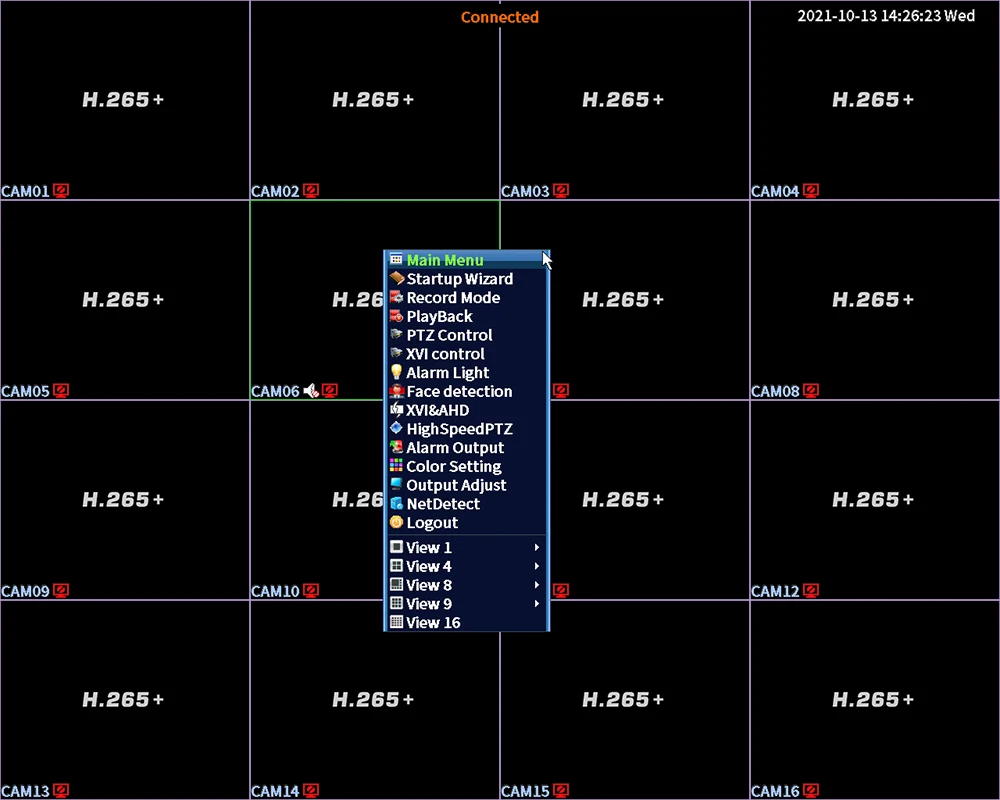

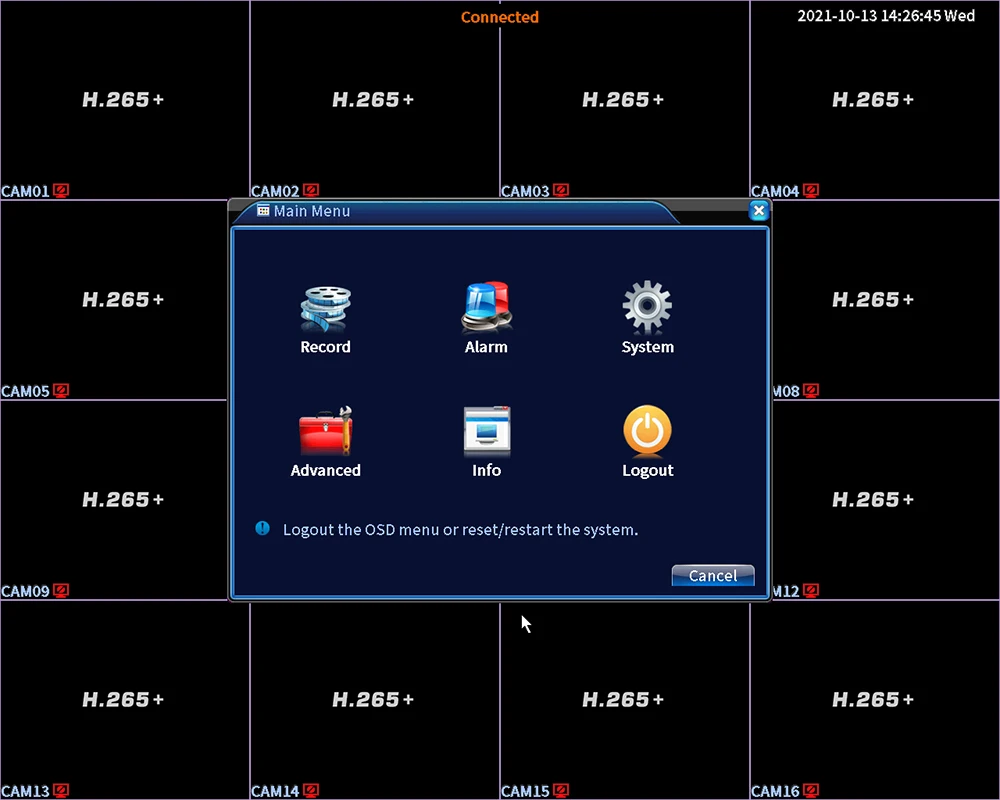

Operating interface

support 16-bit true color graphical menu interface and mouse operation

Preview

1/4/8/9

Video

Codec

H.265+

Monitor quality

HDMI(4K at most)

16*4K (@)7.5fps(6 in 1)/16*5M(@)12.5fps(6 in 1)/

16*4M(@)15fps(6 in 1)/16*3M(@)18fps(6 in 1)/16*1080P(6 in 1)

Encode ability

16*4K (@)4fps(6 in 1)/16*5M(@)6fps(6 in 1)/

16*4M(@)9fps(6 in 1)/16*3M(@)10fps(6 in 1)/16*1080P(@)16fps(6 in 1)

Decode ability

4*4K (@)20fps(6 in 1)/4*5M (6 in 1)/

4*4M(6 in 1)/4*3M(6 in 1)/4*1080P (6 in 1)

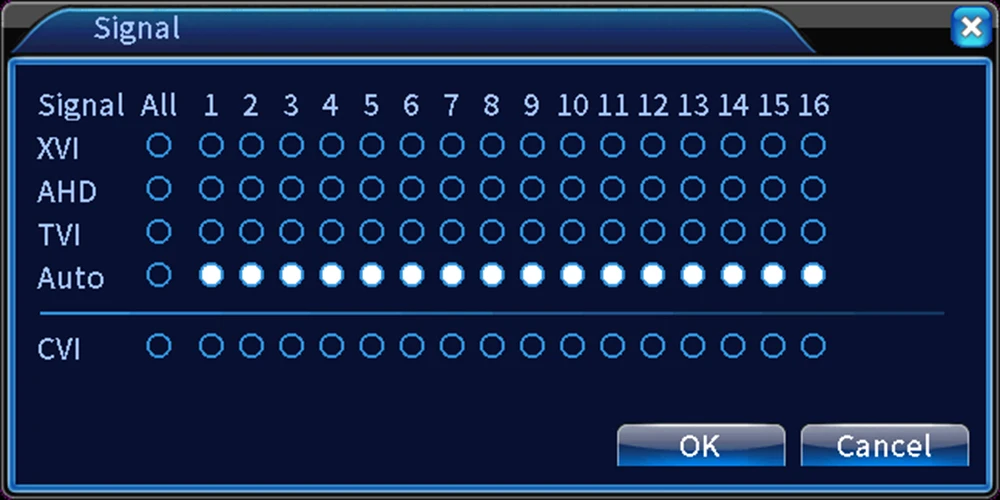

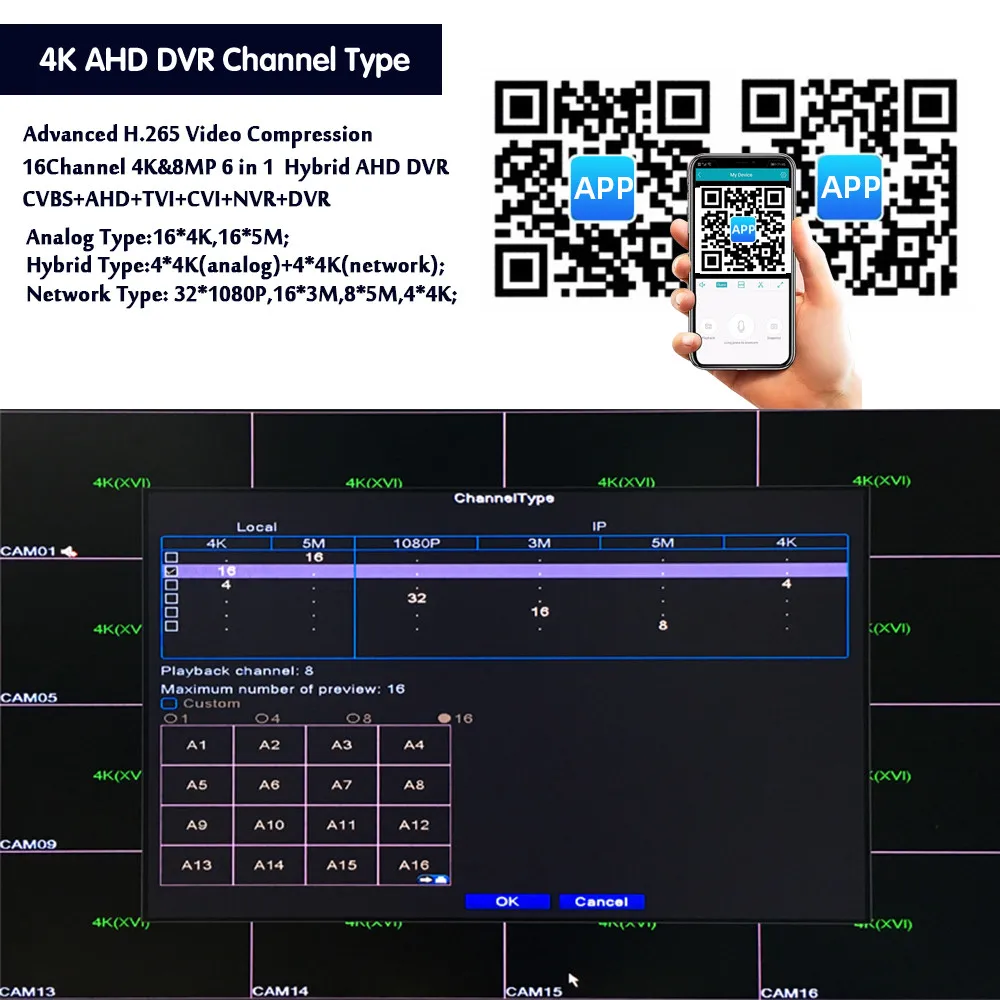

Multi-mode input

Analog:16*4K;16*5M;

hybrid:16*4K(analog)+16*4K(network)

network:16*4K;16*5M;

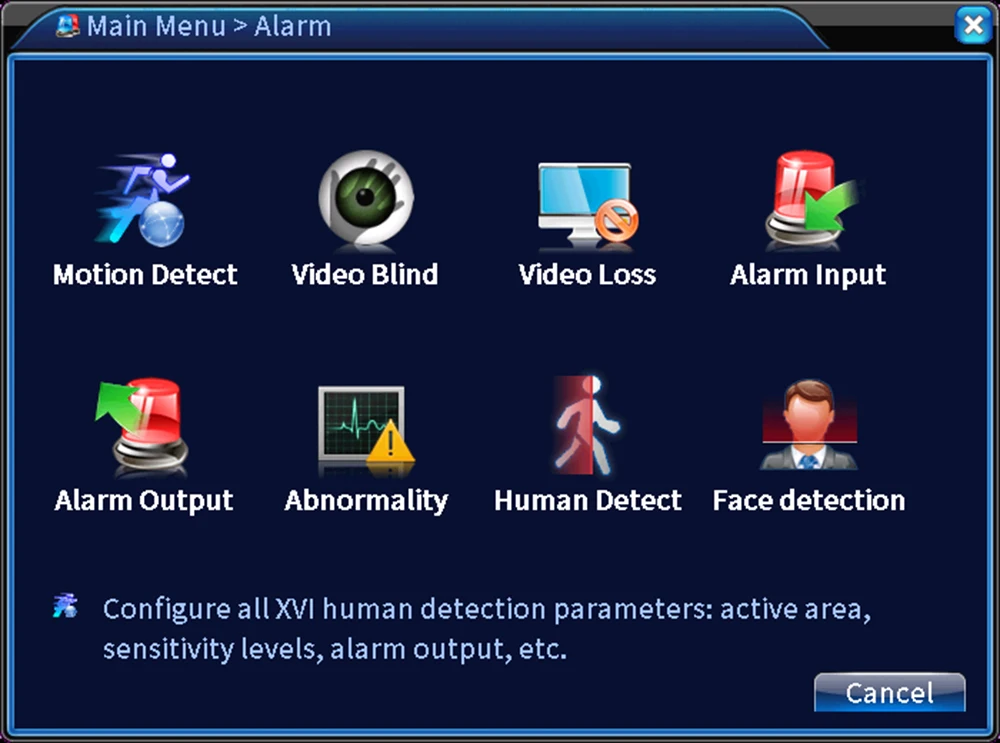

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

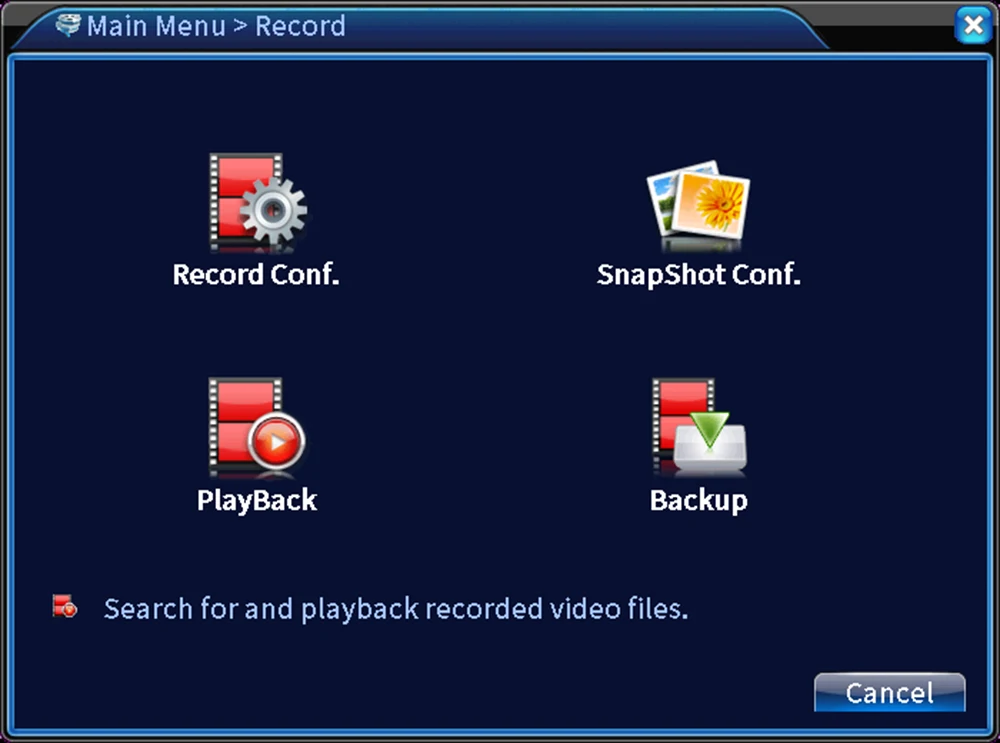

Record & playback

Record mode

manual>alarm>motion detection>timing

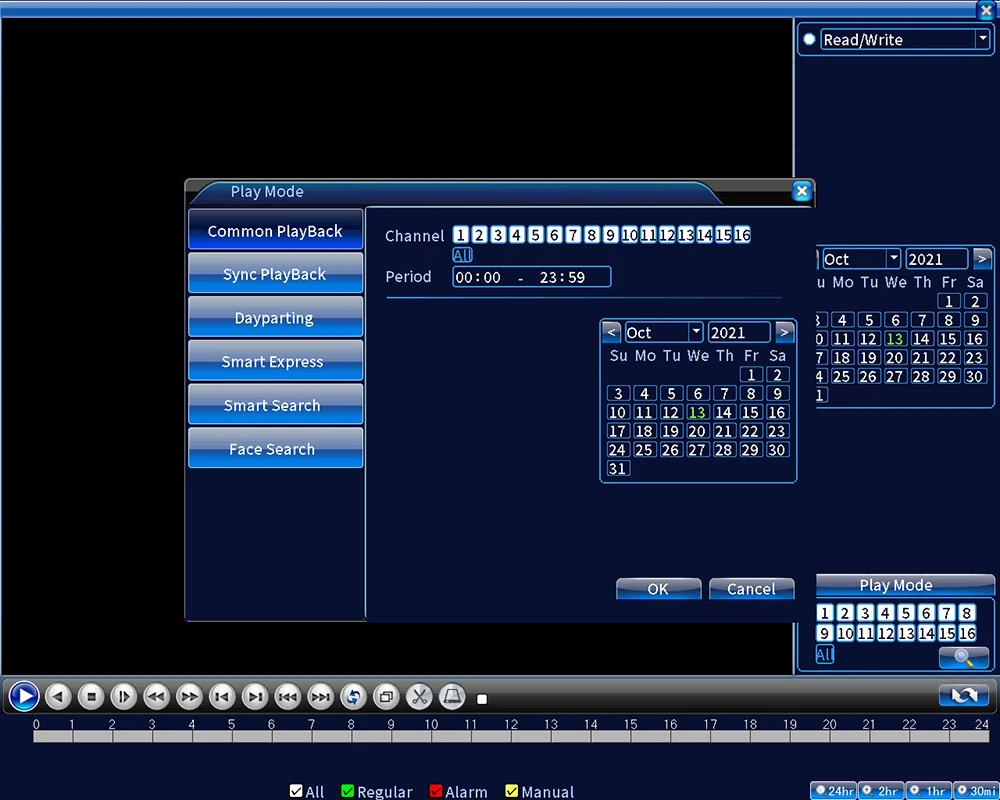

Local Playback

4K:4ch;5M:16ch(analog input mode)

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

External Interface

Video input

16ch BNC

Video output

1ch HDMI

Loop Vout

N/A

Audio input

2(Can be extended to 6ch)

Audio output

1ch

Alarm input

0(Can be extended to 4ch)

Alarm output

0(Can be extended to 1ch)

Network interface

RJ45 10M/100M

PTZ control

Support kinds of PTZ protocols

USB

2* USB 2.0 ports

HDD

2*SATA ports (Max 14TB/per)

Wireless

3G, WIFI (extend via USB)
