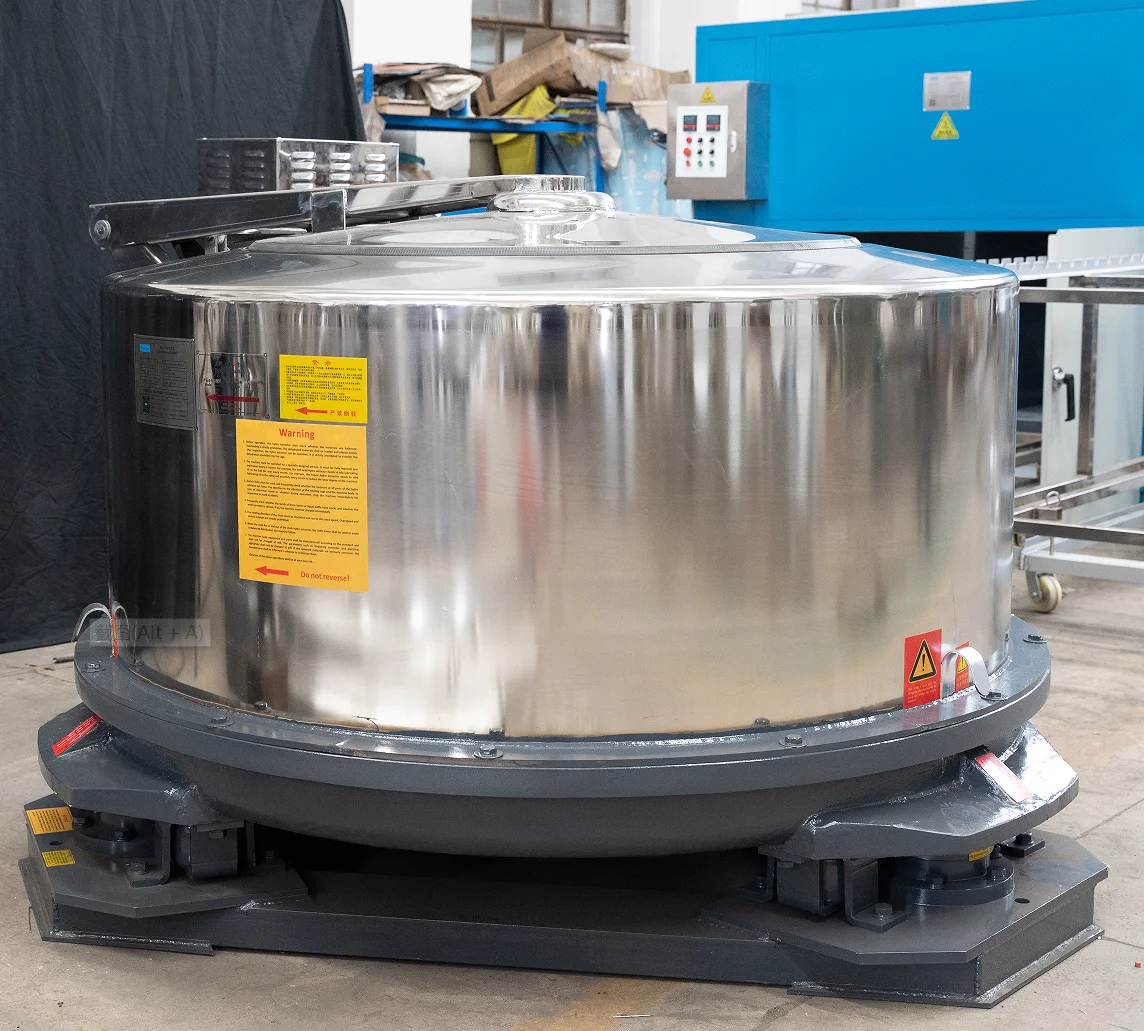

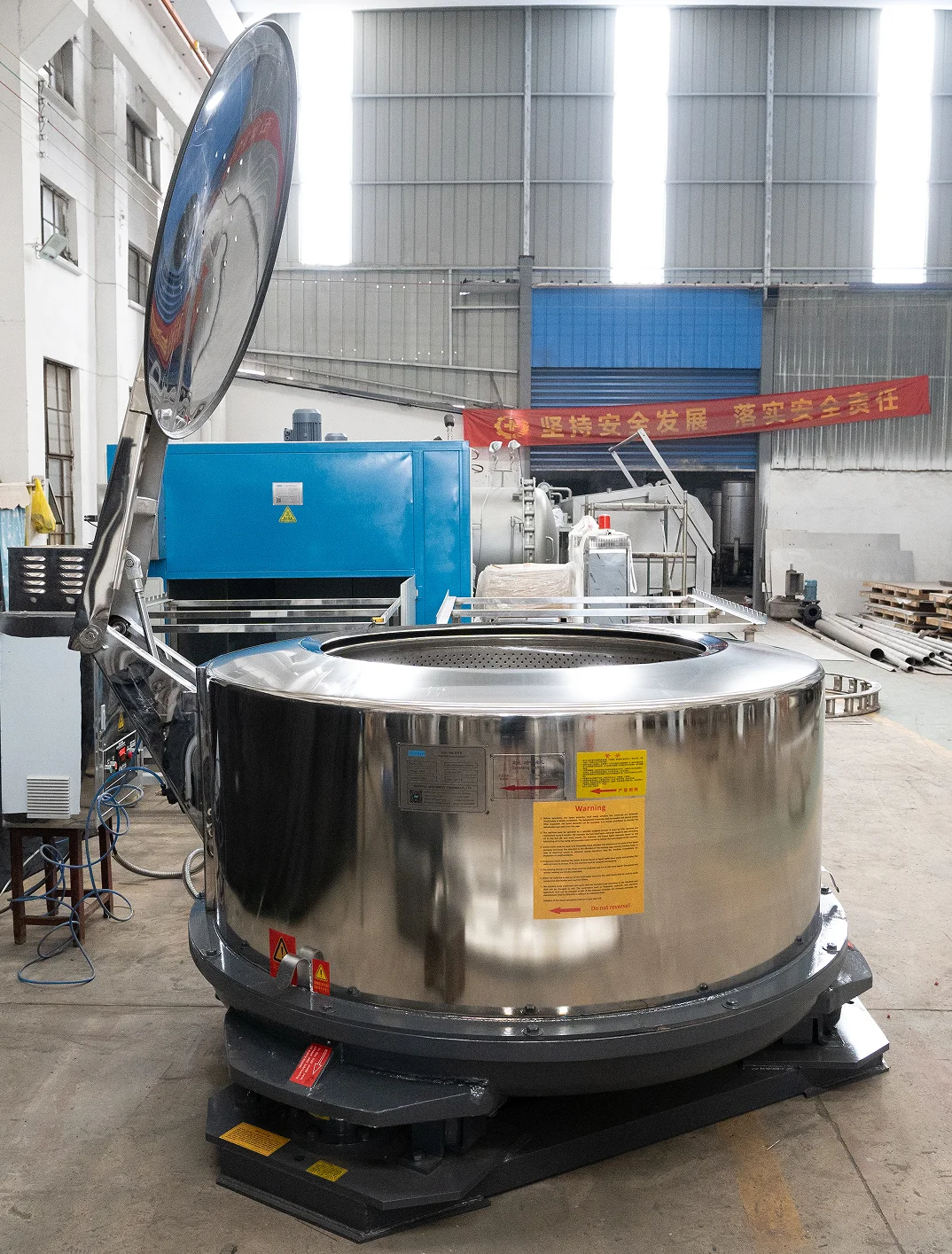

Hydro Extractor for Dehydration
- Category: >>>
- Supplier: Buentex Machinery Trading Co. Ltd.
Share on (1600448671069):
Product Overview
Description
Product Overview
BC Series Hydro Excavator for Dehydration
This machine is suitable for dehydrating various kind of hank yarn, loose fiber and fabric after dyeing, bleaching and washing. Such as cotton, wool, linen, chemical fiber, knitwear, etc.
FEATURES AT A GLANCE
1. Machine foot
2. Swing rod assembly
3. Housing
4. Rotating cage assembly
5. Drive motor
6. Chassis
7. Electric cabinet assembly
8. Fastening nut
8. Fastening nut

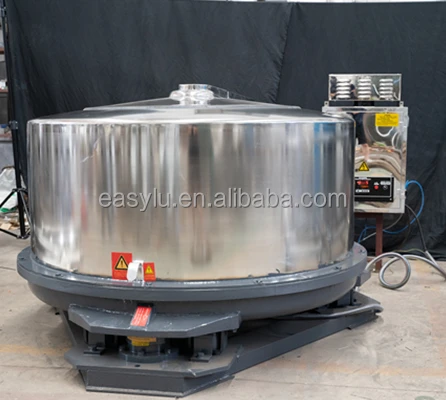

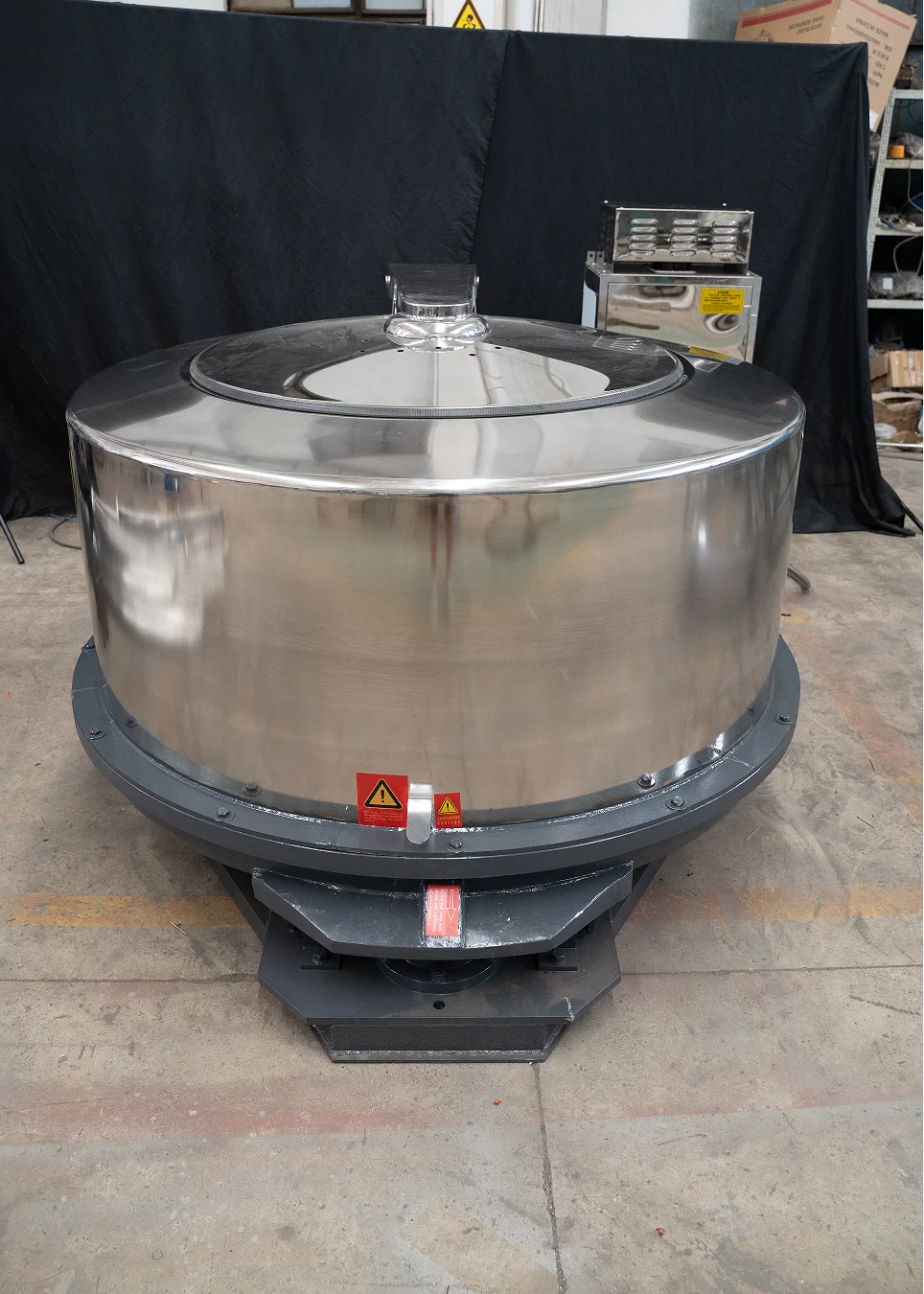

Close door
Close door
Close door

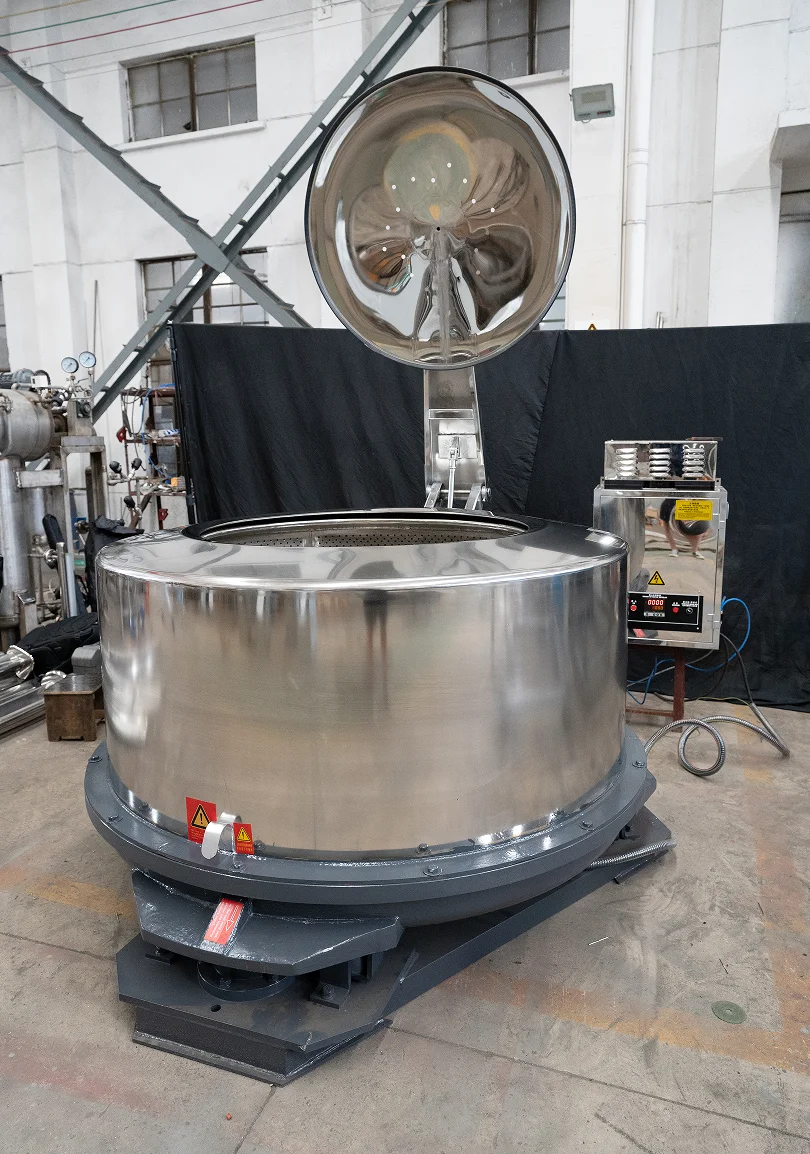

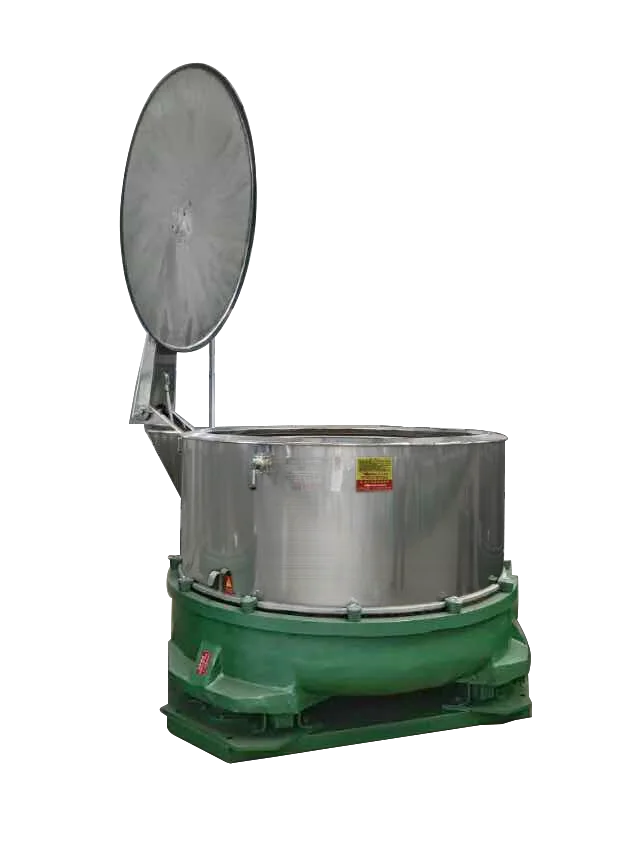

Open door
Open door
Open door
PRODUCT SPECIFICATIONS
Model | Inner diameter (mm) | Wet Capacity ( kg) | Carriage height (mm) | Power ( kw) | Rotating spd. (rpm） | Boundary dimension (mm) |
BC-800 | 800 | 80 | 380 | 4 | 750-960 | 1380x1400x950 |
BC-1000 | 1000 | 100 | 380 | 5.5 | 750-960 | 1560x1600xl000 |
BC-1200 | 1200 | 150 | 450 | 7.5 | 750-960 | 1700x1750xl000 |
BC-1500 | 1500 | 500 | 700 | 11 | 600-750 | 2150x2100x1300 |
BC-1800 | 1800 | 800 | 850 | 15 | 500-700 | 2350x2300x1550 |
BC-2000 | 2000 | 1000 | 900 | 18.5 | 500-650 | 2400x2350x1600 |
BC-2200 | 2200 | 1100 | 900 | 22 | 450-600 | 2500*2450*1650 |
PRODUCT CONFIGURATION
Carriage
Support
Cover
