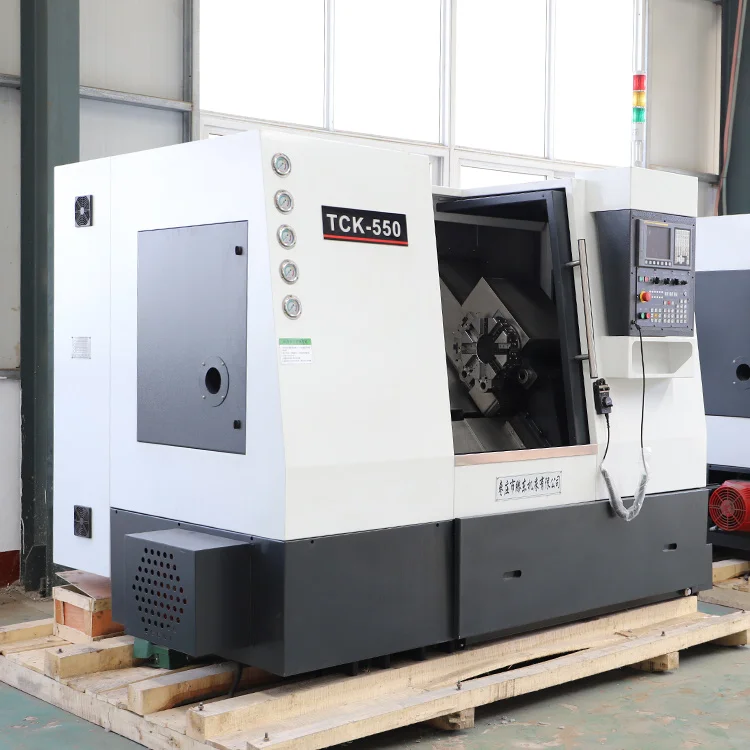

Bar Turning Lathe Machine TCK550 Fanuc Cheap metal CNC Slant Bed Lathes
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (1600448729438):
Product Overview
Description
Product Description
Max. swing over bed | Φ540mm |
Max. swing over cross slide | Φ270mm |
Max process length | 550mm |
X axis travel | 220mm |
Z axis travel | 550mm |
Machine inclined degree | 45 |
Size of the 3-jaw chuck | 8" manual chuck |
Range of spindle speed | 100-3000rpm |
Spindle bore | 65mm |
Max. size of tool post | 25x25mm |
Stations of tool carrier | 8 stations electric tool post |
Motor power | 7.5kw |
Machine weight | 3800kg |
Machine size (L*W*H) | 2920*1680*2070mm |
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
