Rough iron or galvanized traffic whip wireless lamp aluminium light pole anchor bolts
- Category: >>>
- Supplier: Yangzhou Sofit Lights Tech Limited
Share on (1600448830516):
Product Overview
Description
Products Description

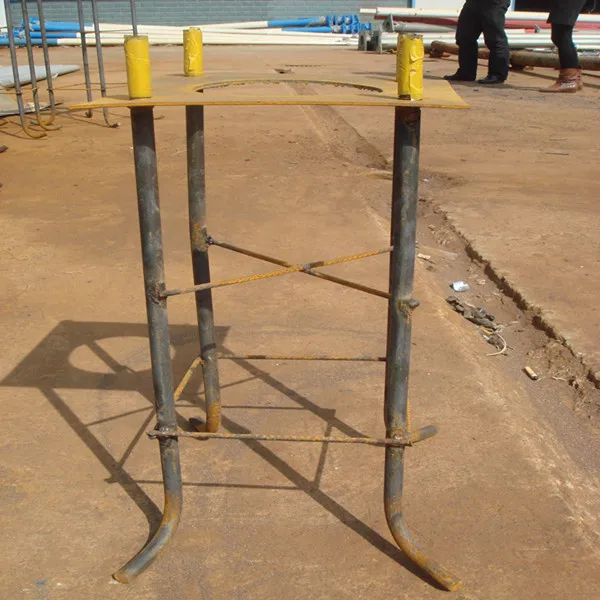

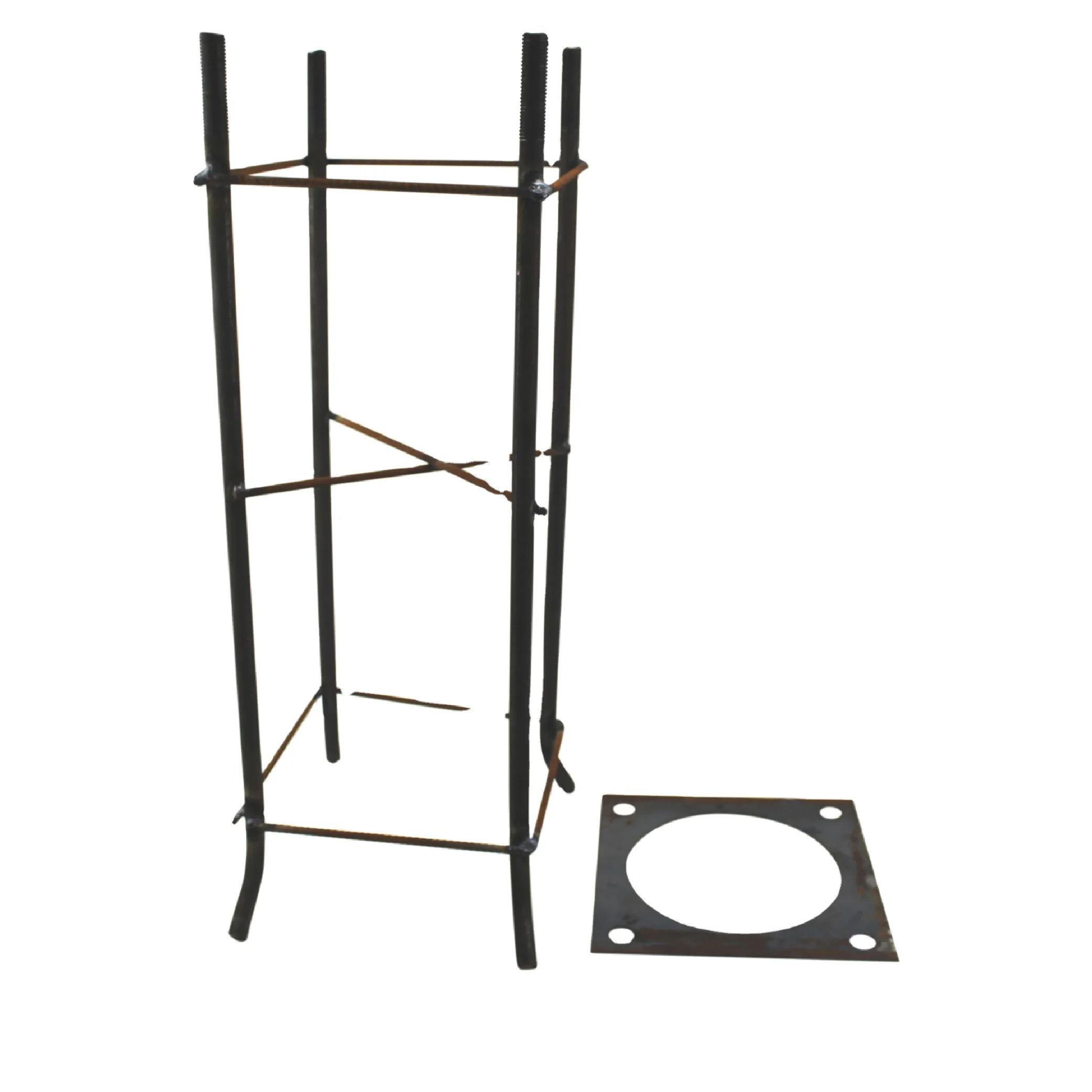

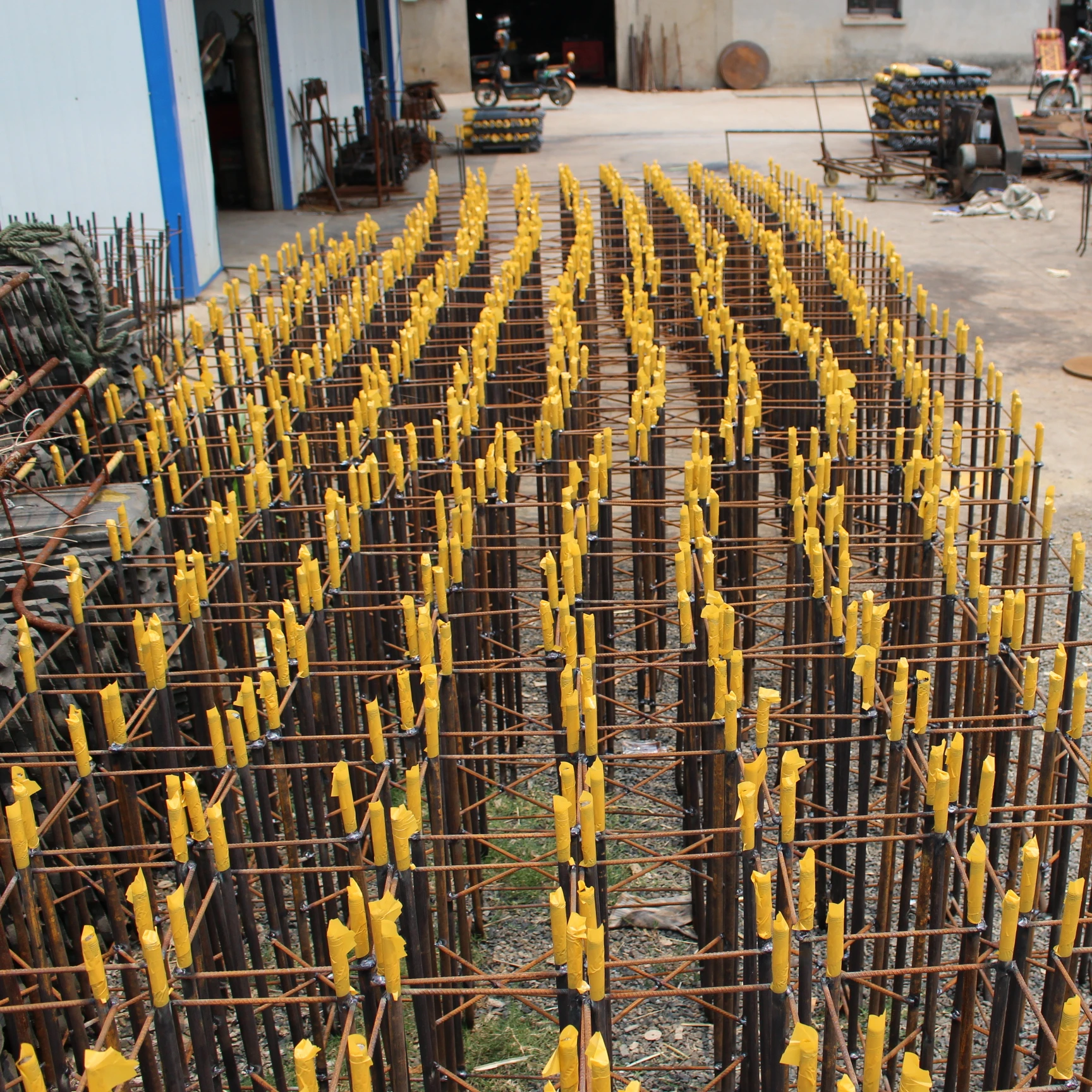

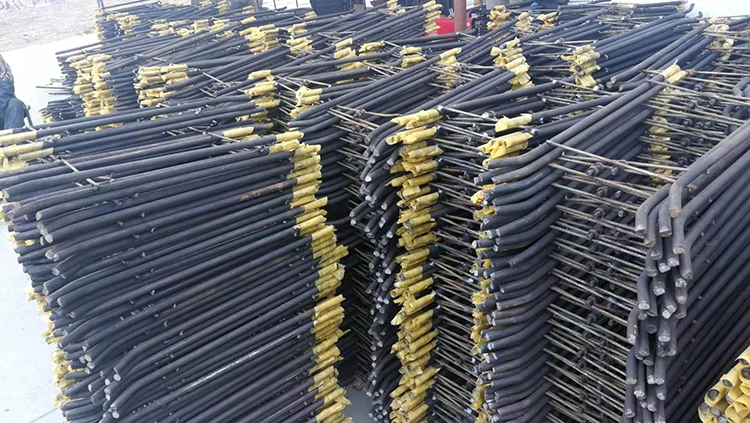

Foldable foundation bolts
Foldable j bolt of concrete foundation M18 anchor bolts with fixings
Material: Q235 steel, rough natural black or hot dip galvanized.
Material: Q235 steel, rough natural black or hot dip galvanized.
C/w location fixing plate whose size depends on the flange plate of the post.
Foldable type easy for installation and transportation, saves container space
Foldable type easy for installation and transportation, saves container space
Accept customized size: M14, 16,18,20, 22, 24,26,28, 30,32, 36, 38,40, at any length.
J or L, or sharp end shapes.
J or L, or sharp end shapes.
Following is regular details of posts which are made by our factory.
Brilliant powder coated layer
Adopt expoy resin powder coating workcraft, customized color, hard adherence and anti-fading 10 years more.
Exceeds ASTM153 galvanization
Adopt hot dip galvanization, average zinc area thickness exceeds 95um, which exceeds ASTM153 standard.
30 years more no rust.
Precise welding technology
Strong welding workmanship, combined by arc and hand welding technologies ensure solid strength to resist estimated max velocity.
Pole height& thickness | Shape of section | Arm shape | Surface treatment | Base plate mounted | |||
3 to 30m 1.8mm-20mm | Round conical; Octagonal tapered; Straight square; Tubular stepped | no arm, single, dual, double, tri-arm, or T or F shape for traffic | Hot dip galvanization with or without powder painting | Base plate is square or round in shape with slotted holes for anchor bolt | |||
Remark: | Tubular pipe diameters in mm: 26,32,48,60,76,89,102,108,114,121,140,152,159,165,180,203,219,245, 273,299,377, etc | ||||||
1. Allowable deviation is 0.25mm.
2. Regularly one 40 feet HC container loads max 22000kgs of steel street traffic poles, the max quantities depends on the size and gross weight.3. The price depends on design and market material price, normally customer provides design or drawing or technical requirement, or we make design draft drawing for confirmation according to customer's requirement.
Our Advantages
Free Design Drawing
Owns professional technical team
commitment to sevice engineering
requirement.
commitment to sevice engineering
requirement.

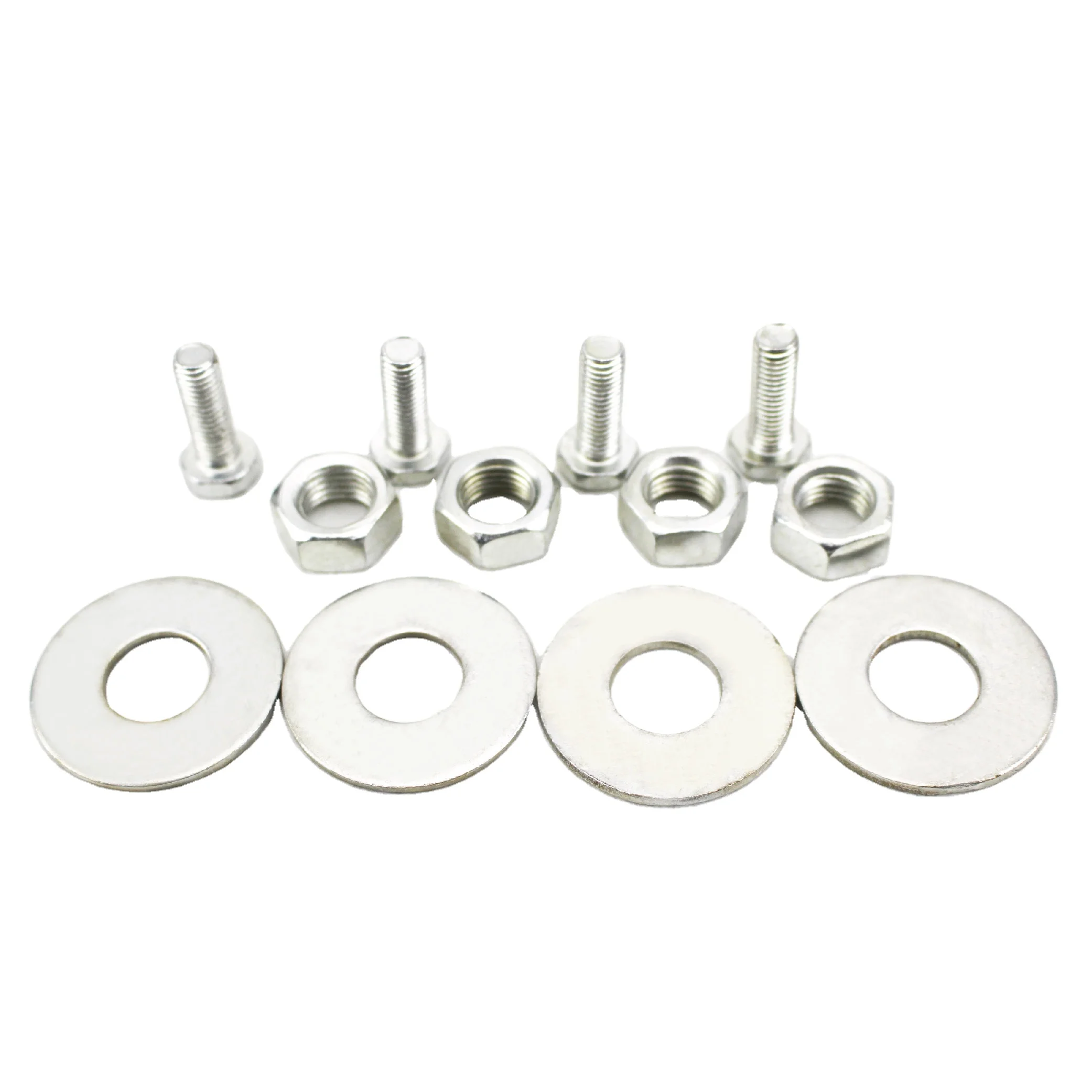

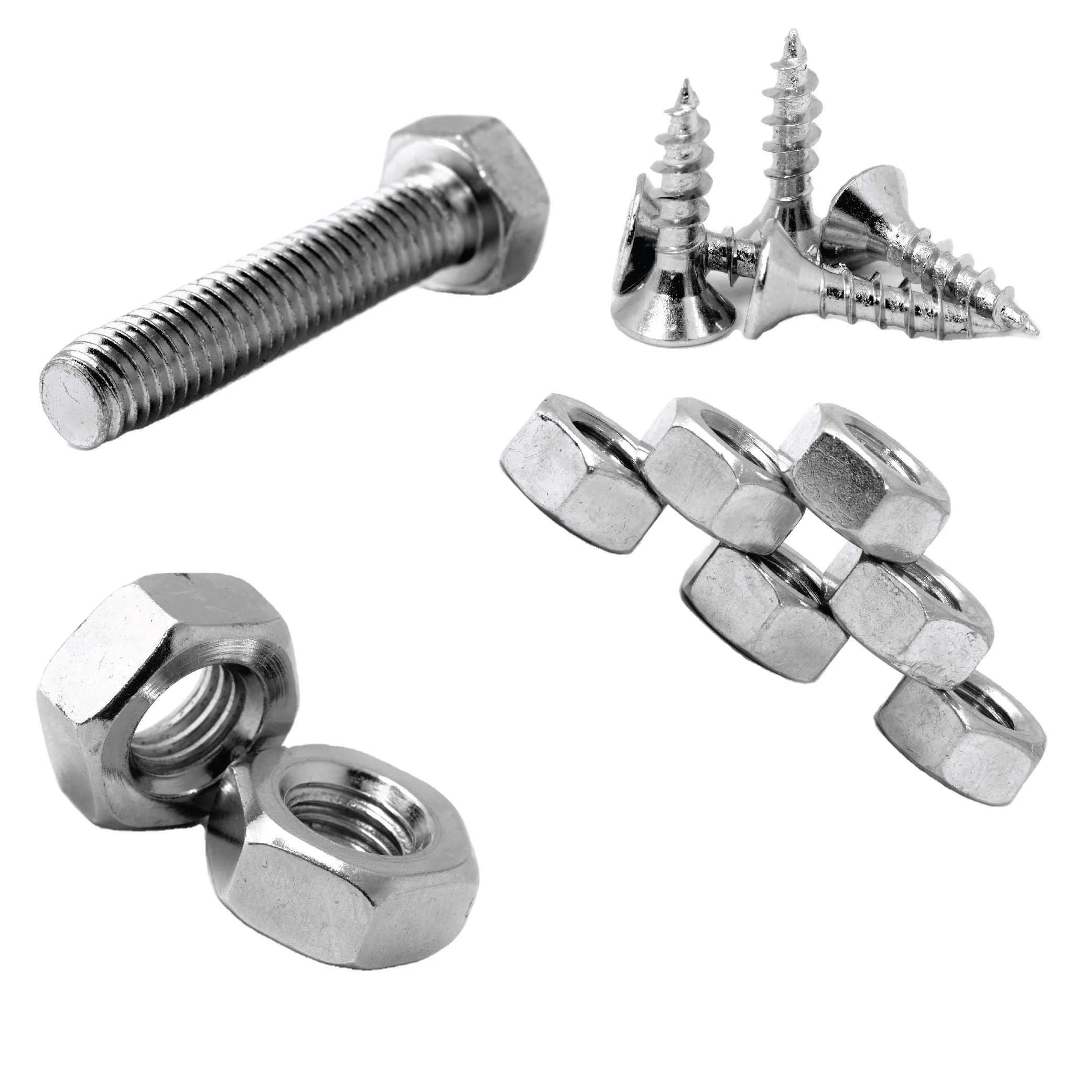

Free Fixing Parts
Fixed with free hex nut, bolts and
washers, galvanization treatment, which is used for slotted bolts and other necessary parts.
washers, galvanization treatment, which is used for slotted bolts and other necessary parts.
Free Customized metal Logo
Professional colorful customized logo of aluminum label if quantity exceed 800pcs or order amount exceeds 300,000 US dollars.
Delivery
Normal package use bulb tapes with top and bottom protection.
Polywoven sheets for another option, but the cost is a little bit higher.
Bulb tapes with dust water-proof felt inside, which costs $3 per pole more.
FAQ
FAQ
Q1. Can I have a sample order for steel post?
Yes, min order value $1000 or moq 10 pcs.
Q2. What about the lead time?
Sample needs 15-20 days since the steel posts are customized products, mass production needs 1-2 weeks for order quantity more than 50 pcs.
Q3. How do you ship the goods and how long does it take to arrive?
We usually ship by sea since posts are big size and heavy, it usually takes 30-45 days to arrive. Airline also optional and
telescopic poles might be shipped by air express.
Q4. How to proceed an order for steel post?
Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions and make draft drawings.
Thirdly customer confirms the drawings and place deposit for formal order.
Lastly we arrange production and the customer make payment for the balance then we delivery.
Q5. Is it available to print my logo on the post?
Yes, please inform us formally before our production and confirm the design firstly based on our samples. The label material
regularly aluminum, also stainless steel for option.
Q6: Do you offer guarantee for the products?
Yes, we offer 10 years warranty to steel poles.
Q7: How to deal with the faulty?
First, our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, for steel poles, normally two kinds of quality faulty appears, rust and fall down or broken. For rust, our galvanization standard exceeds ASTM153, we adopt hot dip galvanization and sulfur washing hereinafter, numerous coast cases; for falling down or broken, all dimensions are in accordance to customer’s requirement unless local conditions exceeds customer’s estimation.
Yes, min order value $1000 or moq 10 pcs.
Q2. What about the lead time?
Sample needs 15-20 days since the steel posts are customized products, mass production needs 1-2 weeks for order quantity more than 50 pcs.
Q3. How do you ship the goods and how long does it take to arrive?
We usually ship by sea since posts are big size and heavy, it usually takes 30-45 days to arrive. Airline also optional and
telescopic poles might be shipped by air express.
Q4. How to proceed an order for steel post?
Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions and make draft drawings.
Thirdly customer confirms the drawings and place deposit for formal order.
Lastly we arrange production and the customer make payment for the balance then we delivery.
Q5. Is it available to print my logo on the post?
Yes, please inform us formally before our production and confirm the design firstly based on our samples. The label material
regularly aluminum, also stainless steel for option.
Q6: Do you offer guarantee for the products?
Yes, we offer 10 years warranty to steel poles.
Q7: How to deal with the faulty?
First, our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, for steel poles, normally two kinds of quality faulty appears, rust and fall down or broken. For rust, our galvanization standard exceeds ASTM153, we adopt hot dip galvanization and sulfur washing hereinafter, numerous coast cases; for falling down or broken, all dimensions are in accordance to customer’s requirement unless local conditions exceeds customer’s estimation.
