SJK DIP HC49S/SS Quartz crystal Series 6B 3.579545MHz
- Category: >>>
- Supplier: Shenzhen Crystal Technology Industrial Co. Ltd.
Share on (1600448890786):
Product Overview
Description

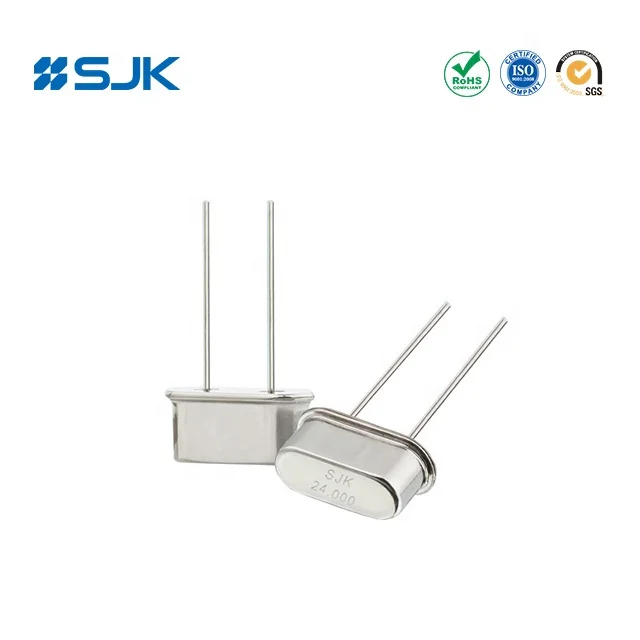

HC-49S Crystal Units
Item: 6B Series HC-49S Crystal Units Frequency
Range: 3~100MHz
Overtone Order: Fundamental /3rd

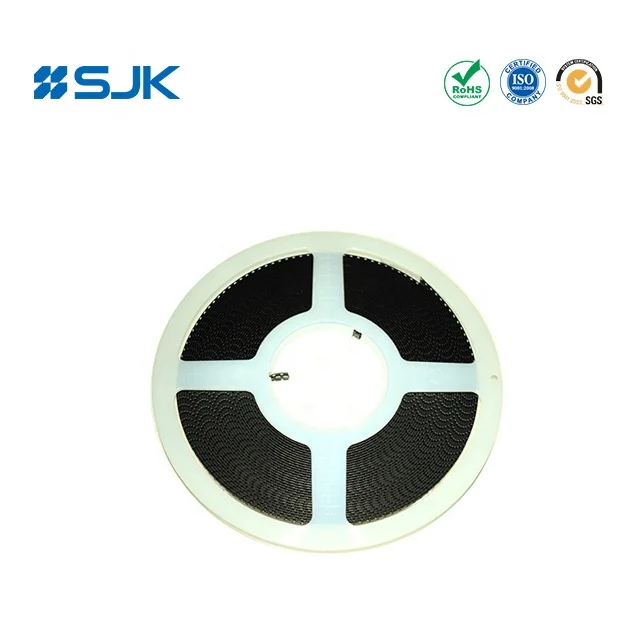

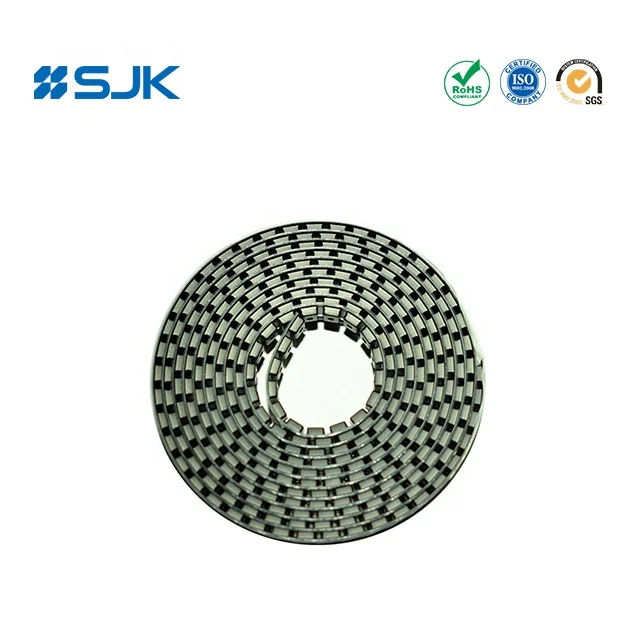

Overtone Packing Unit: 1000pcs. /Reel
Applications: PC, Smart Factory, Consumer device, Communications, TV, Cable modem, Game equipment, etc.
Specifications and Dimensions |
Features of HC-49S Quartz Crystal Unit:
Resistance welded type crystal units.
A great number of standard frequencies.
Wide Frequency from 3MHz to 100MHz.
Offers excellent frequency pullability and lower equivalent series resistance.
Lower cost and highly mass production capability.
Application for PC, TV, Game equitment, Communications, Consumer device, Cable modem, etc.
RoHS Compliant /Pb-Free.
Electrical Specifications of HC-49S Quartz Crystal Units
Item /Type | 6B (HC-49S Quartz Crystal Unit) | |
Frequency Range | 3~34 MHz | 27~100 MHz |
Overtone Order | Fundamental | 3rd Overtone |
Load Capacitance | 16pF, 20pF, 30pF, or specify | |
Frequency Tolerance | ±30ppm, or specify | |
Drive Level | 1~500μW Max. (100μW Typ.) | |
Series Resistance | 30~200Ω | 60~100Ω |
Operating Temperature | -20~+70℃, -40~+85℃, or specify | |
Storage Temperature | -55~+125℃ | |
Shunt Capacitance | 7pF Max. | |
Aging (at 25℃) | ±3ppm /Year Max. | |
Packing Unit | 200pcs. | |

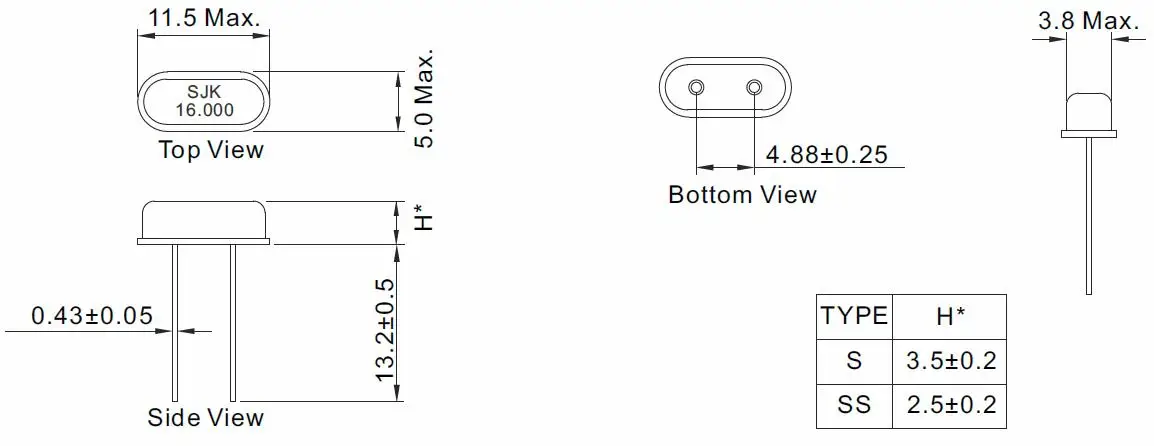

Dimensions[mm]
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
