Product Overview

Description



Products Description

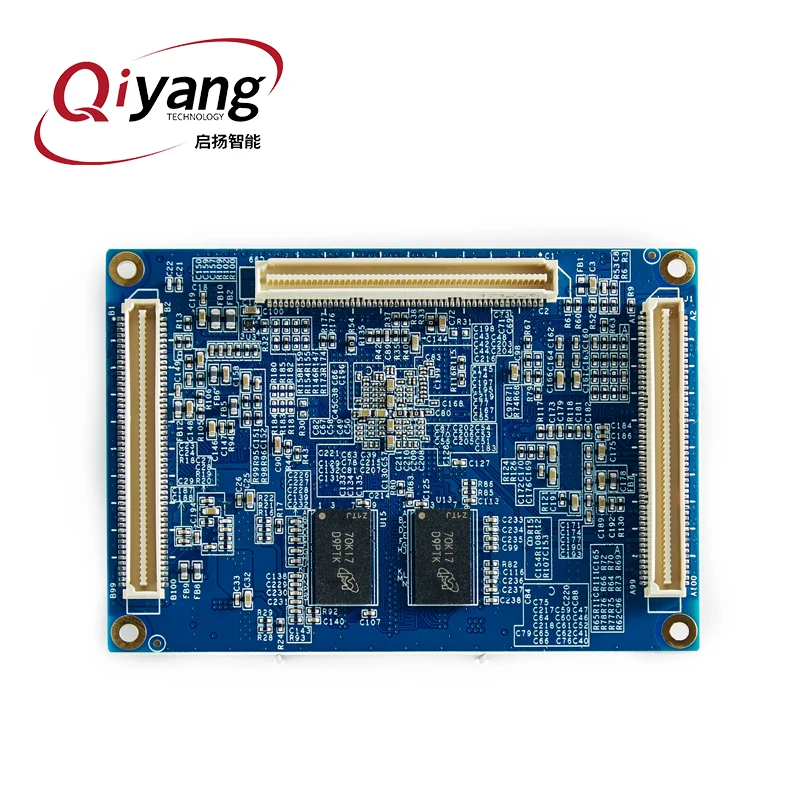

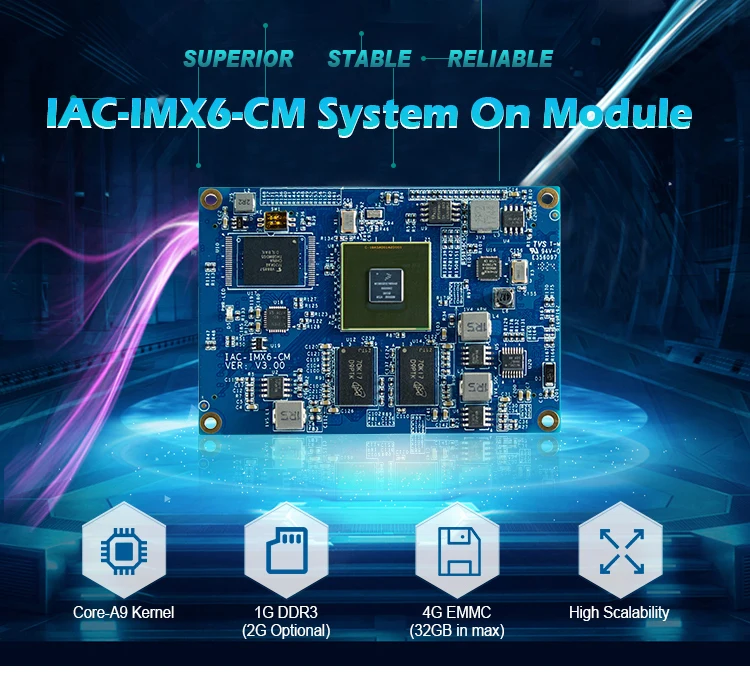

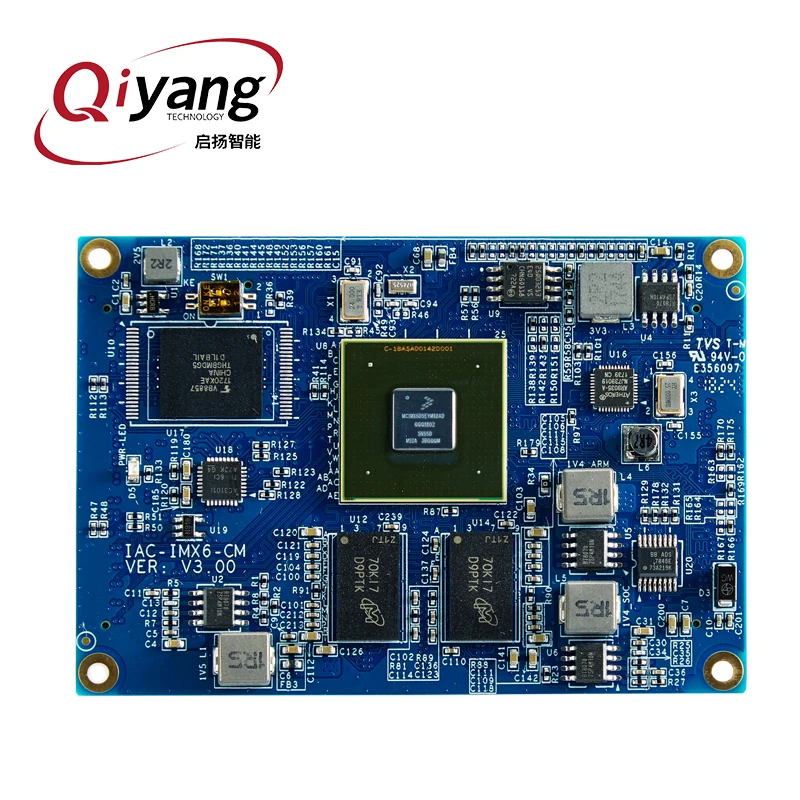

IMX6 development board core board/4GB EMMC core board




Product Paramenters


SOM Resource

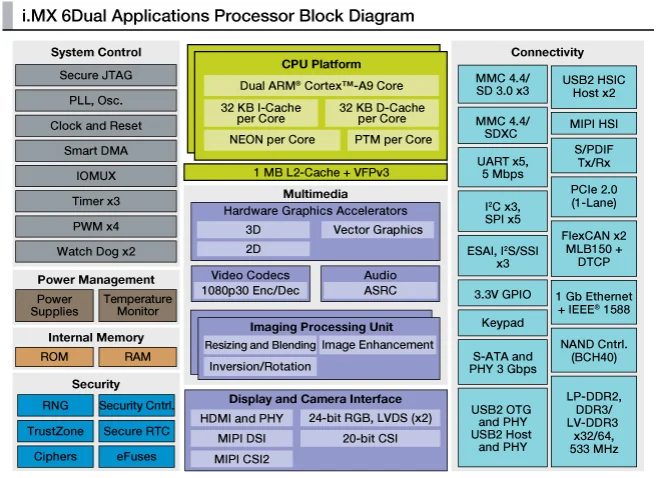

CPU

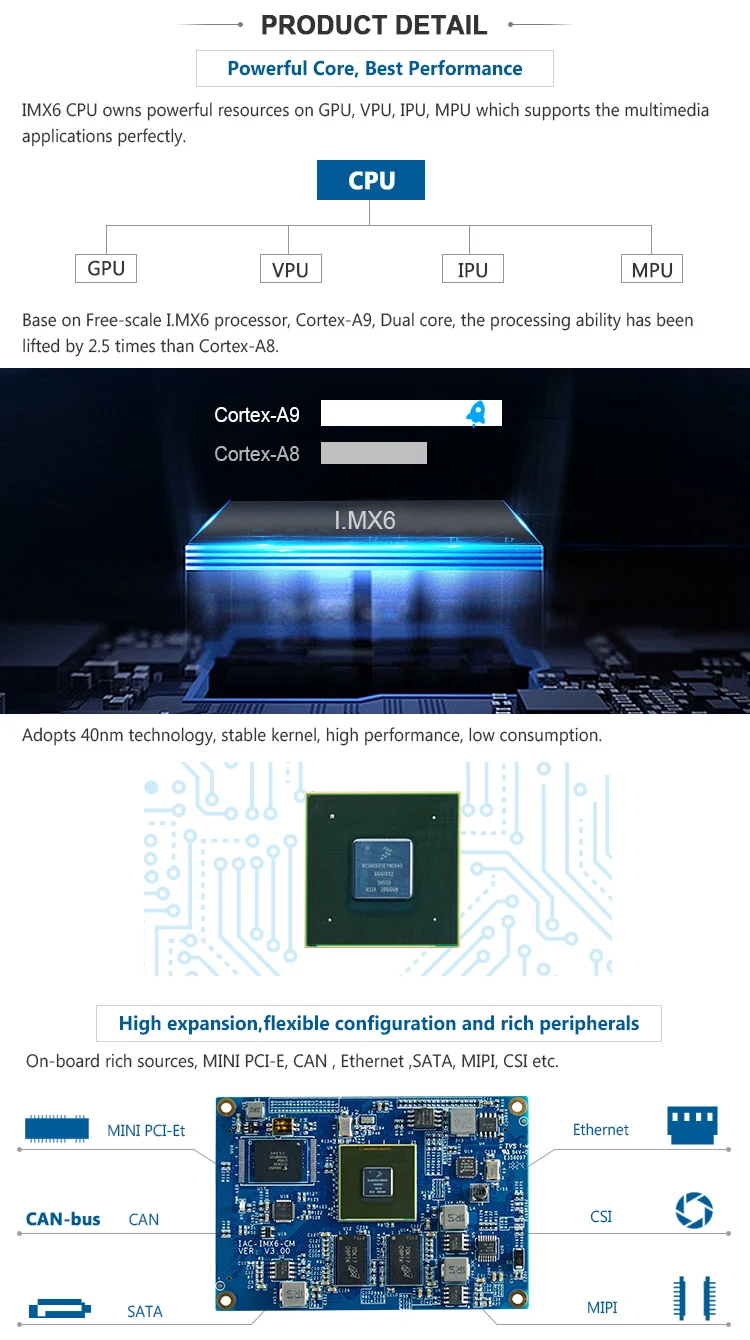

Freescale i.MX6 processor, ARM® Cortex™-A9 kernel
Dual Core (Solo Core, Quad Core optional)
Frequency
1.0Ghz
GPU
OpenGL® ES 2.0 and OpenVG™ 1.1 Hardware Accelerators & Multi-Format HD1080p Video Decoder and HD720p Video Encoder Engine
RAM
1GB (2GB optional)
Flash
4GB (8GB,16GB,32GB optional)
Telecommunication
UART, USB, CAN, MINI-PCIE, Ethernet, GPIO, I2C, EIM, MIPI, etc.
Display
LVDS, TTL, HDMI, VGA
Audio
audio output, MIC audio input
Storage
SD, SATA-II
B to B Connector
FCI 3*100 pin 0.8mm spacing B to B (the connectors are 350℃ high temperature-tested and seismic-tested)
OS Support
Linux 3.0.101/Android 4.4


Mechanical and Environment


PCB Specification & Size

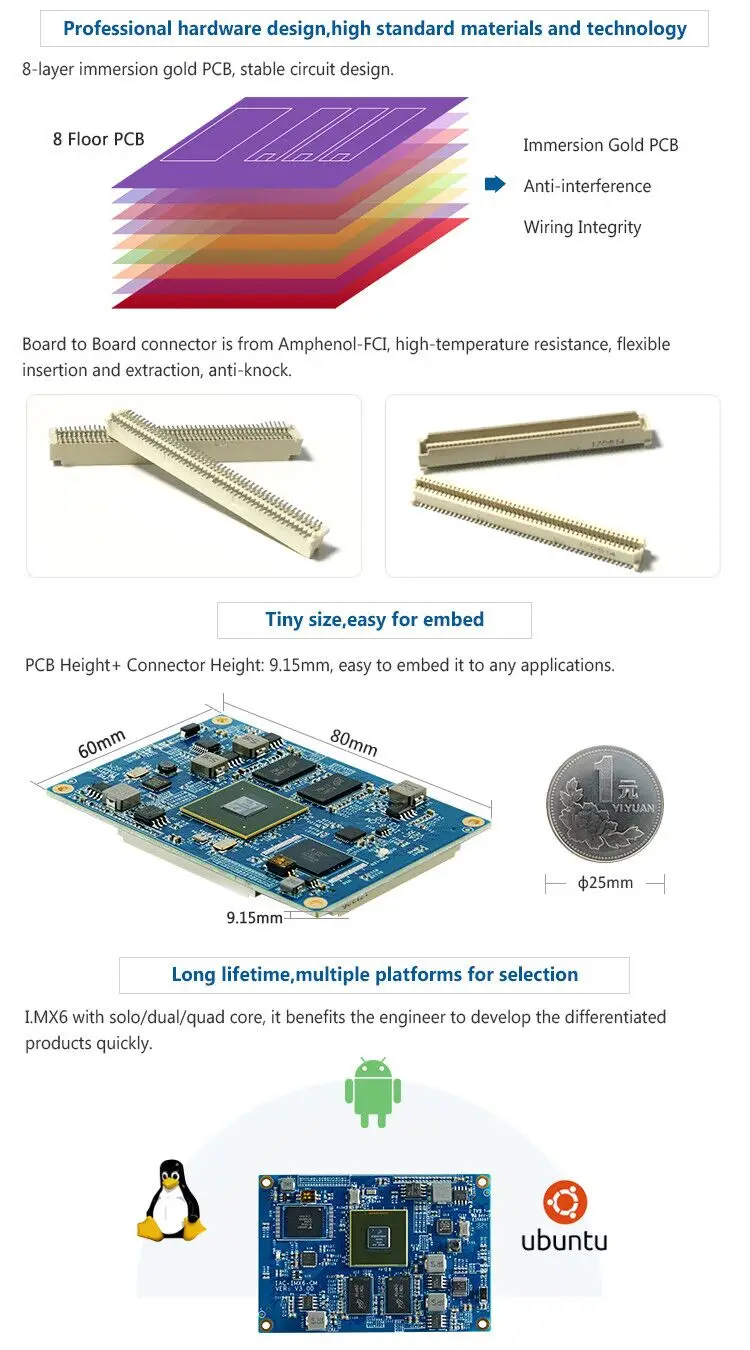

Using 8-layer PCB high precision process, with the best electrical properties and anti-jamming performance

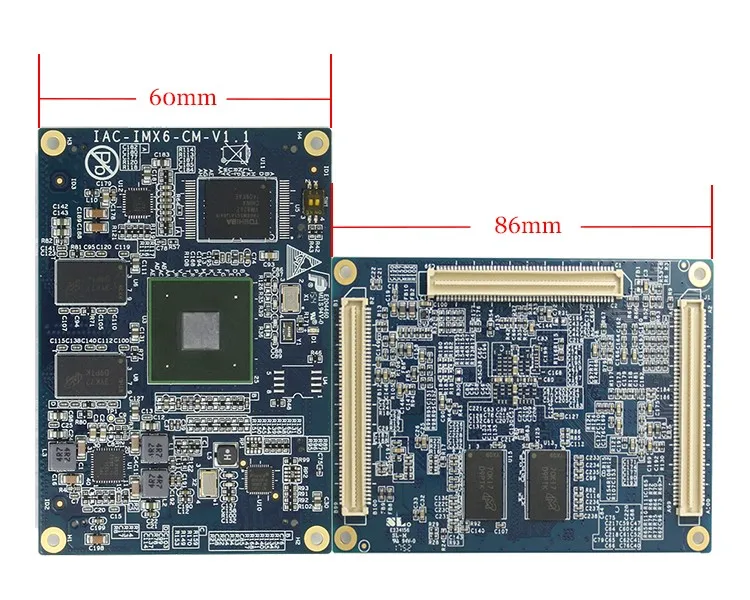

86 x 60x 1.5mm

Working Parameters
Working temperature: -20°C~ 70°C. (Batch order could be customized to -40°C~ 85°C)
Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
5V DC power supply, low power consumption: <1W; Power Management Chipset, support 1.8V/3.3V/5.0V voltage input
Form Factor
System on Module+ Carrier Board


Details Images
