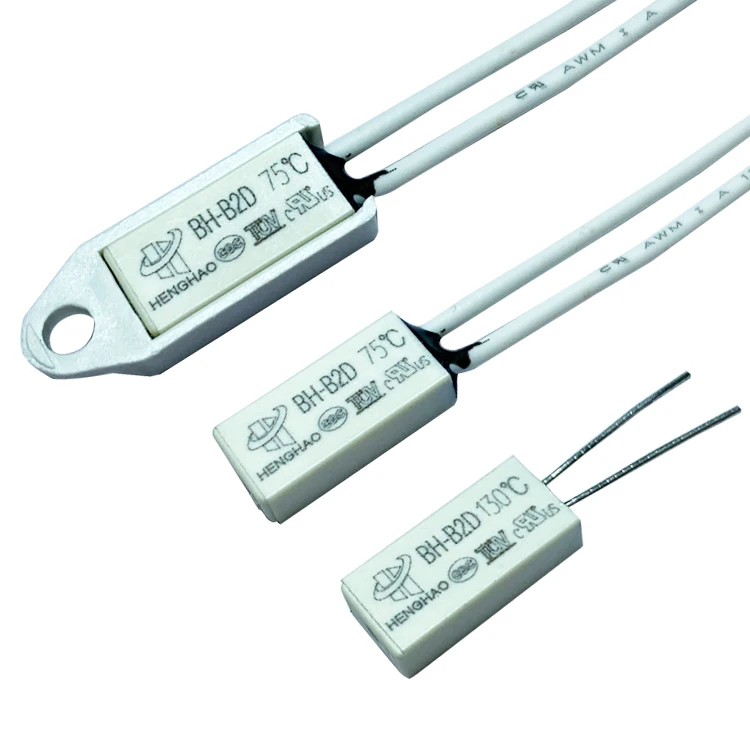

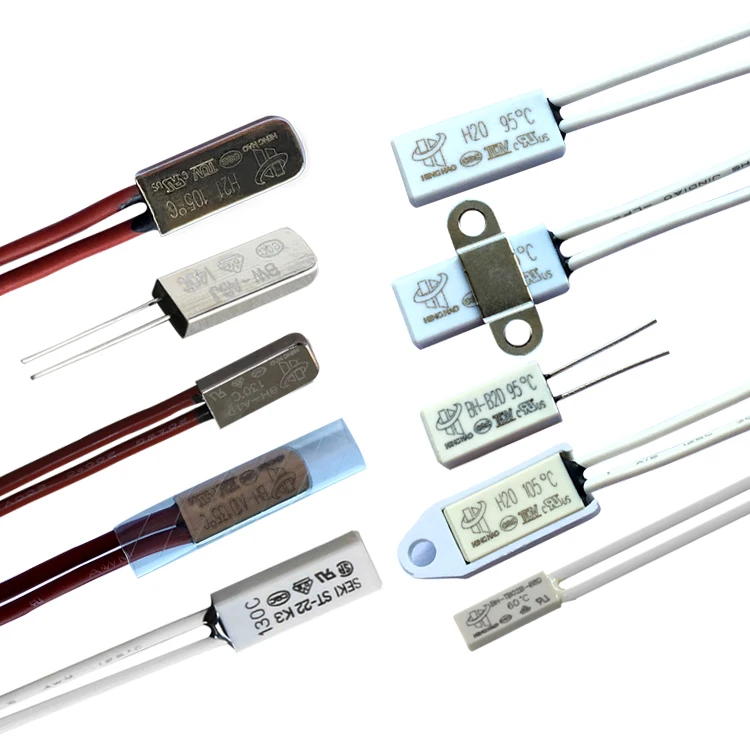

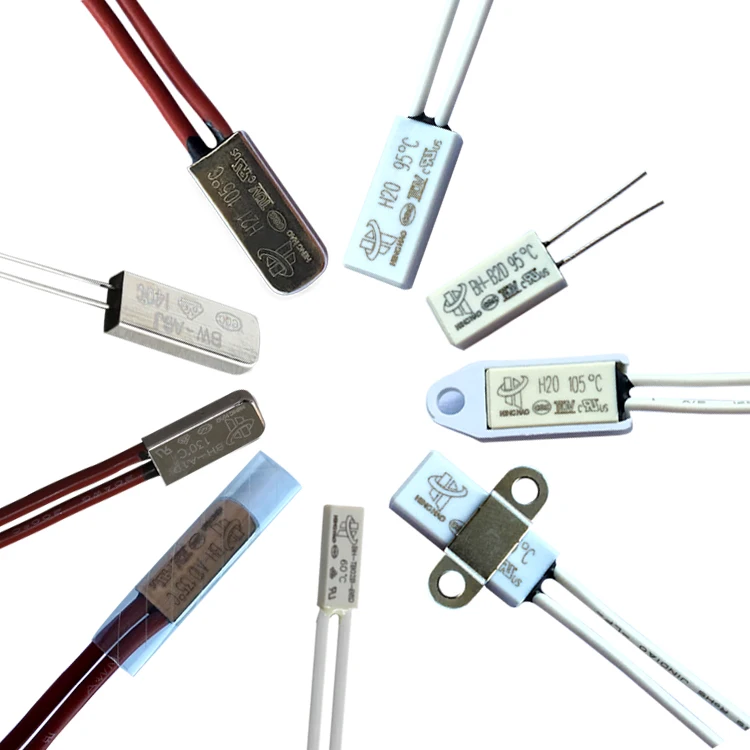

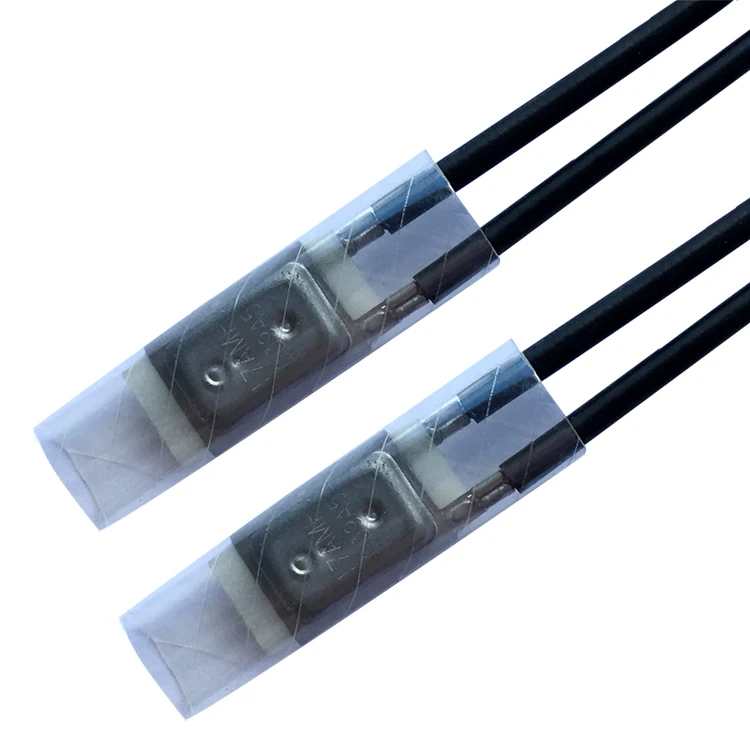

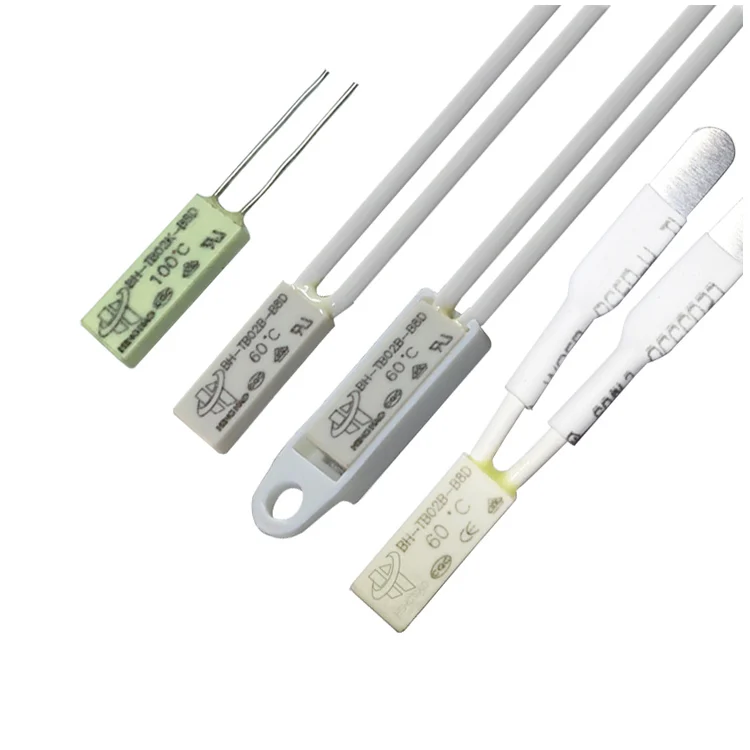

BW AID thermal protector 250V 5A 50 150C temperature thermostat

Product Overview

Description

BW series thermostat / KSD9700 thermal protector / BW9700 temperature protector

1. 1.     BW series thermostat’s Principle and structure

BW serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.

1. 2.     BW series thermal protector’s Specification

2.1.Switch type: normally closed, normally opened.

2.2.Operating Voltage / Current: AC250V / 5A; AC125V / 8A

2.3.Operating Temperature: 40~150℃ (one step for every 5°C)

2.4.Standard Tolerance: +-3°C/ +-5°C/ +-7°C

2.5.Reset temperature: operating temperature decrease by 15-45°C

2.6.Contact Closure resistance: ≤50mΩ

2.7.Insulation resistance: ≥100mΩ

2.8.Electric strength: AC1500V/1min free from phenomena of break down and flashover.

2.9.Service life: 10000 times

1. 3.     BW series thermal protector’s Dimension

Model	Length	width	High
BW9700	20	7.3	3.8



1. 4.     BW series temperature protector’s Application

BW series is applicable to chargeable battery, ballast, massager, motor,transformer, electric tools, heat electric appliance and instrument etc.



Code	Open temperature	Reset temperature	Code	Open Temperature	Reset Temperature
045	45+-4.5℃	≥33℃	105	105+-5℃	75+-15℃
050	50+-5℃	≥35℃	110	110+-5℃	75+-15℃
055	55+-5℃	42+-6℃	115	115+-5℃	80+-15℃
060	60+-5℃	45+-8℃	120	120+-5℃	85+-15℃
065	65+-5℃	48+-10℃	125	125+-5℃	85+-15℃
070	70+-5℃	50+-12℃	130	130+-5℃	90+-15℃
075	75+-5℃	53+-14℃	135	135+-5℃	95+-15℃
080	80+-5℃	55+-15℃	140	140+-5℃	100+-15℃
085	85+-5℃	60+-15℃	145	145+-5℃	100+-15℃
090	90+-5℃	65+-15℃	150	150+-5℃	105+-15℃
095	95+-5℃	70+-15℃	155	155+-5℃	110+-15℃
100	100+-5℃	70+-15℃



The product UL,CQC,VDE and RoHS certification approval.
