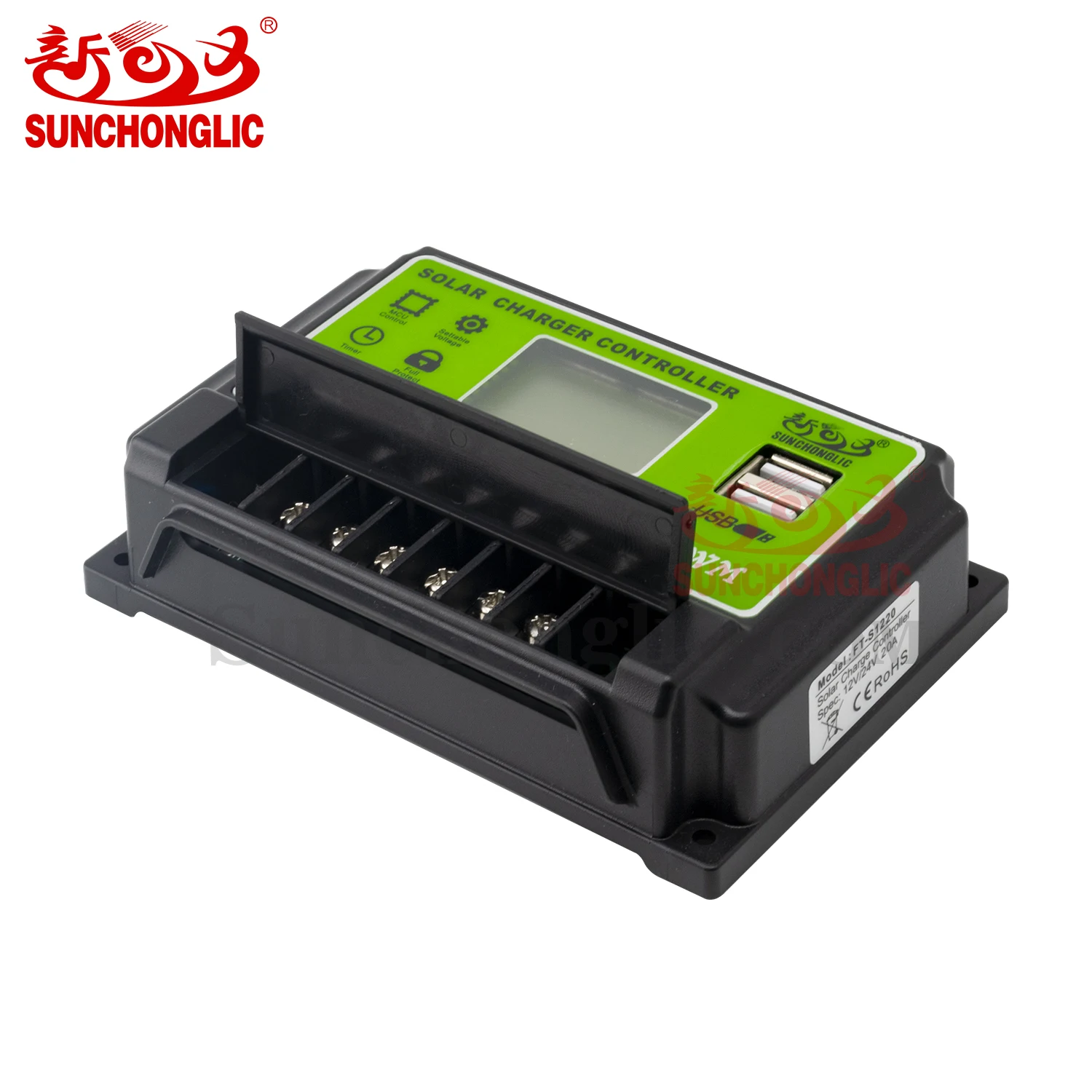

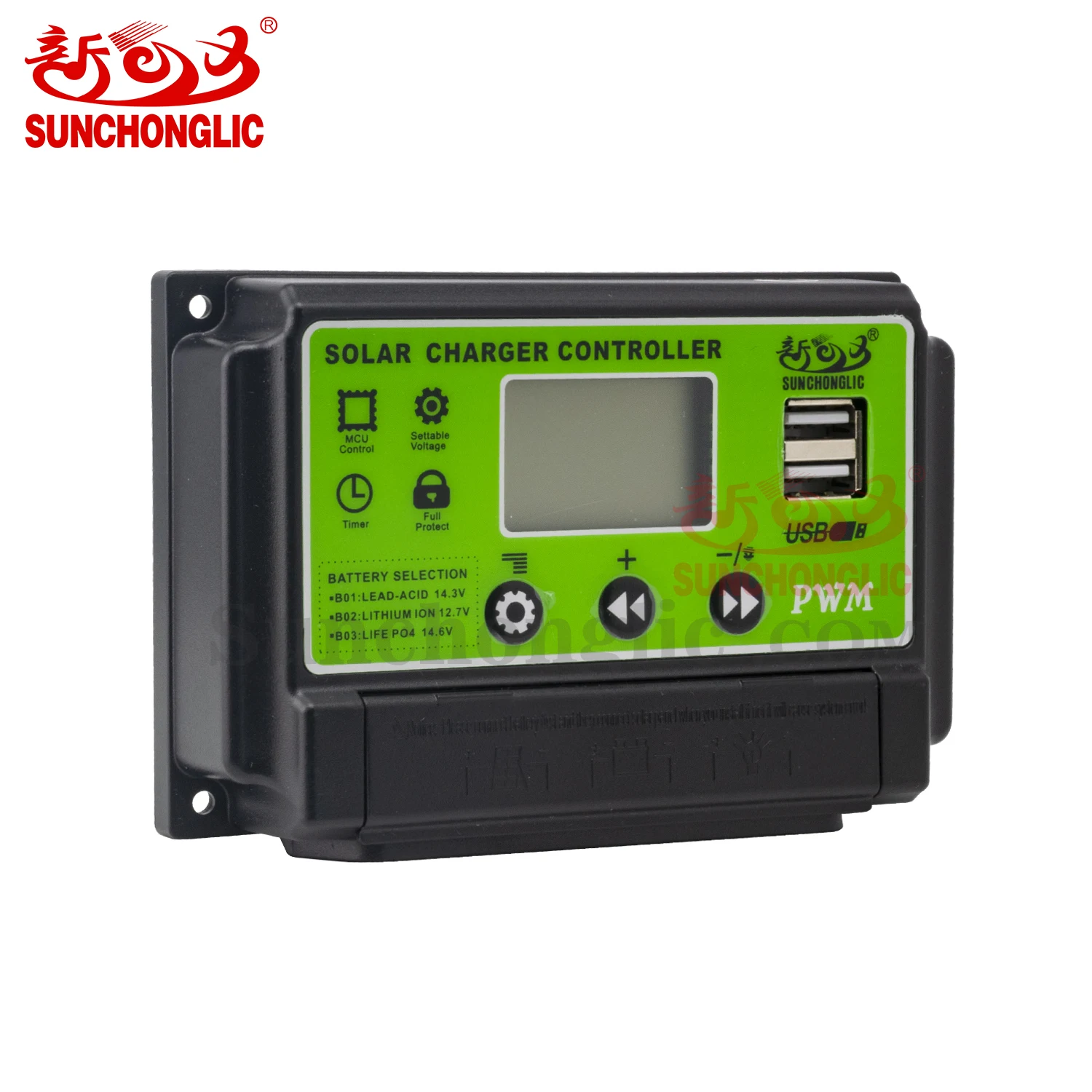

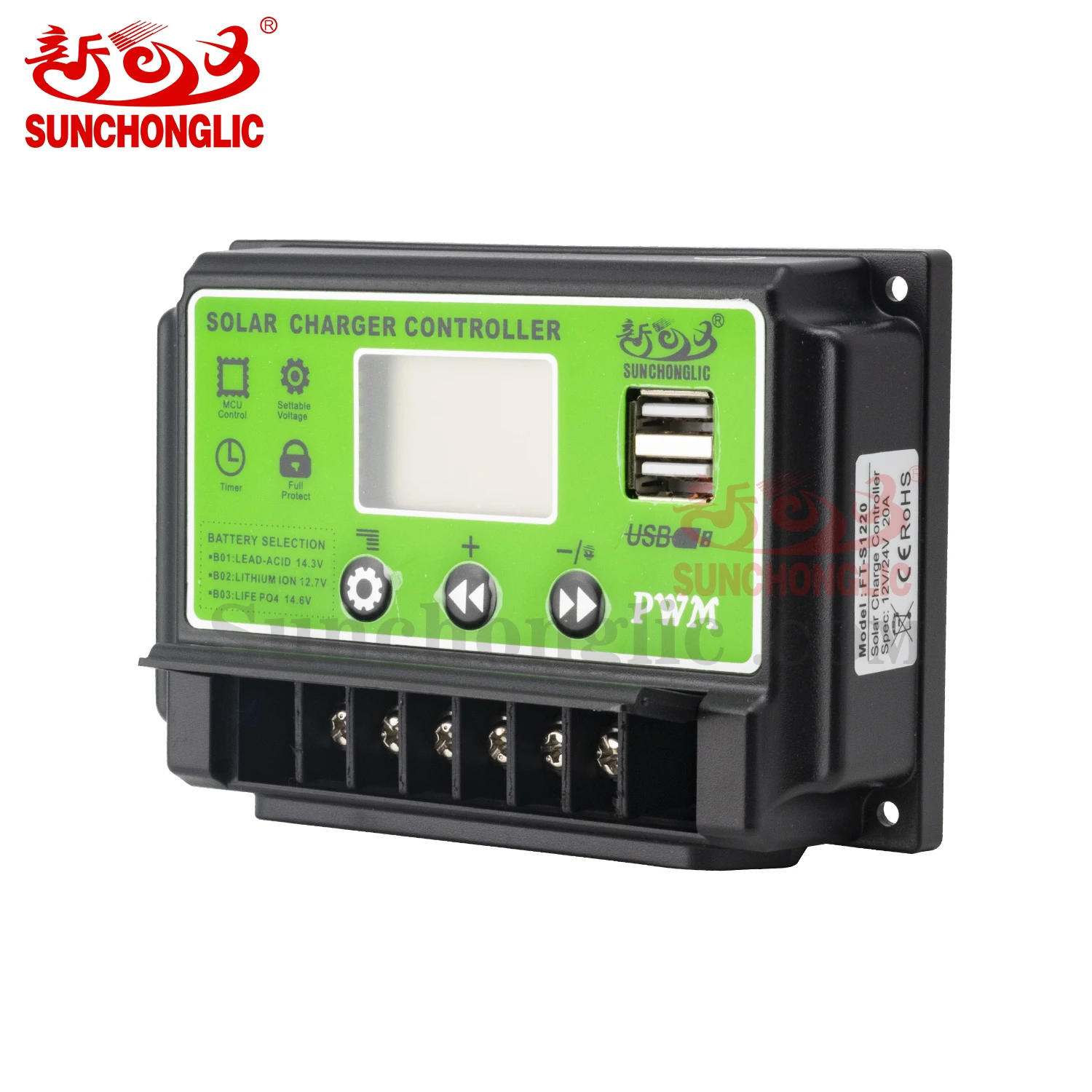

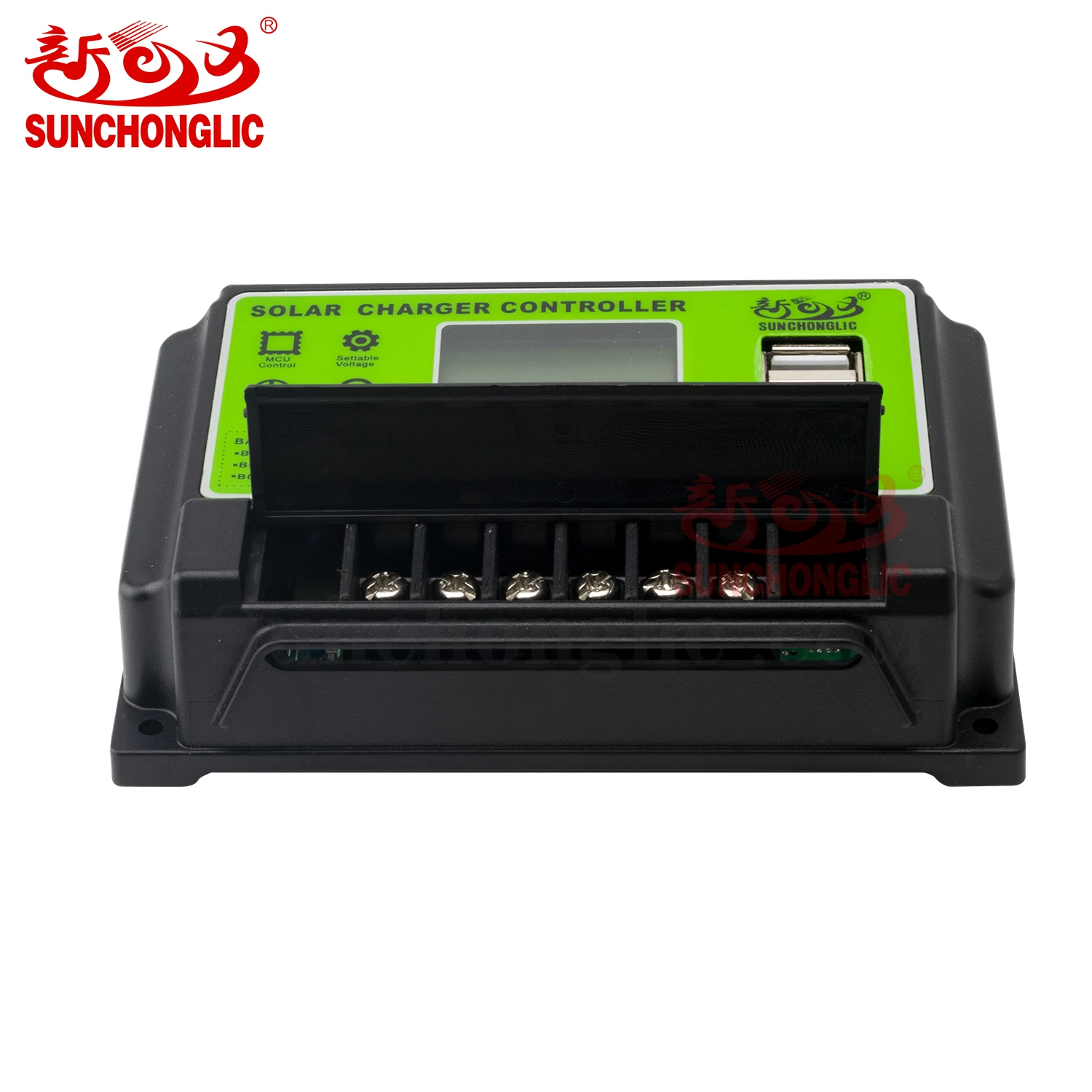

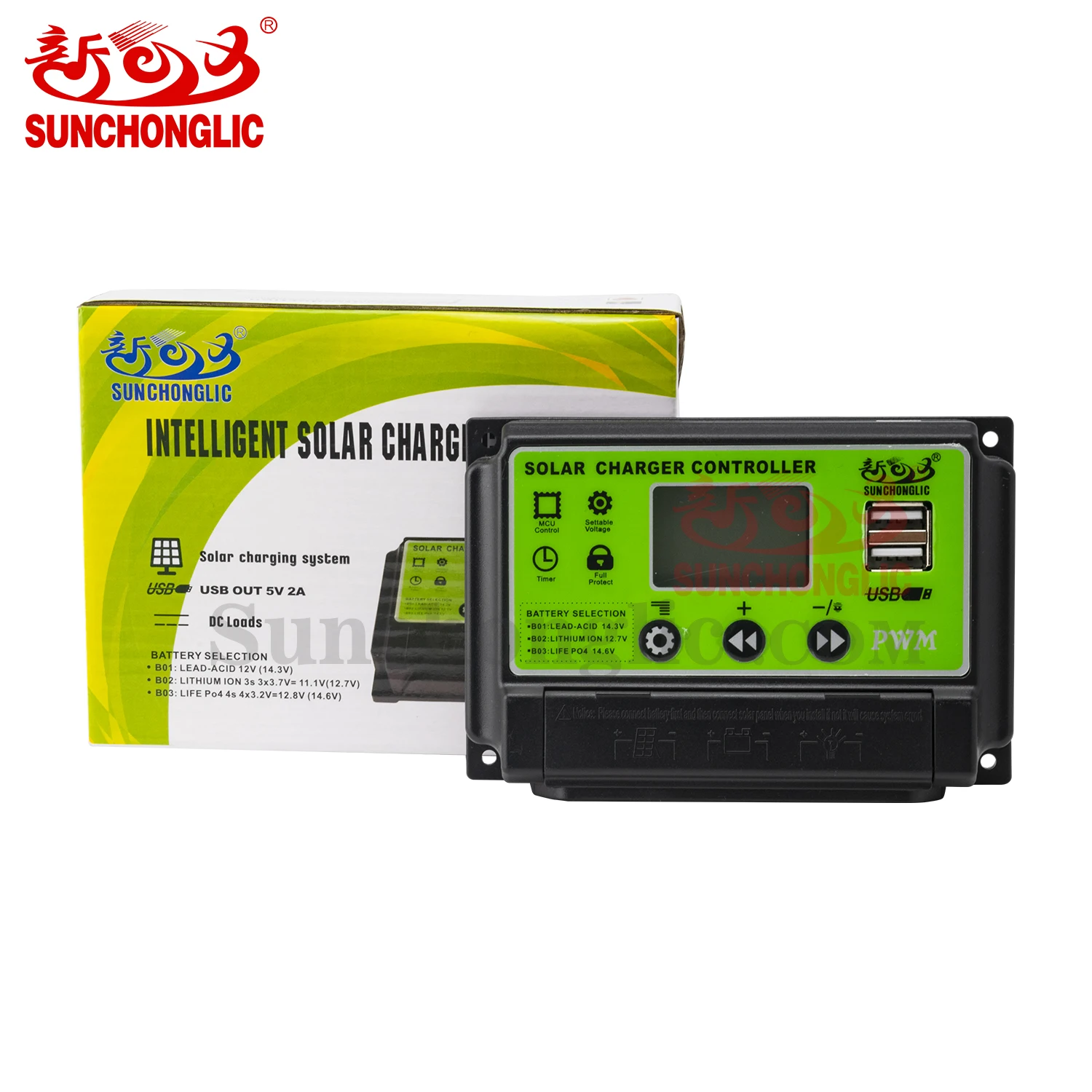

Sunchonglic solar controller regulator 12V 24V 20A PWM solar controller charger
- Category: >>>
- Supplier: Foshan Sunchonglic Electric Appliance Co. Ltd.
Share on (1600448977797):
Product Overview
Description
Sunchonglic solar controller regulator 12V 24V 20A PWM solar controller charger
Features
♣ Features of 12V/24V 20A PWM Solar Charge Controller
1. Applicable for 3 types of batteries:
B01 Lead acid batttery
B02 Lithium ion battery
B03 Lithium iron phosphate battery
2. Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings.
3. Large-screen LCD display.
4. Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)
5. Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection.
6. Double MOS tube anti-reverse circuit protection, which prevents battery current from flowing back to the solar cell at night to cause power loss.
| Product Specification | |||
| Model | FT-S1210 | FT-S1220 | FT-S1230 |
| System Voltage | 12V/24V | ||
| Maximum input voltage | <50V | ||
| Rated current | 10A | 20A | 30A |
| External 12V battery recommended solar panel specifications | 100-150W/18V | 200-300W/18V | 300-450W/18V |
| External 24V battery recommended solar panel specifications | 100-150W/36V | 200-300W/36V | 300-450W/36V |
| External battery | 12V 100-150Ah | ||
| 24V 100-150Ah | |||
| Battery Type | B01=Lead Acid Battery 12V | ||
| B02=Lithium-ion battery 3 series 3.7V=11.1V | |||
| B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V | |||
| Charging voltage | 14.3V(B01) | 12.6V(B02) | 14.6V(B03) |
| Low-voltage cut off voltage | 10.7V(B01) | 9V(B02) | 10V(B03) |
| Low power recovery voltage | 12.6V(B01) | 10.5V(B02) | 12V(B03) |
| USB Output | 5V/2A | ||
| Standby current | <10mA | ||
| Working temperatue | -35℃~+60℃ | ||
| Size / Weight | 125*86*34mm/200g | ||
More Hot Sale Items
We are factory manufacturer of High/Low hybrid solar inverter, Power inverter, AGM/GEL Battery Charger and Solar Charge Controller.
Click the picture into our home page to view more our hot sale items!
(If you have any questions,please feel free to inquiry us! We are service at any time!)

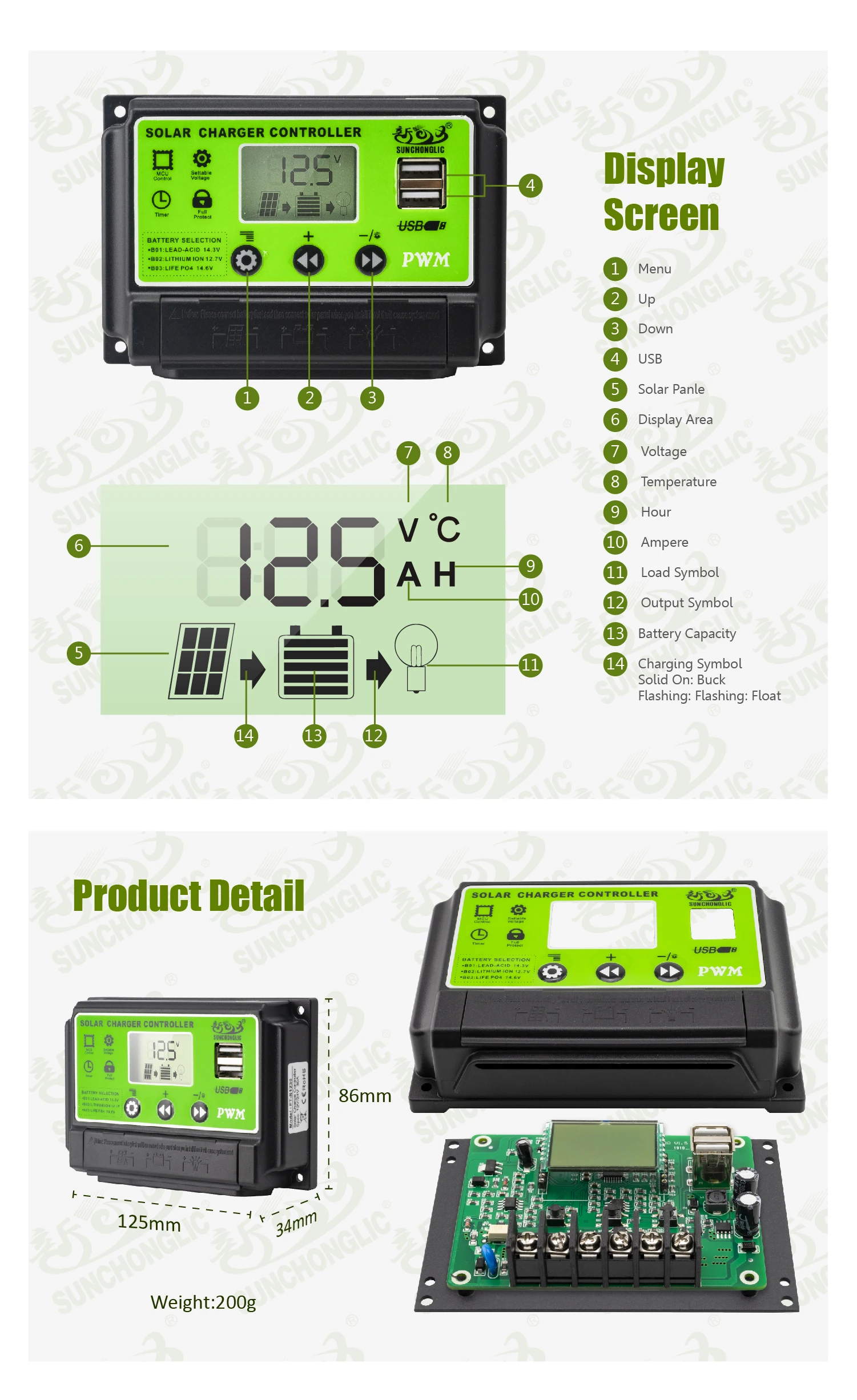

Product Details

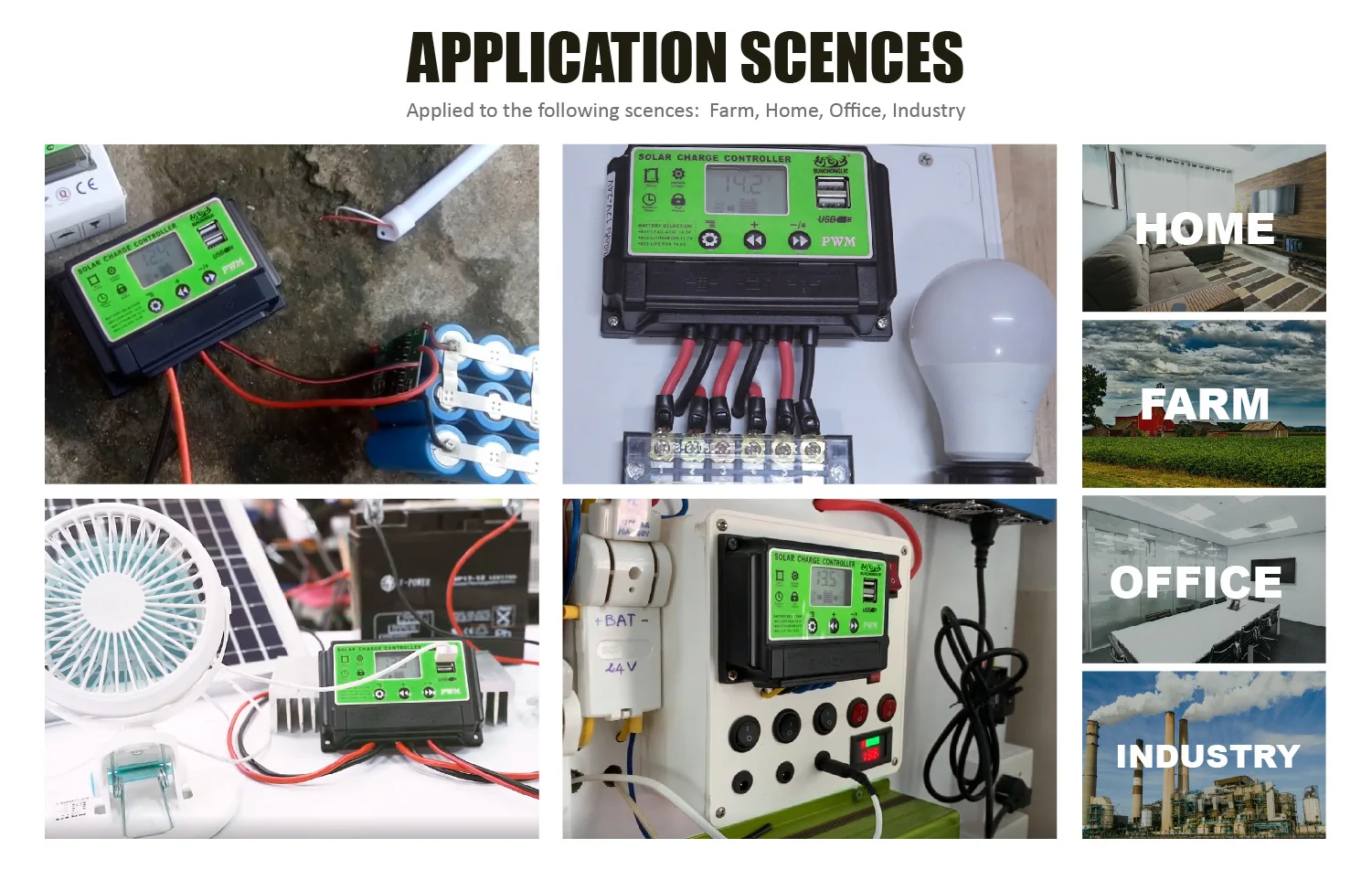

Application

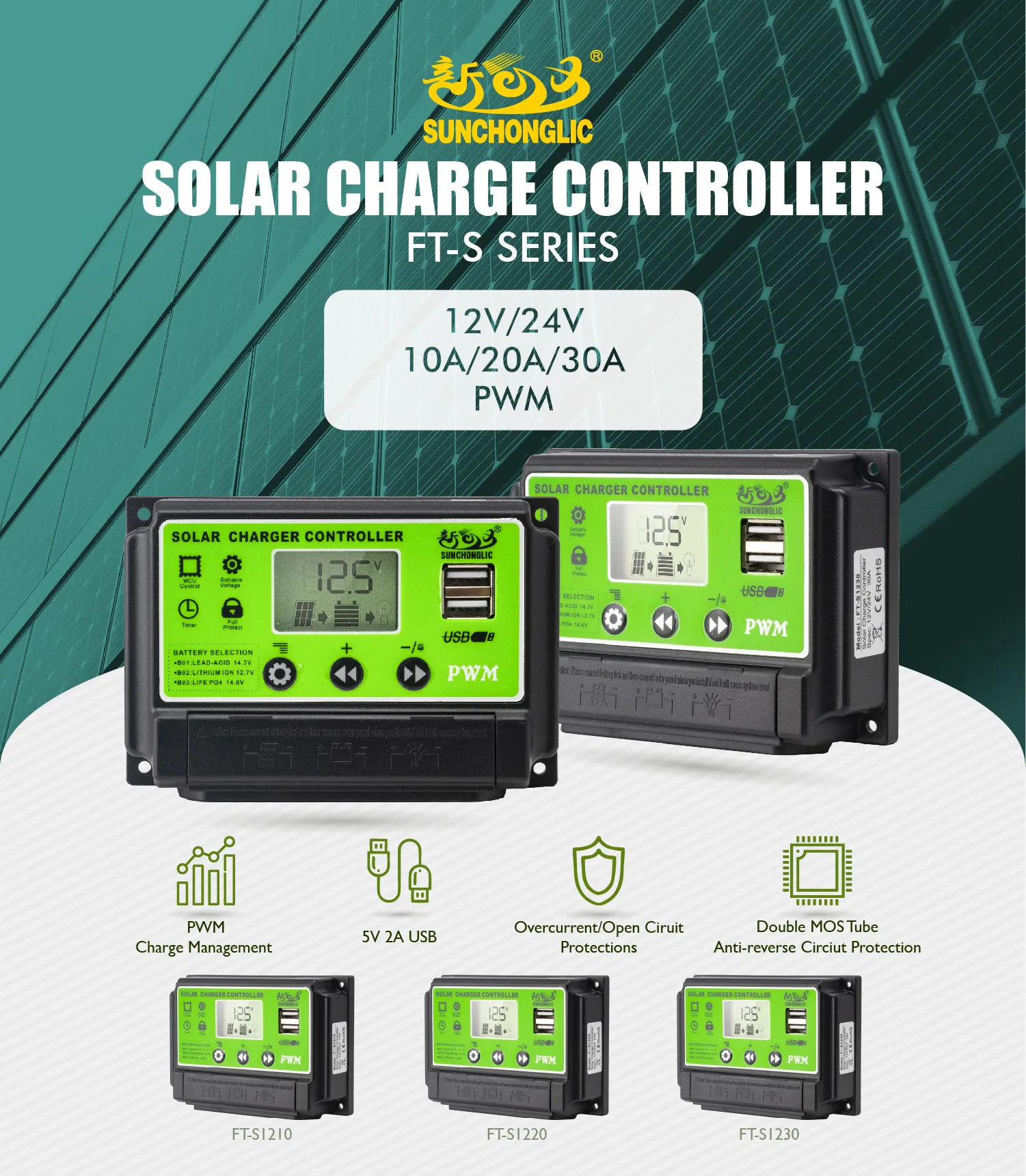

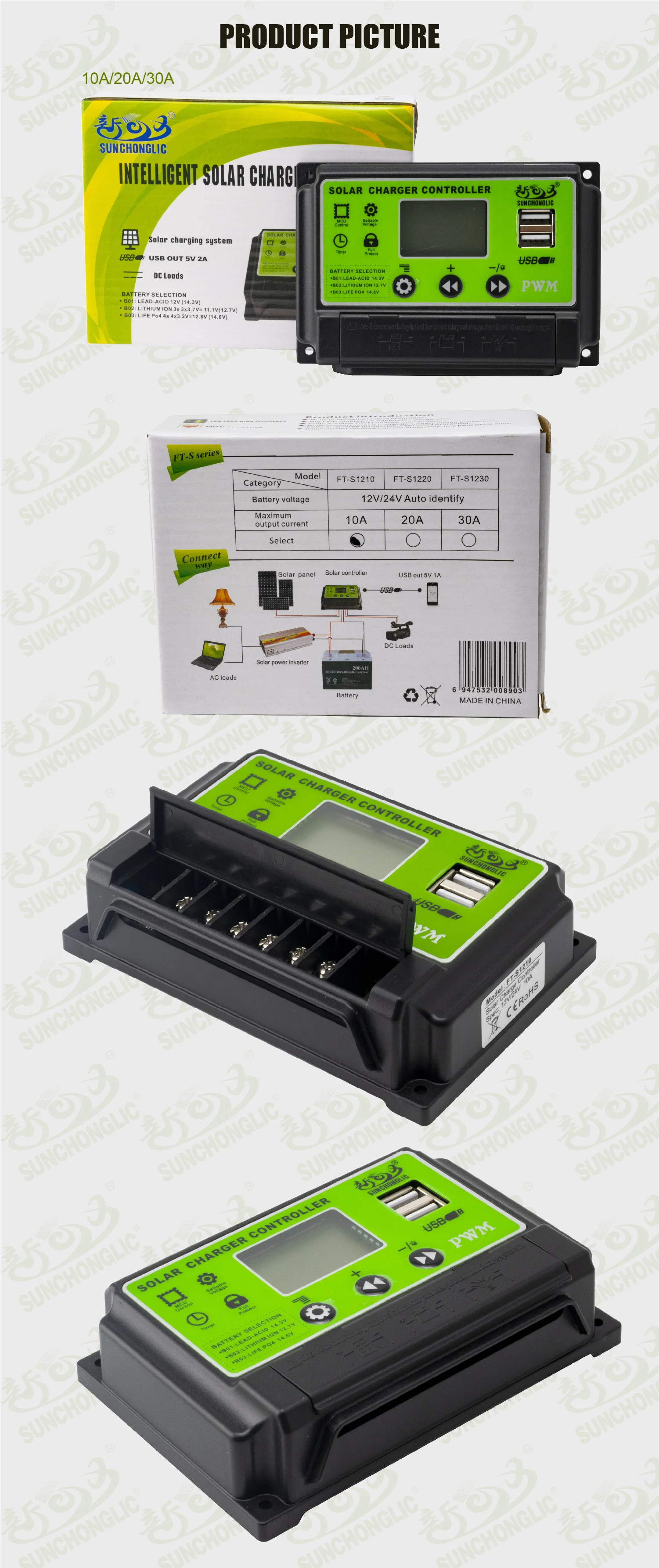

Product Show

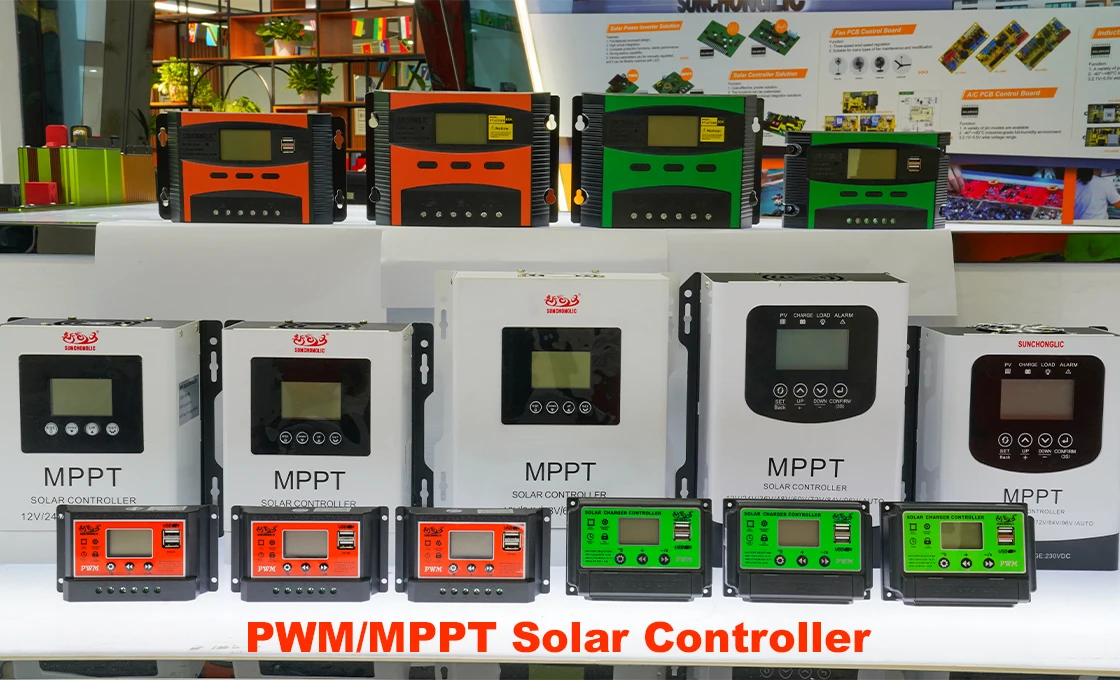

Company Information
FAQ
Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.
Our products are widely recognized and trusted by our clients and can meet continuously
changing economic and social needs.
We would sincerely welcome new and old customers from over the world to visit and
contact us for future business relationships and mutual success!
