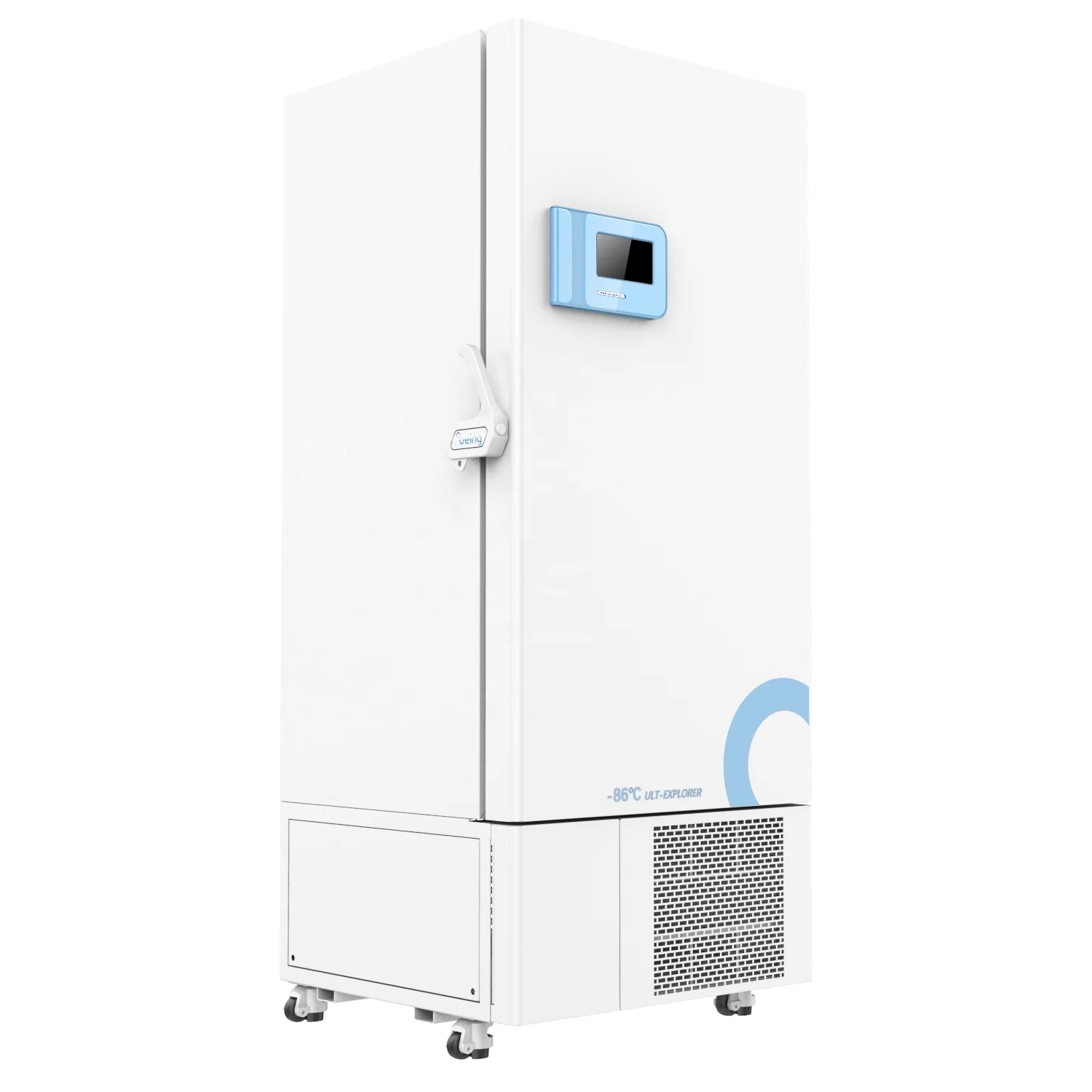

Laboratory refrigeration equipments lab medic ultra low temperature upright deep chemical storage freezer vaccine refrigerator
- Category: >>>
- Supplier: BEING TECHNOLOGY CO. LTD
Share on (1600449012987):
Product Overview
Description
Application
● Offers optimal temperature conditions that needed in the medical and laboratory fields.
● Suitable for scientific research institutes, metal processing, biological engineering, blood stations, hospitals, health and epidemic prevention systems, university laboratories, military enterprises, etc.
● Suitable for scientific research institutes, metal processing, biological engineering, blood stations, hospitals, health and epidemic prevention systems, university laboratories, military enterprises, etc.
FEATURES AT A GLANCE
Technical Features
● The frame consists of white coated antibacterial sheet steel, to ensure durable and corrosion resistant.
● Freezer inner side is made of SS304, allowing the perfect and easy cleaning.
● Easily to install or uninstall shelves, and the height of shelves can be adjusted in order to fit different size storage.
● 126mm Non HCFC polyurethane insulation foam, independent inner door and multi-layer sealing gasket can minimize the loss of refrigeration capacity.
● Fixable castors are designed for easily relocation.
● User friendly touch screen offers at a glance any control and command function, also allowing a quick access to any recorded data and working status.
● Already passed CE and RoHS certification.
● Freezer inner side is made of SS304, allowing the perfect and easy cleaning.
● Easily to install or uninstall shelves, and the height of shelves can be adjusted in order to fit different size storage.
● 126mm Non HCFC polyurethane insulation foam, independent inner door and multi-layer sealing gasket can minimize the loss of refrigeration capacity.
● Fixable castors are designed for easily relocation.
● User friendly touch screen offers at a glance any control and command function, also allowing a quick access to any recorded data and working status.
● Already passed CE and RoHS certification.

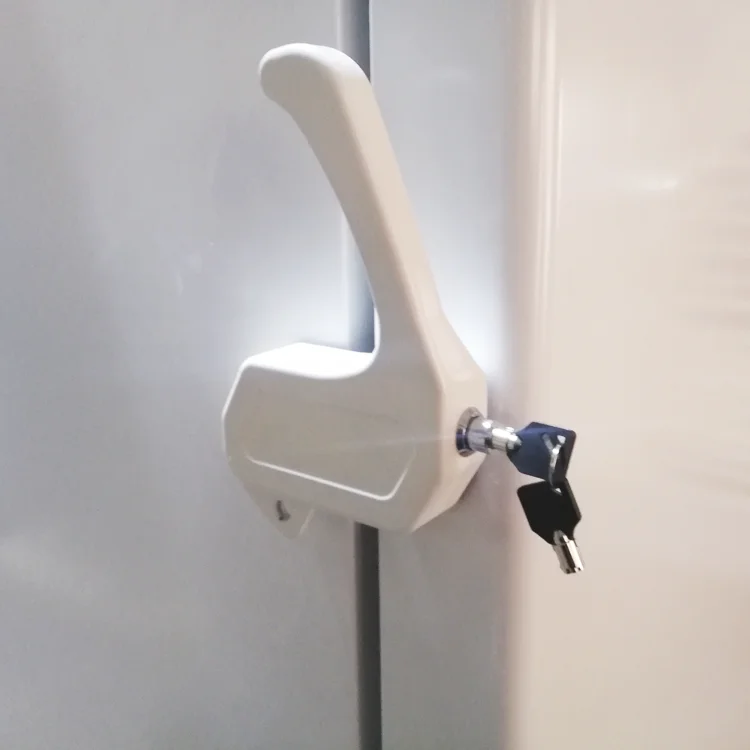

Single hand openable handle, with
mechanical lock and padlock hole
mechanical lock and padlock hole

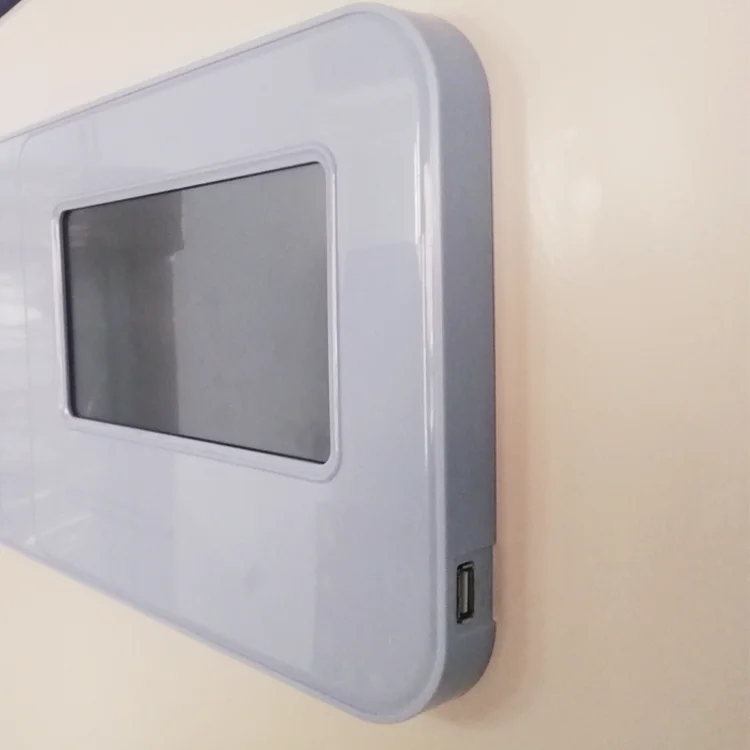

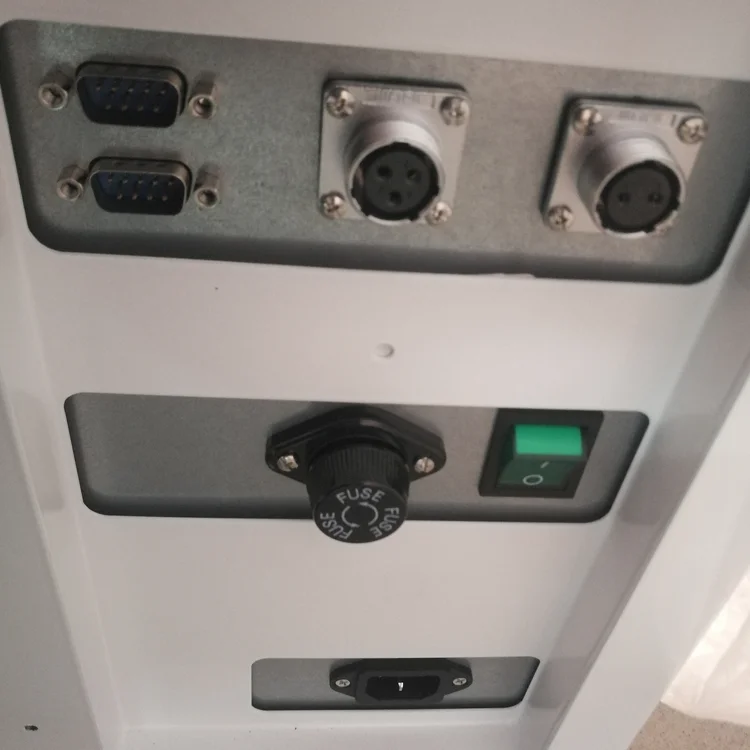

7” user friendly touch screen, Side
USB port for data downloading, Vent
port used to balance differential
pressure
USB port for data downloading, Vent
port used to balance differential
pressure

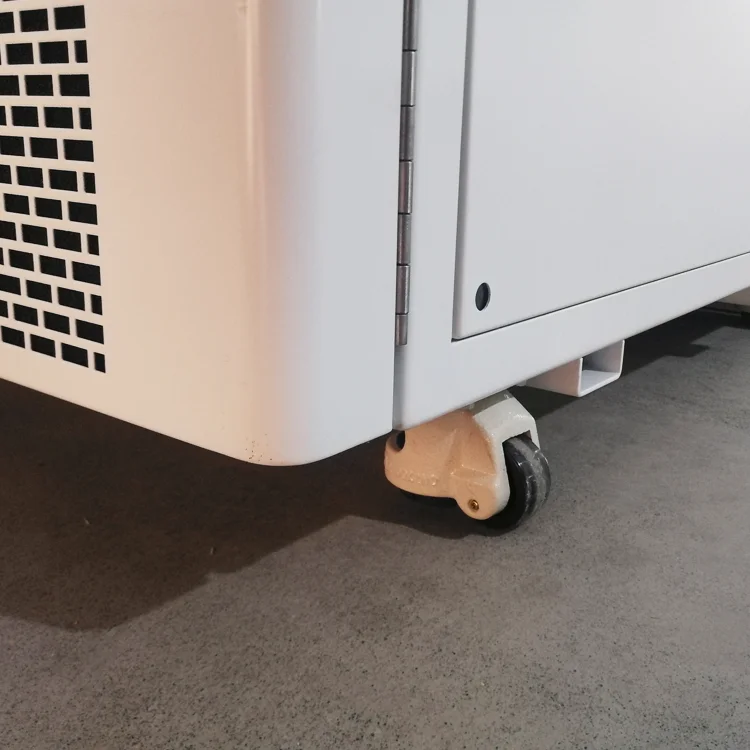

Adjustable caster
Temperature senor :
Fixed Temperature senor position to
ensure accuracy ;protection box to
ensure the distancebetween sample and temperature sensor.
ensure accuracy ;protection box to
ensure the distancebetween sample and temperature sensor.
Racks:
Proper size racks to maximize space usage.
Proper size racks to maximize space usage.
Shelves:
Adjustable and removable stainless
steel shelves easy for setting different
samples and clean the chamber; max. load 50Kg each
Adjustable and removable stainless
steel shelves easy for setting different
samples and clean the chamber; max. load 50Kg each
PRODUCT SPECIFICATIONS
Model | BDW-86L390 | BDW-86L490 | BDW-86L650 | BDW-86L770 | |||
Temperature range 〔℃〕 | -50 - -86 | 37.5KW | |||||
Nominal capacity 〔Liters〕 | 390 | 490 | 650 | 770 | |||
Exterior dimensions 〔mm〕W x D x H | 909 x 797 x 1990 | 909 x 929 x 1990 | 1091 x 929 x 1990 | 1091 x 1053 x 1990 | |||
Interior dimensions 〔mm〕W1 x D1 x H1 | 589 x 505 x 1310 | 589 x 637 x 1310 | 780 x 637 x 1310 | 780 x 760 x 1310 | |||
Door opening 〔mm〕W2 x H2 | 589 x 1310 | 589 x 1310 | 780 x 1310 | 780 x 1310 | |||
Insulation thickness 〔mm〕 | 126 | 60kN | |||||
Exterior finishing | White plastic coated galvanised steel | 6750ml | |||||
Inner door | 4 | ||||||
4 Shelves | 3 | ||||||
Levels | 4 | ||||||
Interior finishing | Stainless steel | 500N.m | |||||
Racks〔boxes〕 | 16（240） | 16（320） | 20（400） | 20（500） | |||
Ring latch hole | Yes | ||||||
Mechanical lock | Yes | ||||||
Data logger | Yes | ||||||
Battery | Yes | ||||||
Interior chamber temperature probe | Yes | ||||||
Vent port | Yes | ||||||
Gasket heating | Yes | ||||||
Controller type | Touch screen | ||||||
Refrigerant type | Non HCFC | ||||||
Voltage/Frequency〔V / Hz〕 | AC220 / 50 | ||||||
Power〔W） | 1500 | 1800 | |||||
Net Weight 〔kg〕 | 318 | 332 | 410 | 490 | |||
High condenser temperature alarm | Yes | ||||||
Power failure alarm | Yes | ||||||
Temperature sensor failure alarm | Yes | ||||||
Low battery alarm | Yes | ||||||
High / Low temperature alarm | Yes | ||||||
Door open alarm | Yes | ||||||
Sound pressure〔dB〕 | ≤ 53 | ||||||
Cooling time〔h〕 | ≤ 6 | ≤ 8 | |||||
Temperature uniformity〔℃〕 | ≤ 6 | ||||||
Certification | CE / RoHS | ||||||
Company Profile
We BEING is one of the global providers of medical & experiment devices and solutions. By the end of 2019, there were about 600,000 sets of BEING products delivered all over the world.BEING Instrument's mission is to provide researchers,developers,engineers and doctors globally with innovative and reliable solutions. With over 23 years' experience engineering and manufacturing, along with the commitment to invest 15% of revenue in R&D yearly, BEING always provides advanced and high quality products.
Located in Kunshan city, Jiangsu province, our main factory has more than 50,000 sq. meters with over 80,000 annual output. BEING conforms to ISO9001/ ISO13485 standards, and our products are certified by CE,UL/ETL and GB.
Located in Kunshan city, Jiangsu province, our main factory has more than 50,000 sq. meters with over 80,000 annual output. BEING conforms to ISO9001/ ISO13485 standards, and our products are certified by CE,UL/ETL and GB.
Certifications
Exhibition

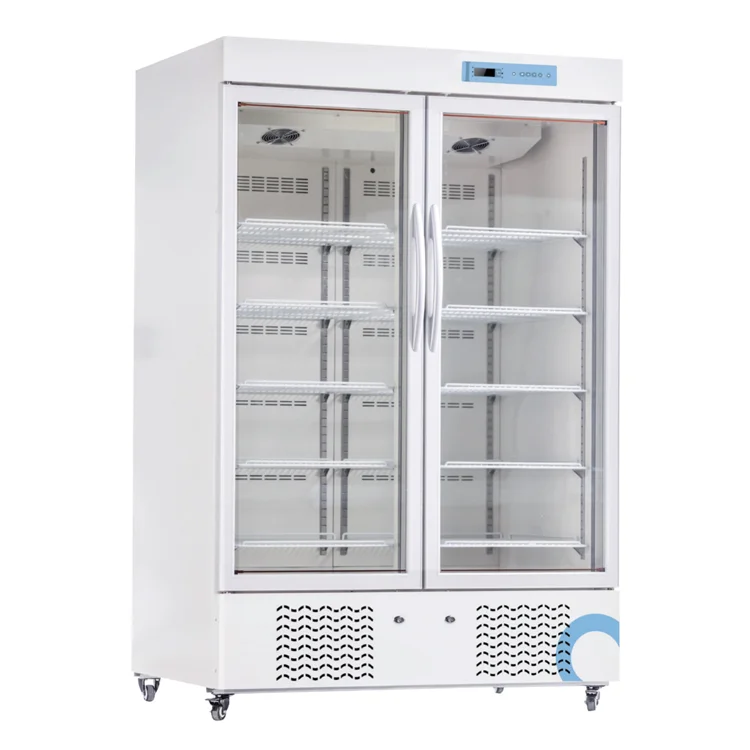

SIMILAR PRODUCTS
