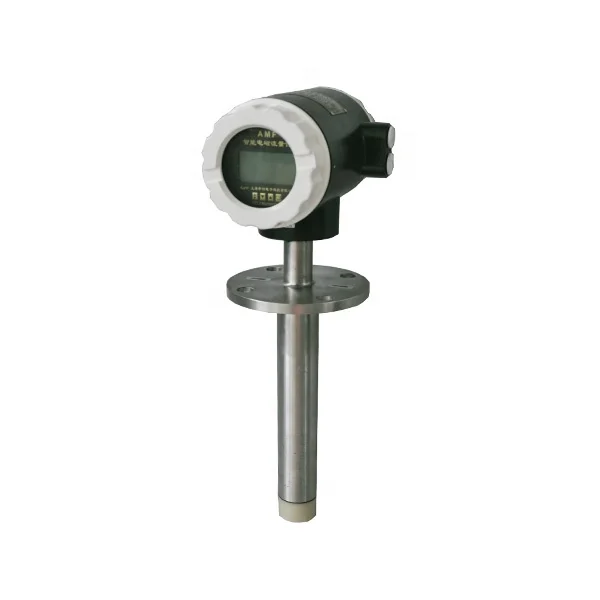

hot selling endress hauser flowmeter for water field
- Category: >>>
- Supplier: Shanghai Anjun Industrial Co. Ltd.
Share on (1600449123738):
Product Overview
Description
Product Description
Material | Carbon steel |
Accuracy | ±0.5% |
Application | Liquid |
Normal diameter | DN10-DN3000 |
Electrode material | 316L/HC/Ti/Ta/Pt |
Lining material | Rubber/PTFE/F46/PFA |
Power supply | 220VAC/24VDC/battery |
Signal output | Pulse/4-20mA |
Protection class | IP65/IP67/IP68 |
Connection | Flange/thread/clamping |
Applications
1 | Oil & Gas industry |
2 | Power industry |
3 | Chemical industry |
4 | Metallurgical industry |
5 | Pulp and paper industry |
6 | Food & Pharmaceutical industry |
7 | Environmental protection |
8 | Other industry |
Technical specifications
Nominal Diameter | DN3 ~ DN3000 |
Nominal Pressure | DIN PN0.6 ~ 40Mpa,ANSI CL150-2500,JIS 10K,20K,30K |
Accuracy | 0.2% 0.5% |
Repeatability | 0.15% |
Ambient Temperature | -25 ~ +60 Celsius Degree |
Working Temperature | <250 Celsius Degree |
Power Supply | 220V AC, 24V DC, 12V DC, Battery Powered |
Protection | IP65, IP67, IP68 |
Ex-proof | Exdeib BT4 |
Communication | RS-485, HART |
Display | LED display |
Alarm | Upper and lower alarm |
Output Signal | 4~20mA, Frequency, Pulse |
Features:
Unobstructed flow passage without projecting parts
No moving parts
No additional pressure drop
Essentially flow profile insensitive, only short inlet and outlet sections required
Unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity
Favorable choice of material of chemically aggressive or abrasive measuring media
Especially suitable for hydraulic solids transport
Linear relationship between flow rate and measured variable
Operates in both flow directions (forward and reverse)
Measuring range setting can be optimized
Low maintenance, but still easy to maintain
Unobstructed flow passage without projecting parts
No moving parts
No additional pressure drop
Essentially flow profile insensitive, only short inlet and outlet sections required
Unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity
Favorable choice of material of chemically aggressive or abrasive measuring media
Especially suitable for hydraulic solids transport
Linear relationship between flow rate and measured variable
Operates in both flow directions (forward and reverse)
Measuring range setting can be optimized
Low maintenance, but still easy to maintain
Specifications:
LCD Display
High Accuracy: +/-0.2% (Customize), +/-0.5% (Standard)
Temperature of Measured Liquid: <80°C (Rubber), <180°C (PTFE), <60°C (PUR), <260°C (PFA)
Pressure of Measured Liquid: 0.6~40MPa
Ambient Temperature:-25°C~+60°C
Power Supply: 220V AC, 24V DC, Built-in Battery (Working Life:3~5 years)
Protection Grade:IP65, IP67, IP68
Connection: Flange, Clamp on, Thread
Ex-Proof Marks: Exde I b II BT4
Communication Agreement: RS-485, HART
Data can be saved more than 10 years when there is no electricity
LCD Display
High Accuracy: +/-0.2% (Customize), +/-0.5% (Standard)
Temperature of Measured Liquid: <80°C (Rubber), <180°C (PTFE), <60°C (PUR), <260°C (PFA)
Pressure of Measured Liquid: 0.6~40MPa
Ambient Temperature:-25°C~+60°C
Power Supply: 220V AC, 24V DC, Built-in Battery (Working Life:3~5 years)
Protection Grade:IP65, IP67, IP68
Connection: Flange, Clamp on, Thread
Ex-Proof Marks: Exde I b II BT4
Communication Agreement: RS-485, HART
Data can be saved more than 10 years when there is no electricity
Model and suffix code
Code | Description | |
AMF | Standard | |
AMF/W | Sanitation | |
AMF/EX | Ex-Proof | |
AMF/C | Insertion | |
AMF/J | Flange Clamp On | |
AMF/L | Threaded Connection | |
Normal Diameter | -XXX | -100:DN100, -4:DN4 |
-1 | Standard Fixed | |
2 | Scratcher Electrode | |
0 1 2 3 4 5 | 316L Ti HB HC Ta Pt | |
1 2 4 5 6 | Rubber PUR F4 PFA F46 | |
Rated Pressure | -4.0 | DN10~DN80 |
1.6 | DN100~DN150 | |
1.0 | DN200~DN1000 | |
0.6 | DN1100~DN3000 | |
Ground Electrode | 0 1 2 4 | Without electrode One ground electrode Two ground electrode Four ground electrode |
0 1 2 | IP65 IP68 IP67 | |
0 1 0G 1G | Compact Remote Compact High Frequency Remote High Frequency | |
0 R H | Without Communication RS-485 HART | |
-C F M | Carbon steel SS304 SS316 | |
Install Companion Flange | 0 1 | Without Companion Flange With Companion Flange |
Power Supply | A D E | 220VAC 24V DC Battery Powered |
Product Display
Company Profile
Shanghai Anjun Industrial Co.,Ltd is one of the most professional instrument manufacturers in China, With a registered capital of 20.8 million.
Shanghai Anjun has passed ISO9001:2015 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, and CE international certification.
For the past 18 years. Shanghai Anjun always adhering to brand line and paying attention to creating Anjun brand. Anjun possess three set of calibration equipment, one for gas and two for liquid. The largest pipeline can calibrate to 1m, Anjun have got eight type flow meter's business license, our company have the largest number of business licenses in China. The main products are gas turbine flow meter, liquid turbine flow meters, electromagnetic flow meters, V cone flow meter, balance flow meter, vortex flow meter, thermal mass flow meter, vortex precession flow meter ,ultrasonic flow meter, other series smart flow meters and detector series.
Anjun adheres to the development program called “measurement heartedly to satisfy customers” to provide flow meters with high precision, good stability and high-quality to customers. Thanks to long-term efforts, our products have got preference of a large number of leading enterprises of all kinds of fields. For example: CSIC, China Institute of Coal Science and Technology Changzhou Automation Branch, VOFCO(Fangchenggang branch, Gimhae food and oil, Jiaduobao, Shanghai expo project and Lonking enterprise)
Our commitment are as follows: a reasonable price, excellent quality, fast delivery and all-round pre-sale consultation, sales guidance, after-sales service and providing our clients with products bearing good quality. And at the same time, letting you fully feel convenience and shock the modern industry bring to you. We will continue to explore innovation, pay attention to new product development, make technology and quality perfect to bring more new products for the community We sincerely welcome to all business man of the same industry and people with lofty ideals for a wide range of friendly cooperation to achieve complementary advantages and win-win!
The company is willing to operate as a link and make a lot of friends! We wholeheartedly welcome new and old customers phone, write letters or log in the website: www.anjunsh.com for advice.
Shanghai Anjun has passed ISO9001:2015 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, and CE international certification.
For the past 18 years. Shanghai Anjun always adhering to brand line and paying attention to creating Anjun brand. Anjun possess three set of calibration equipment, one for gas and two for liquid. The largest pipeline can calibrate to 1m, Anjun have got eight type flow meter's business license, our company have the largest number of business licenses in China. The main products are gas turbine flow meter, liquid turbine flow meters, electromagnetic flow meters, V cone flow meter, balance flow meter, vortex flow meter, thermal mass flow meter, vortex precession flow meter ,ultrasonic flow meter, other series smart flow meters and detector series.
Anjun adheres to the development program called “measurement heartedly to satisfy customers” to provide flow meters with high precision, good stability and high-quality to customers. Thanks to long-term efforts, our products have got preference of a large number of leading enterprises of all kinds of fields. For example: CSIC, China Institute of Coal Science and Technology Changzhou Automation Branch, VOFCO(Fangchenggang branch, Gimhae food and oil, Jiaduobao, Shanghai expo project and Lonking enterprise)
Our commitment are as follows: a reasonable price, excellent quality, fast delivery and all-round pre-sale consultation, sales guidance, after-sales service and providing our clients with products bearing good quality. And at the same time, letting you fully feel convenience and shock the modern industry bring to you. We will continue to explore innovation, pay attention to new product development, make technology and quality perfect to bring more new products for the community We sincerely welcome to all business man of the same industry and people with lofty ideals for a wide range of friendly cooperation to achieve complementary advantages and win-win!
The company is willing to operate as a link and make a lot of friends! We wholeheartedly welcome new and old customers phone, write letters or log in the website: www.anjunsh.com for advice.

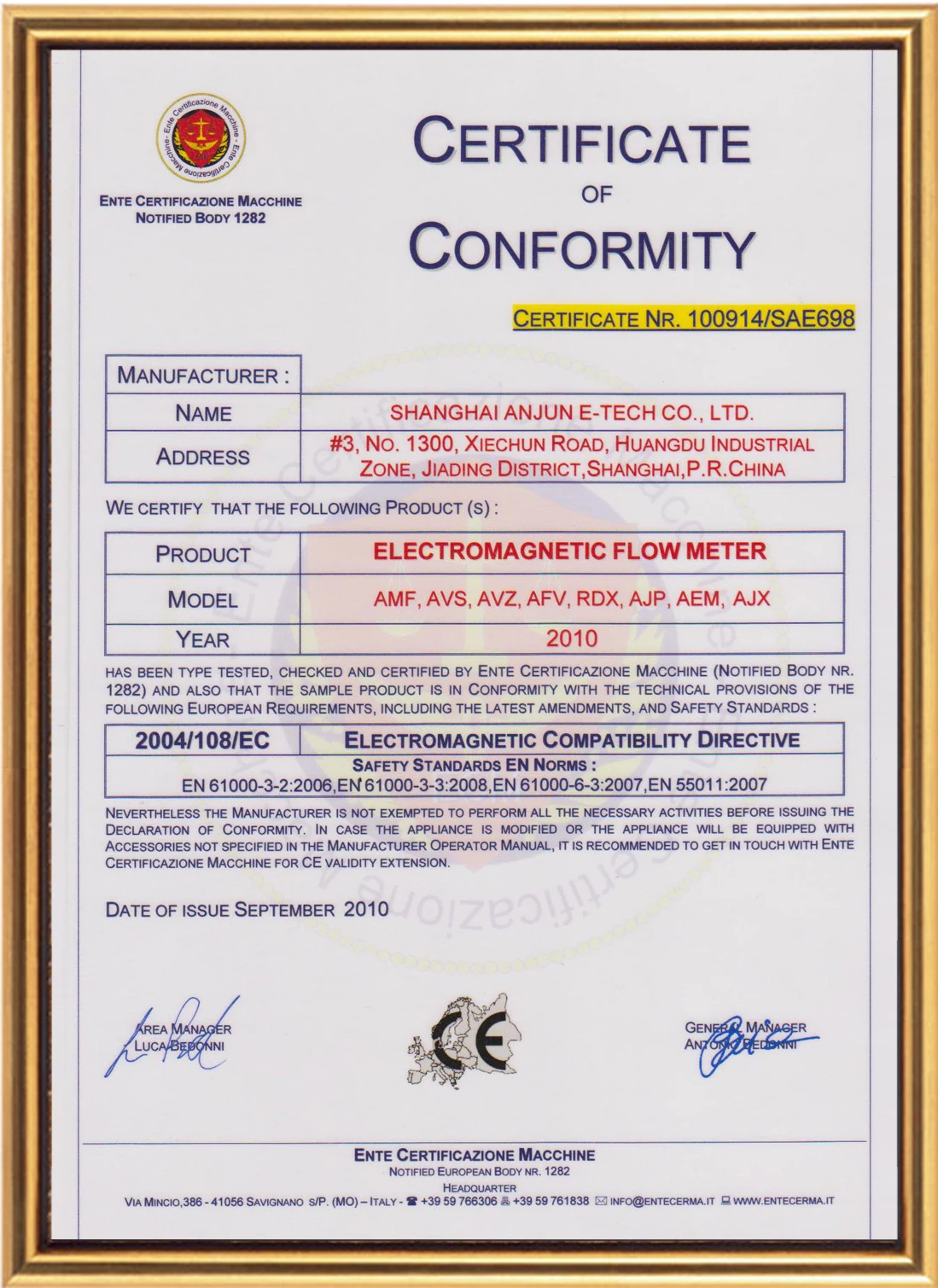

Certifications

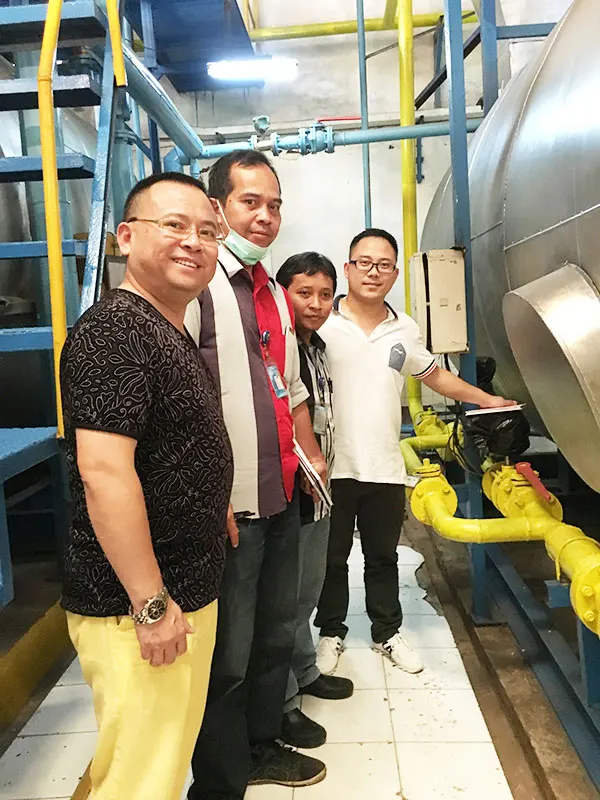

Our Customers

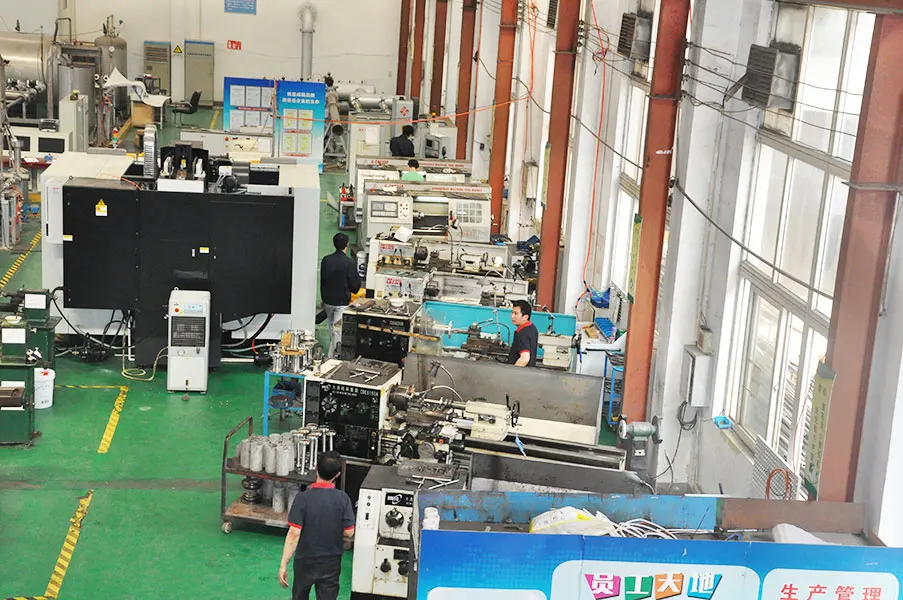

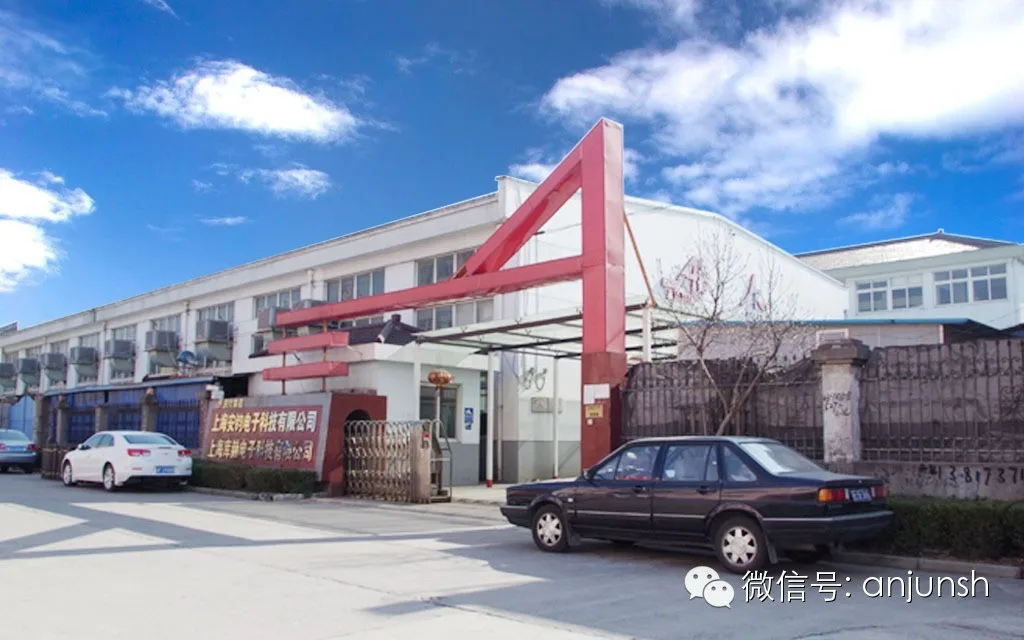

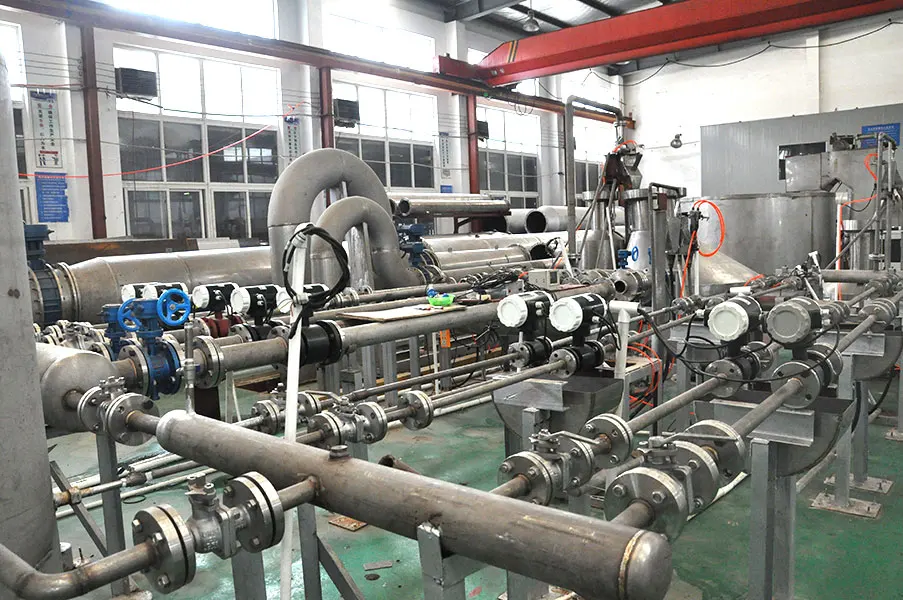

Factory Show
Our Advantage
FAQ
Q1.What’s your advantage? Why we choose you?
A:1)15 Years experience of flow meter production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.OEM sevice is available.
3)We use 100% new materials and the best production process, in consequence our accurancy is high.
Q2.What’s the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union.For large quantity,sea shipping can be provided.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How can I get some samples?
A:We are honored to offer you samples. but you need pay for it
A:1)15 Years experience of flow meter production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.OEM sevice is available.
3)We use 100% new materials and the best production process, in consequence our accurancy is high.
Q2.What’s the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union.For large quantity,sea shipping can be provided.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How can I get some samples?
A:We are honored to offer you samples. but you need pay for it
