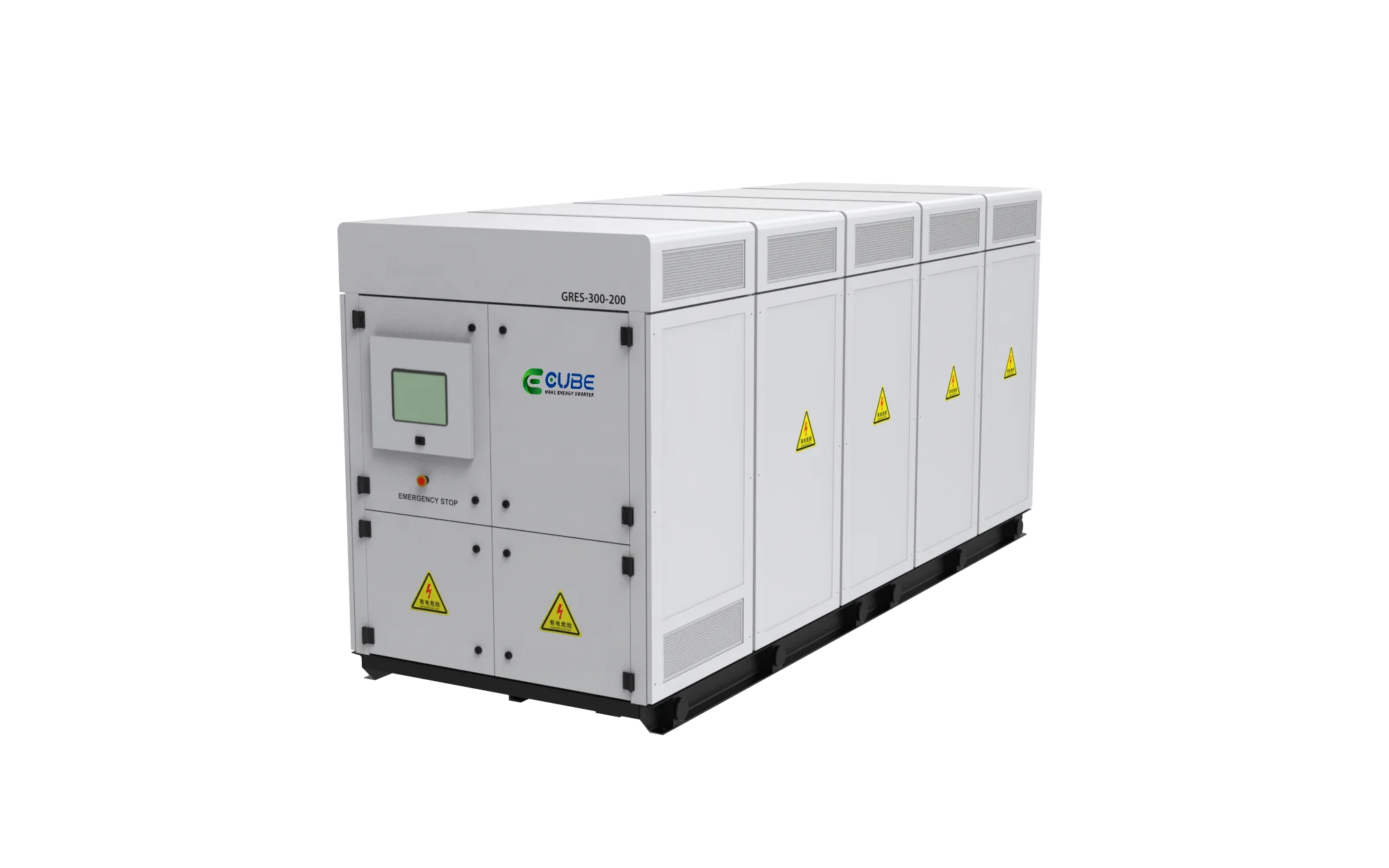

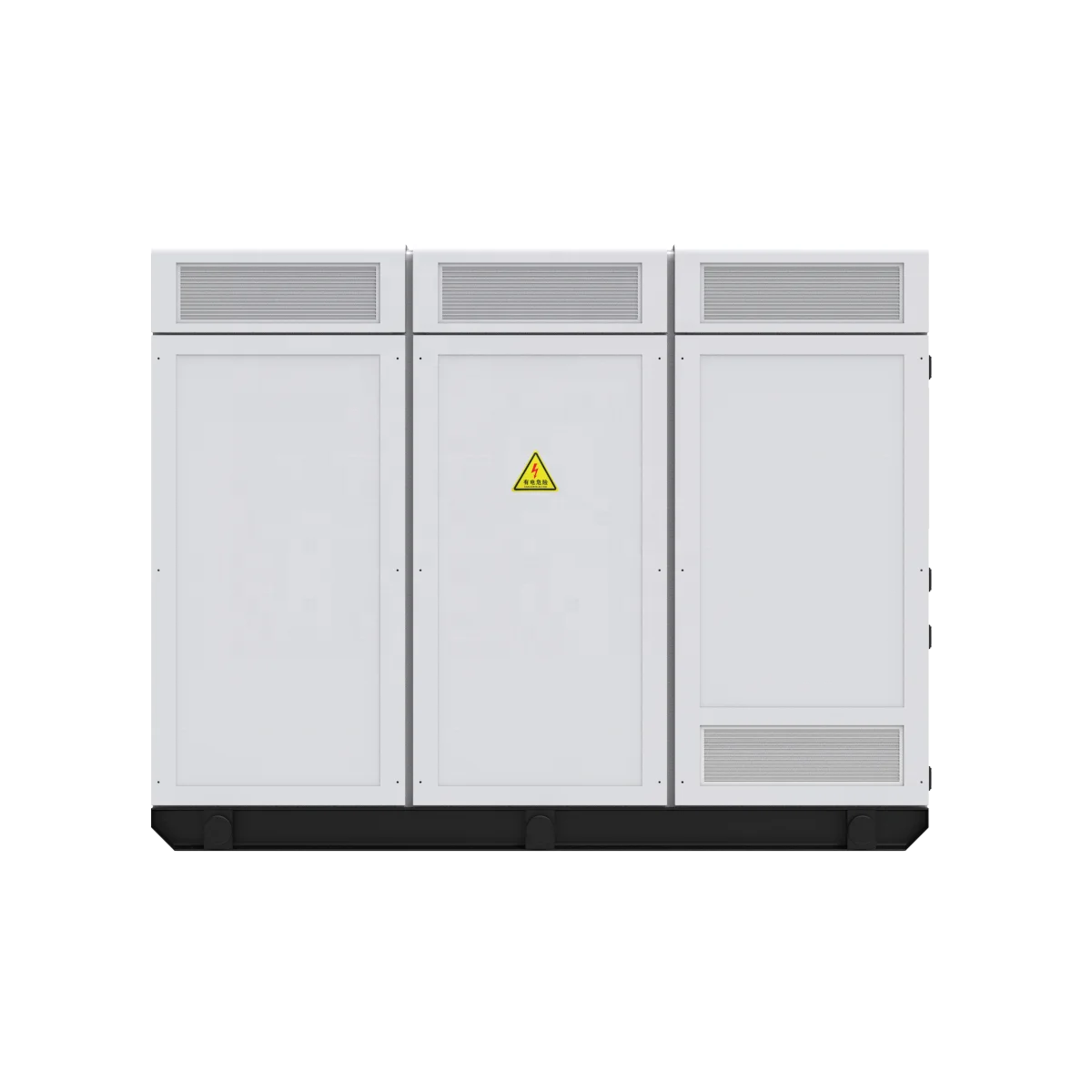

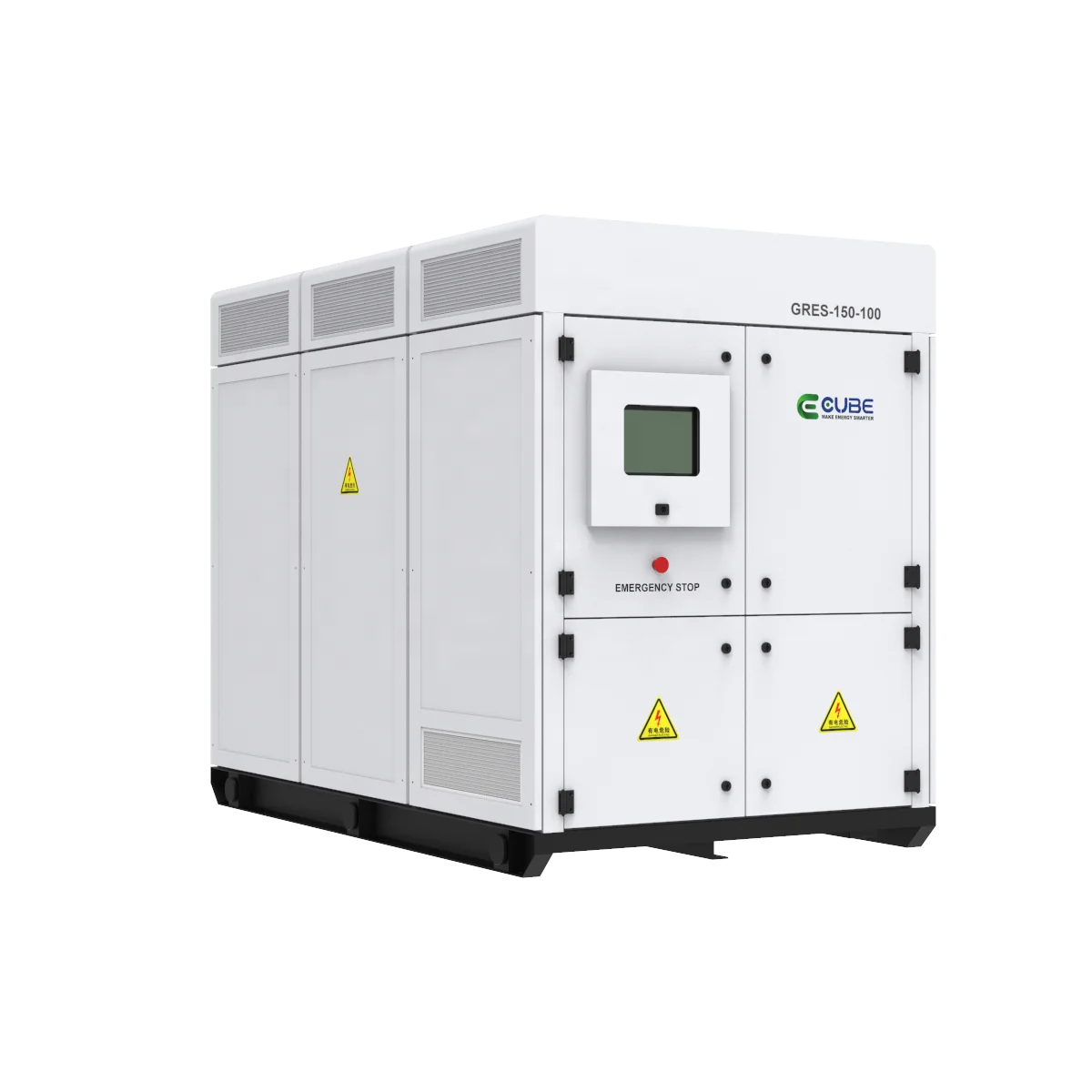

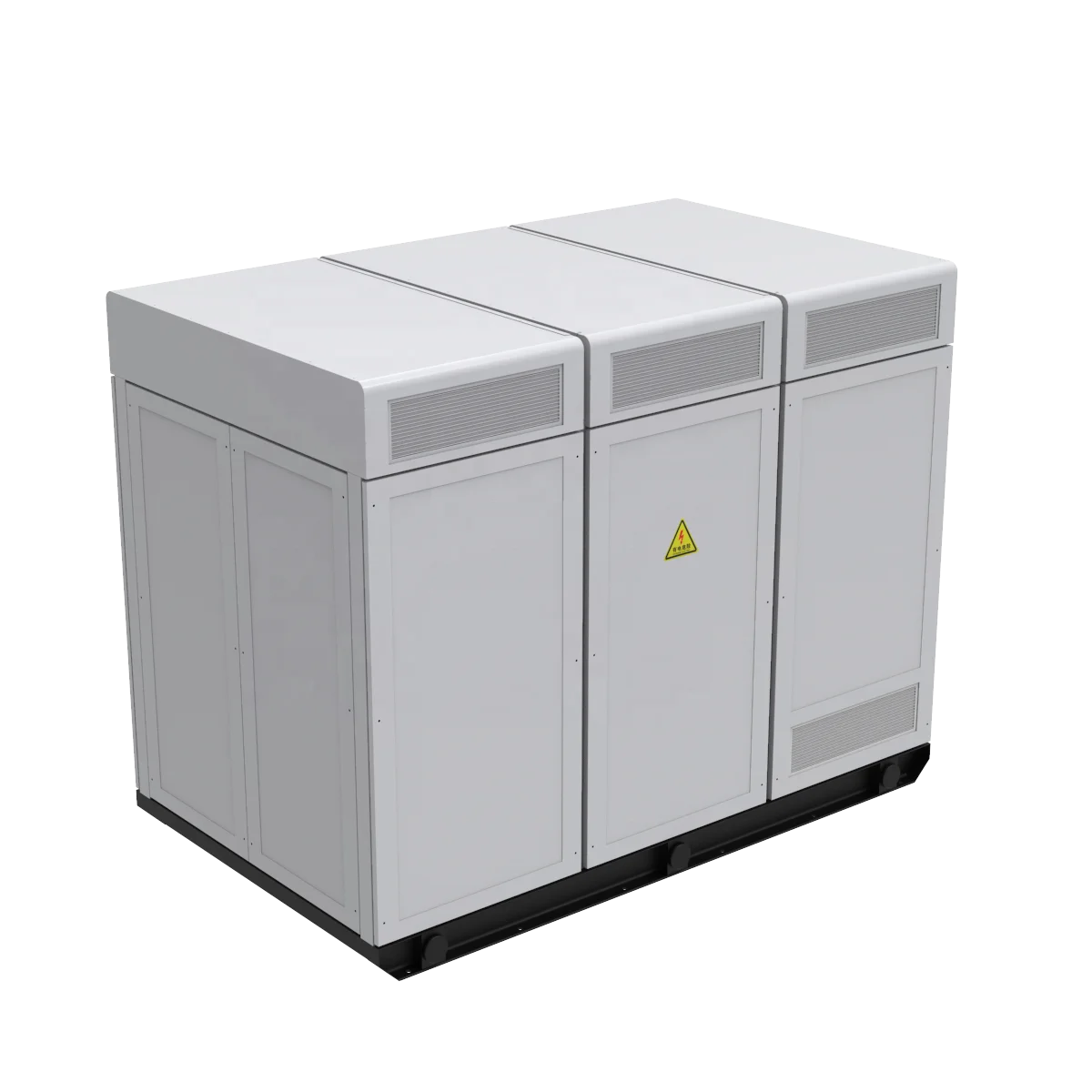

225 150 Grid Renewable Energy Storage Power Supply Static Generator
225-150 Grid Renewable Energy Storage Power Supply Static Generator
225-150 Grid Renewable Energy Storage Power Supply Static Generator
225-150 Grid Renewable Energy Storage Power Supply Static Generator
225-150 Grid Renewable Energy Storage Power Supply Static Generator
225-150 Grid Renewable Energy Storage Power Supply Static Generator
225-150 Grid Renewable Energy Storage Power Supply Static Generator

225 150 Grid Renewable Energy Storage Power Supply Static Generator

Share on (1600449181769):


Price:$260.00 - $270.00

Quantity:


Product Overview

Description



Products Description




225-150 Lithium Batteries With AC Output Power Storage Equipment Solar Energy System

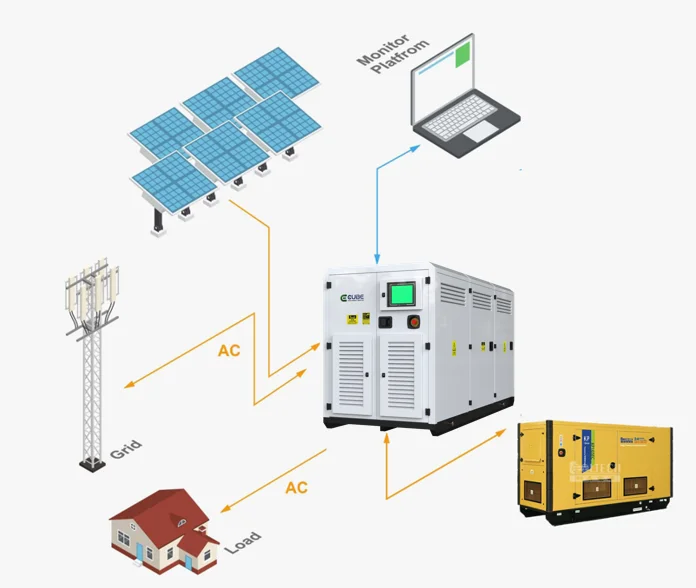

GRES is a modular power supply system, integrating lithium battery and Multi-functional Power Conversion System (MPCS),which are highly scalable both in power and battery capacity.
The key components are lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Maximum Power Point Tracking (MPPT),Static Transfer Switch (STS) and monitoring unit PMS.




Feature




︱Safe and reliable︱
♥ High quality li-ion cell from top manufacturer
♥ Intelligent air cooling design, long service life life, stable operation
♥ IP54，safe and reliable operation in outdoor environment
♥ Serially designed PCS and battery pack eliminates circulating current and improve system reliability.
♥ Integrated BMS,DC, AC multi-layer protection, maximum safety performance design
︱Efficient and Convenient︱
♥ No air conditioning design, high energy efficiency.
♥ Integrated system, standard modular power module and battery module, easy for installation, maintenance and capacity expantion
♥ Easy access to PV and diesel generator, intelligent muli-energy management.
♥ Fixed on the ground or mounted on vehicle, can be loaded and unloaded by forklift and hoisted by lifting ring
♥ Remote monitoring and equipment management, remote troubleshooting and data analysis
︱Cost optimization︱
♥ One investment, multiple benefits:Peak shaving, backup power supply, micor grid building,power quality improving and engergy storaging,etc.
♥ Small size, light weight, less space and installation cost
♥ Long cycle life, low failure rate, reduce operation and maintenance investment
♥ Maximize green energy utilization.

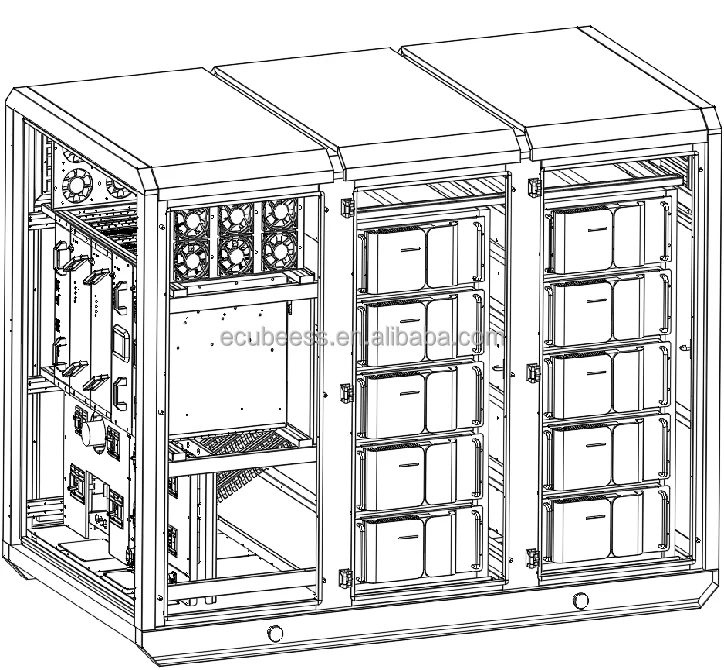

LFP battery energy storage system
Lithium iron phosphate battery, safer, longer life;
Intelligent BMS, effective protection for battery safety.
MPCS (multi-functional PCS)
Different power coverage to meet different project needs.
Power management system（PMS）
Energy management and monitoring in micro grid ;
Real time monitoring for key parameters.

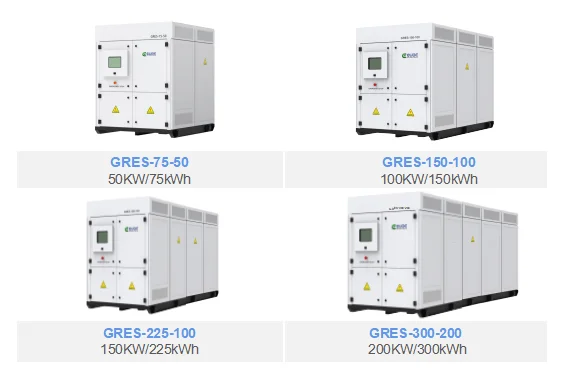

Product Paramenters


100kWh, 500kWh Lithium Batteries With AC Output Power Storage Equipment Solar Energy System


Parameter
GRES-75-50
GRES-150-100
GRES-225-150
GRES-300-200
AC parameters (grid connected)
Rated output power (kW)
50
100
150
200
Max output power (kW)
55
110
165
220
Rated grid voltage (V)
3W+N+PE, 380
Grid voltage range
±15%
Rated grid frequency (Hz)
50
Grid frequency range (Hz)
±2
Current waveform distortion rate
<3%(Rated voltage)
DC component
<0.5%In
Power factor
>0.99(Rated voltage)
Power factor adjustable range
1(lead)～1(lag)
Overload capacity
110% Long term
AC parameters (off grid)
Rated output power (kW)
50
100
150
200
Max output power (kW)
55
110
165
220
Rated grid voltage (V)
3W+N+PE, 380
Current waveform distortion rate
<3%(Linear Load)
Rated frequency（Hz)
50
Overload capacity
110% Long term
Battery
Battery type
Lithium iron phosphate
Energy of each module(kWh)
15.36
Module qty
5
10
15
20
Total power (kWh)
76.8
153.6
230.4
307.2
Running Time (h)
1.5(Optional by Changing module qty)
Cyclelife
25℃, 0.5C/0.5C 100%DOD EOL80%≥4000s
System efficiency
Max efficiency
95%

Protection
DC Switch
Yes
AC switch
YES
Grid monitoring
YES
Surge protection
DC /AC 2nd level
Basic Parameters
Dimension（W*D*H）(mm)
1300*1440*1700
1300*2174*1700
1300*2900*1700
1300*1540*2300
Weight (kg)
1395
2470
3545
4620
Isolated transformer
NO
On/off grid switching
STS
Protection
Outdoor IP54
Working temperature
-20～55℃(>45℃derating)
Relative humidity
0～95% ( (no condensing)
Cooling
Intelligent air cooling (intelligent heating optional )
Max working altitude(m)
4000(>2000 derating)
Display
Touch screen
Communication
RS485、CAN、LAN
Communication Protocol
Modbus-RTU、Modbus-TCP、CAN2.0B


Application Scenarios

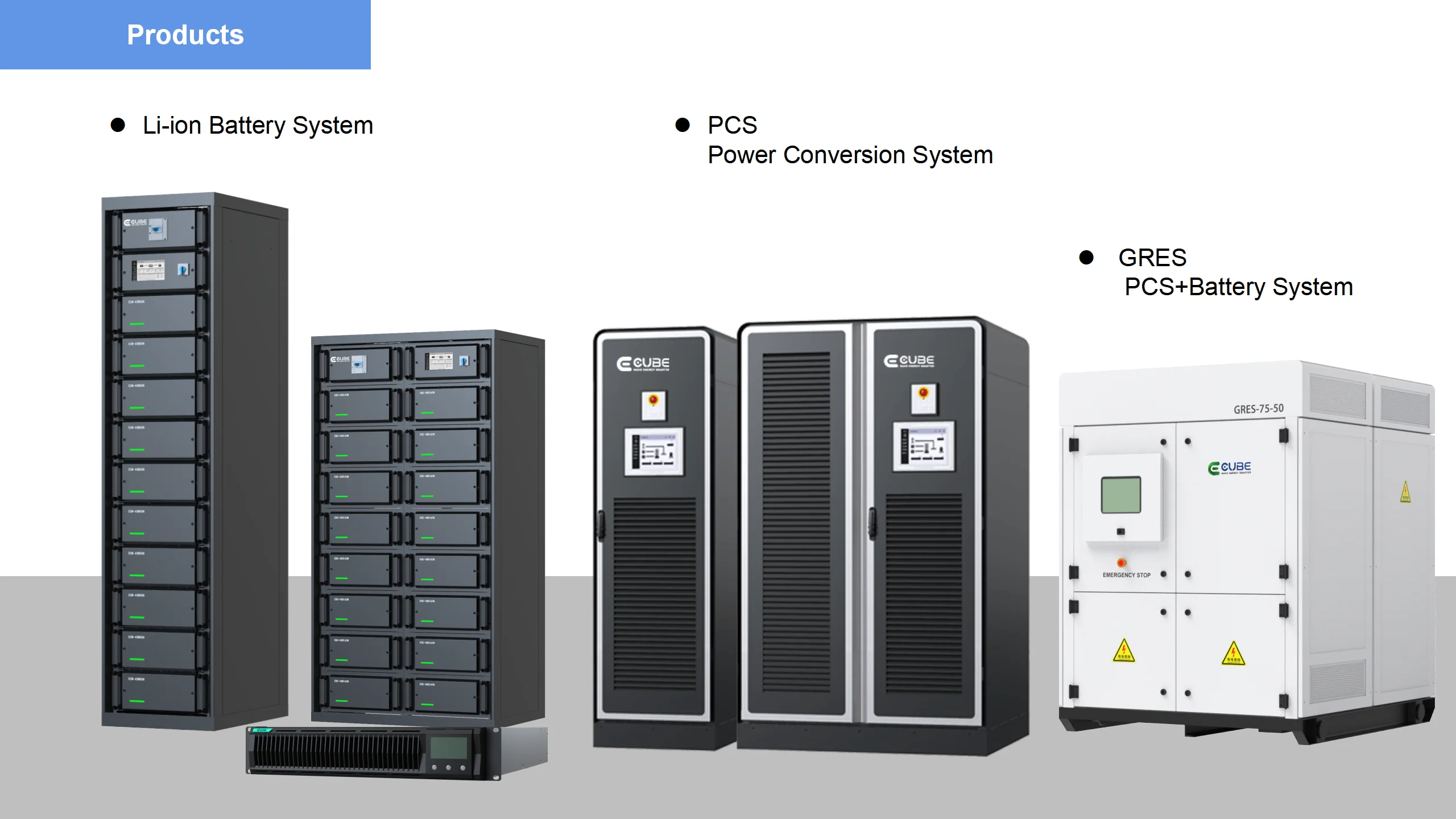

Recommend Products




OEM
Acceptable
modular
√
Size
√
Color
√


Product packaging




Company Profile


Hebei Ecube New Energy Technology Co.,Ltd. is specialized in energy storage and Lithium battery system integration.Relying on the support of leading enterprises in the power electronics industry, Ecube has built professional technology team with more than ten years of experience in lithium battery for research and developing the industry leading battery management system with safety,stability and equalization.




Project~South Korean subway
Project~SHANGHAI GRES Project
Project~Shanghai Charging Station
