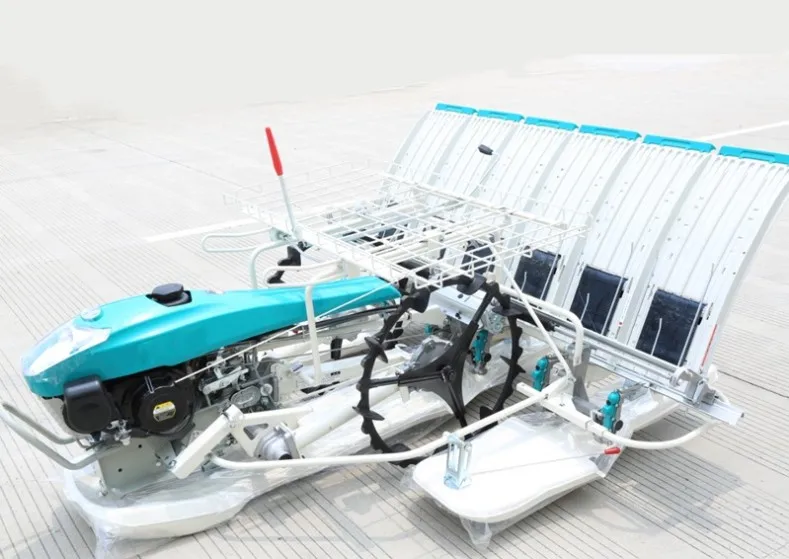

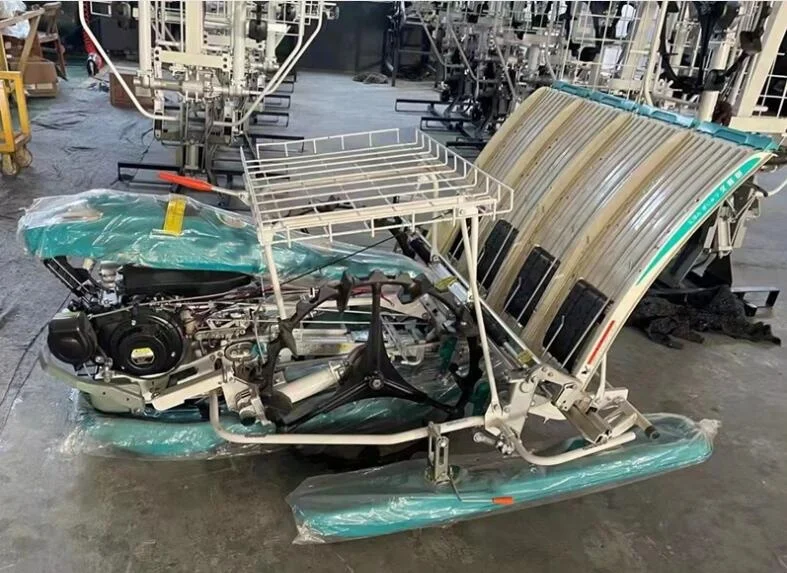

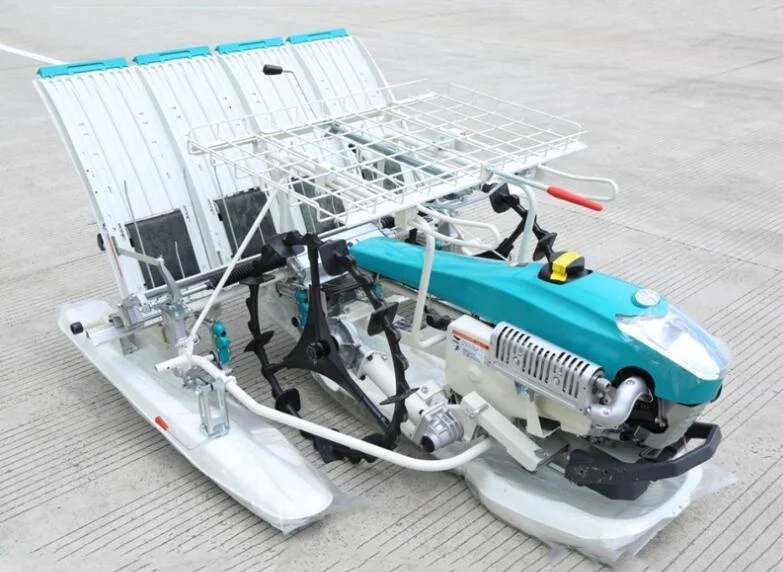

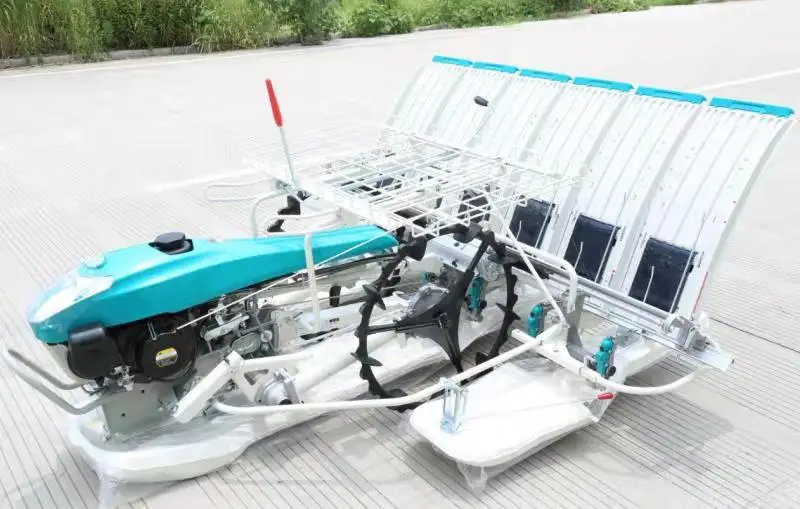

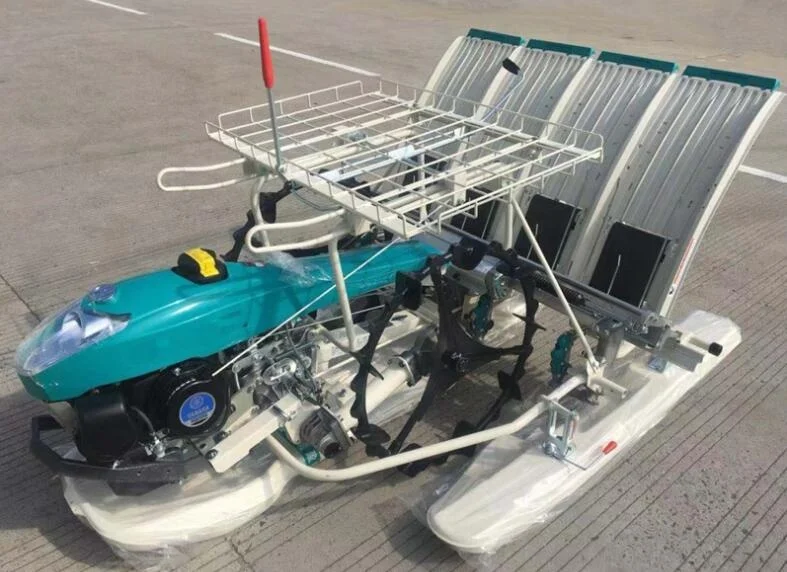

6 Rows Handpush Rice Planter Walk Behind Rice Planting Machine Walking Paddy Transplanter
- Category: >>>
- Supplier: Weifang Kinger Machinery Co. Ltd.
Share on (1600449339455):
Product Overview
Description
Product Description
Introduction:
1. High applicability. The transplanter can be used in the field where the mud depth is 15-35cm. It’s not limited by the size of the filed.
2. The machine is light in weight, which saves much labor.
3. The user should put seedling evenly and reliably to effectively avoid to miss transplanting.
4.Aesthetic shape, through-drive power transmisson make machine more strength and better balance.
2. The machine is light in weight, which saves much labor.
3. The user should put seedling evenly and reliably to effectively avoid to miss transplanting.
4.Aesthetic shape, through-drive power transmisson make machine more strength and better balance.
Specification
Model | 2ZS-6 |
Overall Dimension(L*W*H) | 2370x1930x910mm |
Structure Weight | 190Kg |
Engine Model | MZ175（B8EA0） |
Engine Type | air-cooled 4-stroke oHv gasoline engine |
Engine Power | 3.3kw（4.5ps）/3600rpm |
Engine Displacement | 0.171L（171cc） |
Engine Using Petrol Type | unleaded gasoline for vehicles |
Petrol Tank Capacity | 4L |
Engine Startup Mode | Kick-back startup |
Engine Consumption | 2.0-5.6kg/hm2 |
Walking Wheel Up and Down Adjustment | Hydraulic mode |
Walking Wheel Structural Style | Rough hub rubber tire |
Walking Wheel Diameter | 660mm |
Gearshift number | Forward 2, Reverse 1 |
Rows Number | 6 |
Row Distance | 300mm |
Seeding Space | 120 / 140 / 160 / 180 / 210mm |
Number of Plants Inserted | 90*80*70*60*50 Strain/ 3.3m2 |
Planting Depth | 1.5-3.7cm (stage 5) |
Transverse Taking Seedling Times | 14 / 16 / 18 |
Longitudinal Taking Seedling Depth | 7 - 17mm |
Planting Speed | 0.28～0.77m/s |
Walking on the road speed | 0.55～1.48m/s |
Productivity | 0.1～0.32(hm²/h) |
Seeding rice plant height | 100-250mm |
Seeding rice plant leaf age | 2-4.5 pieces |
Details Images
Rubber wheel drive wheel
Large-diameter rubber wheel-type driving wheel,wet field,rotten field operation and field passability.
Large-diameter rubber wheel-type driving wheel,wet field,rotten field operation and field passability.
Intelligent claws,stable insertion mechanism
Humanized transplanting greatly avoids and reduces the occurrence of thicking,scarring ,leakage,and drifting.The rice
transplanting depth is stable,and there is no need to worry about floating seed-lings and good orderly transplant-ing
Humanized transplanting greatly avoids and reduces the occurrence of thicking,scarring ,leakage,and drifting.The rice
transplanting depth is stable,and there is no need to worry about floating seed-lings and good orderly transplant-ing
Wide belt conveyor seedling
Adapting to the technical characteristics of floppy disk and dou-ble-membrane seeding,the longitudinal supply can be wide,the
wide-belt belt isdriven,the amount of feed
Adapting to the technical characteristics of floppy disk and dou-ble-membrane seeding,the longitudinal supply can be wide,the
wide-belt belt isdriven,the amount of feed
Seeding take capacity and planting depth adjustment
The depth of seeding is clear and easy to operate,from the secrent value to the value of the value,especially for hybrid rice, double-season late rice, according to crop varies and farming season,adjust the number of horizontal emergence and vertical seedings, change the number of transplants
The depth of seeding is clear and easy to operate,from the secrent value to the value of the value,especially for hybrid rice, double-season late rice, according to crop varies and farming season,adjust the number of horizontal emergence and vertical seedings, change the number of transplants
Conveniently Located Levers
Easy to operate, all operating levers and switches are conveniently located with easy reach.

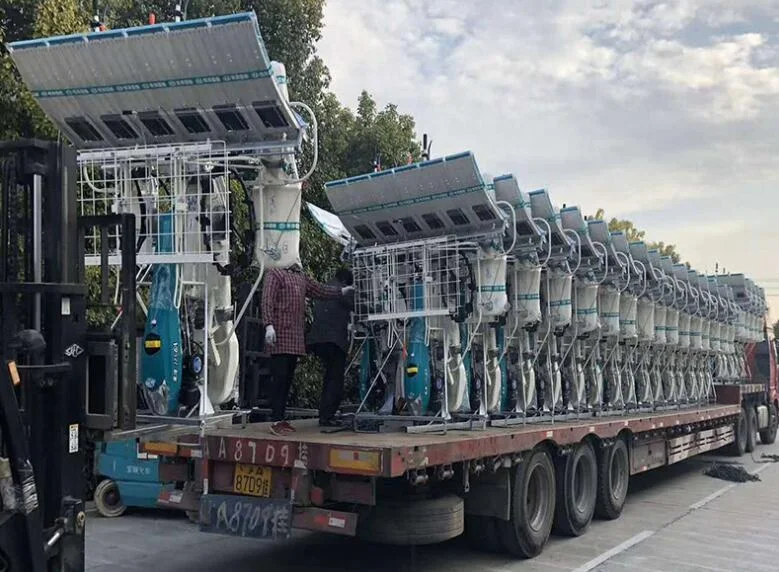

Packing & Delivery

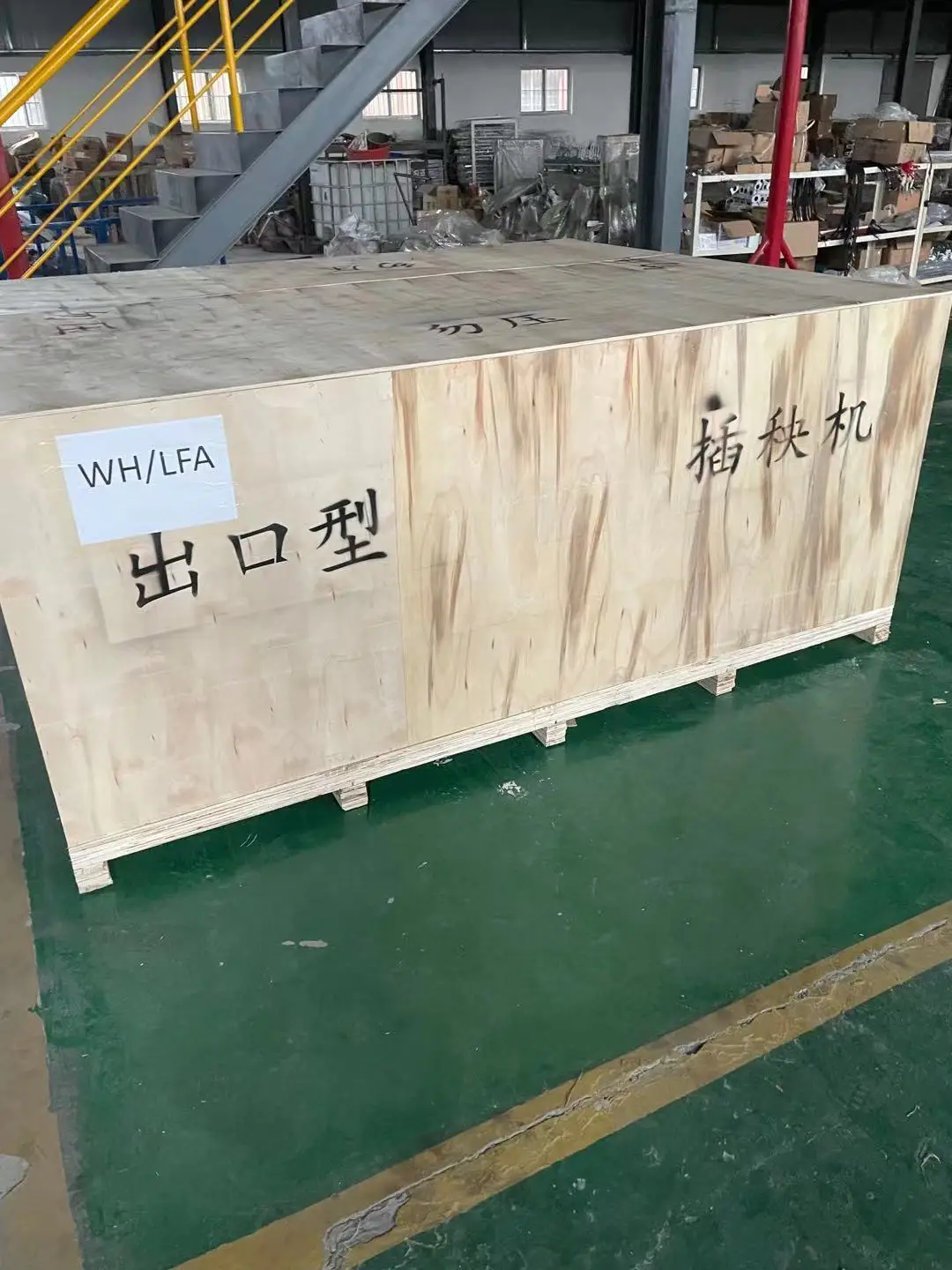

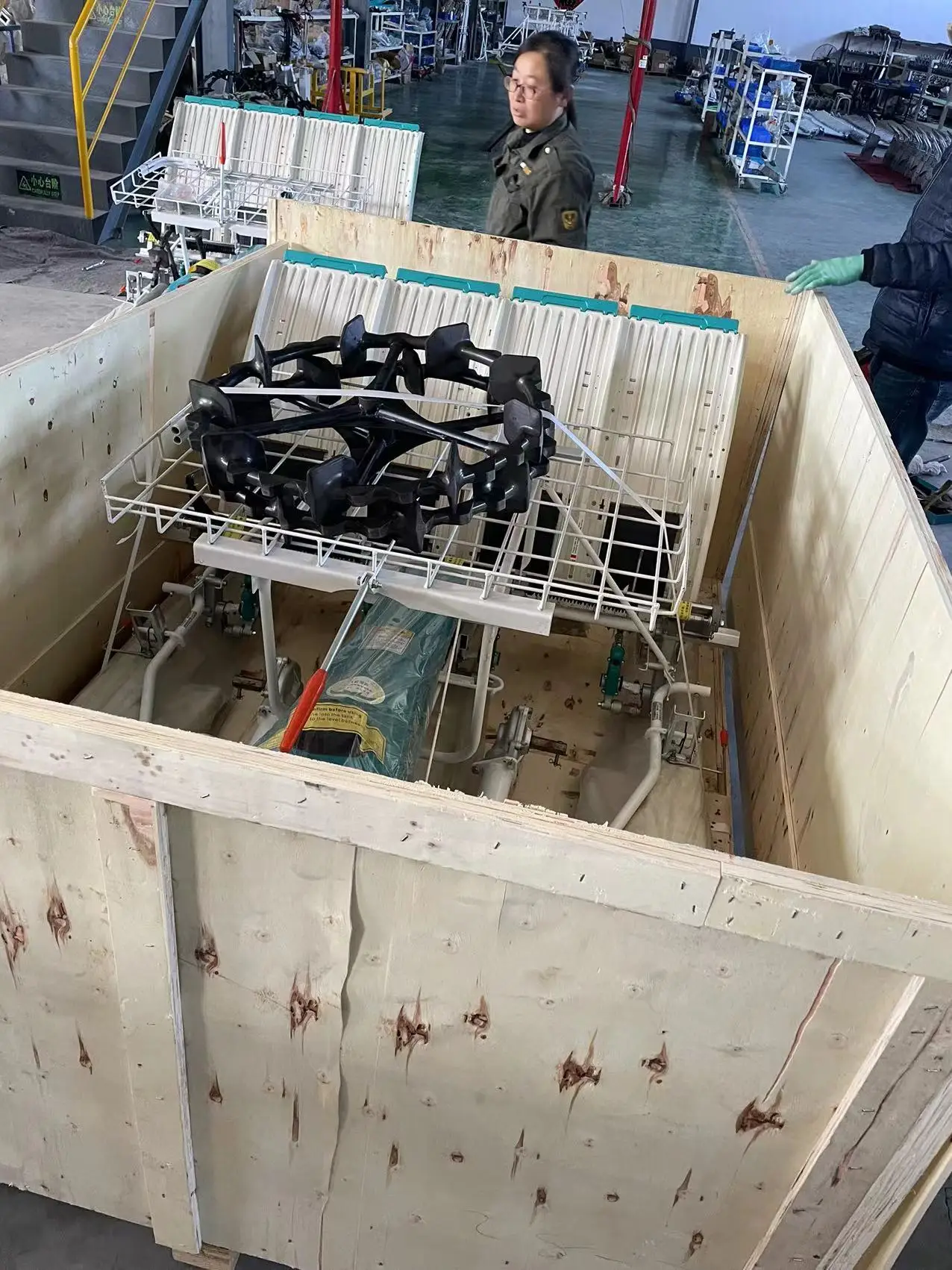

PLY wood case for safe shipping work, ensure no parts lost during transportation.
Service
Pre-Sales Service
* Inquiry and consulting support.
* We are Alibaba gold supplier can deal from Alibaba to ensure your payment safety.
* View our Factory.
* Inquiry and consulting support.
* We are Alibaba gold supplier can deal from Alibaba to ensure your payment safety.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
