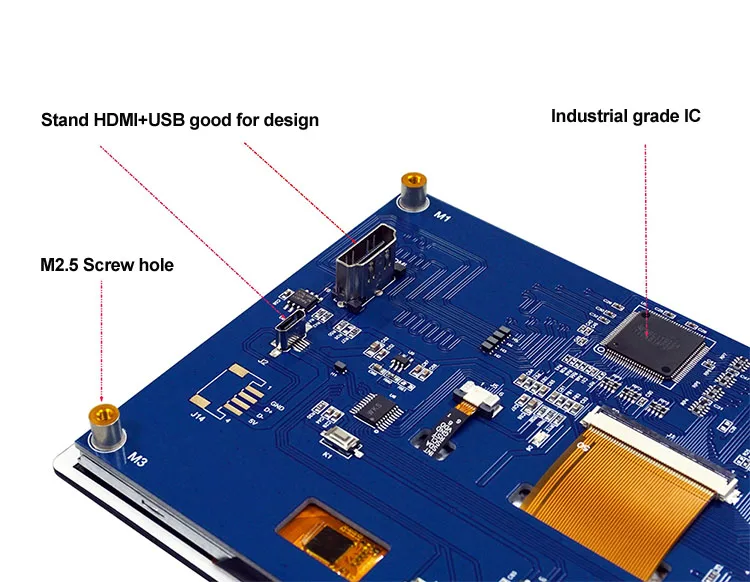

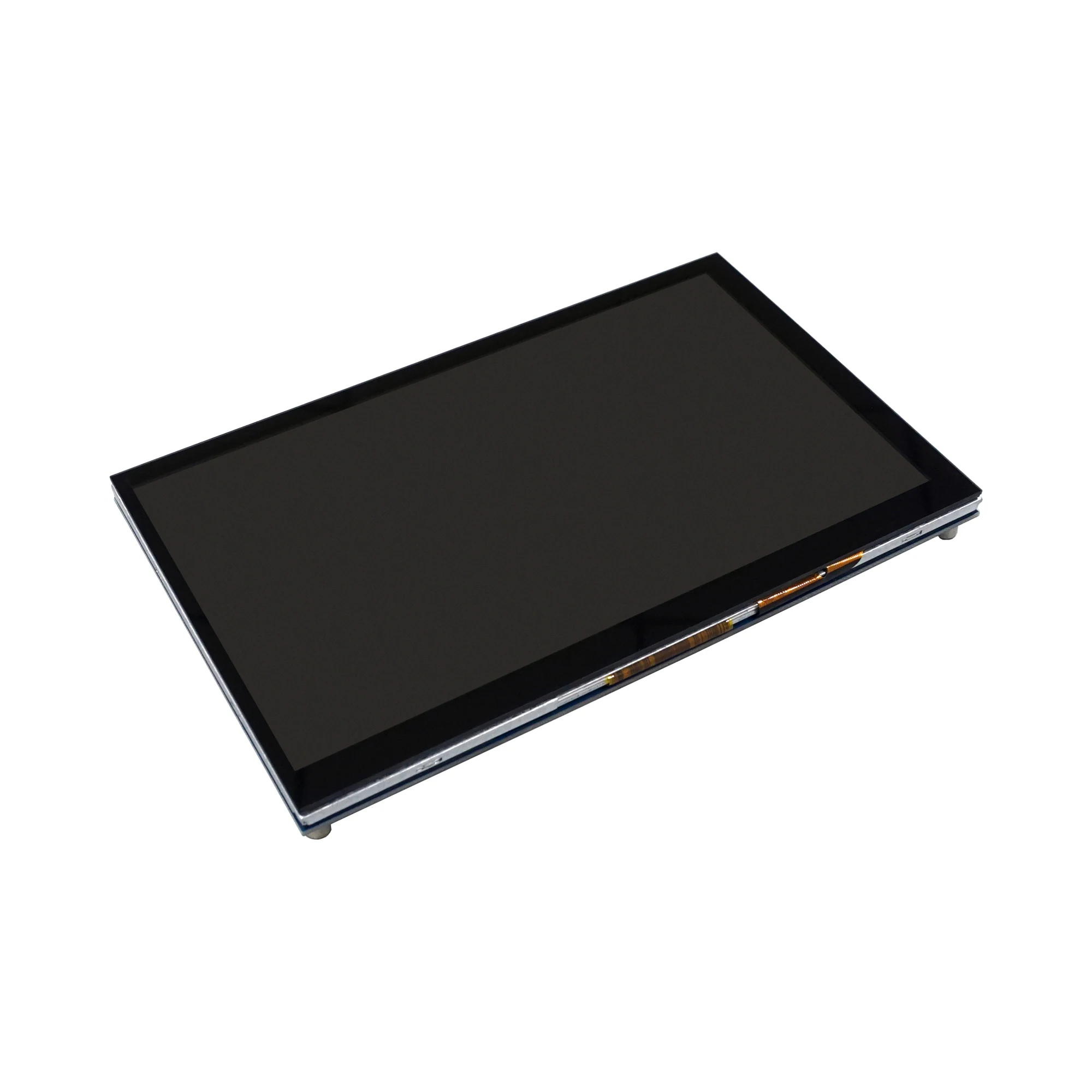

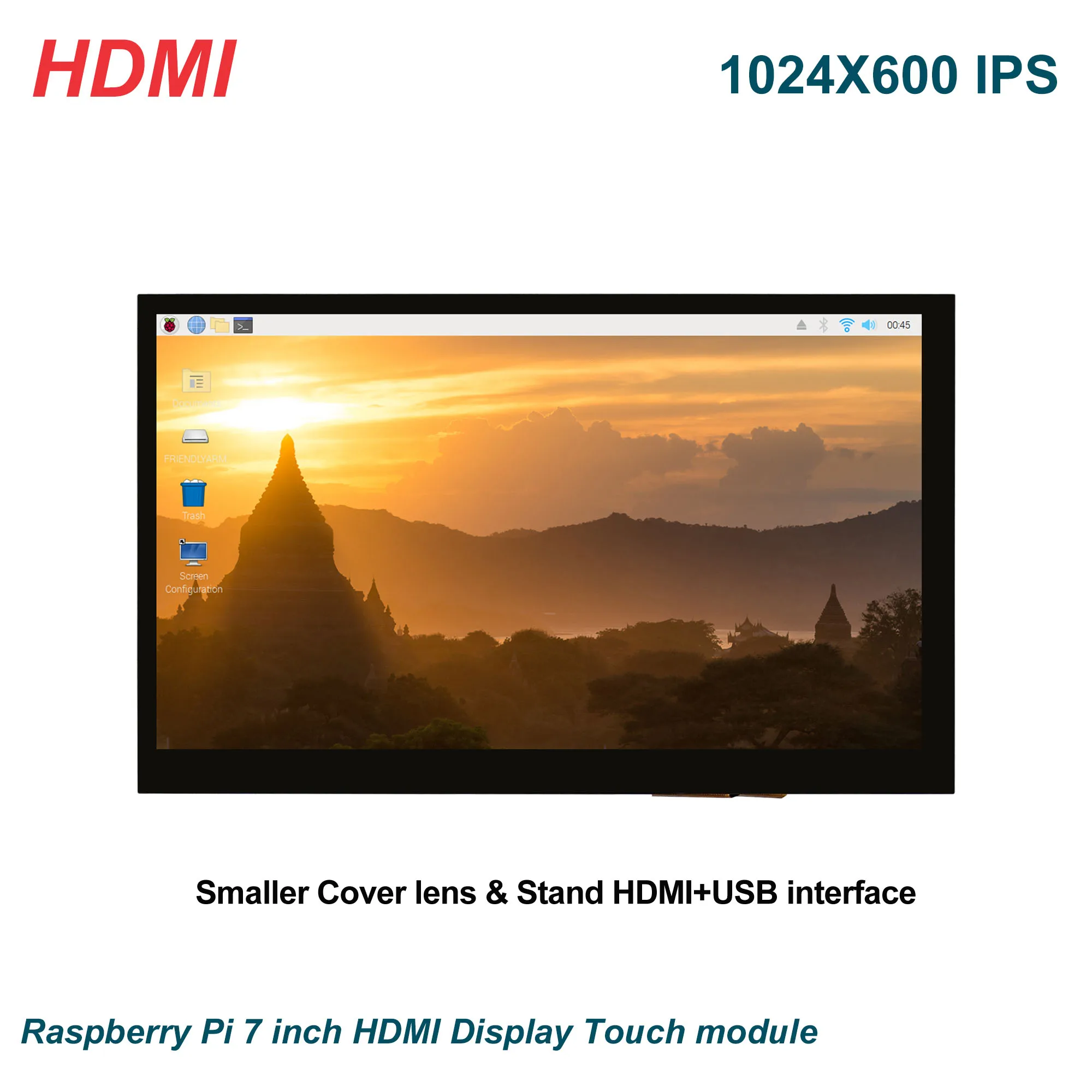

7 Inch IPS TFT stand HDMIUSB Capacitive Touch Screen LCD Display for raspberry pi 4/3B
- Category: >>>
- Supplier: Etouch Technology Co. Limited
Share on (1600449340293):
Product Overview
Description
Product Description
Product Parameters
7 Inch 1024*600 IPS LCD Monitor TFT Touch Screen LCD Display 350cd/m2 USB HDMI Interface

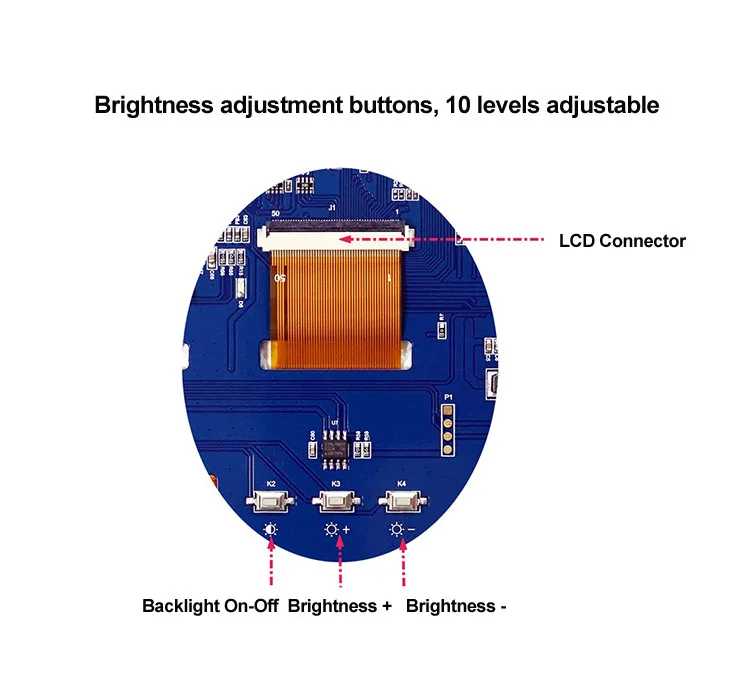

Brightness can customized from 300 to 1200 cd/m2
Item of general information | Contents | Unit | ||
LCD Display Size (Diagonal) | 7” IPS | inch | ||

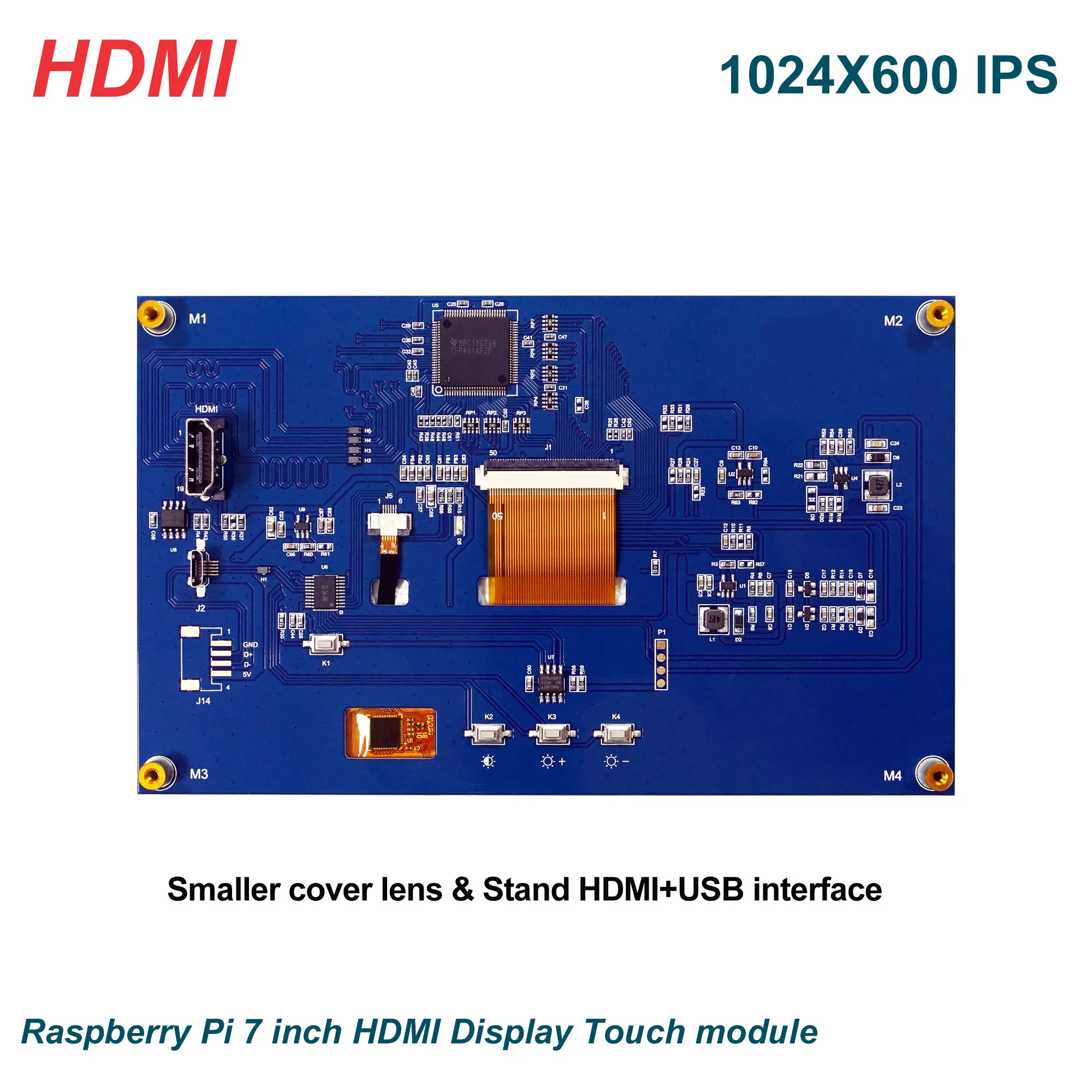

Module Structure | LCD Display + CTP Touch + PCB | - | ||
LCD Display Type | TFT/TRANSMISSIVE | - | ||
LCD Display Mode | Normally Black | - | ||
Recommended Viewing Direction | ALL VIEW | o’clock | ||

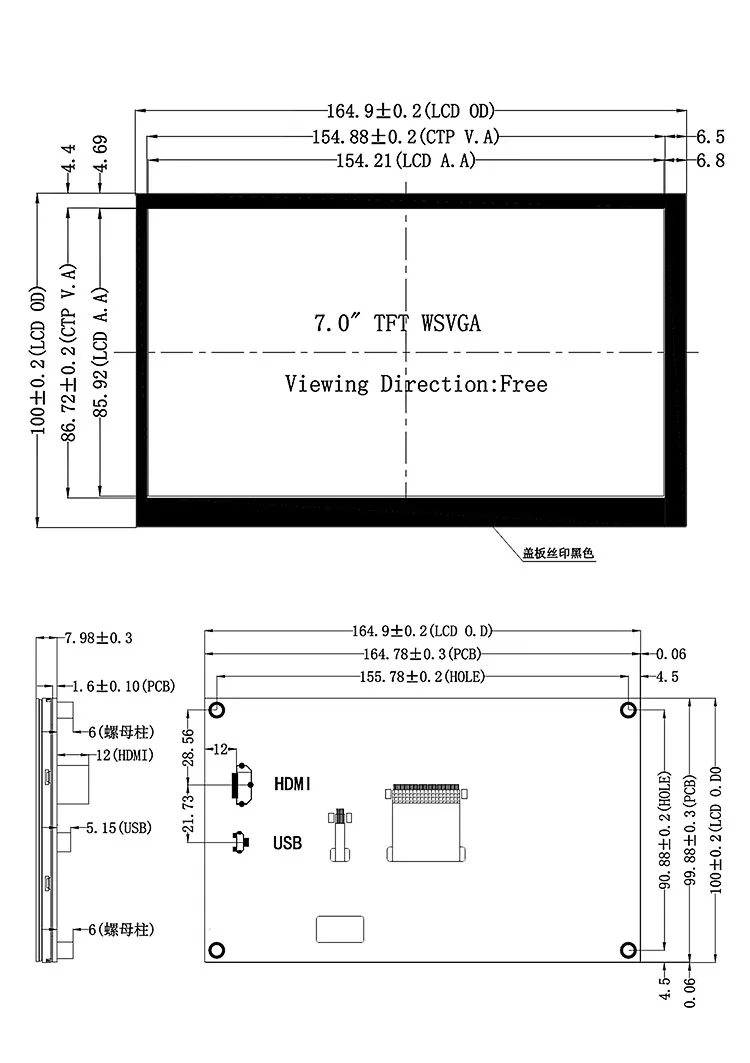

Module size (W×H×T) | 164.90×100.00×7.98 | mm | ||
Active area (W×H) | 154.21×85.92 | mm | ||
Number of pixels (Resolution) | 1024RGB×600 | pixel | ||
Pixel pitch (W×H) | 0.1506×0.1412 | mm | ||
Color Pixel Arrangement | RGB Stripe | - | ||

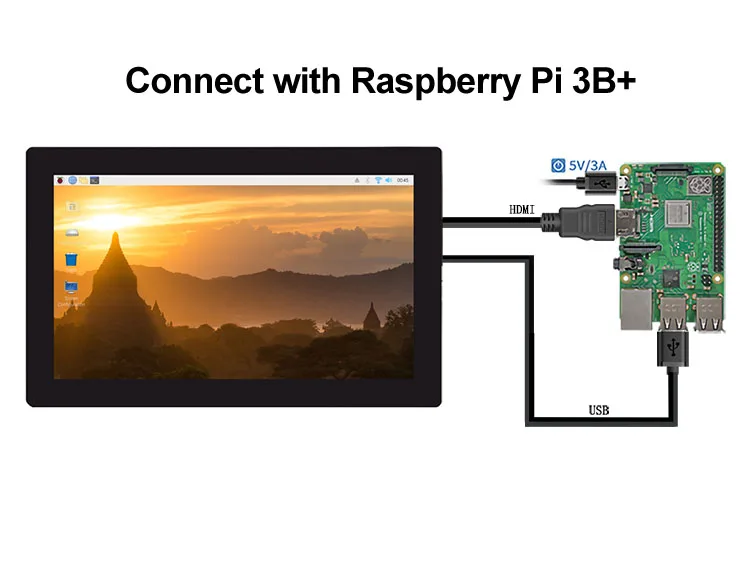

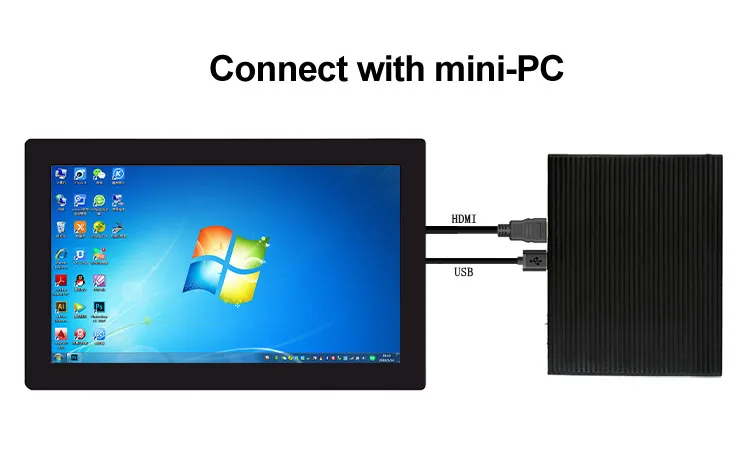

Module Interface Type | LCD Display | HDMI interface | - | |
CTP Touch | USB interface | - | ||
System Support | Win7/Win8/Win10(Plug and play) | - | ||
Android/Linux (need to be configured first) | - | |||
Power Supply | USB (5.0V) | - | ||
Module Power consumption | 485(Typ.) | mA | ||
Color Numbers | 16.7M | - | ||
Backlight Type | White LED | - | ||
Customer Feedback
We can according to your requirements to customized touch screen and LCD, such as customized cover glass shape,silk-printing color, add Logo, change color, increase FPC, add HDMI board.
Our Company
Etouch Technology Co., Ltd (Etouch) was established in 2008, is a professional manufacturer on design, production and sales of capacitive and resistive touch screen , TFT LCD display , membrane switch,overlays and other technology products . We mainly for industrial control, car navigation, household appliances, medical equipment , human-machine-Interface system, POS , bank system, gaming, etc .
Main Products
LCD&LCM Display: Design, Manufacturing LCD&LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.
Electronic & Mechanical Design : MCU Software & Hardware Design and Manufacturing ; Mechanical Parts Design & Manufacturing , Molding, Plastic Injection; FPC/PCB Design & Manufacturing , Product Development
IC Stocking : Supply Brand Name IC; Specialized on Supply Obsolete, Hard to find, Shortage, Military, Industrial, Commercial IC; Connectors and Various Electronic Components.
Packing & Delivery
All products 100% test before shipping , Any defect found during the warranty, pls feel free to contact us , Any questions,
opinions or suggestions, don't hesitate to contact us. We are pleasure to help you out with any problems!
Wendy Tel: 86-15112280260
Office: 86-755-23725070
Email: sales@etouchtech.cn
