China sus304 vegetable medium freeze dryer oilless lyophilizer machine for herb pharmaceutical
- Category: Chemical Machinery & Equipment >>>
- Supplier: Labfirst,Scientific,Instruments,(shanghai),Co.,Ltd.
Share on:
Product Overview
Description
About Us
Product Description

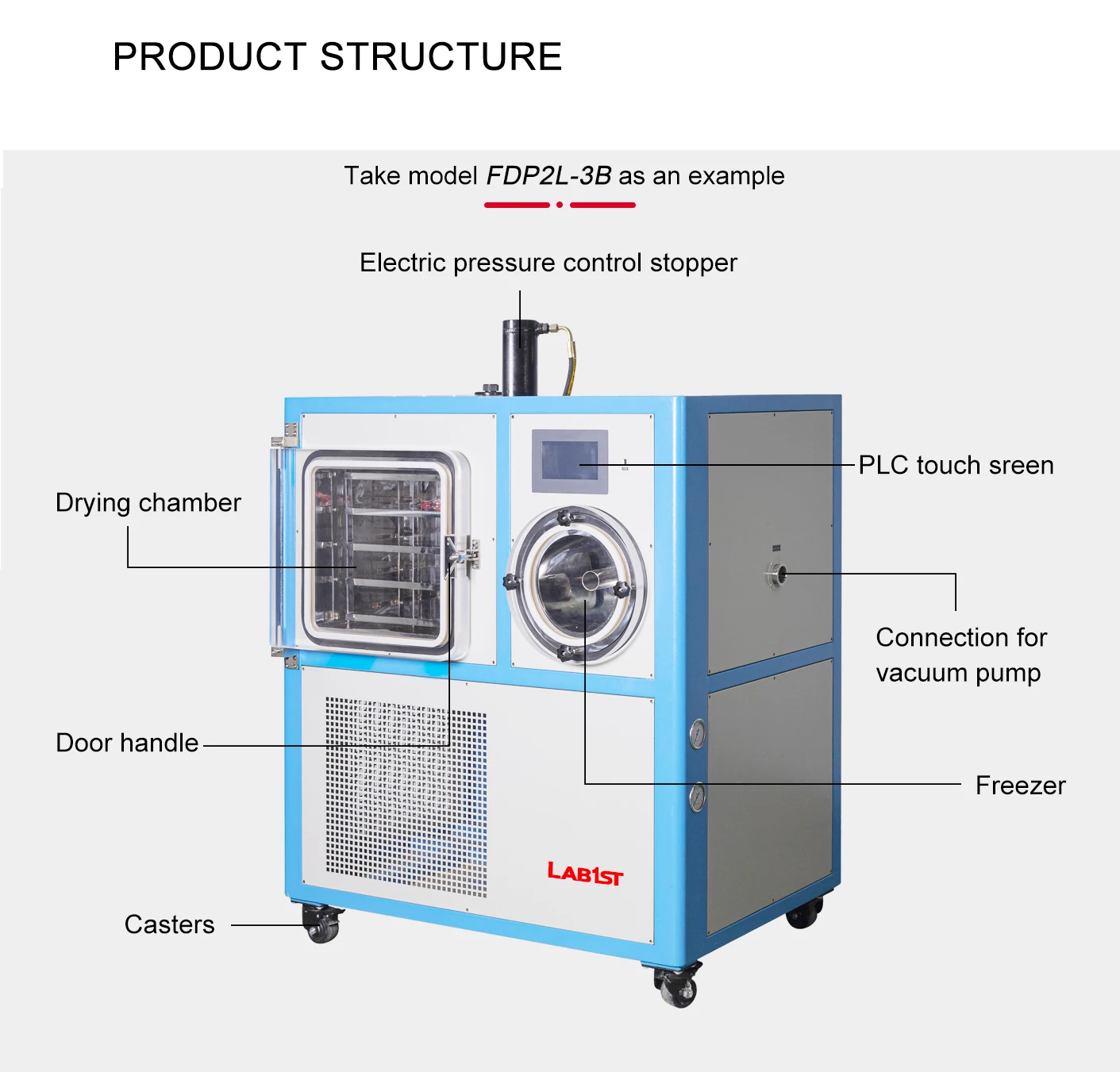

Product Structure
Product Features
● Efficient protection for the vacuum pump, starting after reaching the pre-set temperature.
● Digital LCD touch screen, recording the temperature of cold trap and samples as well as the vacuum degree. Datas can be exported.
●32 or 36 users’ programmes, each of them can control up to 40 temperature zones and memorize their freeze temperature curves.
●The tray possesses the freezing function, eliminating the process of pre-freezing the sample and automatically starting the drying process afterwards.
●Equipped with inflation valves , which can be filled with dry nitrogen or inert gas.
●Single working time and total running time can both be recorded simultaneously.
● The drying chamber equips glass window with high transparency to witness the process.
● Digital LCD touch screen, recording the temperature of cold trap and samples as well as the vacuum degree. Datas can be exported.
●32 or 36 users’ programmes, each of them can control up to 40 temperature zones and memorize their freeze temperature curves.
●The tray possesses the freezing function, eliminating the process of pre-freezing the sample and automatically starting the drying process afterwards.
●Equipped with inflation valves , which can be filled with dry nitrogen or inert gas.
●Single working time and total running time can both be recorded simultaneously.
● The drying chamber equips glass window with high transparency to witness the process.

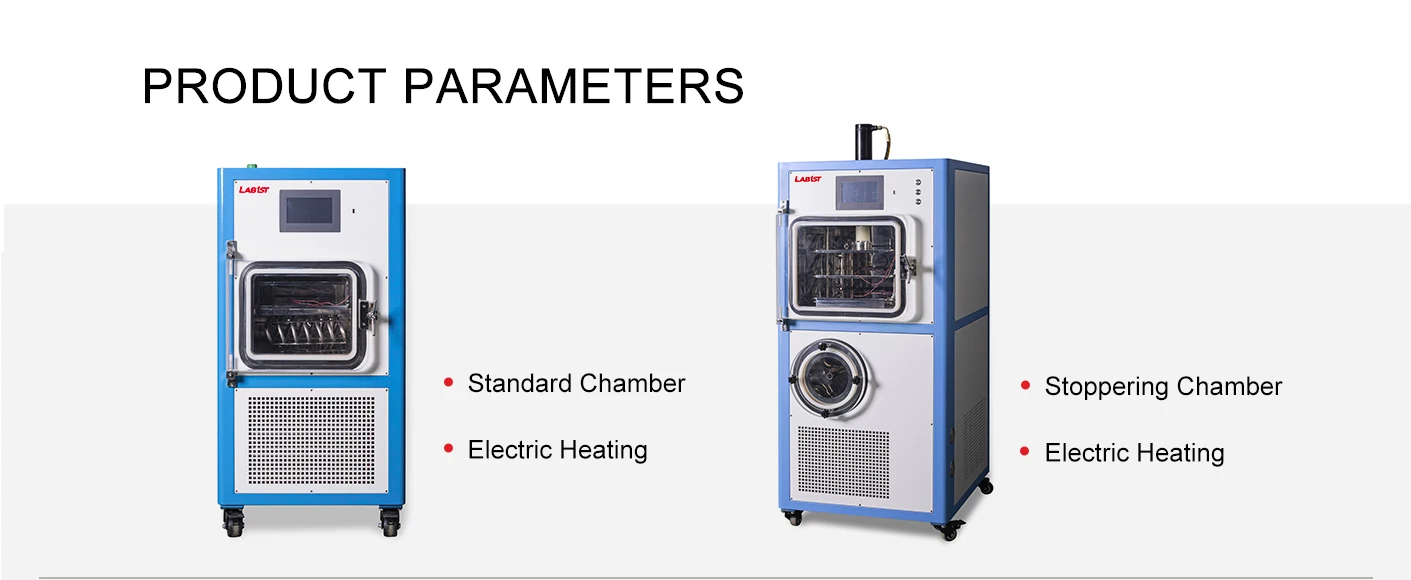

Product Parameters
Model | FDP1E-1B | FDP2E-1B | FDP1E-2A | FDP2E-2A | ||||||||
Chamber | Stoppering Chamber | Standard Chamber | ||||||||||
Heating | Electric Heating | |||||||||||
Main Parameters | Limiting Vacuum Degree | ＜10Pa | ||||||||||
Tray's Accuray of Temperature | ±1℃ | |||||||||||
Water Capture Capacity | 4Kg/24h | |||||||||||
Temperature | ≤-55℃ | ≤-80℃ | ≤-55℃ | ≤-80℃ | ||||||||
Chamber | Drying Area | 0.1㎡ | 0.2㎡ | |||||||||
No. of Shelves | 1 | 2 | ||||||||||
Temperature Range | -50℃~65℃ | -70℃~65℃ | -50℃~65℃ | -70℃~65℃ | ||||||||
Shelves Capacity | 1L | 2L | ||||||||||
Configuration | Vacuum Pump | ● | ||||||||||
Shelves | ● | |||||||||||
Vacuum Tube | ● | |||||||||||
Electric Stopper | —— | |||||||||||
Eutectic Point Sensor | ○ | |||||||||||
PC Software | ○ | |||||||||||
Dryness Determiner | ○ | |||||||||||
Vacuum Controller | ○ | |||||||||||
Mist(oil&water) Separator | ○ | |||||||||||
Anti Oil Return Device | ○ | |||||||||||
Remote Controller | ○ | |||||||||||
Function | PLC Touch Screen | ● | ||||||||||
USB Date Export | ● | |||||||||||
Inflatable Valve for Inert Gas | ● | |||||||||||
Electric Heating Defrost | ● | |||||||||||
Electric Heating Shelves | ● | |||||||||||
Oil Heating Shelves | —— | |||||||||||
Shelves Refrigeration | ● | |||||||||||
Remark： ●：Standard configuration；○：Optional； ——：None | ||||||||||||

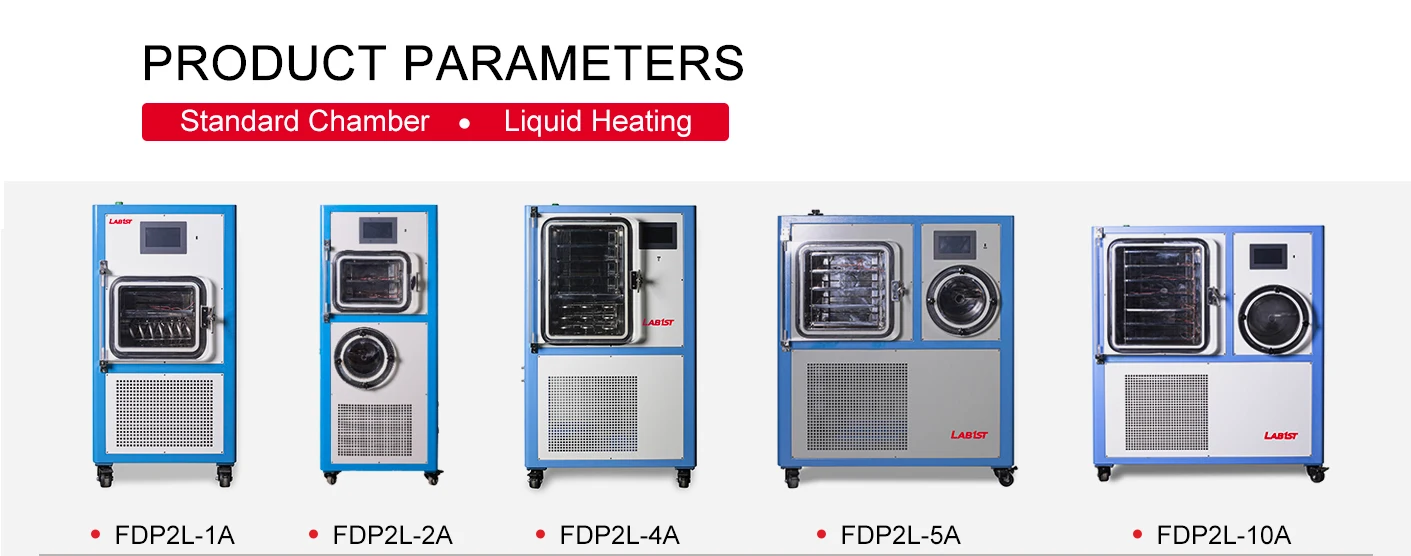

Model | FDP2L-1A | FDP2L-2A | FDP2L-4A | FDP2L-5A | FDP2L-10A | |||||||||
Chamber | Standard Chamber | |||||||||||||
Heating | Liquid Heating | |||||||||||||
Main Parameters | Weight | 220Kg | 260Kg | 500Kg | 550Kg | 750Kg | ||||||||
Limiting Vacuum Degree | ＜10Pa | ＜2.5Pa | ＜2.5Pa | ＜2.5Pa | ||||||||||
Tray's Accuray of Temperature | ±1℃ | |||||||||||||
Water Capture Capacity | 3Kg/24h | 4Kg/24h | 6Kg/24h | 10Kg/24h | 15Kg/24h | |||||||||
Temperature | ≤-80℃ | ≤-75℃ | ||||||||||||
Chamber | Drying Area | 0.1㎡ | 0.2㎡ | 0.4㎡ | 0.5㎡ | 1㎡ | ||||||||
No. of Shelves | 1 | 2 | 4 | 4 | 6 | |||||||||
Temperature Range | -50℃~70℃ | |||||||||||||
Shelves Capacity | 1L | 2L | 4L | 5L | 10L | |||||||||
Configuration | Vacuum Pump | ● | ||||||||||||
Shelves | ● | |||||||||||||
Vacuum Tube | ● | |||||||||||||
Electric Stopper | —— | |||||||||||||
Eutectic Point Sensor | ○ | |||||||||||||
PC Software | ○ | |||||||||||||
Dryness Determiner | ○ | |||||||||||||
Vacuum Controller | ○ | |||||||||||||
Mist(oil&water) Separator | ○ | |||||||||||||
Anti Oil Return Device | ○ | |||||||||||||
Remote Controller | ○ | |||||||||||||
Function | PLC Touch Screen | ● | ||||||||||||
USB Date Export | ● | |||||||||||||
Inflatable Valve for Inert Gas | ● | |||||||||||||
Electric Heating Defrost | ● | |||||||||||||
Electric Heating Shelves | —— | |||||||||||||
Oil Heating Shelves | ● | |||||||||||||
Shelves Refrigeration | ● | |||||||||||||
Remark： ●：Standard Configuration；○：Optional； ——：None | ||||||||||||||

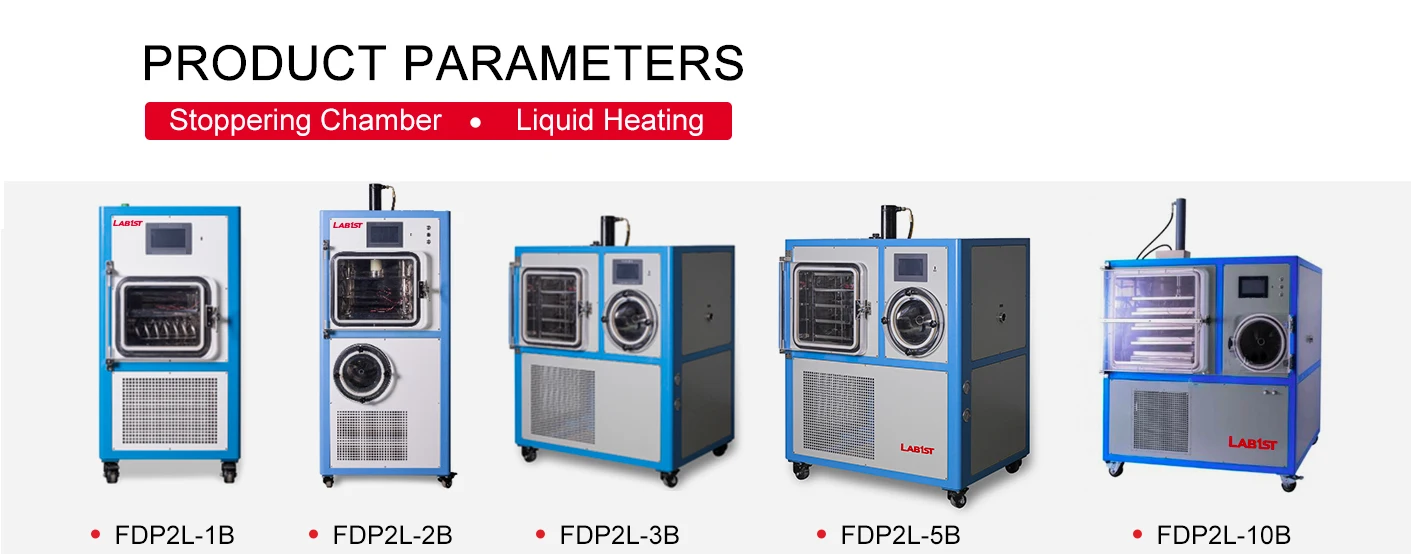

Model | FDP2L-1B | FDP2L-2B | FDP2L-3B | FDP2L-5B | FDP2L-10B | |||||||||
Chamber | Stoppering Chamber | |||||||||||||
Heating | Liquid Heating | |||||||||||||
Main Parameters | Weight | 240Kg | 350Kg | 600Kg | 700Kg | 900Kg | ||||||||
Limiting Vacuum Degree | ＜10Pa | ＜2.5Pa | ||||||||||||
Tray's Accuray of Temperature | ±1℃ | |||||||||||||
Water Capture Capacity | 3Kg/24h | 6Kg/24h | 10Kg/24h | 15Kg/24h | ||||||||||
Temperature | ≤-80℃ | ≤-75℃ | ||||||||||||
Chamber | Drying Area | 0.1㎡ | 0.2㎡ | 0.3㎡ | 0.5㎡ | 1.05㎡ | ||||||||
No. of Shelves | 1 | 2 | 3 | 3 | 4 | |||||||||
Temperature Range | -50℃~70℃ | |||||||||||||
Shelves Capacity | 1L | 2L | 3L | 5L | 10L | |||||||||
Configuration | Vacuum Pump | ● | ||||||||||||
Shelves | ● | |||||||||||||
Vacuum Tube | ● | |||||||||||||
Electric Stopper | ● | |||||||||||||
Eutectic Point Sensor | ○ | |||||||||||||
PC Software | ○ | |||||||||||||
Dryness Determiner | ○ | |||||||||||||
Vacuum Controller | ○ | |||||||||||||
Mist(oil&water) Separator | ○ | |||||||||||||
Anti Oil Return Device | ○ | |||||||||||||
Remote Controller | ○ | |||||||||||||
Function | PLC Touch Screen | ● | ||||||||||||
USB Date Export | ● | |||||||||||||
Inflatable Valve for Inert Gas | ● | |||||||||||||
Electric Heating Defrost | ● | |||||||||||||
Electric Heating Shelves | —— | |||||||||||||
Oil Heating Shelves | ● | |||||||||||||
Shelves Refrigeration | ● | |||||||||||||
Remark： ●：Standard configuration；○：Optional； ——：None | ||||||||||||||
