YANING Clean Room Hepa Filter Box Hepa Diffuser
- Category: >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.Dongguan Ltd.
Share on (1600449459439):
Product Overview
Description
Products Description
Hepa filter box description
HEPA diffuser, HEPA filter diffuser box, HEPA filter box
HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.
It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on
the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy
current from happening; great appearance; less investment; simple structure.
It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both
the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.
Therefore, it is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical
care, biochemistry and pharmacy etc.
HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.
It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on
the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy
current from happening; great appearance; less investment; simple structure.
It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both
the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.
Therefore, it is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical
care, biochemistry and pharmacy etc.
Hepa filter box advantages
1).Filter material:glassfiber
2).Frame:Aluminum profile
3).Efficiency:more than99.99%
2).Frame:Aluminum profile
3).Efficiency:more than99.99%
Standard Model Technology Parameter
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Standard Model Technology Parameter
Mini-Pleated HEPA filter | Model | Cabinet Size | Filter Size | Flange Size | (m3/h) Rated Air flow | ||
Tube on top | Tube on side | ||||||
Tube on side | YN-HU-484-S1 | 534×534×380 | 484×484×96 | 320*200 | 1000 | ||
YN-HU-610-T1 | YN-HU-610-S1 | 660×660×380 | 610×610×96 | 400*200 | 1500 | ||
YN-HU-915-T1 | YN-HU-915-S1 | 915×610×380 | 915×610×96 | 500*200 | 2000 | ||
YN-HU-1220-T1 | YN-HU-1220-S1 | 1220×610×380 | 1220×610×96 | 500*300 | 3000 | ||
Mini-Pleated HEPA filter | Model | Cabinet Size | Filter Size | Flange Size | (m3/h) Rated Air flow | ||
Tube on top | Tube on side | ||||||
YN-HU-484-T2 | YN-HU-484-S2 | 534×534×380 | 484×484×220 | 320*200 | 1000 | ||
YN-HU-610-T2 | YN-HU-610-S2 | 660×660×380 | 610×610×220 | 400*200 | 1500 | ||
YN-HU-915-T2 | YN-HU-915-S2 | 915×610×500 | 915×610×220 | 500*200 | 2000 | ||
YN-HU-1220-T2 | YN-HU-1220-S2 | 1220×610×500 | 1220×610×220 | 500*300 | 3000 | ||

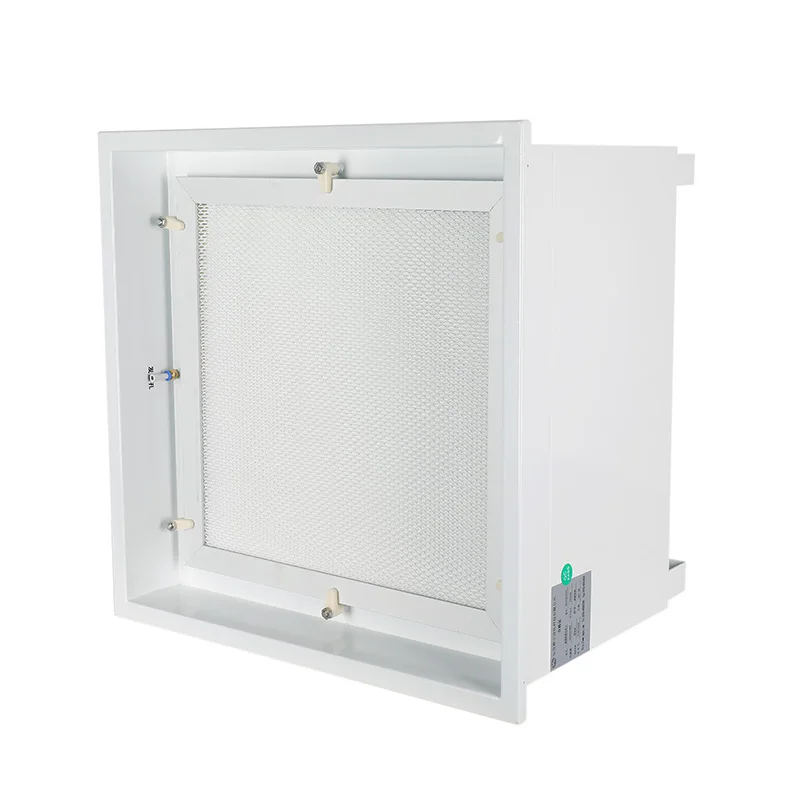

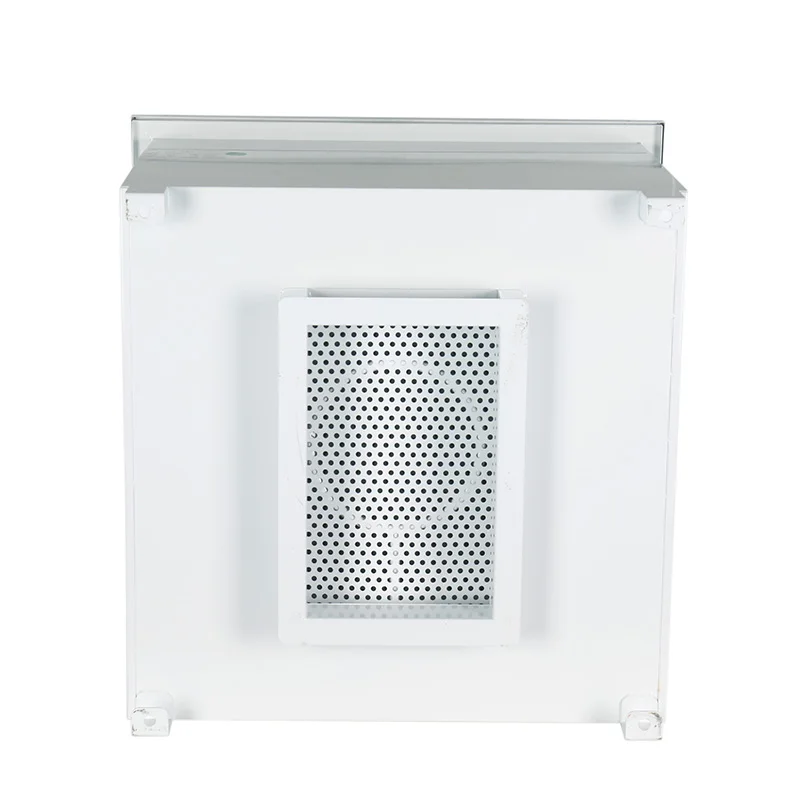

Detail Image:

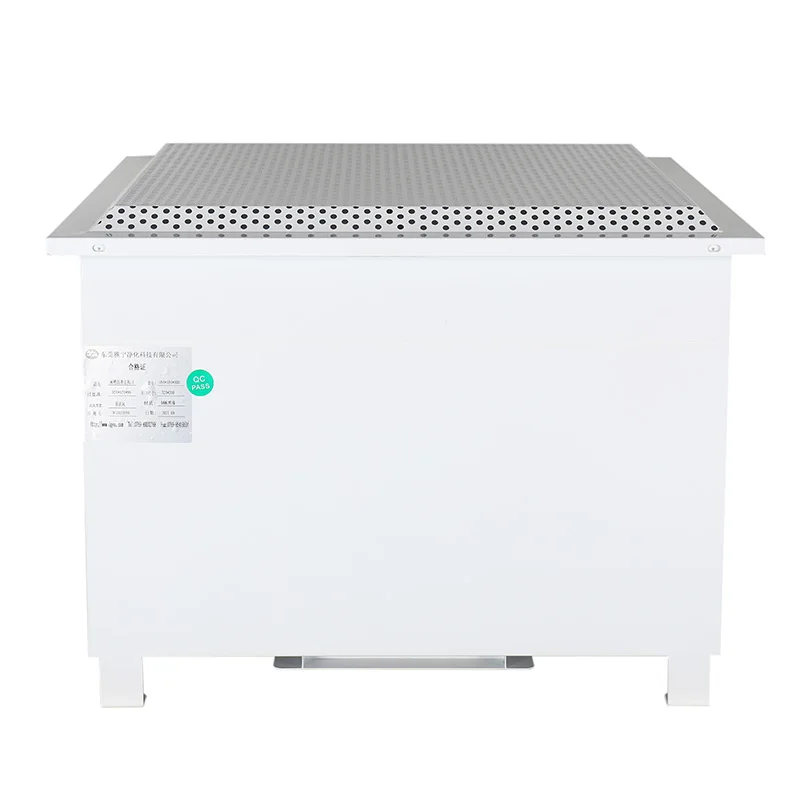

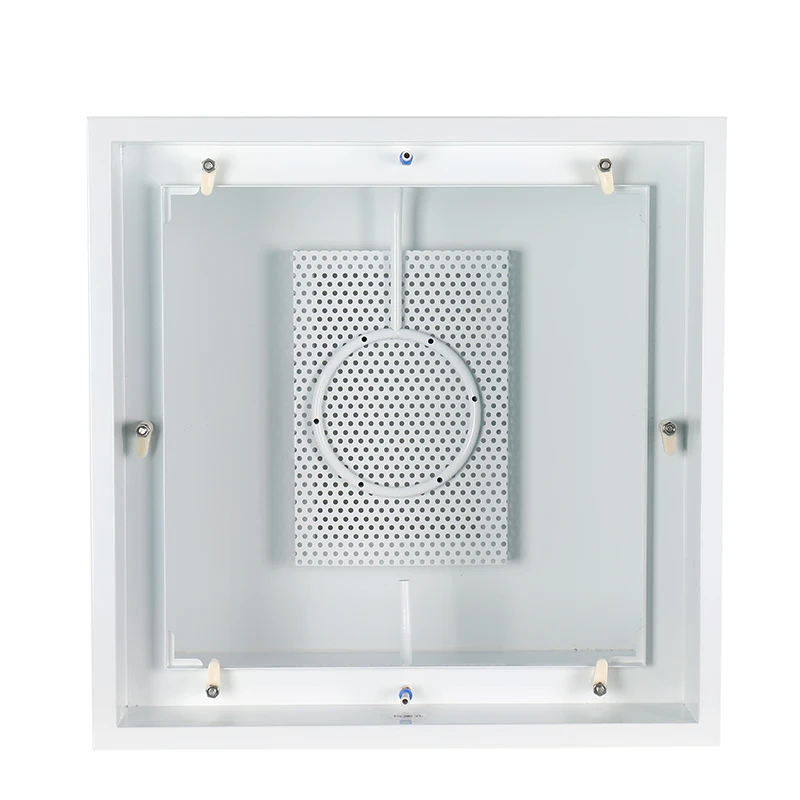

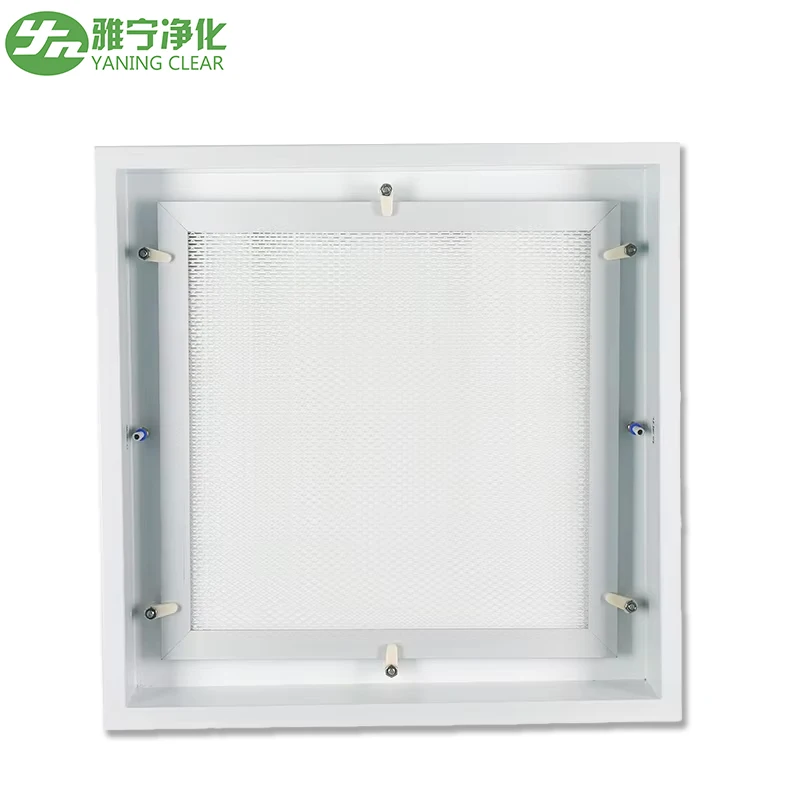

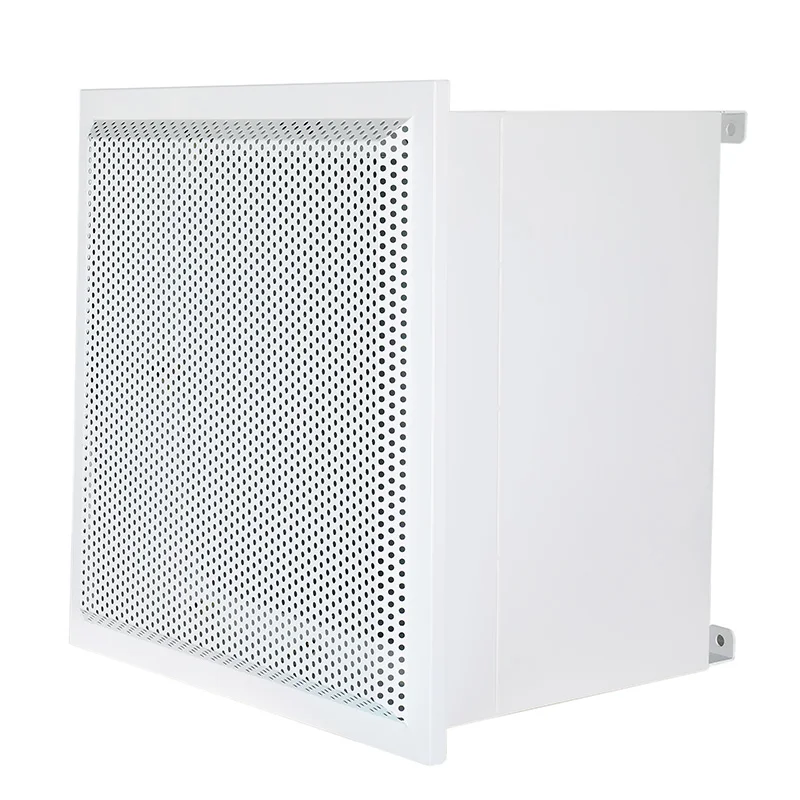

HEPA Filter Terminal Box
Product Description

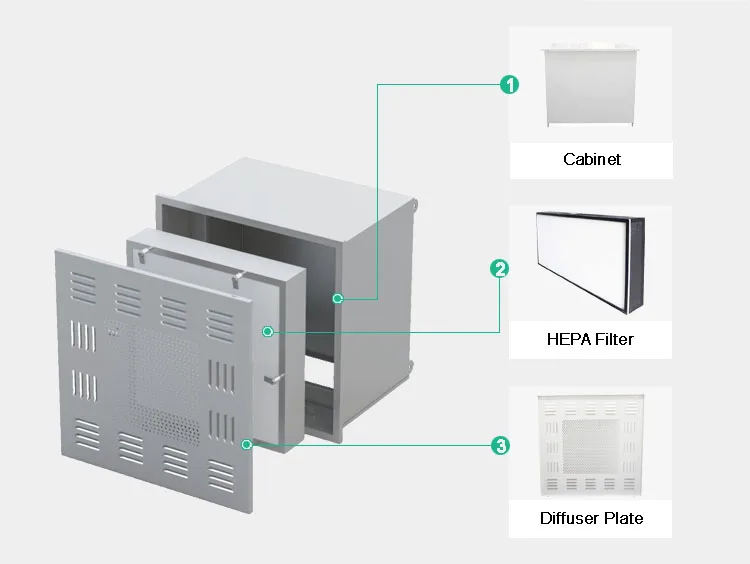

HEPA Filter Terminal Box is used as a terminal filtration device for the renovation and new construction of ISO 3 to ISO 6 clean rooms,and it is the key equipment to meet the purification requirements. It is mainly composed of a static pressure box, a hepa filter, a filter casing, and a diffusion type (diffuser) orifice plate. It has the advantages of beautiful shape, simple structure and simple construction. This equipment is widely used in biological laboratories, pharmaceutical factories, hospitals, food processing, electronics factories, painting and other air purification places.
Configuration Option
①5According to material: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
② According to air supply requirements: Side Air Supply: side flange air inlet and lower diffuser plate air supply. Top Air Supply: top flange air inlet, lower diffuser plate air supply.
③According to flange: square flange duct, round flange duct.
④ According to valve: Square manual control valve. Round manual control valve. Bottom regulating valve;

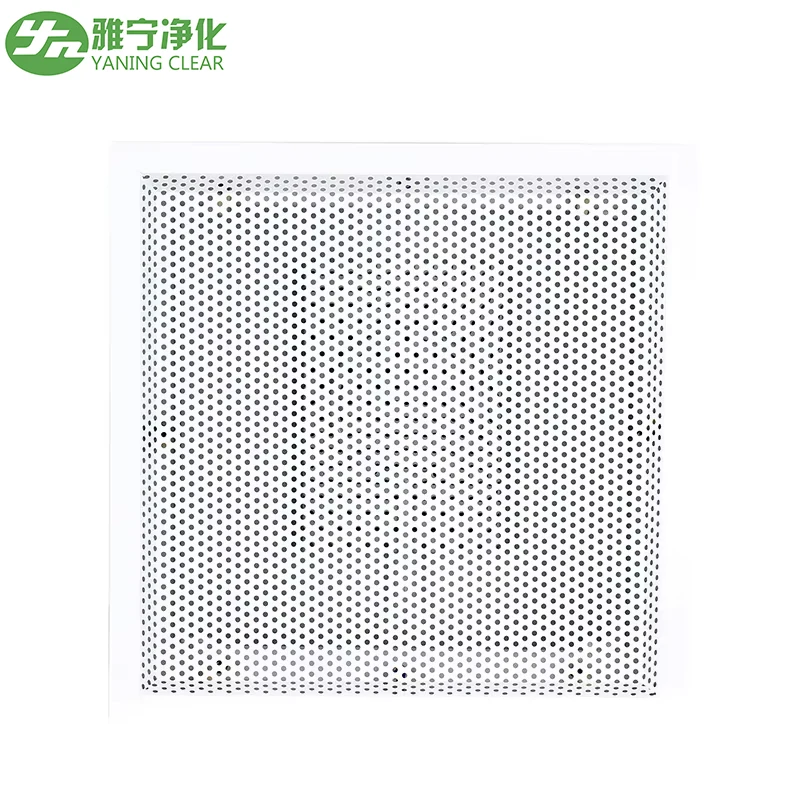

⑤According to diffuser: mesh steel plate, mesh/louver hole steel plate, gauze uniform flow film, louvers, etc.
② According to air supply requirements: Side Air Supply: side flange air inlet and lower diffuser plate air supply. Top Air Supply: top flange air inlet, lower diffuser plate air supply.
③According to flange: square flange duct, round flange duct.
④ According to valve: Square manual control valve. Round manual control valve. Bottom regulating valve;
⑤According to diffuser: mesh steel plate, mesh/louver hole steel plate, gauze uniform flow film, louvers, etc.
Product Parameters | ||||||||
Product Name | Hepa Box | |||||||
Product Model | YN-GS-01 | YN-GS-02 | YN-GS-03 | YN-GS-04 | ||||
Air Volume（m3/h) | 500 | 1000 | 1500 | 2000 | ||||
Air Diffuser Size (mm) | 415×415×16.5 | 579×579×16.5 | 705×705×16.5 | 1010×705×16.5 | ||||
Cabinet Size (mm) | 370×370×400 | 534×534×400 | 660×660×400 | 965×660×400 | ||||
Hepa Filter Size (mm) | 320×320×90 | 484×484×90 | 610×610×90 | 915×610×90 | ||||
Efficiency | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm | ||||
Flange Size (mm) | 200×200 | 320×200 | 400×200 | 500×200 | ||||

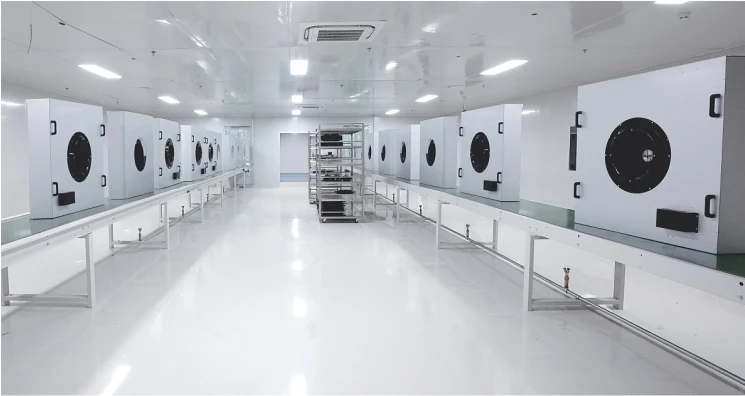

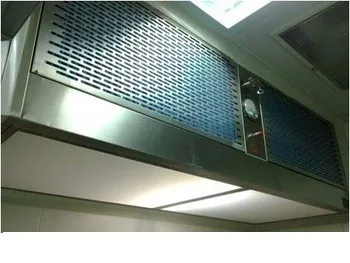

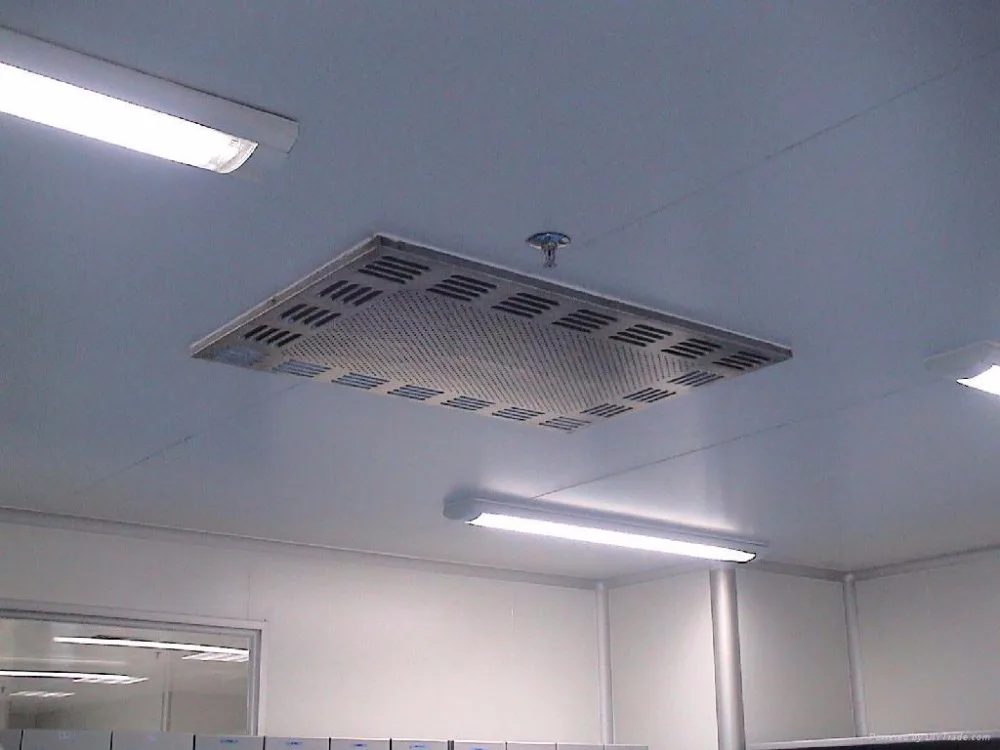

Success case show

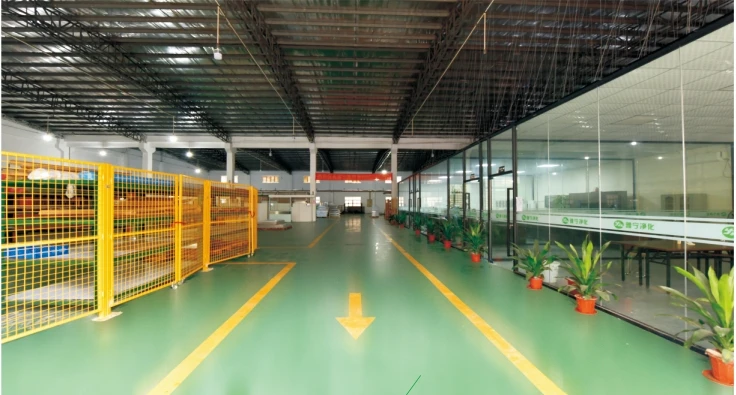

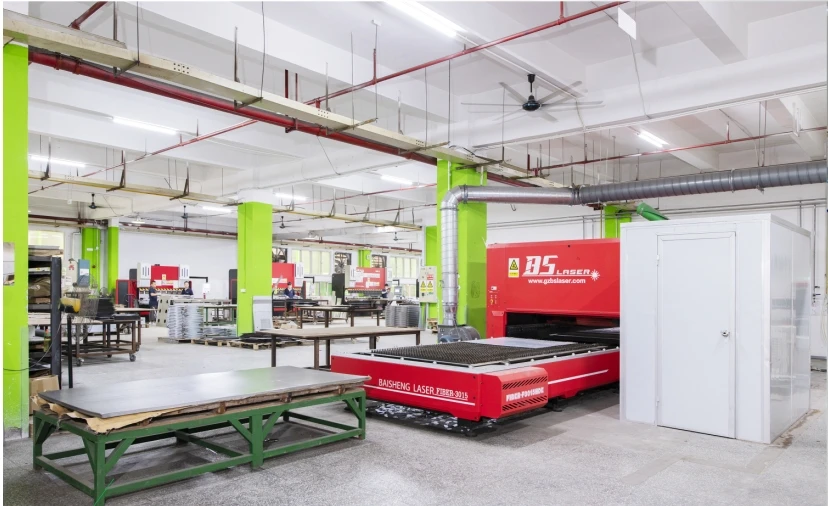

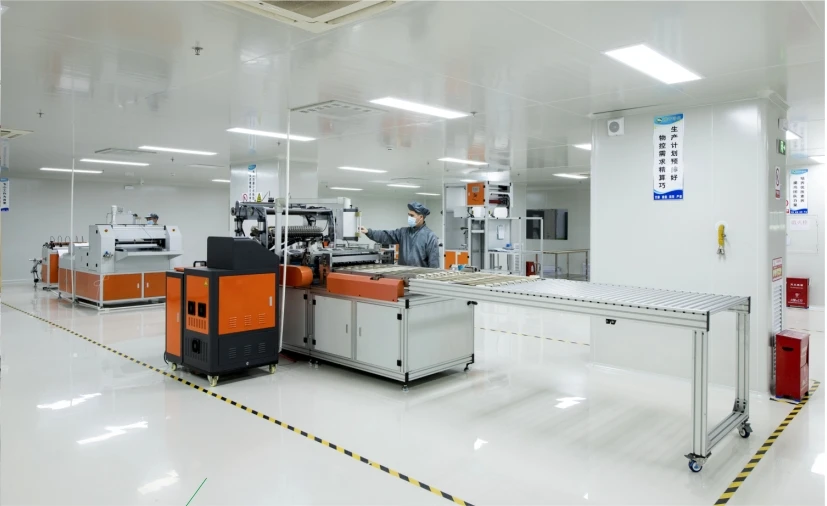

Our Factory
