300m 1000m Industrial Waterproof Water Well Borehole inspection camera and Downhole Camera Price
- Category: >>>
- Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.
Share on (1600449488985):
Product Overview
Description

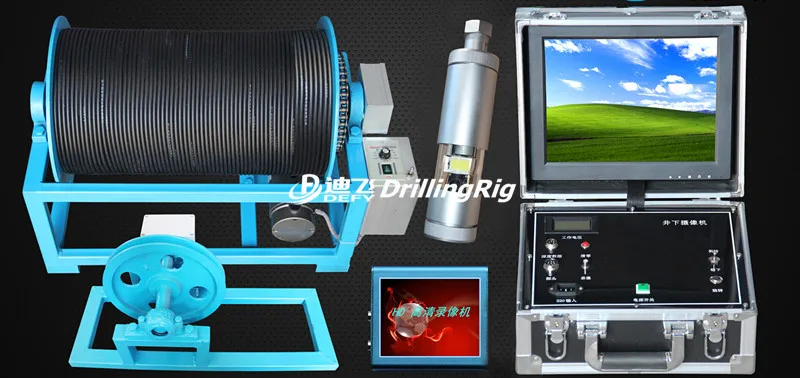

300m 1000m Industrial Waterproof Water Well Borehole inspection camera and Downhole Camera Price
Product Description
Main Specifications
Main Control Box | Aluminum Alloy Main Machine |
Winch | Electric Winch |
Display Screen | 12” High Brightness LED Monitor |
Panoramic Probe | Duel Camera |
Depth Counter | Depth accurate to 0.05m |
Well Logging Cable | Six-core Bearing Pull, Length Optional |
Centralizer | High Elasticity Stainless Steel Centralizer |
Detailed Parameters
| Main Control Box | |
 | * Aluminum Alloy Control Box * Depth Interface: Connect the depth sensor * Depth Zero: Please return the depth to zero before logging, so that the counting is accurate. * Monitor: 12” High Brightness LED Monitor, 210*310mm, Outdoor Visual, Screen resolution 1027*768 * Expansion Interface: Video Capture Expansion Interface |
Winch | |
 | * Electric Winch: control the speed and probe lift by the control button of the main control box * Downhole Pulley: Downhole pulley has the function of depth counting,but need the data line to connect the main control box to use * Motor: Permanent Magnet DC Motor * Winch: Iron Ram Stamping Wire Disc Motor * Split Docking Probe: Easy to exchange the probes of different size and specification. |
Camera | |
 | * Camera Size: Φ79mm(Φ50mm wide angle camera Optional) * Camera Material: Zinc-coated, 304 Stainless Steel optional * Camera Window: Explosion-proof Optical Acrylic Glass Or Explosion-proof Glass Window * Camera Pixels: CCD Camera, 1200 TVL High-definition Low-light * Lens Angle: Side 360° * Camera Light: Φ79mm dual camera, bottom camera has 6 lights, side camera has a luminous surface. Φ50mm wide angle camera, 6 or 9 lights * Brightness Adjustment: Front and rear lamp beads, can adjust the brightness of the light source through the button in the control box, five-level dimming. * Probe Pressure: 1500m, Pressure 15Mpa |
Pulley | |
 |
* Downhole Pulley: Downhole pulley has the function of depth counting, but need the data line to connect the main control box to use * Depth Counting Function: With Japanese Omron depth sensor, the depth display reaches millimeter |

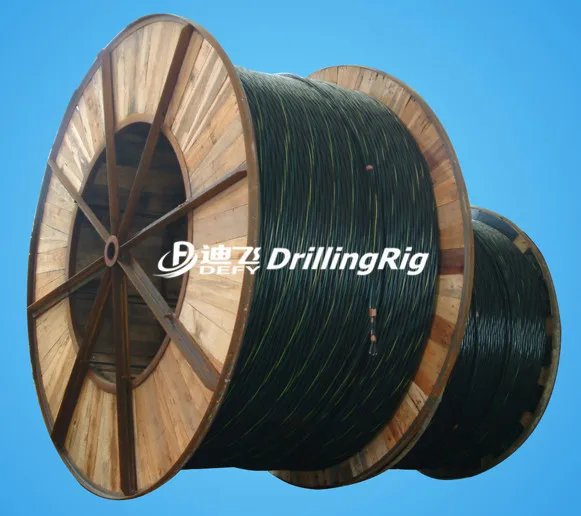

Logging Cable | |
 | * Cable Material: Custom Logging Cable * Bearing: 260KG * Outside Diameter: 8 mm * Temperature Tolerance: 65º |
DEFY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty for main machine.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
Related Products
 |  |  |
Difference models for choice:
Model | Drilling Caliber | Max. depth | Feature |
XY100 | 75~300mm | 100m | Disassemble drill tower; Small in size. |
XY-130 | 75~300mm | 130m | |
XY-150 | 75~400mm | 150m | |
XY-180 | 75~400mm | 180m | |
XY-200 | 75~400mm | 200m | |

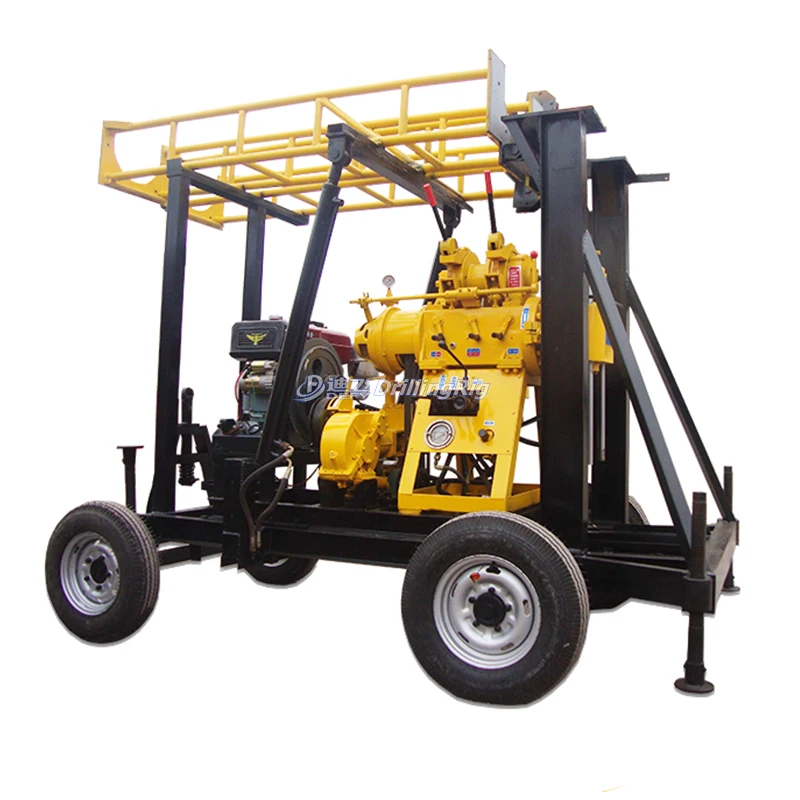

XY-200F | 75~400mm | 200m | Integrative drill tower; Easy to transport. |
XY-200C | 75~400mm | 200m | |

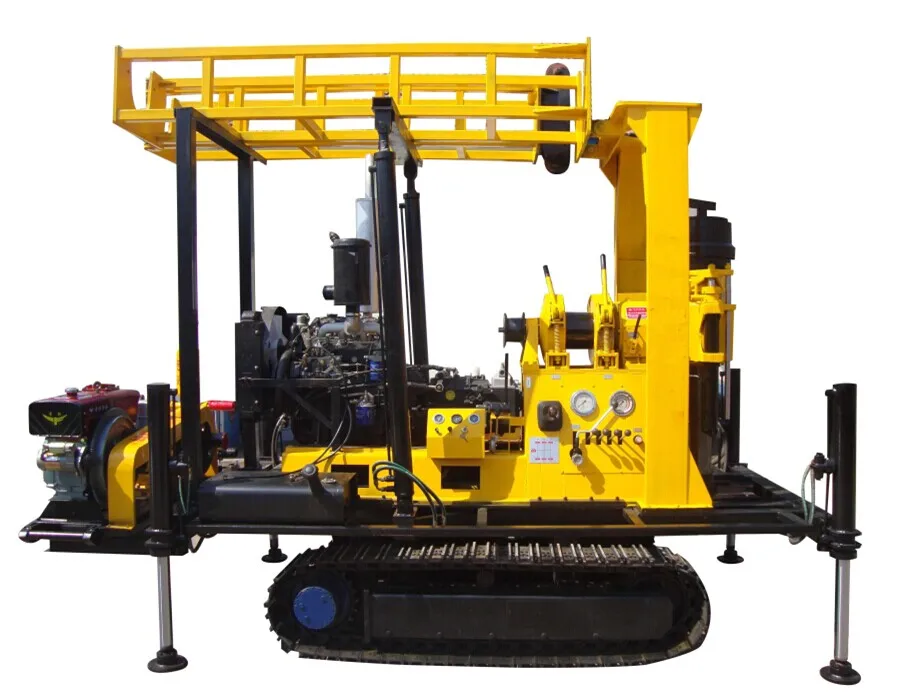

XY-600F | 75~500mm | 600m |
How to choose
How to choose a suitable drilling rig?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, Our experienced engineers will help you recommend suitable machine and price. If you have special demands, please tell us ahead.

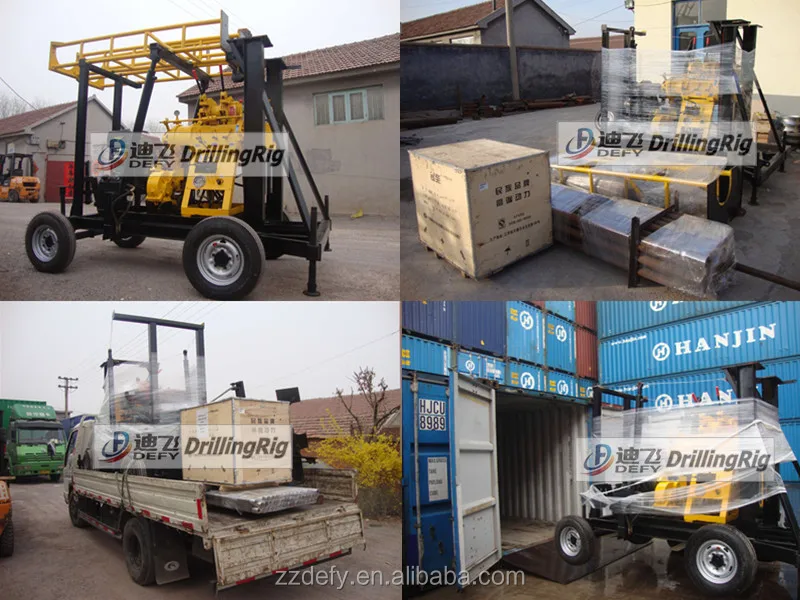

Packing & Shipping
About Us
Zhengzhou Defy Mechanical & Electrical Equipment Co.,Ltd. locates in High-tech zone of Zhengzhou city, China.
Our factory dedicates in manufacturing drilling rig since 1970s, more than 40 years' experience of production and development makes our product quality rank in the leading position at home and abroad.
We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.
Any interest in our drilling rig, please feel free to contact us!
