m type metal cable electrical gland brass m8
- Category: Cable Glands >>>
- Supplier: Yueqing,Jixiang,Connector,Co.,Ltd.
Share on:
Product Overview
Description
Metal cable electrical gland brass
Product Description
| Product Name: | Waterproof cable gland |
| Main material: | Nickel-plated brass |
| Standard size: | M8-M100; PG7-PG63; NPT1/4-NPT3; G1/4 -G3 |
| Certification: | RoHS, CE, TUV, IP68, ISO9001 |
| Notes: | Customization service is available |

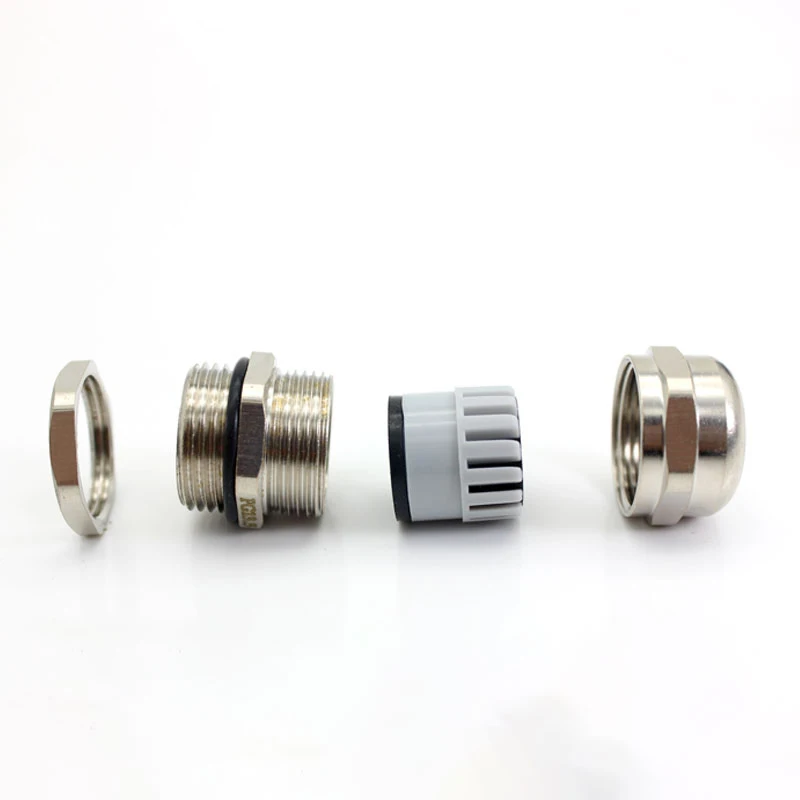

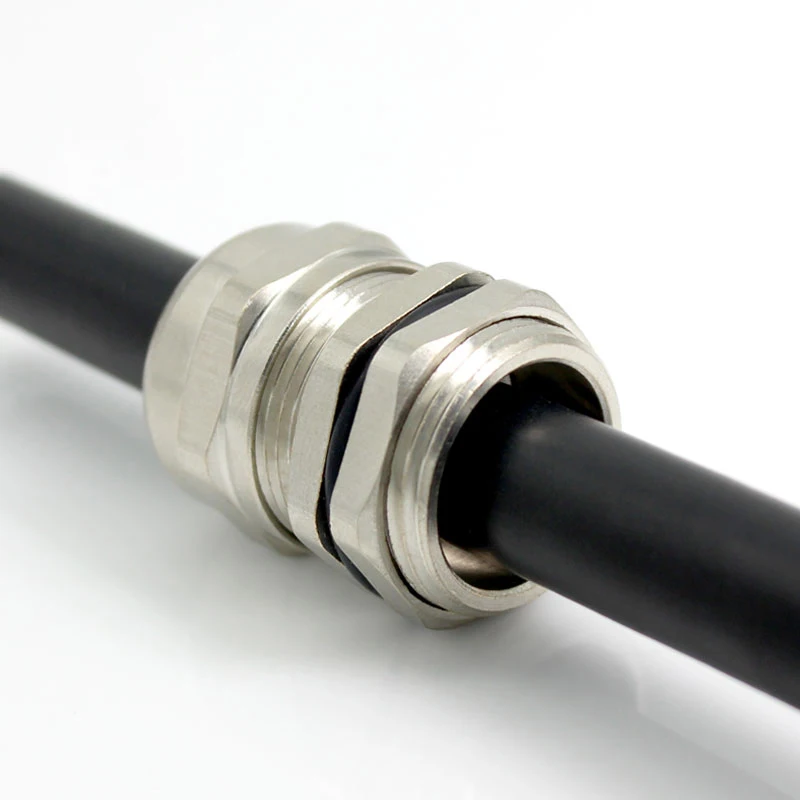

products Images
| AG item | Cable Range(mm) | Thread O.D.(mm) | Thread Length(mm) | Spanner Size(mm) |
| cable gland M8x1 | 2-5 | 8 | 5 | 12 |
| M10x1 | 3-6.5 | 10 | 7 | 14 |
| M12x1.5 | 3-6.5 | 12 | 7 | 14 |
| M14x1.5 | 4-8 | 14 | 7 | 17 |
| M16x1.5 | 4-8 | 16 | 8 | 18 |
| M18x1.5 | 5-10 | 18 | 8 | 20 |
| M20x1.5 | 6-12 | 20 | 8 | 22 |
| cM24x1.5 | 10-14 | 24 | 9 | 24/27 |
| M28x1.5 | 13-18 | 28 | 9 | 30 |
| M32x1.5 | 15-22 | 32 | 10 | 35 |
| ..... | ..... | ..... | ..... | ..... |
| M100x2 | 70-80 | 100 | 15 | 110 |
| cable gland PG7 | 3-6.5 | 12.5 | 7 | 14 |
| PG9 | 4-8 | 15.2 | 8 | 18 |
| PG11 | 5-10 | 18.6 | 8 | 20/21 |
| PG13.5 | 6-12 | 20.4 | 8 | 22 |
| PG16 | 10-14 | 22.5 | 9 | 24 |
| PG21 | 13-18 | 28.3 | 9 | 30/32 |
| ..... | ..... | ..... | ..... | ..... |
| PG63 | 42-52 | 72 | 15 | 78 |
| cable gland NPT1/4 | 3-6.5 | 13.6 | 7 | 14 |
| NPT3/8 | 4-8 | 17 | 8 | 18 |
| NPT1/2 | 6-12 | 21.2 | 8 | 22 |
| NPT3/4 | 13-18 | 26.5 | 9 | 30 |
| NPT1 | 18-25 | 33.2 | 11 | 40 |
| ..... | ..... | ..... | ..... | ..... |
| NPT3 | 65-70 | 88.6 | 15 | 98 |
| cable gland G1/4 | 3-6.5 | 13.1 | 7 | 14 |
| G3/8 | 4-8 | 16.6 | 8 | 18 |
| G1/2 | 6-12 | 20.9 | 8 | 22 |
| G3/4 | 13-18 | 26.4 | 9 | 30 |
| G1 | 18-25 | 33.2 | 11 | 40 |
| ..... | ..... | ..... | ..... | ..... |
| G3 | 65-70 | 87.8 | 15 | 94 |
Packing & Shipping
Cable gland packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Certification
Application
