Best Sale Automatic Toilet Paper Maxi Roll Kitchen Towel Paper Machine Manufacturer
- Category: >>>
- Supplier: Fujian Xinyun Construction Development Co. Ltd.
Share on (1600449588147):
Product Overview
Description
Product Overview

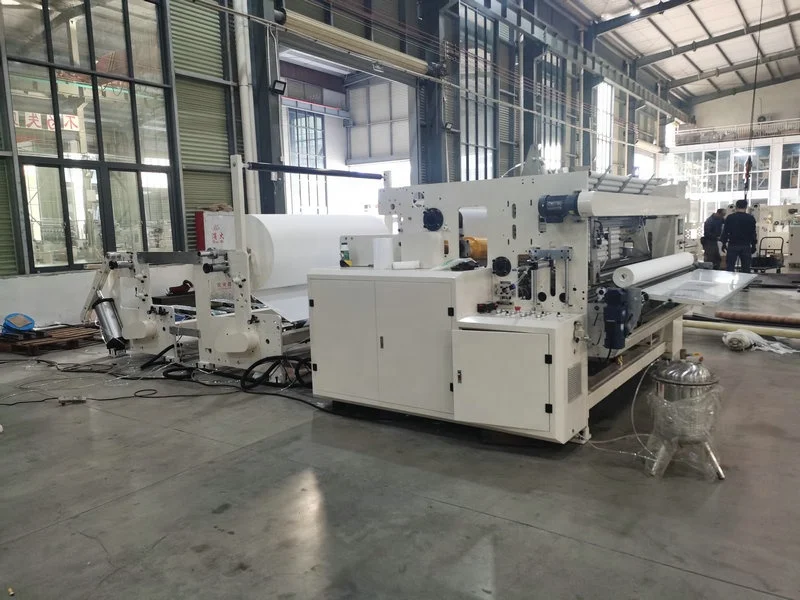

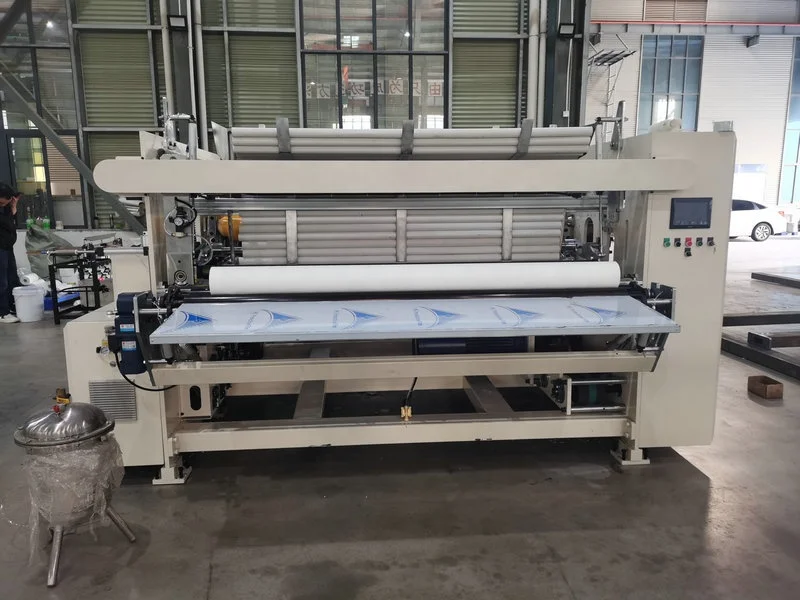

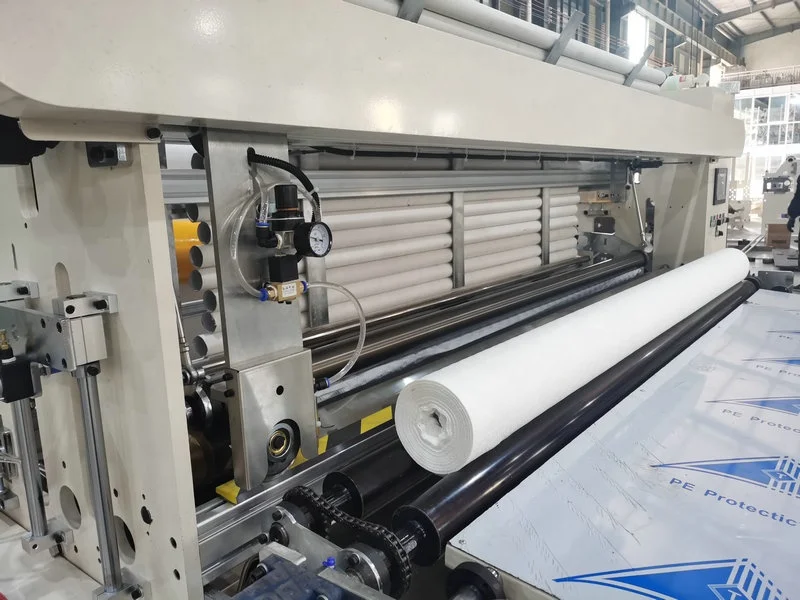

XY-TQ-B Best Sale Automatic Toilet Paper Maxi Roll
Kitchen Towel Paper Machine Manufacturer
Outline
The machine is wall type structure, more stable and with higher speed. It is controlled by PLC, people operate it through touch screen, the whole process is automatic. And Our machine can special-made according to clients’ requirements with embossing styles and glue lamination system.
The machine is wall type structure, more stable and with higher speed. It is controlled by PLC, people operate it through touch screen, the whole process is automatic. And Our machine can special-made according to clients’ requirements with embossing styles and glue lamination system.
The production process is: Unreeling — Embossing —Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Video Link: https://youtu.be/r8mkv57RIrs
Video Link: https://youtu.be/r8mkv57RIrs
Product Paramenters
Jumbo roll max width | 1750mm (Other size can be specified) |
Jumbo roll diameter | Φ1100mm |
Jumbo roll inner core diameter | 3inches(76.2mm) |
Finish product diameter | φ90-φ280mm |
Finish product Inner core diameter | φ38-φ76mm |
Perforation distance | 120-150mm |
Production speed | 180-230m/min |
PLC | INVT |
Pneumatic system | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Unwinding transmission | Variable stepless speed regulation |
Rewinding Unit | With core or coreless |
Details Images

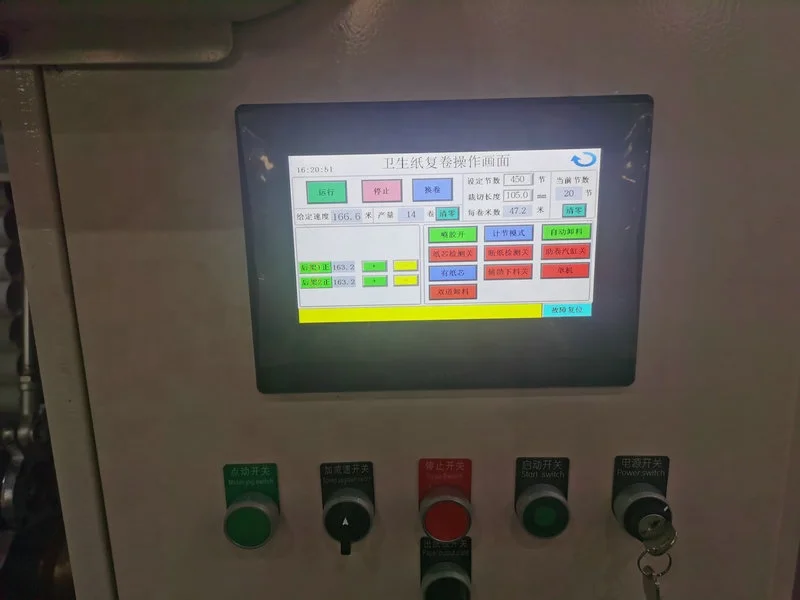

PLC Screen

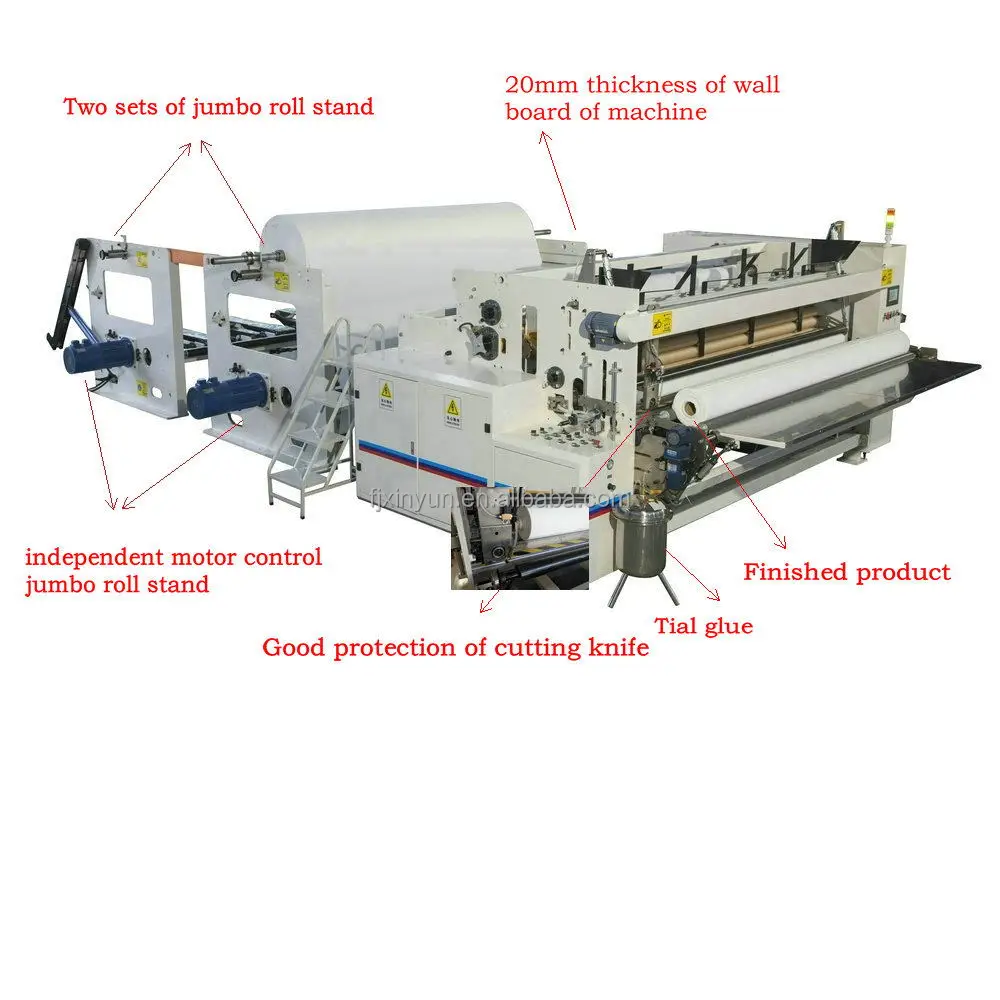

Two independent Jumbo Roll Stands
Glue Lamination System
Point to Point Embossing: 1.5mm depth
Steel to Rubber Embossing Devices.
Depth: 0.8mm
Customized Color Printing Device
(Flexo Printing)
Perforating Blades:
4 anvil blades（90-150mm）
2 anvil blades（180-300mm）
2 anvil blades（180-300mm）

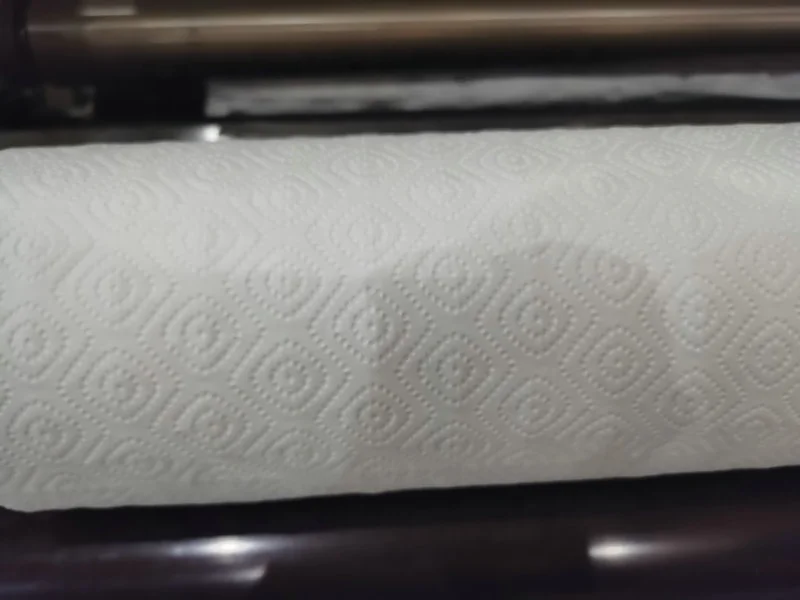

Finished Products
Related Products

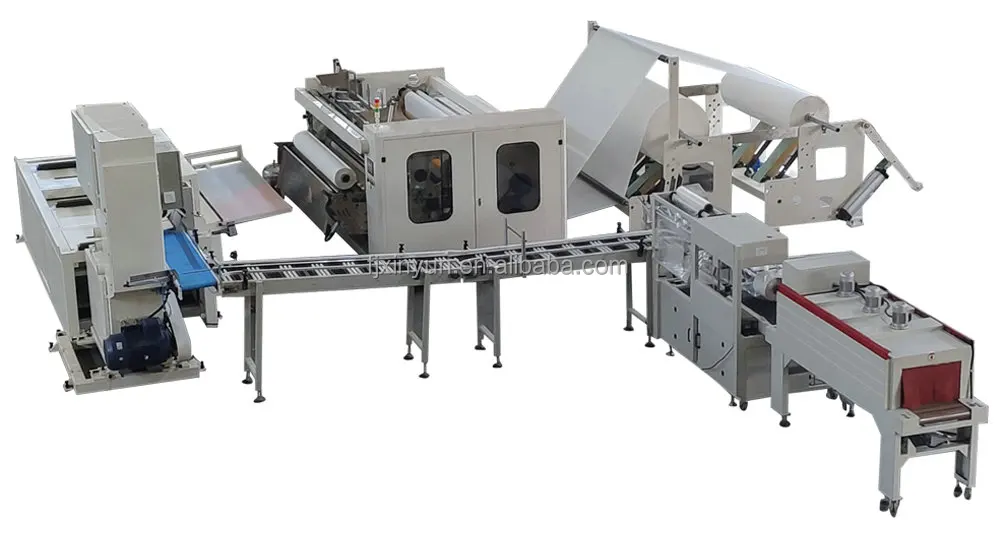

Automatic Maxi Roll Kitchen Towel Machine Production Line
Video Link: https://youtu.be/QBVlI8wDt-o
There are 3 machines in this production line.
1) XY-TQ-B Full Automatic Toilet Paper Making Machine
High speed:200 meters/minute
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-500 Automatic Maxi Roll Band Saw Cutting Machine
Capacity: 15-30 rolls/min
Cutting diameter:150-280mm
3) XY-TN-269 Automatic Maxi Roll Shrink Packing Machine
Capacity: 10-20 bags/min
1) XY-TQ-B Full Automatic Toilet Paper Making Machine
High speed:200 meters/minute
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-500 Automatic Maxi Roll Band Saw Cutting Machine
Capacity: 15-30 rolls/min
Cutting diameter:150-280mm
3) XY-TN-269 Automatic Maxi Roll Shrink Packing Machine
Capacity: 10-20 bags/min

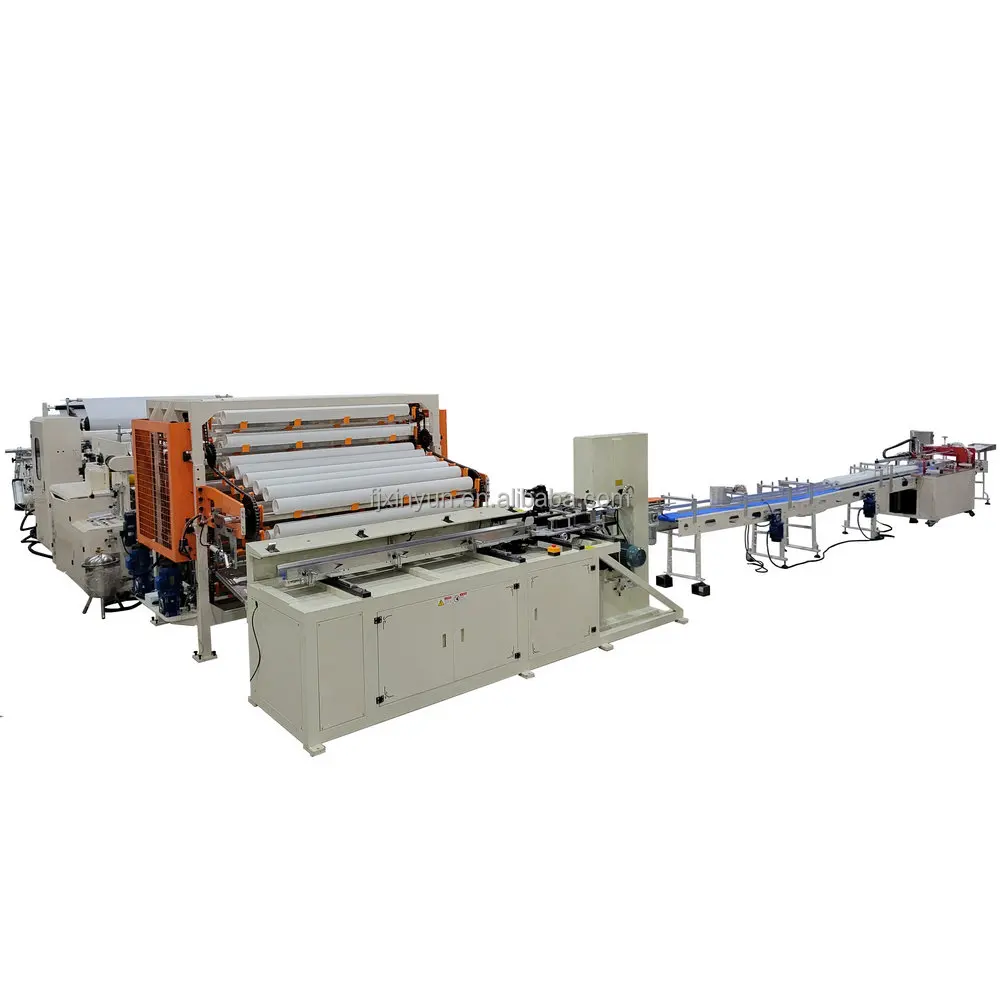

XY-TQ-A-G Semi Automatic Glue Laminated Toilet Paper Machine Production Line
Video Link: https://youtu.be/HaQO52gcpjE
There are four machines in this production line.
1) XY-TQ-B Full automatic glue laminated toilet paper making machine
High speed:200 meters/minute
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-203 Log Roll Accumulator
3) XY-AI-400 Automatic toilet paper band saw cutting machine
Capacity: 80-120 rolls/min
Cutting diameter:90-140mm
4) XY-AI-398A Semi automatic multi rolls packing machine with conveyor belt
Capacity: 8-10 bags/min
5) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min
Video Link: https://youtu.be/RDqnvwmzsvQ
1) XY-TQ-B Full automatic glue laminated toilet paper making machine
High speed:200 meters/minute
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-203 Log Roll Accumulator
3) XY-AI-400 Automatic toilet paper band saw cutting machine
Capacity: 80-120 rolls/min
Cutting diameter:90-140mm
4) XY-AI-398A Semi automatic multi rolls packing machine with conveyor belt
Capacity: 8-10 bags/min
5) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min
Video Link: https://youtu.be/RDqnvwmzsvQ

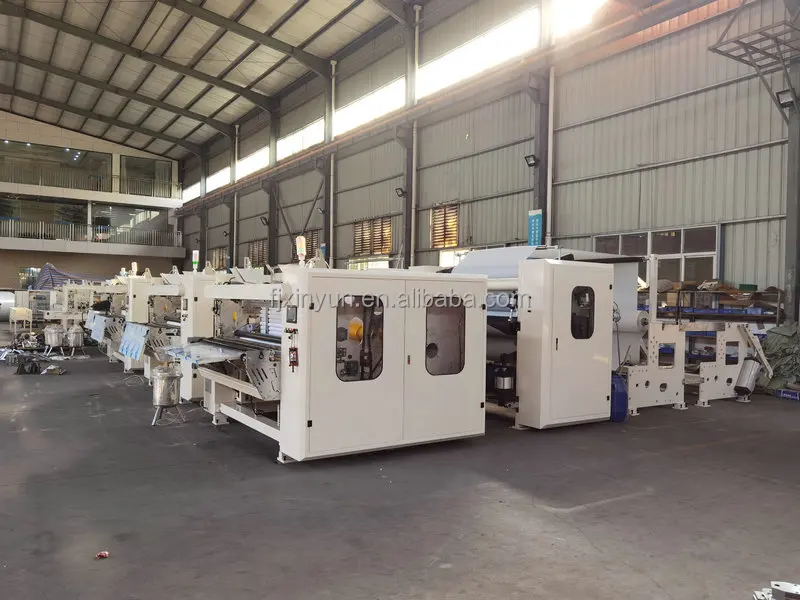

Workshop
Packing & Delivery
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Why Choose Us
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours. For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance. We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
